HEALTH RIDER 8.5ex Crosstrainer HREL8806.1 User manual

Model No. HREL8806.1
Serial No.
Write the serial number in the
space above for reference.
USER’S MANUAL
Visit our website at
www.healthrider.com
new products, prizes,
fitness tips, and much more!
Serial Number Decal
(on underside of frame)
QUESTIONS?
As a manufacturer, we are commit-
ted to providing complete customer
satisfaction. If you have questions,
or if parts are damaged or missing,
PLEASE DO NOT CONTACT THE
STORE; please contact Customer
Care.
IMPORTANT: You must note the
product model number and serial
number (see the drawing above)
before contacting us:
CALL TOLL-FREE:
1-888-922-4222
Mon.–Fri. 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.healthriderservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.

TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
HEALTHRIDER is a registered trademark of ICON IP, Inc.
WARNING DECAL PLACEMENT
The warning decal shown here
has been applied in the location
shown. If the decal is missing
or illegible, call the telephone
number on the front cover of
this manual and request a free
replacement decal. Apply the
decal in the location shown.
Note: The decal may not be
shown at actual size.

3
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over the age of 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. Your elliptical exerciser is intended for home
use only. Do not use your elliptical exerciser
in a commercial, rental, or institutional set-
ting.
4. Keep your elliptical exerciser indoors, away
from moisture and dust. Place your elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is enough clearance
around your elliptical exerciser to mount,
dismount, and use it.
5. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from your elliptical exerciser at all times.
7. Your elliptical exerciser should not be used
by persons weighing more than 250 lbs.
(113 kg).
8. Wear appropriate exercise clothes when
exercising; do not wear loose clothes that
could become caught on your elliptical exer-
ciser. Always wear athletic shoes for foot
protection.
9. Hold the handgrip pulse sensor or the handle-
bars when mounting, dismounting, or using
your elliptical exerciser.
10. Keep your back straight while using your
elliptical exerciser; do not arch your back.
11. The pulse sensor is not a medical device.
Various factors, including the user’s move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. When you stop exercising, allow the pedals
to slowly come to a stop.
13. If you feel pain or dizziness while exercising,
stop immediately and cool down.
14. Use your elliptical exerciser only as
described in this manual.
15. To reduce the risk of electric shock, do not
remove the cover or the back of the televi-
sion. There are no user serviceable parts
inside. Refer servicing to qualified service
personnel.
16. To protect the treadmill and TV during light-
ning storms, unplug the power cord from the
wall outlet and disconnect the cable system.
This will prevent damage due to lightning
and power line surges.
17. Upon completion of any service or repairs to
the treadmill or the television, ask the ser-
vice technician to perform safety checks to
confirm that the unit is in proper operating
condition.
Note to CATV system installer: This reminder is
provided to call the CATV system installer’s
attention to Article 820-40 of the NEC that pro-
vides guidelines for proper grounding and, in
particular, specifies that the cable ground shall
be connected to the grounding system of the
building, as close to the point of cable entry as
practical.
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical exerciser before using your elliptical
exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
IMPORTANT PRECAUTIONS

4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary HEALTHRID-
ER®8.5 EX CROSSTRAINER elliptical exerciser. The
8.5 EX CROSSTRAINER elliptical exerciser provides
a wide array of features, including a personal televi-
sion, designed to make your workouts at home more
effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front
cover of this manual. To help us assist you, note the
product model number and serial number before con-
tacting us. The model number is HREL8806.1. The
serial number can be found on a decal attached to the
elliptical exerciser (see the front cover of this manual
for the location of the decal).
To avoid a registration fee for any service needed
under warranty, you must register the exerciser at
www.healthriderservice.com/registration.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handgrip Pulse Sensor
Wheel
Pedal
Console/Personal Television
Water Bottle Holder*
Accessory Tray
Leveling Foot
*No water bottle is included
Handlebar
Leveling Foot

5
ASSEMBLY
To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included hex keys, assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .

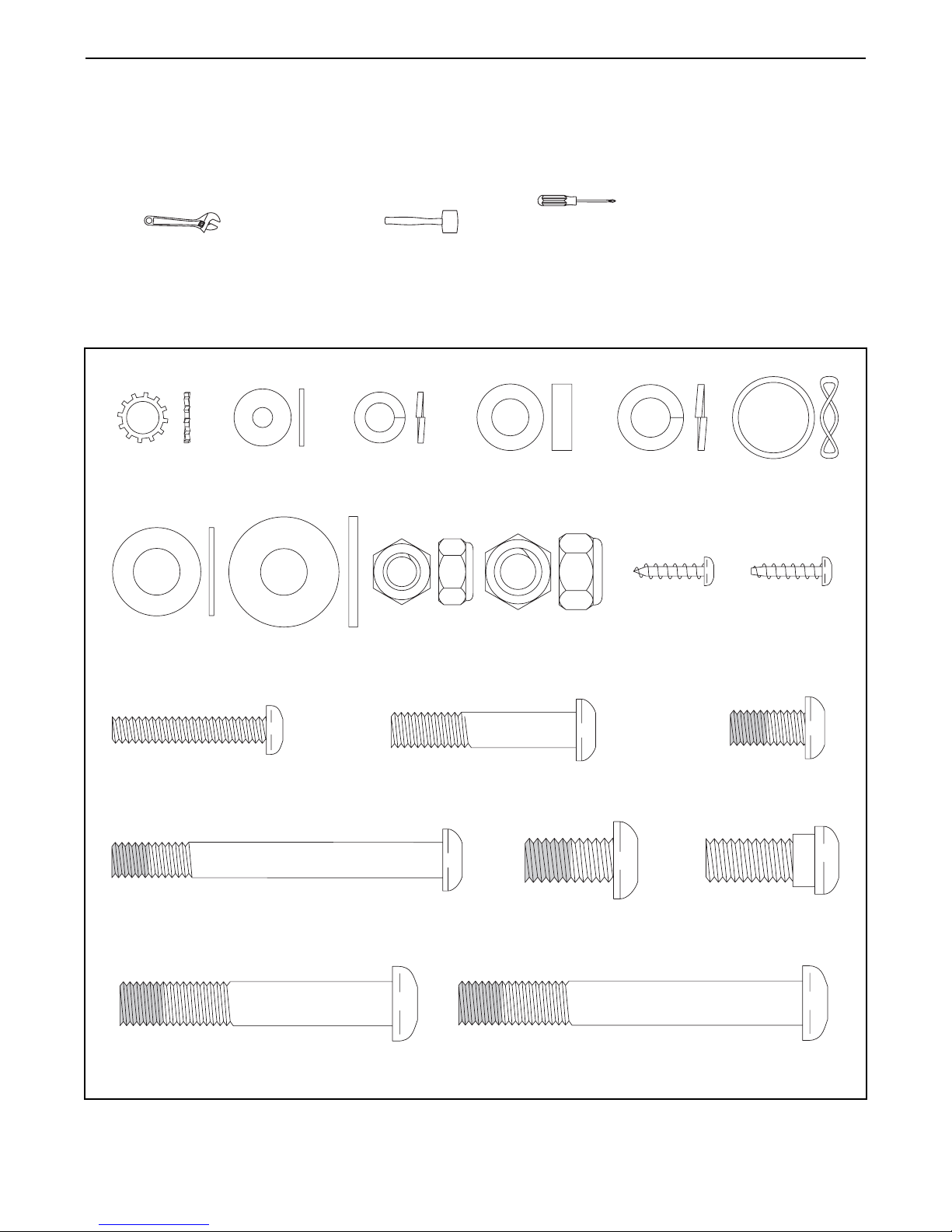

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-
ses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The
number following the parentheses is the quantity needed for assembly. Note: Some small parts may have
been preassembled. If a part is not in the hardware kit, check to see if it has been preassembled.
M4 x 16mm
Self-tapping
Screw (79)–16
M8 x 42mm Bolt
(71)–4
M10 x 20mm x
1mm Washer
(81)–2
M4 x 16mm
Screw (86)–8
M6 x 35mm Phillips
Screw (87)–8
M6 Split
Washer (88)–8
M10 x 23mm Shoulder
Screw (80)–2
M4 x 13mm
Washer (93)–2
M10 x 25mm
Washer (94)–10
M8 Nylon
Locknut (96)–4
M10 Nylon
Locknut (97)–2
Wave Washer
(98)–8
Star Washer
(100)–3
M8 x 15mm x 4.5mm
Washer (99)–4
M8 Split
Washer (72)–4
M10 x 20mm Patch
Screw (91)–10
M8 x 16mm Patch
Screw (95)–3
M8 x 75mm Patch
Screw (107)–4
M10 x 78mm Patch Screw (90)–2
M10 x 62mm Patch Bolt (89)–2

6
1.
Attach the two Wheels (25) to the Front
Stabilizer (35) with two M10 x 62mm Patch Bolts
(89) and two M10 Nylon Locknuts (97).
Attach two Leveling Feet (26) to the underside
of the Front Stabilizer (35).
2. Orient the Front Stabilizer (35) as shown. Have
a second person tip the Frame (2) backward.
Attach the Front Stabilizer (35) to the Frame with
two M10 x 78mm Patch Screws (90).
97
26
26
1
2
89
89
25
25
90
35
35
2
3. Position the Base (1) near the Frame (2) as
shown. See the inset drawing. Attach two
Leveling Feet (26) to the underside of the Base.
Have a second person tip the Frame (2) for-
ward. Insert the Base (1) into the Frame. Attach
the Base with four M8 x 75mm Patch Screws
(107), four M8 Split Washers (72), and four
M8 x 15mm x 4.5mm Washers (99).
2
1
3
1
99
72
107 107
26
26
To make assembly easier, read the
information on page 5 before you begin
assembling the elliptical exerciser.
72
99

7
5. Have a second person hold the Upright (6) near
the Frame (2) as shown.
Pull the Wire Harness (48) and the Coaxial
Cable (109) out of the Frame (2) and insert them
upward through the Upright (6). Do not let the
Wire Harness, the Coaxial Cable, or the Pulse
Wire (110) fall into the Upright; use a piece of
tape or an elastic band to hold the wires in place
until step 13.
Insert the Upright (6) into the Frame (2). Attach
the Upright with three M8 x 16mm Patch
Screws (95) and three Star Washers (100).
Avoid pinching the Wires (48, 110) and the
Coaxial Cable (109) between the Upright and
the Frame.
4. Hook the front ends of the Frame Covers (105,
106) together. Attach each Frame Cover to the
Frame (2) with three M4 x 16mm Self-tapping
Screws (79).
4
79
79
105
2
106
5
6
95
95
95
48
109
110
100
100
100
2
Avoid pinching
the wires and
cable during
this step

8
7
11
71
8
96

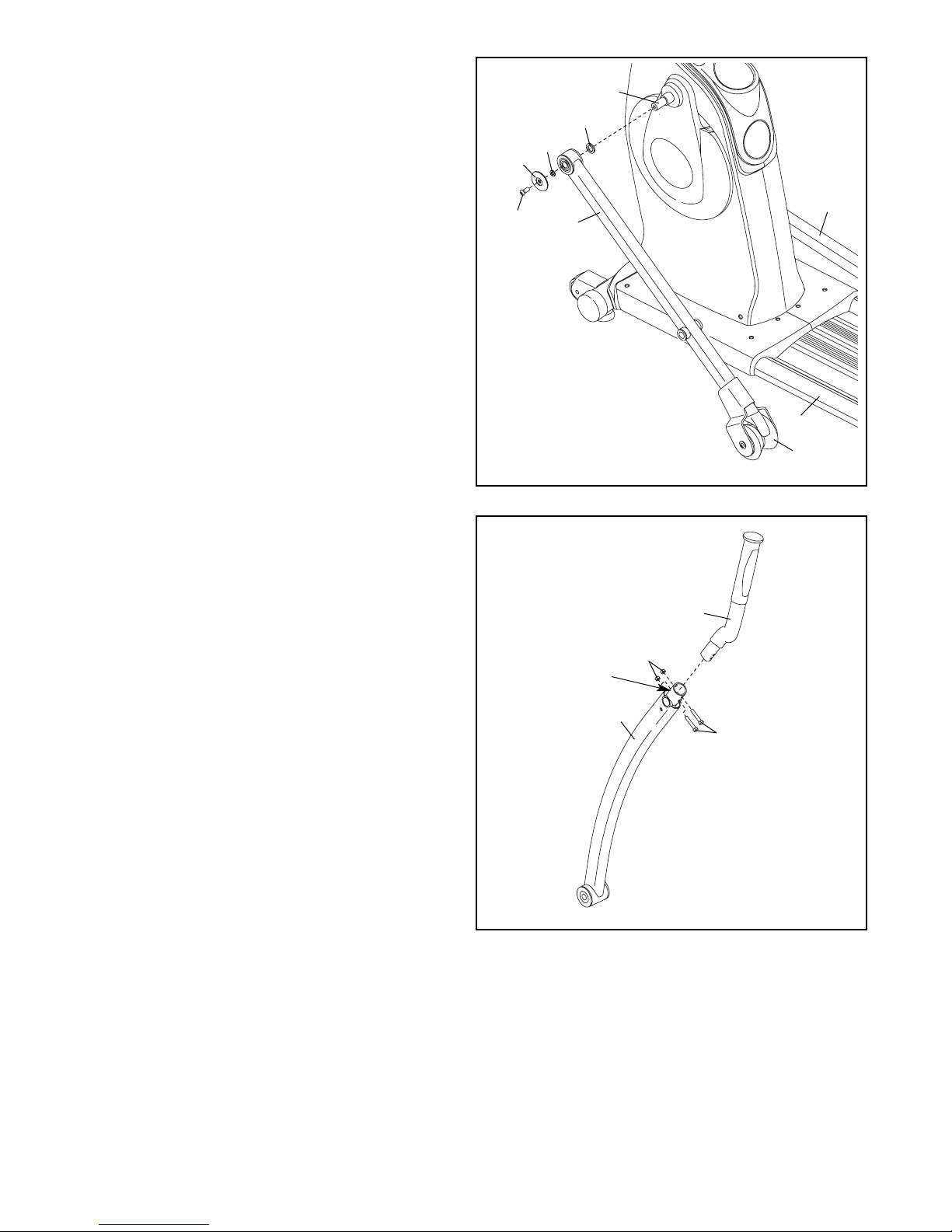

7. Identify the Left Handlebar (8), which is marked
with a “Left” sticker. Insert the Left Handlebar
into one of the Handlebar Legs (11) as shown.
Attach the Left Handlebar (8) with two
M8 x 42mm Bolts (71) and two M8 Nylon
Locknuts (96). Make sure that the Nylon
Locknuts are inside the hexagonal holes.
Assemble the Right Handlebar and the other
Handlebar Leg (not shown) in the same way.
Hexagonal
Holes
6. Orient the Left Roller Leg (12), which is marked
with a “Left” sticker, near the left Crank Arm (36)
as shown.
Apply a small amount of the included grease to
both sides of a Wave Washer (98). Slide the
Wave Washer onto the end of the left Crank Arm
(36). Next, slide the Left Roller Leg (12) onto the
Crank Arm and set the Roller (22) on the Base
(1). Attach the Left Roller Leg with an M10 x
20mm Patch Screw (91), a Crank Axle Cap (30),
and an M10 x 25mm Washer (94).
Repeat this step to attach the Right Roller
Leg (21) to the right Crank Arm (not shown).
12
21
1
36
91
30
94
98
6
22

9

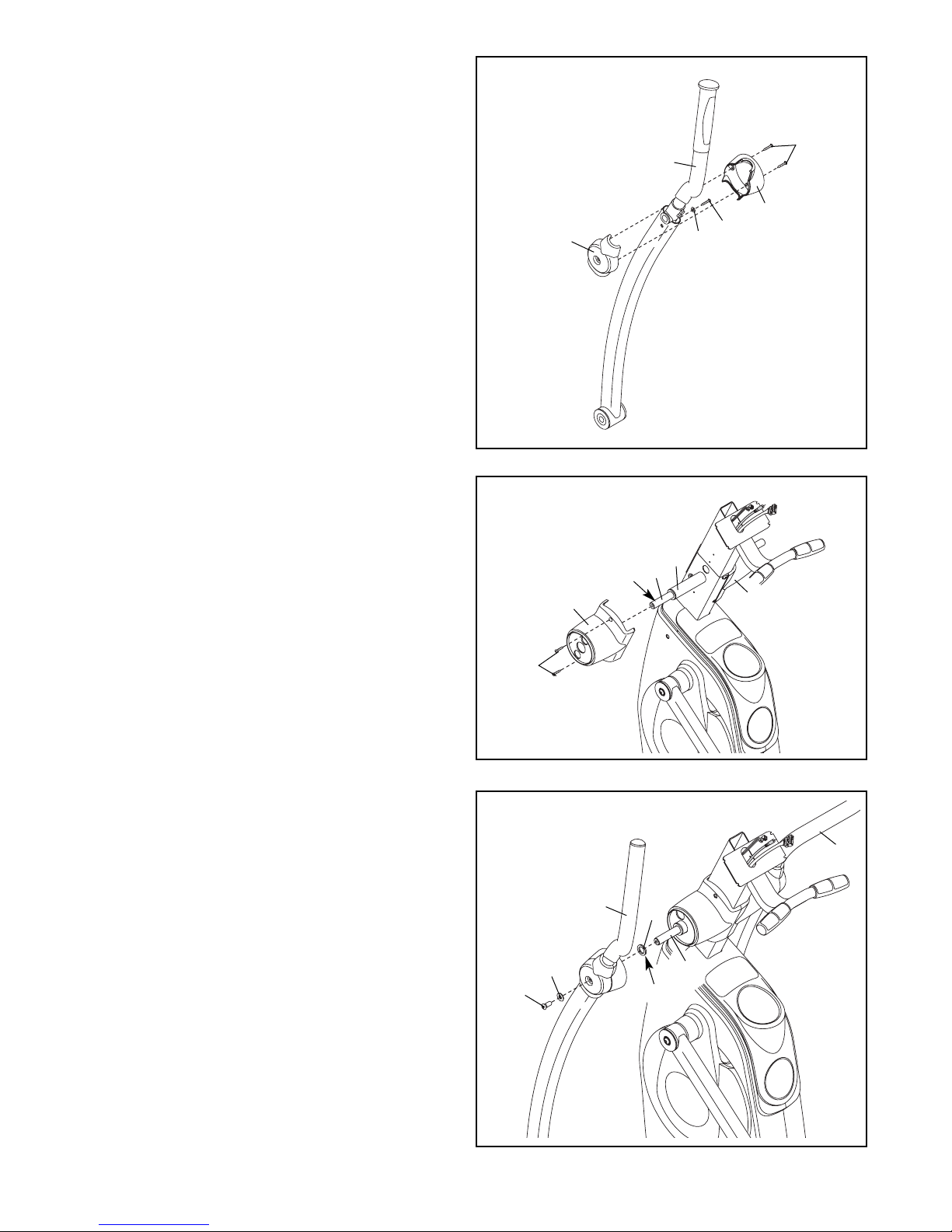

8. Attach Inner and Outer Handlebar Covers (18,
19) around the Left Handlebar (8) with three M4
x 16mm Self-tapping Screws (79) and an M4 x
13mm Washer (93). Start all three Self-tapping
Screws before tightening any of them.
Repeat this step for the Right Handlebar (not
shown).
8
79
79
93
19
8
18
9. Apply a generous amount of grease to the
Pivot Axle (65), and insert the Pivot Axle into the
Frame (2).
Attach each Frame Cover (17) to the Frame (2)
with two M4 x 16mm Screws (86).
9
Grease 65
17
86
10. Apply a small amount of grease to both sides of
a Wave Washer (98). Slide the Wave Washer
onto the left end of the Pivot Axle (65). Next,
slide the Left Handlebar (8) onto the Pivot Axle
as shown. Attach the Left Handlebar with an
M10 x 23mm Shoulder Screw (80) and an
M10 x 20mm x 1mm Washer (81).
Repeat this step for the Right Handlebar (9).
10
98
8
9
80
81
2
65
17
Grease

10
11. Identify the Left Pedal (13) and the Left Pedal
Leg (14), which are marked with “Left” stickers,
and orient them as shown.
Attach the Left Pedal (13) to the Left Pedal
Leg (14) with four M6 x 35mm Phillips
Screws (87) and four M6 Split Washers (88).
Start all four Phillips Screws before tighten-
ing any of them.
Repeat this step to attach the Right Pedal to
the Right Pedal Leg (not shown).
11
12. Apply a generous amount of grease to two Pedal
Leg Axles (32). Insert one Pedal Leg Axle into
the lower end of the Left Handlebar Leg (11).
Insert the other Pedal Leg Axle into the Left
Roller Leg (12).
Apply a small amount of grease to both sides of
two Wave Washers (98). Slide a Wave Washer
onto each Pedal Leg Axle (32).
13. Orient the Left Pedal Leg (14) as shown, and
slide it onto the Pedal Leg Axles (32). Attach the
Left Pedal Leg to the Left Handlebar Leg (11)
with two M10 x 20mm Patch Screws (91), two
Axle Caps (31), and two M10 x 25mm
Washers (94).
Attach the Left Pedal Leg (14) to the Left Roller
Leg (12) with two M10 x 20mm Patch
Screws (91) and two M10 x 25mm Washers
(94); do not overtighten the Patch Screws.
The Legs (11, 14, 12) must pivot freely.
Repeat step 12 and this step for the Right
Pedal Leg (not shown).
12
13
14
88
87
87
88
11
32
98
12
Grease
98
32
Grease
11
32
94 91
94
91
31
91 94
91
94
12
14
32
13
31

11
14. Have a second person hold the Console (5) near
the Upright (6) as shown. Connect the console
wire harness to the Wire Harness (48), connect
the console cable to the Coaxial Cable (109),
and connect the console pulse wire to the Pulse
Wire (110). Insert the excess wire and cable
downward into the Upright (6).
Attach the Console (5) to the Upright (6) with
four M4 x 16mm Self-tapping Screws (79).
Avoid pinching the wires and cables during
this step.
16. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
Plug the power cord into the power socket at the rear of the elliptical exerciser (see HOW TO PLUG IN THE
POWER CORD on page 13). IMPORTANT: If the elliptical exerciser has been exposed to cold tempera-
tures, allow it to warm to room temperature before plugging in the power cord. If you do not do this,
the console displays or other electronic components may become damaged.
14 5
79 48
Console Cable
Console
Pulse Wire
109
110
79
79
Console Wire Harness
15. Attach the Left and Right Upright Covers (10, 64)
to the Upright (6) with four M4 x 16mm
Screws (86).
10
86
86
64
15
Avoid pinching
the wires and
cable during
this step
6
6

12

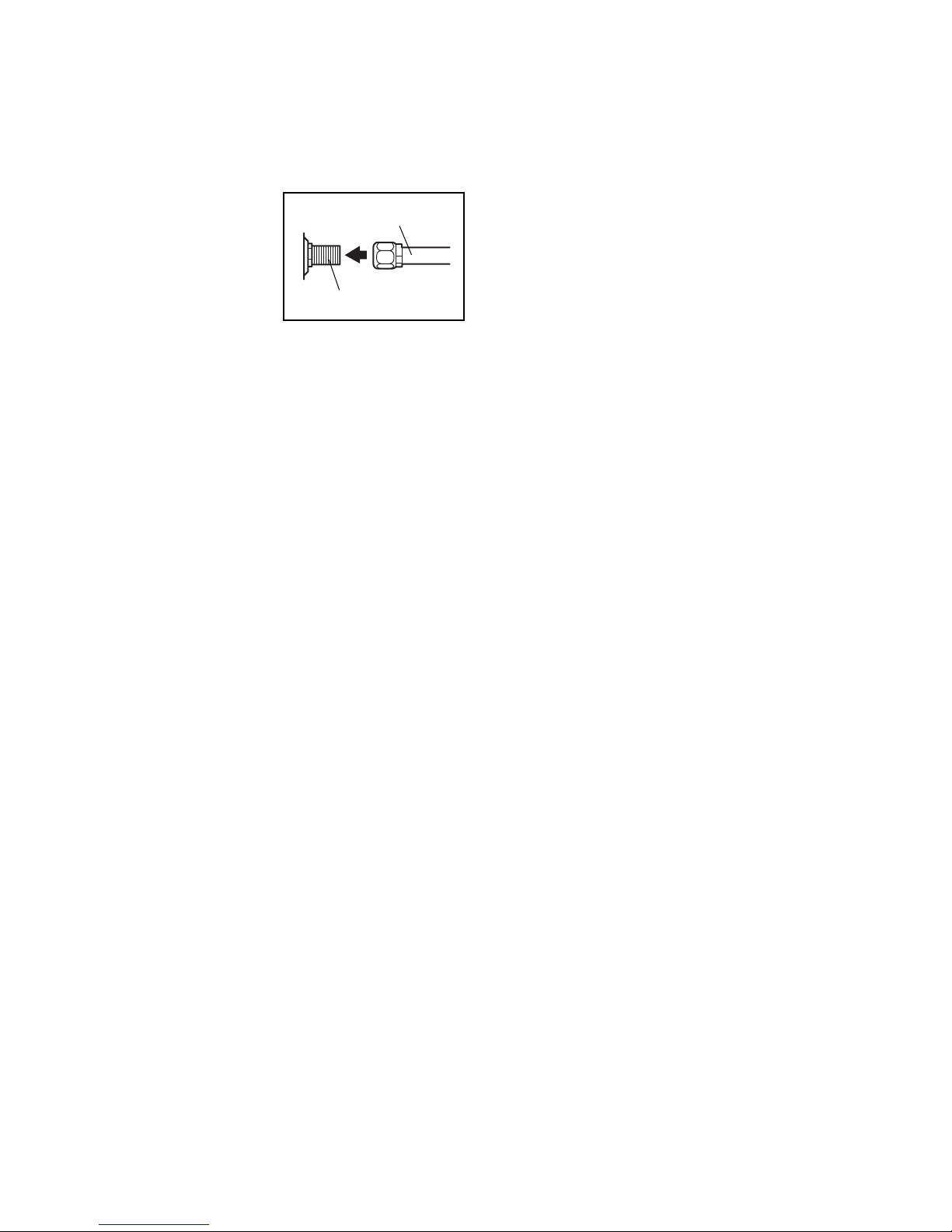

HOW TO CONNECT A 75 OHM CATV CABLE
1. Connect a 75 ohm
CATV cable to the 75
ohm terminal on the
elliptical exerciser
frame.
HOW TO CONNECT AN EXTERNAL SOURCE
USING A CATV CABLE
1. Connect one end of a 75 ohm CATV cable to the
video output jack on your external source.
2. Plug in the power cord of your external source.
See your external source’s user’s manual for prop-
er grounding instructions.
3. Connect the 75 ohm CATV cable to the 75 ohm
terminal on the elliptical exerciser frame.
HOW TO CONNECT A DVD PLAYER OR VCR
USING THE AUDIO/VIDEO INPUT JACK
Plug one end of an RCA component video cable into
your DVD player or VCR, and plug the other end into
the audio/video input jack on the back of the console.
75 Ohm Terminal
75 Ohm CATV Cable
Before operating the television, you must connect a 75 ohm CATV cable to the 75 ohm terminal on the
elliptical exerciser or a VCR or DVD player to the audio/video input jack. Note: Use a CATV cable to connect
to an external source such as a cable box, analog cable, satellite TV box, or VCR. No CATV cable or RCA com-
ponent video cable is included.

13
HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO PLUG IN THE POWER CORD
Plug one end of the included power supply into the
jack on the front of the elliptical exerciser. Plug the
other end of the power supply into an appropriate out-
let that is properly installed in accordance with all local
codes and ordinances.
HOW TO MOVE THE ELLIPTICAL EXERCISER
Due to its size and weight, moving the elliptical
exerciser requires two persons. Stand in front of
the elliptical exerciser, hold the upright, and place one
foot against one of the front wheels. Pull on the
upright and have a second person lift the base until
the elliptical exerciser will roll on the front wheels.
Carefully move the elliptical exerciser to the desired
location, and then lower it to the floor.
HOW TO LEVEL THE ELLIPTICAL EXERCISER
If the elliptical exerciser rocks slightly on your floor
during use, turn one or both of the leveling feet
beneath the base or beneath the front stabilizer until
the rocking motion is eliminated.
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the elliptical exerciser, hold the handlebars
and step onto the pedal that is in the lowest position.
Then, step onto the other pedal. Push the pedals until
they begin to move with a continuous motion. Note:
The crank arm covers can turn in either direction.
It is recommended that you turn the crank arm
covers in the direction shown by the arrow below;
however, for variety, you can turn the crank arm
covers in the opposite direction.
To dismount the elliptical exerciser, wait until the ped-
als come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the higher
pedal first. Then, step off the lower pedal.
Pedals
Crank Arm
Cover
Handlebars
Place
your foot
here
Pull on
upright
Lift here

14
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable. When you use the manual mode of the
console, you can change the resistance of the pedals
with the touch of a button. While you exercise, the
console will display continuous exercise feedback. You
can also measure your heart rate using the handgrip
pulse sensor.
The console also features twenty preset programs.
Each program automatically changes the resistance of
the pedals and prompts you to vary your pedaling
pace as it guides you through an effective workout.
Choose among fitness, performance, and weight loss
programs for a targeted workout.
The console also offers two heart rate programs that
automatically control the resistance of the pedals and
prompt you to maintain a constant pedaling pace to
keep your heart rate near target heart rate settings
during your workouts.
In addition, the console offers two custom programs
that allow you to create your own workout programs
and store them in memory for future use.
Whether you use the manual mode or a program, you
can enjoy the personal television while you get in
shape. You can even connect your DVD player or
VCR to the personal television.
The console also features an information mode that
allows you to adjust the television screen settings and
to set channels into the television’s memory.
To use the manual mode of the console, follow the
steps beginning on page 15. To use a preset
program, see page 17. To use a heart rate program,
see page 18. To create a custom program, see page
19. To use a custom program, see page 20. To
operate the personal television, see page 21.

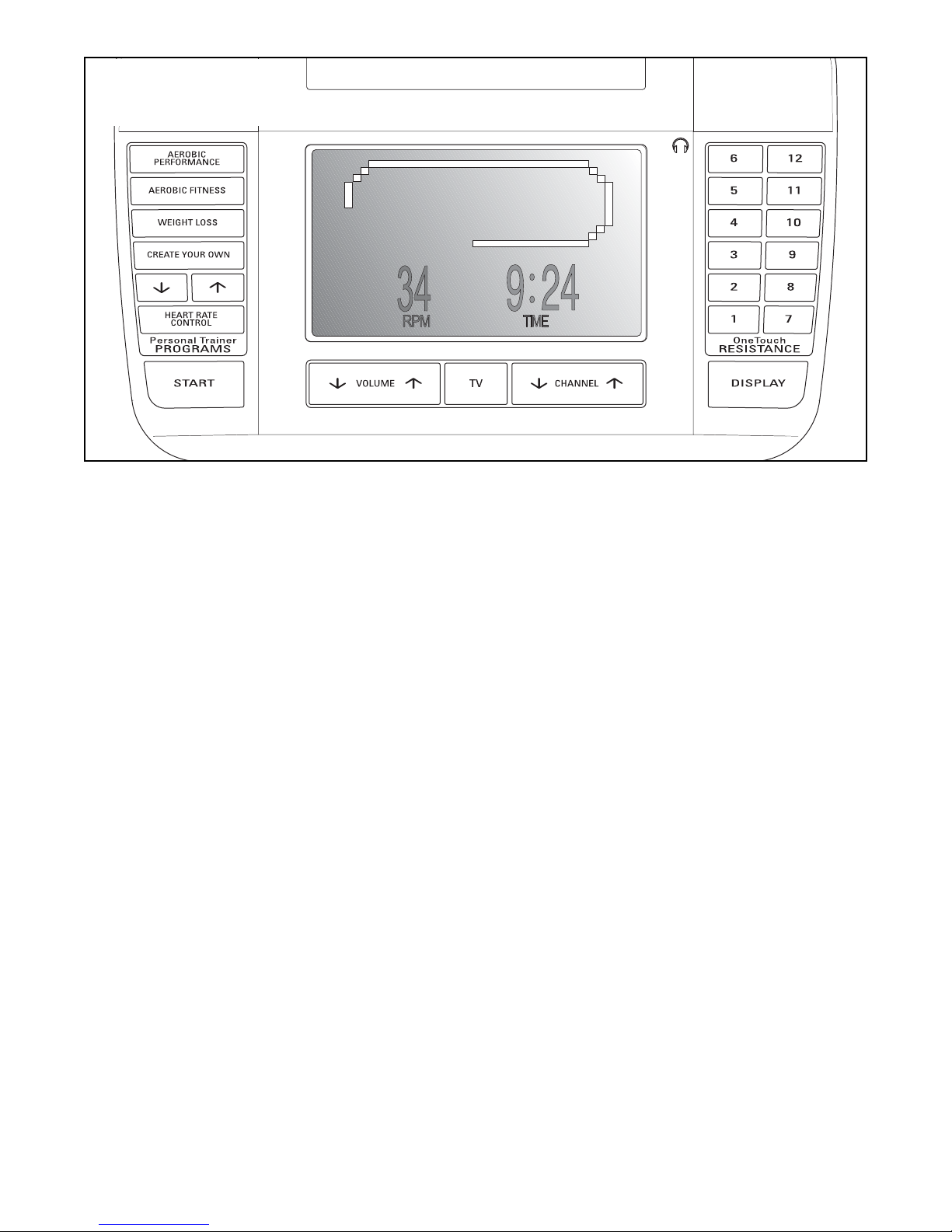

CONSOLE DIAGRAM

15
HOW TO USE THE MANUAL MODE
Note: If there is a sheet of clear plastic on the face
of the console, remove the plastic.
1. Begin pedaling or press any button on the con-
sole to turn on the console.
A moment after you begin pedaling or press a but-
ton, the screen will light.
2. Select the manual mode.
Each time you turn on the console, the manual
mode will be selected. If you have selected a pro-
gram, reselect the manual mode by pressing any
of the program buttons repeatedly until a track
appears in the center of the screen.
3. Change the resistance of the pedals as
desired.
As you pedal, change the resistance of the pedals
by pressing any of the OneTouch Resistance
buttons numbered 1 through 12. Note: After you
press the buttons, it will take a moment for the
pedals to reach the selected resistance level.
4. Follow your progress with the display.
As you exercise, the screen can display the follow-
ing exercise information:
• The elapsed time. Note: When you select a pre-
set program or the second heart rate program,
the screen will show the time remaining in the
program instead of the elapsed time.
• The distance you have pedaled, in total revolu-
tions.
• Your pedaling pace in revolutions per minute
(rpm).
• The approximate number of calories you have
burned.
• The resistance level of the pedals each time the
resistance changes.
• Your heart rate when you use the handgrip pulse
sensor (see step 5 on page 16).

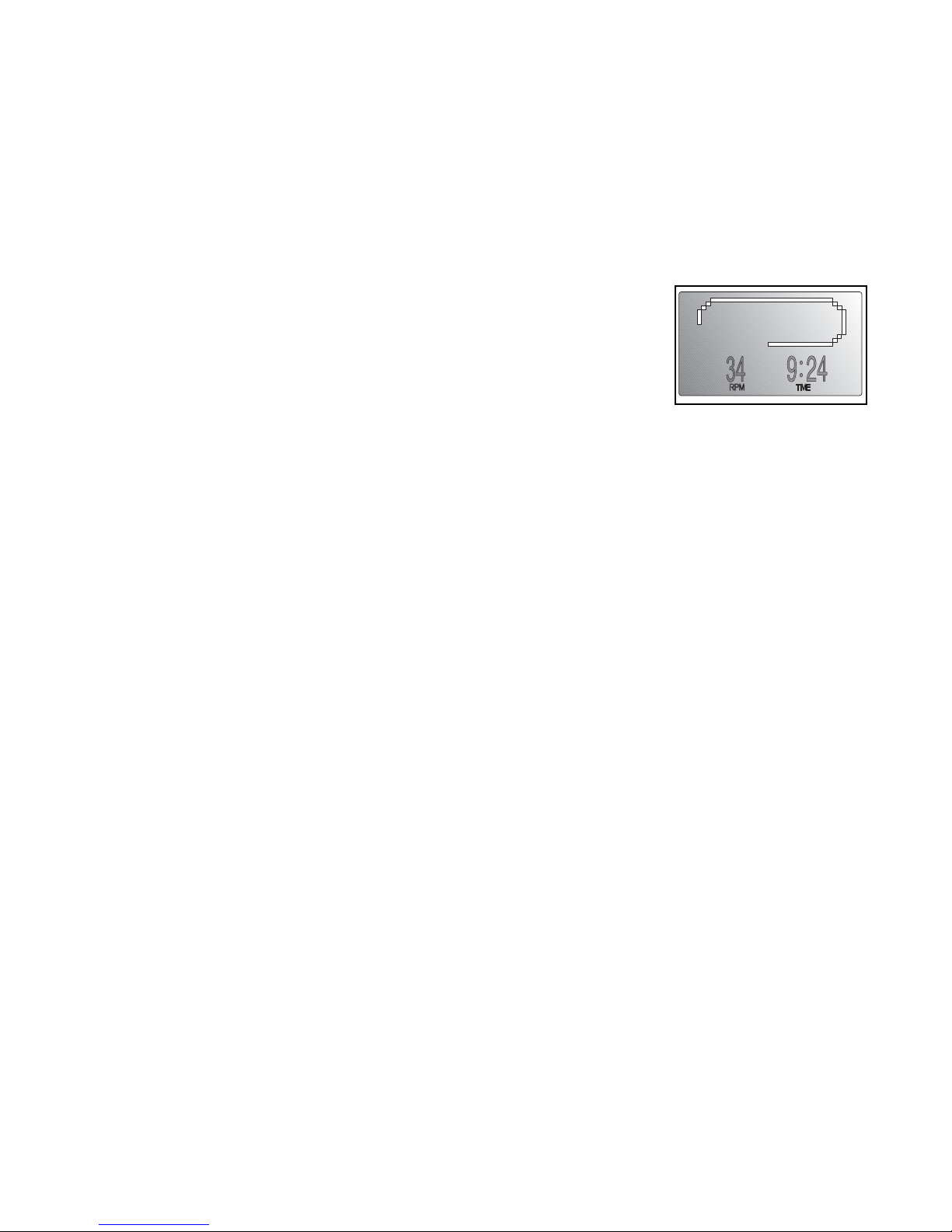

When you select
the manual mode,
a track represent-
ing 1/4 mile will
appear on the
screen. As you
exercise, segments
will appear in suc-
cession around the track until the entire track
appears. The track will then disappear and the
segments will again begin to appear in succession
When the television is off, you can press the
Display button repeatedly to view either time and
pace information or to view all exercise information
on the screen.
When the television is on, you can display exer-
cise information on the right side or the bottom of
the screen. Or, you can turn off the exercise infor-
mation while you watch the television. Press the
Display button repeatedly to select the desired dis-
play mode.

16

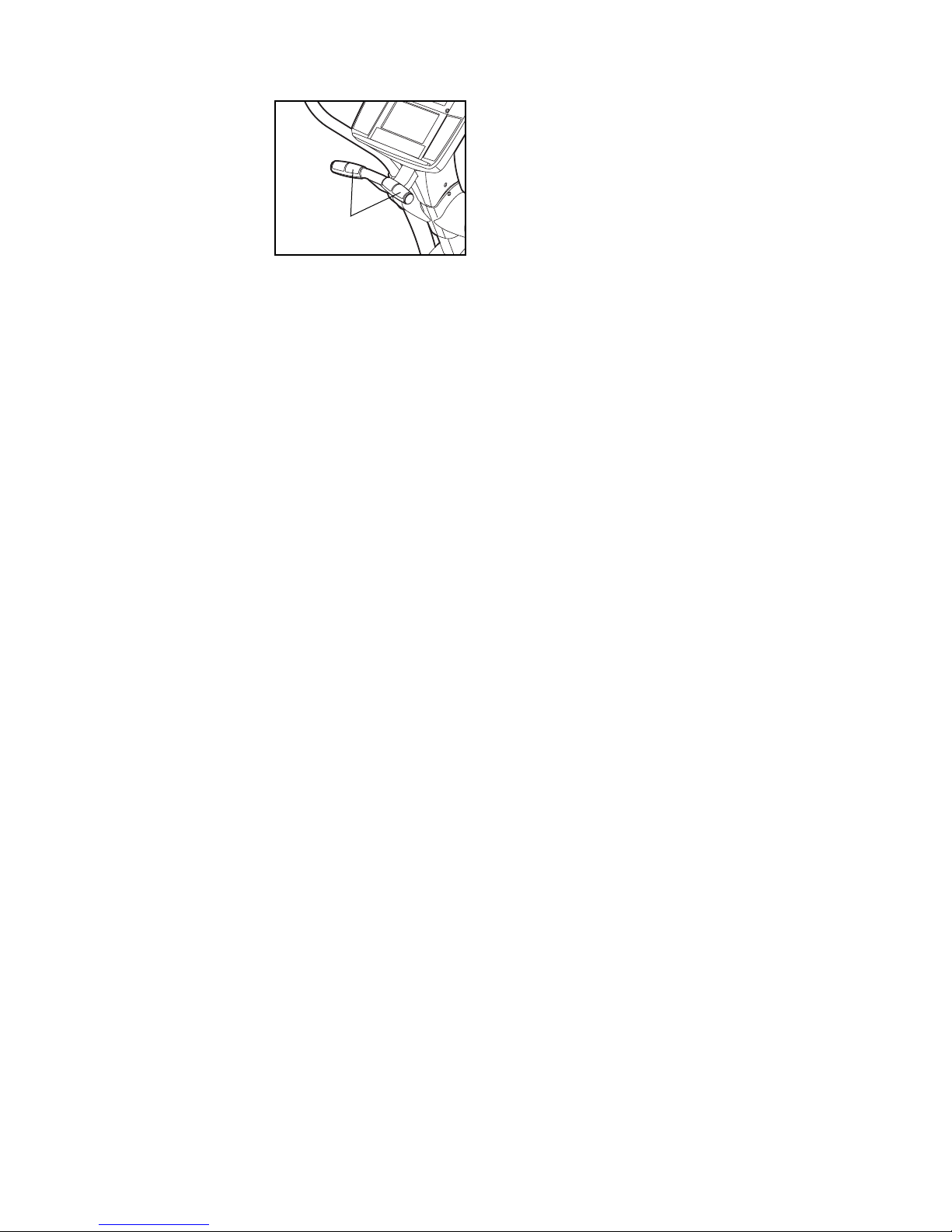

5. Measure your heart rate if desired.
If there are sheets
of clear plastic on
the metal contacts
on the handgrip
pulse sensor,
remove the plas-
tic. To measure
your heart rate,
hold the handgrip
pulse sensor with
your palms resting against the metal contacts.
Avoid moving your hands or gripping the con-
tacts too tightly.
When your pulse is detected, your heart rate will
appear on the screen. For the most accurate heart
rate reading, hold the contacts for at least 15 sec-
onds. Note: If you continue to hold the handgrip
pulse sensor, the screen will show your heart rate
for up to 30 seconds.
If the screen does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the metal contacts too tightly. For opti-
mal performance, clean the metal contacts using a
soft cloth; never use alcohol, abrasives, or
chemicals to clean the contacts.
6. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
tone will sound and the console will pause. The
time will also flash in the display. If the pedals do
not move for several minutes and the buttons are
not pressed, the console will turn off and the dis-
play will be reset. Note: If the console does not
turn off after several minutes, the console is in the
“demo” mode. See HOW TO USE THE INFORMA-
TION MODE on page 22 and turn off the demo
mode.
Contacts

17
HOW TO USE A PRESET PROGRAM
1. Begin pedaling or press any button on the con-
sole to turn on the console.
A moment after you begin pedaling or press a but-
ton, the screen will light.
2. Select a preset program.
To select one of the 20 preset programs, press the
Aerobic Performance button, the Aerobic Fitness
button, or the Weight Loss button repeatedly until
the desired program appears on the screen. When
a preset program is selected, a diagram of the
resistance set-
tings for the
program will
appear on the
screen. The
arrow below the
diagram will
indicate your
progress during the program. In addition, the
screen will show the total program time, the maxi-
mum pace setting for the program, and the maxi-
mum resistance setting for the program.
3. Press the Start button or begin pedaling to
start the program.
Each program is divided into 20, 30, or 45 one-
minute segments. One resistance level and one
target pace setting are programmed for each seg-
ment. Note: The same resistance and/or target
pace setting may be programmed for consecutive
segments. The resistance level for the current seg-
ment will be indicated by the height of the diagram
above the arrow.
When only three seconds remain in the first seg-
ment of the program, a series of tones will sound.
If the resistance is about to change, the resistance
level will appear on the screen to alert you. When
the first segment ends, the arrow below the dia-
gram will move one position to the right.
The pedals will then automatically adjust to the
resistance level for the second segment.
As you exercise, you will be prompted to keep
your pedaling pace near the target pace setting for
the current segment. When the color of the RPM
display on the screen is white or blue, increase
your pace. When the RPM display is yellow or
pink, decrease your pace. When the RPM display
is green, maintain your current pace.
IMPORTANT: The target pace settings are
intended only to provide motivation. Your actu-
al pace may be slower than the target pace set-
ting. Make sure to exercise at a pace that is
comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the OneTouch Resistance but-
tons. However, when the current segment of the
program ends, the pedals will automatically adjust
to the resistance level for the next segment.
The program will continue in this way until the
arrow reaches the right end of the diagram. To
stop the program at any time, stop pedaling. A
tone will sound and the time will flash in the dis-
play to indicate that the program is paused. To
restart the program, simply resume pedaling.
4. Follow your progress with the display.
See step 4 on page 15.
5. Measure your heart rate if desired.
See step 5 on page 16.
6. When you are finished exercising, the console
will turn off automatically.
See step 6 on page 16.
DiagramArrow

18
HOW TO USE A HEART RATE PROGRAM
1. Begin pedaling or press any button on the con-
sole to turn on the console.
A moment after you turn on the console, the
screen will light.
2. Select a heart rate program.
To select one of the two heart rate programs,
press the Heart Rate Control button once or twice
until the desired program appears on the screen.
If you select the first heart rate program, a
track and the target heart rate setting (bpm) for the
program will appear on the screen.
If you select the second heart rate program, the
maximum target heart rate setting (bpm) and a
diagram of the target heart rate settings for the
program will appear on the screen. The arrow
below the diagram will indicate your progress.
3. Enter a target heart rate setting.
If you select the first heart rate program, the
target heart rate setting (bpm) for the program will
appear on the screen. Press the increase and
decrease buttons above the Heart Rate Control
button to change the target heart rate setting, if
desired. Note: The same target heart rate setting
will be programmed for the entire program. See
EXERCISE INTENSITY on page 23 for heart rate
guidelines.
If you select the second heart rate program, the
maximum target heart rate setting of the program
will appear on the screen. Press the increase and
decrease buttons above the Heart Rate Control
button to change the maximum target heart rate
setting, if desired. Note: If you change the maxi-
mum target heart rate setting, the intensity level of
the entire program will change. See EXERCISE
INTENSITY on page 23 for heart rate guide-
lines.
4. Hold the handgrip pulse sensor.
It is not necessary to hold the handgrip pulse sen-
sor continuously during a heart rate program; how-
ever, you should hold the handgrip pulse sensor
frequently for the program to operate properly.
Each time you hold the handgrip pulse sensor,
keep your hands on the metal contacts for at
least 30 seconds.
5. Press the Start button or begin pedaling to
start the program.
First heart rate control program—The same tar-
get heart rate setting is programmed for all seg-
ments of this program.
Second heart rate program—This program is
divided into 30 one-minute segments. One target
heart rate setting is programmed for each seg-
ment. Note: The same target heart rate setting
may be programmed for consecutive segments.
The target heart rate setting for the first segment
will be indicated by the height of the program dia-
gram. When the first segment ends, the arrow
below the diagram will move one position to the
right.
The program will continue in this way until the
arrow reaches the right end of the program dia-
gram. To stop the program at any time, stop pedal-
ing. A tone will sound and the time will flash in the
display to indicate that the program is paused. To
restart the program, simply resume pedaling.

19
Both heart rate programs—As you pedal, the
console will regularly compare your heart rate to
the target heart rate setting. If your heart rate is
too far below or above the target heart rate set-
ting, the resistance of the pedals will automatically
increase or decrease to bring your heart rate clos-
er to the target heart rate setting.
You will also be prompted to pedal at a steady
pace. When the color of the RPM display on the
screen is white or blue, increase your pace. When
the RPM display is yellow or pink, decrease your
pace. When the RPM display is green, maintain
your current pace. IMPORTANT: Make sure to
exercise at a pace that is comfortable for you.
Note: You can manually override the resistance
level setting; however, if you change the resis-
tance level, you might not maintain the target heart
rate. Also, when the console compares your heart
rate to the target heart rate setting, the resistance
of the pedals may automatically increase or
decrease to bring your heart rate closer to the tar-
get heart rate setting.
6. Follow your progress with the display.
See step 4 on page 15.
7. Measure your heart rate if desired.
See step 5 on page 16.
8. When you are finished exercising, the console
will turn off automatically.
See step 6 on page 16.
HOW TO CREATE A CUSTOM PROGRAM
1. Begin pedaling or press any button on the con-
sole to turn on the console.
A moment after you turn on the console, the
screen will light.
2. Select a custom program.
To select a custom program, press the Create
Your Own button once or twice until the desired
custom program appears on the screen.
3. Press the Start button or begin pedaling to
start the program, and program the desired
settings.
Each custom program is divided into 40 one-
minute segments. You can program one resistance
level and one target pace for each segment.
To program a resistance level for the first segment,
simply adjust the resistance of the pedals by
pressing the OneTouch Resistance buttons. To
program a target pace for the first segment, simply
pedal at the desired pace.
At the end of the first segment, the program will
store the current resistance level and your current
pace in memory. Program a resistance level and a
target pace for the second segment as described
above.
Continue exercising for up to forty minutes. Press
the Create Your Own button when you are finished
with your workout. The program you created will
then be stored in memory. Note: If your workout is
less than forty minutes long, any remaining seg-
ments in the program will be stored with the last
programmed resistance level and target pace.
4. When the program is finished, the console will
turn off automatically.
See step 6 on page 16.

20
HOW TO USE A CUSTOM PROGRAM
1. Begin pedaling or press any button on the con-
sole to turn on the console.
A moment after you turn on the console, the
screen will light.
2. Select a custom program.
To select a custom program, press the Create
Your Own button once or twice until the desired
custom program appears on the screen.
3. Press the Start button or begin pedaling to
start the program.
Each custom program is divided into 40 one-
minute segments. One resistance level and one
target pace setting are programmed for each seg-
ment.
At the end of each segment, the resistance level
will appear on the screen. The resistance of the
pedals will then automatically change to the resis-
tance level programmed for the next segment.
As you exercise, you will be prompted to keep
your pedaling pace near the target pace setting for
the current segment. When the color of the RPM
display on the screen is white or blue, increase
your pace. When the RPM display is yellow or
pink, decrease your pace. When the RPM display
is green, maintain your current pace.
To stop the program at any time, stop pedaling. A
tone will sound to indicate that the program is
paused. To restart the program, simply resume
pedaling.
4. Change the program if desired.
If desired, you can change the program while
using it. To change the resistance level for the
current segment, simply press the OneTouch
Resistance buttons. At the end of the current seg-
ment, the new resistance level will be stored in
memory. To change the target pace for the cur-
rent segment, simply change your pedaling pace.
At the end of the current segment, your pace will
be stored in memory. You can continue exercising
and changing the program for up to forty minutes.
5. Follow your progress with the display.
See step 4 on page 15.
6. Measure your heart rate if desired.
See step 5 on page 16.
7. When the program is finished, the console will
turn off automatically.
See step 6 on page 16.
