HEALTH RIDER Crosstrainer 950 S Elliptical User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. HREVEL4885.0
Serial No.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you have
questions, or if there are missing
or damaged parts, please call:
Or write:
ICON Health & Fitness, Ltd.
Customer Service Department
Unit 4
Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS118JG
UK
email: [email protected]
USER’S MANUAL
08457 089 009

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL CROSSTRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
HEALTHRIDER is a registered trademark of ICON IP, Inc.

3
IMPORTANT PRECAUTIONS
WARNING:To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical crosstrainer.
1. Read all instructions in this manual and all
warnings on the elliptical crosstrainer
before using the elliptical crosstrainer. Use
the elliptical crosstrainer only as described
in this manual.
2. It is the responsibility of the owner to ensure
that all users of the elliptical crosstrainer
are adequately informed of all precautions.
3. Keep the elliptical crosstrainer indoors,
away from moisture and dust. Place the
elliptical crosstrainer on a level surface, with
amat beneath it to protect the floor or car-
pet. Make sure that there is enough clear-
ance around the elliptical crosstrainer to
mount, dismount, and use it.
4. Inspect and properly tighten all parts regu-
larly.Replace any worn parts immediately.
5. Keep children under 12 and pets away from
the elliptical crosstrainer at all times.
6. The elliptical crosstrainer should not be
used by persons weighing more than 115 kg
(250 lbs).
7. Wear appropriate exercise clothes when
using the elliptical crosstrainer. Always wear
athletic shoes for foot protection.
8. Always hold the handgrip pulse sensor or the
handlebars when mounting, dismounting, or
using the elliptical crosstrainer.
9. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
10. Keep your back straight when using the ellip-
tical crosstrainer; do not arch your back.
11. If you feel pain or dizziness at any time
whilst exercising, stop immediately and
begin cooling down.
12. When you stop exercising, allow the pedals
to slowly come to a stop.
13. The elliptical crosstrainer is intended for
home use only. Do not use the elliptical
crosstrainer in a commercial, rental, or insti-
tutional setting.
14. The warning decal shown on page 4 has
been placed on the elliptical crosstrainer. If
the decal is missing, or if it is not legible,
call the telephone number on the front cover
of this manual and order a free replacement
decal. Apply the decal in the location shown.
WARNING:Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health prob-
lems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.

4
BEFORE YOU BEGIN
Congratulations for selecting the new HEALTHRIDER®
950S elliptical crosstrainer. The HEALTHRIDER 950S
is an incredibly smooth exerciser that moves your feet
in a natural elliptical path, minimising the impact on
your knees and ankles. And the unique 950S features
adjustable resistance and an easy-to-use console to
help you get the most from your exercise. Welcome to
awhole new world of natural, elliptical-motion exercise
from HEALTHRIDER.
For your benefit, read this manual carefully before
you use the elliptical crosstrainer. If you have ques-
tions after reading this manual, please see the front
cover of this manual. To help us assist you, please note
the product model number and serial number before
calling. The model number is HREVEL4885.0. The seri-
al number can be found on a decal attached to the ellip-
tical crosstrainer (see the front cover of this manual for
the location of the decal).
Before reading further, please familiarise yourself with
the parts that are labelled in the drawing below.
Handgrip Pulse Sensor
Handlebar
FRONT
Pedal Spring
Pedal Disk
*No water bottle is included
Wheel
Pedal
Console
Bookrack
Water Bottle Holder*
BACK

5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the
included hex keys and your own phillips screwdriver , adjustable spanner ,
and rubber mallet .
As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly.
The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on
page 26. The second number refers to the quantity used in assembly. Note: Some small parts may have been
pre-assembled for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.
M4 x 16mm
Screw (52)–2
M10 x 27mm
Button Screw (67)–6
M10
Washer (78)–2
M10 Split
Washer (59)–8
M10 Nylon
Locknut (33)–4
Adjustment Bolt
(80)–2
M10 Bolt Set (74)–2
M6 x 25mm
Button Screw (7)–1 M8.5
Washer (35)–2
M8 Nylon
Locknut (38)–4
M8 x 45mm Button Bolt (50)–4
M10 x 27mm
Patch Screw (40)–2 M10 x 75mm Carriage Bolt (34)–4
Wave Washer
(86)–2
M8 x 25mm Patch
Screw (56)–2
M10 Large
Washer (88)–2
1. Identify the Front Stabiliser (10). Whilst another person
lifts the front of the Frame (1), attach the Front
Stabiliser to the Frame with two M10 x 75mm Carriage
Bolts (34) and two M10 Nylon Locknuts (33). Make
sure that the Front Stabiliser is turned so the
Wheels (22) are not touching the floor.
10 33
22
22
34
34
1
1

6
2. Whilst another person lifts the back of the Frame (1),
attach the Rear Stabiliser (9) to the Frame with two
M10 x 75mm Carriage Bolts (34) and two M10 Nylon
Locknuts (33).
34
9
1
3
2
43
44 1
73
79
59
Adjustment
Holes
Make sure the
Wire Harnesses
(44, 79) do not
get pinched and
damaged during
this step.
44
67
67
59
3. Whilst another person holds the Upright (2) in the posi-
tion shown, connect the Extension Wire Harness (44)
to the Wire Harness (79). Carefully pull the upper
end of the Extension Wire Harness to remove any
slack, and insert the Upright into the Frame (1). Make
sure that the Wire Harnesses do not get pinched.
Turn the Upright Knob (43) counterclockwise several
turns. Next, pull the Upright Knob, slide the Upright (2)
down until the Knob is aligned with one of the four
adjustment holes, and then release the Knob. Do not
tighten the Knob yet.
Feed the upper end of the Extension Wire Harness (44)
through the Upright Extension (73). Attach the Upright
Extension to the Upright (2) with three M10 x 27mm
Button Screws (67) and three M10 Split Washers (59).
4. Connect the wire harness on the Handgrip Pulse
Sensor (29) to the indicated wire harness on the
Console (23). Insert both wire harnesses into the open-
ing in the bottom of the Console. Next, insert the metal
tube on the Handgrip Pulse Sensor into the opening in
the bottom of the Console. Be careful not to pinch
the wire harnesses.
See the inset drawing. Align the holes in the bracket on
the Console (23) with the holes in the metal tube on
the Handgrip Pulse Sensor (29). Tighten two M4 x
16mm Screws (52) through the bracket into the tube as
shown. 29
23
Wire Harnesses
4
233
33
Tube
52 23
Bracket
29
52
Tube
5. The Console (23) requires four 1.5V “D” batteries;
alkaline batteries are recommended. Press the tab on
the battery cover, and lift off the battery cover. Insert
four batteries into the battery compartment. Make sure
that the batteries are oriented as shown by the dia-
gram inside the battery compartment. Then, reat-
tach the battery cover.
23
Tab
Batteries
Battery
Cover
5

50
8
38
7
6. Whilst another person holds the Console (23) in the
position shown, connect the wire harness on the
Console to the Extension Wire Harness (44). Insert the
excess wire harness into the Upright Extension (73).
Attach the Console (23) to the Upright Extension (73)
with three M10 x 27mm Button Screws (67) and three
M10 Split Washers (59). Be careful to avoid pinching
the wire harnesses.
Snap the bookrack onto the Console (23) in the indicat-
ed location.
6
23
67
73
59
59
7. Identify the Left Handlebar (6), which is marked with a
sticker. Insert the Left Handlebar into one of the
Handlebar Legs (5); make sure that the Handlebar
Leg is turned so the hexagonal holes are on the
indicated side. Attach the Left Handlebar to the
Handlebar Leg with two M8 x 45mm Button Bolts (50)
and two M8 Nylon Locknuts (38). Make sure that the
Nylon Locknuts are inside of the hexagonal holes.
Do not fully tighten the Button Bolts yet.
Attach the Right Handlebar (8) to the other Handlebar
Leg (5) in the same way.
Apply a generous amount of the included grease to the
Pivot Axle (55) and to the two M8.5 Washers (35). Next,
insert the Pivot Axle into the Upright (2) and centre it.
Reapply grease to both ends of the Pivot Axle.
Slide a Handlebar Spacer (47) onto the short tube on
each Handlebar (6, 8), and rotate the Handlebar
Spacers so the small arrows are pointing toward the
floor. Next, slide the Handlebars onto the Pivot Axle (55).
Make sure that the Handlebars are on the correct
sides.
Tighten an M8 x 25mm Patch Screw (56) with an M8.5
Washer (35) and a Wave Washer (86) into each end of
the Pivot Axle (55). Make sure that the Wave Washers
are on the ends of the Pivot Axle. Next, orient the two
Handlebar Caps (46) as shown, and press the small
tabs on the Handlebar Caps into the two Handlebar
Spacers (47).
Grease
7
44Wire Harness
67
Bookrack
67
47
5
2
5
35
46
Arrow
56 86
655
Hexagonal
Holes
47 46

8
10. Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some hardware may
be left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical crosstrainer.
9. Identify the Left Rear Spring Bracket (12) on the left
Pedal Spring (11). Apply a thin coat of grease inside of
the Pedal Arm Bushings (37) in the Left Rear Spring
Bracket and to the axle on the left Disc Crossbar (16).
Next, slide a Spring Spacer (63) onto the axle; make
sure that the Spring Spacer is turned so the flat
side is facing the elliptical crosstrainer. Next, slide
the Left Rear Spring Bracket onto the axle. Then, slide
an M10 Large Washer (88) onto an M10 x 27mm Patch
Screw (40), and tighten the Patch Screw into the axle.
Next, hold the lower end of the left Handlebar Leg (5)
inside of the Front Spring Bracket (76) on the left Pedal
Spring (11). Apply grease to an M10 Bolt Set (74).
Attach the Handlebar Leg to the Front Spring Bracket
with the Bolt Set. Do not overtighten the Bolt Set;
the Handlebar Leg must pivot freely.
Attach the right Pedal Spring (not shown) to the right
side of the elliptical crosstrainer in the same way.
Tighten the M6 x 25mm Button Screw (7) into the
Upright (2). Turn the Upright Knob (43) clockwise until it
is tight.
See step 7. Tighten the M8 x 45mm Button Bolts (50)
in the Handlebar Legs (5).
37,
Grease
Grease
74 11
11
40 88
63
12
74
5
43
7
2
76
9
16, Grease
880
81
78
11
13
59
8. Identify the left Pedal Spring (11), which is marked with
asticker. Attach the Left Pedal (13) to the left Pedal
Spring with an Adjustment Bolt (80), an M10 Washer
(78), an M10 Split Washer (59), and a Pedal Knob (81)
asshown. Note: The Left Pedal can be attached in
several positions using the five positions in the Left
Pedal.
Attach the Right Pedal (not shown) in the same way.
Make sure that both Pedals are in the same pedal
position.

9
INSTALLING THE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR
Ifyou purchase the optional chest pulse sensor (see page 21), follow the steps below to install the receiver and
the jumper wire included with the chest pulse sensor.
1. Remove the four indicated screws from the back of the
Console (23). Lift off the front of the Console.
2. Plug the jumper wire (A) into the indicated jack on the
Console (23). Connect the other end of the jumper wire
to the wire on the receiver (B). Note: Any other wires
included with the chest pulse sensor can be discarded.
Next, peel the paper off the adhesive pad on the back
of the receiver (B). Orient the receiver as shown, and
press it onto the Console (23) in the indicated location.
See step 1 above. Reattach the front of the Console
(23) with the four screws. Make sure that no wires
are pinched.
B
23
Jack
23 Lift
Here
1
A
Cylinder
2
Short
Screws
Long
Screws
HOW TOMOVE THE ELLIPTICAL CROSSTRAINER
Stand behind the elliptical crosstrainer, hold the Rear
Stabiliser (9) firmly,and lift the elliptical crosstrainer until it
can be moved on the Wheels (22). Carefully move the
elliptical crosstrainer to the desired location, and then
lower it. CAUTION: To decrease the possibility of
injury,bend your legs and keep your back straight as
you lift the Rear Stabiliser; make sure to lift with your
legs rather than your back.
22
9

10

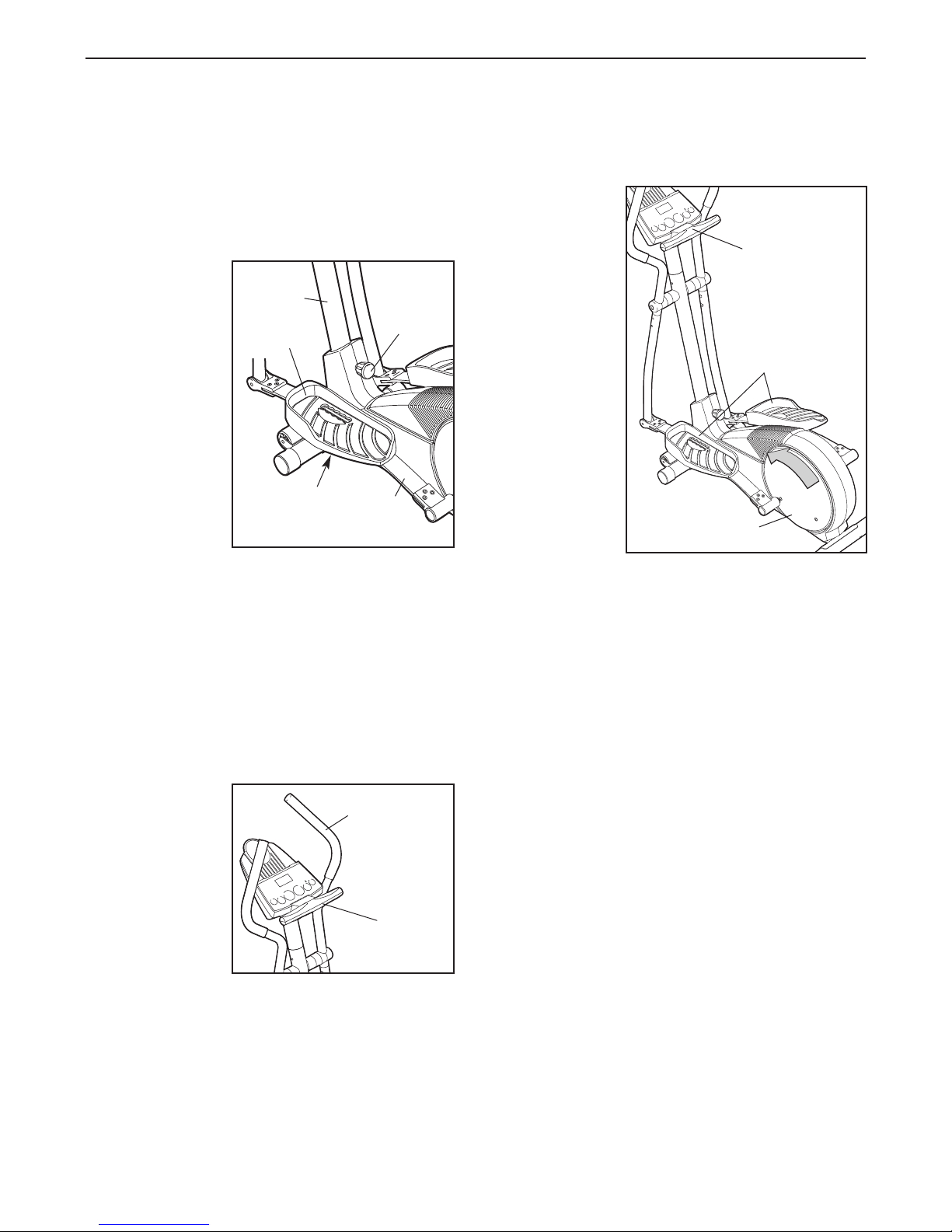

HOW TO USE THE ELLIPTICAL CROSSTRAINER
HOW TO ADJUST THE PEDALS AND THE UPRIGHT
The motion of the elliptical crosstrainer is determined
by the positions of the pedals and the upright. Follow
the instructions below to adjust the motion of the ellip-
tical crosstrainer.
To adjust the
pedals, first
remove the
pedal knob
beneath each
pedal. Slide the
pedals forward
or backward and
reattach each
pedal using one
of the five holes
in the pedal.
Make sure that
both pedals are
in the same
position.
To adjust the upright, first turn the upright knob counter-
clockwise a few turns to loosen it. Next, pull the knob,
raise or lower the upright to the desired height, and
then release the knob. Move the upright up and
down slightly until the pin on the knob snaps into
one of the four adjustment holes in the upright.
Make sure that the upright is not resting on top of
the pin. Then, turn the knob clockwise until it is tight.
HOW TOUSE THE HANDLEBARS
The handlebars
are designed to
add upper-body
exercise to your
workouts. As you
exercise, push
and pull the han-
dlebars to work
your arms, shoul-
ders, and back.
Toexercise only
your lower body,
hold the handgrip pulse sensor as you exercise.
HOW TO EXERCISE ON THE ELLIPTICAL
CROSSTRAINER
To mount the
elliptical cross-
trainer, hold the
handgrip pulse
sensor and step
onto the pedal
that is in the
lowest position.
Then, step onto
the other pedal.
Push the ped-
als until they
begin to move
with a continu-
ous motion.
Note: The
pedal disks
can turn in
either direc-
tion. It is rec-
ommended
that you turn the pedal disks in the direction
shown by the arrow; however,for variety,you may
turn the pedal disks in the opposite direction.
Todismount the elliptical crosstrainer, wait until the
pedals come to a complete stop. Note: The elliptical
crosstrainer does not have a free wheel; the ped-
als will continue to move until the flywheel stops.
When the pedals are stationary, step off the highest
pedal first. Then, step off the lowest pedal.
Pedals
Pedal Disk
Handgrip
Pulse Sensor
Handlebars
Handgrip
Pulse
Sensor
Pedal
Knob
Upright
Knob
Pedal
Spring
Upright
Pedal

11
FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective. When the manual mode of the console is
selected, the resistance of the elliptical crosstrainer
can be adjusted with the touch of a button. Whilst you
pedal, the console will provide continuous exercise
feedback. You can even measure your heart rate using
the handgrip pulse sensor.Note: For information about
an optional chest pulse sensor, see page 21.
The console also offers six preset workout programs.
Each program automatically changes the pedalling
resistance and prompts you to increase or decrease
your pace as it guides you through an effective work-
out.

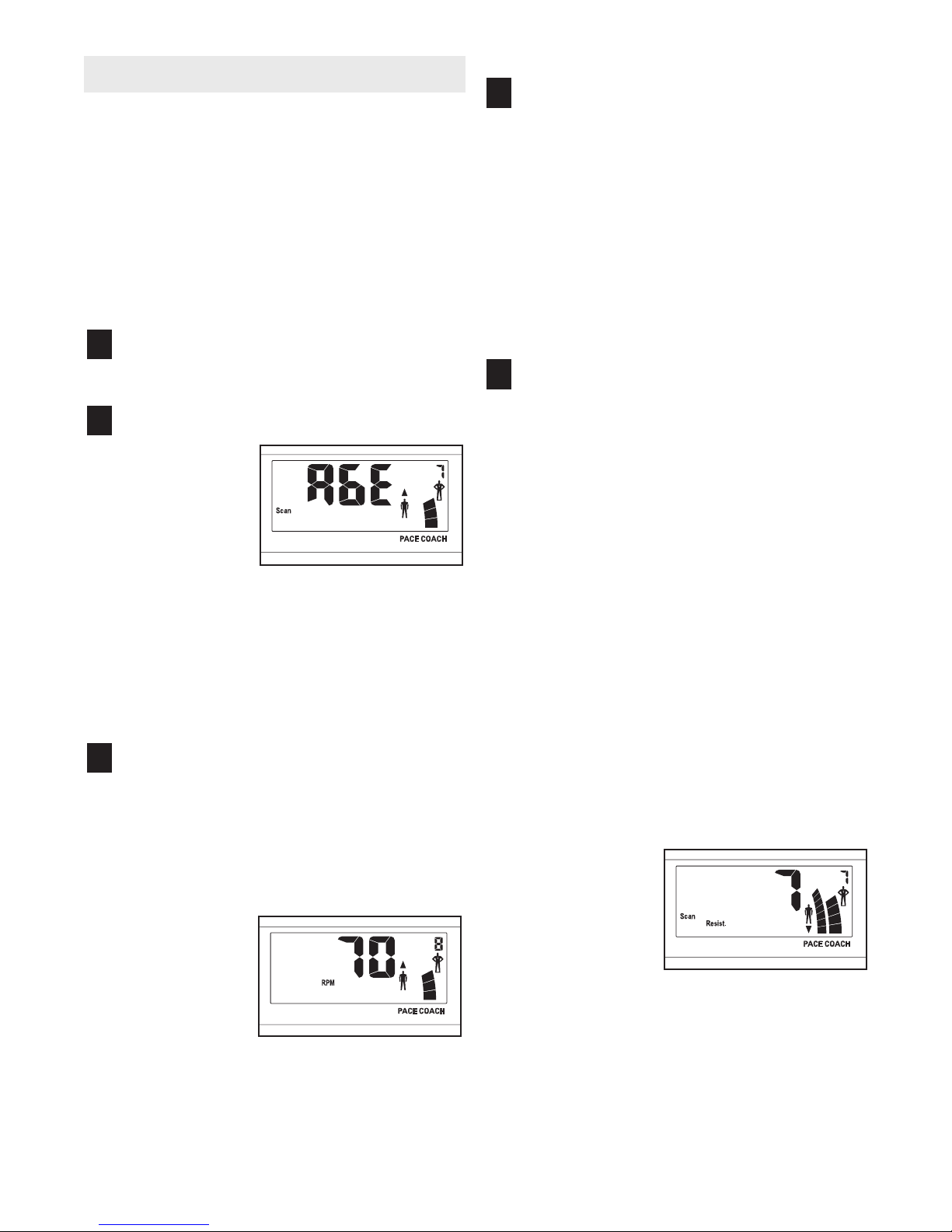

In addition, the console features two heart rate pro-
grams that change the pedalling resistance and
prompt you to vary your pace to keep your heart rate
near target heart rates as you exercise.
The console also features iFIT.com interactive technol-
ogy. Having iFIT.com interactive technology is like hav-
ing a personal trainer in your home. Using the included
audio cable, you can connect the elliptical crosstrainer
to your home stereo, portable stereo, computer, or
VCR and play special iFIT.com CD and video programs
(iFIT.com CDs and videocassettes are available sepa-
rately). iFIT.com CD and video programs automatically
control the resistance of the pedals and prompt you to
vary your pace as a personal trainer coaches you
through every step of your workout. High-energy music
provides added motivation. To purchase iFIT.com
CDs and videocassettes, visit our Web site at
www.iFIT.com.
With the elliptical crosstrainer connected to your com-
puter, you can also go to our Web site at
www.iFIT.com and access programs directly from the
internet. Explore www.iFIT.com for more informa-
tion.
F
HI
G
D
L
J
K
E
A B C

12
CONSOLE DESCRIPTION
See the drawing on page 11. Note: If there is a thin
sheet of clear plastic on the console, remove it.
A. Exercise feedback display—This display features
seven modes that give you instant exercise feed-
back: your current speed, the elapsed time (or the
time remaining in a program), the distance that you
have pedalled, the resistance level, the approxi-
mate number of calories you have burned, the
approximate number of fat calories you have
burned (see FAT BURNING on page 23), and your
heart rate (when you use the handgrip pulse sen-
sor or the optional chest pulse sensor). If the scan
mode is selected, the display will change from one
mode to the next every few seconds. Or, a single
mode can be selected for continuous display.
Note: The console can show speed and distance
in either miles or kilometres. To change the unit
of measurement, hold down the On/Reset button
for about six seconds.
B. Increase and decrease arrows—During programs,
these arrows will prompt you to increase or
decrease your pace to match the target pace.
C. Manual mode/program indicator—When a program
is selected, the upper right corner of the display
will show a 1, 2, 3, 4, 5, 6, 7, or 8, depending on
which program is selected. When the iFIT.com
mode is selected, the upper right corner will show
the letters “IF.” When the manual mode is selected,
the upper right corner will be blank.
D. Program profiles—These profiles show how the
resistance of the elliptical crosstrainer and the tar-
get pace will change during programs.
E. Warnings—See page 3.
F.Feedback mode indicators—These indicators show
which feedback mode (scan, speed, time, distance,
resistance level, calories, fat calories, or heart rate)
is currently shown. Note: When the distance is
shown, the word Miles or the letters Kms will
appear; when your speed is shown, the letters
MPH or Km/H will appear; when your heart rate is
shown, the letters BPM will appear.
G. Pace indicators—When the manual mode is select-
ed, only the left pace indicator will appear. This
indicator will show your pedalling pace. As you
increase or decrease your pace, the indicator will
increase or decrease in height. When a program is
selected, both pace indicators will appear. The left
indicator will show your actual pedalling pace, and
the right indicator will show a target pace. During
the program, the target pace will periodically
change; as the right indicator changes in height,
adjust your pace so that both indicators are the
same height. Important: The target pace is a
goal pace. Your actual pace may be slower
than the target pace, especially during the first
few months of your exercise program. Make
sure to exercise at a pace that is comfortable
for you.
H. On/Reset button—When the console is off, pressing
this button will turn on the display. When the con-
sole is on, pressing this button will reset the dis-
play. This button is also used to select the unit of
measurement for speed and distance.
I. Display Mode button—This button is used to select
the feedback modes.
J. + and – buttons—These buttons control the resis-
tance of the elliptical crosstrainer. There are ten
resistance levels—level 10 is the most challenging.
These buttons are also used to enter information
when a heart rate program is selected.
K. Program Select button—This button is used to
select programs and the manual mode.
L. iFIT button—This button is used to select the
iFIT.com mode. The indicator near the button will
light when the iFIT.com mode is selected.
Touse the manual mode of the console, see page
13. To use a preset program, see page 14. To use a
heart rate program, see page 15. Touse iFIT.com
CDs or videos, see page 19. Touse a program
directly from our Web site, see page 20.

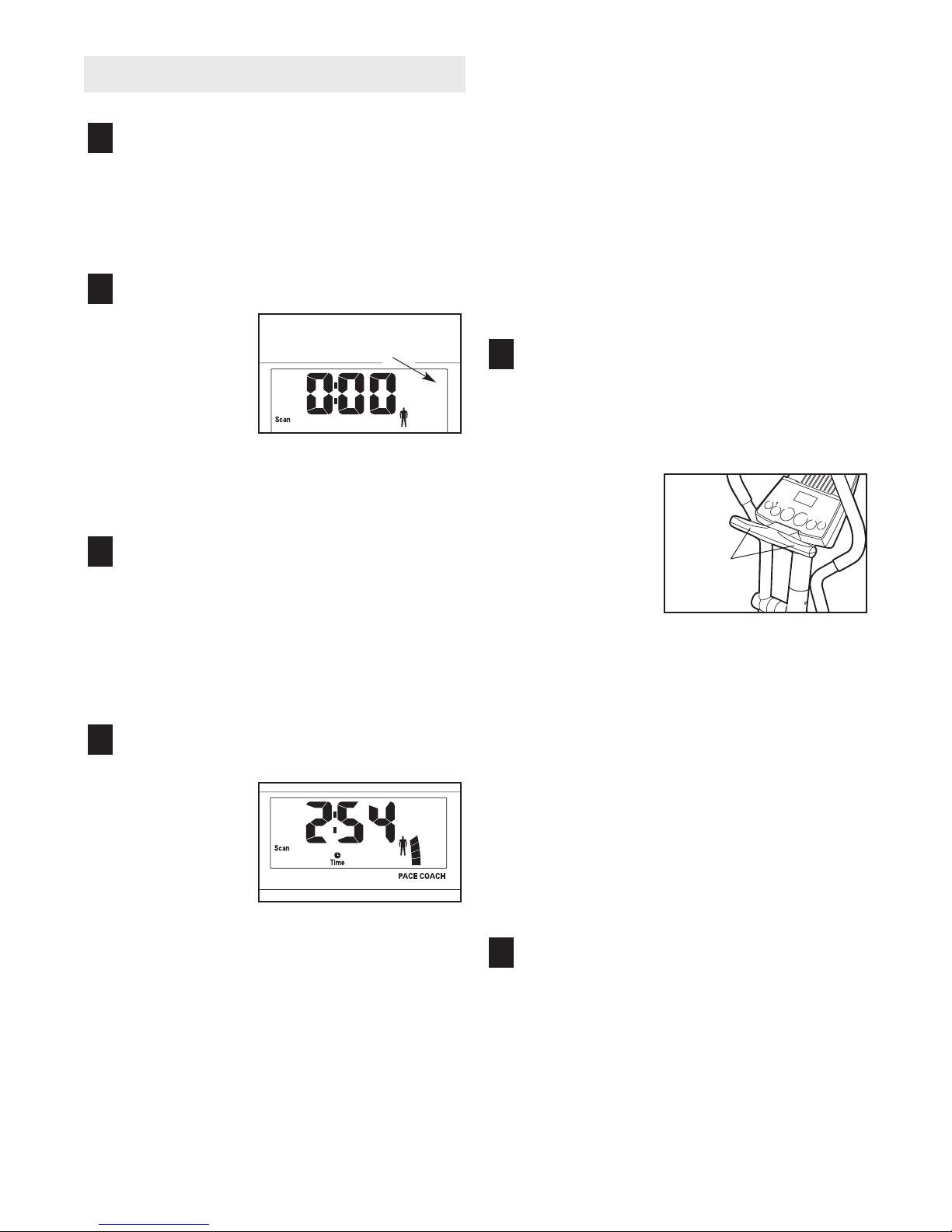

13
Turn on the console.
Note: The console requires four 1.5V “D” batteries
(see assembly step 5 on page 6).
To turn on the console, press the On/Reset button
or begin pedalling.
Select the manual mode.
Each time the
console is
turned on, the
manual mode
will be selected.
If a program
has been
selected, select
the manual mode by pressing the Program Select
button repeatedly until the upper right corner of
the display is blank.
Begin pedalling and adjust the resistance of
the elliptical crosstrainer.
As you pedal, adjust the resistance of the ellipti-
cal crosstrainer as desired by pressing the + and
–buttons. There are ten resistance levels; level
10 is the most challenging. Note: After the but-
tons are pressed, it will take a few seconds for the
selected setting to be reached.
Follow your progress with the feedback modes
and the left pace indicator.
When the con-
sole is turned
on, the scan
mode will be
selected. As
you pedal, the
display will
show your cur-
rent speed, the elapsed time, the distance that
you have pedalled, the current resistance level,
and the approximate numbers of calories and of
fat calories you have burned (see FAT BURNING
on page 23). In addition, your heart rate will be
shown when you use the handgrip pulse sensor
or the optional chest pulse sensor.Note: Each
time the resistance level changes, the console
will show the resistance level for six seconds.
When a program is selected, the display will
show the time
remaining in the program instead
ofthe elapsed time.
Ifdesired, you can select a single feedback mode
for continuous display. Press the Display Mode
button repeatedly until only the MPH (or Km/H),
Time, Miles (or Kms), Resist., Cals., or Fat Cals.
indicator appears in the display. Make sure that
the Scan indicator does not appear.
In addition, the left pace indicator will appear in the
display. As you increase or decrease your pace,
the indicator will increase or decrease in height.
Measure your heart rate if desired.
Note: If you wear the optional chest pulse
sensor and hold the handgrip pulse sensor at
the same time, the console will not display
your heart rate accurately.
If there are
sheets of plas-
tic on the metal
contacts on the
handgrip pulse
sensor,peel off
the plastic. To
use the handgrip
pulse sensor,
place your hands on the metal contacts. Your
palms must be on the upper contacts and your
fingers must be touching the lower contacts.
Avoid moving your hands. When your pulse is
detected, the heart-shaped indicator in the dis-
play will flash each time your heart beats. After a
moment, two dashes (– –) will appear and then
your heart rate will be shown.
For the most accurate heart rate reading, continue
to hold the handgrips for about 15 seconds. Note:
When you first hold the handgrips, the display will
show your heart rate continuously for 15 sec-
onds. The display will then show your heart rate
along with the other feedback modes.
When you are finished exercising, the console
will automatically turn off.
If the pedals are not moved and the console but-
tons are not pressed for a few minutes, the con-
sole will automatically turn off to conserve
the batteries.
6
5
4
3
2
1
HOW TO USE THE MANUAL MODE
Metal
Contacts
This corner
should be blank

14
Turn on the console.
See step 1 on page 13.
Select one of the six preset programs.
Each time the
console is turned
on, the manual
mode will be
selected. To
select a preset
program, press
the Program
Select button repeatedly until the number 1, 2, 3,
4, 5, or 6 appears in the upper right corner of the
display.
The profiles numbered 1 through 6 on the right
side of the console show the resistance and pace
settings for the preset programs.
Start the program.
To start the program, simply begin pedalling.
Each preset program consists of either twenty or
thirty, one-minute periods. One resistance setting
and one pace setting are programmed for each
period. (The same resistance setting and/or pace
setting may be programmed for consecutive peri-
ods.)
During the program, the resistance of the elliptical
crosstrainer will automatically change as shown
by the applicable profile on the console. Note: If
the current resistance level is too high or too low,
you can change the resistance level by pressing
the + or – button. However,when the current peri-
od of the program is completed, the resistance
level will automatically change if a different resis-
tance setting is programmed for the next period.
The target pace
settings for the
program will be
shown by the
right pace indica-
tor in the display.
(The left indicator
will show your actual pedalling pace.) As the right
indicator changes in height during the program,
adjust your pace so that both indicators are at the
same height. If your pace is slower than the cur-
rent target pace, the increase arrow will appear in
the display to prompt you to increase your pace; if
your pace is faster than the target pace, the
decrease arrow will appear. Important: The pace
settings for the program are intended only to
provide a goal. Your actual pace may be slow-
er than the pace settings, especially during
the first few months of your exercise program.
Make sure to pedal at a pace that is comfort-
able for you.
During the program, the display will show the time
remaining in the program. When no time remains,
the program will be completed. If you continue
pedalling after the program is completed, the dis-
play will continue to show your exercise feedback.
Follow your progress with the feedback modes.
See step 4 on page 13.
Measure your heart rate if desired.
See step 5 on page 13.
When you are finished exercising, the console
will automatically turn off.
See step 6 on page 13.
6
5
4
3
2
1
HOW TO USE A PRESET PROGRAM
Increase Arrow

15
Heart rate program 7 is designed to keep your heart
rate between 65% and 85% of your maximum heart
rate during your workout. (Your maximum heart rate is
estimated by subtracting your age from 220. For
example, if you are 25 years old, your maximum heart
rate is 195 beats per minute.) Heart rate program 8 is
designed to keep your heart rate near a target heart
rate that you choose.
Follow the steps below to use a heart rate program.
Turn on the console.
See step 1 on page 13.
Select one of the two heart rate programs.
Each time the
console is
turned on, the
manual mode
will be selected.
Toselect a heart
rate program,
press the
Program Select button repeatedly until the num-
ber 7 or 8 appears in the upper right corner of the
display.
The profiles numbered 7 and 8 on the right side
of the console show the resistance settings for
the heart rate programs.
Enter your age or a target heart rate.
If you selected program 7, the word AGE and
the current age setting will flash in the display
(see the drawing above). Press the + or – button
repeatedly to enter your age. Once you have
entered your age, your age will be saved in mem-
ory until the batteries are replaced.
If you selected
program 8, the
letters PLS and
atarget heart
rate setting of
70 beats per
minute will flash
in the display.
Press the + or – button repeatedly to change the
target heart rate setting, if desired. The target
heart rate setting can be from 70 to 170 beats per
minute.
Hold the handgrip pulse sensor or put on the
optional chest pulse sensor.
To use a heart rate program, you must use the
handgrip pulse sensor or wear the optional chest
pulse sensor. If you use the handgrip pulse sen-
sor, it is not necessary to hold the handgrips con-
tinuously during the program. However, you should
hold the handgrips frequently for the program to
operate properly. Each time you hold the hand-
grips, keep your hands on the metal contacts
for at least 30 seconds. Note: When you are not
holding the handgrips, the letters PLS will appear
in the display instead of your heart rate.
Start the program.
Tostart the program, simply begin pedalling.
Program 7 consists of twenty, one-minute peri-
ods. One resistance setting and one heart rate
setting are programmed for each period. (The
same resistance setting and/or heart rate setting
may be programmed for consecutive periods.)
Program 8 is sixty minutes long (you may choose
to use only part of the program). The same resis-
tance setting and target heart rate setting are pro-
grammed for the entire program.
If program 7 is selected, the resistance of the
elliptical crosstrainer will automatically change as
shown by profile 7 on the console. (Note: If the
current resistance level is too high or too low, you
can adjust the resistance level by pressing the +
or – button. However,when the current period of
the program is completed, the resistance level will
automatically change if a different resistance set-
ting is programmed for the next period.) If pro-
gram 8 is selected, the resistance setting will not
change unless the target heart rate setting is
changed. Pressing the + and – buttons will
change the target heart rate setting.
As you pedal, the
pace indicators
will help you to
keep your heart
rate near the tar-
get current heart
rate. The left
indicator will show your actual pedalling pace.
The right indicator will show a target pace. When
you hold the handgrip pulse sensor or wear the
optional chest pulse sensor, the console will com-
pare your heart rate to the current target heart
rate. If necessary,the right indicator will then
change in height to
5
4
3
2
1
HOW TO USE A HEART RATE PROGRAM

16
prompt you to increase or decrease your pace to
bring your heart rate closer to the target heart
rate. When the right indicator changes in height,
increase or decrease your pace so that both indi-
cators are at the same height. If your pace is
slower than the current target pace, the increase
arrow will appear in the display; if your pace is
faster than the target pace, the decrease arrow
will appear. Important: The target pace is
intended only to provide a goal. Your actual
pace may be slower than the target pace,
especially during the first few months of your
exercise program. Make sure to pedal at a
pace that is comfortable for you.
If you continue pedalling after the program is
completed, the display will continue to show your
exercise feedback.
Follow your progress with the feedback modes.
See step 4 on page 13.
When you are finished exercising, the console
will automatically turn off.
See step 6 on page 13.
Touse iFIT.com CDs,the elliptical crosstrainer must
be connected to your portable CD player, portable
stereo, home stereo, or computer with CD player. See
pages 16 to 18 for connecting instructions. To use
iFIT.com videocassettes,the elliptical crosstrainer
must be connected to your VCR. See page 18 for con-
necting instructions. To use iFIT.com programs
directly from our Web site,the elliptical crosstrainer
must be connected to your home computer. See page
18 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the LINE OUT jack on your CD
player. Plug your headphones into the PHONES
jack.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the splitter. Plug the splitter into the
PHONES jack on your CD player. Plug your head-
phones into the other side of the splitter.
7
6
LINE OUT
PHONES LINE OUT
PHONES
Audio
Cable
Head-
phones
A
PHONES
PHONES
Audio
Cable Splitter
Headphones
B
HOW TO CONNECT YOUR CD PLAYER, VCR,
OR COMPUTER

17
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the adapter. Plug the adapter into
an AUDIO OUT jack on your stereo.
B. See the drawing above. Plug one end of the audio
cable into the jack beneath the console. Plug the
other end of the audio cable into the LINE OUT
jack on your stereo. Do not use the adaptor.
C. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the splitter.Plug the splitter into the
PHONES jack on your stereo. Plug your head-
phones into the other side of the splitter.
HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the adapter. Plug the adapter into
the LINE OUT jack on your stereo.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the adapter. Plug the adapter into
an RCA Y-adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the LINE OUT jack on your stereo and plug the
wire into the unused side of the Y-adapter. Plug the
Y-adapter into the LINE OUT jack on your stereo.
AUDIO OUT
RIGHT
LEFT
Audio
Cable Adapter
A, B
PHONES
Audio
Cable
C
Splitter
Headphones
CD
VCR
Amp
LINE OUT
LINE OUT
Audio
Cable
A
CD
VCR
Amp
LINE OUT
Audio Cable
RCA Y-adaptor
Adapter
Wire removed from
LINE OUT jack
B
Adapter

18
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 3.5mm LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the LINE OUT jack on your com-
puter.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the splitter.Plug the splitter into the
PHONES jack on your computer. Plug your head-
phones or speakers into the other side of the splitter.
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 17.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the adapter. Plug the adapter into
the AUDIO OUT jack on your VCR.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the adapter.Plug the adapter into
an RCA Y-adaptor (available at electronics stores).
Next, remove the wire that is currently plugged into
the AUDIO OUT jack on your VCR and plug the
wire into the unused side of the Y-adaptor. Plug the
Y-adaptor into the AUDIO OUT jack on your VCR.
LINE OUT
Audio
Cable
A
PHONES
Audio
Cable
B
Splitter
Headphones/Speakers
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
C
Audio Cable
Adapter
A
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
A
Audio Cable Adapter
B
Wire removed from
AUDIO OUT jack
RCA
Y-adaptor

19
To use iFIT.com CDs or videocassettes, the elliptical
crosstrainer must be connected to your portable CD
player, portable stereo, home stereo, computer with
CD player, or VCR. See HOW TO CONNECT YOUR
CDPLAYER, VCR, OR COMPUTER on page 16.
Note: To purchase iFIT.com CDs and videocas-
settes, visit our Web site at www.iFIT.com.
Follow the steps below to use an iFIT.com CD or
video program.
Turn on the console.
See step 1 on page 13.
Select the iFIT.com mode.
Each time the
console is
turned on, the
manual mode
will be selected.
To select the
iFIT.com mode,
press the iFIT
button. The indicator near the button will light and
the letters “IF” will appear in the upper right cor-
ner of the display.
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD
into your CD player.If you are using an iFIT.com
videocassette, insert the videocassette into your
VCR.
Press the play button on your CD player or
VCR.
Amoment after the play button is pressed, your
personal trainer will begin guiding you through
your workout. Simply follow your personal trainer’s
instructions.
The program will function in almost the same way
as a preset program (see step 3 on page 14).
However, an electronic “chirping” sound will alert
you when the resistance setting and/or pace set-
ting is about to change.
Note: If the resistance of the elliptical
crosstrainer and/or the pace setting does not
change when a “chirp” is heard:
•Make sure that the indicator near the iFIT but-
ton is lit.
•Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the con-
sole may not detect the program signals.
•Make sure that the audio cable is properly
connected and that it is fully plugged in.
Follow your progress with the feedback modes.
See step 4 on page 13.
Measure your heart rate if desired.
See step 5 on page 13.
When you are finished exercising, the console
will automatically turn off.
See step 6 on page 13.
7
6
5
4
3
2
1
HOW TO USE IFIT.COM CD AND VIDEO
PROGRAMS

20
Our Web site at www.iFIT.com allows you to play
iFIT.com audio and video programs directly from the
internet. To use programs from our Web site, the ellip-
tical crosstrainer must be connected to your home
computer. See HOW TO CONNECT YOUR COMPUT-
ER on page 18. In addition, you must have an internet
connection and an internet service provider. A list of
specific system requirements is found on our Web
site.
Follow the steps below to use a program from our
Web site.
Turn on the console.
See step 1 on page 13.
Select the iFIT.com mode.
Each time the
console is
turned on, the
manual mode
will be select-
ed. To select
the iFIT.com
mode, press
the iFIT button. The indicator near the button will
light and the letters “IF” will appear in the upper
right corner of the display.
Go to your computer and start an internet
connection.
Start your Web browser, if necessary, and go
to our Web site at www.iFIT.com.
Follow the desired links on our Web site to
select a program.
Follow the on-line instructions to start the
program.
When you start the program, an on-screen count-
down will begin.
Return to the elliptical crosstrainer and begin
pedalling.
When the on-screen countdown ends, the pro-
gram will begin. The program will function in
almost the same way as a preset program (see
step 3 on page 14). However,an electronic “chirp-
ing” sound will alert you when the resistance
and/or the pace setting is about to change.
Follow your progress with the feedback modes.
See step 4 on page 13.
Measure your heart rate if desired.
See step 5 on page 13.
When you are finished exercising, the console
will automatically turn off.
See step 6 on page 13.
10
9
8
7
6
5
4
3
2
1
HOW TO USE PROGRAMS DIRECTLY FROM
OUR WEB SITE
