Heat & Glo SL-350TRS-CE-D Assembly instructions

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. N • 10/07 1
- Do not store or use petrol or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
-What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier’s instructions
• If you cannot reach your gas supplier,
call the fire department.
- Installation and service must be performed
by a qualified installer or competent
person.
WARNING: IMPROPER INSTALLATION,
ADJUSTMENT, ALTERATION, SERVICE
OR MAINTENANCE CAN CAUSE INJURY
OR PROPERTY DAMAGE. REFER TO
THIS MANUAL. FOR ASSISTANCE OR
ADDITIONAL INFORMATION CONSULT A
QUALIFIED INSTALLER OR
COMPETENT PERSON.
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THISAPPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTUREREFERENCE.
Please contact your Heat & Glo dealer with any
questionsor concerns. For thenumber of yournearest
Heat & Glo dealer, please call 1-888-427-3973.
Printed in U.S.A. Copyright 2007
Heat & Glo, a brand of Hearth & Home Technologies Inc.
20802Kensington Blvd., Lakeville,MN55044
These instructions are only valid if the
following country symbol is on the appliance.
If this symbol is not present on the appliance,
it is necessary to refer to the technical
instructions which will provide the necessary
information concerning the modification of the
appliance to the conditions of use for the
country.
0087
These instructions are valid for the following
countries: GB, IE
WARNING:
IF THE INFORMATION IN THESE
INSTRUCTIONS IS NOT
FOLLOWED EXACTLY,A FIRE OR
EXPLOSION MAY RESULT
CAUSING PROPERTY DAMAGE,
PERSONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.
Model:
SL-350TRS-CE-D Installers Guide

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. N • 10/07
2
!
SAFETY AND WARNING INFORMATION
READ and UNDERSTAND all instructions carefully before starting the installation.
FAILURE TO FOLLOW these installation instructions may result in a possible fire
hazard and will void the warranty.
Prior to the first firing of the stove, READ the Using Your Fireplace section of the Users
Guide.
DO NOT USE this appliance if any part has been under water. Immediately CALL a
qualified service technician to inspect the unit and to replace any part of the control
system and any gas control which has been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a qualified service person. The
appliance and flue system should be INSPECTED before initial use and at least
annually by a professional service person.
Always KEEP the appliance clear and free from combustible materials, petrol, and
other flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and ventilation air. Keep the front of the
appliance CLEAR of all obstacles and materials for servicing and proper operations.
Due to the high temperature, the appliance should be LOCATED out of traffic areas
and away from furniture and draperies. Clothing or flammable material SHOULD NOT
BE PLACED on or near the appliance.
Children and adults should be ALERTED to the hazards of high surface temperature
and should STAY AWAY to avoid burns or clothing ignition. Young children should be
CAREFULLY SUPERVISED when they are in the same room as the appliance.
These units MUST use one of the fluing systems described in the Installing the Fireplace
section of the Installers Guide. NO OTHER flue systems or components MAY BE USED.
This gas stove and flue assembly MUST be vented directly to the outside and MUST
NEVER be attached to a chimney serving a separate solid fuel burning appliance.
Each gas appliance MUST USE a separate flue system. Common flue systems are
PROHIBITED.
INSPECT the external terminal cap on a regular basis to make sure that no debris is
interfering with the air flow.
The glass door assembly MUST be in place and sealed, and the trim door assembly
MUST be in place on the stove before the unit can be placed into safe operation.
DO NOT OPERATE this appliance with the glass door removed, cracked, or broken.
Replacement of the glass door should be performed by a licensed or qualified service
person. DO NOT strike or slam the glass door.
The glass door assembly SHALL ONLY be replaced as a complete unit, as supplied
by the gas stove manufacturer. NO SUBSTITUTE material may be used.
DO NOT USE abrasive cleaners on the glass door assembly. DO NOT ATTEMPT to
clean the glass door when it is hot.
Turn off the gas before servicing this appliance. It is recommended that a qualified
service technician perform an appliance check-up at the beginning of each heating
season.
Any safety screen or guard removed for servicing must be replaced before operating
this appliance.
This appliance is intended for use on a gas installation with a governed meter.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. N • 10/07 3
Table of Contents
Safety and Warning Information .................................. 2
Service Parts List ......................................................... 4
Section 1: Approvals and Regulations ....................... 7
ApplianceCertification ................................................ 7
InstallationRegulations ............................................... 7
Section 2: Getting Started ........................................... 8
Introducing the Heat & Glo Gas Fireplaces................. 8
Pre-installationPreparation......................................... 8
Section 3: Installing the Fireplace ............................ 10
Step 1 Locating the Fireplace ................................. 10
Step 2 Framing the Fireplace ..................................11
Step 3 Installing the Flue System ........................... 12
A. Flue SystemApprovals ........................... 12
B. Installing Flue Components..................... 23
C. Flue Termination ..................................... 26
Step 4 Positioning, Levelingand
Securing the Fireplace ................................ 31
Step 5 The Gas Control Systems........................... 31
Step 6 The Gas Supply Line ................................... 32
Step 7 Gas Pressure Requirements ...................... 33
Step 8 Wiring the Fireplace .................................... 33
Step 9 Finishing ...................................................... 34
Step 10
Installing Trim, Logs & Ember Material......... 35
Installing theTrim ........................................ 35
Positioning the Logs .................................... 36
Placing the Ember Material ......................... 38
Step 11 Before Lighting the Fireplace....................... 39
Step 12 Lighting the Fireplace .................................. 39
Afterthe Installation ..................................... 39
Section 4: Maintaining and Servicing
Your Fireplace .......................................... 40
Section 5: Troubleshooting ....................................... 42
Î= Containsupdatedinformation.

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. N • 10/07
4
LogSetAssembly

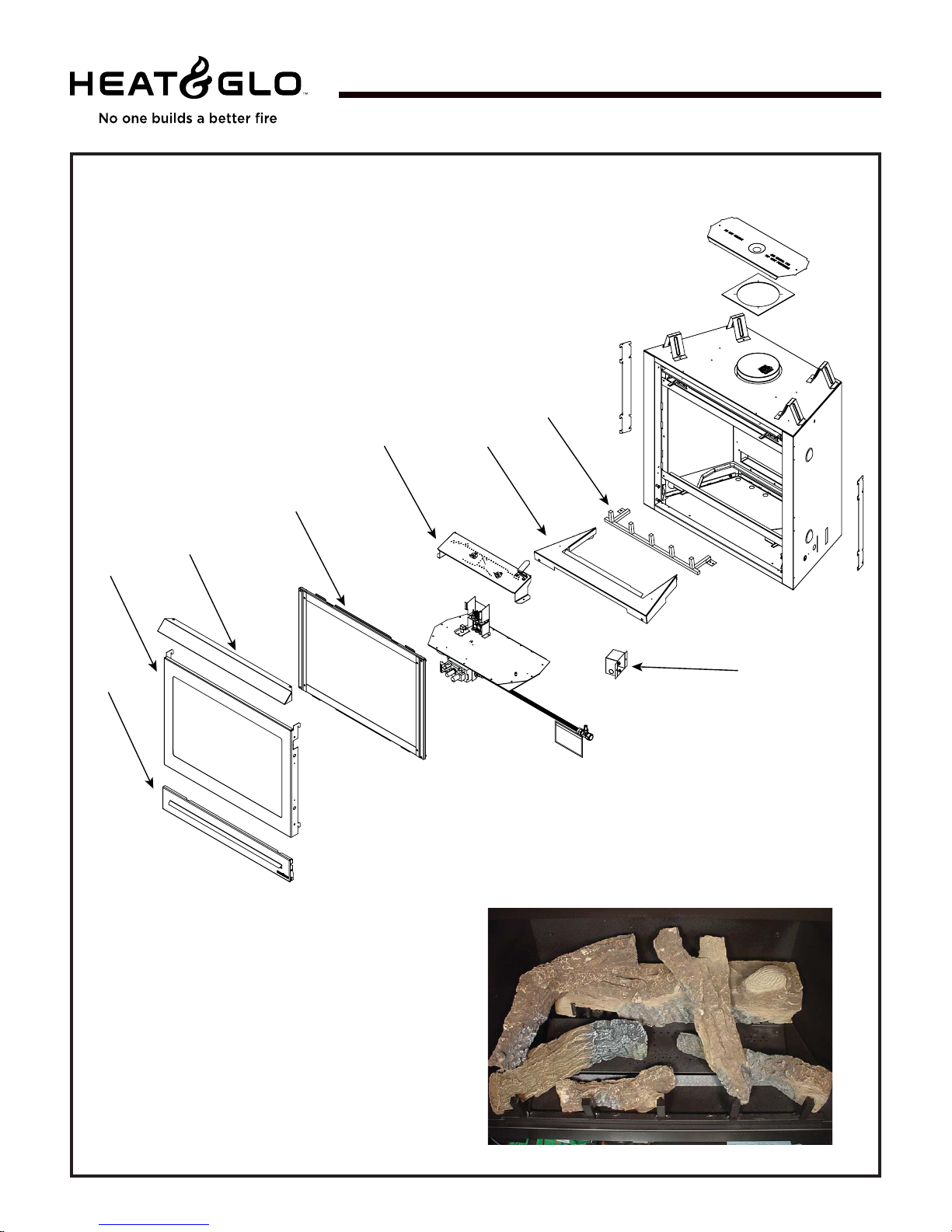

Service Parts Diagram

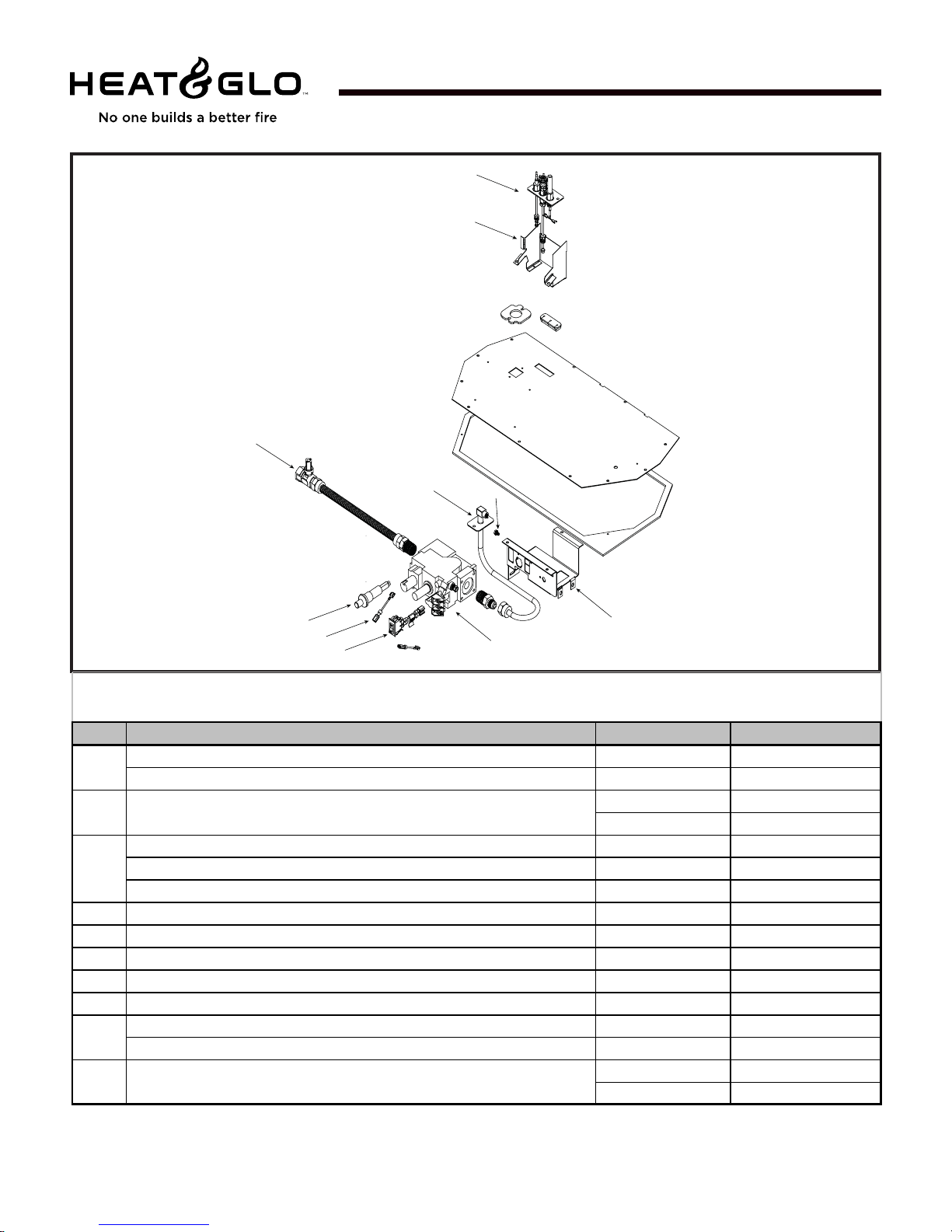

Service Parts SL-350TRS-CE-D
Beginning Manufacturing Date: 9-03
Ending Manufacturing Date: _______
41
3
6
2
5
7
14
13
12
11
10
98
Partnumberlist on following page.

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. N • 10/07 5
(NG, LP) Service Parts List SL-350TRS-CE-D
ITEM DESCRIPTION SERIAL # PART NUMBER
Log Set Assembly LOGS-350CE-D
1 Log 1 SRV327-701
2 Log 2 SRV2033-701
3 Log 3 SRV705-703
4 Log 4 SRV530-716
5 Log 5 SRV438-724
6 Log 6 SRV540-704
7 Grate Assembly 2033-013
8BasePan 2033-105
Pre Sept 2007 2033-007
Post Sept 2007 2033-027
Pre Sept 2007 2033-008
Post Sept 2007 2033-028
Pre Sept 2007 2033-009
Post Sept 2007 2033-029
Pre 0021061383 GLA-350TRS
Post 0021061383 GLA-3504TRS
11 Hood SRV540-174
Pre 00295123 540-382A
Post 00295123 2033-020
13 Door Assembly, Lower Post 00295123 2033-021
14 Junction Box 546-250A
Louver, Upper Pre 00295123 540-256A
Louver, Lower Pre 00295123 540-257A
Glass Latch Assembly 386-122A
Exhaust Baffle 530-299
Mineral Wool 050-721
Gasket Assembly
Includes: Burner Neck, Shutter Bracket, Vent, Seal Cap, Valve
Plate, and Air Passage Gaskets
Touch Up Paint TUP-GBK-12
Wall Switch ( off White) WSK-21
Wall Switch (White) WSK-21-W
Conversion Kit N NGK-350TRSCE-D
Conversion Kit P LPK-350TRSCE-D
Conversion Kit B BGK-350TRSCE-D
Pilot Orifice N 529-512
Pilot Orifice P/ B 200-2630
Regulator N 230-1570
Regulator P/B 230-1520
Additional service part numbers may appear on following page.
9
Burner N
Burner P
Glass Door Assembly
12 Door Assembly
IMPORTANT THIS IS DATED INFORMATION. When Requesting service or replacement parts for your appliance, please
provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
2113-080
Burner B
10

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. N • 10/07
6
Valve assembly
Service Parts SL-350TRS-CE-D
Beginning Manufacturing Date: 9-03
Ending Manufacturing Date: _______
1
2
3
4
5
6
7
89
10
ITEM DESCRIPTION SERIAL # PART NUMBER
Pilot Assembly N 529-540A
Pilot Assembly P 529-541A
Pre Sept 2007 2033-103
Post Sept 2007 2033-133
Orifice N (#44C) 582-844
Orifice B (# 56C) 582-856
Orifice P (#55C) 582-855
4 Flexible Gas Connector 383-302A
5 Flex Ball Valve Assembly 2078-022
6 Piezo Ignitor 291-513
7 Wire Assembly 049-552A
8 On/Off Switch Assembly 060-521A
Valve N 060-524
Valve P 060-526
Pre Sept 2007 529-169
Post Sept 2007 2118-104
Valve Bracket
IMPORTANT THIS IS DATED INFORMATION. When Requesting service or replacement parts for your appliance, please
provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
1
2 Pilot Bracket
3
9
10
Î

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. N • 10/07 7
Appliance Certification
The Heat & Glo fireplace models discussed in this
Installers Guide have been tested to certification
standards and listed by the applicable laboratories.
CERTIFICATION
MODEL LABORATORY TYPE STANDARD
SL-350TRS-CE-D Advantica Gas Fireplace 90/396/EEC
Installation Regulations
Before installation check that local distribution conditions, nature of gas and
pressure, and adjustment of the appliance are compatible.
This appliance must be installed with the rules in force, and used only in a
sufficiently ventilated space. Consult instructions before installation and use of
this appliance.
1
Approvals
and
Regulations

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. N • 10/07
8
Heat & Glo direct flue gas fireplaces are designed to
operate with all combustion air siphoned from outside
of the building and all exhaust gases expelled to the
outside.
The information contained in this Installers Guide,
unless noted otherwise, applies to all models and gas
control systems.
Gas fireplace diagrams, including the dimensions, are
shown in this section.
This gas fireplace and its components are tested and
safe when installed in accordance with this Installers
Guide. Report to your dealer any parts damaged in
shipment, particularly the condition of the glass. Do
not install any unit with damaged, incomplete, or
substitute parts.
The flue system components and trim doors are
shipped in separate packages. The gas logs are
packaged separately and must be field installed.
Read all of the instructions before starting the
installation. Follow these instructions carefully
during the installation to ensure maximum safety
and benefit. Failure to follow these instructions
will void the owner’s warranty and may present a
fire hazard.
The Heat & Glo Fireplace Products, Inc. Warranty will
be voided by, and Heat & Glo Fireplace Products, Inc.
disclaims any responsibility for, the following actions:
• Installation of any damaged fireplace or flue system
component.
• Modification of the fireplace or direct flue system.
• Installation other than as instructed by Heat & Glo
Fireplace Products, Inc.
• Improper positioning of the gas logs or the glass
door.
• Installation and/or use of any component part not
manufactured and approved by Heat & Glo Fire-
place Products, Inc., not withstanding any indepen-
dent testing laboratory or other party approval of
such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A
FIRE HAZARD.
Introducing the
Heat & Glo
Gas Fireplaces
Pre-installation
Preparation 2
Getting
Started

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. N • 10/07 9
Figure 1. Diagram of the SL-350TRS-CE-D
When planning a fireplace installation, it’s necessary to determine:
•Where the unit is to be installed.
•The flue system configuration to be used.
•Gas supply piping.
•Electrical wiring.
•Framing and finishing details.
•Whether optional accessories—devices such as a fan, wall switch, or
remote control—are desired.
If the fireplace is to be installed on carpeting or tile, or on any combustible
material other than wood flooring, the fireplace should be installed on a metal
or wood panel that extends the full width and depth of the fireplace.
21-3/8 in.
544 mm
6 in.
153 mm
2-1/4 in.
58 mm
3-5/8 in.
93 mm
6-7/8 in.
174 mm
29-1/8 in.
741 mm
28-1/8 in.
714 mm
33 in.
837 mm
41-3/4 in.
1061 mm
8 in.
203 mm
GAS LINE
ACCESS
ELECTRICAL
ACCESS
6-5/8 in.
167 mm
15-7/8 in.
402 mm
15-1/8 in.
384 mm
32-1/2in.
827 mm
24 in.
610 mm
16-3/8 in.
414 mm 8-3/4 in.
223 mm
11-3/8 in.
289 mm
22-3/4 in.
577 mm
TOP HEAT SHIELD
(FLUE COLLAR COVER PLATE)
GAS
CONTROLS
HOOD
TOP STANDOFFS
GAS
ACCESS
BOTTOM
GRILLE COVER
RATING PLATE/LABELS
ELECTRICAL GAS

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. N • 10/07
10
A
B
C
D
E
7.6 cm
1.3 cm
AB CDE
86.4cm 41.3cm 72.8cm 100.1cm 141.6cm
*

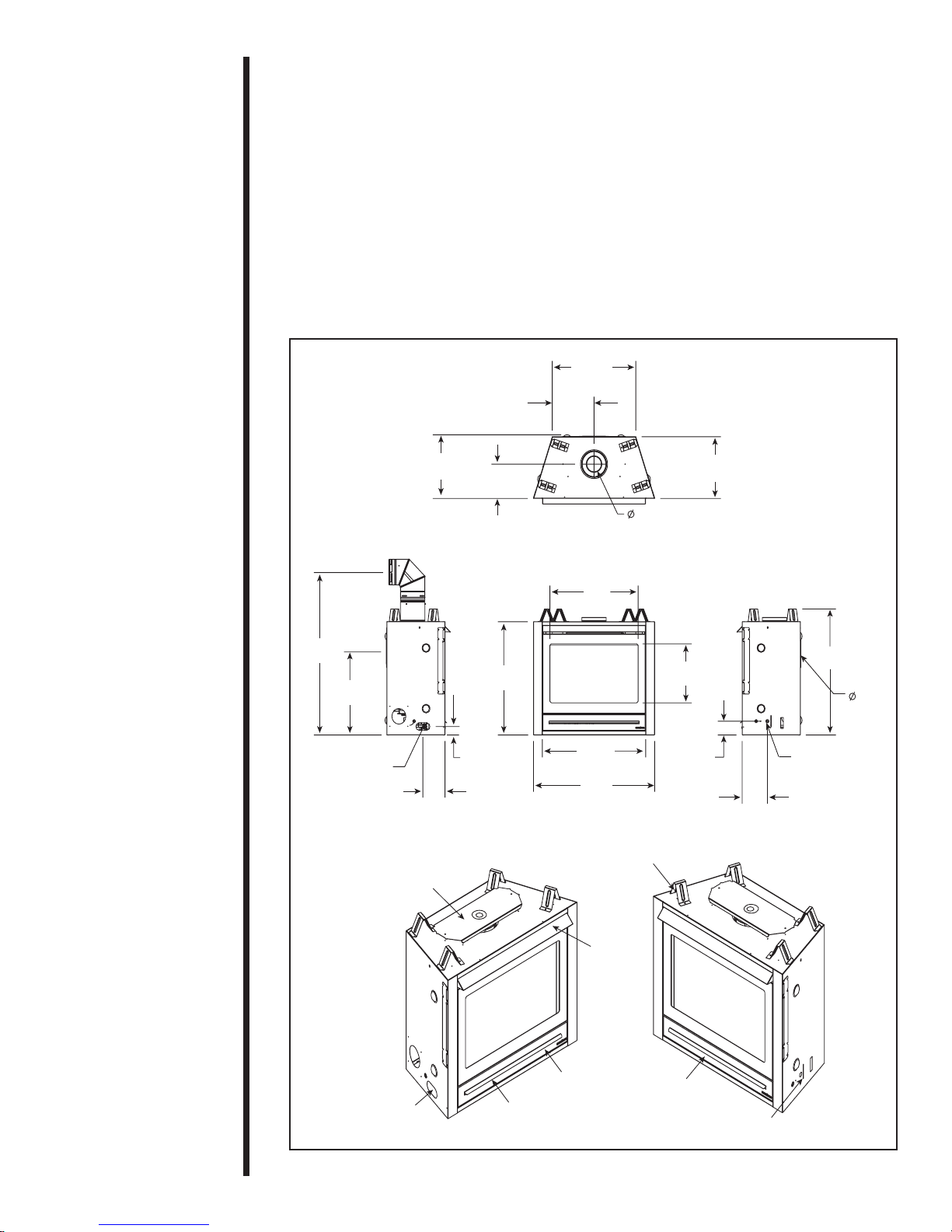

Figure 2. Fireplace Dimensions, Locations, and
Space Requirements
3
Installing the
Fireplace
The diagram below shows space and clearance
requirements for locating a fireplace within a room.
Step 1
Locating the
Fireplace
Figure 3. Heat Shield
NOTE:
Dimensions are
shown with the
sides, back
and/or corners
of the unit 1/2
inch from the
wall.
The heat shield must be
attached as shown if
combustible materials
are placed directly on
top standoffs (Figure 3).
The minimum clearance
to a perpendicular wall
extending past the face
of the fireplace is 7.62cm.
The back of the fireplac-
es may be recessed
into combustible con-
struction, as shown
below.
MODEL: SL-350TRS-CE-D RECESSED DEPTH: 41.3cm
Clearance Requirements
The top and back of the
fireplace are defined by
stand-offs.
Minimum Clearances from the Fireplace to Combustible Materials
Glass
Front Floor Back of Fireplace Sides of Fireplace Top of Fireplace Ceiling
91.4cm 0 1.3cm 1.3cm 3.8cm 79cm
TOP STANDOFFS
HEAT SHIELD
HEAT SHIELD
INSTALLED

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. N • 10/07 11
Minimum Clearances from the Flue Pipe to
Combustible Materials
For Vertical
For Horizontal Sections Sections At Wall Firestops
Top Bottom Sides Top Bottom Sides
7.6 cm 2.54 cm 2.54 cm 2.54 cm 6.4 cm 1.3 cm 2.54 cm
Step 2
Framing the
Fireplace
Fireplace framing can be built before or after the
fireplace is set in place. Framing should be positioned
to accommodate wall coverings and fireplace facing
material. The diagram below shows framing reference
dimensions.
CAUTION MEASURE FIREPLACE DIMENSIONS, AND
VERIFY FRAMING METHODS AND WALL
COVERING DETAILS, BEFORE FRAMING
CONSTRUCTION BEGINS.
Framing should be
constructed of 2 X 4 lumber or heavier.
The framing headers may rest
on the fireplace stand-offs.
Figure 4. FramingDimensions
B
A
C
The center of the framing hole is
one inch (2.54cm) above the center
of the horizontal flue pipe.
D
VENT
FRAMING
HOLE
E
ABCDE
86,4 83,2 41,3 106 54,2

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. N • 10/07
12
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION
STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKET
CEILING
FIRESTOP
DVP-SERIES
SLK-01DA SLK-991DA
SL D-SERIES
DVP-TRAP
DVP-TVHW
Figure 5. Flue Components and Terminations
A. Flue System Approvals
These models have flue starting collars on both the
top and the back of the unit. Depending upon the
installation, decide which ONE set of starting collars
will be used to attached the flue system. The starting
collar sealing cap must remain on the starting collar
NOT used.
ThesemodelsuseSL-D-series,direct flue components
when using the TOP flue collars and DVP-series direct
flue components when using the REAR flue collars.
WARNING: YOU MUST NOT MIX DVP-SERIES
AND SL D-SERIES COMPONENTS IN ANY
FLUE SYSTEM CONFIGURATION.
Approved flue system components are labeled for
identification. NO OTHER FLUEING SYSTEMS OR
COMPONENTS MAY BE USED. Detailed installation
instructions are included with each flue termination kit
and should be used in conjunction with this Installers
Guide. Figure 4 shows flue system components and
terminations.
Identifying Flue Components
The flue systems installed on this gas fireplace may
include one, two, or three 90° elbow assemblies. The
relationships of vertical rise to horizontal run in flue
configurations using 90° elbows MUST BE strictly
adhered to. The rise to run relationships are shown in the
flueing drawings and tables on the next several pages.
NOTE: Two 45° elbows may be used in place of one
90° elbow. You MUST always maintain the MAXIMUM
and MINIMUM rise-to-run ratios in the flue system
when using 45° elbows.
Step 3
Installing the
Flue System
!
Flue system termination kits

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. N • 10/07 13
NOTE: PIPES OVERLAP 32mmAT EACH JOINT.
DVP90ST
319mm
286mm
184mm
32mm TYP
13mm TYP
217mm
DVP36
DVP48
1219mm
610mm
914mm
102mm
152mm
DVP4
DVP6
305mm
DVP12
51mm
MIN.
DVP12A
310mm
MAX.
DVP24
251mm
45.0
O
260mm
DVP45
362mm
FIGURE 6. DVP-Series Balanced Flue Component Specifications
(127mm inner pipe / 203mm outer pipe)

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. N • 10/07
14
Figure 7. SL D-Series Flue Component Specifications
(102mm inner pipe/168mm outer pipe)
NOTE: PIPES OVERLAP 34.93mm AT EACH JOINT.

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. N • 10/07 15
H
STRAIGHTUP
VERTICALFLUE
V
11.8mMAX.

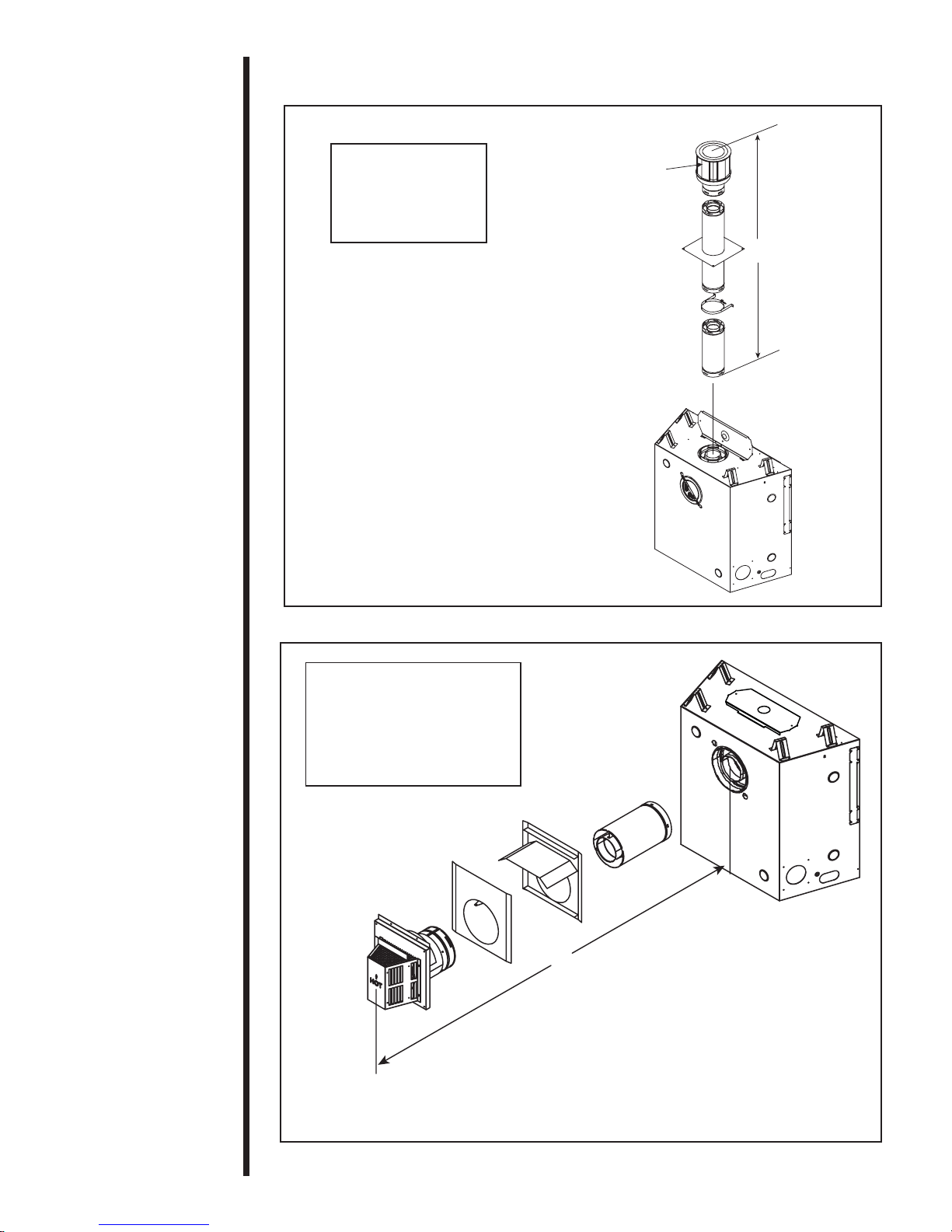

Figure 8. Straight up Vertical Flue

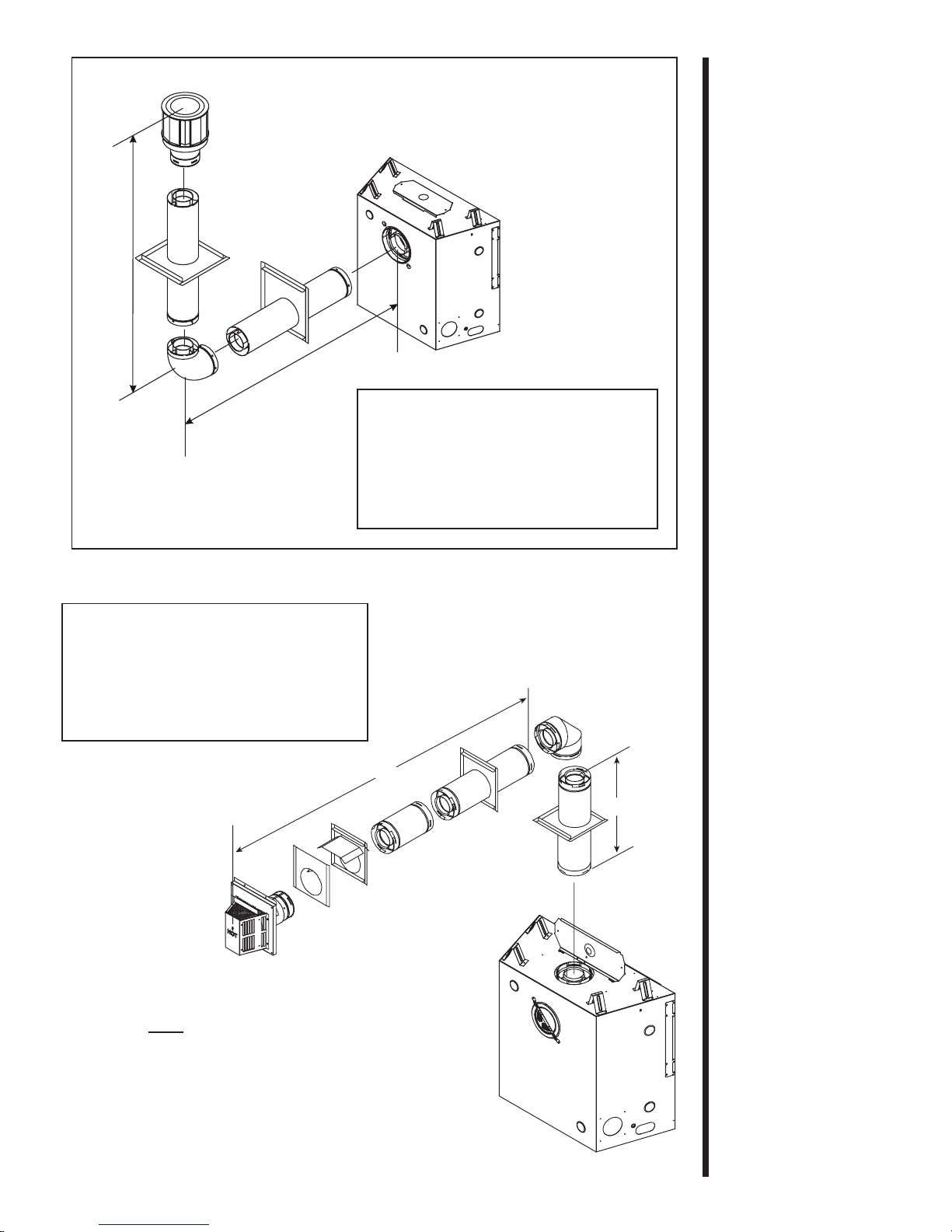

Use SL D-Series
components only.
STRAIGHTOUTHORIZONTAL
FLUE
H
Max. Run
610mm
Use DVP-Series
components only.
Figure 9. Straight Out Horizontal Flue
CAP
V
1

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. N • 10/07
16
V
H
V
H
FLUEWITH ONE (1) 90oELBOW
VH
MIN. 457mm MAX.1.37m
MIN. 914mm MAX.2.74m
MIN. 1.37m MAX.4.11m
MIN. 1.83m MAX.5.48m
V+H = MAX. 11.6m H= MAX. 5.48m
Use DVP-Series
components only.
Figure 10.
Flue with One 90° Elbow
Figure 11. Flue with One 90° Elbow
FLUEWITH ONE (1) 90oELBOW
VH
MIN. 381mm MAX.1.43m
MIN. 762mm MAX.2.29m
MIN. 1.14m MAX.3.43m
MIN. 1.52m MAX.4.57m
V + H = MAX 11.6m H = MAX. 4.57m
NOTE: A23cm verticalsection
must be attached to the unit
beforethe 90oelbow.
Use SL D-Series
components only.

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. N • 10/07 17
V
HH
1

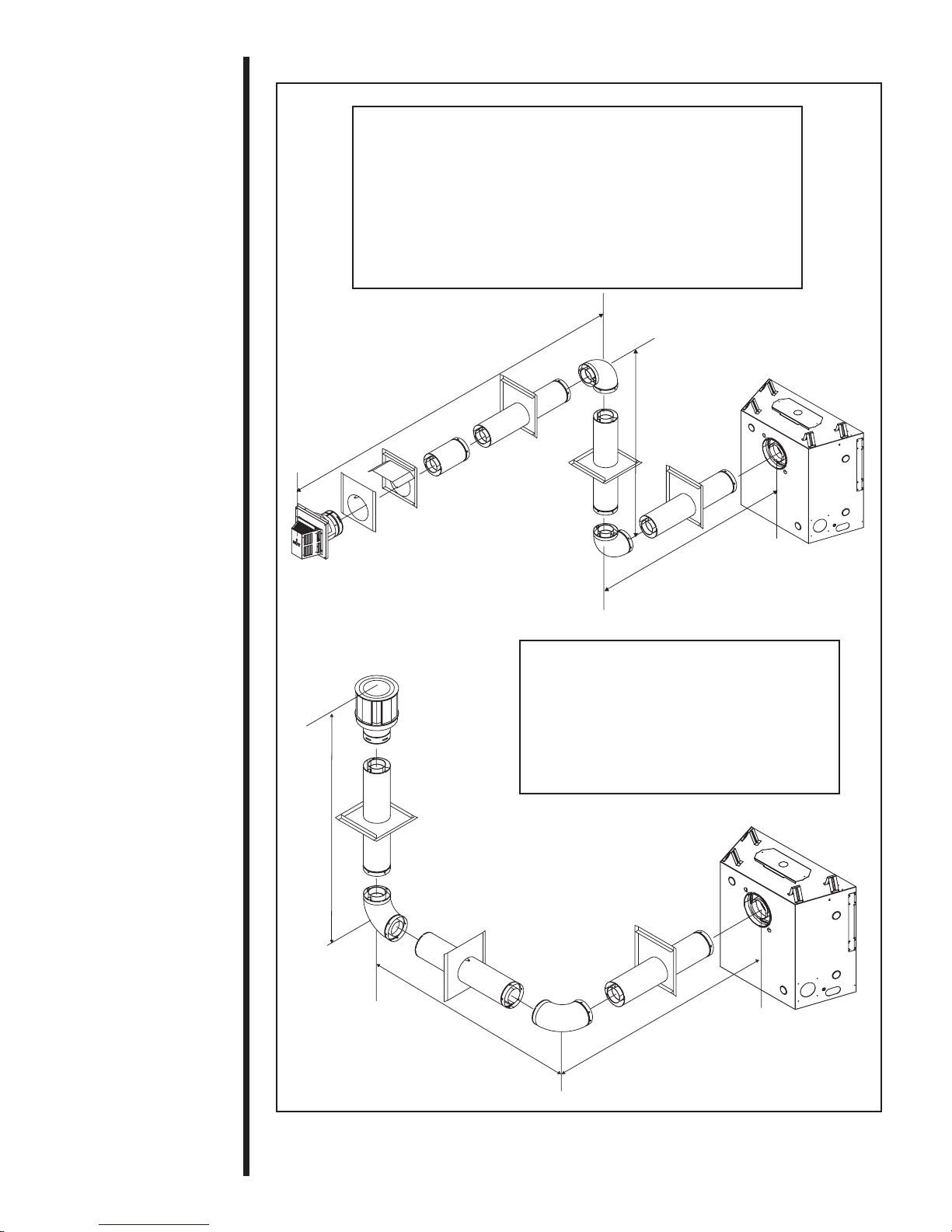

FLUE WITH TWO (2) 90° ELBOWS
VH+H
1
MIN. 305 mm MAX. 610 mm
MIN. 610 mm MAX. 1.22 m
MIN. 914 mm MAX. 1.86 m
MIN. 1.22 m MAX.2.48m
H + H1= MAX. 2.48 m V + H + H1= 11.6m MAX.
Use DVP-Series
components only.
Figure 12. Flue with Two 90° Elbows
H
1
V
H
FLUE WITH TWO (2) 90° ELBOWS
V H H + H1
MIN. 305 mm MAX. 610 mm MAX.1.22m
MIN. 610 mm MAX. 1.22 m MAX. 2.4 m
MIN. 914 mm MAX. 1.86 m MAX. 3.6 m
MIN. 1.22 m MAX.2.48m MAX.4.8m
H = MAX. 2.48 m H + H1= MAX. 4.8m V + H + H1= 11.6m MAX.

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. N • 10/07
18
H 1
H
V

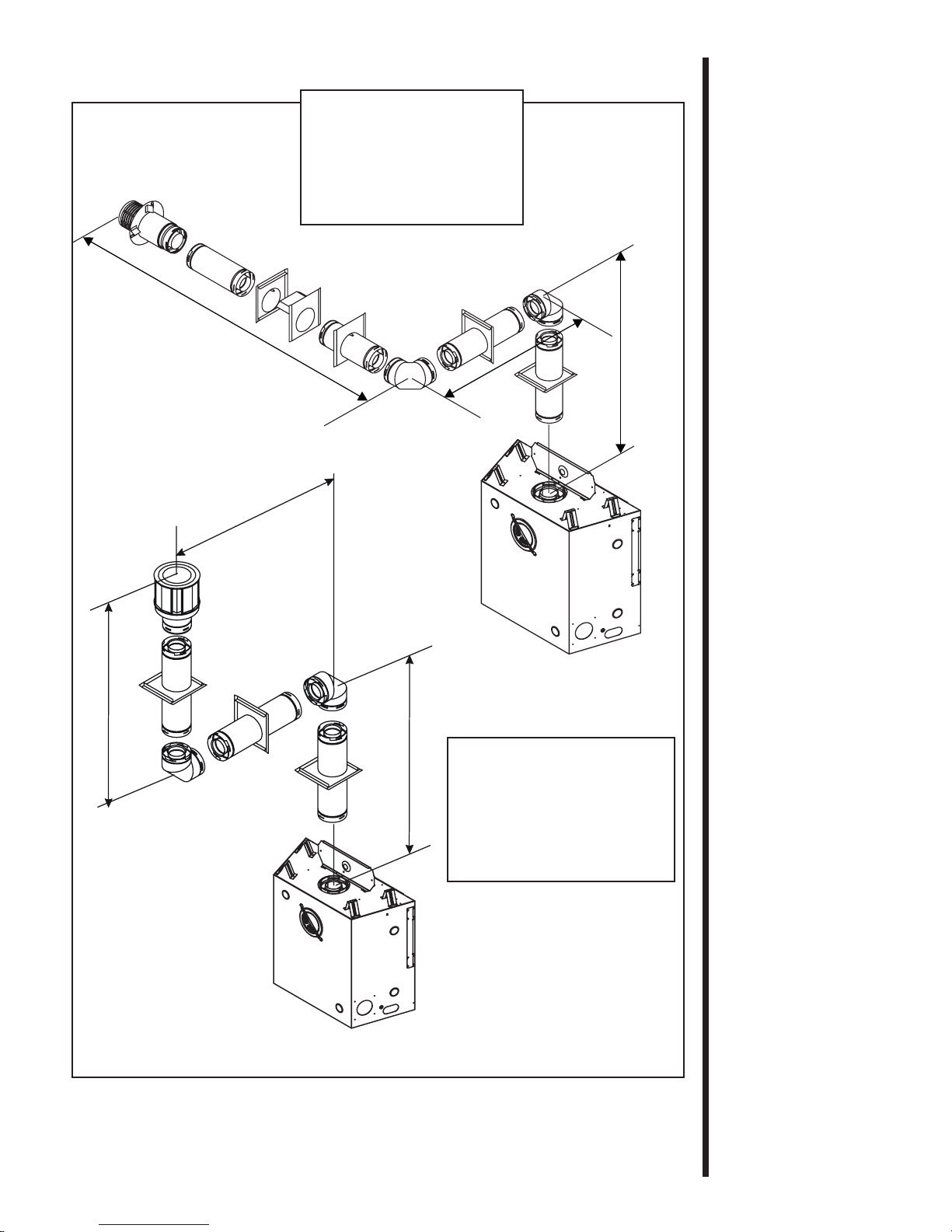

Figure 13. Flue with Two 90° Elbows
Use SL D-Series
components only.
H
V
V11
V H
MIN. 305mm MAX.610mm
MIN. 610mm MAX.1.22m
MIN. 914mm MAX.1.86m
MIN. 1.22m MAX.2.48m
MIN. 1.52m MAX. 4.8m
H = MAX. 4.8m V + V1 + H = MAX. 11.6m
FLUE WITH TWO (2) 90° ELBOWS
MIN. 305mm MAX.610mm
MIN. 610mm MAX.1.22m
MIN. 914mm MAX.1.86m
MIN. 1.22m MAX. 2.48m
MIN. 1.52m MAX. 4.8m
V+H+H1= MAX. 11.6m H+H1= MAX. 4.8m
FLUE WITH TWO (2) 90° ELBOWS
V H + H1

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. N • 10/07 19
H
V
H
2
H
1
V
1
H
V
H
1
FLUE WITH THREE (3) 90° ELBOWS
MIN. 305 mm MAX. 610 mm MAX. 1.22 m
MIN. 610 mm MAX. 1.22 m MAX. 2.48 m
MIN. 914 mm MAX. 1.86 m MAX. 3.72 m
MIN. 1.22 m MAX. 2.48 m MAX. 4.8 m
H = MAX. 2.48 m MAX. 4.8 m
NOTE: V + V, + H + H1= 11.6m MAX.
V H H + H1
V H H + H1+ H2
MIN. 305 mm MAX. 610 mm MAX. 1.22 m
MIN. 610 mm MAX. 1.22 m MAX. 2.48 m
MIN. 914 mm MAX. 1.86 m MAX. 3.7 m
MIN. 1.22 m MAX. 2.48 m MAX. 4.8 m
V + H + H
1
+ H
2
= 11.6m MAX. H = MAX 2.48m H + H
1
+ H
2
= MAX. 4.8m
FLUE WITH THREE (3) 90° ELBOWS

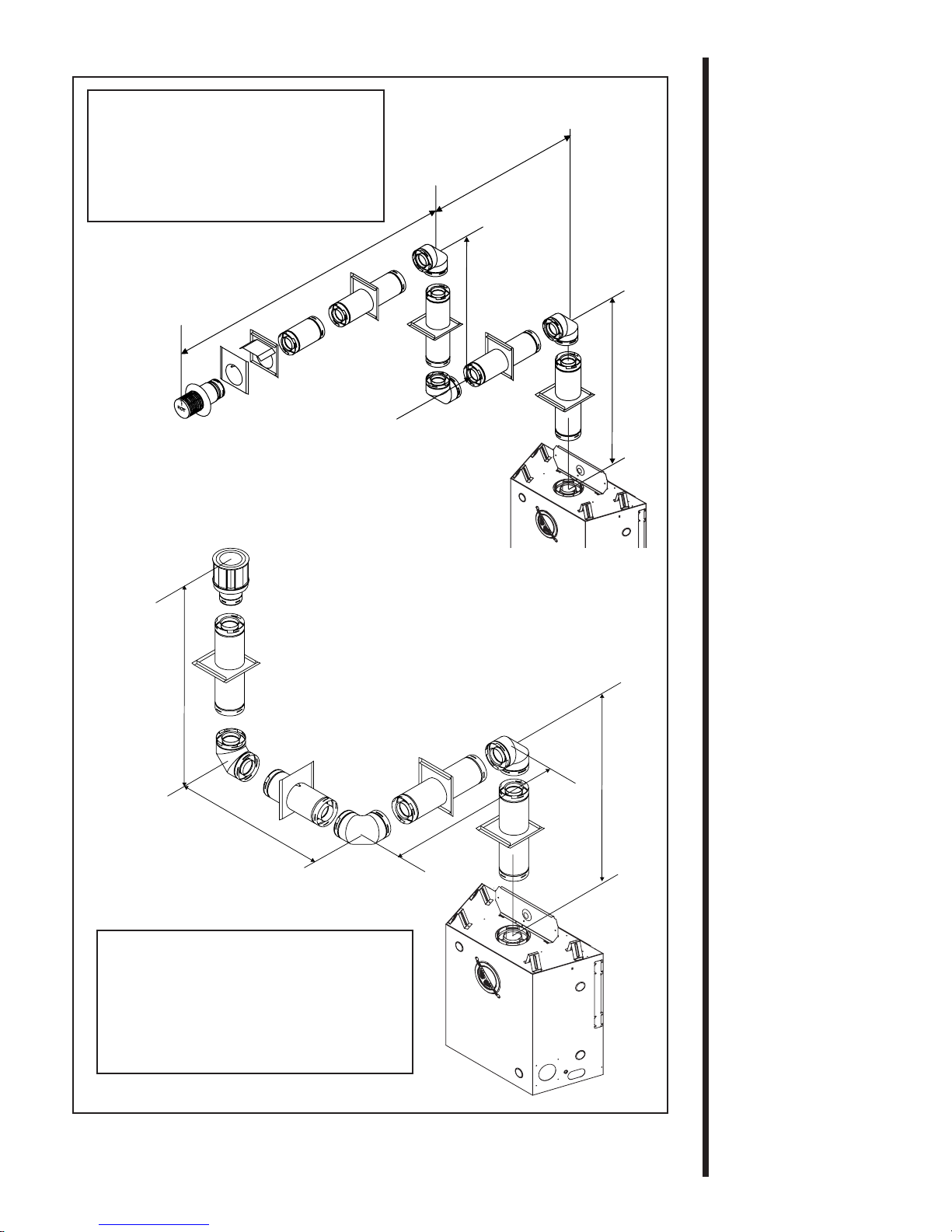

Figure 14. Flue with three 90° elbows
USEDVP-SERIES
COMPONENTSONLY.

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. N • 10/07
20
H 1
H
V
1
V
V 1
H 1
H
V
Figure 15. Flue with three 90° elbows
V H H + H1
MIN. 305 mm MAX. 610 mm MAX. 1.22 m
MIN. 610 mm MAX. 1.22 m MAX. 2.48 m
MIN. 914 mm MAX. 1.86 m MAX. 3.7 m
MIN. 1.22 m MAX. 2.48 m MAX. 4.8 m
V + V1+ H + H1= 11.6m MAX.
H = MAX 2.48m H + H1= MAX. 4.8m
FLUE WITH THREE (3) 90° ELBOWS
V H H + H1
MIN. 305 mm MAX. 610 mm MAX. 1.22 m
MIN. 610 mm MAX. 1.22 m MAX. 2.48 m
MIN. 914 mm MAX. 1.86 m MAX. 3.7 m
MIN. 1.22 m MAX. 2.48 m MAX. 4.8 m
V + V1+ H + H1= 11.6m MAX.
H = MAX 2.48m H + H1= MAX. 4.8m
FLUE WITH THREE (3) 90° ELBOWS
USESL D-SERIES
COMPONENTSONLY.
