Heat-N-Glo 6000CAMP Assembly instructions

1
-Do not store or use gasoline or other flam-
mablevaporsandliquidsinthevicinityofthis
orany otherappliance.
-What to do if you smell gas
•Do not try to light any appliance.
•Do not touch any electrical switch.
•Do not use any phone in your building.
•Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
•If you cannot reach your gas supplier, call
thefiredepartment.
-Installationandservicemustbeperformedbya
qualified installer, service agency, or the gas
supplier.
Installers Guide
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURYOR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE ORADDITIONAL INFOR-
MATION CONSULT AQUALIFIED IN-
STALLER, SERVICEAGENCY, OR THE
GAS SUPPLIER.
Underwriters
Laboratories Listed
382-900G 6/02
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTUREREFERENCE.
1. This appliance may be installed in an af-
termarket,permanentlylocated,manufac-
tured(mobile)home,wherenotprohibited
bylocalcodes.
2. Thisapplianceisonlyforusewiththetype
of gas indicated on the rating plate. This
appliance is not convertible for use with
othergases,unlessacertifiedkitisused.
Please contact your Heat-N-Glo dealer with any
questionsorconcerns.Forthenumberofyournearest
Heat-N-Glodealer,pleasecall1-888-427-3973.
Printedin U.S.A. Copyright 2002,
Heat-N-Glo,adivision of HearthTechnologiesInc.
20802KensingtonBoulevard,Lakeville,MN55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, AFIRE OR
EXPLOSION MAYRESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.
Model:
6000CAMP

2
These units MUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide. NO OTHER vent systems or
components MAYBE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside and MUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance MUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLYbe
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of the Owners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It is IMPERATIVE that the unit’s
control compartment, burners, and circulating air
passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACED on or near the
appliance.
Children and adults should be ALERTED to the
hazards of high surface temperature and should
STAYAWAYto avoid burns or clothing ignition.
Young children should be CAREFULLYSUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!
!

3
TABLE OF CONTENTS
Safety and Warning Information ............................................... 2
Service Parts Lists.................................................................... 4
Section 1: Approvals and Codes .............................................. 6
Appliance Certification ................................................................. 6
Installation Codes ........................................................................ 6
HighAltitude Installations.............................................................. 6
Section 2: Getting Started ........................................................ 7
Introducing the Heat-N-Glo Gas Fireplaces.................................. 7
Pre-installation Preparation .......................................................... 7
Section 3: Installing the Fireplace ........................................... 9
Constructing the Fireplace Chase................................................ 9
Step 1Locating the Fireplace .................................................. 9
Step 2Framing the Fireplace................................................. 10
Step 3Installing the Vent System ........................................... 12
A. Vent System Approvals .......................................... 12
B. Installing Vent Components ................................... 19
C. VentTermination.................................................... 23
Step 4Positioning,Leveling, and
Securing the Fireplace................................................ 26
Step 5The Gas Control Systems .......................................... 26
Step 6The Gas Supply Line .................................................. 27
Step 7Gas Pressure Requirements...................................... 27
Step 8Wiring the Fireplace.................................................... 28
Step 9Finishing ..................................................................... 29
Step 10 Installing Trim, Logs and Ember Material .................... 29
InstallingtheTrim........................................................ 29
Positioning the Logs ................................................... 29
ShutterSettings ........................................................... 29
Placing the Ember Material ......................................... 29
Glass Specifications ................................................... 30
Step 11 Before Lighting the Fireplace ...................................... 30
Step 12 Climate Control .......................................................... 30
Afterthe Installation.................................................................... 30
Section 4: Maintaining and Servicing Your Fireplace......... 31
u= Contains updated information.
u
u

6
Appliance Certification
TheHeat-N-GlofireplacemodelsdiscussedinthisInstallers
Guide havebeen testedto certification standardsand listed
by the applicable laboratories.
Certification
MODELS: 6000CAMP
LABORATORY: UnderwritersLaboratories
TYPE: Direct Vent Gas Fireplace Heater
STANDARD: ANSI Z21.88-2000•CSA2.33-M98•UL307B
Installation Codes
Thefireplaceinstallationmustconformtolocalcodes.Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
Intheabsence oflocalcodes, thefireplaceinstallation must
conform to the National Fuel Gas Code ANSI Z223.1 (in
theUnitedStates) or theCAN/CGA-B149InstallationCodes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric Code ANSI/NFPA No. 70
(intheUnitedStates),ortothe CSAC22.1CanadianElectric
Code(in Canada).
Thesemodels may be installed ina bedroomor bed-sitting
room in the U.S.A. and Canada.
Approvals and
Codes
HighAltitudeInstallations
U.L. Listed gas fireplaces are tested and approved for
elevations from 0 to 2,000 feet in the U.S.A. and from 0 to
4,500feet in Canada.
When installing this fireplace at an elevation above 2,000
feet(in theUnited States),it maybenecessary todecrease
the input rating by changing the existing burner orifice to a
smallersize. Input should be reducedfour percent(4%) for
each1,000feet above sealevel,unless the heatingvalueof
the gas has been reduced, in which case this general rule
will not apply. To identify the proper orifice size, check with
the local gas utility.
Wheninstallingthis fireplaceatan elevation between2,000
and4,500feet(inCanada),the inputratingmustbereduced
by ten percent (10%).
When installing this fireplace at an elevation above 4,500
feet (in Canada), check with local authorities.
Consult your local gas utility for assistance in determining
theproper orifice foryour location.
Heat-N-GloQuality
Systems registered
by SGS ICS

7
Getting Started
Introducing the Heat-N-Glo Gas Fireplaces
Heat-N-Glodirect ventgas fireplaces aredesigned tooper-
ate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control

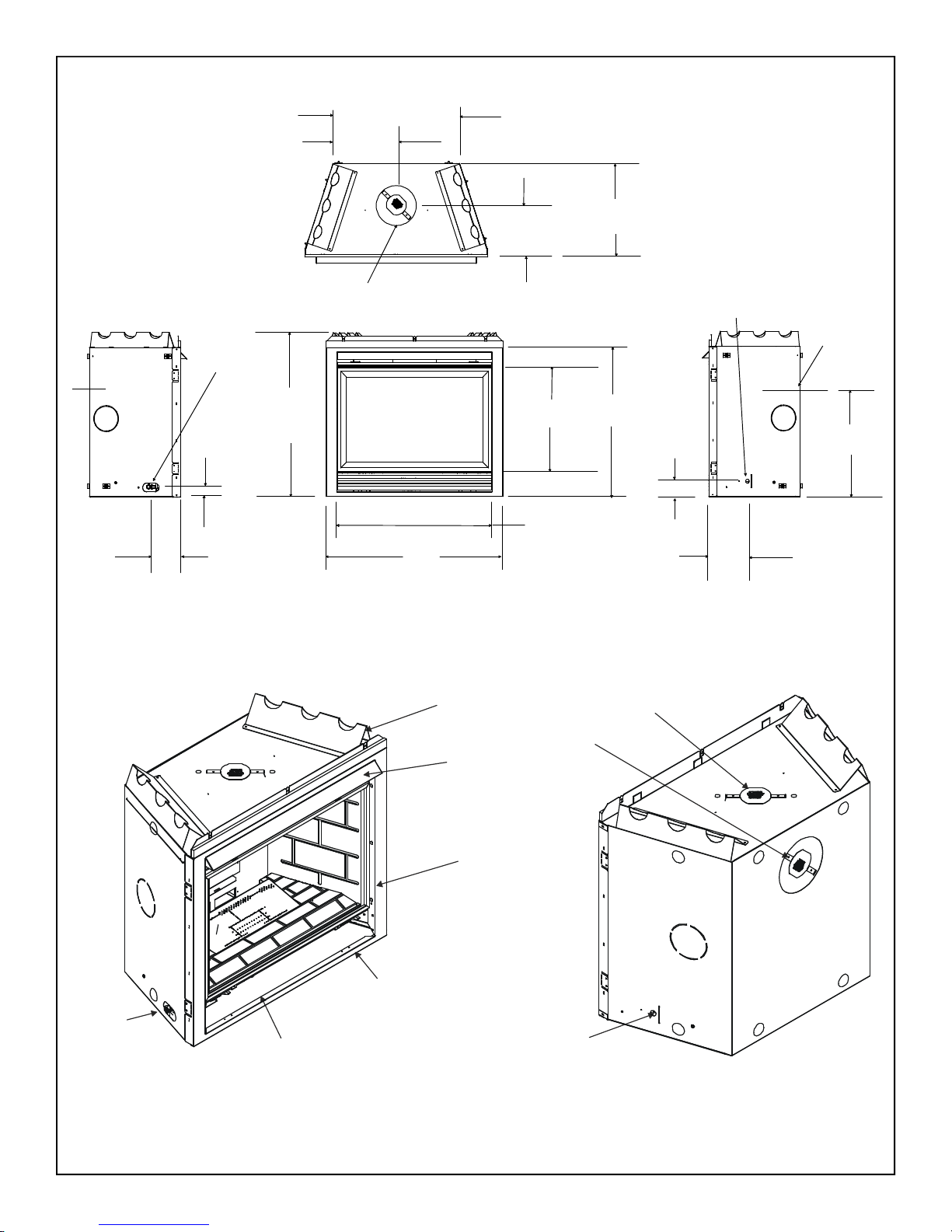

systems.Gasfireplace diagrams,includingthe dimensions,
are shown in this section.
Pre-install Preparation
Thisgas fireplace and itscomponents are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
The vent system components and trim doors are shipped
in separate packages. The gas logs may be packaged
separately and must be field installed.
Read all of the instructions before starting the
installation. Follow these instructions carefully during
the installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the
owner’s warranty and may present a fire hazard.
TheHeat-N-GloWarrantywillbe voided by,andHeat-N-Glo
disclaims any responsibility for, the following actions:
•Installation of any damaged fireplace or vent system
component.
•Modification of the fireplace or direct vent system.
•Installation other than as instructed by Heat-N-Glo.
•Improper positioning of the gas logs or the glass door.
•Installationand/or useof any component part notmanu-
factured and approved by Heat-N-Glo, not withstanding
anyindependenttestinglaboratoryorotherpartyapproval
of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, it’s necessary to
determine:
•Where the unit is to be installed.
•The vent system configuration to be used.
•Gas supply piping.
•Electrical wiring.
•Framingand finishing details.
•Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplace should be installed on a metal or wood panel that
extends the full width and depth of the fireplace.

8
Figure 1. Diagram of the 6000CAMP
TOP VENT COLLARS
REAR VENT COLLARS
GAS
LINE
ACCESS ELECTRICAL
ACCESS
GAS
CONTROLS
RATING PLATE
AND LABELS
TRIM
DOOR
HOOD
TOP STANDOFFS
41 1/8
[1044mm]
38
[965mm]
36 1/8
[916mm]
25 1/4
[642mm]
34 5/8
[879mm]
8 5/8
[219mm]
VENT
COLLARS
ELECTRICAL
ACCESS
26 7/8
[682mm]
12 3/4
[323mm]
3 1/2
[90mm]
GAS LINE
ACCESS
2 1/8
[55mm]
6 7/8 [174mm]
14 1/4
[362mm]
8 5/8 [219mm]
VENT COLLARS
21 1/2 [548mm]
11 5/8 [297mm]
28 1/2 [724mm]
u

9
Installing the Fireplace

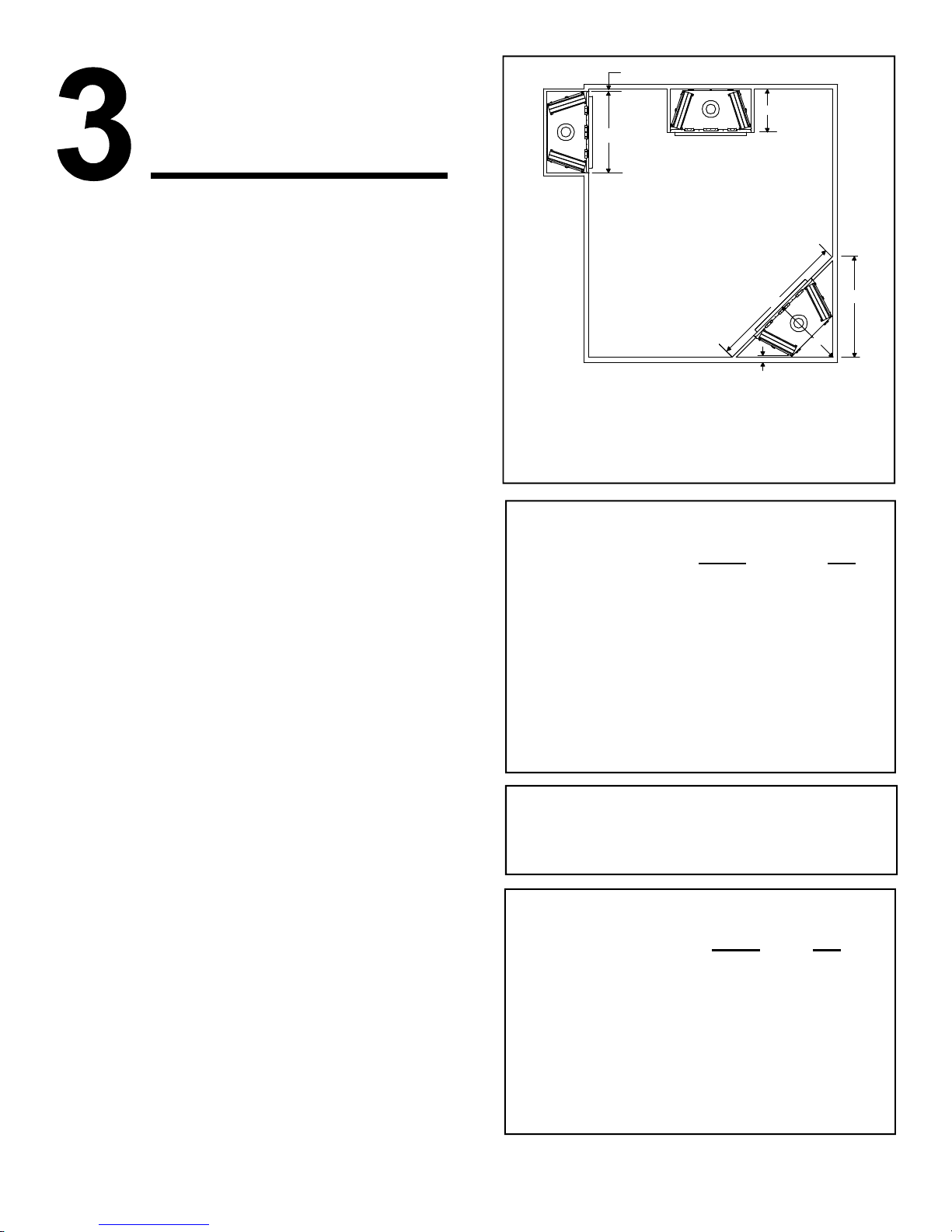

Step 1. Locating the Fireplace
Thefollowing diagramshows space andclearance require-
ments for locating a fireplace within a room.
ABCD E
42” 22” 36” 51” 72”
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Front ........................36 ..................... 914
Floor ....................................0........................ 0
Rear ................................... 1/2 ..................... 13
Sides ................................. 1/2 ..................... 13
SurroundSides* ..................0........................ 0
Top ....................................3 1/2.................... 89
Ceiling**..............................31 ..................... 787
Figure 2. Fireplace Dimensions, Locations,
and Space Requirements
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections...............1................. 25
Horizontal Sections
Top ......................................3................. 75
Bottom................................1................. 25
Sides ..................................1................. 25
At Wall Firestops
Top ...................................2 1/2.............63.7
Bottom.............................. 1/2 ............... 13
Sides ..................................1................. 25
* See Figure 3.
**Theclearance totheceilingismeasuredfromthetop
of the unit, excluding the standoffs (see Figure 38).
Thedistance fromthe unit tocombustible construction
is to be measured from the unit outer wrap surface to
thecombustibleconstruction,NOT fromthescrewheads
that secure the unit together.
For minimum clearances, see the direct vent termination
clearance diagrams on pages 23 and 24 in this manual.
1/2” MIN. (13mm)
D
C
E
B
1” MIN. (25mm)
A
Clearance Requirements
The top, back, and sides of the fireplace are defined by
stand-offs.The minimumclearance to a perpendicular wall
extendingpast the faceof thefireplace is oneinch (25mm).
The back of the fireplace may be recessed 21 1/2 inches
(546 mm) into combustible construction.
Constructing the Fireplace Chase
A chase is a vertical box-like structure built to enclose the
gasfireplace and/orits vent system. Vertical ventsthat run
on the outside of a building may be, but are not required to
be, installed inside a chase.
CAUTION: TREATMENT OF FIRESTOPSPACERSAND
CONSTRUCTIONOFTHE CHASEMAYVARYWITHTHE
TYPE OF BUILDING. THESE INSTRUCTIONS ARE NOT
SUBSTITUTES FOR THE REQUIREMENTS OF LOCAL
BUILDINGCODES.THEREFORE,YOURLOCAL BUILD-
ING CODES MUST BE CHECKED TO DETERMINE THE
REQUIREMENTS FOR THESE STEPS.
Factory-builtfireplace chasesshould beconstructed in the
manner of all outside walls of the home to prevent cold air
draftingproblems. The chase should notbreak the outside
buildingenvelope inany manner.
This means that the walls, ceiling, base plate and cantile-
ver floor of the chase should be insulated. Vapor and air
infiltration barriers should be installed in the chase as per
regional codes for the rest of the home.Additionally, Heat-
N-Glorecommendsthattheinside surfaces besheetrocked
and taped for maximum air tightness.
Tofurther preventdrafts, the firestopsshould becaulked to
seal gaps. Gas line holes and other openings should be
caulked or stuffed with insulation. If the unit is being in-
stalled on a cement slab, we recommend that a layer of
plywood be placed underneath to prevent conducting cold
up into the room. Be sure to include spark arrestors for
woodburningunits ifthey arerequired.
THECHASE SHOULD BECONSTRUCTEDSOTHATALL
CLEARANCES TO THE FIREPLACEARE MAINTAINED
AS SPECIFIED WITHIN THIS INSTALLERS GUIDE.

10
Framing should be
constructed of 2 X 4
lumber or heavier.
A. ............. 42”*
B. .........38 1/2”
C. ...............22”
D. ...............42”
E. .........27 7/8”
Figure 3. Framing Dimensions
Step 2. Framing the Fireplace
Fireplaceframingcan bebuiltbefore orafterthe fireplaceis
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
grambelowshows framing referencedimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILSBEFORE FRAMING.
Shows center of 12” x 12” vent framing
holes for top and rear venting. The center
of the hole is one (1) inch (25.4mm) above
the center of the horizontal vent pipe.
A
B
C
1/2” CLEARANCE FROM BACK OF FIREPLACE TO COMBUSTIBLE
0” CLEARANCE TO
FRAMING MEMBER
0” CLEARANCE
1/2” CLEARANCE
FROM BOTH SIDES
OF FIREPLACE
TO COMBUSTIBLE
FRAMING
MEMBER
ED

11
Figure 4. D-Series Direct Vent Component Specifications (5-inch inner pipe / 8 5/8-inch outer pipe)
NOTE: PIPES OVERLAP 1-3/8 INCHES (34.93mm)
ATEACH JOINT.
DV-36D
5 3/4”
(146mm)
8 3/4”
(222mm)
11 3/4”
(298mm)
DV-48D
7 3/8”
(187mm)
6 5/32”
(156mm)
11 5/8”
(295mm)
8 5/8”
(220mm)
8 1/2”
(216mm)
6 7/16”
(164mm)
11 1/16”
(281mm) 6 1/2”
(165mm)
8 1/2”
(216mm)
5 1/16”
(129mm)
8 5/8”
(220mm)
35 3/4”
(908mm)
47 3/4”
(1.2m)
DV-12D
DV-09D
DV-06D
DV-45D
DV-90D
11 15/16”
(303mm)
5 7/8”
(149mm)
120”
(3048mm)
24”
(610mm)
36”
(914mm)
60”
(1524mm)
DV-FLEX-10
DV-FLEX-5
DV-FLEX-3
DV-FLEX-2

12
Figure 5. Vent System Components and Termination Kits
Step 3. Installing the Vent System
A. Vent System Approvals
Thesemodelsareapproved touseD-seriesdirect ventpipe
components and terminations (see Figures 4 and 5). Ap-
provedvent system componentsare labeledfor identifica-
tion. This pipe is tested and listed as an approved compo-
nent of the fireplace. The pipe is tested to be run inside an
enclosedwall.There isnorequirement for inspectionopen-
ingsat each jointwithin the wall.There is no required pitch
for horizontal ventruns. NO OTHERVENTING SYSTEMS
OR COMPONENTS MAY BE USED.
Detailedinstallationinstructions are includedwitheach vent
termination kit and should be used in conjunction with this
Installers Guide.
Theflameandemberappearancemayvarybasedonthetype
offuelburnedandtheventingconfigurationused.
Terminations Kits
Identifying Vent Components

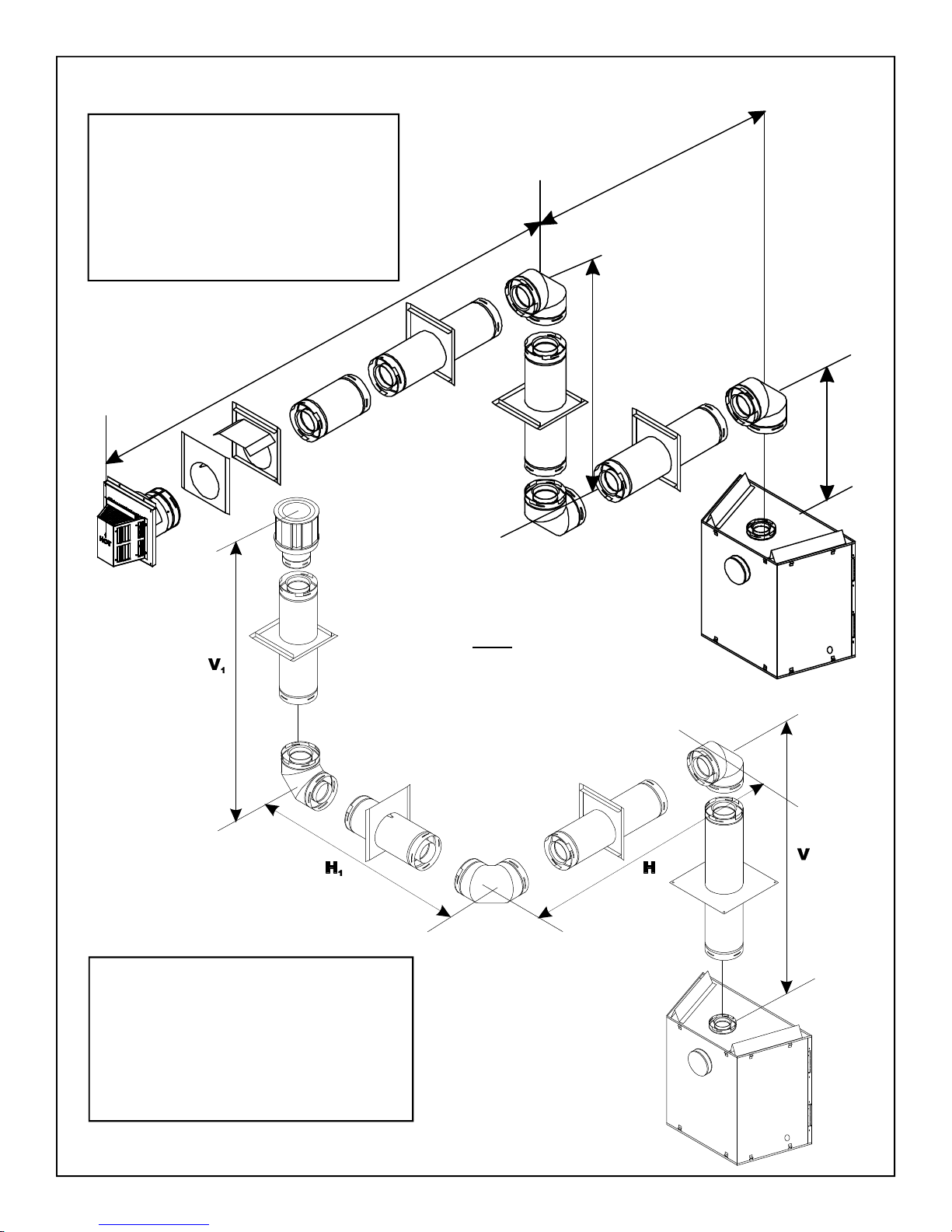

The vent systems installed on this gas fireplace may in-
clude one, two, or three 90°elbow assemblies. The rela-
tionships of vertical rise to horizontal run in vent configura-
tions using 90° elbows MUST BE strictly adhered to. The
rise to run relationships are shown in the venting drawings
andtables.Referto thediagramsonthe next severalpages.
NOTE: Two 45° elbows may be used in place of one
90° elbow. Rise to run ratios in the vent system must
be followed if 45° elbows are used.
Thismodel hasvent startingcollars on both the top and the
back of the unit. Depending upon the installation, decide
which ONE set of starting collars will be used to attach the
vent system. The starting collar sealing cap must remain
on the starting collar NOT used.
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKET
CEILING
FIRESTOP
DVK-TVCD
DVK-01TRD
DVK-SNKD DVK-FLEX2-01TRF
DVK-01TRF*
*For use with flex vent only.

13
Figure 7.
Straight Up Vertical Venting
STRAIGHT UP
VERTICALVENTING
V (FT.)
40' MAX. (12.4 M)

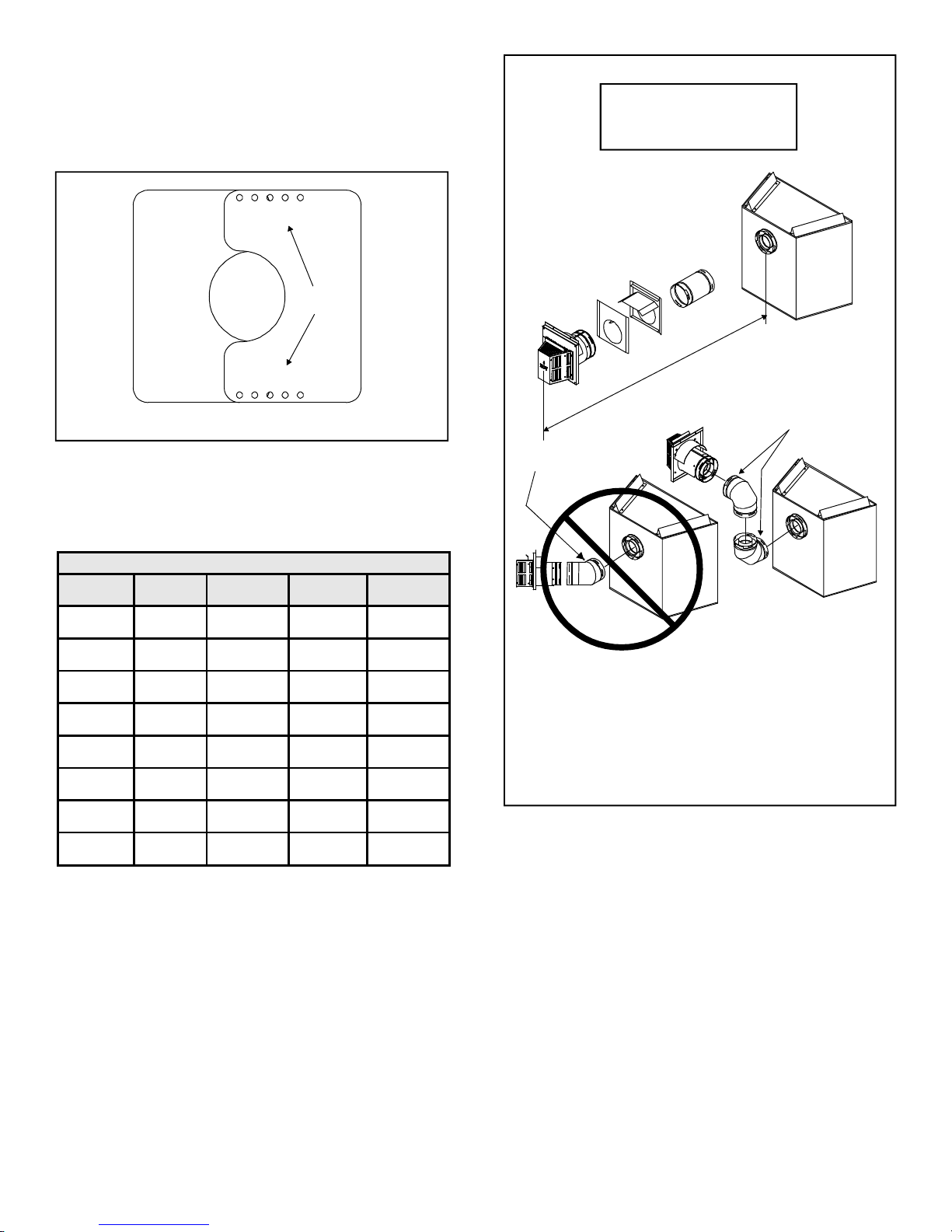

Flue Restrictor Instructions
1. Remove Exhaust Shield using a 1/4” nut driver by
removingthe four screws securing itin place(see
Figure 8).
Figure 9. Flue Restrictor
BREAK
HERE
Figure 8
EXHAUST
SHIELD
FLUE
RESTRICTOR
2. Break the Flue Restrictor into two pieces. Do this
by bending the part back and forth until it breaks
(see Figure 9).
NOTE: On vertical
venting configurations
you may want to install
the vertical baffle (385-
128). See flue restrictor
installation instructions.
Figure 6.
Flex Vent
The flex vent must be supported with the spacing be-
tween support intervals not exceeding 4 feet, with no
more than ½ inch sag between supports.
Asupport is requiredat each change inventing direc-
tion,andinany location where itisnecessarytomain-
tainthenecessaryclearancetocombustibles.Asimple
“up and out” installation (Figure 6) requires only
enough support to maintain the necessary clearance
to combustibles. However, the vent attachment point
andthe firestoplocationareconsideredto besupports.
3” CLEARANCE TERMINATION
CAP
FLEX-VENT
1”
CLEARANCE

14

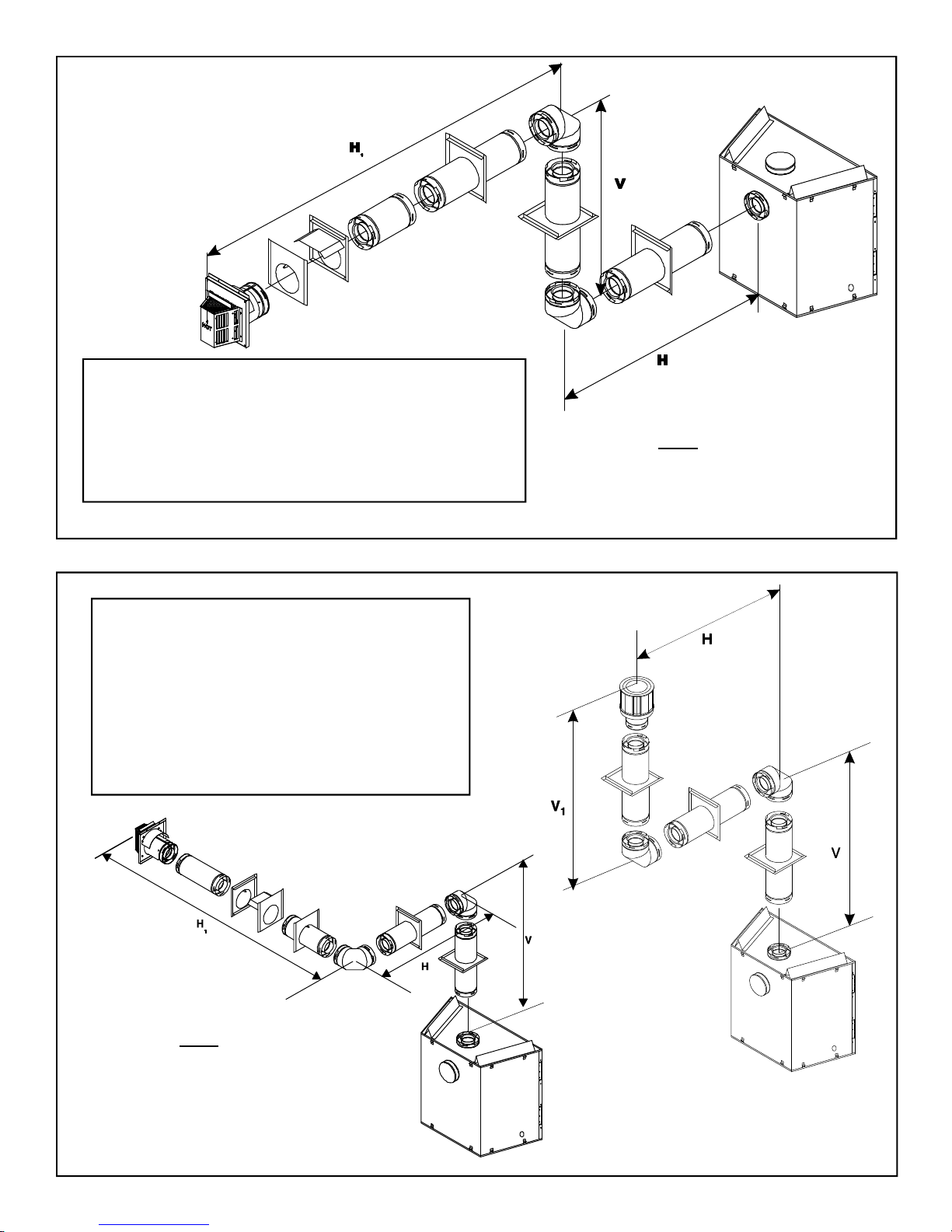

HORIZONTALVENTING
KitNo. H Max. Run
DVK-01TRD 24" (610 mm)
Figure 11. Corner Installation
NOTE: This model is NOT tested and NOT
approved to use 45° elbows in corner instal-
lations. 90° elbows may be used in corner
installations.
45-DEGREE
ELBOW
90-DEGREE
ELBOWS
H
3. Match the amount of vertical you have in the sys-
tem with the chart to find the appropriate position
to set the Flue Restrictor.
1 2 3 4 5
SETTINGS
1 2 3 4 5
Figure 10
- CHART -
Vertical Top Vent
NG Top Vent LP Rear Vent NG Rear Vent LP
4' 1-1 No
Restrictor No Restrictor No Restrictor
8' 2-2 1-2 1-1 No
Restrictor
15' 3-3 3-2 2-2 1-2
20' 3-4 3-3 3-3 2-3
25' 3-4 3-3 3-3 2-3
30' 4-4 3-4 3-4 3-3
35' 4-4 3-4 3-4 3-3
40' 5-4 4-4 4-4 3-4
4.Center the Flue Restrictor on vent and secure in
place by using two self-tapping screws (see Fig-
ure 10).
5. Reinstall the Exhaust Shield.

15

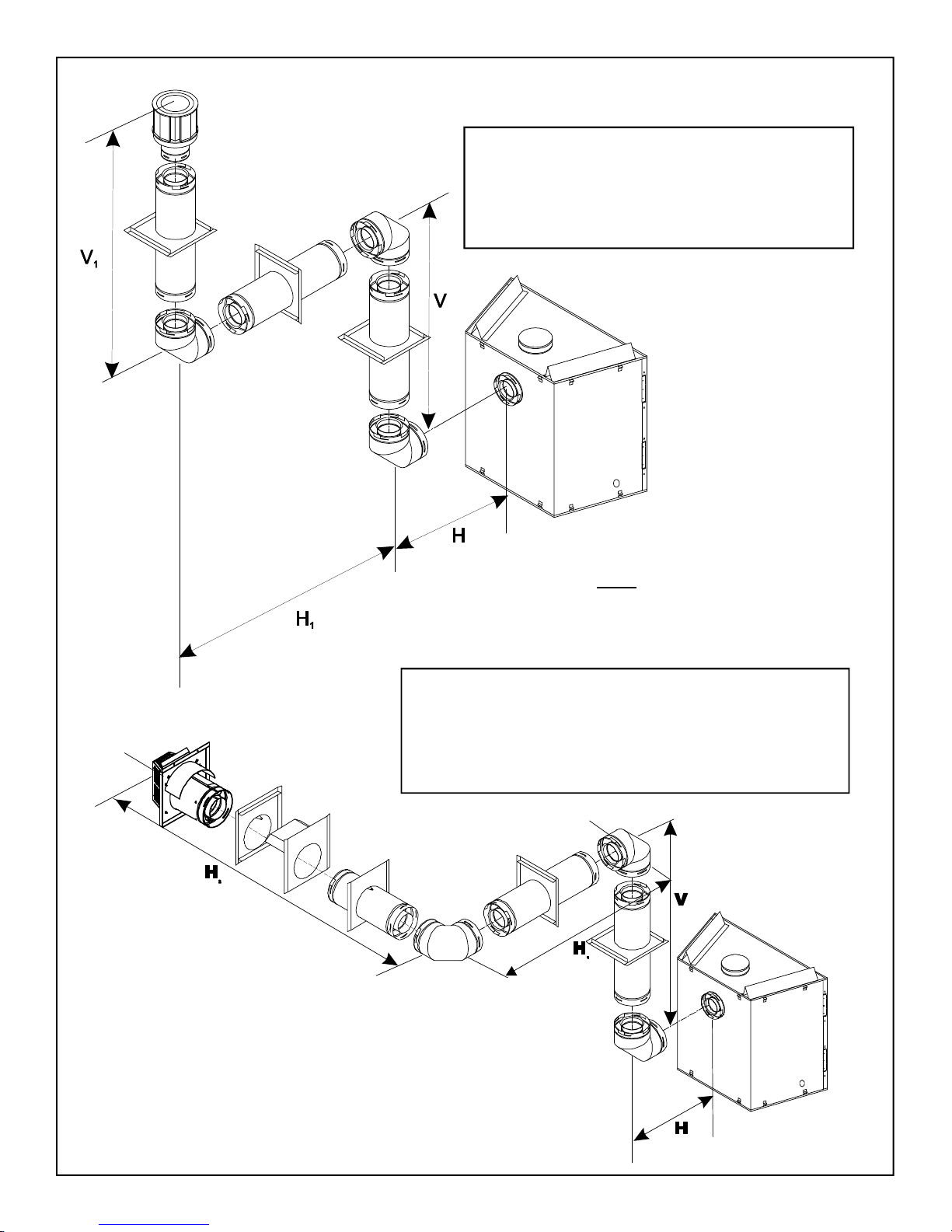

VH
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.4m)
V+H=40' MAX. (12.4m) H = 8' MAX. (2.4m)
NOTE: Onverticalventingconfigurationswhere
thevertical componentis over 10feet, youmay
wantto install the vertical baffle included inthe
manual bag assembly to improve flame
appearance.
Figure 12. Venting with One 90° Elbow
VENTING WITH ONE (1) 90° ELBOW
VENTING WITH ONE (1) 90° ELBOW
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10'MAX. (3.1m)
3' MIN. (914mm) 15'MAX. (4.65m)
4' MIN. (1.22m) 20'MAX. (6.2m)
V+H= 40’ MAX. (12.4MM) H = 20' MAX. (6.2m)
Figure 13. Venting with One 90° Elbow
NOTE: If a 90oelbow is first attached to the unit,
themaximum horizontal runis 3-feet (914mm).
NOTE: Forcorner installations:A6-inch(152mm)
section of straight pipe may need to be attached to
the fireplace before a 90o elbow, to allow the vent
pipe to clear the top standoffs.
H
V
NOTE: ThereMUST be a 25% reduction in total H
when using flex vent except when using the
simple up and out installation (see Figure 6).
NOTE: There MUST be a 25% reduction in
total H when using flex vent except when
using the simple up and out installation
(see Figure 6).

16
Figure 14. Venting with Two 90° Elbows
VENTING WITH TWO (2)
90° ELBOWS
VHH + H1
1´ MIN. (305 mm) 2´ MAX. (610 mm) 5´ MAX. (1.52m)
2´ MIN. (610 mm) 4´ MAX. (1.22 m) 10´MAX. (3.1m)
3´ MIN. (914 mm) 6´ MAX. (1.86 m) 15´ MAX. (4.65m)
4´ MIN. (1.22 m) 8´ MAX. (2.48 m) 20´MAX. (6.2m)
V+H+H 1 =40´MAX.(12.4 m) H= 8´MAX. (2.48m) H+H
1
=20´MAX.(6.2m)
Figure 15. Venting with Two 90° Elbows
VENTING WITH TWO (2) 90oELBOWS
V FT.H + H1(FT.)
1' MIN. (305mm) 5´ MAX. (1.52m)
2' MIN. (610mm) 10´MAX. (3.1m)
3' MIN. (914mm) 15´MAX.(4.65m)
4' MIN. (1.22m) 20´MAX. (6.2m)
V+H+H1= 40' MAX.(12.4m) H+H
1
=20´ MAX. (6.2m)
V+V1+H=40' MAX.(12.4m)
NOTE: There MUST be a 25% reduction in
total H when using flex vent except when
using the simple up and out installation
(see Figure 6).
NOTE: There MUST be a 25% reduction in
total H when using flex vent except when
using the simple up and out installation
(see Figure 6).

17
Figure 16. Venting with three 90° elbows
VENTING WITH THREE (3) 90° ELBOWS
1´MIN.(305mm) 2´MAX. (610mm) 5´MAX. (1.52m)
2´MIN.(610mm) 4´MAX. (1.22m) 10´MAX. (3.1m)
3´MIN.(914mm) 6´MAX. (1.86m) 15´MAX. (4.65m)
4´MIN.(1.22m) 8´MAX. (2.48m) 20´MAX. (6.2m)
V+H+H
1
+H
2
= 40 ´ MAX. (12.4 m) H = 8´ MAX. (2.48 m) H+H
1
+H
2
= 20´ MAX. (6.2 m)
V HH + H1 + H2
1´MIN.(305mm) 2´MAX. (610mm) 5´MAX. (1.52m)
2´MIN.(610mm) 4´MAX. (1.22m) 10´MAX. (3.1m)
3´MIN.(914mm) 6´MAX. (1.86m) 15´MAX. (4.65m)
4´MIN.(1.22m) 8´MAX. (2.48m) 20´MAX. (6.2m)
V
1
+V+H+H
1
= 40 ´ MAX.(12.4 m) H = 8´MAX.(2.48 m) H+H
1
= 20´MAX.(6.2 m)
V H H + H1
NOTE: There MUST be a 25% reduction in
total H when using flex vent except when
using the simple up and out installation
(see Figure 6).

18
VENTINGWITH THREE (3) 90° ELBOWS
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX.(3.1m)
3' MIN. (914mm) 15' MAX.(4.65m)
4' MIN. (1.22m) 20' MAX.(6.2m)
NOTE: H + H1= 20' MAX. (6.2m)
V + V1 + H + H1= 40' MAX. (12.4m)
V (FT.) H + H1 (FT.)
1' MIN.(305mm) 5' MAX.(1.52m)
2' MIN.(610mm) 10' MAX.(3.1m)
3' MIN.(914mm) 15' MAX.(4.65m)
4' MIN.(1.22m) 20' MAX.(6.2m)
H +H1= 20'MAX. (6.2m)
NOTE:V+V1+H+H1=40' MAX. (12.4m)
Figure 17. Venting with three 90° elbows
H 1
V 1
H
V
NOTE: There MUST be a 25% reduction in
total H when using flex vent except when
using the simple up and out installation
(see Figure 6).

19
!
B. Installing Vent Components
After determining which set of starting collars will be used
(top or rear), follow venting instructions accordingly.
Venting Out the Rear Vent
Remove the installed rear seal cap from the rear starting
collars by cutting the strap at each end. (see Figure 18).
Follow the vent configuration tables accordingly.
Remove the insulation from the REAR five inch flue, pull
the heat shield out from outside of the firebox.
WARNING: THE TOP HEAT SHIELD (INSIDE
THE FIREBOX) MUST REMAINATTACHED IF
THE VENT SYSTEM IS ATTACHED TO THE
REAR STARTING COLLARS. SEE FIGURE 18.
Venting Out the Top Vent
Remove the two screws in the top vent collar seal cap and
remove the top vent collar seal cap and two pieces of in-
sulationinside the toptwo starting collars (See Figure18).
Remove the heat shield from inside the TOPfive inch flue
fromoutside of the firebox.
The glass must be taken off again for positioning the logs
whenthe unitis finallyinstalled in placeand finishedaround
it. Re-install the glass door.Attach vent system to the top
starting collars.
!
Figure 19. Attaching the First Vent Component
to the Starting Collars
WARNING: A3/8 INCH (9.5 MM) BEAD OF
STOVECEMENTMUST BE PLACED AROUND
THE5 INCH (127 MM)FIREPLACE STARTINGCOL-
LAR BEFORE ATTACHING THE FIRST VENT COM-
PONENT. FAILURE TO SEAL THIS JOINT MAY
CAUSETHEFIREPLACETOOPERATEIMPROPERLY.
STARTING
COLLAR
STOVE
SEALANT
BEAD
1 INCH
(25.4mm)
FIRST VENT
COMPONENT
WARNING: THE REAR VENT COLLAR SEAL
CAP MUST REMAINATTACHEDTO THE REAR
VENT COLLARS IF THE VENT SYSTEM ISAT-
TACHED TO THE TOPSTARTINGCOLLARS.
WARNING:FAILURETOREMOVE INSULATION
IN THE SET OF COLLARS YOU ARE USING
COULD CAUSE A FIRE.
WARNING:YOUMUSTLEAVETHEINSULATION
IN PLACE IN THE SET OF COLLARS YOU ARE
NOT USING.
Figure 18
CUT
HERE
Venting Out Rear Venting Out Top
!
!
!
HEAT
SHIELD
DISCARD
INSULATION
and
HEAT SHIELD
HEAT
SHIELD
INSULATION
DISCARD BOTH
PIECES and
HEAT SHIELD
SEAL
CAP
SEAL
CAP
Cut the seal cap
strap and remove white
gasketmaterial.
1. Attach the First Vent Component to the
Starting Collars
To attach the first vent component to the starting collars of
thefireplace:
•Apply a 3/8 inch (9.5mm) bead of stove cement around
the5inch(127mm)fireplace starting collar.
•Make sure that the fiberglass gasket supplied with the
fireplaceseals between thefirst 8-5/8inch (219mm) vent
componentand the outer fireplace wrap.
• Lock the vent components into place by sliding the con-
centricpipe sectionswith four (4)equally spacedinterior
beads into the fireplace collar or previously installed com-
ponentendwithfour(4)equallyspacedindentedsections.
•When the internal beads of each 8-5/8 inch (219mm)
outerpipelineup, rotatethepipesection clockwiseabout
one-quarter(1/4)turn.Theventpipeisnowlockedtogether.
•The first 90° elbow installed in the vent system of a rear
venting fireplace MUST BE ina vertical position.
Ifyourverticalvent componentisover10feet, youmaywant
toinstallthe verticalbaffle(located inthebag containingthe
install manual) to improve flame appearance. Center the
verticalbaffleon the 5”fluebeingused, andwithselftapping
screws secure the baffle to the inside of the firebox.

20
2. Continue Adding Vent Components
WARNING: INSTALLATION OF THIS FIRE-
PLACE REQUIRES THE USE OF HEAT
SHIELD570-290 ABOVE THE FIRST900ELBOW IN
THE VENTING SYSTEM.
Figure 20
To Install the Heat Shield:
1. Determine if the heat shield is required. Do so by mea-
suring the vertical distance between the top horizontal
surfaceof the elbow toany combustible surface above.
If the distance is more than 4 inches, the heat shield is
NOT required. If it is 4 inches or less, the heat shield IS
REQUIRED.Installperthefollowingsteps.SeeFigure20.
!
Figure 21
CORRECT INCORRECT
2. Fasten the shield in place using the four pilot holes pro-
videdin thepart.The shieldshould beoriented suchthat
the 13 1/8 inch dimension (longest dimension) is run-
ning in the same direction the elbow is pointing. The
shieldshould be centereddirectly above theelbow,and
positionedso thatit createsa 1/2inch airspacebetween
the shield and the combustible surface. See Figure 21.
3. Install Support Brackets
For Horizontal Runs - Theventsystem must besupported
everyfive(5)feetofhorizontalrunbyahorizontalpipesupport.
To install support brackets for horizontal runs:
• Place the pipe supports around the vent pipe.
• Nail the pipe supports to the framing members.
Figure 23. Adding Venting Components
HEAT
SHIELD
3” MIN.
(76mm)
COMBUSTIBLE
SURFACE
COMBUSTIBLE SURFACE
DIRECTION
UP
HEAT SHIELD
90 ELBOW
0
Figure 22
• If the combustible materials are not in place at the time
of install the elbow heat shield may be screwed to the
exhaust pipe (see Figure 22). Cut the tabs as shown
and bend down. Using the screws found in the manual
bag secure the heat shield to the pipe maintaining 3” to
4”between the pipe andshield.
• Continueaddingventcomponents,lockingeachsucceed-
ing component into place.
• Ensurethat each succeedingvent componentis secure-
ly fitted and locked into the preceding component in the
vent system.
• 90° elbows may be installed and rotated to any point
aroundthe precedingcomponent’s verticalaxis. If an el-
bow does not end up in a locked position with the pre-
ceding component, attach with a minimum of two (2)
sheet metal screws.
3”
(76mm)
SCREW
!
WARNING:ENSURE THAT THE FIBERGLASS
ROPE GASKET SUPPLIED WITH THE
FIREPLACE SEALS BETWEEN THE FIRST VENT
COMPONENTANDTHEOUTERFIREPLACEWRAP.
If the installation is for a termination cap attached directly
tothe fireplace, skip to thesections, Install Firestops and
Vent Termination.

21
For Vertical Runs - The vent system must be supported
everyeight (8)feet (2.4m)above the fireplace flue outletby
wall brackets.
To install support brackets for vertical runs:
•Attach wall brackets to the vent pipe and secure the wall
bracket to the framing members with nails or screws.
Figure 24. Installing Support Brackets
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on both
sidesof a combustible wall throughwhich thevent passes.
NOTE: Model DVK-01TRD does not need an exterior
firestop on an exterior combustible wall.
To install firestops for horizontal runs that pass through
either interior or exterior walls:
•Cuta12-inchby 12-inch(305mmX305mm) holethrough
the wall.
NOTE: The center of the hole is one (1) inch (25.4mm)
above the center of the horizontal vent pipe.
•Position the firestops on both sides of the hole previ-
ously cut and secure the firestops with nails or screws.
•The heat shields of the firestops MUST BE placed to-
wards the top of the hole.
•Continuethe vent run through the firestops.
Figure 25. 12" x 12" Hole and Vent Pipe
Figure 26. Heat Shield, Interior & Exterior Firestops
VENT PIPE
1" (25.4 mm)
12"
(305mm)
12"
(305mm)
TRIM HEAT
SHIELD IF TOO
LONG, ADD TO
SHIELD IF TOO
SHORT
EXTERIOR
FIRESTOP
INTERIOR
FIRESTOP
HEAT SHIELD
WALL BRACKET
WALL STUD
1 INCH MIN.
(25.4mm)
8 FT. (2.4m)
FLUE
OUTLET
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.

22

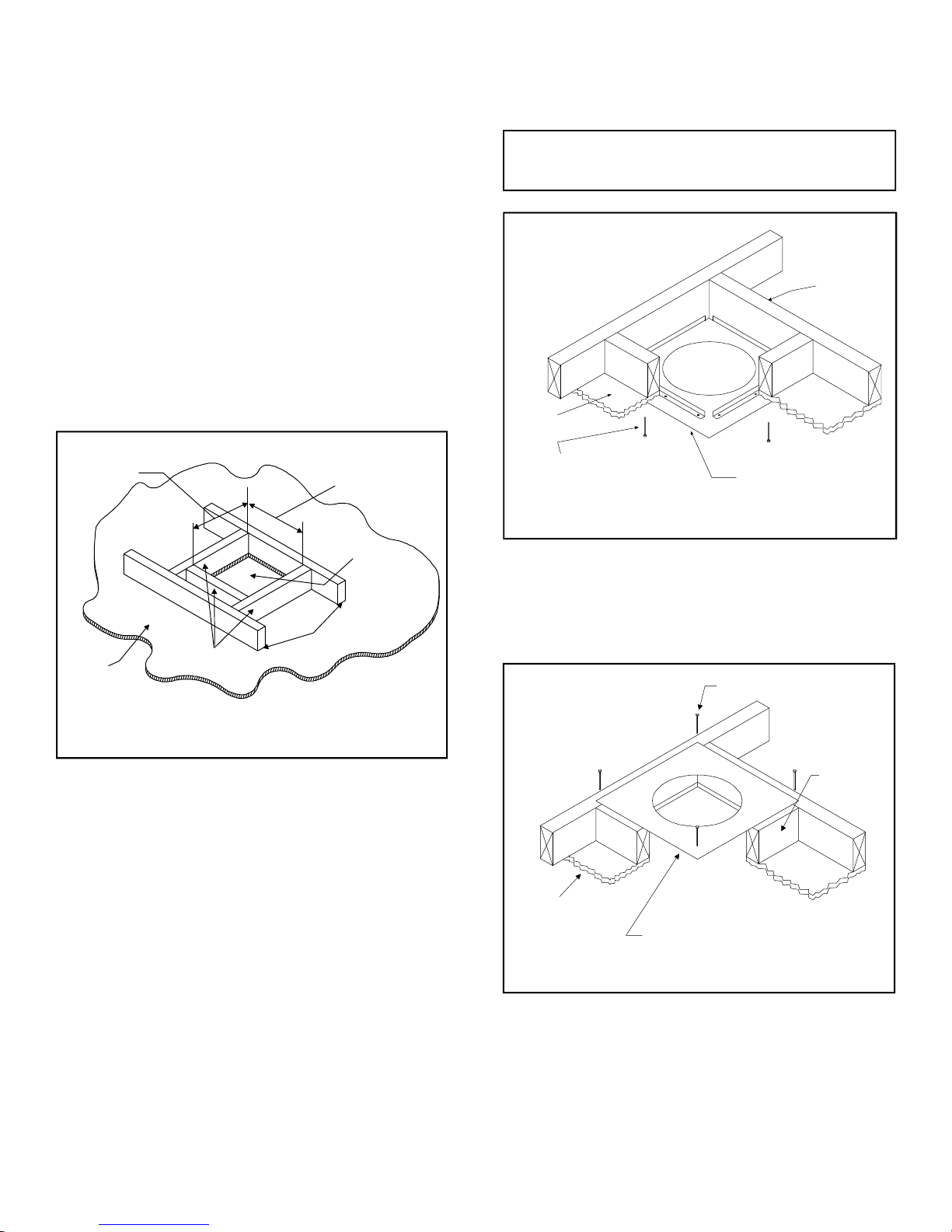

For Vertical Runs - One ceiling firestop is REQUIRED at
the hole in each ceiling through which the vent passes.
Toinstallfirestopsforverticalruns thatpassthroughceilings:
•Positiona plumb bob directly over the centerof the verti-
calvent component.
•Mark the ceiling to establish the centerpoint of the vent.
•Drill a hole or drive a nail through this centerpoint.
•Check the floor above for any obstructions, such as wir-
ing or plumbing runs.
•Reposition the fireplace and vent system, if necessary,
to accommodate the ceiling joists and/or obstructions.
•Cutan11-inch X11-inch(280mmX 280mm)holethrough
the ceiling, using the centerpoint previously marked.
•Framethe hole with framing lumberthe samesize as the
ceiling joists.
Figure 28. Ceiling Firestop (Ceiling Side)
If the area above the ceiling is NOT an attic, position and
securetheceilingfirestoponthe ceilingsideofthepreviously
cut and framed hole.
Figure 27. 11" x 11" Hole & New Framing Members
Ifthe area above the ceilingIS an attic,position andsecure
the firestop on top of the previously framed hole.
NOTE: Keep insulation away from the vent pipe at least
1 inch (25mm).
Figure 29. Attic Firestop
JOIST
CEILING FIRESTOP
CEILING
NAILS (4 REQUIRED)
CEILING
CEILING FIRESTOP
RAFTER
NAILS (4 REQUIRED)
CEILING
NEW
FRAMING
MEMBERS
EXISTING CEILING
JOISTS
CHIMNEY
HOLE
11" (280 mm)
11" (280mm)
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.
