Heat-N-Glo Grand-50-D User manual

1
-Do not store or use gasoline or other flam-
mablevaporsandliquidsinthevicinityofthis
orany otherappliance.
-What to do if you smell gas
•Do not try to light any appliance.
•Do not touch any electrical switch.
•Do not use any phone in your building.
•Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
•If you cannot reach your gas supplier, call
thefiredepartment.
-Installationandservicemustbeperformedbya
qualified installer, service agency, or the gas
supplier.
Model:
Grand-50-D Installers Guide
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURYOR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE ORADDITIONAL INFOR-
MATION CONSULT AQUALIFIED IN-
STALLER, SERVICEAGENCY, OR THE
GAS SUPPLIER.
Underwriters
Laboratories Listed
570-900G 8/02
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTUREREFERENCE.
Please contact your Heat-N-Glo dealer with any
questionsorconcerns.Forthenumberofyournearest
Heat-N-Glo dealer, please call 1-888-427-3973.
Printedin U.S.A. Copyright 2002,
Heat-N-Glo,adivision of HearthTechnologiesInc.
20802KensingtonBoulevard,Lakeville,MN55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, AFIRE OR
EXPLOSION MAYRESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.
1. This appliance may be installed in an af-
termarket,permanentlylocated,manufac-
tured(mobile)home,wherenotprohibited
bylocalcodes.
2. Thisapplianceisonlyforusewiththetype
of gas indicated on the rating plate. This
appliance is not convertible for use with
othergases,unlessacertifiedkitisused.

2
These units MUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide. NO OTHER vent systems or
components MAYBE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside and MUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance MUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLYbe
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of the Owners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It is IMPERATIVE that the unit’s
control compartment, burners, and circulating air
passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACED on or near the
appliance.
Children and adults should be ALERTED to the
hazards of high surface temperature and should
STAYAWAYto avoid burns or clothing ignition.
Young children should be CAREFULLYSUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!
!

3
TABLE OF CONTENTS
Safety and Warning Information ............................................... 2
Service Parts Lists.................................................................... 4
Section 1: Approvals and Codes .............................................. 6
Appliance Certification ................................................................. 6
Installation Codes ........................................................................ 6
HighAltitude Installations.............................................................. 6
Section 2: Getting Started ........................................................ 7
Introducing the Heat-N-Glo Gas Fireplaces.................................. 7
Pre-installation Preparation .......................................................... 7
Section 3: Installing the Fireplace ........................................... 9
Step 1Locating the Fireplace .................................................. 9
Step 2Framing the Fireplace................................................... 9
Step 3Installing the Vent System ........................................... 11
A. Vent System Approvals .......................................... 11
B. Installing Vent Components ................................... 15
C. VentTermination.................................................... 17
Step 4Positioning,Leveling, and
Securing the Fireplace................................................ 20
Step 5The Gas Control Systems .......................................... 20
Step 6The Gas Supply Line .................................................. 21
Step 7Gas Pressure Requirements...................................... 21
Step 8Wiring the Fireplace.................................................... 22
Step 9Finishing ..................................................................... 23
Step 10 Installing Trim, Refractory, Logs and
Ember Material ........................................................... 24
InstallingtheTrim........................................................ 24
PositioningtheRefractory............................................. 24
Positioning the Logs ................................................... 24
Placing the Ember Material ......................................... 24
Step 11 Before Lighting the Fireplace ...................................... 25
Step 12 Lighting the Fireplace.................................................. 26
Afterthe Installation.................................................................... 26
Section 4: Maintaining and Servicing Your Fireplace......... 27
u= Contains updated information.
u
u
u

6
Appliance Certification
TheHeat-N-GlofireplacemodelsdiscussedinthisInstallers
Guide havebeen testedto certification standardsand listed
by the applicable laboratories.
Certification
MODEL: Grand-50-D
LABORATORY: UnderwritersLaboratories
TYPE: Direct Vent Gas Fireplace
STANDARD: ANSI Z21.50•CGA2.22•UL307B
Installation Codes
Thefireplaceinstallationmustconformtolocalcodes.Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
Intheabsence oflocalcodes, thefireplaceinstallation must
conform to the National Fuel Gas Code ANSI Z223.1 (in
theUnitedStates) or theCAN/CGA-B149InstallationCodes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric Code ANSI/NFPA No. 70
(intheUnitedStates),ortothe CSAC22.1CanadianElectric
Code(in Canada).
Thesemodels may be installed ina bedroomor bed-sitting
room in the U.S.A. and Canada.
Approvals and
Codes
HighAltitudeInstallations
U.L. Listed gas fireplaces are tested and approved for
elevations from 0 to 2,000 feet in the U.S.A. and from 0 to
4,500feet in Canada.
When installing this fireplace at an elevation above 2,000
feet(in theUnited States),it maybenecessary todecrease
the input rating by changing the existing burner orifice to a
smallersize. Input should be reducedfour percent(4%) for
each1,000feet above sealevel,unless the heatingvalueof
the gas has been reduced, in which case this general rule
will not apply. To identify the proper orifice size, check with
the local gas utility.
Wheninstallingthis fireplaceatan elevation between2,000
and4,500feet(inCanada),the inputratingmustbereduced
by ten percent (10%).
When installing this fireplace at an elevation above 4,500
feet (in Canada), check with local authorities.
Consult your local gas utility for assistance in determining
theproper orifice foryour location.
Heat-N-GloQuality
Systems registered
by SGS ICS

7
Getting Started
Introducing the Heat-N-Glo Gas Fireplaces
Heat-N-Glodirect ventgas fireplaces aredesigned tooper-
ate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control
systems.Gasfireplace diagrams,includingthe dimensions,
are shown in this section.
Pre-install Preparation
Thisgas fireplace and itscomponents are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
The vent system components are shipped in separate
packages.Thegas logs arepackagedseparately and must
be field installed.
Read all of the instructions before starting the
installation. Follow these instructions carefully during
the installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the
owner’s warranty and may present a fire hazard.
TheHeat-N-GloWarrantywillbe voided by,andHeat-N-Glo
disclaims any responsibility for, the following actions:
•Installation of any damaged fireplace or vent system
component.
•Modification of the fireplace or direct vent system.
•Installation other than as instructed by Heat-N-Glo.
•Improper positioning of the gas logs or the glass door.
•Installationand/or useof any component part notmanu-
factured and approved by Heat-N-Glo, not withstanding
anyindependenttestinglaboratoryorotherpartyapproval
of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, it’s necessary to
determine:
•Where the unit is to be installed.
•The vent system configuration to be used.
•Gas supply piping.
•Electrical wiring.
•Framingand finishing details.
•Whether optional accessories—devices such as a fan,
wall switch or remote control —are desired.
If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplace should be installed on a metal or wood panel that
extends the full width and depth of the fireplace.

8
Figure 1. Diagram of Grand-50-D
7 1/4” (186mm)
3 1/4” (83mm)
ELECTRICAL
ACCESS
(VENT COLLARS)
34” (864mm)
17” (432mm)
25 1/8” (638mm)
16 5/8” (421mm)
47 1/4”
(1200mm)
44 1/8”
(1121mm)
50 5/8’ (1286mm)
56 1/2” (1435mm)
7 1/8” (181mm)
2 3/4” (70mm)
GAS LINE
ACCESS
HOOD
TOP STANDOFFS
ELECTRICAL ACCESS
GAS CONTROLS
RATING PLATE
AND LABELS
GAS LINE
ACCESS
NAILING
TABS

9
Installing the Fireplace
Step 1. Locating the Fireplace
The diagram below shows space and clearance require-
ments for locating a fireplace within a room.
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Front ........................36 ..................... 914
Floor ....................................0........................ 0
Rear ................................... 1/2 ..................... 13
Sides ................................. 1/2 ..................... 13
Top ....................................3 1/2.................... 89
Ceiling* ...............................31 ..................... 787
Figure 2. Fireplace Dimensions, Locations,
and Space Requirements
Clearance Requirements
The top, back, and sides of the fireplace are defined by
stand-offs.The minimumclearance to a perpendicular wall
extending past the face of the fireplace is 4inches (102
mm). The back of the fireplace may be recessed 25 1/8
inches (638mm) into combustible construction.
Framing should be
constructed of 2 X 4
lumber or heavier.
A. .........57 1/2”
B. .........47 3/4”
C. .........25 5/8”
D. .........86 5/8”
Figure 3. Framing Dimensions
*Additional clearance and/or installation of a heat shield is
requiredabove thefirst 90°elbow (seeFigure 12).
Forminimum clearancesof direct venttermination seeFig-
ures 19 and 20.

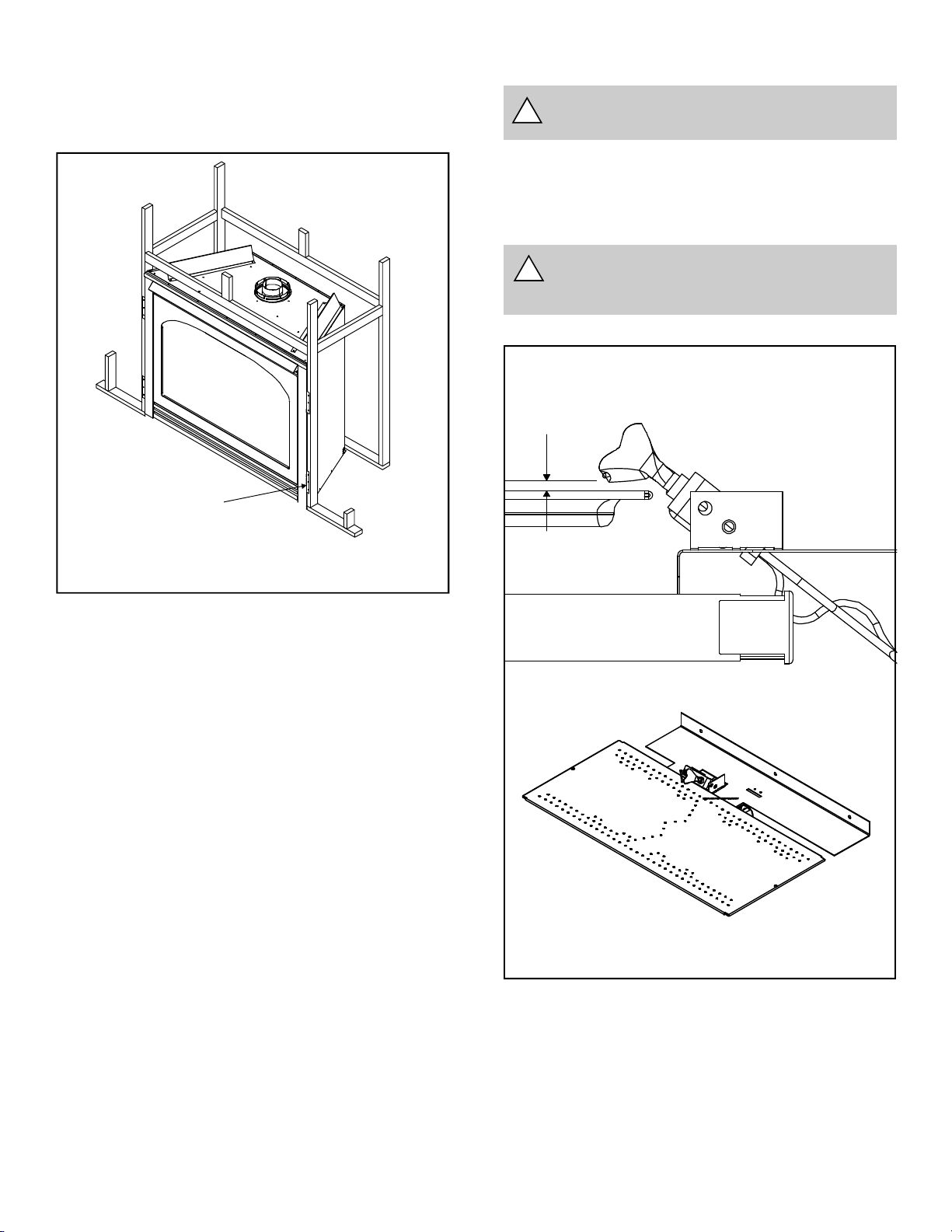

Step 2. Framing the Fireplace
Fireplaceframingcan bebuiltbefore orafterthe fireplaceis
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
grambelowshows framing referencedimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILSBEFORE FRAMING.
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections...............1................. 25
Horizontal Sections
Top ..................................... 3* ................ 75
Bottom................................1................. 25
Sides ..................................1................. 25
At Wall Firestops
Top ...................................2 1/2.............63.7
Bottom.............................. 1/2 ............... 13
Sides ..................................1................. 25
*Theclearancetotheceilingismeasuredfrom the top
of the unit, excluding the standoffs (see Figure 27).
Thedistancefrom theunitto combustibleconstruction
is to be measured from the unit outer wrap surface to
the combustible construction, NOT from the screw
heads that secure the unit together.
A B C D E
57 1/2” 25 5/8” 42 1/4” 59 3/4” 84 1/2”
(1460mm) (651mm) (1073mm) (1518mm) (2147mm) The framing
headers may rest
on the fireplace
stand-offs.
A
B
C
E
D
4“ (102mm)
85 5/8”
D
C
A
B

10

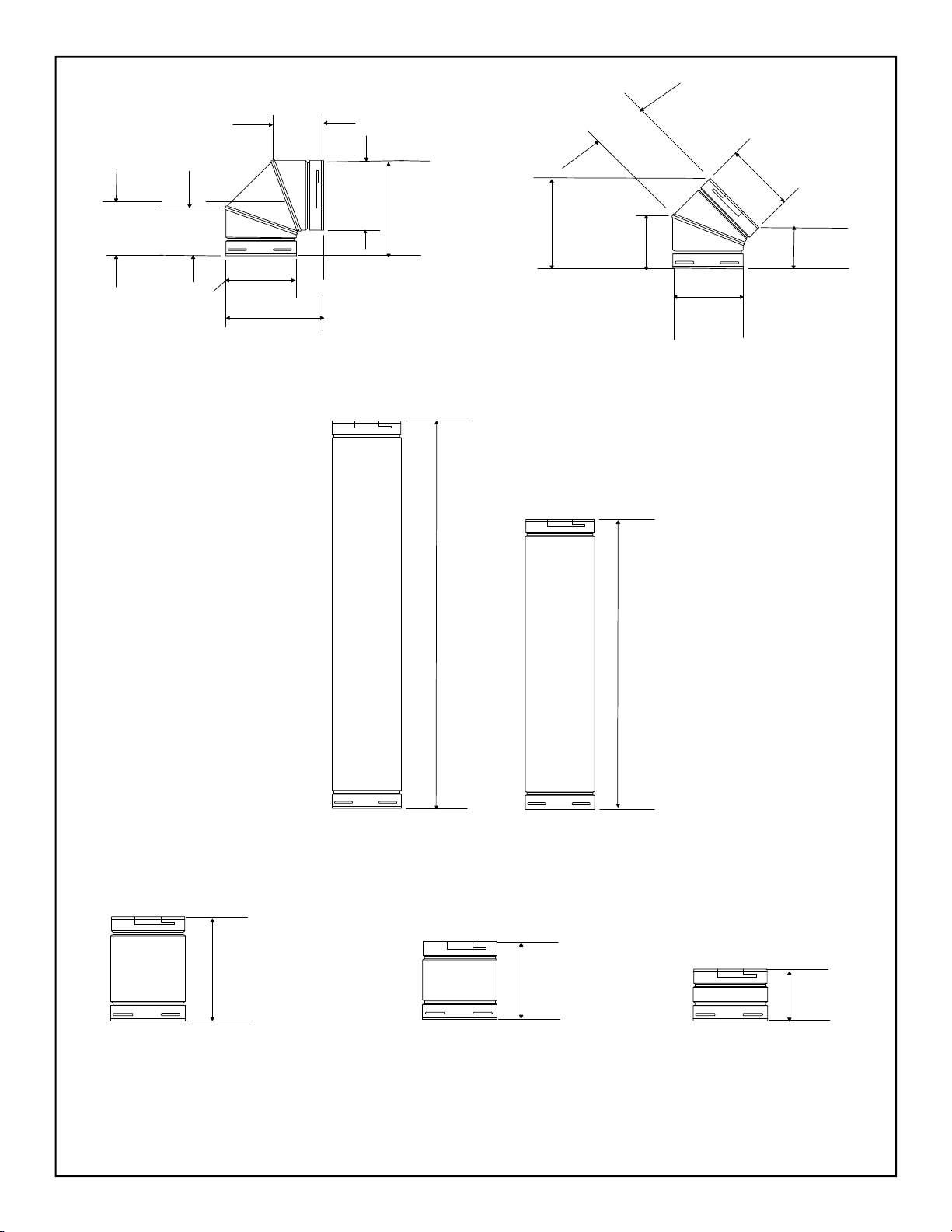

Figure 4. D-Series Direct Vent Component Specifications
(5-inch inner pipe / 8 5/8-inch outer pipe)
NOTE: PIPES OVERLAP 1-3/8 INCHES (34.93 mm) ATEACHJOINT.
D
V
-
3
6
D
5 3/4”
(146mm)
8 3/4”
(222mm)
11 3/4”
(298mm)
DV-12D DV-09D
DV-06D
DV-48D
DV-90D
73/8”
(187mm)
65/32”
(156mm)
115/8”
(295mm)
1115/16”
(303mm)
57/8”
(149mm)
8 5/8”
(220mm)
81/2”
(216mm)
6
7
/
1
6
”
(
1
6
4
m
m
)
DV-45D
111/16”
(281mm)61/2”
(165mm)
81/2”
(216mm)
51/16”
(129mm
)
85/8”
(220mm)
35 3/4”
(908mm)
47 3/4”
(1.2m)

11
Figure 5. Vent Components and Termination Kits
Step 3. Installing the Vent System
A. Vent System Approvals
Thismodel is approved to useD-series directvent compo-
nents and terminations (Figures 4 and 5). Approved vent
systemcomponents arelabeled for identification.This pipe
is tested and listed as an approved component of the fire-
place.The pipe istested to be run inside an enclosed wall.
There is no requirement for inspection openings at each
jointwithin thewall.There isno requiredpitch for horizontal
vent runs. NOOTHER VENTINGSYSTEMS OR COMPO-
NENTSMAY BE USED.
Detailedinstallationinstructions are includedwitheach vent
termination kit and should be used in conjunction with this
Installers Guide.
Theflameandemberappearancemayvarybasedonthetype
offuelburnedandtheventingconfigurationused.
Termination Kits
!
WARNING: A 3-FOOT LENGTH OF STRAIGHT
PIPE (MINIMUM) MUST BE THE FIRST VENT
COMPONENTATTACHED TO THE UNIT.
Vent Components
Identifying Vent Components
The vent systems installed on this gas fireplace may in-
cludeone, two or three 90°elbowassemblies. The relation-
shipsof vertical rise to horizontalrun invent configurations
using 90° elbows MUST BE strictly adheredto. The riseto
run relationships are shown in the venting drawings and
tables. Refer to the diagrams on the next several pages.
NOTE: Two 45° elbows may be used in place of one
90° elbow. Rise to run ratios in the vent system must
be followed if 45° elbows are used.
DVK-TVCD
DVK-01TRD
DVK-01D
VERTICAL
TERMINATION
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE ELBOW
CEILING FIRESTOP
WALL BRACKET
PIPE LENGTH
HORIZONTAL PIPE SUPPORT
ROOF FLASHING
STORM COLLAR
HEAT SHIELD

12

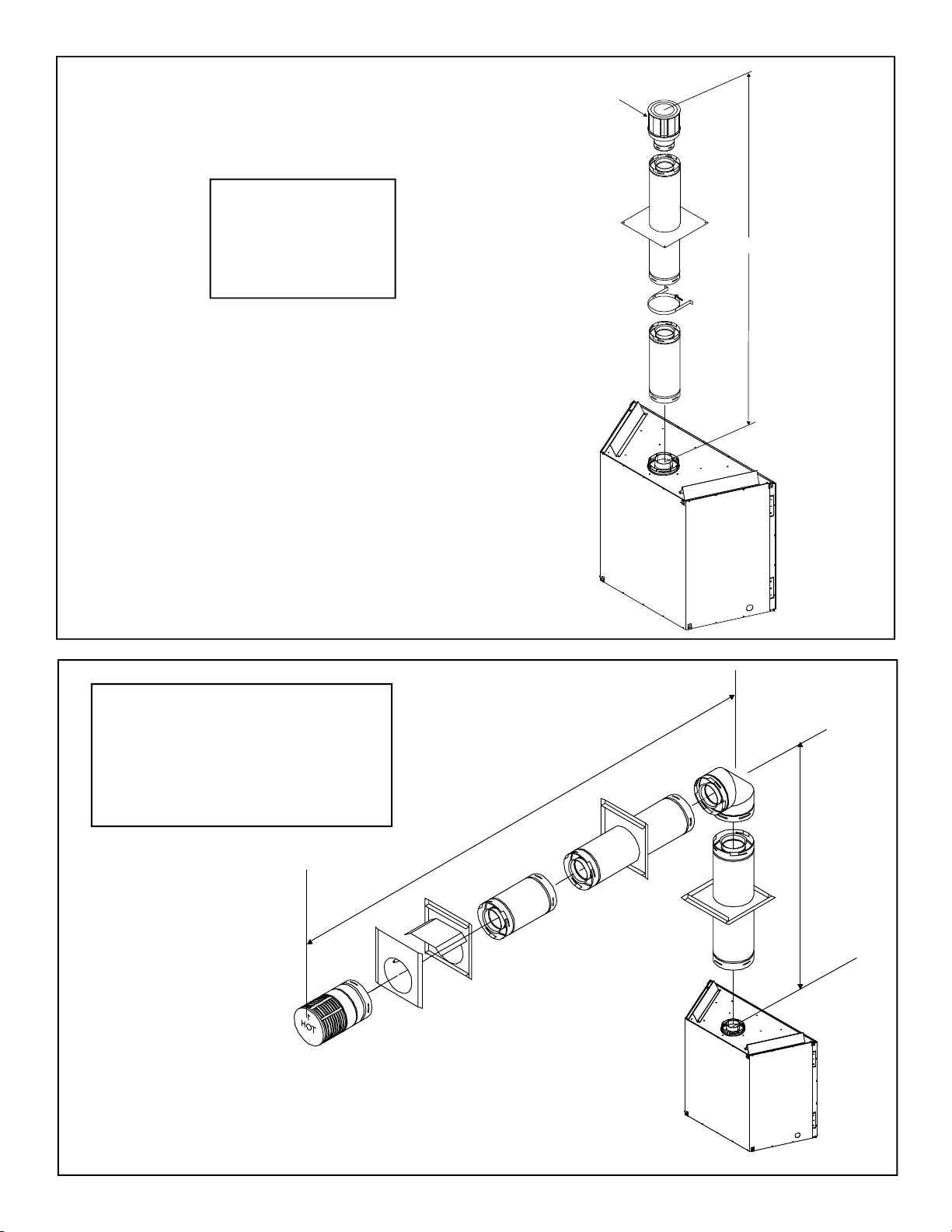

Figure 6. Straight Up Vertical Venting
STRAIGHT UP
VERTICAL VENTING
V (FT.)
30' MAX. (9.3 M)
V
CAP
VENTING WITH ONE (1) 90° ELBOW
V (FT.) H(FT.)
3'MIN.(914mm) 6' MAX. (1.9m)
4'MIN.(1.2m) 8' MAX. (2.4m)
5'MIN.(1.6m) 10' MAX. (3.1m)
6'MIN.(1.9m) 12' MAX. (3.6m)
V + H = 30’ MAX. (9.3 m)
Ratio V to H = 1:2
Figure 7. Venting with One 90° Elbow
H = 20' MAX. (6.2m)
NOTE: SRV570-290 Heat Shield is
required above elbow if clearance is
less than 4 inches (102mm).
H
V

13
VENTING WITH TWO (2) 90° ELBOWS
V (FT.) H(FT.)
3'MIN.(914mm) 6' MAX. (1.9m)
4'MIN.(1.2m) 8' MAX. (2.4m)
5'MIN.(1.6m) 10' MAX. (3.1m)
6'MIN.(1.9m) 12' MAX. (3.6m)
V + H + H1= 30’ MAX. (9.3 m)
Ratio V to H + H1= 1:2
Figure 8. Venting with two 90° elbows
VENTING WITH TWO (2) 90° ELBOWS
V (FT.) H(FT.)
3'MIN.(914mm) 6' MAX. (1.9m)
4'MIN.(1.2m) 8' MAX. (2.4m)
5'MIN.(1.6m) 10' MAX. (3.1m)
6'MIN.(1.9m) 12' MAX. (3.6m)
V + V1+ H1= 30’ MAX. (9.3 m)
Ratio V to H = 1:2
H = 20' MAX. (6.2m)
H = 20' MAX. (6.2m)
NOTE: SRV570-290 Heat Shield is
required above elbow if clearance is less
than 4 inches (102mm).
H
1
H
V
H
V
V
1

14

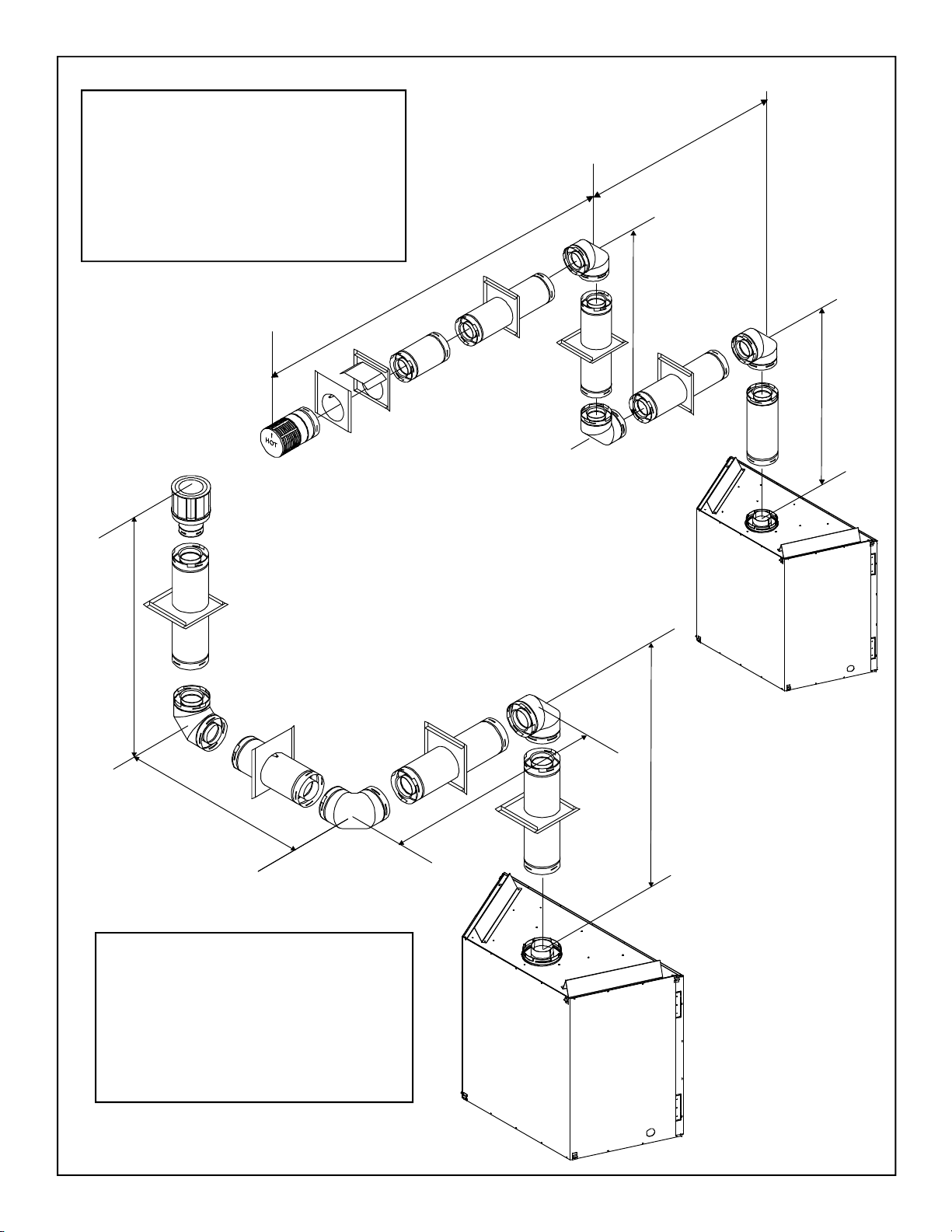

Figure 9. Venting with three 90° elbows
VENTING WITH THREE (3) 90° ELBOWS
V (FT.) H(FT.)
3'MINIMUM(914mm) 6' MAXIMUM (1.9 m)
4'MINIMUM(1.2m) 8' MAXIMUM (2.4 m)
5'MINIMUM(1.6m) 10'MAXIMUM(3.1m)
RATIO V TO H = 1:2
V + V1+ H + H1= 30’ MAXIMUM (9.3m)
H + H1=20’ MAXIMUM (6.2m)
H=10’ MAXIMUM (3.1m)
VENTING WITH THREE (3) 90° ELBOWS
V (FT.) H + H1(FT.)
3'MINIMUM(914mm) 6' MAXIMUM (1.9 m)
4'MINIMUM(1.2m) 8' MAXIMUM (2.4 m)
5'MINIMUM (1.6m) 10'MAXIMUM (3.1 m)
6'MINIMUM (1.9m) 12'MAXIMUM (3.6 m)
V + V1+ H + H1= 30’ MAXIMUM (9.3 m)
H + H1=20’ MAXIMUM (6.2 m)
RATIO V TO H + H1= 1:2
NOTE: SRV570-290 Heat
Shield is required above
elbow if clearance is less
than 4 inches (102mm).
H
1
H
V
1
V
V
1
H
1
H
V

15
!
B. Installing Vent Components
!
STARTING
COLLAR
STOVE
SEALANT
BEAD
1 INCH
(25.4mm)
FIRST VENT
COMPONENT
1. Attach the First Vent Component to the
Starting Collars
To attach the first vent component (3 foot straight pipe
minimum) to the starting collars of the fireplace:
•Apply a 3/8 inch (9.5mm) bead of stove cement around
the inner pipe fireplace starting collar.
•Make sure that the fireplace rope gasket supplied with
thefireplace seals betweenthe first 8-5/8inch (219mm)
vent component and the fireplace top.
•Lock the vent components into place by sliding the con-
centric pipe sections with four (4) equally spaced interior
beads into the fireplace collar or previously installed com-
ponentendwithfour(4)equallyspacedindentedsections.
•When the internal beads of each pipe line up, rotate the
pipe section clockwise about one-quarter (1/4) turn. The
ventpipe is now locked together.
3/8” (9.5mm)
2. Continue Adding Vent Components
•Continueaddingventcomponents,lockingeachsucceed-
ing component into place.
•Ensurethat eachsucceeding vent component is secure-
ly fitted and locked into the preceding component in the
vent system.
•90° elbows may be installed and rotated to any point
aroundthe precedingcomponent’s vertical axis. If anel-
bow does not end up in a locked position with the pre-
ceding component, attach with a minimum of two (2)
sheet metal screws.
Figure 11. Adding Venting Components
3. Install Support Brackets
For Horizontal Runs - Theventsystem must besupported
everyfive(5)feetofhorizontalrunbyahorizontalpipesupport.
To install support brackets for horizontal runs:
• Place the pipe supports around the vent pipe.
• Nail the pipe supports to the framing members.
For Vertical Runs - The vent system must be supported
everyeight (8)feet (2.4m)above the fireplace flue outletby
wall brackets.
To install support brackets for vertical runs:
•Attach wall brackets to the vent pipe and secure the wall
bracket to the framing members with nails or screws.

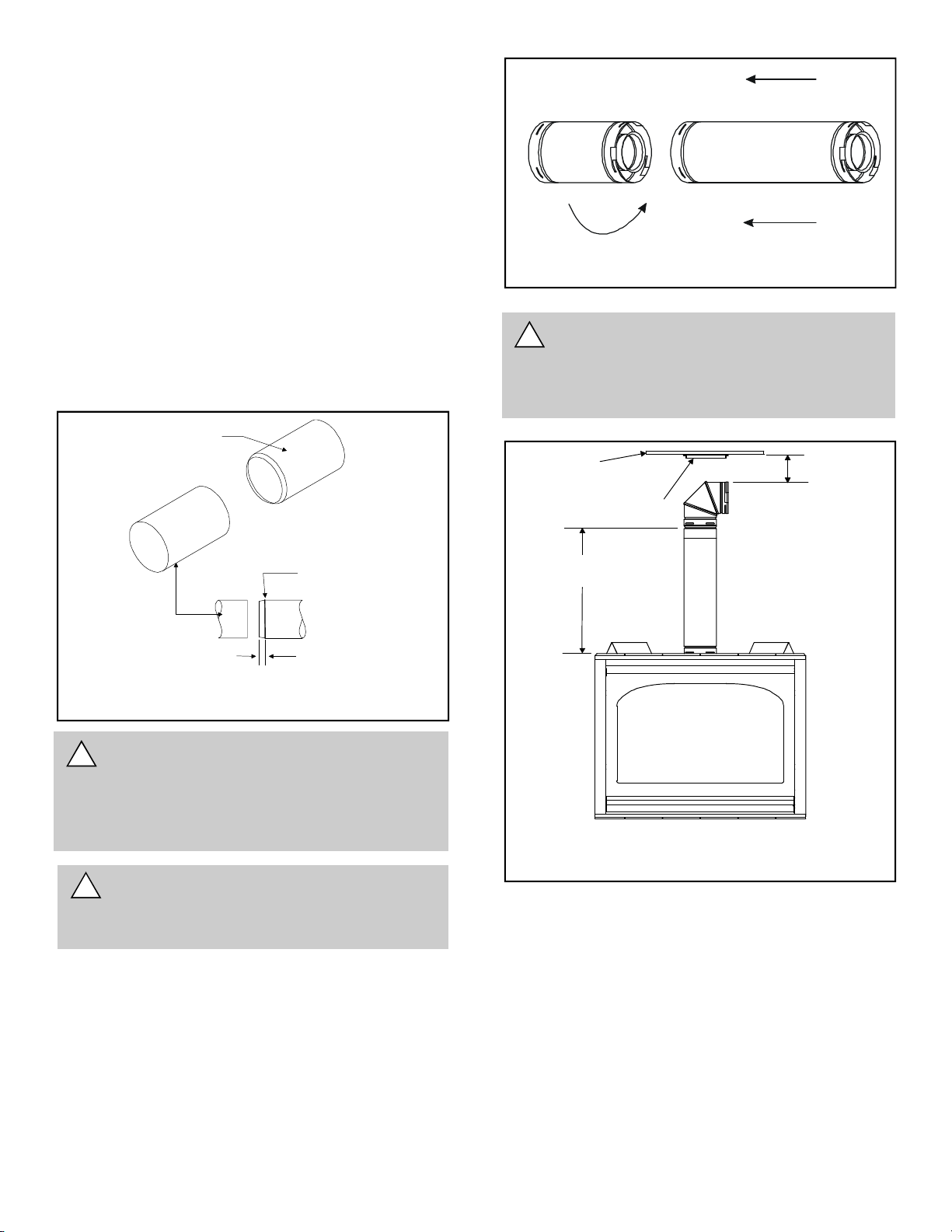

Figure 10. Attaching the First Vent Component
to the Starting Collars
WARNING:A3/8 INCH (9.5MM) BEADOFSTOVE
CEMENTMUSTBEPLACEDAROUNDTHEINNER
PIPE FIREPLACE STARTING COLLAR BEFORE AT-
TACHINGTHEFIRSTVENTCOMPONENT.FAILURETO
SEAL THIS JOINT MAYCAUSE THE FIREPLACE TO
OPERATE IMPROPERLY.SEETHE DIAGRAM .
WARNING: ENSURE THAT THE FIBERGLASS
ROPE GASKET SUPPLIED WITH THE FIRE-
PLACE SEALS BETWEEN THE FIRST VENT COM-
PONENTAND THE FIREPLACE TOP.
!
WARNING: MODEL GRAND-50-D REQUIRES
SHIELD SRV570-290 ABOVE THE FIRST 90°
ELBOW IN THE SYSTEM IF CLEARANCE IS LESS
THAN4INCHES(102MM).SEEINSTALLATIONSHEET
ANDHEATSHIELD SUPPLIEDWITHFIREPLACE.
Figure 12. Placement of SRV570-290 Heat Shield
First 900elbow in system.
3’ MIN.
(914mm)
Heat Shield
Combustible
Surface
3” MIN.
(76mm)

16
•Position the firestops on both sides of the hole previ-
ously cut and secure the firestops with nails or screws.
•The heat shields of the firestops MUST BE placed to-
wards the top of the hole.

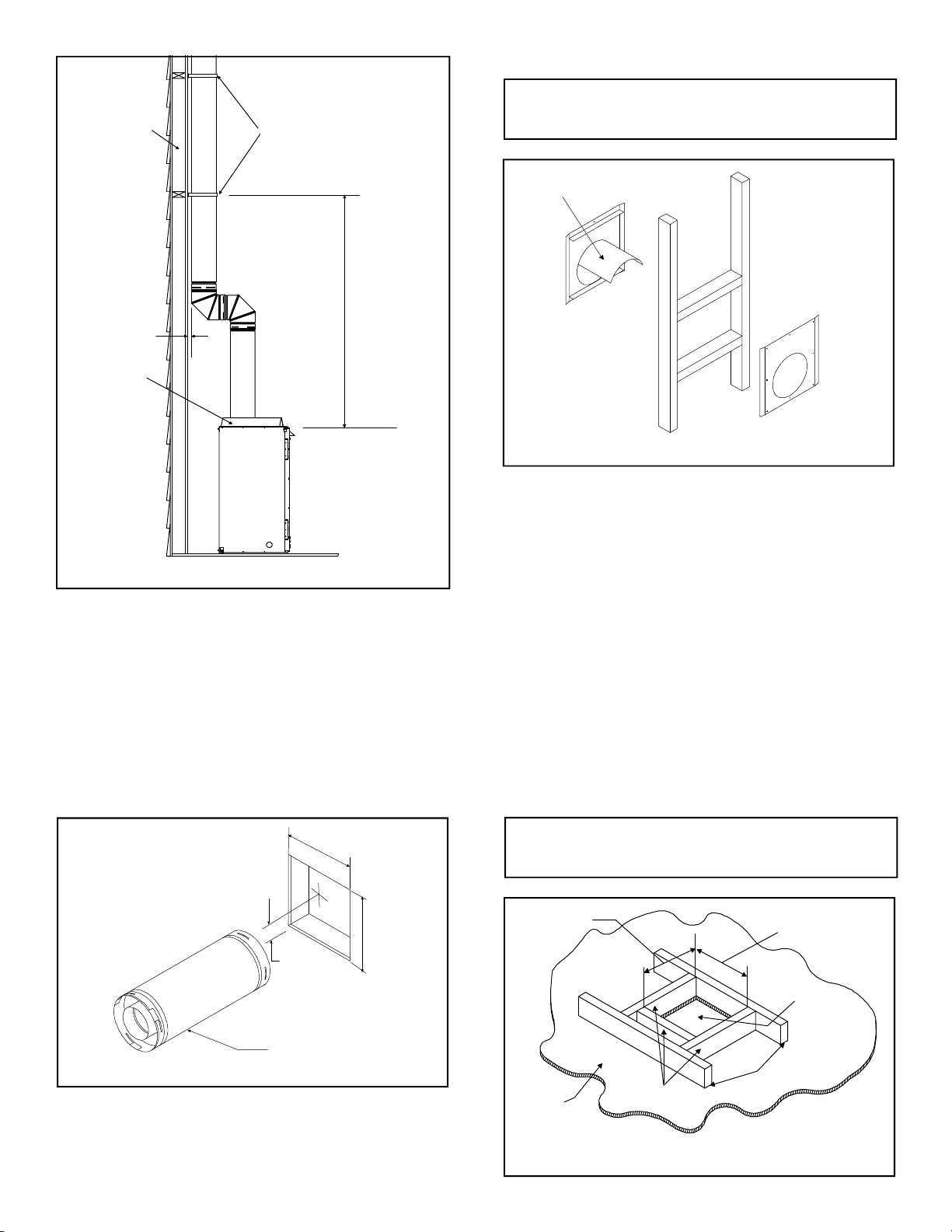

Figure 14. 12" x 12" Hole and Vent Pipe
Figure 15. Heat Shield, Interior & Exterior Firestops
VENT PIPE
1" (25.4 mm)
12"
(305mm)
12"
(305mm)
TRIM HEAT
SHIELD IF TOO
LONG, ADD TO
SHIELD IF TOO
SHORT
EXTERIOR
FIRESTOP
INTERIOR
FIRESTOP
HEAT SHIELD
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on both
sidesof a combustible wall throughwhich thevent passes.
NOTE: Model DVK-01TRD does not need an exterior
firestop on an exterior combustible wall.
To install firestops for horizontal runs that pass through
either interior or exterior walls:
•Cuta 12” x 12” (305mmx 305mm) holethrough thewall.
NOTE: The center of the hole is one (1) inch (25.4mm)
above the center of the horizontal vent pipe.
Figure 16. 11" x 11" Hole & New Framing Members
CEILING
NEW
FRAMING
MEMBERS
EXISTING CEILING
JOISTS
CHIMNEY
HOLE
11" (280 mm)
11" (280mm)
For Vertical Runs - One ceiling firestop is REQUIRED at
the hole in each ceiling through which the vent passes.
Toinstallfirestopsforverticalruns thatpassthroughceilings:
•Positiona plumb bob directly over the centerof the verti-
calvent component.
•Mark the ceiling to establish the centerpoint of the vent.
•Drill a hole or drive a nail through this centerpoint.
•Check the floor above for any obstructions, such as wir-
ing or plumbing runs.
•Reposition the fireplace and vent system, if necessary,
to accommodate the ceiling joists and/or obstructions.
•Cutan11-inch X11-inch(280mmX 280mm)holethrough
the ceiling, using the centerpoint previously marked.
•Framethe hole with framing lumberthe samesize as the
ceiling joists.
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.
Figure 13. Installing Support Brackets
•Continuethe vent run through the firestops.
WALL BRACKET
WALL
STUD
8 ft.
(2.4m)
FLUE
OUTLET
1 INCH MIN.
(25mm)

17
!
C. Vent Termination
For Horizontal Terminations - To attach and secure the
termination to the last section of horizontal vent:
•Rotateand interlock the ends asdescribed atthe begin-
ning of the Installing Vent Components section.
•Theterminationkit shouldpass through thewall firestops
fromthe exterior ofthe building.
•Adjustthe termination capto its final exterior positionon
the building.
!
WARNING: THE BOTTOM OF THE VENT
TERMINATION CAP MUST BEAMINIMUM
OF 12 INCHES (305 MM) ABOVE GROUND LEVEL
(GRADE). THE TOP OF THE CAP MUST BE A MIN-
IMUM OF 36 INCHES (914 MM) BELOW COMBUS-
TIBLE MATERIAL, SUCH AS ADECK. THE SIDE
OF THE CAP MUST BE A MINIMUM OF 6 INCHES
(152 MM) AWAYFROM APARALLEL OUTSIDE
WALL. VENTING TERMINALS SHALL NOT BE RE-
CESSED INTO AWALL OR SIDING. SEE FIGURE
20 FOR VENT TERMINATION CLEARANCES.
Figure 19. Round & Trapezoid Termination Caps
ROUND CAP TERMINATION
PERFORATION CANNOT BE
INSIDE THE WALL
7 1/2"
(191mm)
MINIMUM
TRAPEZOID CAP TERMINATION
7 1/4"
(184mm)
Figure 17. Ceiling Firestop (Ceiling Side)
If the area above the ceiling is NOT an attic, position and
securetheceilingfirestoponthe ceilingsideofthepreviously
cut and framed hole.
Ifthe area above the ceilingIS an attic,position andsecure
the firestop on top of the previously framed hole.
NOTE: Keep insulation away from the vent pipe at least
1 inch (25mm).
Figure 18. Attic Firestop
JOIST
CEILING FIRESTOP
CEILING
NAILS (4 REQUIRED)
CEILING
CEILING FIRESTOP
RAFTER
NAILS (4 REQUIRED)
WARNING: THETERMINATION CAP MUSTBE
POSITIONED SO THAT THE ARROW IS
POINTING UP.
For roundcap termination kits:
•Use the exterior pipelock hole provided on the round
flangeofthewall firestoptosecurethevent pipeinplace.
For trapezoidal cap termination kits:
•Usingscrews secure the cap tothe exteriorwall through
the flanges in the cap.

18
u
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
V=VENT TERMINAL X=AIRSUPPLY INLET =AREAWHERETERMINALIS NOT PERMITTED
Figure 20. Vent Termination Minimum Clearances
A=12" .......................clearances above grade, veran-
da, porch, deck or balcony
B=12" .......................clearances to window or door
that may be opened, or to per-
manently closed window.
D* =36" .......................vertical clearance to ventilated
soffit located above the terminal
within a horizontal distance of 2
feet (60 cm) from the center-line
of the terminal
E* =36" .......................clearance to unventilated soffit
F=9".........................clearance to outside corner
G=6"..........................clearance to inside corner
H=3 ft. (Canada) ......not to be installed above a gas
meter/regulator assembly within
3feet (90cm)horizontally fromthe
center-line of the regulator
I=3ft. (U.S.A.)
6 ft. (Canada).......clearance to service regulator
vent outlet and electric service
J=9"(U.S.A.)
12" (Canada).........clearance to non-mechani-
cal air supply inlet to build-
ing or the combustion air in-
let to any other appliance
K=3ft. (U.S.A.)
6 ft. (Canada) ......... clearance to a mechanical
air supply inlet
L** =7 ft. .........................clearance above paved
sidewalk or a paved driveway
located onpublic property
M*** =36" .........................clearance under veranda,
porch, deck or balcony
N=6” ...........................non-vinyl soffit and siding
12” .........................vinyl soffit and siding
O=18” .........................non-vinyl soffit and siding
42” .........................vinyl soffit and siding
P=8 ft.
DE
B
L
v
v
v
v
v
v
v
v
BB
A
H
M
X
J or K
I
A
G
F
U.S.
(3 FT)
B
CAUTION: IF EXTERIOR WALLS ARE FINISHED WITH VINYL SIDING, IT IS NECESSARYTO INSTALL THE VINYL PROTECTOR
KIT TO THE TOP OF THE EXTERIOR FIRESTOP (FOR ALL ROUND TERMINATION CAPS). IT IS STRONGLYRECOMMENDED
WHENEVER POSSIBLE TO USE THE VINYL PROTECTOR KIT.
* 5 foot minimum for vinyl clad soffits.
** a vent shall not terminate directly above a sidewalk or paved
driveway which is located between two single family dwellings
and serves both dwellings.
*** only permitted if veranda, porch, deck or balcony is fully open on
a minimum of 2 sides beneath the floor.
NOTE 1: On private property where termination is less than 7 feet
above a sidewalk, driveway, deck, porch, veranda or balcony, use of
a listed cap shield is suggested.
NOTE 2: Termination in an alcove space (spaces open only on one side
and with an overhang) are permitted with the dimensions specified for
vinyl or non-vinyl siding and soffits. 1. There must be 3 feet minimum
between termination caps. 2. All mechanical air intakes within 10 feet
of a termination cap must be a minimum of 3 feet below the termination
cap. 3. All gravity air intakes within 3 feet of a termination cap must be
a minimum of 1 foot below the termination cap.
ON
P
R
Q
(See Note 1)
(See Note 1)
(See Note 2)
NOTE 3: Local codes or regulations may require different
clearances.
NOTE 4: Termination caps may be hot. Consider their proximity to
doors or other traffic areas.
WARNING: In the U.S: Vent system termination is NOTpermitted
in screened porches. You must follow side wall, overhang and
ground clearances as stated in the instructions.
In Canada: Vent system termination is NOTpermittedinscreened
porches. Vent system termination is permitted in porch areas
with two or more sides open. You must follow all side walls,
overhang and ground clearances as stated in the instructions.
Heat-N-Glo assumes no responsibility for the improper perfor-
mance of the fireplace when the venting system does not meet
these requirements.
QMIN RMAX
1 cap 3 feet 2 x Q ACTUAL
2 caps 6 feet 1 x Q ACTUAL
3 caps 9 feet 2/3 x Q ACTUAL
4 caps 12 feet 1/2 x Q ACTUAL
QMIN = # termination caps x 3 RMAX = (2 / # termination caps) x QACTUAL

19
For Vertical Terminations - To locate the vent and install
the vent sections:
•Locate and mark the vent centerpoint on the underside
ofthe roof, anddrive a nail through thecenterpoint.
•Maketheoutlineoftheroofholearoundthecenterpointnail.
•Thesizeoftheroofholeframingdimensionsdependonthe
pitchoftheroof.ThereMUST BEa1-inch(25.4mm)clear-
ancefromthe vertical ventpipeto combustible materials.
•Mark the roof hole accordingly.
•Coverthe opening ofthe installed ventpipes.
•Cut and frame the roof hole.
•Use framing lumber the same size as the roof rafters
and install the frame securely.Flashing anchored to the
frame must withstand heavy winds.
•Continue to install concentric vent sections up through
theroof hole (for inside vent installations) orup past the
roof line until you reach the appropriate distance above
theroof (for outside terminations).
WARNING: MAJOR U.S.BUILDING CODES
SPECIFY MINIMUM CHIMNEY AND/OR
VENTHEIGHTABOVETHEROOFTOP.THESEMIN-
IMUM HEIGHTS ARE NECESSARY IN THE INTER-
EST OF SAFETY.SEE THE FOLLOWING DIAGRAM
FOR MINIMUM HEIGHTS, PROVIDED THE TERMI-
NATION CAP ISAT LEAST TWO (2) FEET FROM A
VERTICAL WALLAND 2-FEETBELOWAHORIZON-
TAL OVERHANG.
NOTE: This also pertains to vertical vent systems in-
stalled on the outside of the building.
!
RoofPitch H (min.) ft.
flat to 6/12 1.0
6/12 to 7/12 1.25
over 7/12 to 8/12 1.5
over 8/12 to 9/12 2.0
over9/12 to 10/12 2.5
over10/12to 11/12 3.25
over11/12to 12/12 4.0
over12/12to 14/12 5.0
over14/12to 16/12 6.0
over16/12to 18/12 7.0
over18/12to 20/12 7.5
over20/12to 21/12 8.0
Figure 22. Minimum Height from Roof to
Lowest Discharge Opening
To seal the roof hole, and to divert rain and snow from the
vent system:
•Attach a flashing to the roof using nails, and use a non-
hardening mastic around the edges of the flashing base
where it meets the roof.
•Attach a storm collar over the flashing joint to form a
water-tightseal. Place non-hardeningmastic around the
joint, between the storm collar and the vertical pipe.
•Slide the termination cap over the end of the vent pipe
and rotate the pipe clockwise 1/4 turn.
HORIZONTAL
OVERHANG
VERTICAL
WALL
TERMINATION
CAP
12
X
ROOF PITCH
IS X/ 12
LOWEST
DISCHARGE
OPENING
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
2 FT.
MIN. 2 FT. MIN.
Figure 21. Two Vinyl Protectors
VINYL SIDING
2 VINYL
PROTECTORS
BE
INSTALLED
MUST

20
Step 4. Positioning, Leveling, and
Securing the Fireplace
•Place the fireplace into position.
•Level the fireplace from side to side and from front to
back.
•Shim the fireplace with non-combustible material, such
as sheet metal, as necessary.
•Secure the fireplace to the framing by driving nails or
screws through the nailing tabs.
!
!
The diagram below shows how to properly position, level,
and secure the fireplace.
Figure 23. Proper Positioning, Leveling, and
Securing of a Fireplace

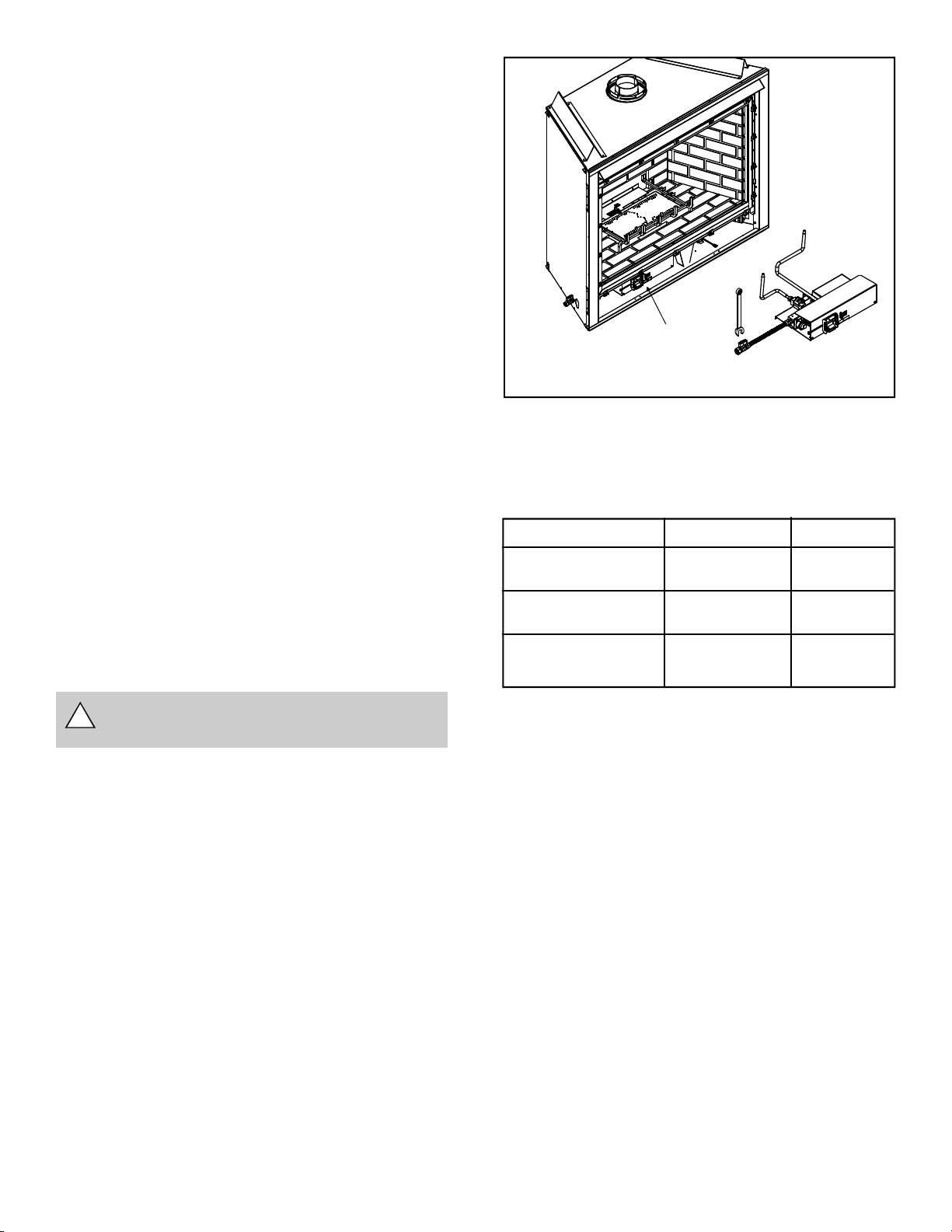

Figure 24. Gas Control System
Step 5. The Gas Control System
WARNING: THISUNIT IS NOT FOR USE WITH
SOLID FUEL.
Intermittent Pilot Ignition (IPI) System
Thegas control system used withthis model is Intermittent
PilotIgnition (IPI). Thissystem includes a3V controlvalve,
electronic module, and intermittent pilot.
WARNING: CONTINUOUS 110-120 VAC
SERVICE MUST BE WIRED DIRECTLYTO
THE FIREPLACE JUNCTION BOX.
NOTE: Flames too close to the ceramic insulators can
cause nuisance lockouts and electrode failure.
NAILING TABS
(BOTH SIDES)
PILOT
ASSEMBLY
3/16”

21
!
Figure 25. Gas Supply Line
Step 7. Gas Pressure Requirements
Pressure requirements for Heat-N-Glo gas fireplaces are
shown in the table below.
Pressure Natural Gas Propane
Minimum 7.0 inches 12.0inches
InletPressure w.c. w.c.
MaximumInlet 14.0inches 14.0inches
GasPressure w.c. w.c.
Manifold 3.5 inches 10.0inches
Pressure w.c. w.c.
Connections are provided on the front of the gas control
valve for both inlet and manifold pressures. To use these
thevalvecovermustberemovedandthesmallslottedscrew
insidethepressuretap loosened.Manifoldpressureshould
be checked with main burner turned on and rear log off.
This screw must be retightened carefully after pressure
gauge is removed to avoid a gas leak.
The fireplace and its individual shut-off valve must be
disconnected from the gas supply piping system during
any pressure testing of the system at test pressures in
excess of one-half (1/2) psig (3.5 kPa).
The fireplace must be isolated from the gas supply piping
system by closing its individual shut-off valve during any
pressure testing of the gas supply piping system at test
pressuresequaltoor lessthanone-half(1/2) psig (3.5kPa).
Step 6. The Gas Supply Line
NOTE: Have the gas supply line installed in accordance
with local building codes by a qualified installer
approved and/or licensed as required by the locality.
(In the state of Massachusetts installation must be
performed by a licensed plumber or gas fitter).
NOTE: Before the first firing of the fireplace, the gas
supply line should be purged of any trapped air.
NOTE: Consult local building codes to properly size
the gas supply line leading to the 1/2 inch
(13 mm) hook-up at the unit.
This gas fireplace is designed to accept a 1/2 inch
(13 mm) gas supply line.
To install the gas supply line:
•Alisted (andState ofMassachusetts approved)1/2 inch
(13mm) tee-handle manual shut-off valve and a listed
flexible gas connector are connected to the 1/2 inch
(13mm) inlet of the control valve.NOTE: If substituting
for these components, please consult local codes for
compliance.
•Locate the gas line access hole in the outer casing of
thefireplace.
•Insert the gas supply line through the gas line hole, and
connectit to theshut-off valve.
•Whenattaching the pipe, support thecontrol sothat the
lines are not bent or torn.
•After the gas line installation is complete, use a soap
solutionto carefully check all gasconnections for leaks.
WARNING:DONOT USE AN OPEN FLAME TO
CHECK FOR GAS LEAKS.
•At the gas line access hole, use insulation to re-pack
the space around the gas pipe.
•Insert insulation from the outside of the fireplace and
pack the insulation tightly to totally seal between the
pipe and the outer casing.
USE A WRENCH
ON SHUT-OFF VALVE
WHEN TIGHTENING
GAS LINE.
GAS
CONTROLS

22
Step 8. Wiring the Fireplace
NOTE: Electrical wiring must be installed by a licensed
electrician.
CAUTION: DISCONNECT REMOTE CONTROLS BY UN-
PLUGGINGFROMTHEJUNCTIONBOXIF ABSENT FOR
EXTENDED TIME PERIODS. THIS WILL PREVENT AC-
CIDENTAL FIREPLACE OPERATION.
Figure 26. Intermittent Pilot Ignition (IPI) Wiring Diagram
For Intermittent Pilot Ignition (IPI) Wiring
Appliance Requirements
This appliance requires that 110-120 VAC be wired to the
factoryinstalledjunctionbox. Maintaincorrectpolaritywhen
wiring the junction box.
NOTE: Removetwist-tiefrom malecordto remotereceiver
and plug into electric box terminal marked “remote”. Fe-
male cord is used if fan kit is to be installed.
Remove transformer from shipping position by cutting and
removingcable tie.
Plugtransformer intoelectric boxterminal marked“fan”.
Checkthat antenna wire isheld in place bytwo clips on the
lowerflange (see Figure35).
Optional Fan Kits
Fan kits can be installed by plugging into cord from remote
receiver. (The fan will have three speeds controlled by the
remoteand will not use therheostat ortemperature control
provided with the fan kit).
CAUTION: LABEL ALL WIRES PRIOR TO DISCONNEC-
TIONWHEN SERVICING CONTROLS. WIRING ERRORS
CANCAUSEIMPROPERANDDANGEROUSOPERATION.
VERIFY PROPER OPERATION AFTER SERVICING.
ON/OFF
SWITCH
ASSEMBLY
RED
RED
REMOTE
RECEIVER
REM FAN
3V
TRANSFORMER
120 VAC
JUNCTION BOX
BLACK (IGNITOR)
BLACK (SENSOR)
I
S
IGNITION
MODULE
3V
GROUND TO
FIREPLACE
CHASSIS
BLACK
ORANGE
GREEN
DEXEN
VALVE
SOLENOID
PILOT ASSEMBLY
AND VALVE
ASSEMBLY
MUST BE
GROUNDED
(COMMON GROUND
WITH FIREPLACE
CHASSIS)
SPARK TO
PILOT IGNITOR
BATTERY
BACKUP
BROWN
BROWN
ORANGE
ORANGE
