Heath Consultants RMLD-CS User manual

Operator’s Manual
Operator’s Manual
www.heathus.com | [email protected]
713.844.1300
Doc No. 105408 Rev E, RMLD-CS Operator Manual © 2021 Heath Consultants Incorporated. All rights reserved.

Operator’s Manual
2
RMLD - CS
Doc No. 105408 Rev E, RMLD-CS Operator Manual © 2021 Heath Consultants Incorporated. All rights reserved.
Table of Contents
Proprietary Notice 4
Overview 4
Remote Detection for Increased Safety 4
Tunable Diode Laser Absorption Spectroscopy 4
Features 4
Warnings & Denitions 5-9
Safety and Warning Information 5
Avertissements et dénitions 6
Informations sur la sécurité et les avertissements 6
Hazardous Safety and Warning Information 7
Safety Labels on the Instrument & Battery Pack 7
Symbols Used 7
Informations sur les dangers,
la sécurité et les avertissements 8
Étiquettes de sécurité sur l’instrument
et le bloc-batterie 8
Symboles 8
Denitions 9
Specications 10
Instrument and Accessories 11
Battery Pack, Charger,
and Charging Procedure 12-15
Battery Pack 12

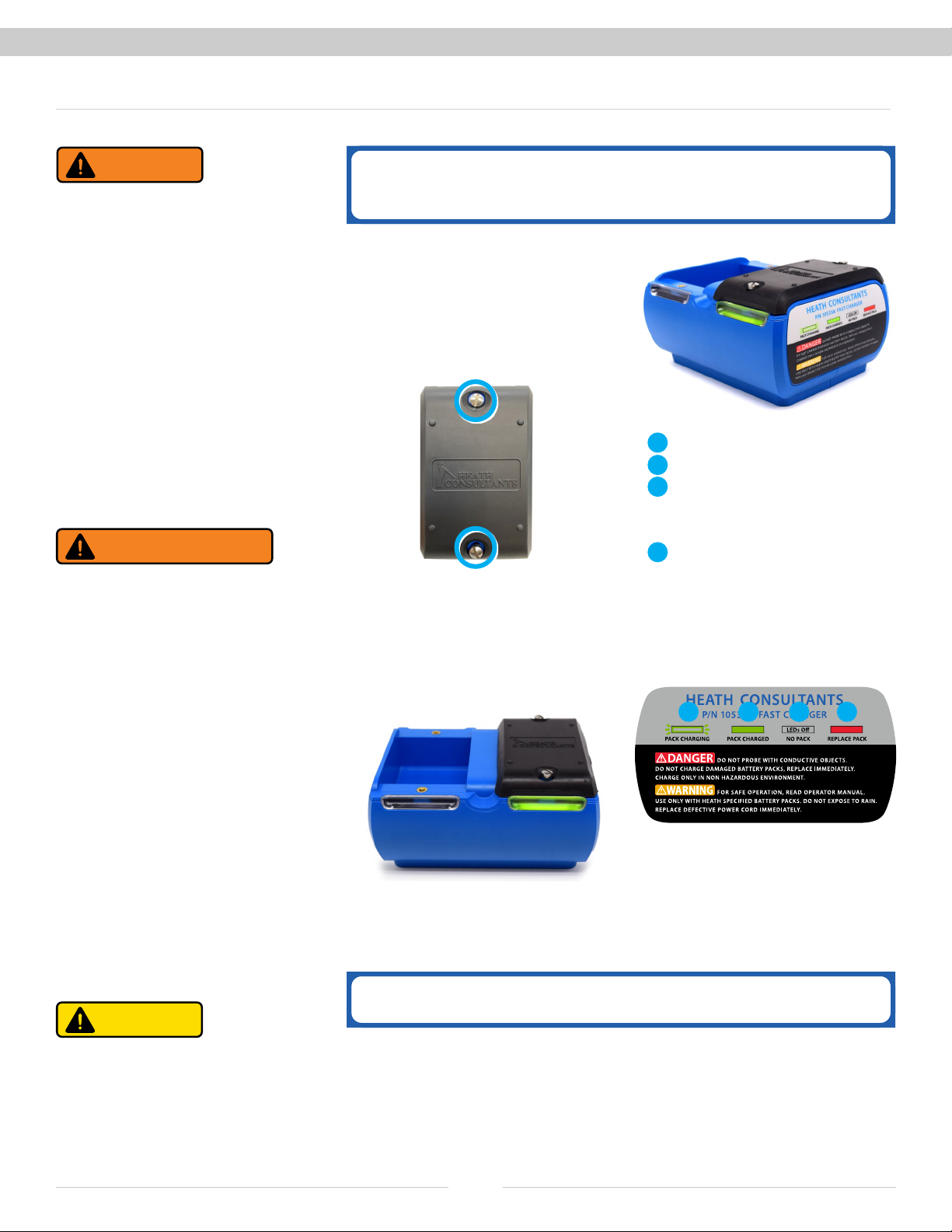

Dual Bay Battery Pack Charger 13
Charging Procedure 14
Remaining Battery Pack Capacity 15
Operating the RMLD-CS 16-21
Turning Instrument On/Off 16
Button Controls 17
Simple 3-Button Control 17
Menu Buttons 17
Login Buttons Usage 18
Special Symbols 18
DisplayGraphicsandIcons 19
Screen Mode - Survey 20
Screen Mode - Graph 20
Screen Mode - Image 21
Working with the Menu Items 27-37
Available Features 22
Instrument Self Test 23
Audio Indications and Modes 24
Audio Warning Indications 24
DMD (Digital Methane Detection) 24
Real Time (Geiger) 24
Alarm Levels 25
Spotter Control 25
USB 26
Bluetooth BLE 26
WiFi 27
AP Mode 27
Station Mode 27
Data Logging 28
Language 28
TimeZoneOffset 29
DisplayBackground 29
Security 30
Access Level Proles & Tiered Permissions -
Security Enabled 30
Required Credentials 31
ADMIN Prole - First Method 31-32
Login 31
Set Up Credentials 32
Change PIN 32
Edit ID 32
Edit WiFi Credentials 32
ADMIN Prole - Second Method (Recommended) 33
Enable Command Mode 33
Login Using Tera Term 33
Users FW 1.54 - 2.38-10 or Newer 34
Create A New User, Credential Setup,
and Delete A New User 34
Create A New User 34
Edit User Name (ID) 34
Change ID, PIN, and WiFi Credentials 34
Delete User 34
Navigating Between Users 34

Operator’s Manual
3
RMLD - CS
Doc No. 105408 Rev E, RMLD-CS Operator Manual © 2021 Heath Consultants Incorporated. All rights reserved.
Users FW 1.40 - 2.33-8 35
Credentials Field 35
Add New User 35
Rename User 35
Change User ID 36
Set User PIN 36
Delete User 36
About Screen 37
Admin Specic Commands
Via USB Command Mode 37-38
3rd Party Application Support 38
RMLD-CS Application (APP) 39
File Access 40-43
Via USB in File Mode 40
RMLD-CS Folder and File Structure 40
File Name Conventions 40
Via WiFi 41
File Server 41
CongurationPortal 4 2 - 4 3
Files Access 42
User Management 42
Add User 43
Load Users from RMLD 43
Save Users to RMLD 43
Download Users to File 43
Load Users From File 43
Delete User 43
How Does the RMLD-CS Measure Gas? 44
Surveying with the RMLD-CS 45-48
Along the Main 45
Service Line/Meter - Location Known 45
Service Line/Meter - Location Unknown 45
Meter 46
Leak Is Near/On Meter - Determine if Leak
is Underground or On Meter 46
During Inclement Weather 46
Long Range Scanning 47
Detection Up To 100’ Away 47
Scanning Distance of 50’ + 47
Dealing With False Detections 47
Scanning Through Windows 48
Common Venting Points 48
Troubleshooting 49-50
Maintenance 50
Warranty and Repair 50
Return for Repair Procedure 51
Contact Information 51

Operator’s Manual
4
RMLD - CS
Doc No. 105408 Rev E, RMLD-CS Operator Manual © 2021 Heath Consultants Incorporated. All rights reserved.
1
Laser Beam
Is Transmitted
2
Plume Absorbs
Some Laser
3
Some Laser
Passes Through
6
Remaining Laser Returns to
RMLD-CS and Is Measured
4
Laser
Reflects Back
5
Plume Absorbs
Some Laser
Remote Detection for Increased Safety
The HEATH Remote Methane Leak Detector - Complete Solution (RMLD-CS)
is a highly advanced technology, capable of detecting methane leaks from a
remote distance. This technology makes it possible to detect leaks without
having to walk the full length of the pipe line, thus creating safer surveys
in areas that may be difcult to reach such as busy roadways, yards with
dogs, fenced off areas, and other hard to access places.
Tunable Diode Laser Absorption Spectroscopy (TDLAS)
The RMLD-CS employs the same technology as the eld proven legacy
RMLD, known as Tunable Diode Laser Absorption Spectroscopy (TDLAS)
technology.
As the laser passes through
the gas plume, the methane absorbs
a portion of the light, which the instrument then detects.
Based on the local meteorological conditions, a given amount of
gas escaping from the ground will produce a plume that varies in
size and uniformity of concentration levels. The plume, by nature,
is variable and dependent on the soil type, moisture, temperature, wind,
venting and leak rate.
Features
The RMLD-CS includes many features which reduce costs and improve
usage. These advanced features include, but are not limited to:
- User Interface
- Internal Data
Logging
- WiFi
- GPS
- Bluetooth BLE
- Color Camera
- Color Display
- Spotter laser
- Self Test
- Rechargeable and Re-
placeable Battery Pack
- Dual Bay Charger
- Mobile App/3rd Party
App Support
- Light Weight
- Ergonomic Housing
Overview
Proprietary Notice
The contents of this instruction manual are proprietary to Heath Consultants Incorporated. Reproduction of this
manual, in whole or in part, is prohibited without the express written consent of Heath Consultants Incorporated.
Heath Consultants Incorporated operates under a continual product improvement program and reserves the right to
make improvements and / or changes without prior notication.
This manual supersedes all previous manuals for this instrument.
Doc No. 105408 Rev E, RMLD-CS Operator’s Manual | Date: November 29, 2021 | Copyright © 2021 Heath Consultants Incorporated. All rights reserved.
Operates under a
varietyofeld
conditions including:
- wide temperature range,
- light rain and fog.
Safe surveying up to
100’ distance.
Rugged design
stands up to normal
elduseandoperating
conditions.
Sensitivity or range
is not affected by
reasonable amounts
of dust on the
instrument’s window.

Operator’s Manual
5
RMLD - CS
Doc No. 105408 Rev E, RMLD-CS Operator Manual © 2021 Heath Consultants Incorporated. All rights reserved.
This is the safety alert
symbol. It is used to alert
you to potential physical
injury hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
DANGER indicates a hazardous
situation which, if not avoided, will
result in death or serious injury.
WARNING indicates a hazardous
situation which, if not avoided, could
result in death or serious injury.
CAUTION indicates a hazardous
situation which if not avoided, could
result in minor or moderate injury.
NOTICE indicates practices not
related to physical injury.
SAFETY INSTRUCTIONS indicates
specic safety-related instructions
or procedures.
Read this manual before using the RMLD-CS instrument and accessories.
Users must read, understand and follow the instructions for operation
and maintenance. Failure to do so can result in serious injury.
Safety and Warning Information
Warnings & Denitions
WARNING: Read and un-
derstand this manual fully
before use.
WARNING: Follow the manual in-
structions and testing methods.
WARNING: The visible
green Spotter Laser is a
Class 2 (II) laser product.
WARNING: Do not stare
into beam or view directly
with optical instruments.
WARNING: Avoid direct eye
exposure to the laser and do not
point in the direction of others.
Visible and Invisible Lasers are
deployed by this instrument.
CAUTION: Use of controls or
adjustments or performance of pro-
cedures other than those specied
herein may result in hazardous laser
radiation exposure.
CAUTION: No attempt should be
made to repair the instrument.
Should the instrument not work
properly, or indicate a fault or warn-
ing, refer to the troubleshooting
section of this manual.
WARNING CAUTION
DANGER
WARNING
CAUTION
NOTICE
SAFETY
INSTRUCTIONS

Manuel de l’Opérateur
6
RMLD - CS
Doc Nº 105408 Rev D, RMLD-CS Manuel de l’Opérateur © 2021 Heath Consultants Incorporated. Tous droits réservés.
Il s’agit du symbole
d’alerte de sécurité. Il est
utilisé pour vous alerter
des risques potentiels de blessures
physiques. Respectez tous les
messages de sécurité qui suivent
ce symbole pour éviter des
blessures ou la mort.
.
DANGER indique une situation
dangereuse qui, si elle n’est pas
évitée, entraînera la mort ou des
blessures graves.
AVERTISSEMENT indique une
situation dangereuse qui, si elle n’est
pas évitée, peut entraîner la mort ou
des blessures graves.
ATTENTION indique une situation
dangereuse qui, si elle n’est pas
évitée, pourrait entraîner des
blessures mineures ou modérées.
NOTICE indicates practices not
related to physical injury.
INSTRUCTIONS DE SÉCURITÉ
indique des instructions ou des
procédures spéciques liées à la
sécurité.
Lisez ce manuel avant d’utiliser l’instrument RMLD-CS et ses accessoires.
Les utilisateurs doivent lire, comprendre et suivre les instructions d’utilisation et
d’entretien. Le non-respect de cette consigne peut entraîner des blessures graves.
Informations sur la sécurité et les avertissements
Avertissements et dénitions
AVERTISSEMENT : Lisez et
comprenez entièrement
ce manuel avant
l’utilisation.
AVERTISSEMENT : Suivez les
instructions du manuel et les
méthodes d’essai.
AVERTISSEMENT : Le
Laser de repérage vert
visible est un produit
laser de classe 2 (II).
Ne jamais xer le faisceau
ni le regarder directement
avec des instruments
optiques.
AVERTISSEMENT : Évitez
l’exposition directe des yeux au
laser et ne le pointez pas vers
d’autres personnes. Des lasers
visibles et invisibles sont déployés
par cet instrument.
ATTENTION : L’utilisation de
commandes ou d’ajustements ou
l’exécution de procédures autres
que celles précisées ici peut
entraîner une exposition
dangereuse aux rayonnements
laser.
ATTENTION : Il ne faut en aucun
cas essayer de réparer l’instrument.
Si l’instrument ne fonctionne pas
correctement, ou indique un défaut
ou un avertissement, reportez-vous
à la section de dépannage de ce
manuel.
.
DANGER
AVERTISSEMENT
AVERTISSEMENT
ATTENTION
ATTENTION
AVIS
INSTRUCTIONS
DE SÉCURITÉ

Operator’s Manual
7
RMLD - CS
Doc No. 105408 Rev E, RMLD-CS Operator Manual © 2021 Heath Consultants Incorporated. All rights reserved.
Hazardous Safety and Warning Information
Safety Labels on the Instrument & Battery Pack
Symbols Used
WARNING: Do not use the instru-
ment in hazardous areas except
those areas and zones for which it
is approved.
WARNING: To reduce the risk of ig-
nition of a ammable or explosive
atmosphere, battery pack must be
removed, inserted and recharged
only in a location known to be
non-hazardous. Use only replace-
able Heath 105727 Battery Pack.
WARNING: Do not disassemble
or open or modify this instrument
including the 105727 battery pack.
All repairs must be done only by
an authorized facility as listed in
this manual.
WARNING: Do not disassemble, do
not short, do not burn or expose to
high temperature (≥ 60°C/140°F)
the Lithium battery pack used with
this instrument. Use the designated
charger to charge the battery pack
only in non-hazardous area.
WARNING: Do not connect to USB
port in a Hazardous area. Only con-
nect to a USB equipment certied
to appropriate safety standards
such as IEC 61010-1 or equivalent
in a non-Hazardous area.
WARNING: Substitution of com-
ponents may impair intrinsic safety.
No user serviceable components
contained within this instrument.
Caution
Consult Instructions
for use
Ingress protection
Do not dispose of this
product in the unsorted
municipal waste stream.
Dispose of this product ac-
cording to local regulations.
Lithium Ion battery pack
Measurement IR Laser
Radiation: Class I
Visible (Green) Laser
Radiation: Class 2(II)
Do not stare into beam.
Avoid direct eye exposure.
Firmware-specic notes are highlighted as shown. The manual
includes information about rmware 1.40-2.33-8, as well as the
newer 1.57-2.39-10 which added security level features and new
menu options.
WARNING
FW 1.57-2.39-10 or Newer
2.5 REF
1.0 REF
MODEL FILE NAME:
DATE:
CHECKED BY:
MATERIAL:
FINISH:
SHEET
NOTICE
.XX ± .05°
.XXX ± .010
.XX ± .05
ANGULAR DECIMALS
TOLERANCES
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES
9030 Monroe Road
Houston, Texas 77061
[phone]
REV
TITLE:
A
DRAWN BY:
DRAWING / PART No: SIZE
SCALE:
DATE:
DO NOT SCALE DRAWING
OF
HEATH
CONSULTANTS
The contents of this drawing is sole property
of HEATH CONSULTANTS INCORPORATED.
This print and it's contents shall not be traced or
reproduced without prior written permission from
HEATH CONSULTANTS INCORPORATED.
It shall not be used directly or indirectly in any
way detrimental to the interest of HEATH
CONSULTANTS INCORPORATED.
N/A
SEE NOTE 1
E
105732
LABEL,SERIAL NUMBER,RMLD-CS
1
1
3/25/2020
J.ORTIZ
NOTES:
MATERIAL: HONEYWELL FANTASTOCK 2 SILVER MATTE CHROME(HPN 100170-0) 1.
REFER TO ARTWORK FILE: 105732_RMLD-CS, LABEL ARTWORK 2.
SERIAL NUMBER TEXT: 3.
1ST LINE, FONT TAHOMA, FONT SIZE - 11 POINT
2ND LINE, FONT SANS SERIF, FONT SIZE - 7 POINT
3RD - 9TH LINES, FONT SANS SERIF, FONT SIZE - 6 POINT
10TH LINE, FONT TAHOMA, FONT SIZE - 8 POINT
D
Class I, Zone 2, AEx ic op is IIA T4 Gc -17 C < Tamb < +50 C
105354 RMLD-CS
REMOTE METHANE LEAK DETECTOR - Complete Solution
FCC ID:Z64-CC3120MOD IC ID:451I-CC3120MOD
SN:
Complies with 21 CFR 1040.10 and 1040.11 except
Class I, Division 2, Group D Intrinsically Safe
REVA ARTWORK
REVB ARTWORK
REVC ARTWORK
Canda & US QPS Logo
D
USB Port Max Rating: Um = 5V, In = 5A IP54
for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
Complies with 21 CFR 1040.10 and 1040.11 except
for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
E
REVISIONS
ECO REV. DESCRIPTION DATE BY
11303 A INITIAL RELEASE 2020/5/8 JJO
11306 B ADDED AEx STATEMENT 2020/12/8 JJO
11336 C UPDATED AEx STATEMENT FOR "ic" 2021/2/3 JJO
11348 D
ADDED ADDITIONAL IS STATEMENTS & ADDED
21 CFR 1040 MARKING. UPDATED NOTE 3.
2021/5/21 JJO
11364 E UPDATED QPS LOGO FOR USA AND CANADA. 2021/6/24 JJO
5
4
3
2
1
N/A
11.15.19 Rev C - Add CE
mark
7.30.20 Rev D - “FAB DWG
Change Only”
VISIBLE AND
INVISIBLE LASER
LASER VISIBLE ET
INVISIBLE
Avenir Next - Regular
Avenir Next - Demi
Rev A - 1.29.21
Rev B - 6.22.21
(1.5” REF)
(1.0” REF)
Avenir Next Condensed Bold
Avenir Next Condensed Medium
1.29.21
Rev D - 6.22.21 (French added)
FW 1.40-2.33-8
IP54

Manuel de l’Opérateur
8
RMLD - CS
Doc Nº 105408 Rev D, RMLD-CS Manuel de l’Opérateur © 2021 Heath Consultants Incorporated. Tous droits réservés.
Attention
Consulter le mode
d’emploi
Indice de protection
Ne jetez pas ce produit dans
le ux des déchets municipaux
non triés. Jetez ce produit
conformément aux
réglementations locales.
Bloc-batterie au
lithium-ion
Laser IR de mesure
Rayonnement : Classe I
Laser visible (vert)
Rayonnement : Classe 2(II)
Ne pas xer le faisceau.
Éviter l’exposition directe
des yeux.
Informations sur les dangers, la sécurité et les avertissements
Symboles
AVERTISSEMENT : N’utilisez pas
l’instrument dans des zones
dangereuses, à l’exception des
surfaces et des zones pour
lesquelles il est approuvé.
AVERTISSEMENT : Pour réduire
le risque d’inammation d’une
atmosphère inammable ou
explosive, bloc-batteries doivent
être retirées, insérées et rechargées
uniquement dans un endroit réputé
non dangereux. Utilisez uniquement
un bloc-batterie Heath 105727
remplaçable.
AVERTISSEMENT : Ne démontez
pas, n’ouvrez pas et ne modiez
pas cet instrument, y compris le
bloc-batterie 105727. Toutes les
réparations doivent être effectuées
uniquement par un établissement
agréé, comme indiqué dans ce manuel.
AVERTISSEMENT : Ne démontez
pas, ne court-circuitez pas, ne
brûlez pas ou n’exposez pas à une
température élevée ≥ 60ºC/140ºF)
le bloc-batterie au lithium utilisé
avec cet instrument. Utilisez le
chargeur désigné pour charger la
batterie uniquement dans une zone
non dangereuse.
AVERTISSEMENT : Ne vous
connectez pas au port USB dans
une zone dangereuse. Connectez-
vous uniquement à un équipement
USB certié conforme aux normes
de sécurité appropriées telles que
IEC 61010-1 ou équivalent dans une
zone non dangereuse.
AVERTISSEMENT : La substitution
de composants peut nuire à la
sécurité intrinsèque. Aucun com-
posant réparable par l’utilisateur
n’est contenu dans cet instrument.
Les notes spéciques au micrologiciel sont surlignées en bleu comme
indiqué. Le manuel comprend des informations sur le micrologiciel 1.40-
2.33-8, ainsi que sur le nouveau 1.57-2.39-10 avec des fonctionnalités de
niveau de sécurité supplémentaires et de nouvelles options de menu.
2.5 REF
1.0 REF
MODEL FILE NAME:
DATE:
CHECKED BY:
MATERIAL:
FINISH:
SHEET
NOTICE
.XX ± .05°
.XXX ± .010
.XX ± .05
ANGULAR DECIMALS
TOLERANCES
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES
9030 Monroe Road
Houston, Texas 77061
[phone]
REV
TITLE:
A
DRAWN BY:
DRAWING / PART No: SIZE
SCALE:
DATE:
DO NOT SCALE DRAWING
OF
HEATH
CONSULTANTS
The contents of this drawing is sole property
of HEATH CONSULTANTS INCORPORATED.
This print and it's contents shall not be traced or
reproduced without prior written permission from
HEATH CONSULTANTS INCORPORATED.
It shall not be used directly or indirectly in any
way detrimental to the interest of HEATH
CONSULTANTS INCORPORATED.
N/A
SEE NOTE 1
E
105732
LABEL,SERIAL NUMBER,RMLD-CS
1
1
3/25/2020
J.ORTIZ
NOTES:
MATERIAL: HONEYWELL FANTASTOCK 2 SILVER MATTE CHROME(HPN 100170-0) 1.
REFER TO ARTWORK FILE: 105732_RMLD-CS, LABEL ARTWORK 2.
SERIAL NUMBER TEXT: 3.
1ST LINE, FONT TAHOMA, FONT SIZE - 11 POINT
2ND LINE, FONT SANS SERIF, FONT SIZE - 7 POINT
3RD - 9TH LINES, FONT SANS SERIF, FONT SIZE - 6 POINT
10TH LINE, FONT TAHOMA, FONT SIZE - 8 POINT
D
Class I, Zone 2, AEx ic op is IIA T4 Gc -17 C < Tamb < +50 C
105354 RMLD-CS
REMOTE METHANE LEAK DETECTOR - Complete Solution
FCC ID:Z64-CC3120MOD IC ID:451I-CC3120MOD
SN:
Complies with 21 CFR 1040.10 and 1040.11 except
Class I, Division 2, Group D Intrinsically Safe
REVA ARTWORK
REVB ARTWORK
REVC ARTWORK
Canda & US QPS Logo
D
USB Port Max Rating: Um = 5V, In = 5A IP54
for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
Complies with 21 CFR 1040.10 and 1040.11 except
for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
E
REVISIONS
ECO REV. DESCRIPTION DATE BY
11303 A INITIAL RELEASE 2020/5/8 JJO
11306 B ADDED AEx STATEMENT 2020/12/8 JJO
11336 C UPDATED AEx STATEMENT FOR "ic" 2021/2/3 JJO
11348 D
ADDED ADDITIONAL IS STATEMENTS & ADDED
21 CFR 1040 MARKING. UPDATED NOTE 3.
2021/5/21 JJO
11364 E UPDATED QPS LOGO FOR USA AND CANADA. 2021/6/24 JJO
5
4
3
2
1
N/A
11.15.19 Rev C - Add CE
mark
7.30.20 Rev D - “FAB DWG
Change Only”
VISIBLE AND
INVISIBLE LASER
LASER VISIBLE ET
INVISIBLE
Avenir Next - Regular
Avenir Next - Demi
Rev A - 1.29.21
Rev B - 6.22.21
(1.5” REF)
(1.0” REF)
Étiquettes de sécurité sur l’instrument et le bloc-batterie
AVERTISSEMENT
IP54
FW 1.57-2.39-10 et plus récent
uniquement
FW 1.40-2.33-8
Avenir Next Condensed Bold
Avenir Next Condensed Medium
1.29.21
Rev D - 6.22.21 (French added)

Operator’s Manual
9
RMLD - CS
Doc No. 105408 Rev E, RMLD-CS Operator Manual © 2021 Heath Consultants Incorporated. All rights reserved.
Denitions
Beam Skip
Occurs when the IR beam jumps between a near object and a far object.
This may cause a false detection. This can also occur on highly reective
surfaces (windows, water, ice, etc.).
Dark Zone
An area not being scanned due to an obstruction. This may be an elevation
change, the side of a building, behind a curb, etc.
DMD (Digital Methane Detection)
An advanced detection mode which, when activated, will only alert the
operator when there is a probable detection of methane.
Footprint
The surface area covered by the IR beam, which increases with distance.
This area is a 22 in diameter at 100 ft when shined against a vertical
background.
Infrared (IR)
Optical radiation with wavelengths longer than those of the visible spectrum.
Laser Calibration Drift
A normal characteristic of tunable diode lasers is that the wavelength
calibration can drift slowly over time. The RMLD-CS has a built in Self-Test/
Calibration feature to automatically maintain proper calibration.
PPM-M (Parts Per Million Meter)
The product of the methane concentration times the thickness of the plume.
Real Time
An audible mode that will continuously emit a variable beep rate relative
to the concentration of gas. The response range covers 10 – 1000 PPMM.
Spotter Laser
The green, blinking laser which guides the operator as to the location of
the IR beam. This laser can be activated through the left button located on
the keypad.
Tunable Diode Laser Absorption Spectroscopy
A method of gas detection that utilizes a laser that, when directed through
a cloud of methane, will be partially absorbed by the gas and the return
signal can then be analyzed for gas concentration.

Operator’s Manual
10
RMLD - CS
Doc No. 105408 Rev E, RMLD-CS Operator Manual © 2021 Heath Consultants Incorporated. All rights reserved.
Specications
General
RMLD-CS Weight
3 lbs (48 oz) (approx.)
Carry Case Dimensions
21 x 17.5 x 9.5 in
(53 x 44 x 24 cm) (approx.)
Display
3.5 in (8.9 cm) color LCD
Storage
Internal SD card (not removable)
Power
Battery Pack
Removable
Rechargeable
Lithium-ion pack, 10.8 VDC 3.2Ah
Operational Power on Battery Pack,
3.1W typical 77° F (25° C)
Battery Pack Run Time
8 hours at 32° F (0° C) (approx.)
Battery Pack Charger
External
110-240 VAC, 50/60 Hz
Universal Dual Bay, Delivers 12W
at 77° F (25° C) per battery pack
Charge Time
2-3 hours full charge (approx.)
LED Charging Indicator
Integrated into Dual Battery Pack
Charger
Detection/Measurement System
Detection Method
Tunable Diode Laser Absorption
Spectroscopy (TDLAS)
Detection Distance
100 ft (30 m) nominal - may vary
due to background type and
conditions
Measurement Range
0 to 50K PPM-M
Sensitivity
5 PPM-M at distances
from 0 to 100 ft (30 m)
Beam Size
Conical in shape with a
22 in (55 cm) diameter
at 100 ft (30 m)
Lasers
IR Laser
Class I
Green Spotter
Class 2 (II) <5mW @ 510-530nm
Spot size is .25 in at 50 ft (7 mm at 15 m)
Complies with 21 CFR 1040.10
and 1040.11 except for deviations
pursuant to Laser Notice No. 50,
dated June 24, 2007
Eye Safety Warning
Do not stare into beam or view
directly with optical instrument
Avertissement de sécurité oculaire
Ne jamais xer le faisceau ni le
regarder directement avec des
instruments optiques
Complies with 21 CFR 1040.10
Display
Size
3.5 in (8.9 cm) LCD Color
Resolution
320 x 240 pixels
Color Camera
Aperture
f/2.6
FOV
94DEG (at 6.0 mm image circle)
GNSS
Compatible With
GPS
GLONASS
BeiDou
Galileo
Communication
USB Dual Mode - ash drive and
communications
USB Port Max Rating:
Um = 5V, In = 5 A
Bluetooth 4.2 BLE
WiFi b/g
Alarms
Digital Methane Detection (DMD)
Audible tone and visual alerts when
detection threshold exceeded
Adjustable Detection Alarm Level
1 to 999 PPM-M
Real Time (RT)
Continuous beep rate relative to
concentration from 10-1000 PPM-M
System Fault / Warning
Audible alarm and visual
indication on the display
Testing
Built-In Self Test
Veries operation and adjusts laser
wavelength for maximum sensitiv-
ity
Test Gas Cell
Integrated within carrying case
Data Logging
Saves to Internal Memory
FAULT logs
Self Test logs
Captures
Data Collected
Includes, but not limited to:
CH4 PPM-M measurement
GPS location
Timestamp
Battery pack capacity
Battery pack voltage
Serial number of the instrument
Operating Conditions
Operating Temperature
0° to +122° F (-17° to 50° C)
Humidity
5 to 95% RH, non-condensing
Altitude
Up to 6560 ft (2000 m)
Environment of Use
Pollution degree 2 or better
Outdoor use
Regulatory
Ingress Protection
IP54 (water splash and dust
resistant)
Compliance
EMC (EN61000-6-2, EN6100-6-4)
Low Voltage Directive
(2014/35/EU)
Radio Equipment Directive
(2014/53/EU)
ETSIEN301489-1v2.2.0
EN 61326-1:2013
47 CFR Part 15 & ICES-003
Hazardous Location Safety
Class I, Zone 2, AEx ic op is IIA T4 Gc
Class I, Division 2, Group D
Intrinsically Safe
Ordinary Location Safety
UL/CSA 61010-1
CAN/CSA-C22.2 No 61010-1-12

Operator’s Manual
11
RMLD - CS
Doc No. 105408 Rev E, RMLD-CS Operator Manual © 2021 Heath Consultants Incorporated. All rights reserved.
Complete Kit Assembly
HPN 105301
Includes:
- RMLD-CS Instrument
(with battery pack)
- Battery Pack Charger
- Test Gas Cell
- USB Cable
- Carry Strap
- Carry Case
RMLD-CS Instrument
HPN 105354
- Methane gas detection up
to 100’ away
- User interface
- Data logging interface
- Battery Pack
- Power connector
Battery Pack
HPN 105727
- Rechargeable Li-Ion battery
pack
- Provides power to the
instrument
- Charges independently of
the instrument
- Up to eight (8) hours of
operating time on a full charge
- Recharge between uses to
assure no interruption in use
- Use only with HPN 105358
Battery Pack Charger
Battery Pack Charger
HPN 105358
- Universal 100 - 240 VAC,
506-60 Hz
- Two (2) slots for dual
battery pack charging
- Recharge the instrument’s
battery pack after use
- LED on the front indicates
charging status
- Use only with HPN 105727
Battery Pack
USB Cable
HPN 105473
- USB2 A to USB micro cable
- Download data from the
instrument to a computer
- Serial communications
Carrying Case
HPN 105530
- Protects the
instrument during
storage and transport
- Built-in test gas cell for
self-test
- Keep instrument in the
case while not in use
Test Gas Cell
HPN 106024
Universal Power Supply
(AC Adapter) and AC Power
Cord (US/Canada)
HPN 105359
AC Power Cord
(US/Canada Only)
HPN 105528
Instrument and Accessories
A
B
C
D
E
F
F
G
I
H
AB
E
H
D
G
C
I

Operator’s Manual
12
RMLD - CS
Doc No. 105408 Rev E, RMLD-CS Operator Manual © 2021 Heath Consultants Incorporated. All rights reserved.
Battery Pack, Charger and Charging Procedure
Battery Pack
- Provides the power to the
instrument
- Removable
- Rechargeable
- Lithium-ion
- Up to 8 hours of operating time
when fully charged.
Remaining battery pack capacity
(in percent) indicator in the top
right of the instrument display.
NOTICE: Must recharge between
uses to assure no interruption in use.
NOTICE: The prolonged storage of
the battery pack inside or outside
the instrument can lead to battery
chemistry being irreversibly
damaged leading to permanent
failure of the battery pack.
NOTICE
NOTICE: Do not dispose of this
product in the unsorted municipal
waste stream. Dispose of this prod-
uct according to local regulations.
When storing the
instrument or battery pack
for more than a month:
- Charge battery pack to
40-50% (see Charging
Procedure on page 14-15)
- Store at 60-70° F
WARNING: To reduce the risk of
ignition of a ammable or explosive
atmosphere, battery pack must be
removed, inserted and recharged
only in a location known to be
non-hazardous.
WARNING: Only use the HEATH
supplied RMLD-CS battery pack
charger to recharge the battery
pack. Use of any other charger
may cause severe damage to the
battery pack or electrical circuits.
Battery Charger is not part of the
hazardous safety certication.
AVERTISSEMENT
WARNING
AVERTISSEMENT : Pour réduire
le risque d’inammation d’une
atmosphère inammable ou
explosive, bloc-batteries doivent
être retirées, insérées et rechargées
uniquement dans un endroit réputé
non dangereux.
AVERTISSEMENT : Utiliser
uniquement le chargeur de
bloc-batterie RMLD-CS fourni par
HEATH pour recharger le bloc-
batterie. L’utilisation de tout autre
chargeur peut endommager
gravement le bloc-batterie ou
les circuits électriques. Le chargeur
de batterie ne fait pas partie de la
certication de sécurité dangere-
use.

Operator’s Manual
13
RMLD - CS
Doc No. 105408 Rev E, RMLD-CS Operator Manual © 2021 Heath Consultants Incorporated. All rights reserved.
Dual Bay Battery Pack Charger
- Charge two battery packs
simultaneously
- Includes a Universal Power Supply
(AC Adapter) and AC Power Cord
(US/Canada only)
- An integrated metal bracket
included on the bottom of the
charger allows for wall or xed
mounting options.
To wall mount charger use four 8-32 screws to thread into self-clinching
nuts on charger chassis. Thread dept is 0.060 in (1.5 mm), max screw intru-
sion is .150 in (3.8 mm).
NOTICE: Access to both sides of the mounting wall are needed.
NOTICE: For wall mounted or mobile applications, HEATH recommends
securing the battery pack to the charger using the captive screws
attached to the battery pack.
NOTICE
Two (2)
charging
bays
Universal
Power Supply
(AC Adapter)
AC Power Cord
(US/Canada Only)
NOTICE
NOTICE: The RMLD-CS power cord
on the charger can be changed to
t the type of receptacle used in
your location. Non-US power cords
must be specied when ordering.
WARNING: To reduce the risk of
ignition of a ammable or explosive
atmosphere, battery pack must be
removed, inserted and recharged
only in a location known to be
non-hazardous.
WARNING: Only use the HEATH
supplied RMLD-CS battery pack
charger to recharge the battery
pack. Use of any other charger
may cause severe damage to the
battery pack or electrical circuits.
Battery Charger is not part of the
hazardous safety certication.
AVERTISSEMENT
WARNING
AVERTISSEMENT : Pour réduire
le risque d’inammation d’une
atmosphère inammable ou
explosive, bloc-batteries doivent
être retirées, insérées et rechargées
uniquement dans un endroit réputé
non dangereux.
AVERTISSEMENT : Utiliser
uniquement le chargeur de
bloc-batterie RMLD-CS fourni par
HEATH pour recharger le bloc-
batterie. L’utilisation de tout autre
chargeur peut endommager
gravement le bloc-batterie ou
les circuits électriques. Le chargeur
de batterie ne fait pas partie de la
certication de sécurité dangere-
use.

Operator’s Manual
14
RMLD - CS
Doc No. 105408 Rev E, RMLD-CS Operator Manual © 2021 Heath Consultants Incorporated. All rights reserved.
1. Turn instrument OFF.
2. Unscrew the two captive
screws located on the bottom
of battery pack. Remove battery
pack from instrument.
3. Insert battery pack into the
charger, ensuring it is all the way
down. Optional: Fasten captive
screws into charger housing to
prevent battery pack from
dislodging.
LED panel of charger illuminates
to show charging status of the
battery pack charging.
a. Flashing Green = charging
b. Solid Green = fully charged
c. No light = battery pack not
present or not connected
properly
d. Red = fault
i. Position battery pack into the
other bay, if still red, then
try another battery pack.
ii. If the light is still red send
to repair or replace.
4. When fully charged, power up
the instrument to verify the
battery pack capacity on the
screen.
Charging Procedure
CAUTION: To prevent damage to
the battery pack or electrical
circuits, always plug the charger
into a surge-protected outlet.
CAUTION
Full charge in about 2-3 hours
Charge in ambient temperature above 50° F (10° C)
to obtain full battery pack capacity
a
b
c
d
a b c d
Charging legend displayed on charger
WARNING: To reduce the risk of
ignition of a ammable or explosive
atmosphere, battery pack must be
removed, inserted and recharged
only in a location known to be
non-hazardous.
WARNING: Only use the HEATH
supplied RMLD-CS battery pack
charger to recharge the battery
pack. Use of any other charger
may cause severe damage to the
battery pack or electrical circuits.
Battery Charger is not part of the
hazardous safety certication.
AVERTISSEMENT
WARNING
AVERTISSEMENT : Pour réduire
le risque d’inammation d’une
atmosphère inammable ou
explosive, bloc-batteries doivent
être retirées, insérées et rechargées
uniquement dans un endroit réputé
non dangereux.
AVERTISSEMENT : Utiliser
uniquement le chargeur de
bloc-batterie RMLD-CS fourni par
HEATH pour recharger le bloc-
batterie. L’utilisation de tout autre
chargeur peut endommager
gravement le bloc-batterie ou
les circuits électriques. Le chargeur
de batterie ne fait pas partie de la
certication de sécurité dangere-
use.

Operator’s Manual
15
RMLD - CS
Doc No. 105408 Rev E, RMLD-CS Operator Manual © 2021 Heath Consultants Incorporated. All rights reserved.
When storing the instrument or battery pack
for more than a month:
- Charge battery pack to 40-50%
- Store at 60-70° F
Remaining Battery Pack Capacity
Remaining battery pack capacity (in percent) is indicated in the top right
of the RMLD-CS screen.
A low battery message appears on screen when the battery is in urgent
need of a charge.
NOTICE: The prolonged storage of
the battery pack inside or outside
the instrument can lead to battery
chemistry being irreversibly
damaged leading to permanent
failure of the battery pack.
NOTICE

Operator’s Manual
16
RMLD - CS
Doc No. 105408 Rev E, RMLD-CS Operator Manual © 2021 Heath Consultants Incorporated. All rights reserved.
Turn Instrument On/Off
Operating the RMLD-CS
The instrument will start booting up.
The display sequence is:
- Starting logo
- “Running diagnostics…” at the
bottom of the screen
- Upper screen auto populates:
·User Default
· Firmware revision
·Date and Time
- When done the display will show
“Self Diagnostics OK”
Press and hold
the middle button
for 3 seconds
to turn the
instrument
on/off WARNING: The visible green
Spotter laser is a Class 2 (II)
laser product.
WARNING: Do not stare
into beam or view directly
with optical instruments.
WARNING: Avoid direct eye
exposure to the laser and do not
point in the direction of others.
Visible and Invisible Lasers are
deployed by this instrument.
WARNING
AVERTISSEMENT :
Le Laser de repérage vert
visible est un produit laser
de classe 2 (II).
AVERTISSEMENT :
Ne jamais xer le faisceau
ni le regarder directement
avec des instruments
optiques.
AVERTISSEMENT :
Évitez l’exposition directe des yeux
au laser et ne le pointez pas vers
d’autres personnes. Des lasers
visibles et invisibles sont déployés
par cet instrument.
AVERTISSEMENT
NOTICE: Boot-up Self Diagnostics
is not the same as Self-Test.
See Self-Test details on page 23.
NOTICE: On all screens, the middle
button shuts down the instrument
when pressed and held for 3 sec-
onds.
NOTICE
FW 1.57-2.39-10 or Newer
The rst thing the instrument
then checks for is a valid passing
Self-Test le for the day. If not
found, a pop-up window ap-
pears instructing the operator to
conduct a Self-Test. The Self-Test
prompt must be acknowledged.

Operator’s Manual
17
RMLD - CS
Doc No. 105408 Rev E, RMLD-CS Operator Manual © 2021 Heath Consultants Incorporated. All rights reserved.
After instrument is powered ON, the control buttons will be as shown below:
Menu Buttons
When Menu is selected, the buttons change to the ones below letting you
view and select available features in the Menu.
Simple 3-Button Control
Navigate through screens and
control features of the RMLD-CS
using three (3) buttons which are
located below the display.
The available button functions vary
depending upon the active screen.
Button Controls
- First function
(OON) enables/
disables the spotter
- Second function
(MENU) displays
the available features
according to the
access level of the
user
- Third function
(MODE) displays
the three (3) screen
mode options
(Survey, Graph,
and Image)
- First button (↓),
scrolls down through
the Menu options
- Second (SELECT),
selects the option
highlighted
- Third (⮌), returns
to the previous level
and it also works
like an “enter/return”
when entering PIN
and User Name.

Operator’s Manual
18
RMLD - CS
Doc No. 105408 Rev E, RMLD-CS Operator Manual © 2021 Heath Consultants Incorporated. All rights reserved.
FW 1.57-2.39-10 or Newer
Login Buttons Usage
When entering credentials using the buttons, the process can be easier using a set of secondary buttons
for navigation. This set of secondary buttons help with features that require an operator to enter any set of
information (credentials).
Standard button layout (Menu Buttons) (above)
Secondary buttons (below)
Continue to hold this
button to access the
secondary button
functions. Once
released, the button
functions will return to
the standard layout.
Cycles backwards
through available
characters. This is
useful when
accidentally passing
through the desired
character.
Jumps to the next
character set. The
available character
set sequence is: Space
(⎵), Letters (A-Z),
Numbers (0-9), Special
Characters (!, “, #,…).
For the ID request,
only numerical values
are acceptable.
To activate the secondary buttons,
press and hold the left button of the standard button layout.
NOTICE: When entering PIN and
User Name, be careful not to release
the button and hit the back arrow,
otherwise all entry is lost and will
need to be re-entered.
NOTICE
Special Symbols
Represents the space
character; this helps
differentiate between space
character and an empty/no
character.
Represents the empty or
null character.
Deletes all the characters
to its right side and keeps
the rest of the left side
characters.
Short cut for the delete symbol:
Press ↓button and hold, also press the ↓↓ button until you get the space
⎵⎵character, while still holding the ↓button press the up arrow ↑twice
until you get the delete symbol.
Examples below when you highlight ↵↵and then press SELECT:
All entries will be deleted. Only the last rightmost character
will be deleted.

Operator’s Manual
19
RMLD - CS
Doc No. 105408 Rev E, RMLD-CS Operator Manual © 2021 Heath Consultants Incorporated. All rights reserved.
Display Graphics and Icons
Date
Two formats:
MM/DD/YY (08/05/21)
DD/MM/YY (05/08/21)
Details on page 37.
Battery Capacity
Shows percent
remaining.
Details on page 15.
Spotter
White indicates
the spotter is enabled,
but not yet activated.
Green indicates
an activated spotter.
Details on page 25.
Bluetooth
White indicates a
successful pairing
is connected.
Red indicates the
connection is lost
or not present.
No Bluetooth icon
indicates no device
is currently paired.
Details on page 26.
WiFi
Indicates that
WiFi is enabled.
Details on page 27.
Audio Mode
Indicates the enabled audio mode.
The three possible modes are:
Details on page 24.
Users
Default, Admin, or
Custom User
Details on page 34.
Time Stamp
Two formats:
standard (3:00 PM)
military (15:00)
Details on page 37.
Alarm Level
Details on page 25.

Operator’s Manual
20
RMLD - CS
Doc No. 105408 Rev E, RMLD-CS Operator Manual © 2021 Heath Consultants Incorporated. All rights reserved.
Screen Mode - Survey Screen Mode - Graph
The Survey screen mode will display a
numerical readout of PPM-M readings.
This allows the operator a no-clutter
screen while surveying with the
instrument.
During DMD Audio Mode (In Both Survey and Graph Screen Modes)
-Peak and PPM-M values
will turn red while meth-
ane is detected above
the alarm level.
-Peak value is held
for two seconds before
resetting to a lower
current reading.
- Peak value will
instantly change if a
higher reading is ob-
tained by the instrument.
The Graph screen mode will display a bar
graph in addition to the numerical readout
of PPM-M readings. This allows the op-
erator to easily see the changing values
while surveying with the instrument.
FW 1.57-2.39-10 or Newer
The maximum PPMM value displayed is 50K PPM-M. Any measurement above 50K
PPM-M will display ORNG (over-range reading). Readings from 10,000 PPM-M and
higher are rounded to the nearest thousand and appended with a “K”, i.e., 10K, 12K,
20K.
The active operator (DEFAULT, ADMIN, CUSTOM USERS) will be displayed in the top
right corner below the date.
