Heatmaxx SRPT03 User manual

Bronze Tabletop
Patio Heater
Owner’s Manual
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or fire department.
Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
DANGER
WARNING
WARNING
For Outdoor Use Only.
CAUTION:
Installer: Leave the manual instructions
to the user for future use.
Consumer: Please keep this manual
for future reference.
Read the instructions before use.
This appliance must be installed in
accordance with such regulations as
are in force.
Model#: SRPT03
Questions, problems, missing / replacement parts? Before returning to your retailer,
please call service department at 1-888-909-3888, 7:30am to 4: 30pm PST, Monday-
Friday, or send an e-mail to [e-mail].

2
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such
as a camper, tent or home.
DANGER CARBON MONOXIDE HAZARD
WARNING:
Improper installation, adjustment, alteration, services or maintenance can cause injury,
death or property damage. Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
PRECAUTIONS
SPECIFICATION
Certification CSA
Rated Heat Input
Fuel
Gas Supply
Manifold Pressure
Injector Size(diameter)
10000BTU/hr
LP
16.4oz LP-Gas cylinder
11.0" W.C.
0.91mm
Safety Features Flame failure device, anti-tilt switch & Oxygen
Depletion Safety (ODS) pilot
Gas Supply Pressure Max 250PSI, min 5PSI

3
PRECAUTIONS
The installation must conform with local codes
or, in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.1/NFPA 54,
NFPA58 Natural Gas and Propane Installation
Code, CSA B149.1, or Propane Storage and
Handling Code, B149.2
The heater, when installed, must be electrically
grounded in accordance with local codes or, in
the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70, or the Canadian
Electrical Code, CSA C22.1.
Children and adults should be alerted to
the hazards of high surface temperatures
and should stay away to avoid burns or
clothing ignition.
Young children should be carefully
supervised when they are in the area of
the heater.
Clothing or other flammable materials
should not be hung from the heater, or
placed on or near the heater.
Prior to use, check for damaged parts such as
tube, regulator, pilot or burner.
All leak tests should be done with a soapy solu-
tion. NEVER USE AN OPEN FLAME TO
CHECK FOR LEAKAGE.
Installation and repair should be done by
a qualified service person. The heater
should be inspected before use and at
least annually by a qualified service
person.
More frequent cleaning may be required
as necessary. It is imperative that control
compartment, burners and circulating air
passageways of the heater be kept clean.
Keeping the appliance area clear and free from
combustible materials, gasoline and other flam-
mable vapors and liquids.
Not obstructing the flow of combustion and venti-
lation air.
Keeping the ventilation opening(s) of the cylin-
der enclosure free and clear from debris.
This appliance shall be used only in a well-
ventilated space and shall not be used in a build-
ing, garage or any other enclosed area.
An appliance may be installed with shelter no
more inclusive than:
With walls on all sides, but with no overhead
cover.
Within a partial enclosure which includes an
overhead cover and no more than two side
walls. These side walls may be parallel, as in a
breezeway, or at right angles to each other.
NOTE:PLEASE READ THE FOLLOWING SAFETY RULES
WARNING:
Any guard or other protective device
removed for servicing the heater must be
replaced prior to operating the heater.

4
PRECAUTIONS
Within a partial enclosure which includes an
overhead cover and three side walls, as long as
30 percent or more of the horizontal periphery of
the enclosure is permanently open.
This appliance requires 16.4oz (1lb) LP_gas
supply cylinder.
The LP-gas supply cylinder to be used must be:
Constructed and marked in accordance with the
Specifications for LP-gas cylinders of the U.S.
Department of Transportation (DOT); or the
Standard for Cylinders, Spheres and Tubes for
Transportation of Dangerous Goods and Com-
mission, CAN/CSA-B339, as applicable;
Provided with a listed overfilling prevention
device; and provided with a cylinder connection
device compatible with the connection for the
appliance.
The cylinder be disconnected when the appli-
ance is not is use.
Storage of an appliance indoors is permissible
only if the cylinder is disconnected and removed
from the appliance.
A cylinder must be stored outdoors in a well-
ventilated area out of the reach of children. A
disconnected cylinder must have dust caps
tightly installed and must not be stored in a build-
ing, garage or any other enclosed area.
Do not store a spare LP-gas cylinder under or
near this appliance;
Never fill the cylinder beyond 80 percent full;
Do not clean the heater with cleaners that are
combustible or corrosive.
NOTE:PLEASE READ THE FOLLOWING SAFETY RULES
WARNING:
Place the dust cap on the cylinder valve outlet
whenever the cylinder is not in use. Only install
the type of dust cap on the cylinder valve that is
provided with the cylinder valve. Other types of
caps or plugs may result in leakage of propane.
Certain materials or items, when stored under
the heater, will be subjected to radiant heat and
could be seriously damaged.
This product can expose you to chemicals
including lead, which is known to the State of
California to cause cancer, and carbon
monoxide, which is known to the State of
California to cause birth defects or other
reproductive harm. For more information,
go to: www.P65Warnings.ca.gov.
WARNING
!

5
PRECAUTIONSPRECAUTIONS
WARNINGS AND CAUTIONS
This heater is designed to operate with a standard 1 Ib propane cylinder with Approved Cylinder
Connection.
NOTE: PLEASE READ THE FOLLOWING SAFETY RULES:
TOOLS NEEDED: (NOT INCLUDED)
Adjustable open end wrench
Philips screwdriver
Estimated time for assembly: 15 minutes.
PREPARATION
Before beginning assembly of product, make sure all parts are present. If any part is missing or
damaged, do not attempt to assemble the product. Contact customer service for replacement parts.
Perform a leak test with a soapy solution:
1. To check gas connections.
2. After connecting a new cylinder.
3. Upon re-assembly after disassembly.

6

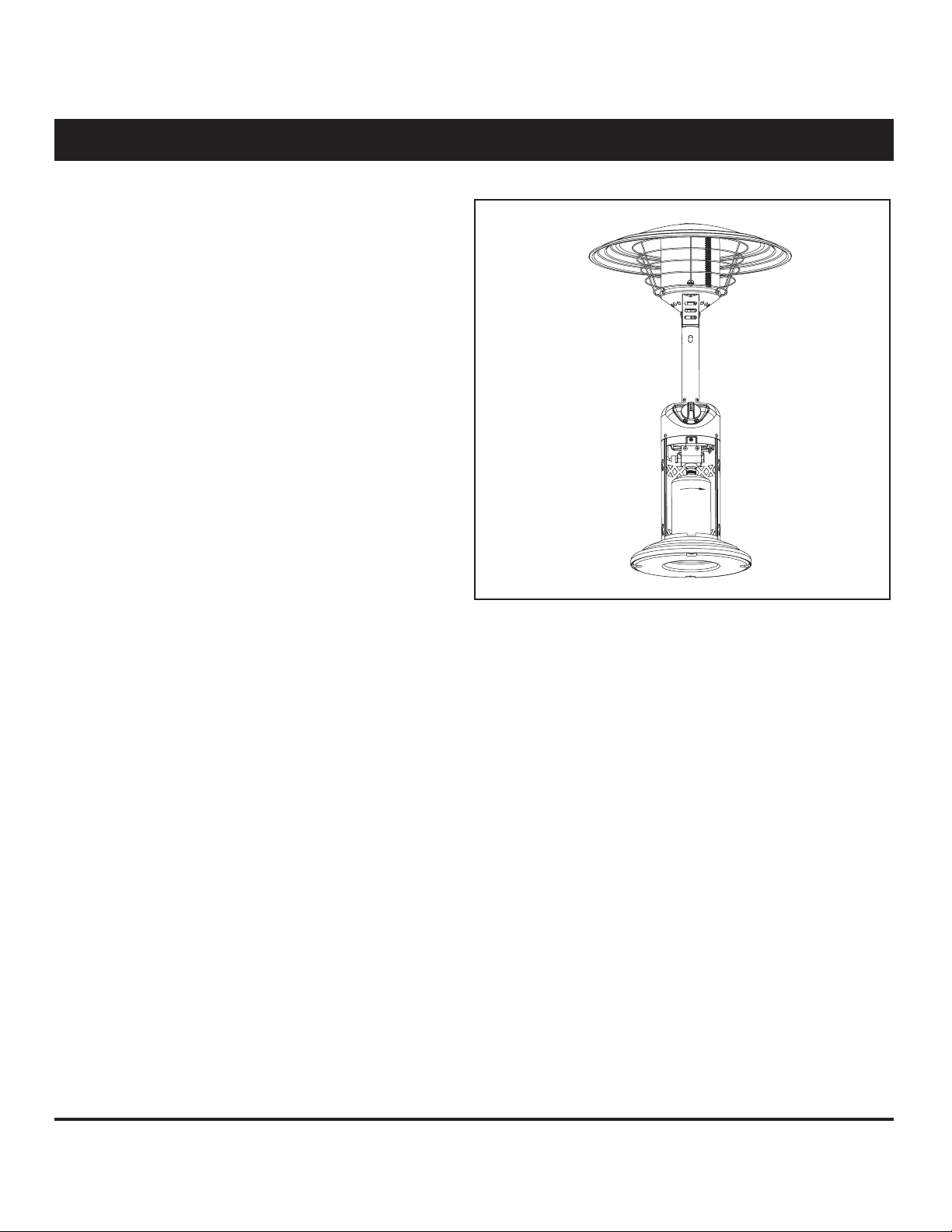

PARTS LIST
Please check the contents of the packaging as to whether anything is missing!
7
8
9
A
B
B
C
D
Part # Description Qty
1 Reflector dome 1
2 Emitter screen 1
3 Emitter screen shield 1
4 Burner column 1
5 Control knob 1
6 Door 1
7 Fixed panel 1
8 Base 1
9 Weight block 1
Hardware# Description Qty Picture
A M6 x 10 bolt 3
B M4 x 10 bolt 13
C 6mm Washer 4
D M6 x 14 bolt 4

7
Step 1
Step 2
ASSEMBLY
WARNING : ONLY AN AUTHORIZED GAS TECHNICIAN SHOULD INSTALL THIS PRODUCT.
Step 2
Attach weight block (9) to base (8) using 4pcs
M6 x 14 bolts (D) and 4pcs 6mm washers (C).
Step 1
Attach door & fixed panel (6 & 7) to base (8)
using 7pcs M4 x 10 bolts (B).
Note: Make sure the handle of door align to
the rectangle hole on the base.
B
C
8
9
D
8
7 6
Hardware Used
BM4 x 10 bolt X 7
Hardware Used
C6mm washer
M6 x 14 bolt
X 4
DX 4

Step 4
ASSEMBLY
8
Step 3
Attach the burner column (4) to the fixed
panel (7) using 3pcs M4 x 10 bolts (B).
Step 4
Attach emitter screen (2) and emitter screen
shield (3) to burner column (4) using 3pcs
M4 x 10 bolts (B).
Hardware Used
X 3
X 3
Hardware Used
BM4 x 10 bolt
BM4 X10 bolt
Step 3
Note: The ignition hole on emitter screen must
align with the control knob.
7
4
B
4
2
3
BIgnition hole

ASSEMBLY
9
Step 5
Step 5
Attach reflector dome (1) to emitter screen (2)
using 3pcs M6 x 10 bolts (A).
Hardware Used
AM6 x 10 bolt X 3
A
21
Rotate counter clockwise and pull handle on door
as illustrated direction, remove door.
Step 6
Step 6
6

ASSEMBLY
10
Step 7
Step 7
Align the nozzle of the LP cylinder with the
regulator and turn counter clockwise to tighten.
Install the door (6) back to position.

11
SAFETY CHECK
Check for leak
Your patio heater has been checked at all factory
connections for leakage. To check the connections
at the tube/regulator/cylinder.
1) Make leakage solution by mixing 1 part liquid
dish soap and 3 parts water.
2) Spoon several drops (or use squirt bottle) of the
solution onto the tube/regulator/cylinder
connections.
3) Inspect the connections and look for bubbles.
4) If no bubble appears, the connection is safe.
5) If bubble appears, there is leak; loosen and
re-tighten this connection. If still leak, please
send an e-mail to [e-mail].
Disconnected cylinder when storage or
transportation
1) Turn the knob at “OFF” position.
2) Open the access door, turn clockwise to
disconnect cylinder from regulator.

12
OPERATION
Before turning gas supply ON
WARNING: DO NOT ATTEMPT TO OPERATE HEATER UNTIL YOU HAVE READ AND
UNDERSTAND ALL PRECAUTION . FAILURE TO DO SO CAN RESULT IN SERIOUS PERSONAL
INJURY, DEATH, OR PROPERTY DAMAGE.
Before Lighting
Heater should be thoroughly inspected before each use, and
by a qualified service person at least annually.
If relighting a hot heater, always wait at least 5 minutes.
Lighting instructions
WARNING
WARNING
FOR YOUR SAFETY:
DO NOT touch or move heater
for at least 45 minutes after use.
Allow emitter and dome to cool
before touching.
FOR YOUR SAFETY:
If at any time you are unable to
light burner and smell gas, wait 5
minutes to allow gas to dissipate
before attempting to light heater.
If after 1 minute, you are unable
to light burner, wait 5 minutes
and allow flammable vapors to
dissipate before attempting to
light heater.
1. Turn the control knob to "OFF" position.
2. Open base assembly door.
3. Turn counter-clockwise to connect cylinder with regulator
inlet.
This product is equipped with ODS (Oxygen Deprivation System)
Your heater was designed and approved for OUTDOOR
USE ONLY. DO NOT use it inside a building or any other
enclosed area.
Make sure surrounding areas are free of combustible
materials, gasoline, and other flammable vapors or liquids.
Ensure that there is no obstruction to air ventilation.
Be sure all gas connections are tight and there are no leaks.
Be sure the access panel is clear of debris.
Be sure any component removed during assembly or
servicing is replaced and fastened prior to starting.

13
OPERATION
Flame Characteristic
The flame pattern at the emitter screen should be visually
checked whenever heater is operated.
Normally the burner flame is blue, but little yellow flame is
acceptable.
If flames extend beyond surface of the emitter grid ,
or the phenomena of flame lift or light back, or black spot
is accumulating on the emitter grid or reflector, the heater
should be turned off immediately. The heater should not
be operated again until the unit is serviced and or repaired.
4. Push in gas control knob and turn counter clockwise to
"IGNITE" then to "PILOT" position, this will light the pilot.
If needed, keep depressing and turning control knob
counter clockwise until the pilot lights. (You will hear 1
clicking noise)
5. Once the pilot is lit, keep the control knob depressed for
approx. 30 seconds. Then release the control knob.
6. If pilot does not stay lit, repeat steps 4 and 5 after 5
minutes.
7. If pilot still does not stay lit, proceed as follows:
a) Push in gas control knob and turn counter clockwise
to the “PILOT” position.
b) Keep depressing the control knob, put a long stem
lighter into the ignition hole on the emitter screen
to light the pilot.
c) Repeat step 5.
8. Push in and turn control knob between “LOW” and
“HIGH” to get your desired warmth.
9. Close base assembly door.

14
OPERATION
NOTE:
The burner may be noisy when initially turned on. To eliminate
excessive noise from the burner, turn the Control Knob to the "LOW"
position. Then, turn the knob to the level of heater desired.
When heater is ON:
Emitter screen will become bright red due to intense heat. The color
is more visible at night. Burner will display tongues of blue flame.
These flames should not be yellow or produce thick black smoke,
indicating an obstruction of airflow through the burners.
Operation pressure checked:
If the flame is very small, this is because the supply pressure is not
enough. Please refill gas cylinder.
Re-light:
1) Turn the control knob to "OFF" position.
2) Wait five (5) minutes before attempting to relight pilot.
3) Repeat steps beginning with step 4 of the lighting instruction
above.
Shut down instructions:
1) Push in and turn control knob clockwise to "OFF" position.
2) Turn clockwise to disconnect cylinder from regulator when
heater is not in use.
Note: After use, some discoloration of the emitter screen is normal.
The Event of Gas Leakage:
1) Turn the control knob to "OFF" position.
2) Turn clockwise to disconnect cylinder from regulator.
3) Wait 5 minutes to allow gas to dissipate.
4) If odor continues, immediately call gas supplier.
WARNING : Heater will be hot after use.
Handle with extreme care.
CAUTION : AVOID INHALING FUMES EMITTED FROM THE HEATER'S FIRST USE. SMOKE AND
ODOR FROM THE BURNING OF OILS USED IN MANUFACTURING WILL APPEAR. BOTH
SMOKE AND ODOR WILL DISSIPATE AFTER APPROXIMATELY 30 MINUTES. THE HEATER
SHOULD NOT PRODUCE THICK BLACK SMOKE.

15
LOCATING HEATER FOR USE
CAUTION: WHEN CERTAIN MATERIALS OR ITEMS ARE LEFT, ABOVE, BESIDE OR UNDER
THIS HEATER WHILE IN USE, THEY WILL BE SUBJECT TO RADIANT HEAT AND COULD BE
SERIOUSLY DAMAGED.
This heater is primarily used for the heating of
outdoor patios, decks, spas, pools and open
working areas.
Always make sure that adequate fresh air
ventilation is provided. Follow the spacing
tolerances shown in Figure 1 at all times.
This heater must be placed on level, firm
ground.
Never operate in an explosive atmosphere.
Keep away from areas where gasoline or other
flammable liquids or vapors are stored or used.
Figure 1
12"
10" 10"
CEILING/OVERHANG
WALL

16
MAINTENANCE/STORAGE
DO NOT touch or move heater for
at least 45 minutes after use. Allow
all burner elements to cool before
touching.
FOR YOUR SAFETY ;
WARNING:
NOTE:
In a salt-air environment (such as
near an ocean). corrosion occurs
more quickly than normal.
Frequently check for corroded
areas and repair them promptly.
NOTE:
wait until heater is cool before
covering.
CLEANING AND MAINTENANCE :
To enjoy years of outstanding performance from your
heater make sure you perform the following maintenance
activities on a regular basis:
Keep exterior surfaces clean.
Use warm soapy water for cleaning. Never use
flammable of corrosive cleaning agents.
While washing your unit, be sure to keep the area
around the burner and pilot assembly dry at all times. If
the gas control is exposed to water in any way, do NOT
try to use it. It must be replaced.
Keep the appliance area free and clean from
combustible materials, gasoline or other flammable
vapors an liquids.
Visually check buner flames.
At least once a year, the unit should be inspected for
the presence of spiders, spider webs or other insects.
Air flow must be unobstructed. Keep controls, burner,
and circulating air passageways clean. Signs of possible
blockage include:
Gas odor with extreme yellow tipping of flame.
Heater does NOT reach the desired temperature.
Heater glow is excessively uneven.
Heater makes popping noises.
Spiders and insects can nest in burner or orifices. This
dangerous condition can damage heater and render it
unsafe for use. Clean burner holes by using a heavy-duty
pipe cleaner. Compressed air may help clear away
smaller particles.
Carbon deposits may create a fire hazard. Clean dome
and engine with warm soapy water if any carbon
deposits develop.
Yellow Tip
Primarily Blue
Flame

17
MAINTENANCE/STORAGE
NOTE:
wait until heater is cool before
covering.
Turn the control knob to "OFF" position.
Turn clockwise to disconnect cylinder from regulator.
Store heater upright in an area sheltered from direct
contact with inclement weather (such as rain, sleet, hail,
snow, dust and debris).
If desired, cover heater to protect exterior surfaces and
to help prevent build up in air passages.
STORAGE:
Between uses:
During periods of extended inactivity or when
transporting;
Turn the control knob to "OFF" position.
Disconnect the cylinder from the regulator by turning
clockwise and move to a secure, well-ventilated
location outdoors. DO NOT store in a location that will
exceed 125 degrees F.
Store heater upright in an area sheltered from direct
contact with inclement weather (such as rain, sleet, hail,
snow, dust and debris).
If desired, cover heater to protect exterior surfaces and to
help prevent build up in air passages.

18
PROBLEM PROBABLE CAUSE SOLUTION
Pilot will not light Gas valve may be OFF Turn the gas valve ON
Tank fuel empty Refill LP gas tank
Air in supply system Purge air from lines
Loose connection
Loose connection
Check all fittings
Pilot will not stay on Debris around pilot Clean dirty area
Tighten connection
Thermocouple Contact customer service
Gas leak in line Check connections
Lack of fuel pressure Fuel tank is near empty
Pressure is low Fuel tank is near empty
Control valve not ON Turn valve to ON
Thermocouple broken Contact customer service
Contact customer servicePilot light assembly bent or
not in correct location
Burner will not light
TROUBLESHOOTING

19
ONE-YEAR LIMITED WARRANTY
What is covered under this warranty?
This product is covered under the Manufacturers Limited Warranty. To ensure your complete
satisfaction, this warrants to the original purchaser that this furniture is free from defects in
material and workmanship as of the date of purchase and that it will, under normal use and
proper care, remain so for one year after the date of purchase. Replacement of missing or
initially defective parts will be sent at no charge for a period of 10 days from date of purchase.
The manufacturer and retailer will not be responsible for missing parts and/or hardware after
10 days from date of purchase.
Warranty does not cover:
Freight and packaging charges to and from our customer service center remain the customer’s
responsibility. Labor or material charges to remove or replace parts are not covered under this
warranty. Any floor sample sales or clearance sales from the store are not covered by this
warranty. Furniture used for commercial purposes; failures caused by improper care;
unreasonable or abusive use; damage by modification or alteration; freeze damage; acts of
nature; rust; fabric stains; ripping or fading; purchased parts; or return freight and packaging
charges are not covered under this warranty. Proof of purchase (dated register receipt) is
required for warranty claims.
Need help?
call our toll free number at:
1-888-909-3888 or
email us at:
[email protected]
