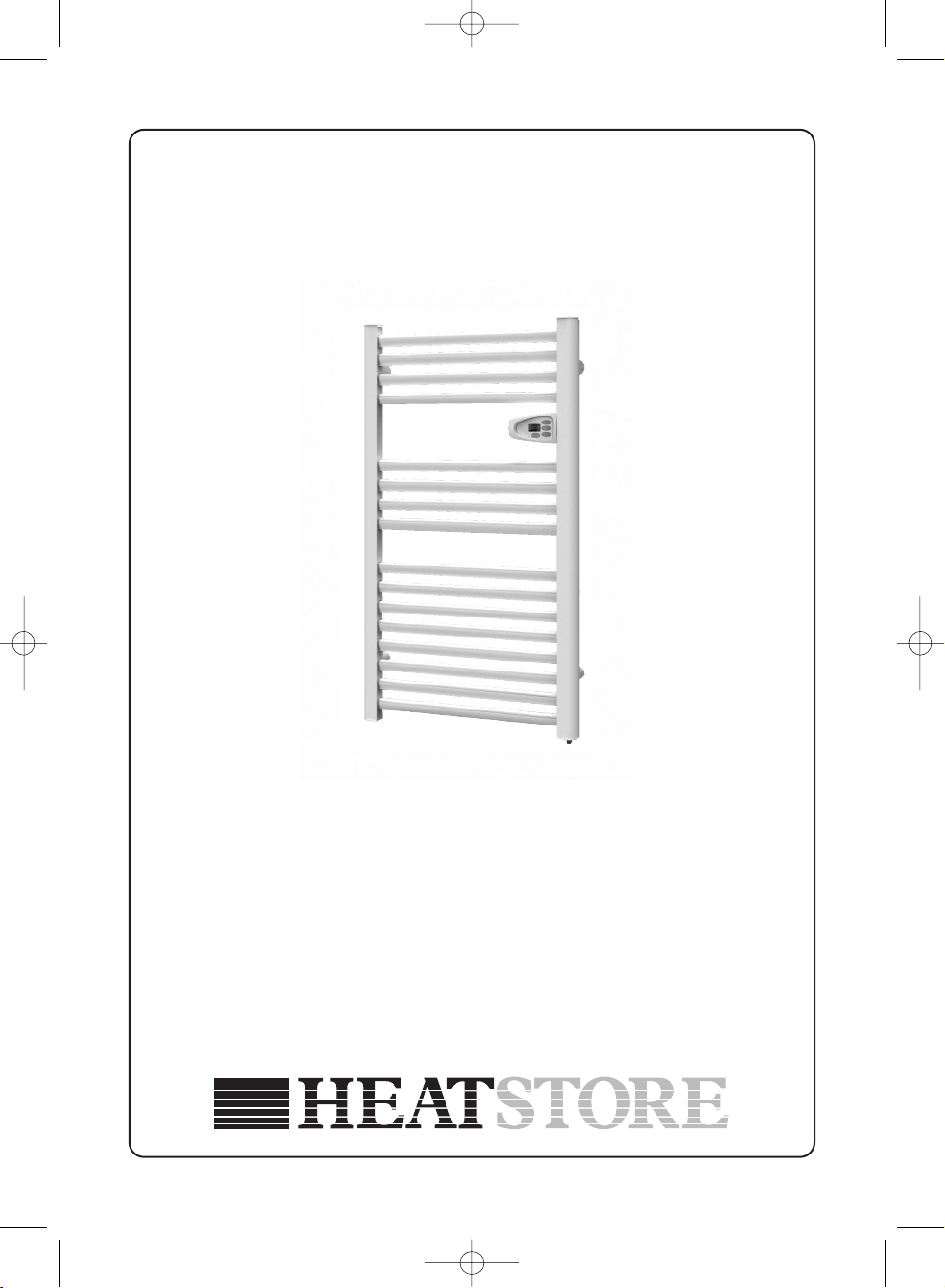

Heatstore HSTRL500WT User manual

IMPORTANT SAFEGUARDS
WHEN USING ANY ELECTRICAL APPLIANCE, BASIC SAFETY
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED.
PLEASE READ ALL INSTRUCTIONS CAREFULLY
AND RETAIN FOR FUTURE REFERENCE
IF IN ANY DOUBT ABOUT THE INSTALLATION OR USE OF THIS
PRODUCT, CONSULT A COMPETENT ELECTRICIAN.
HSTRL500WT Ladder Towel Rail
with Programmable Thermostat
Installation and Operating Instructions
HSTRL500WT[15]instructions 6/3/15 09:36 Page 1

Safety Warnings
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
Children SHALL NOT play with the appliance.
Cleaning and user maintenance SHALL NOT be
made by children without supervision.
Children of less than 3 years old should be kept
away unless continuously supervised.
Children aged from 3 years and less than 8 years
shall only switch on/off the appliance provided that it
has been placed or installed in its intended normal
operating position and they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children aged from 3 years and less than 8
years shall not plug in, regulate and clean the
appliance or perform user maintenance.
CAUTION: Some parts of this product can become
very hot and cause burns. Particular attention has to
be given where children and vulnerable people are
present.
This appliance should be installed by a competent
and qualified electrician in accordance to the IEE
regulations.
The Appliance must not be exposed to dripping or
splashing water.
CAUTION: To avoid hazard due to inadvertent
resetting of the thermal cutout, this towel rail must not
2
HSTRL500WT[15]instructions 6/3/15 09:36 Page 2

be powered via an external switch, such as a timer.
DO NOT operate the appliance with a damaged
cord.
DO NOT allow the heater to come into contact with
flammable material for example curtains or furniture.
Disconnect this appliance before any repairs,
cleaning or maintenance is carried out upon it.
This heater should not be located directly below a
power socket.
DO NOT operate this appliance if the front cover is
not correctly positioned on the unit.
DO NOT use this appliance in the immediate
surroundings of a bath, a shower or a swimming
pool.
This appliance is not intended for use by persons
(including children) with reduced physical, sensorary
or mental capabilities, or lack of experience and
knowledge unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
WARNING: the cable outlet must be controlled by a
double pole switch with a contact separation of at
least 3mm in all poles. When located within a
bathroom the switch must be a pullcord; if located
outside the bathroom it should be adjacent to the
entrance. The appliance must be located in a
position that does not allow any person to touch it
whilst they are in the bath or shower.
3
HSTRL500WT[15]instructions 6/3/15 09:36 Page 3

Installation
When installed in a bathroom, the Towel rail must
be at least 600mm away from the bath or shower
area. The Towel Rail should always be fixed to the
wall at least 600mm above the floor level.
Place the Towel Rail face down on a flat
surface, and loosely assemble each fixing
point into the nuts located on the reverse of
the towel rail using the spacer bar and bolt
as shown in Figure 2.
Tighten each fixing and then offer up the
Towel Rail to the wall and mark off the fixing
holes for the holes on each fixing point,
taking care to make the rail squarely
aligned on the wall.
Drill and plug the wall suitable for the
supplied plugs/screws.
Screw each fixing point to the wall (see
Figure 2).
Fit the rail with the assembled spacer bars
onto the wall-mounted fixing points (as in
Figure 2). Tighten the spacer bar to the wall
fixing using the hexagonal screw with the
tool provided (see Figure 3).
4

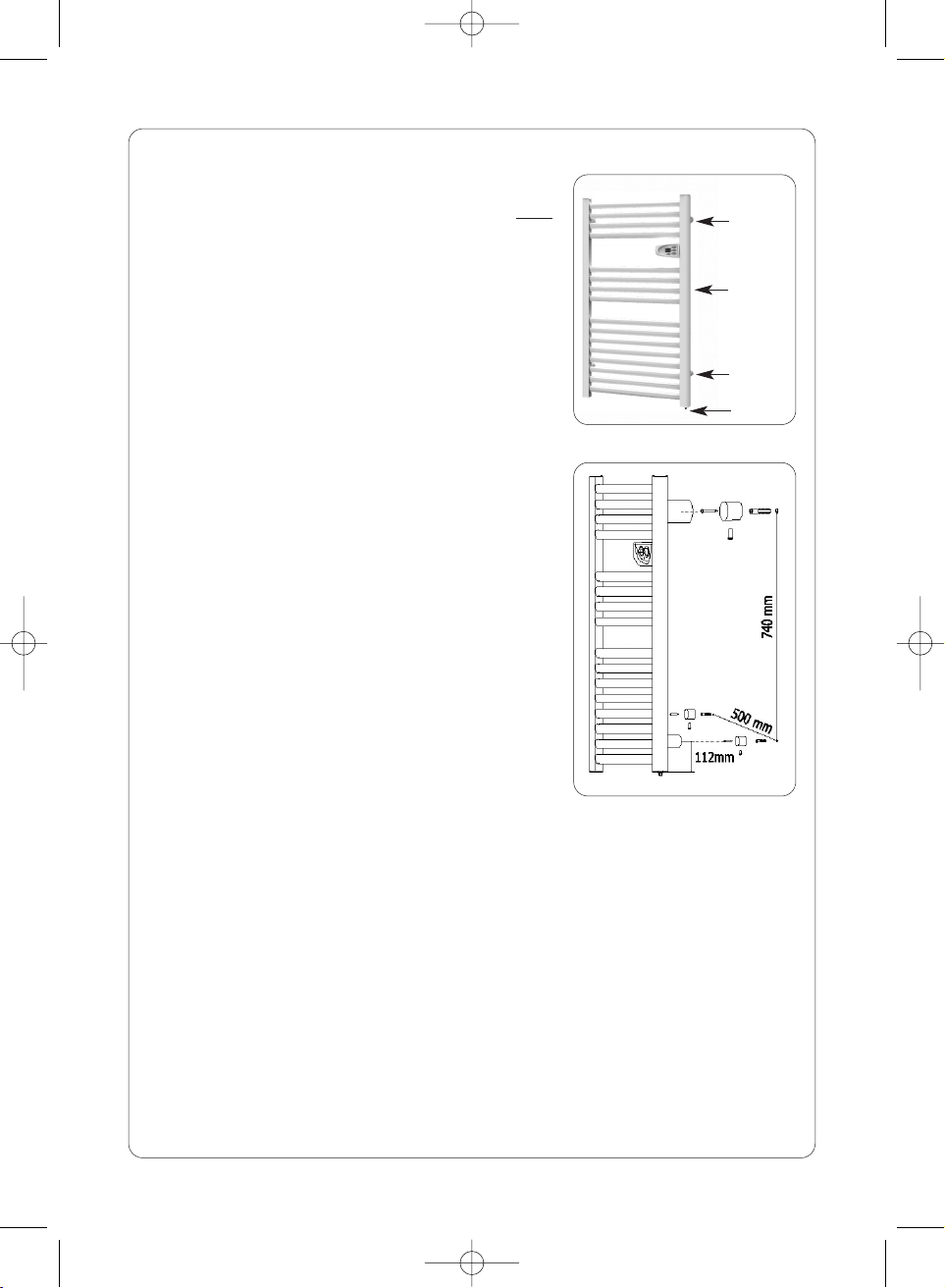

Figure 2
Electrical Connections
Connect the electrical wires of this appliance to a fused spur according to
the following colour code – Blue: Neutral, Brown: Live – in accordance with
NECEIC wiring regulations, with a minimum cable size of 1mm2.
NB. If no fused spur is nearby consult a suitably qualified electrician.
Bracket
Towel
Rail
Power
Cord
Figure 1
Bracket
HSTRL500WT[15]instructions 6/3/15 09:36 Page 4

5
Figure 3 Control Panel
Programme Settings
Mode Button
See below
On/Standby
Operation
When the unit is first powered up, the hour of the time will flash.
Press “-“ to set the current hour.
Press “+” to change from hours to minutes.
Press “-“ to set the current minutes.
Press “+” to change from minutes to the day number.
Press “-“ to set the current day.
1= Monday, 2= Tuesday etc…
Leave for 30 seconds to activate.
Once set the heaters will be in standby mode showing the symbol.
If the symbol appears before the time and day are set, the unit will
have to be switched off at the fused spur, then restarted and the above
process repeated.
To set the operating mode
The modes available are:
Comfort adjustable between 5°C and 35°C
Eco adjustable between 1.5°C and 31.5°C
+1H Boost
+2H Boost
Programme “P” – see page 6
Frost Protection
To move from timer settings to mode press “M” and use “+”
or “-“ to select the mode required.
+1H
+2H
P
LCD Display
Temperature/Time setting
HSTRL500WT[15]instructions 6/3/15 09:36 Page 5

Programme Settings
Press the button “PG” to select the programme settings.
In programme mode, press the “PG” key to change between the “day
(1-7)” and “heating mode of different time zones (00h00-24h00)”.
Select the day (1-7) using the buttons “+” or “-“.
Press the button “PG” to change to “00h00-24h00”.
Press “+” to select the hour segment required. Press “-“ to choose one of
the functions: COMFORT, ECONOMY, or STAND BY .
Press “+” to select the next hour segment etc. Continue until
programmed for the whole day.
Press the button “PG” to change to “day (1-7)” to select another day.
Once completed the settings will be confirmed automatically after 30
seconds.
For example – see figure 4 below
choose day 1, temperature 23°C, time 12:00, COMFORT mode
for 24 HOURS:
Press the PG button again, press “+” to select the time, on “-” to
select COMFORT mode for 24 HOURS .
6

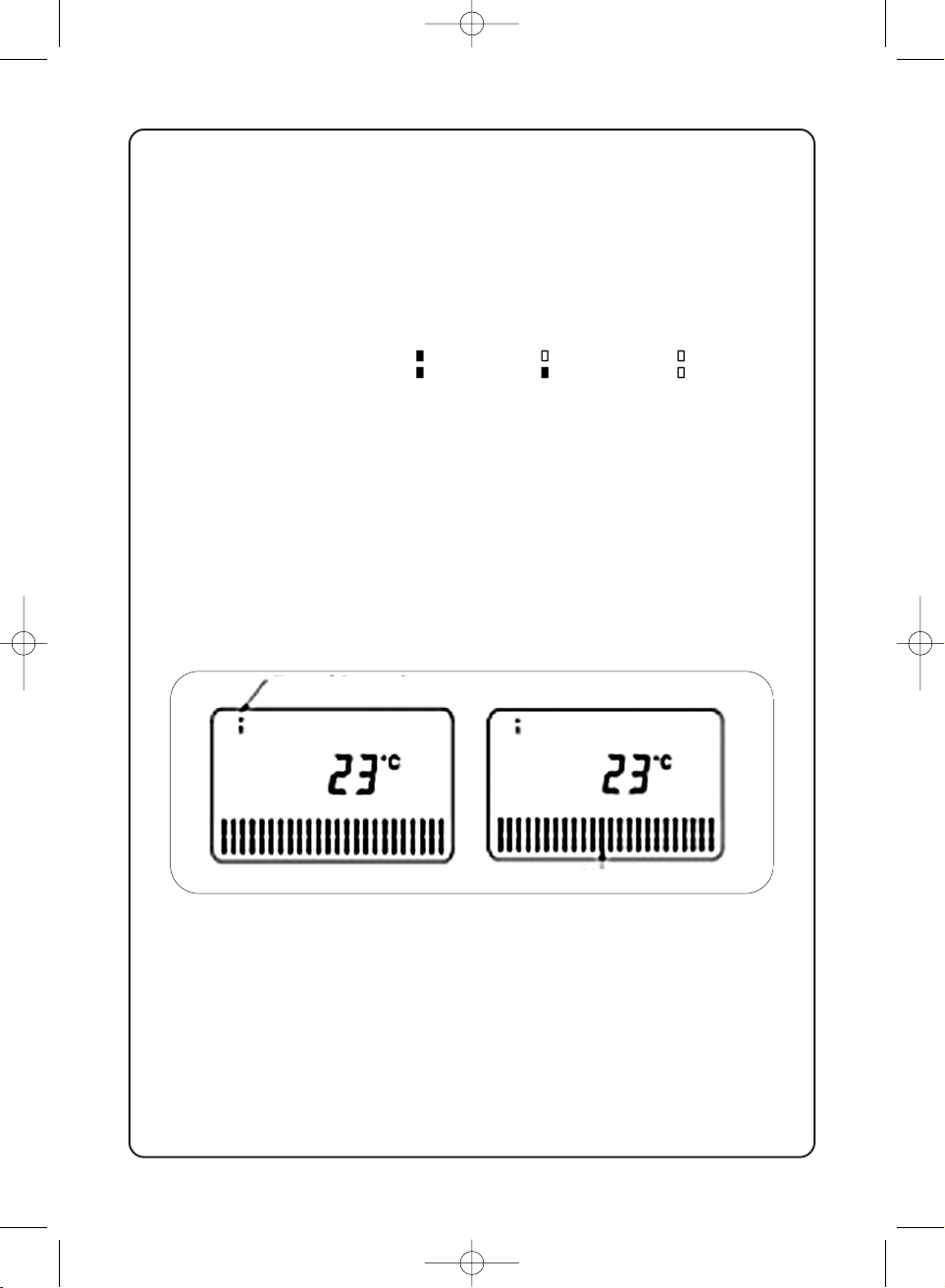

Figure 4
Day of the week
Hour
HSTRL500WT[15]instructions 6/3/15 09:36 Page 6

Cleaning
To clean the Towel Rail, polish with a clean dry cloth when the Towel Rail is
switched off.
If a more thorough clean is required, the use of non-abrasive wax polish
(similar to those used to polish car paintwork) will help to maintain the
chromium finish).
Under no circumstances should any kind of abrasive or spray cleaner be
used to clean the Towel Rail. These may contain chemicals, which can affect
the surface finish and as such may invalidate your warranty.
Maintenance
IF YOUR TOWEL RAIL DOES NOT WORK
Check that the fuse has not blown at the flex outlet, or at the distribution
board.
Should none of the above remedies work, then consult an accredited service
agent.
If the appliance is still under guarantee, return it to your supplier or contact
our after sales service.
DO NOT attempt to repair the Towel Rail.
7
HSTRL500WT[15]instructions 6/3/15 09:36 Page 7

Issue 1 0215
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your local authority or retailer for recycling advice.
SPECIFICATION: HSTRL500TW
RATING:220-240V, 500W, ~50Hz;
DIMENSIONS:540w x 980h x 92d mm; 4.3kG
ONE YEAR
IP
24
Telephone: [phone] Fax: [phone]
Victoria Road, Avonmouth, Bristol BS11 9DB
www.heatstore.co.uk

