Heinner HVC-MC700RD User manual

VACUUM CLEANER
Model: HVC-MC700RD
www.heinner.ro
•Vacuum cleaner
•Power: 700W
•Suction power: ≥140W

www.heinner.com 700W, 2202-40V~50/60Hz
1
Before using the appliance, please read carefully this instruction manual and keep it for future
reference.
This instruction manual is designed to provide you with all required instructions related to the
installation, use and maintenance of the appliance.
In order to operate the unit correctly and safety, please read this instruction manual carefully
before installation and usage.
I. INTRODUCTION
II. PACKAGE CONTENT
➢Vacuum cleaner
➢2 in 1 nozzle
➢User manual
➢Warranty card
Va multumim pentru alegerea acestui produs!

www.heinner.com 700W, 2202-40V~50/60Hz
2
III. SAFETY MEASURES
Just for household use.
Safety directions:
1. For the first operation, it is advisable to read the manual carefully before hand and keep
it properly for future use.
2. Before the first operation, make sure the dust cup is properly installed.
3. Make sure the power supply is 220-240V 50Hz
4. Do not vacuum water and inflammable material
5. Do not vacuum burning material and ashes
6. Do not use the machine without a motor protection filter filled
7. Please change the dust cup/HEPA immediately when it is damaged.
8. Do not store or use the machine close to high temperature places
9. Do not let children use the machine in case of any danger
10. If abnormal noise, smell, smoke or any other failure or breakage was found during the
operation, you should turn off the switch and unplug it. Then contact with your service
center for repair. Do not repair it by yourself.
11. If the supply cord is damaged, it must be replaced by the manufactures or its service
agent or a similarly qualified person in order to avoid a hazard.

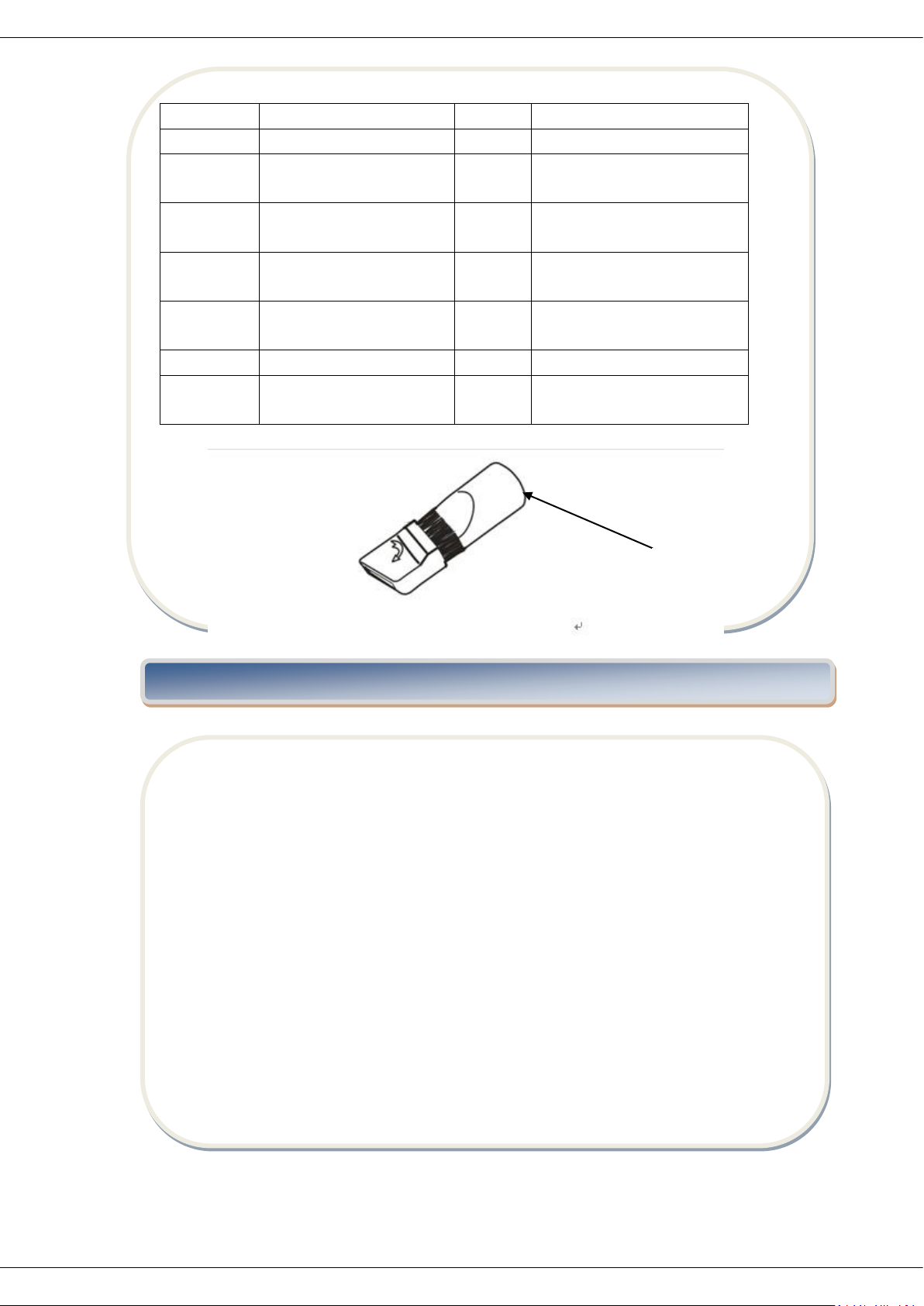

IV. DESCRIPTION

www.heinner.com 700W, 2202-40V~50/60Hz
3
1
Brush tool
9
Power button
2
Extending metal tube
10
Hose
3
Dust chamber
11
Winding device button
4
Hose connector
12
Dust chamber and handle
5
Compressed brush
13
6
Release button
7
Back wheel
8
Back wheel rubber
5
V. USING INSTRUCTIONS
Fig.1 shows the connection of the hose and the vacuum cleaner:
Put the hose connector in front of the vacuum cleaner .Then insert it into the inlet
hole and turn right. If you want to disassemble it, you can turn the hose connection left
and then pull it out.
Fig.2 shows the connection of the hose and the extending metal tube:
Hold the flexural connector of the hose and put it into the bigger hole of the tube.
Fig.3 shows the connection of the tube and the brush tool:
Put the metal tube into the hole of the brush and rotate it to fasten them.
Fig.4 shows how to check the winding of the power cord.
You can pull the power cord out of the machine and stop it when you see the yellow
mark. Make sure the red mark is not out. When your sweep is over, first turn off the
power, pull the plug out of the socket, and then push the winding device button until the
cord is completely in the machine.
Fig.5 shows the power button
Put the plug into the socket, push the power button to control the work of the
machine.

www.heinner.com 700W, 2202-40V~50/60Hz
4
Fig. 1 Fig. 2
Fig 3 Fig. 4
Fig. 5

www.heinner.com 700W, 2202-40V~50/60Hz
5
VI. CLEANING AND MAINTENANCE
The steps of the chamber cleaning:
1. As in Fig.6, hold the dust chamber and handle and push the release button.
2. As in Fig.7, take the dust chamber out of the machine.
3. As in Fig.8 and Fig. 9, put the dust chamber onto the rubbish bin, push the release
button to open the bottom of the dust chamber, and the dirt and dust will fall into
the bin by themself.
4. Shut up the dust chamber for a circular use after your cleaning.
5. If the dust in the chamber is over the MAX line and you feel the suction force is
fallen down, please turn off the power and whirl the self-cleaning knob more than
two circles, so you will find the suction power return to the prime level.
Fig. 6 Fig. 7
Fig. 8 Fig. 9

www.heinner.com 700W, 2202-40V~50/60Hz
6
VII. USING ATTACHEMENTS
1. As in fig.10, you can use the compressed brush in the corner and the aperture.
2. As in fig.11, open the other side with bristles of the compressed brush as the mark
of an arrow to clean the sofa, the curtain and the dust on the ornaments.
3. As in fig.12, tread on the pedal of the brush tool to let the bristles out, and you can
clean the floor.
4. As in fig.13 , tread on the pedal of the brush tool again to put the bristles in, and
you can clean the carpet.
Fig. 10 Fig. 11
Fig. 12 Fig. 13

www.heinner.com 700W, 2202-40V~50/60Hz
7
VIII. MAINTENANCE
1. The filter should be cleaned twice a year, and when there is obvious dirt on the
filter, it is time.
2. You must fix the filter properly before running the vacuum cleaner.
3. The filter can't be cleaned in the washing machine or baked by the blower.
4. It will reduce the suction power and damgae the motor if you use the wet filter.
5. Steps for maintenance:
1) As in fig.14, press the outlet lock to open the outlet board.
2) As in fig.15, get out the outlet filter.
3) As in fig.16, rotate the HEPA cover to separate it from the chamber cover
4) As in fig.17, get the HEPA cover
5) As in fig.18, If you have any hair winding removable cleaning.
6) As in fig.19, get the HEPA and wash it.
7) Wash the HEPA cover, the HEPA assembly, the outlet sponge and the dust chamber
in the water without detergent and dry them before use.
8) Fix the HEPA assembly on the chamber cover and make sure three salient cubes
should be stuck in the grooves of the dust chamber.
9) Rotate the HEPA assembly in the direction of the mark on the chamber cover.
10) Assemble the chamber cover assembly and the dust chamber according to the
mark outside.
11)As in fig.20, hit the filter rack with your hand slightly.
12) Put the dust chamber assembly into the machine. And in this process, first you
should make the chamber in the right position and then press the handle of the dust
chamber, if there is a cluck it means the operation is successful.
Fig. 14 Fig. 15

www.heinner.com 700W, 2202-40V~50/60Hz
8
Fig. 16 Fig. 17
Fig. 18 Fig. 19
Fig. 20

www.heinner.com 700W, 2202-40V~50/60Hz
9
Power
700W
Suction power
≥140W
Voltage:
220-240V, 50/60Hz
Noise level
76 dB
Dust capacity:
2 L
IX. TECHNICAL DETAILS
Environment friendly disposal
You can help protect the environment!
Please remember to respect the local regulations: hand in the non-working electrical equipment’s to
an appropriate waste disposal center.
