Helmer i.Series Pro Series User manual
360388/A
Platelet Incubator Operation Manual
i.Series®- Pro Models
Countertop
PC100-Pro, PC900-Pro,
PC1200-Pro
Document Updates
The document is furnished for information use only, is subject to change without notice and should not be construed as a commitment
by Helmer Scientic. Helmer Scientic assumes no responsibility or liability for any errors or inaccuracies that may appear in the
informational content contained in this material. For the purpose of clarity, Helmer Scientic considers only the most recent revision of
this document to be valid.
Notices and Disclaimers
Condential / Proprietary Notices
Use of any portion(s) of this document to copy, translate, disassemble or decompile, or create or attempt to create by reverse
engineering or otherwise replicate the information from Helmer Scientic products is expressly prohibited.
Copyright and Trademark
Helmer®, i.Series®, i.Center®, AgiTrak™, and Rel.i™ are registered trademarks or trademarks of Helmer, Inc. in the United States of
America. Copyright © 2019 Helmer, Inc. All other trademarks and registered trademarks are the property of their respective owners.
Helmer, Inc., doing business as (DBA) Helmer Scientic and Helmer.
Disclaimer
This manual is intended as a guide to provide the operator with necessary instructions on the proper use and maintenance of certain
Helmer Scientic products.
Any failure to follow the instructions as described could result in impaired product function, injury to the operator or others, or void
applicable product warranties. Helmer Scientic accepts no responsibility for liability resulting from improper use or maintenance of
its products.
The screenshots and component images appearing in this guide are provided for illustrative purposes only, and may vary slightly from
the actual software screens and/or product components.
Helmer Scientic
14400 Bergen Boulevard
Noblesville, IN 46060 USA
www.helmerinc.com
Part No. 360388/ Rev A
Document History
Revision Date CO Supersession Revision Description
A24 APR 2019 14560 N/A Initial Release
* Date submitted for Change Order review. Actual release date may vary.
Helmer Scientic i.Series®Platelet Incubator Operation Manual
360388/A ii
Contents
1 About this Manual................................................................................................ 3
1.1 Intended Audience ..........................................................................................3
1.2 Model Reference............................................................................................3
1.3 Intended Use...............................................................................................3
1.4 Safety Precautions and Symbols ...............................................................................3
1.5 Avoiding Injury..............................................................................................4
1.6 General Recommendations ...................................................................................4
2 Installation ...................................................................................................... 5
2.1 Location Requirements.......................................................................................5
2.2 Placement and Leveling ......................................................................................5
2.3 Chart Recorder .............................................................................................5
2.4 Install Pro Series Platelet Agitator (Optional) ...................................................................... 6
3 i.Series®Operation............................................................................................... 7
3.1 Initial Start Up ..............................................................................................7
3.2 Operation .................................................................................................8
3.3 Users and Passwords........................................................................................8
3.4 Change Temperature Setpoint ................................................................................. 9
3.5 Set Alarm Parameters........................................................................................9
3.6 Active Alarms .............................................................................................10
3.7 Mute and Disable Active Alarms ................................................................................11
3.8 CongureaProSeriesPlateletAgitatorforUseinaProSeriesIncubator(Optional) ...................................... 12
4 Min/Max Temperature Monitoring .................................................................................. 13
5 Electronic Access Control (Optional) ............................................................................... 14
5.1 Setup....................................................................................................14
5.2 Open Incubator with Access Control............................................................................14
6 ProductSpecications ........................................................................................... 15
6.1 Operating Standards........................................................................................15
7 Compliance .................................................................................................... 16
7.1 Safety Compliance .........................................................................................16
7.2 Environmental Compliance...................................................................................16
7.3 Electromagnetic Compliance .................................................................................16
8 Preventive Maintenance .......................................................................................... 17
Appendix A - Components ............................................................................................ 18
Helmer Scientic i.Series®Platelet Incubator Operation Manual
360388/A 3
1 About this Manual
1.1 Intended Audience
This manual provides information on how to use the Pro Series platelet incubator. It is intended for use by end users of the platelet
incubator and authorized service technicians.
1.2 Model Reference
ThismanualcoversallProSeriesplateletincubatorswhichmaybeidentiedbysizeormodelnumber.
1.3 Intended Use
Note
This equipment has been tested and found to comply with the limits for a Class Adigital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense.
Helmer platelet incubators are intended to provide the controlled temperature environment required for the storage of
platelet products.
The devices are intended to be operated by personnel who have procedures in place for meeting FDA, AABB, EU or any other
applicable regulations for the processing and storage of platelet products.
1.4 Safety Precautions and Symbols
Symbols found in this document
The following symbols are used in this manual to emphasize certain details for the user:
Task Indicates procedures which need to be followed.
Note Provides useful information regarding a procedure or operating technique when using Helmer
Scienticproducts.
NOTICE Advises the user against initiating an action or creating a situation which could result in damage to
equipment; personal injury is unlikely.
CAUTION Advises the user against initiating an action or creating a situation which could result in damage to
equipment or impair the quality of the products or cause minor injury.
WARNING Advises the user against initiating an action or creating a situation which could result in damage to
equipment and serious personal injury to a patient or the user.
Authorized representative in the European Community
EC REP
Helmer Scientic i.Series®Platelet Incubator Operation Manual
360388/A 4

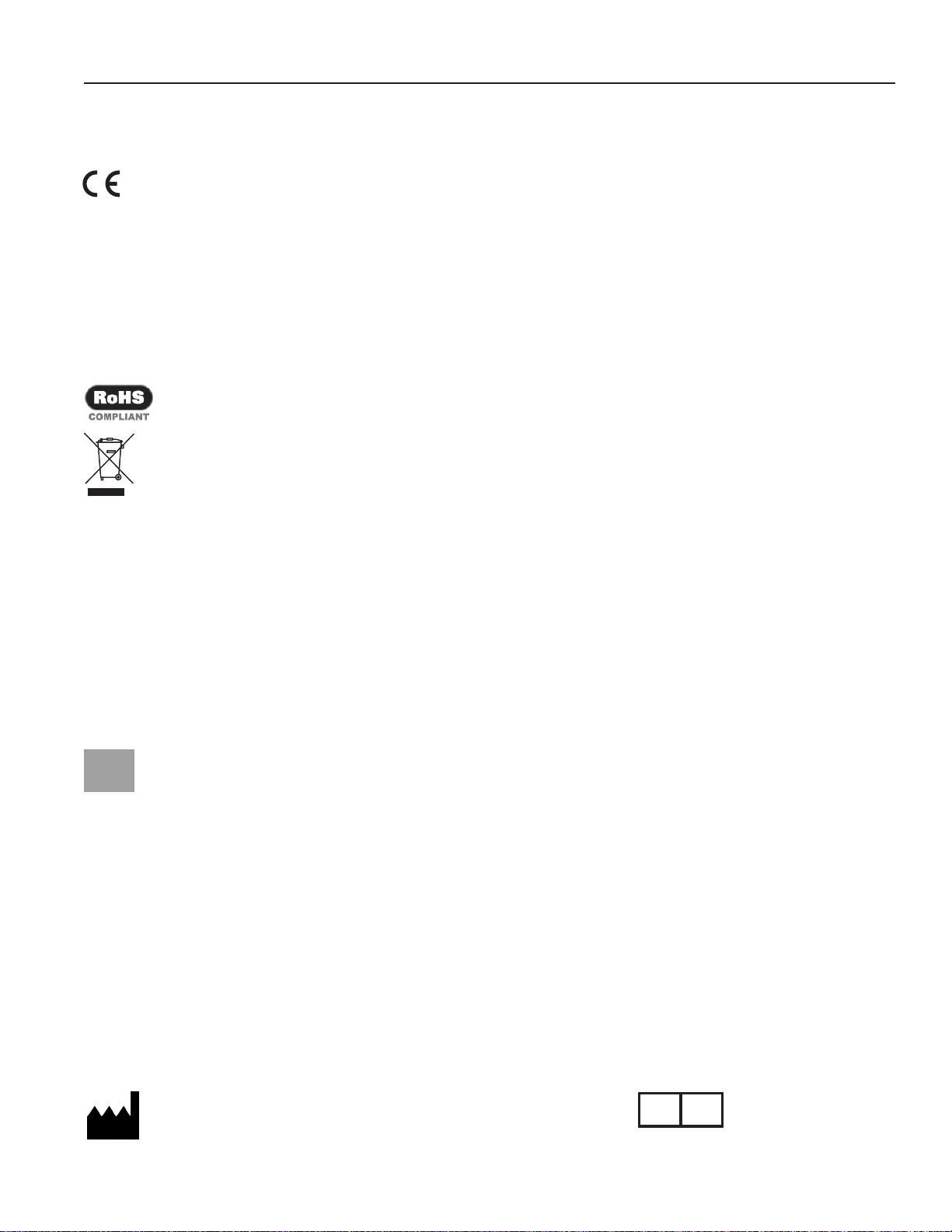

Symbols found on the units
The following symbols may be found on the incubator or incubator packaging:
CE Mark (European units only) Earth / ground terminal
Caution: Risk of damage to equipment or
danger to operator Protective earth / ground terminal
Caution: Hot surface Product falls under the scope of the WEEE
(Waste Electrical and Electronic Equipment)
directive.
Caution: Shock / electrical hazard
1.5 Avoiding Injury
Review safety instructions before installing, using, or maintaining the equipment.
♦Before moving unit, remove the installed agitator (if applicable).
♦Before moving unit, ensure door is closed.
♦Before moving unit, disconnect the AC power cord and secure the cord.
♦When moving unit, use assistance from a second person.
♦Never physically restrict any moving component.
♦Avoid removing electrical service panels and access panels unless so instructed.
♦Do not store or place objects or liquid containers on top of the incubator.
♦Keep hands away from pinch points when closing the door or when agitation motion is enabled (if applicable).
♦Avoid sharp edges when working inside the electrical compartment.
♦Ensure biological materials are stored at recommended temperatures determined by standards, literature, or good
laboratory practices.
♦Proceed with caution when adding and removing product from the platelet incubator.
♦Use manufacturer supplied power cord only.
♦ UsingtheequipmentinamannernotspeciedbyHelmerScienticmayimpairtheprotectionprovidedbytheequipment.
♦ Theplateletincubatorisnotconsideredtobeastoragecabinetforammableorhazardousmaterials.
CAUTION
Decontaminatepartspriortosendingforserviceorrepair.ContactHelmerScienticoryourdistributorfor
decontamination instructions and a Return Authorization Number.
1.6 General Recommendations
General Use
Allow platelet incubator to come to room temperature before switching power on.
During initial startup, motion alarm may sound if the motion is disabled, and low temperature alarm may sound while platelet
incubator reaches operating temperature.
Initial Loading
After platelet incubator reaches room temperature, allow chamber temperature to stabilize at the setpoint before storing product.
Helmer Scientic i.Series®Platelet Incubator Operation Manual
360388/A 5
2 Installation
2.1 Location Requirements
Note
Hot ambient temperatures with high humidity may cause condensation on the outside of the unit.
♦Has a sturdy, level surface.
♦Has a grounded outlet meeting national electric code (NEC) and local electrical requirements.
♦Is clear of direct sunlight, high temperature sources, and heating and air conditioning vents.
♦ Meetslimitsspeciedforambienttemperature(15°Cto35°C)andrelativehumidity.
♦ Minimum24”(610mm)aboveforambienttemperaturesof28°Cto35°C.
♦ Minimum4”(102mm)aboveforambienttemperaturesof15°Cto28°C.
♦ Minimum12”(305mm)behindforambienttemperaturesof28°Cto35°C.
♦ Minimum4”(102mm)behindforambienttemperaturesof15°Cto28°C.
2.2 Placement and Leveling
Note
Rearstand-obracketsareprovidedwiththeunitandshouldbeinstalledpriortoplacingtheincubatorinitslocation.
1. Alignkeyholeopeningsinstand-obracketwithscrewsonbackof
incubator and slide down to engage.
2. Tighten screws using a #2 Phillips screwdriver to secure.
3. Place platelet incubator on study surface.
4. Ensure platelet incubator is level.
2.3 Chart Recorder
Note
For complete information, refer to the Temperature Chart Recorder Operation and Service Manual.
A B F
C
D
E
Chart recorder with paper and battery installed.
Table 1. Chart Recorder
Label Description Function
A Left and Right Arrow buttons Adjust settings and stylus position
B LED Indicates status of chart recorder in operating mode, or selected temperature range in paper change mode
C Chart change button Adjust position of stylus when changing chart paper, or run a test pattern
D Stylus Mark temperature line on paper
E Reset button Restart chart recorder
F Backup battery Provides power during AC power failure. Connect prior to use.
RearStand-oBracket
Helmer Scientic i.Series®Platelet Incubator Operation Manual
360388/A 6
Install / Replace Chart Paper
Note
For accurate temperature reading, ensure the current time is aligned with the time line groove when the chart knob
is fully tightened.
Chart recorder stylus and time line groove
1. PressandholdCbutton.Whenstylusbeginstomoveleft,releasebutton.TheLEDashes.
2. When stylus stops moving, remove chart knob then move knob up and away.
3. Place chart paper on chart recorder.
4. Gently lift stylus and rotate paper so current time line corresponds to time line groove.
5. Hold chart paper in place while making sure the chart knob is fully tightened. (Failure to fully tighten the knob can result in paper
slipping and losing time.)
6. Press and hold C button. When stylus begins to move right, release button.
7. Conrmstylusismarkingonpaperandstopsatthecorrecttemperature.
8. Calibrate chart recorder to match primary temperature if needed and close recorder door.
2.4 Install Pro Series Platelet Agitator (Optional)
Connect the data cable and DC power cable supplied with the incubator prior to placing the agitator inside the incubator. The
agitator communication switch must be set to position 1 for use in the incubator. For additional information, refer to the Platelet
Agitator Operation Manual.
Note
• Only Helmer Pro series platelet agitator may be used with Pro series platelet incubator.
• EnsuretheACpowerandbackupbatterypowerareturnedoontheincubatorpriortoconnectinganagitator.
• Ensure data cable is carefully positioned to the right of the agitator to prevent damage caused by agitation motion.
• The communication switch is fragile, do not use excessive force when changing the setting.
• To ensure continuous operation of linearly shifting loads, the location surface must adequately accommodate the full
weight of the incubator and agitator when loaded with product.
• Incubatorrestrainingbracketsarerecommendedwhenconguredwithanagitatoroperatingatasetpointspeedgreater
than 75 CPM, or when placed on a slick surface.
Agitator communication switch PC900-Pro with PF48-Pro installed
Helmer Scientic i.Series®Platelet Incubator Operation Manual
360388/A 7
3 i.Series®Operation
3.1 Initial Start Up
1. Plugthepowercordintoagroundedoutletmeetingtheelectricalrequirementsontheproductspecicationlabel.
2. Turn the AC power switch ON.
3. Turn the backup battery switch ON.
4. The Start screen is displayed.
Start screen
The Language screen is displayed following the Start screen. Use the Language drop down menu to select the i.C3display language.
Language screens
Note
English is the default language.
If an alarm sounds, temporarily mute the alarm by touching the Mute icon.
Home screen Mute icon
Notes
•
Helmer Scientic i.Series®Platelet Incubator Operation Manual
360388/A 8
3.2 Operation
Notes
• Refer to the i.C3User Guide for the Platelet Incubator for complete information regarding the i.C3User Interface.
• The i.C3Home screen displays temperature and alarm information, and provides icons to gain access to other functions
of the i.C3.
• After two minutes of inactivity, the screensaver will be displayed. To return to the Home screen, touch the screensaver.
Home screen Home screensaver (touch to return to Home screen)
3.3 Users and Passwords
The Users and Passwords screen provides a way for the administrator-level user to limit access to certain screens. The
administrator-level password can be changed by selecting Change Password. TheAccess Control Setup screen can be opened by
choosing the Access Setup button from the Users and Passwords screen as well as from theAccess Log screen.
> Enter settings password. Select Users and Passwords.
Users and Passwords screen Change Password keypad
Notes
Default Settings password is 1234
Change Password
1. Select the Change Password button. Anumeric keypad is displayed.
2. Enter a unique 4-digit code and select the √. Anumeric keypad appears
3. Re-enterthe4-digitcodetoconrmandselectthe√.
4. Select the Back arrow icon to return to the previous screen or the Home icon to return to the Home screen.
Helmer Scientic i.Series®Platelet Incubator Operation Manual
360388/A 9
3.4 Change Temperature Setpoint
> Enter Settings password. Select Temperature Setpoint. Touch minus (-) or plus (+) on spin box to change value.
Settings screen
Notes
• Default Settings password is 1234
• Defaultsetpointis22.0°C
3.5 Set Alarm Parameters
> Enter Settings password. Select Alarm Settings. Touch minus (-) or plus (+) on spin box to set each alarm parameter.
Settings screen
Alarm Settings screen
Alarm settings control the circumstances and timing of alarm condition indicators displayed on the i.C3Home screen.
Helmer Scientic i.Series®Platelet Incubator Operation Manual
360388/A 10
3.6 Active Alarms
Home screen with active alarm
Notes
• When the door switch is bypassed, the incubator and door open alarm continue to operate as if the door is closed.
• The door switch may be bypassed by opening the door and pulling the switch cylinder.
• The number of agitators, internal and external fans, and heat pumps will vary based on incubator model.
• Fan failure alarm may occur if facility power is lost.
Table 2. i.Series Active Alarms
Alarm Description
Primary Monitor Probe High Temp Primary monitor probe reading is above high temperature alarm setpoint
Primary Monitor Probe Low Temp Primary monitor probe reading is below low temperature alarm setpoint
Primary Monitor Probe Failure Primary monitor probe is not functioning properly
Control Probe Failure Control probe is not functioning properly
Agitator 1 Communication Failure Agitator1notinstalled;communicationcablenotinstalled;AgitatorOn/OswitchturnedOFF
Agitator 1 High Speed Agitator 1 speed (CPM) is above high speed alarm setpoint
Agitator 1 Low Speed Agitator 1 speed (CPM) is below low speed alarm setpoint
Agitator 1 Maintenance Required Check and replace trolley support wheels
Condensate Tray Full Rear condensate tray is full (recommendation it to empgy soon to avoid averow)
External Fan 1 Failure External Fan 1 is not functioning properly
External Fan 2 Failure External Fan 2 is not functioning properly
Internal Fan 1 Failure Internal Fan 1 is not functioning properly
Heat Pump 1 High Temp Heat Pump 1 probe reading is above high temperature alarm setpoint
Heat Pump 1 Connection Error Temperature is moving away from setpoint
Heat Pump 1 Failure Heat Pump 1 is not functioning properly
Drive Space is Low SD card is near capacity
Drive Space is Full SD card is full, no history being recorded
Power Failure Power to unit has been disrupted
Door Open (time) Doorisopenbeyonduser-speciedduration
Low Battery Rechargeable battery voltage is low
No Battery Battery is not connected
MPB Communication Failure Communication is lost with heat pump controls
Communication Failure Messages 1, 2, 3 1 Communication lost between i.C3display board and control board
2 Communication lost between i.C3display board and internal system memory
3 Corrupt database
Helmer Scientic i.Series®Platelet Incubator Operation Manual
360388/A 11
3.7 Mute and Disable Active Alarms
Audible alarms may be muted by touching the Mute icon to set delay.
Unmuted Muted

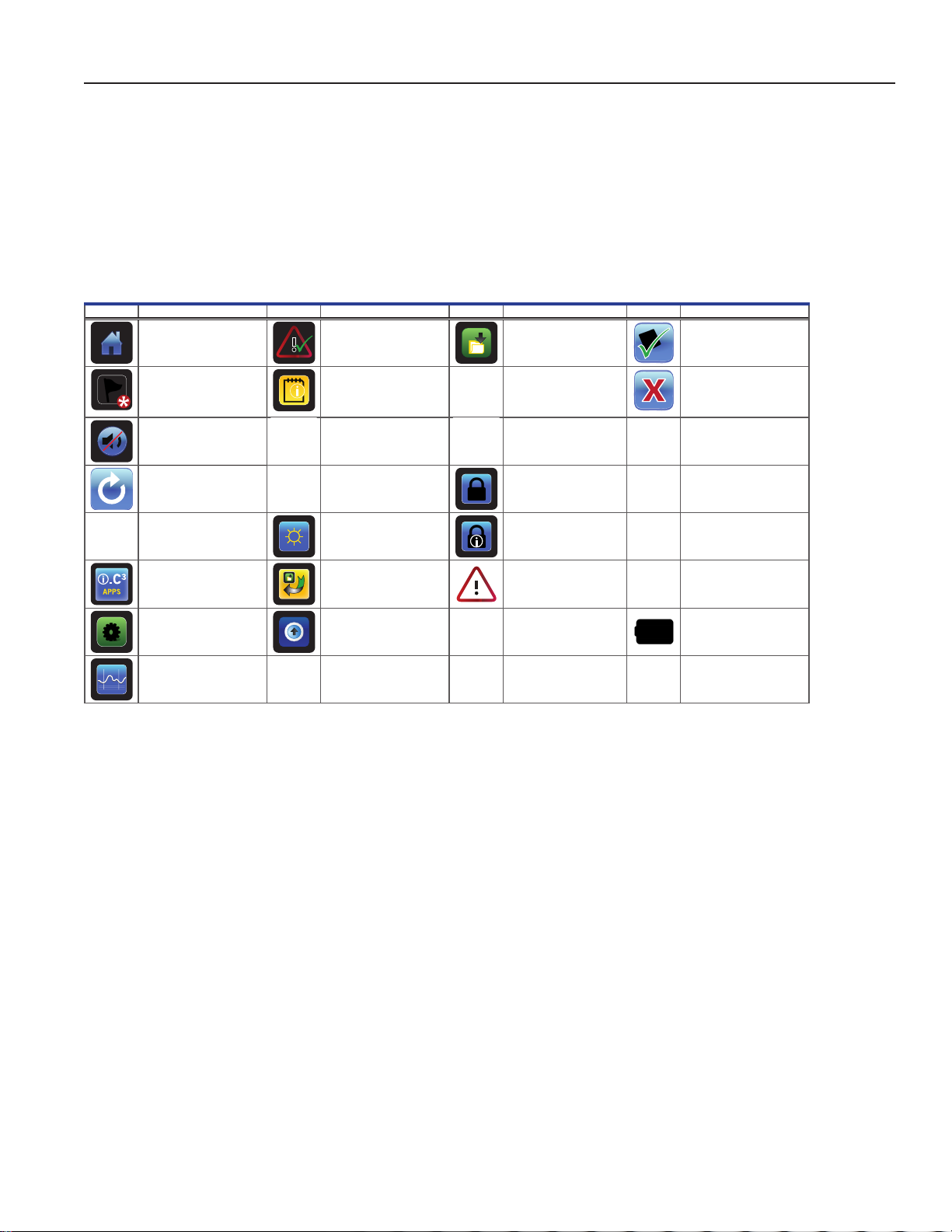

Table 3. Application Icons
Icon Description Icon Description Icon Description Icon Description
Home Alarm Test Download Save
Event Log Information Logs CSV Download Cancel
Mute AgiTrak PDF Download Back Arrow
Reset Contact Information/
Contact Helmer Access Control Scroll
Zoom Information Display Brightness Access Log Temperature Graph
Forward/Back
i.C³ Applications Icon Transfer Alarm Conditions Zoom Out
Settings Upload Cancel Test Battery Power
Temperature Graph
Helmer Scientic i.Series®Platelet Incubator Operation Manual
360388/A 12
3.8 CongureaProSeriesPlateletAgitatorforUseinaProSeriesIncubator(Optional)
When a Pro Series platelet agitator is installed, motion data is transmitted between the platelet agitator and platelet incubator
through the data cable. The platelet incubator interprets the motion data and provides information regarding the status and state of
the agitator. The incubator generates its own motion alarm, based on its own alarm delay period. If enabled, the motion alarm on
the platelet agitator will sound only if motion has stopped and communication to the incubator has been lost.
Note
• Only Helmer Pro series platelet agitator may be used with Pro series platelet incubator.
• Refer to the platelet agitator service manual for more information regarding the installation of a platelet agitator in a
platelet incubator.
• AgitationspeedissetthroughtheAgiTraksystemwhenanagitatorisconguredinsideanincubator.Thissetting
overrides the setting on the agitator speed control.
• Helmerrecommendstheagitatoralarmremainenabledwhenconguredinsideanincubator.
• Withthealarmenabled,theagitatoralarmwilltimeoutandsoundifpowertotheincubatoristurnedoforaduration
greater than the motion delay.
• In the event of a communication failure with the incubator, the agitator alarm will only sound if the agitator alarm switch
is turned ON.
AgiTrak Setup and Info
Select the AgiTrak icon to open the AgiTrak Setup and Info screen. Enter the agitator information to allow monitoring and control of
the device.
AgiTrak Setup and Info screen Agitator Setup screen
Note
Default Setup password is 1234.
Setup Agitator(s)
1. From the Home screen, select the AgiTrak icon .
2. Select Agitator Setup button.A numeric keypad appears.
3. Enter the Agitator Setup password. The Agitator Setup screen appears.
4. Enter agitator information for each agitator installed.
5. Select the Back arrow to return to the previous screen or the Home icon to return to the Home screen.
Helmer Scientic i.Series®Platelet Incubator Operation Manual
360388/A 13
4 Min/Max Temperature Monitoring
The Min/Max temperature display provides the highest and lowest Primary Monitor probe temperature reading since the last
system reset (power-on event) or manually-initiated reset. Touch the Reset icon to the right of the display to manually reset.
Notes
• TheMin/MaxtemperaturedisplaycanbeturnedonorothroughDisplaySettings.
• Once the time reaches the maximum display of 999 hours and 60 minutes, the message will display “>999:60”, but
minimum and maximum temperatures will continue to be tracked.
Helmer Scientic i.Series®Platelet Incubator Operation Manual
360388/A 14
5 Electronic Access Control (Optional)
Allowsuser-specicsecureaccesstotheincubator.TheAccessControlSetupscreencanbeopenedfromtheAccessLogscreen
or by choosing the Access Setup button from the Users and Passwords screen.
Notes
• During a power failure, the optional ElectronicAccess Control lock will remain locked. It can be unlocked using backup
battery power until battery power is depleted or until the backup battery switch is switched OFF.
• Switching the backup battery switch OFF will disable the monitoring system during a power failure.
• During a power failure, use the mechanical door key to provide secure storage for incubator contents.
• Refer to i.C3User Guide for complete information regardingAccess Control.
5.1 Setup
Congureandmanageuser-specicaccountstoallowcontrolledaccesstotheincubator.
Access Control with Password overlay Access Control Setup screen
Enter the supervisor PIN to set up Access Control. Follow the on-screen prompts to add, delete or edit user information.
Notes
• Initial factory supervisor PIN = 5625
• The supervisor PIN cannot be deleted, and should be changed to prevent unauthorized user ID setup. The supervisor
PIN does not allow access to the unit. At least one user ID must be set up to gain access to the unit.
5.2 Open Incubator with Access Control
Access Control Home screen
Enter a valid PIN using the keypad.
Helmer Scientic i.Series®Platelet Incubator Operation Manual
360388/A 15
6 ProductSpecications
6.1 Operating Standards
These units are designed to operate under the following environmental conditions:
♦Indoor use only
♦Altitude (maximum): 2000 m
♦ Ambienttemperaturerange:15°Cto35°C
♦ Relativehumidity(maximumforambienttemperature):80%fortemperaturesupto31°C,decreasinglinearlyto45%at35°C
♦ Temperaturecontrolrange:20°Cto35°C
♦Overvoltage category: II
♦Pollution degree: 2
♦Sound level is less than 70 dB(A) under normal operation
♦RF Emissions: Group 1 - Class A
♦EMC Environment: Basic
Notes
• PowerDrawandPowerConsumptionspecicationsincludeinternallyoperatingProSeriesagitatorsuppliedfromthe
Pro Series incubator through a 24 VDC umbilical cable (DC power cord).
• Power Draw measured in Watts.
• 100 V models have only 1 circuit breaker
Table4. ElectricalSpecications
PC100-Pro PC900-Pro PC1200-Pro
monitor battery backup (12V) w/ system battery backup
Input Voltage and Frequency 100-240 VAC, 50 Hz / 60 Hz
Voltage Tolerance ±10%
Circuit Breakers 7.0A quantity 2 (100V units - quantity 1)
Agitator Power Draw (if installed) 16 W at 24 V (DC) 16 W at 24 V (DC) 16 W at 24 V (DC) 16 W at 24 V (DC)
Incubator Power Consumption
(with agitator installed) 65 Watts*
352 Watts** 75 Watts*
415 Watts** 65 Watts*
352 Watts** 65 Watts*
352 Watts**
Power Source Varies(refertoproductspecicationlabel)
Remote Alarm Capacity 1A at 33V (AC) RMS or 30V (DC)
Internal Outlet Maximum Current Draw 1.5AAT 24V (DC)
* 22°C in 24°C ambient static operation
** Pull down (full power)
CAUTION
• The interface on the remote alarm monitoring system is intended for connection to the end user’s central alarm
system(s) that uses normally-open or normally-closed dry contacts.
• If an external power supply exceeding 30 V (RMS) or 30 V (DC) is connected to the remote alarm monitoring system’s
circuit, the remote alarm will not function properly; may be damaged; or may result in injury to the user.
Note
Add 1.25” (31.75 mm) to depth of the PC100-Pro for handle.
Table5. IncubatorSpecications
100 900 1200
Height 27.2” (689 mm) 30.4” (772 mm) 30.4” (772 mm)
Width 20.8” (528 mm) 26.0” (661 mm) 40.3 (1023 mm)
Depth 22.3” (565 mm) 30.2” (766 mm) 30.2” (766 mm)
Weight 116 lbs (53 kg) 136 lbs (62 kg) 173 lbs (79 kg)
Helmer Scientic i.Series®Platelet Incubator Operation Manual
360388/A 16
7 Compliance
7.1 Safety Compliance
This device complies with the requirements of directive 93/42/EEC concerning Medical Devices, as amended
by 2007/47/EC.
ThisproductiscertiedtoapplicableULandCSAstandardsbyaNRTL.
ThisproductisIECEECBSchemecertiedandcomplieswithnationaldierencesforsafetycerticationbeyond
IEC 61010-1-12 3rd edition.
7.2 Environmental Compliance
This device complies with the 2011/65/EU Directive for the Restriction of Hazardous Substances (RoHS).
This device falls under the scope of Directive 2102/19/EU Waste Electrical and Electronic Equipment (WEEE) .
Whendisposingofthisproductincountriesaectedbythisdirective:
♦Do not dispose of this product as unsorted municipal waste.
♦Collect this product separately.
♦Use the collection and return systems available locally.
For more information on the return, recovery, or recycling of this product, contact your local distributor.
7.3 Electromagnetic Compliance
HelmerScienticIncubatorsmeettheapplicablerequirementsofIEC61326andEN55011andareintendedforuseinthe
electromagneticenvironmentspeciedin6.1OperatingStandards.Thecustomerortheuserofthesedevicesshouldassurethey
are used in such environment.
This device complies with FCC Radiated and Conducted EmissionsApproval to CFR47, Part 15; Class A levels
HelmerScientic
14400 Bergen Blvd.
Noblesville, Indiana 46060 USA
Emergo Europe
Prinsessegracht 20
2514 AP The Hague
The Netherlands
0086
EC REP
Helmer Scientic i.Series®Platelet Incubator Operation Manual
360388/A 17
8 Preventive Maintenance
Maintenance tasks should be completed according to the following schedule. Refer to the service manual for more detail on the
various tasks.
Note
These are recommended minimum requirements. Regulations for your organization or physical conditions at your
organization may require maintenance items to be performed more frequently, or only by designated service personnel.
Task Frequency
Quarterly Annually As Needed
Test the high and low temperature alarms. ü
Test the power failure alarm (as required by your organization’s protocols). ü
Test the door open alarm. ü
Test the no battery alarm. ü
Test the motion alarm. ü
Check the temperature calibration for the temperature monitor and change it if
necessary. ü
Check the temperature calibration for the temperature controller and change it if
necessary. ü
Check the backup battery for the motion alarm system after an extended power
failure and change it if necessary. (qty 1, 12v 7 AHr SLA battery) ü
(only PC100-Pro with integrated full system battery backup)
Check the system backup battery functionality to operate the complete system
(+PF15-Pro agitator) and change if necessary, or change batteries (2) if in service
for 2 years. (12v 18AHr SLA batteries)
ü
Check the backup battery for the chart recorder after an extended power failure
and change it if necessary, or change the battery if it has been in service for one
year. Refer to the Temperature Chart Recorder Operation and Service Manual.
ü
Clean the external fan grill. ü
Clean the exterior and interior. ü
Clean the door gaskets. ü
Replace moving parts if worn or when prompted by the agitation maintenance
reminder. ü
Notes
• During a power failure, the sealed lead acid (SLA) backup battery provides power to the monitoring system
and the power failure alarm. If the backup battery is not functioning, the power failure alarm will not be activated.
• If the backup battery does not provide power to the monitoring system during the power failure alarm test, replace
the battery.
• Use only a 12V 7AHr SLAbattery for the standard monitoring and alarm system battery backup.
• Use only a 12V 18AHr SLAbattery (quantity 2) for the PC100-Pro integrated full system battery backup.
Helmer Scientic i.Series®Platelet Incubator Operation Manual
360388/A 18

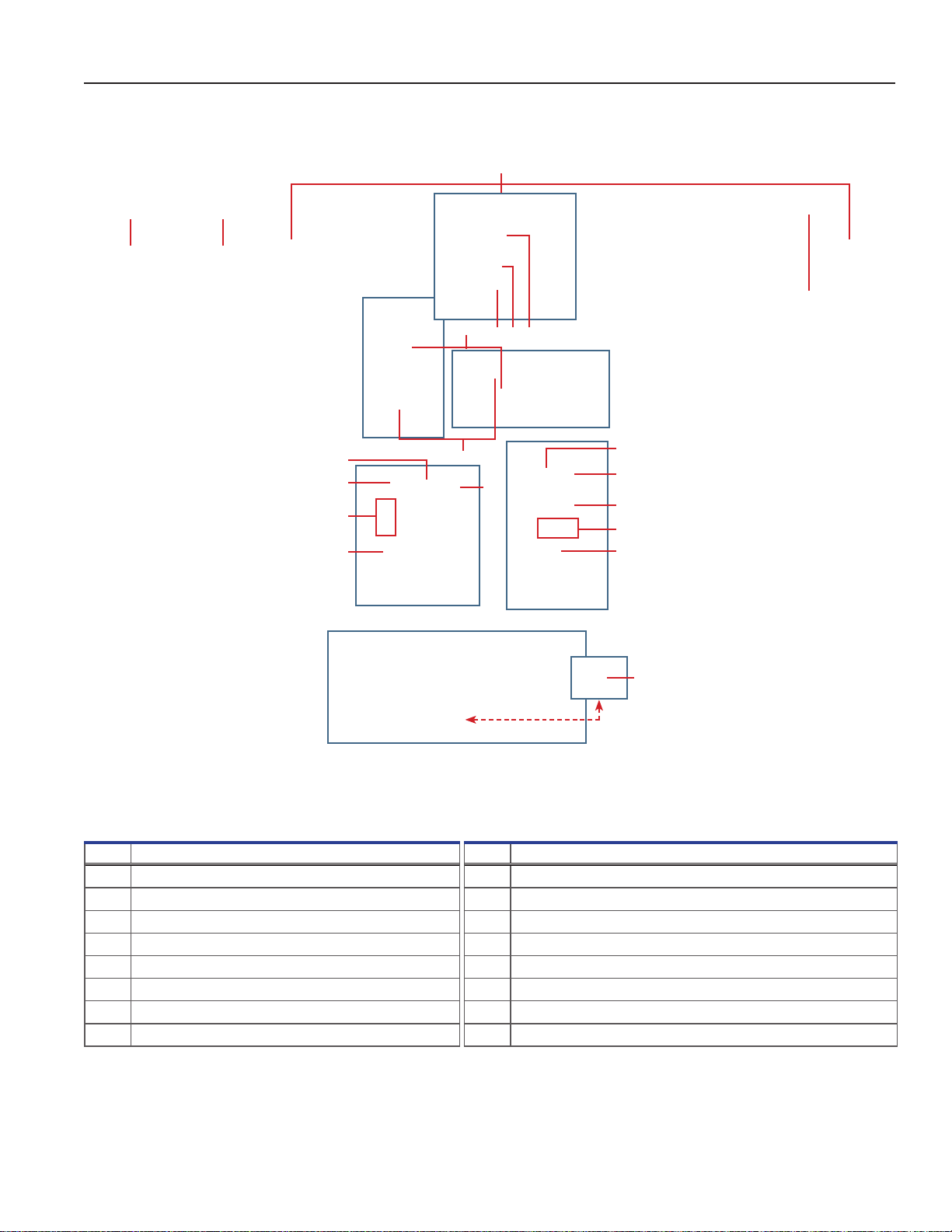

Appendix A - Components
Note
100 V models have only 1 circuit breaker
Label Description Label Description
A Temperature Chart Recorder I Temperature monitor probe
B i.C3user interface J Remote alarm interface
C Control panel K RJ45 port
DManual ElectronicAccess Control override key switch L Circuit breaker(s)
E USB port M AC input power cord receptacle
F Back-up battery switch N External electronic access control terminal activation (optional)
G Power switch O Condensate pan drain port
H Control and chart recorder probe
A
E
C
B
I
HGF
PC900-Pro
PC1200-Pro
M
L
J
N
K
PC100-Pro
M
L
K
J
N
PC100-Pro
PC900-Pro
PC1200-Pro
D
O
Helmer Scientic
14400 Bergen Boulevard, Noblesville, IN 46060 USA
Copyright © 2019 Helmer, Inc. 360388/A
This manual suits for next models
3
Table of contents
Other Helmer Accessories manuals
