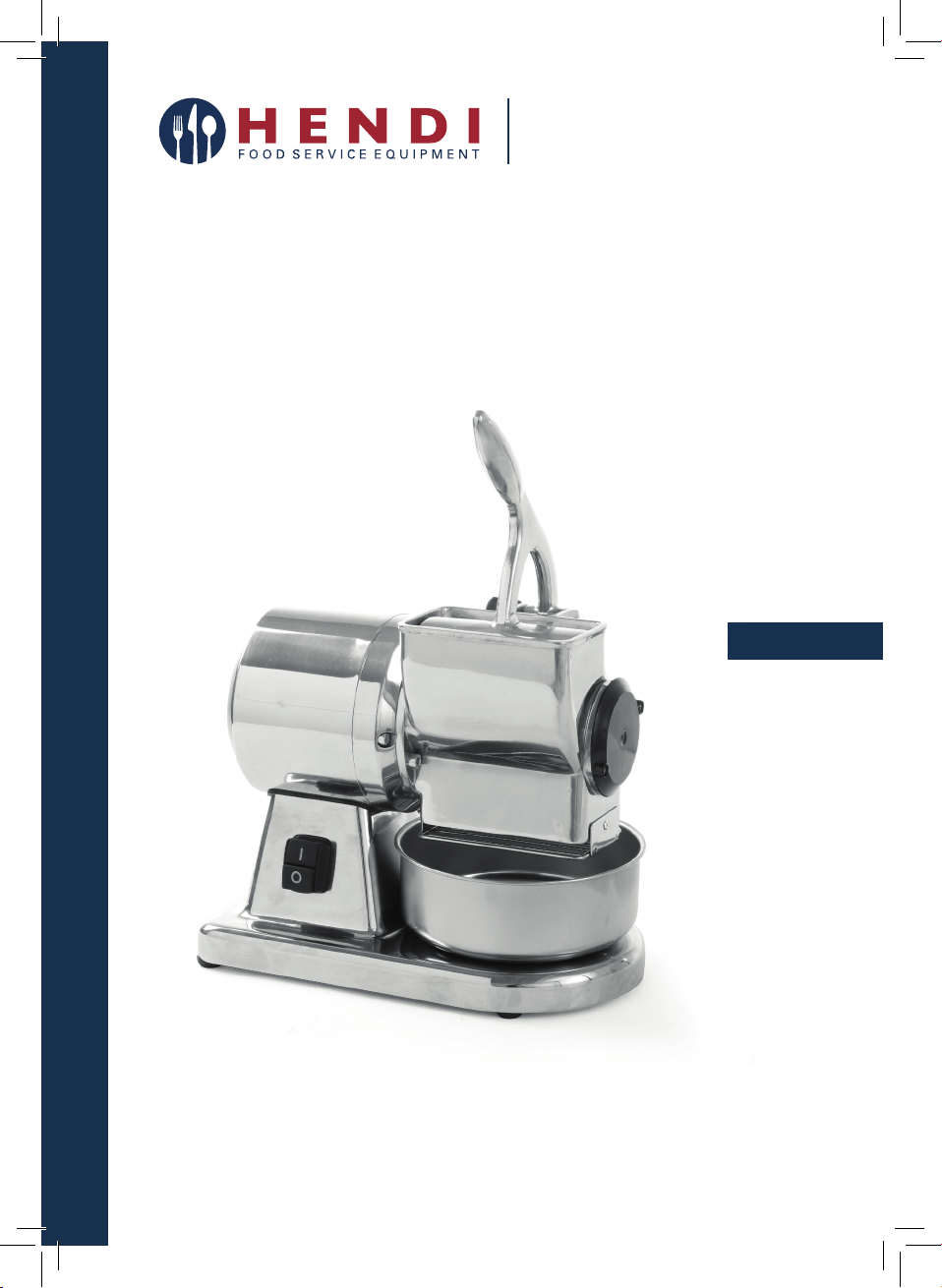

Hendi 226827 User manual

User manual
Gebrauchsanweisung
Item: 226827
You should read this user manual carefully before
using the appliance
Bevor Sie das Gerät in Betrieb nehmen, sollten
Sie diese Gebrauchsanweisung aufmerksam lesen
CHEESEGRATING MACHINE
KÄSEREIBE ELEKTRISCH

Keep this manual with the appliance.
Diese Gebrauchsanweisung bitte beim Gerät aufbewahren.
For indoor use only.
Nur zur Verwendung im Innenbereich.
2
EN
INHALTSVERZEICHNIS
IMPORTANT SAFETY REGULATIONS
1. CONTENT ORGANIZATION AND CONSULTATION MODALITY ........................................ 5
2. GENERAL INFORMATION AND CHARACTERISTICS ............................................................. 6
3. SAFETY INSTRUCTIONS.................................................................................................................. 9
4. TRANSPORT, INBETRIEBNAHME UND ANWENDUNG ......................................................10
5. DAMGES RESEARCH AND CLEANING.....................................................................................14
6. WARRANTY ........................................................................................................................................17
7. DISCARDING & ENVIRONMENT.................................................................................................17

Dear Customer,
Thank you for purchasing this Hendi appliance. Before using the appliance for the first time, please read
this manual carefully, paying particular attention to the safety regulations outlined below.
IMPORTANT SAFETY REGULATIONS
• This appliance is intended for commercial use only and must not be used for
household use.
• The appliance must only be used for the purpose for which it was intended and
designed. The manufacturer is not liable for any damage caused by incorrect op-
eration and improper use.
• Keep the appliance and electrical plug away from water and any other liquids. In
the event that the appliance should fall into water, immediately remove plug from
the socket and do not use until the appliance has been checked by a certified
technician. Failure to follow these instructions could cause a risk to lives.
• Never attempt to open the casing of the appliance yourself.
• Do not insert any objects in the casing of the appliance.
• Do not touch the plug with wet or damp hands.
• Danger of electric shock! Do not attempt to repair the appliance yourself. In case
of malfunctions, repairs are to be conducted by qualified personnel only.
• Never use a damaged appliance! Disconnect the appliance from the electrical
outlet and contact the retailer if it is damaged.
• Warning! Do not immerse the electrical parts of the appliance in water or other
liquids. Never hold the appliance under running water.
• Regularly check the power plug and cord for any damage. If the power plug or
power cord is damaged, it must be replaced by a service agent or similarly quali-
fied persons in order to avoid danger or injury.
• Make sure the cord does not come in contact with sharp or hot objects and keep
it away from open fire. To pull the plug out of the socket, always pull on the plug
and not on the cord.
• Ensure that the cord (or extension cord) is positioned so that it will not cause a
trip hazard.
• Always keep an eye on the appliance when in use.
• Warning! As long as the plug is in the socket the appliance is connected to the
power source.
• Turn off the appliance before pulling the plug out of the socket.
• Never carry the appliance by the cord.
• Do not use any extra devices that are not supplied along with the appliance.
3
EN

4
EN
• Only connect the appliance to an electrical outlet with the voltage and frequency
mentioned on the appliance label.
• Connect the power plug to an easily accessible electrical outlet so that in case of
emergency the appliance can be unplugged immediately. To completely switch off
the appliance pull the power plug out of the electrical outlet.
• Always turn the appliance off before disconnecting the plug.
•Never use accessories other than those recommended by the manufacturer. Fail-
ure to do so could pose a safety risk to the user and could damage the appliance.
Only use original parts and accessories.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge.
• This appliance must not be used by children under any circumstances.
• Keep the appliance and its cord out of reach of children.
• Always disconnect the appliance from the mains if it is left unattended or is not in
use, and before assembly, disassembly or cleaning.
• Never leave the appliance unattended during use.

5
EN
1. CONTENT ORGANIZATION AND CONSULTATION MODALITY
MANUAL IMPORTANCE
The present instruction manual for the use is to be considered as integral part of the machine:
1. Must be kept for all the machine life.
2. Must be coupled with the machine in case of its ceasing.
3. Besides to show all useful notices for the operators, contains (collected in specific chapters) the electric
diagrams that will be used for the possible maintenance interventions and reparation.
Besides the present manual has been written with the purpose to supply indications and warnings to know
the supplied machine, to understand its principles and functioning limits. For possible doubts you can call the
Authorized Assistance Center.
RESPONSABILITY
• If the present manual endures damages or is lost, it is possible to request a copy to the Authorized
Assistance Center.
• The present manual reflects the technical state during the machine manufacturing; the manufactur-
er reserves the right to update the production and of consequence other manual issues, without the
obligation to update productions or previous manuals, if not in particular cases regarding the health
and the people safety.
• Pay particularly attention to the residual risks content present on the machine and the prescriptions
to which the operators must keep.
• The manufacturer is the responsible for the machine in its original configuration.
• The manufacturer isn’t the responsible for damages caused from the improper use or not correct
of the machine and documentation or for damages caused from the imperative standards violation,
negligence, lack of experience, imprudence and the not respect of regulation standards on behalf of
the employer, of the operator or the maintenance man and for every possible damage, caused from
an irrational, improper and/or wrong use.
• The manufacturer isn’t the responsible for the consequences caused from the not original spare
parts use or of equal characteristics.
• The manufacturer is the responsible only for the information showed in the manual original version
in Italian language.
• The prescriptions non-fulfillment contained in this manual will cause the guarantee immediate decay.
• The factory responsibles, that supervision to the working activities, in the field of the foreseen respec-
tive attributions and competence, must:
• Carry out the foreseen safety measures;
• Make informed the operators about the specific risks whom are exposed and bring to their knowledge
the prevention essential standards;
• Prepare and require that the single operators observe the safety standards and use the protection
means put at their disposal;
• Work an operator, contemporary, on this product.

6
EN
2. GENERAL INFORMATION AND CHARACTERISTICS
GENERAL INFORMATION AND CHARACTERISTICS
The mincer – grater, here follow is called “machine”, è designed for:
1. With the grinding group placed from a side, to mince, reduce of size fresh meat not frozen, through cutting
tools to obtain meat sauce, hamburgers, meatballs and sausages. The meat must be without bones, or
other parts of different consistency from the meat.
2. With the grater group placed on the opposite side of the machine, to grater tough cheese, bread and
biscuits.
The product to grate is loaded manually inside the grater mouth placed in the machine superior zone, and
always manually, acting the pressure with its handle, the product is driven against the grater roll.
The product load must happen in moderate quantity to avoid that lowing the pressure the machine doesn’t
start, due to the safety micro switch placed in the pressure block. The grater roll, which can be milled, cannot
be removed from the machine.
TECHNISCHE UND BAUTECHNISCHE DATEN
Model 226827
Motor power (W) / (Hp) 380/0,5
Grater mouth internal size (mm) 110 x 65
Grater timetable production (kg/h) 30
Mass (kg) 8
Maximum sizes: A x B x C (mm) 280x250x(H)310
Continue acoustic power level considered equal to A Minor of 70dBA
Utility frequency 50 Hz
Voltage/ Phase 230 V / 1 N
Auxiliary circuits voltage AC 24 V – DC 24 V
Mass and neutral TT i TN
Protection degree IP X3
Use place Inside
Machine positioning Working ground used in the food field of height
included between 900/1100mm from the trampling
level of adequate capacity, with a free circulation space
of at least 800mm
Environment air max. temperature +40°C
Requested minimum illumination 500 lux

7
EN

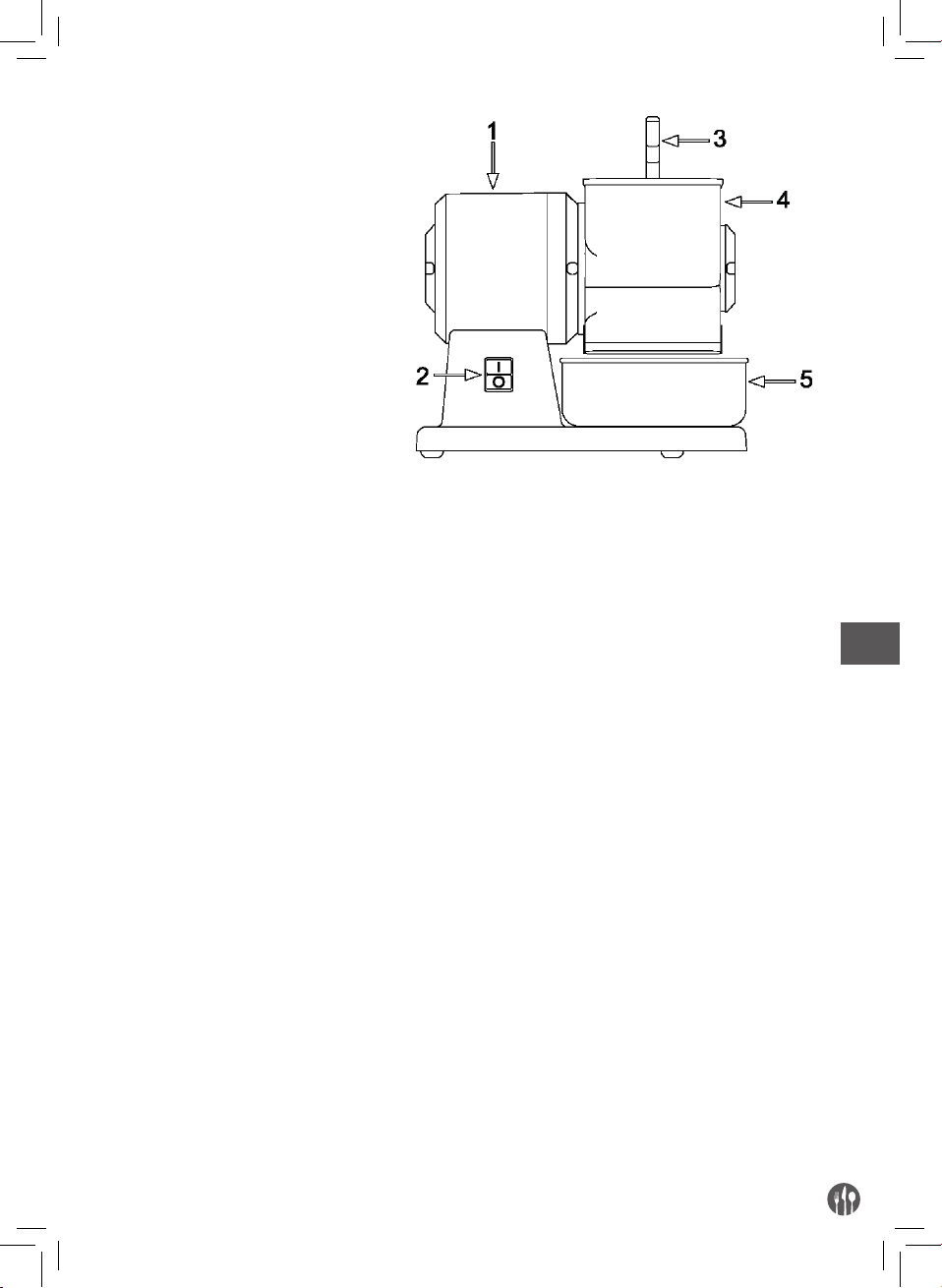

1. Machine body
2. Control switch ON / OFF
3. Pressure handle
4. Grater mouth
5. Collect container
The manufacturer and dealer is not liable for any inaccuracies due to printing errors or transcription, in this
manual. In line with our policy of continuous improvement products, we reserve the right to make modification
of the product, packaging and specifications contained in the Documentation without prior notice.
NORMAL USE, IMPROPER USE, NOT CORRECT USE OR FORBIDDEN
The machine described in the present instructions manual for the use is foreseen to be driven from an only
operator skilled and prepared on residual risks, but with the competence, in safety matter, of maintenance
employees.
In its NORMAL USE, and reasonably foreseeable, the machine With the grater group can be used only to grate
tough cheese, bread and biscuits.
The machine must not be used IN IMPROPER WAY; in particular:
1. It must not be used for domestic uses,
2. It must not functioned with parameters different from those showed in the technical characteristics table,
3. For every use of the machine with modalities different from those showed in the present manual, the man-
ufacturer declines every responsibility,
4. The user is responsible of the damages resulting from the lacked exercise conditions observance in accord-
ance with the greed technical specifications and order confirmation,
5. The grinding group must not functioned in vain; when the grater group is used, disassembly the grinding
group,
6. Not tamper or damage intentionally nor remove or hide the labels.

8
EN
The machine must not be used IN NOT CORRECT WAY or FORBIDDEN so some damages or injuries could be
caused for the operator; in particular:
1. It is forbidden to move the machine when it is connected to the electric feeding;
2. It is forbidden to draw the electric feeding cable or the machine to disconnect the feeding plug,
3. It is forbidden to put weights on the machine or on the electric feeding cable,
4. It is forbidden to put the electric feeding cable on sharp parts or with burn danger,
5. It is forbidden the machine use with the damaged and not integer electric feeding cable or with the control
devices;
6. It is forbidden to leave the machine off with the electric feeding cable connected with the feeding plug,
7. It is forbidden to leave the loaded machine unguarded;
8. It is forbidden to insert any type of object inside the motor ventilation cap;
9. It is forbidden to put the machine above different objects from the working ground used in the food field of
height included between 900 - 1100mm from the trampling level,
10. It is forbidden to insert any kind of object under the machine base or put clothes or other between the
machine support pressure feet and the working ground,
11. It is forbidden the use of inflammable substances, corrosive or harmful for the cleaning,
12. It is forbidden to plunge the machine in water or in other liquids;
13. It is forbidden the not authorized personnel use and with clothes different from that showed for the use,
14. It is forbidden to introduce in the grinding neck and in the grater mouth, products or objects having char-
acteristics different from those showed in the normal use, such as for example bones, frozen meat, not
food products, or other objects as scarves, etc…,
15. It is forbidden to introduce in the exit zone of the grated product, any object, as for example knifes blades,
etc…,
16. It is forbidden to remove the hopper during the machine working or however when some food product has
been left to work,
17. It is forbidden to slacken the mouth block knob or the blockage wheel both during the working and how-
ever before of 5 sec from the machine stop control,
18. It is forbidden the functioning with the protection shelters and fixes not blocked correctly or removed;
19. It is forbidden the partial removal of the protections and of the danger signals.
20. It is forbidden the functioning without that all the precautions about the residual risks elimination have
been adopted on behalf of the user,
21. It is forbidden to smoke or use free flame devices and manipulate incandescent materials, unless some
suitable safety measures aren’t adopted,
22. It is forbidden to work or regulate the control and blockage devices as knobs or similar both during the
machine functioning, both if you aren’t authorized
The user is however responsible of the damages resulting from the lacked observance of the specified nor-
mal use conditions. For possible doubts you can enquire at the Authorized Assistance Center.

9
EN
3. SAFETY INSTRUCTIONS
WARNINGS ON THE RESIDUAL RISKS
Residual risk due to the fixed protections removal, interventions on broken/worn Parts.
For any occasion the operator must not try to open or remove a fixed protection or tamper a safety device.
In the phase of equipment, maintenance and cleaning, and during all further manual operations that hap-
pens introducing the hands or other body parts in the machine dangerous areas, a residual risk remains due
above all to:
1. Knocks with machine manufacturing parts,
2. Grazing and/or abrasion with machine rough parts,
3. Sharp pain with the sharpened parts,
4. Cut with tools sharpened parts.
Besides, the operator and the maintenance man must be skilled for the intervention connected to the manual
operations with open protections, must be trained on the joined consequent risks and must be authorized
from a responsible person.
PROTECTION DEVICES ON THE MACHINE
The machine protections and safety devices must not be removed.
If they must be removed for extraordinary maintenance requirements some measures will have to be imme-
diately adopted ready to put in evidence and to reduce at the possible minimum limit the danger.
The putting back in its place of the protection or of the safety device must happen as soon as the reasons, that
have made necessary their temporary removal, are stopped.
The machine transmission parts are completely isolated by means of fixed protections which don’t allow the
access for none kinematical chain.
For all safety functions including the control and check systems parts joined to the safety, some well-tested
components and safety principles have been used.
Grater group:
1. Taking into account of the machine use modality and its use destination, the moving elements aren’t isolat-
ed from fixed protections, moving protections or other safety devices.
2. On handle and pressure group a micro switch is placed, which stops the grater roll rotation when it is pos-
sible to access through the grater mouth;
3. In the inferior zone of the grater group in correspondence of the grated product exile a grating form fixed
protection is present, which prevent the fingers access towards the grater roll.

10
EN
Grating form Fixed protection Pressure handle with micro switch
4. TRANSPORT, INBETRIEBNAHME UND ANWENDUNG
The machine management is allowed only to the authorized personnel and opportunely educated and en-
dowed of a sufficient technical experience.
Before to switch on the machine perform the following operations:
1. Read with attention the technical documentation,
2. Know what protections and emergency devices are available on the machine, their location and functioning.
The not authorized use of commercial parts and accessories making part of the protections and safety de-
vices can cause some malfunctions and the ranger situation beginning for the operators. The operator must
besides have received an adequate training.
PACKING REMOVAL  OPENING MODALITY
The machines are packed so that the infiltration / entering of liquids, organic matters or beings alive is avoided: this
is performed from a covering in polyethylene around the machine, and inserted in a cardboard box of adequate size.
The empty spaces inside the box are occupied from the filling material. Don’t waste the packing in the environment,
but restore it for possible transportation or address it to the recycling agencies.
The evaluation and the management with the aim of the products biological compatibility used in the packing are of
the user competence and responsibility.
It is an employer obligation to be acquainted of the actual laws in own country and work so that to observe these
legislations.
It is forbidden and besides liable to fines, leave the machine and the electric equipment in the environment.
PREPARATION PRELIMINARY OPERATIONS/ELECTRIC FEEDING
The electric feeding connection must be in conformance with the country legislation in which is used.
The electric feeding must be always of the type and have an intensity corresponding to the specifications
indicated in the machine number plate.
