Hero Medical
Outdoor Lite Walker

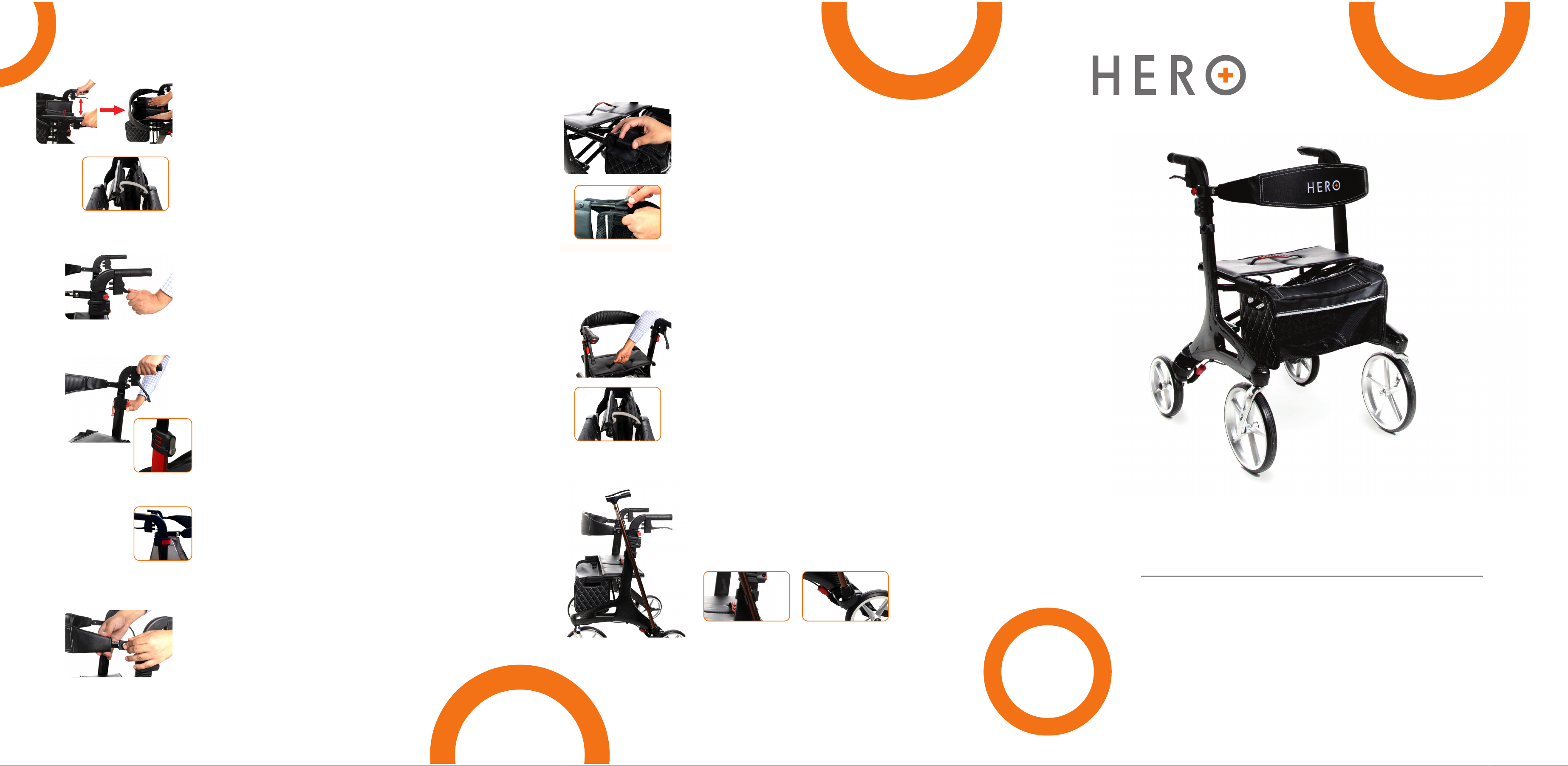

USER MANUAL
Instructions for use
4. ADJUSTING LENGTH OF THE BACKREST
Press the silver clip located near the front of the handle. Keep
pressing the button whilst simultaneously pulling the end of the
backrest to adjust. There are 4 levels of adjustment.
5. ATTACHING AND REMOVING THE CARRY BAG
For Carbon Fibre Walker : To attach the carry bag, insert the loops at
the top of the carry bag to the poles located at the front end of the seat.
Apply the velcro straps to secure it to the frame. To remove the bag,
undo the velcro straps and pull it out from the poles.
For Aluminium Walker : To attach the carry bag, locate the black cap at the
front end of the seat. Rotate the cap anti-clockwise untill it stops and pull
it out. Then, insert the flap located at the top side of the bag into the pole.
Put the cap back on and rotate it clockwise to lock it. Follow the same
process for both sides.
Safe Work Load for bag is 5kg.
6. FOLDING THE SEAT WALKER
Pull the handle located in the middle of the seat upwards to unlock
the frame. Grab both handles and push inwards to fold the seat walker.
* (For Aluminium Walker : Once the walker is folded, clip the grey safety clip onto
the seat frame locking the walker in place.)
7. CANE HOLDER
Carbon Fibre Walker comes with walking stick holder, which consists of
2 attachments that can be clipped onto the frame. Clip the attachment
containing 3 holes, above either back wheels. Then clip the smaller
attachment on the same side of the frame below the handle bars.
* (For Aluminium Walker : Cane holder is available as an additional
accessory for purchase.)
1. UNFOLDING THE SEAT WALKER
Grab both handles, pull outwards until the frame is half-open.
Place both hands on each side of the seat and push downwards
XQWLO\RXKHDUɞFOLFN*
)RU$OXPLQLXPZDONHUVSOHDVHXQFOLSWKHJUH\VDIHW\FOLSUVWWRXQIROG
2. BRAKE FUNCTIONALITY
To apply the handbrake pull the brake lever up. To engage the
parking brake, press the brake lever down until it locks. To
disengage the parking brake, pull the brake lever up.
3. ADJUSTING THE HEIGHT
To increase the height of the seat walker, press the red or grey
button located underneath the handle. Keep pressing the button
whilst simultaneously pulling the handle upwards until you reach
your desired height. Release the button to lock it in place.
To decrease the height, press the red or grey button and push
the handle downwards to your desired height.
There are 6 levels of height adjustment. Repeat process for both
handles.
)RU+HDY\'XW\$OXPLQLXP:DONHUUVWXQGRWKHUHGORFNLQJFOLSWR
unlock the handles.)
Red button for
Carbon Fibre Walker
Grey button for
Aluminium Walker
**Red button for
Heavy Duty
Aluminium Walker
* Aluminium walkers only
* Aluminium walkers only
* Aluminium walkers only

Independent Living Specialists PTY LTD
Unit 1 /12 Mars Rd,
Lane Cove NSW 2066
1300 008 267
ilsau.com.au
Lightweight & Comfortable
The Hero Medical 2XWGRRU/LWH:DONHULVɞ
lightweight mobility aid built to provide comfort
and independence, with an extensive range to
suit most needs.
Features
•8OWUɞOLJKWZHLJKW
• Soft and adjustable backrest
•Handy storage bag
• Easy to adjust and assemble
• Large front castors for better maneuverability
• Hand brake comes with an integrated parking
brake function
1. Left Handle Bar
Right Handle Bar
2. Left Brake lever
Right Brake lever
3. Backrest Locking Knob
4. Backrest
5. Seat Assembly
6. Left Front 9.5”Castor with Fork
Right Front 9.5”Castor with Fork
7. Bag
Parts & Accessories List - Carbon Fibre Parts & Accessories List - Aluminium
1. Left Handle Bar
Right Handle Bar
2. Left Brake lever
Right Brake lever
3. Backrest Locking Knob
4. Backrest
5. Seat
6. Bag
7. Left Front 9.5”Castor with Fork
Right Front 9.5”Castor with Fork
8. Brake Adjustment Knob
9. Left Rear 8”Castor with Bearings
Right Rear 8”Castor with Bearings
10. Cane Holder *
Cross Brace Assembly
Bowden Cable Assembly
Folding Lock
9.5’’Front Castor with Bearings
Left Wheel Lock
Right Wheel Lock
Left Curb Step
Right Curb Step
Left Handle Grip
Right Handle Grip
(Standard) S302227
(Tall) S302399
S302221
S302224
S302228
S302229
S302230
S302231
S302232
S302233
S302220
S302222
S302223
S302400
S302225
S302226
S302397
(Standard) S302219
(Tall) S302398
S302212
S302213
S302214
S302215
S302217
S302216
S302218
Left Wheel Lock
Right Wheel Lock
Curb Step (Right side only)
Left Handle Grip
Right Handle Grip
Handle Height Adjustment Braket Set
Plastic Hook - Locking clip for seat
8. Brake Adjustment Knob
9. Left Rear 8”Castor with Bearings
Right Rear 8”Castor with Bearings
Cross Brace Assembly
Folding Lock
9.5’’Front Castor With Bearings
Brake Cable Assembly
S302251
S302252
S302255
S302256
S302257
S302258
S302260
(Low) S302241
(Standard) S302390
(Tall) S302391
S302243
S302246
(Low) S302249
(Standard) S302392
(Tall) S302393
S302253
S302247
S302248
S302234
S302235
S302236
S302237
S302239
S302238
S302240
S302244
S302245
S302242
Aluminium (Tall)
Aluminium
(Low)
Carbon Fibre
(Standard)
Product Care
7KHVHDWZDONHUVKRXOGEHUHJXODUO\FOHDQHGZLWKɞFOHDQGDPSFORWK
Safety
•8VHRQO\DVɞZDONLQJDLG
• Do not exceed the recommended maximum user weight (136kg).
• Use only on even and solid surfaces.
• Apply the parking brake and ensure the seat walker is on even ground before sitting on it.
Warranty
+HUR0HGLFDO2XWGRRU/LWH:DONHUKDVɞPRQWKZDUUDQW\IURPWKHGDWHRISXUFKDVHRQVWUXFWXUDO
integrity & workmanship.
• During the warranty period, any parts that have become defective due to faulty workmanship or
PDWHULDOZLOOEHUHSDLUHGRUUHSODFHGZLWKRXWFKDUJHE\ɞ+HUR0HGLFDOVXSSOLHUGHDOHU
• The warranty excludes components and parts that are subject to reasonable wear and
tear. i.e. plastic parts, castors, handgrips
•,IɞGHIHFWRUIDXOWLVGLVFRYHUHGWKH+HUR0HGLFDOVXSSOLHUGHDOHUIURPZKHUHWKHVHDWZDONHUZDV
purchased should be contacted.
• The warranty excludes faults due to misuse or user error.
•8QDXWKRULVHGFKDQJHVRUPRGLFDWLRQVZLOOIRUIHLW\RXUZDUUDQW\
6SHFLFDWLRQV 6.8&RORXU )UDPH0DWHULDO )UDPH:HLJKW *URVV:HLJKW 6DIH:RUNLQJ/RDG
6:/
2YHUDOO+HLJKW
)ORRUWR+DQGOHV
6HDW+HLJKW
)ORRUWR+DQGOHV
6HDW:LGWK 2XWHU:LGWK
,QFOXGLQJEDFNFDVWRUV
,QQHU:LGWK
%HWZHHQEDFNIUDPHV
/RZ S301679 Aluminium 6.4kg 7.8kg 136kg 82.5 - 95cm 50.5cm 46cm 60cm 46.5cm
S301676
6WDQGDUG
S21707 Carbon Fibre 5.7kg 7.1kg 136kg 84.5 - 97cm 52.5cm 45cm 58cm 45.5cm
S301677 Aluminium 6.5kg 7.9kg 136kg 84.5 - 97cm 52.5cm 46cm 60cm 46.5cm
S301674
7DOO
S301673 Carbon Fibre 5.9kg 7.3kg 136kg 93.5 - 106cm 60.5cm 45cm 58cm 45.5cm
S301678 Aluminium 6.6kg 8kg 136kg 93.5 - 106cm 60.5cm 46cm 60cm 45.5cm
S301675
+HDY\'XW\ S305471 Carbon Fibre 6.4kg 7.8kg 204kg 95 - 104cm 61cm 58cm 70cm 58cm
S305469 Aluminium 8.8kg 10.2kg 204kg 95.5 - 107cm 61cm 58cm 69cm 58cm
([FOXGHVSDUWVIRU+HDY\'XW\2XWGRRU/LWH:DONHU ([FOXGHVSDUWVIRU+HDY\'XW\2XWGRRU/LWH:DONHU
