HERO MAESTRO EDGE PROGRAMMED FI User manual

PREFACE
Thank you for selecting a . We Hero MotoCorp MAESTRO EDGE PROGRAMMED FI
wish you many miles of continued riding pleasure in the years ahead.
We at are committed to demonstrate excellence in our environment Hero MotoCorp,
performance on a continual basis, as an intrinsic element of our corporate philosophy. To
achieve this we commit ourselves to continue product innovations to improve environment
compatibility, comply with all applicable legislation including environment legislation and
strengthen the green supply chain.
Your is conforming to latest (Bharat stage- norms) regulation for emission, safety & vehicle VI
noise levels. We are also using non asbestos brake shoes/pads and engine gaskets which are
environment friendly in nature.
This vehicle is fitted with a lighting feature known as “Automatic Headlamp ON”. The feature
the engine gets ON.
is mandated for all 2 Wheelers by Ministry of Road Transport & Highways (Government of
India) vide notification GSR 188 (E) dated 22nd February 2016. This feature helps in
conspicuity for improving rider safety. The headlamp of this vehicle will always be lit ON when
Let us make this world a safer, healthier and more environment friendly place.
Your Authorised dealer will be glad to provide further information or Hero MotoCorp
assistance and is equipped to handle your future service needs.
This booklet is your guide to the basic operation and maintenance of your new
Hero MotoCorp MAESTRO EDGE PROGRAMMED FI. Please take time to read it
carefully. As with any fine machine, proper care and maintenance are essential for trouble-free
operation and optimum performance.

ALL INFORMATION, ILLUSTRATION, PHOTOGRAPH, DIRECTIONS,
SPECIFICATIONS AND OTHER CONTENTS COVERED IN THIS OWNER'S
MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION AVAILABLE
AT THE TIME OF ITS PRINTING APPROVAL, AND THE ACCURACY OR
CORRECTNESS OF THE SAME IS NOT UNDERTAKEN OR GUARANTEED.
Hero MotoCorp Ltd RESERVES THE RIGHT TO MAKE CHANGES IN ITS
CONTENTS AT ANY TIME WITHOUT NOTICE AND/OR INCURRING ANY
OBLIGATION, WHATSOEVER. NO ONE IS ALLOWED TO REPRODUCE ANY
PART OF THIS PUBLICATION WITHOUT OBTAINING PRIOR WRITTEN
PERMISSION FROM Hero MotoCorp Ltd.
NOTE
ACCESSORIES SHOWN MAY NOT BE THE PART OF STANDARD FITMENT. IT IS
OUR ENDEAVOUR TO CONSTANTLY IMPROVE OUR PRODUCTS. THIS COULD
LEAD TO CHANGE IN PRODUCT SPECIFICATIONS WITHOUT NOTICE. Hero
MotoCorp Ltd MAESTRO EDGE PROGRAMMED FI’ COMPLIES WITH THE LATEST ‘
EMISSION NORMS.

CONTENTS
Pg. No.Pg. No.
•Accessories and modifications 8
SAFE RIDING TIPS 9
TIPS FOR HEALTHY ENVIRONMENT 10

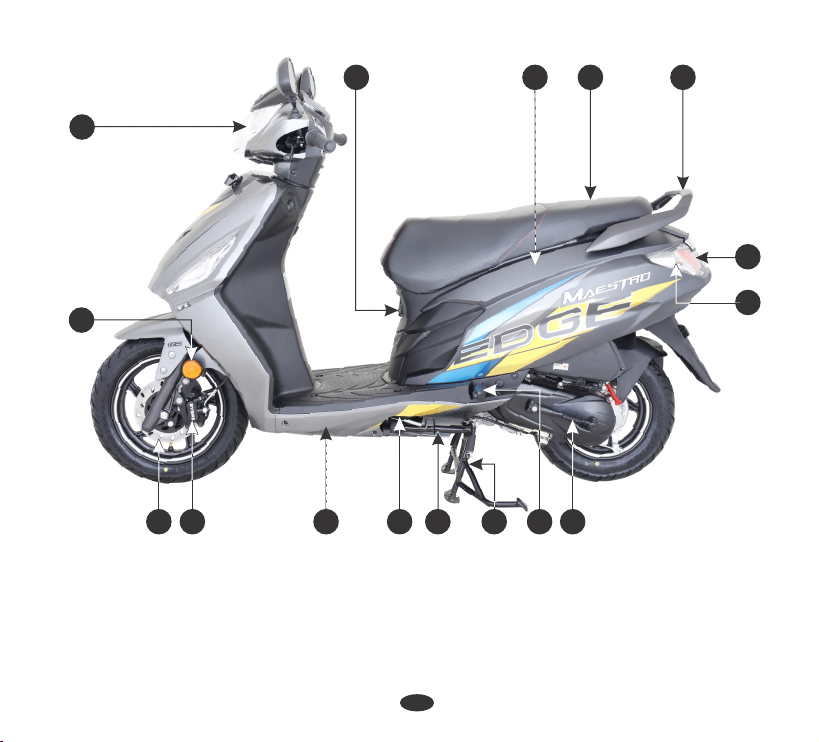

VEHICLE VIEWS 11
PART FUNCTIONS 14
VEHICLE SPECIFICATION 2
VEHICLE IDENTIFICATION 1
•Protective apparel 5
•Load limits and guidelines 7
VEHICLE SAFETY 4
•Important safety information 4
•Pillion footrest/Women pillion step 32

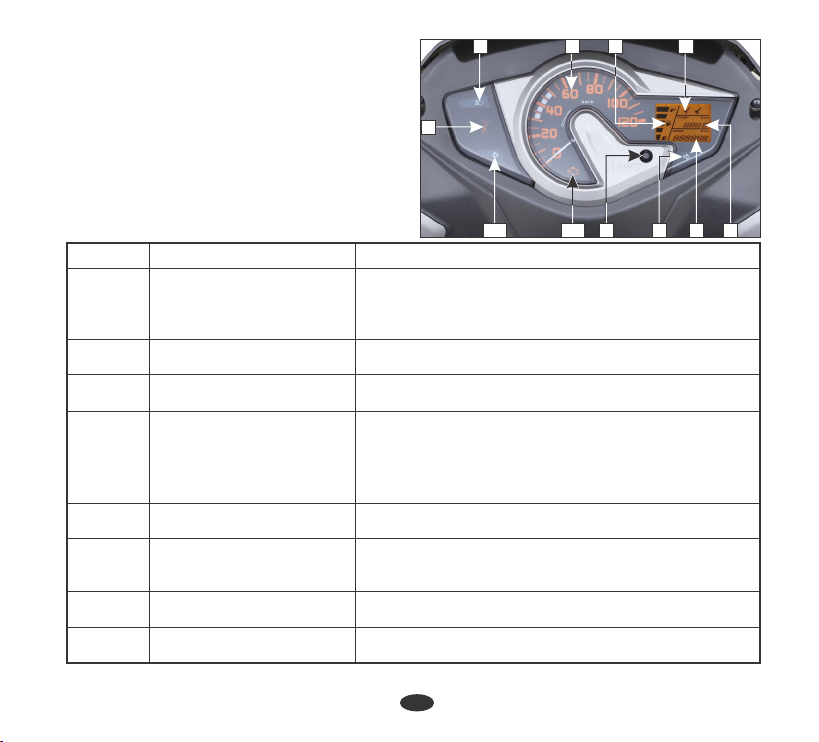

•Instruments and indicators 14
FEATURES 26
•Brakes (Integrated braking) 18
ESSENTIAL INDIVIDUAL COMPONENTS 25
•Steering lock 26
•Fuel tank lid lock/Seat lock/Helmet holder 27
•Boot lamp/Boot lamp switch/USB charger 29
•Luggage hooks 30
•Side stand indicator 31
•Side stand switch/Side stand 31
•Keys 17
•Fuel 20
•Tyres (Tubeless) 22
•Ignition switch 25
HANDLEBAR SWITCHES CONTROL 26
•Center compartment 28
•Document compartment/First aid kit/
Tool kit holder 28
•LCD panel 16
MAJOR COMPONENTS 18
•Center compartment 33
•Body cover 34
•Front center cover 37
•Front cover 38
BODY PARTS REMOVAL 33
ZONAL/REGIONAL/AREA OFFICES
HERO GENUINE PARTS
PARKING/TOOL KIT/FIRST AID KIT 49
CLEANING OF VEHICLE/WASHING OF VEHICLE 50
MAINTENANCE/SAFETY PRECAUTIONS 52
•Rear view mirror 40
PRE-RIDE INSPECTION/ANTI-THEFT TIPS 42
•Headlamp assembly 40
•Headlamp focus adjustment 41
STARTING THE ENGINE 43
RUNNING IN/RIDING 45
•Floor side cover 39
AIR CLEANER ELEMENT 56
THROTTLE OPERATION 58
POLISHING OF VEHICLE 69
REMOVING ROAD SALT 69
STORAGE GUIDE 70
ROAD SIGNS 73
BULB/LED REPLACEMENT 66
WARRANTY
SPARK PLUG/BRAKE SHOE WEAR 62
FUSE REPLACEMENT 64
BASIC TROUBLESHOOTING 71
AIR CLEANER DRAIN TUBE CLEANING 57
MAINTENANCE SCHEDULE 53
ENGINE OIL 59
FINAL DRIVE OIL REPLACEMENT 61
SUSPENSION 65
CATALYTIC CONVERTER 68
EVAPORATIVE EMISSION CONTROL SYSTEM 69
BATTERY 63

Vehicle Identification Number (VIN)
Location: Stamped on the lower right side of
the frame, visible from the window provided
on right floor side cover.
VEHICLE IDENTIFICATION
Engine No.
Location: Stamped on the lower side of
the left crankcase.
JF16EK#
#######
2. For dealing with legal & insurance departments.
1. During registration of the vehicle.
VIN and Engine number may be required:
1
MBLJFW39#########
Model: MAESTRO EDGE PROGRAMMED FI
VIN Engine
Variant
JFW39 JF16EK
Disc/Cast wheel/Integrated brakes
MBL JFW39 # # # #####
Manufacturer
code Vehicle
Description Model Year Plant
Code Month of
Manufacturing Production
Serial Number
#
Check
Digit
Engine No.: JF16EK########
JF16EK # # # #####
Engine
Description Year of
Manufacturing Assembly Plant Month of Manufacturing Serial Number
VIN: MBLJFW39#########

SPECIFICATIONSITEM
Dimensions
Overall length
Overall width
Overall height
Wheelbase
Saddle height
Ground clearance
Weight
Engine oil
Transmission oil
Fuel tank
Maximum power
Maximum torque
Bore and stroke
Compression ratio
Displacement
Capacities
Engine
Spark plug gap
Valve clearance
Idle speed
Intake (cold)
Exhaust (cold)
Chassis and suspension
Spark plug
Chassis type
Front suspension
Rear suspension
Caster angle
VEHICLE SPECIFICATION
2
Pay load
1843 mm
718 mm
1188 mm
1261 mm
775 mm
155 mm
0.80 litre at disassembly and 0.70 litre at draining
0.12 litre at disassembly
0.10 litre at draining
5 litres
6.0 kW @ 7250 r/min
8.70 N-m @ 5750 r/min
50.0x56.5 mm
9.5:1
110.9 cc
Champion-RG8YC (Federal Mogul)
0.8-0.9 mm
0.14±0.02 mm
0.14±0.02 mm
1550±100 r/min
High rigidity under bone
Telescopic, hydraulic shock absorber
Unit swing with spring loaded hydraulic damper
28°
130 kg
112 kgKerb weight

SPECIFICATIONSITEM
Primary reduction
Final reduction Variomatic drive, (2.53-0.8)
9.423 (50/20X49/13)
Transmission
Battery 12V-4Ah/ETZ-5 *MF battery
Electricals
Clutch system Dry, automatic centrifugal clutch
3
Alternator 125 W @ 5000 r/min
Starting system
Headlamp (High/Low)
Tail/Stop lamp
Kick/Electric start
12V-35/35W Halogen bulb-** MFR
12V-0.4W/1.6W Qty-8 nos. (LED)
Turn signal lamp
Position lamp
Meter illumination
12V-10Wx4 nos.(**MFR-Clear lens-Amber bulb)
12V-4.7W (LED)
12V-80 mWx3 nos. (LED-Amber)
Turn signal indicator 12V-105 mWx2 nos. (LED-Green)
Hi beam indicator
Licence plate
Side stand indicator
12V-133 mW (LED-Blue)
12V-5W
12V-80 mW (LED-Red)
* MF stands for Maintenance Free
** MFR stands for Multi-Focal Reflector
VEHICLE SPECIFICATION
Boot lamp 12V-0.5W
LCD illumination 12V-135 mW (LED-Amber)
Programmed FI malfunction indicator lamp (MIL) 12V-135 mW (LED-Amber)
Fuse Main fuses
Spare fuses 15A, 10A, 10A and 10A
15A and 10A
Tyre size Front
Rear
90/90-12 54 J (Tubeless tyre)
90/100-10 53 J (Tubeless tyre)
Hydraulic brake fluid DoT 3 or DoT 4
Brakes Dia 190 mm
Front (Disc type)
Rear (Drum type) Internal expanding shoe type (Dia. 130 mm)

4
Take time to learn & practice your
vehicle
VEHICLE SAFETY
Even if you have ridden other vehicles,
practice riding in a safe area to become
familiar with how this vehicle works and
handles, and to become accustomed to the
vehicle's size and weight.
It is a proven fact, helmet significantly reduces
the number and severity of head injuries. So
always wear a helmet and make sure your
pillion rider does the same. We also
recommend that you wear eye protection,
sturdy boots, gloves and other protective gear
(page 6).
Make sure that you are physically fit, mentally
focused and free of alcohol and drugs. Check
that you and your pillion are both wearing an
approved vehicle helmet and protective
apparel. Instruct your pillion on holding onto
the grab rail or your waist, leaning with you in
turns, and keeping their feet on the footrest
even when the vehicle is stopped.
Before riding your vehicle
Your vehicle can provide many years of
service and pleasure if you take responsibility
for your own safety and understand the
challenges you can meet on the road.
There is much that you can do to protect
yourself when you ride. You will find many
helpful recommendations through out this
manual. Following are a few that we consider
most important.
IMPORTANT SAFETY INFORMATION
Always wear a helmet
Always pay due attention to other vehicles
around you, and do not assume that other
drivers see you. Be prepared to stop quickly or
perform an evasive maneuver.
Keep your vehicle in safe condition
Make yourself easily visible
Ride defensively
Pushing the limits is another major cause of
vehicle accidents. Never ride beyond your
personal abilities or faster than conditions
demand. Remember that fatigue and
negligence can significantly reduce your ability
to make good judgements and ride safely.
Some drivers do not see vehicles because they
are not looking for them. To make yourself
more visible, wear bright reflective clothing,
position yourself so that others can see you,
signal before turning or changing lanes, and
use horn which will help others to notice you.
For safe riding, its important to inspect your
vehicle before every ride and perform all
recommended maintenance. Never exceed
load limits, and use accessories that have been
recommended by Hero MotoCorp for this
vehicle. See (page 7) for more details.
Riding under the influence of alcohol or drugs
is dangerous. Alcohol can reduce your ability
to respond to changing conditions and reduce
the reaction time. Do not drink and ride.
Do not drink and ride
Ride within your limits

Additional riding gear
Helmets and eye protection
Your helmet is your most important piece of
riding gear because it offers the best
protection against head injuries. A helmet
should fit your head comfortably and securely.
A bright coloured helmet can make you more
noticeable in traffic, as can reflective strips.
An open-face helmet offers some protection,
but a full-face helmet offers more. Always
wear face shield or goggles to protect your
eyes and help your vision.
In addition to a helmet and eye protection, we
also recommend:
•Sturdy boots with non-slip soles to help
protect your feet and ankles.
•A two wheeler riding suit or jacket for
comfort as well as protection. Bright
coloured reflective clothing can help make
you more noticeable in traffic. Be sure to
avoid loose clothes that could get caught on
any part of your vehicle.
•Leather gloves to keep your hands warm
and help prevent blisters, cuts, burns, and
bruises.
5
If you are involved in a crash
If you decide to continue riding, first evaluate
the condition of your vehicle. If the engine is
still running, turn it off. Inspect for fluid leaks,
check the tightness of critical nuts and bolts,
and check the handlebar, brake levers, brakes,
and wheels. Ride slowly and cautiously. Your
vehicle may have suffered damage that is not
immediately apparent. Have your vehicle
thoroughly checked at a qualified service
facility as soon as possible.
PROTECTIVE APPAREL
Following are suggestions to help you choose
proper riding gear.
Personal safety is your first priority. If you or
anyone else has been injured, take time to
assess the severity of the injuries and whether
it is safe to continue riding. Call for emergency
assistance if needed. Also follow applicable
laws and regulations if another person or
vehicle is involved in the crash.
For your safety, we strongly recommend that
you always wear an approved helmet (ISI
marked), eye protection, boots, gloves, long
pants and a long sleeve shirt or jacket
whenever you ride. Take care of loose/
hanging clothes while solo/pillion riding.
Although complete protection is not possible,
wearing proper gear can reduce the chance of
injury when you ride.
•Be sure you and your pillion always wear a
helmet, eye protection and other protective
apparel when you ride.
•Not wearing a helmet increases the chance of
serious injury or death in a crash.
WARNING
!!

6
PROTECTIVE APPAREL
Always wear HELMET
Wear bright or
reflective clothing
Wear a face shield or goggles
Shoes should be close fitting,
low heels and offer ankle protection
Wear gloves

However exceeding the weight limit or
carrying an unbalanced load can seriously
affect your vehicle's handling, braking and
stability. Non Hero MotoCorp accessories,
modifications, and poor maintenance can
reduce your safety margin.
LOAD LIMITS AND GUIDELINES
Your vehicle has been designed to carry you,
one pillion and limited amount of cargo. When
you add cargo or carry a passenger, you may
feel some difference during acceleration and
braking. But so long as you keep your vehicle
well maintained, with good tyres and brakes,
you can safely carry loads within the limits and
guidelines.
How much weight you put on your vehicle,
and how you load it, are important to your
safety. Anytime you ride with a pillion or cargo
you should be aware of the following
information.
The following pages give more specific
information on loading, accessories and
modifications.
Loading
Front luggage hook : 3.0 kg
Rear luggage hook : 1.5 kg
Center compartment : 10.0 kg
Putting too much weight in individual storage
compartments can also affect stability and
handling. So be sure to stay within the limits
given below:
Maximum weight:
Load limits
Following are the load limits for your vehicle:
Includes the weight of the rider, pillion, all
cargo and all accessories.
Maximum weight capacity: 130 Kg
Loading guidelines
Improperly loading your vehicle can affect its
stability and handling. Even if your vehicle is
properly loaded, you should ride at reduced
speeds whenever carrying cargo.
Your vehicle is primarily intended for
transporting you and a pillion. If you wish to
carry more cargo, check with your Authorised
Hero MotoCorp workshop for advice and be
sure to read the information regarding
accessories on (page 8).
7
•Follow all load limits and other loading
guidelines in this manual.
•Overloading or improper loading can cause a
crash and you can be seriously injured.
WARNING
!!
(1) uggage ook (2) uggage ookFront l h Rear l h
(3) Center compartment
1
2
3

MotoCorp accessories can make your vehicle
ACCESSORIES AND MODIFICATIONS
Follow these guidelines whenever you carry a
pillion or cargo:
•To prevent loose items from creating a
hazard, make sure the center compartment
is closed and that any other cargo is securely
tied down before you ride away.
•Balance cargo weight evenly on both sides.
•Place cargo weight as close to the center of
the vehicle as possible.
Modifying your vehicle or using non Hero
unsafe. Before you consider making any
•Check that both tyres are properly inflated.
modifications or adding any accessory, be sure
to read the following information.
Accessories
We strongly recommend that you use only
genuine Hero MotoCorp accessories that
have been specifically designed and tested for
your vehicle. Hero MotoCorp cannot test all
other accessories, you must be personally
responsible for proper selection, installation
and use of non Hero MotoCorp accessories.
Removing or modifying your lamps, muffler,
emission control system or other equipment
can also make your vehicle not meeting the
emission standards.
Check with your dealer for assistance and
always follow these guidelines:
•Do not pull a trailer or sidecar with your
vehicle. This vehicle is not designed for
these attachments, and their use can
seriously impair your vehicle handling.
We strongly advise you not to remove any
original equipment or modify your vehicle in
any way that would change its design or
operation. Such changes could seriously
impair your vehicle's handling, stability and
braking, making it unsafe to ride.
•Make sure the accessories does not obstruct
any lamps, reduce ground clearance and
banking angle, limit suspension travel or
steering travel, alter your riding position or
interfere with operating any controls.
Modifications
•Be sure electrical equipment does not
exceed the vehicle's electrical system
capacity (page 3). A blown fuse can cause
loss of lights.
8
•Follow all instructions in this owner's manual
regarding accessories and modifications.
•Improper accessories or modifications can
cause a crash in which you can be seriously
hurt or killed.
WARNING
!!

•Ride defensively and at a steady speed
(between 40-50 km/hr).
•To stop the vehicle (in integrated brake
system), press the integrated brake lever for
the application of front and rear brakes
simultaneously. However, for more effective
braking, it is advised to apply both front and
rear brake simultaneously, keeping the
throttle in close position.
•Respect road signs and obey traffic rules for
your own safety and that of others on the
road . (page 73)
•While riding, keep your leg closed and sit in
a comfortable position.
•During night time, dip headlamps of your
vehicle for oncoming traffic, or when
following another vehicle.
•Give way to others on the road and signal
before you make a turn.
•Always wear a helmet (ISI marked) with
chin strap securely fastened and insist on a
helmet for your pillion rider.
•To make yourself more visible, wear bright
reflective clothing that fits well.
•Always conduct simple pre-ride inspection
(page 42).
•Take care of loose/hanging clothes while
solo/pillion riding.
•Get your vehicle serviced regularly by the
Authorised Hero MotoCorp workshop.
•Never ride under the influence of alcohol or
drugs.
•Never use cell phone while riding the
vehicle.
•Avoid sudden acceleration, braking and
turning of your vehicle.
•Concentrate on the road and avoid talking
to the pillion rider or others on the road.
•Never take your hands off the steering
handle while riding.
•Do not cross the continuous white/yellow
line in the center of the road, while
overtaking.
•Never touch any part of the hot exhaust
system like muffler.
•Do not litter the road.
•Do not attach large or heavy items to the
handlebars.
•Do not move the side stand down while
riding, as engine will get stop (page 32)
(Wheel locking leading to accident, part
damage etc.).
SAFE RIDING TIPS
Do's: Don'ts:
9

•Emission pollution: Get emission of your vehicle checked by Authorised agencies atleast
once every 3 months or as notified by the government from time to time.
•Genuine spares: Always insist on Hero MotoCorp genuine parts as spurious or
incompatible spares and accessories can upset or deteriorate your vehicle’s running
condition.
•Genuine engine oil: Hero 4T Plus SAE 10W 30 SL grade (JASO MB) engine oil
recommended by Hero MotoCorp and make sure you change it every 6000 km (with
top up every 3000 km) to keep the engine fit and environment healthy.
•Healthy engine: The engine is the lifeline of every vehicle. To keep it healthy, it should be
tuned regularly, which will also help reduce pollution and improve vehicle performance &
fuel efficiency.
•BS-VI grade fuel: Always use BS-VI grade fuel to adhere BS-VI norms.
•Regular servicing: Get your vehicle serviced at an Authorised Hero MotoCorp
workshop, as per the service schedule, for an optimum performance and keep the emission
level under check.
•Fuel saving & Reduce pollution: Switch "OFF" the engine while waiting at traffic
signal points to save fuel and reduce pollution, if the waiting period is long.
•Noise pollution: Noise beyond a certain decibel is pollution. Whether it is from horns or
defective mufflers, excessive noise will cause headaches and discomfort.
The following tips shall ensure a healthy vehicle, healthy environment, and a healthy you.
TIPS FOR HEALTHY ENVIRONMENT
10

TOP VIEW VEHICLE VIEWS
(1) Programmed FI malfunction
indicator lamp (MIL)
(4) Turn signal switch
(5) Integrated brake lever
(7) Dimmer switch/Passing switch
(10) Speedometer
(3) Horn switch
(2) Turn signal indicator
(6) Rear view mirror
(8) Side stand indicator
(9) Hi beam indicator
(12) Service reminder
(11) Fuel gauge
(13) Tripmeter
(14) Front brake master cylinder (inside) /Reservoir
(15) Front brake lever
(17) Starter switch
(19) Ignition switch with steering lock, seat lock
and fuel lid opener
(16) Throttle grip
(18) Odometer
(20) Reset button
*Accessories and features shown may not be part of standard fitment.
11
15
17
18
19
20
16
5
6
1
3
2
4
11
812 10
7913 14

12
*Accessories and features shown may not be part of standard fitment.
(5) Side stand
(1) Front brake disc
(4) Side stand switch
(6) Main stand
(2) Caliper assembly
(3) CCB valve (inside)
(16) Front reflex reflector
(15) Headlamp
(13) Boot lamp (inside)
(12) Seat
(14) Rear luggage hook
LEFT SIDE VIEW
(8) Kick starter pedal
(11) Rear grip
(7) Pillion step
(9) Rear turn signal lamp
(10) Tail/stop lamp
15
16
12
14 13 11
9
10
67
345
18
2

13
*Accessories and features shown may not be part of standard fitment.
(1) Exhaust muffler
(2) Hugger fender
(3) Oil level dipstick
(4) Pillion step
(5) Front fender
(6) Front turn signal lamp
(7) Position lamp
(10) Center compartment (inside)
(9) USB charger (inside)
(8) Front luggage hook
RIGHT SIDE VIEW
(12) Rear reflex reflector
(11) Licence plate lamp
(13) Rear fender
8
10 9
12
13
1 3 4
7
6
5
11
2

14
PART FUNCTIONS
INSTRUMENTS AND INDICATORS
The indicators are in the speedometer panel
above the headlamp. The functions are as
below. 1
2 3
6
11 7
5
2 High beam indicator Light glows when headlamp is in Hi beam.
3 Speedometer Indicates riding speed.
5 Service reminder Displays when a service is due (page 17).
Shows the distance traveled since the last reset
6 Tripmeter
(page 16).
Sl. No. Description Function
Indicates approximate fuel quantity in the form of
digital segments. The fuel gauge segments will display
its maximum scale on the fuel gauge LCD panel once
when the ignition switch it turned "ON".
4 Fuel gauge
1 Side stand indicator
10
7 Odometer (page 16).Shows accumulated distance travelled
8 Turn signal indicator (R) Flashes when right turn signal switch is operated.
8
9
4
Light glows when the vehicle is parked on the side
stand. Side stand indicator glows continuously, if any
fault detected in the side stand system.

Sl. No. Description Function
9 Reset button Button when long pressed resets tripmeter to zero.
11 Turn signal indicator (L) Flashes when left turn signal switch is operated.
lamp (MIL)
Programmed-FI
10 malfunction indicator
When the ignition switch is turned “ON” the
programmed-FI malfunction indicator lamp (MIL)
glows continuously until the vehicle starts. It indicates
that programmed FI system is OK. If MIL remains
“ON” even if the vehicle is started, there is an
abnormality in the programmed FI system. It is
recommended to reduce the speed and drive to the
Authorised Hero MotoCorp workshop for check-up.
15

16
The odometer (1) shows accumulated
distance travelled.
The odometer displays from "0 to 999999" km
Tripmeter displays upto 999.9 km If the
tripmeter exceeds "999.9" km it will return
to "0.0" km automatically.
LCD PANEL
(a) Odometer/Tripmeter
When tripmeter is selected long press the reset
button (3) will reset tripmeter to zero.
The tripmeter (2) shows distance travelled
since trip meter was reset last time.
(1) Odometer (2) Tripmeter
(3) Reset button
20
0
40
00
20
F
E
km /h
2
3 1
The fuel gauge (1) is of a liquid crystal display
(LCD) type.
The approximate amount of fuel quantity
available in the fuel tank is indicated by the
number of segments (2) in the display.
(b) Fuel gauge
If all the segments are displayed it means fuel
quantity in the fuel tank is approximately 5.0
litres.
If only one segment (3) is displayed and start
blinking, this indicates that the fuel quantity is
low (approx 1 litre of fuel is available in fuel
tank). The fuel tank should be refilled as soon
as possible.
(1) Fuel gauge (2) Vertical bars
(3) One segment
00
20
CAUTION
!!
Please ensure the vehicle is not used
continuously when the fuel level indicator
reaches the one segment blinking. It will not only
result in the vehicle running out of fuel, it may
also cause serious damage to the fuel pump.
Please ensure fuel is filled up as soon as the fuel
level indicator reaches one segment blinking.
NOTE
To check the fuel level indication, the vehicle
should be on levelled surface and in stationary
condition.
3
2
1

17
TOTAL
DISTANCE
(Odometer Reading)
OFF
Blinking
ON
Blinking
ON
Blinking
ON
•
•
•
Indicator
Behaviour
0 km
500 - 750 km
After 750 km
3000 - 3500 km
After 3500 km
6000 - 6500 km
After 6500 km
•
•
•
(1) Keys (2) Key number plate
XXXX
1 2
This vehicle has two keys and a key number
plate.
KEYS
You will need the key number if you ever have to
replace a key. Store the plate in a safe place.
The service reminder (1) is to indicate to a
user to bring the vehicle to an Authorised Hero
MotoCorp workshop for service.
(c) Service reminder
The service reminder shall start blinking when
the vehicle covers kilometers as specified in
the maintenance schedule. The service
reminder will keep on blinking throughout the
kilometer interval for a particular service and
will stay “ON” thereafter.
The service reminder can be reset at an
Authorised Hero MotoCorp workshop.
NOTE
After getting the vehicle serviced, make sure
that the service reminder has been reset.
(1) Service reminder
20
0
40
00
20
F
E
km /h
1
