HERO IGNITOR TECHNO User manual

No : IB12B
PREFACE
This booklet is your guide to the basic operation and maintenance of your new
IGNITOR TECHNO Please take time to read it carefully. As HMCL Niloy Bangladesh Ltd.
with any fine machine, proper care and maintenance are essential for trouble-free operation
and optimum performance.
Thank you for selecting a IGNITOR TECHNO We wish you HMCL Niloy Bangladesh Ltd.
many miles of continued riding pleasure in the years ahead.
We at , are committed to demonstrate excellence in our HMCL Niloy Bangladesh Ltd.
environment performance on a continual basis, as an intrinsic element of our corporate
philosophy. To achieve this we commit ourselves to continue product innovations to improve
environment compatibility, comply with all applicable environment legislation and strengthen
the green supply chain.
Authorised Distributor or the authorised dealer(s) of the Distributor ("Dealer") will be glad to
provide further information or assistance and to handle your future service needs.
Let us make this world a safer, healthier and more environment friendly place.

HMCL Niloy Bangladesh Ltd. RESERVES THE RIGHT TO MAKE CHANGES IN ITS
CONTENTS AT ANY TIME WITHOUT NOTICE AND/OR INCURRING ANY
OBLIGATION, WHATSOEVER. NO ONE IS ALLOWED TO REPRODUCE ANY
PART OF THIS PUBLICATION WITHOUT OBTAINING PRIOR WRITTEN
PERMISSION FROM HMCL Niloy Bangladesh Ltd.
ALL INFORMATION, ILLUSTRATION, PHOTOGRAPH, DIRECTIONS,
SPECIFICATIONS AND OTHER CONTENTS COVERED IN THIS OWNER'S
MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION AVAILABLE
AT THE TIME OF ITS PRINTING APPROVAL, AND THE ACCURACY OR
CORRECTNESS OF THE SAME IS NOT UNDERTAKEN OR GUARANTEED.
NOTE

Pg. No.
CONTENTS
Pg. No.
•Spark plug inspection 29
•Maintenance schedule 26
•Ignition switch 12
•Maintenance safety 25
VEHICLE VIEWS 2
•Important safety information 8
•Safety precaution 25
TIPS FOR HEALTHY ENVIRONMENT 11
PARTS FUNCTION 12
VEHICLE IDENTIFICATION 1
SAFE RIDING TIPS 10
•Protective apparel 9
ACCESSORIES & MODIFICATIONS 7
ANTI-THEFT TIPS 7
•Steering lock 14
•Fuel valve 18
STARTING THE ENGINE 21
RIDING 22
•Instruments & Indicators 13
•Seat lock/Helmet hanger 19
•i3s (Idle stop start system) 16
•Fuel tank 17
VEHICLE SPECIFICATION 5
TOOL KIT 23
PRE-RIDE INSPECTION 20
CLEANING AND WASHING OF VEHICLE 24
•Importance of maintenance 24
PARKING 23
BRAKING 22
MAINTENANCE 24
FEATURES 14
VEHICLE SAFETY 8
HANDLEBAR SWITCHES CONTROL 15
•Suspension 43
•Engine oil level inspection/Top up process 30
•Oil filter screen & Centrifugal filter cleaning 31
•Air cleaner 32
•Engine oil replacement/Oil circulation inspection 30
•Carburetor (Idle speed adjustment) 33
•Engine oil 29
•Valve clearance adjustment 34
•Clutch lever free play adjustment 36
•Throttle operation & free play adjustment 36
•Bystarter operation 37
•Drive chain slackness adjustment 37
•Drive chain slider inspection 39
•Brakes 40
•Wheel 44
•Main/Side stand lubrication 46
•Tyre 46
•Nuts, bolts & fasteners 49
•Stop lamp switch 52
BASIC TROUBLESHOOTING 55
•Air suction valve (Secondary air injection system) 53
JOBS APPLICABLE TO PERIODIC SERVICES
DELIVERY CERTIFICATE
•Headlamp focus adjustment 52
POLISHING OF VEHICLE 54
SERVICE ADVICE SHEET
•Fuse replacement 51
OWNERSHIP RECORD & DATA
SERVICE RECORD SHEET
•Evaporative emission control 54
GENUINE PARTS
•Battery 50
•Catalytic converter 53

PS1XXSO2XYZXYYYYY
VIN and Engine No. may be required:
2. For dealing with legal & insurance departments.
1. During registration of the vehicle.
Location: Stamped on the right side of the
steering head tube.
Location: Stamped on the lower side of the
left Crankcase.
Engine No.: XXXXEFYZXYYYYY
MODEL: IGNITOR TECHNO
VIN
R01
Engine
EH
EH
Electric start/Disc/Cast wheel
Electric start/Drum/Cast wheel
Variants
XXXXEF Y Z X YYYYY
Engine
Description Year of
Manufacturing Assembly Plant Month of Manufacturing Serial Number
VIN Engine No.
XXXXEFY
ZXYYYYY
1
VIN: PS1XXS02XYZXYYYYY
PS1 XXS02 Y Z X YYYYY
Manufacturer
code Vehicle
Description Model Year Plant
Code Month of
Manufacturing Production
Serial Number
X
Check
Digit
S02
VEHICLE IDENTIFICATION

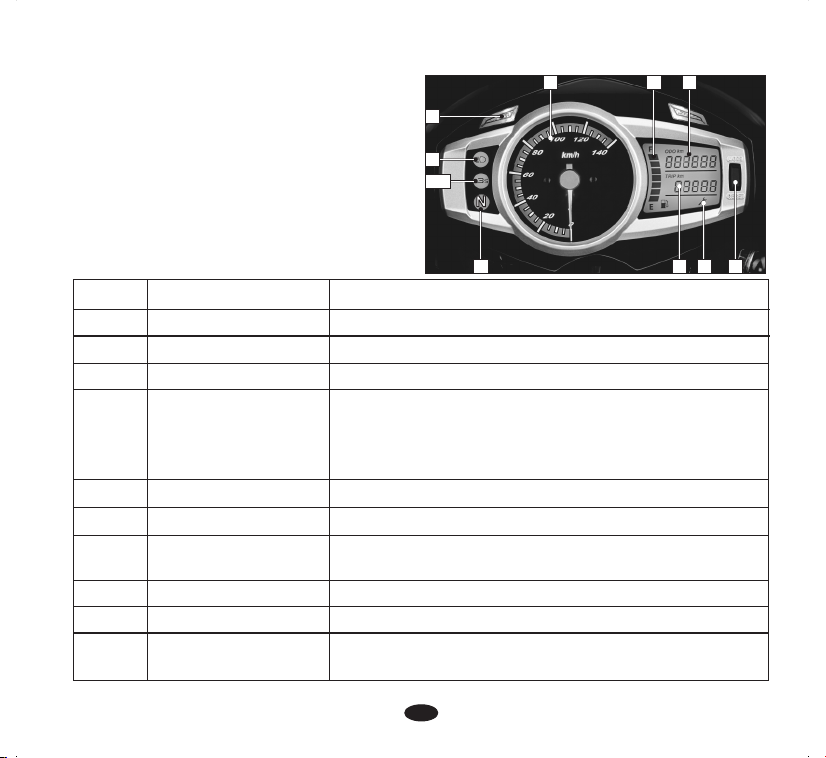

(10) Speedometer
(6) Headlamp dimmer switch
(1) Horn switch
(3) Clutch lever
(2) Turn signal switch
(8) i3s indicator
(9) High beam indicator
(5) Pass lamp switch
(4) Rear view mirror
(7) Neutral indicator

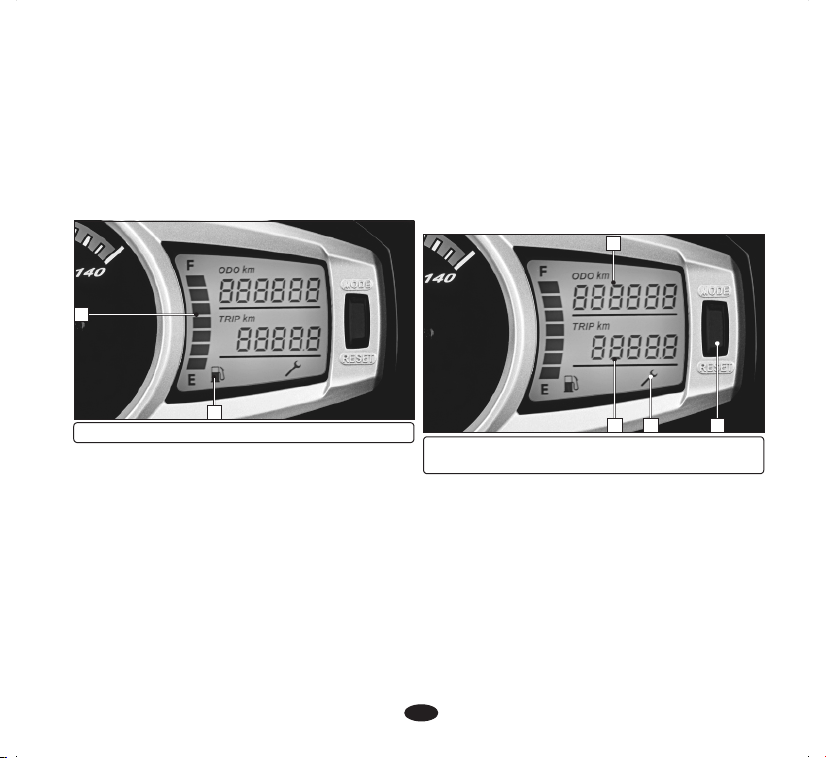

(12) LCD panel
(16) Front brake lever
(18) Electric starter switch

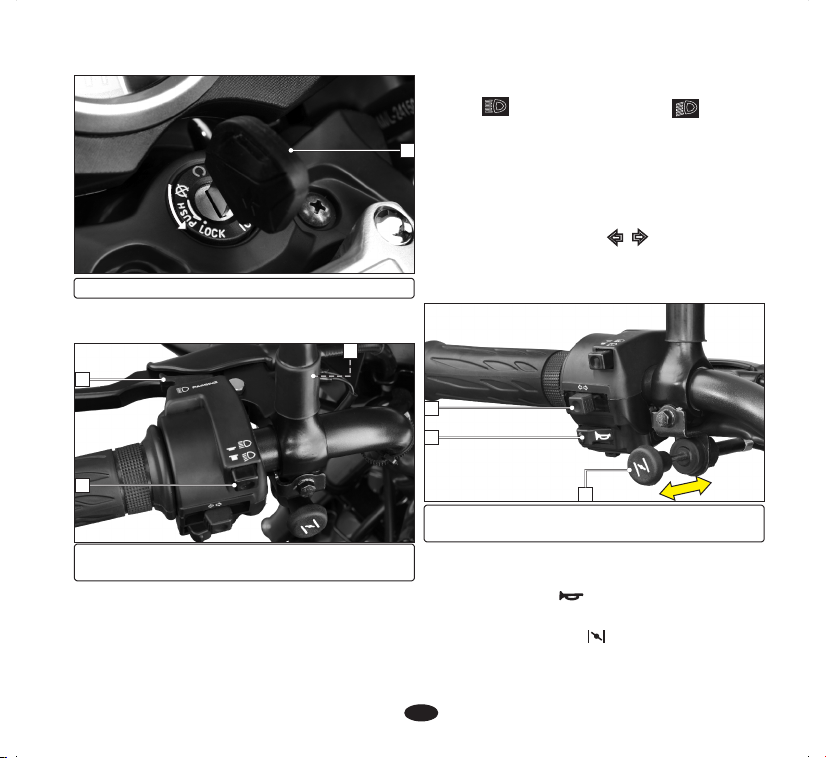

(19) Ignition switch with steering lock
(13) Reset button
(15) i3s switch
(20) Fuel tank cap
(11) Turn signal indicator
(17) Throttle grip
(14) Master cylinder (Optional)
*Accessories and features shown may not be part of standard fitment.
TOP VIEW VEHICLE VIEWS
1
4
5
13
17
18
20
2
76 8 10 11 12
3
2
9 14
15
16
19

*Accessories and features shown may not be part of standard fitment.
3
LEFT SIDE VIEW
13
12
10
123456
7
VEHICLE VIEWS
11
8
9
(10) Tail/Stop lamp
(11) Rear grip
(13) Front turn signal lamp
(12) Side cover left
(3) Carburetor
(5) Rider foot rest
(4) Gear shift pedal
(2) Fuel valve
(1) Front reflex reflector (6) Side stand
(7) Pillion foot rest
(8) /Seat lock Helmet
hanger
(9) Licence plate lamp

(7) Oil level dipstick
(10) Headlamp
(6) Starter motor
(11) Front visor
(9) Front brake disc (Optional)
(8) Caliper assembly (Optional)
(12) Air suction valve
(13) Rear turn signal lamp
(14) Rear reflex reflector
(15) Exhaust muffler
(1) Pillion foot rest
(3) Kick starter pedal
(5) Brake pedal
(2) Battery compartment
(inside)
(4) Rider foot rest
13
RIGHT SIDE VIEW
*Accessories and features shown may not be part of standard fitment.
10
11
9
8
7
5
41 32
4
VEHICLE VIEWS
6
14
15
12

SPECIFICATIONSITEM
Dimensions
Overall length
Overall width
Overall height
Wheelbase
Saddle height
Ground clearance
Kerb weight
2023 mm
766 mm
1091 mm
1262 mm
790 mm
159 mm
127 kg
Weight
Engine oil
Fuel tank
Fuel reserve capacity
Front fork oil disassembly
Hydraulic brake fluid
Maximum power
Maximum torque
Bore and stroke
Compression ratio
Displacement
Spark plug gap
Valve clearance (cold)
Idle speed
Front Suspension
Rear Suspension
0.95 litres at disassembly and 0.75 litre at draining
11 litres (Minimum)
1.4 litre
163 ml
DoT 3 or DoT 4
8.30 kw @ 7500 rpm
11.0 Nm @ 6500 rpm
52.4x57.8 mm
10:01
124.7 cc
0.8-0.9 mm
0.1 mm
0.1 mm
1400±100 rpm
Telescopic hydraulic shock absorbers
Rectangular swing arm with 5 step adjustable
hydraulic shock absorber
Capacities
Engine
Intake (cold)
Exhaust (cold)
Chassis and suspension
Spark plug NGK-CPR6EA9
VEHICLE SPECIFICATION
5

VEHICLE SPECIFICATION SPECIFICATIONSITEM
**MFR stands for Multi-Focal Reflector
*MF stands for Maintenance Free
LED
Trail length 86 mm
Tyre size 80/100-18 47P (Tubeless Tyre)
90/90-18 51P (Tubeless Tyre)
Front
Rear
Primary reduction
Final reduction
st
Gear ratio, 1
rd
3th
4
Battery
Alternator
Starting system
Headlamp (High/Low)
Tail/Stop lamp
Turn signal lamp
Meter illumination
Neutral indicator
Turn signal indicator
Position lamp
Hi Beam indicator
Licence plate lamp
3.350 (67/20)
3.385 (44/13)
2.769 (36/13)
1.500 (30/20)
1.095 (23/21)
0.913 (21/23)
12V-3Ah (ETZ-4), *MF Battery
120 W @ 5000 rpm
Kick/Electric Start (idle stop start system- i3s)
12V-3.0W
Transmission
Electricals
Cast Wheel
Cast Wheel
Front Wheel
Rear Wheel
nd
2
Brakes Dia. 240 mm (Optional)
Dia. 130 mm
Dia. 130 mm
Front (Disc type)
Front (Drum type)
Rear (Drum type)
12V-35/35W Halogen Bulb-**MFR
LED
12V-3.0W
LED
LED
LED
12V-10Wx4 (Amber bulb) with clear lens-**MFR
Caster angle 26°
6
i3s indicator LED
Fuse 10A, 15A, 20A

ACCESSORIES & MODIFICATIONS
Modifying your vehicle or using non-genuine
accessories can make your vehicle unsafe.
Before you consider making any modifications
or adding an accessory, be sure to read the
following information.
impair your vehicle's handling, stability and
braking, making it unsafe to ride. Removing
or modifying your lamps, mufflers, emission
control system or other equipment can also
make your vehicle illegal.
•Park your vehicle in a locked garage
whenever possible.
•Use an additional anti-theft device of good
quality.
•Enter your name, address and phone
number in this Owner's Manual and keep it
in your vehicle at all times. Many times
stolen vehicles are identified by information
in the Owner's Manuals that are still with
them.
NAME: _____________________________________________
•Be sure the registration information for your
vehicle is accurate and correct.
•Never park your vehicle in an isolated area.
Park as for as possible in a designated area.
•Always lock the steering and never leave the
key in the ignition switch. This sounds
simple but people do forgets.
ADDRESS: _______________________________________
_______________________________________________________
_______________________________________________________
ANTI-THEFT TIPS
_______________________________________________________
PHONE NO : _____________________________________
Accessories
•Make sure that the accessory does not
obscure any lamps, reduce ground
clearance, limit suspension travel or steering
travel, affect your riding position or interfere
with operating any controls.
•Be sure electrical equipment does not
exceed the vehicle's electrical system
capacity (page 6). A blown fuse can cause
a loss of lights.
•Do not pull a trailer or sidecar with your
vehicle. This vehicle was not designed for
these attachments, and their use can
seriously impair your vehicle's handling.
Modifications
•We strongly advise you not to remove any
original equipment or modify your vehicle in
any way that would change its design or
operation. Such changes could seriously
7
•Improper accessories or modifications can
cause a crash in which you can be seriously
hurt or killed.
•Follow all instructions in this owner's manual
regarding accessories and modifications.
WARNING
!!

There is much that you can do to protect
yourself when you ride. You will find many
helpful recommendations through out this
manual. Following are a few that we consider
most important.
Make sure that you are physically fit, mentally
focused and free of alcohol and drugs. Check
that you and your pillion are both wearing an
approved vehicle helmet and protective
apparel. Instruct your pillion on holding onto
the grab rail or your waist, leaning with you in
turns, and keeping their feet on the footrest,
even when the vehicle is stopped.
Important safety information
Your vehicle can provide many years of
service and pleasure if you take responsibility
for your own safety and understand the
challenges you can meet on the road.
Always wear a helmet
Even if you have ridden other vehicles,
practice riding in a safe area to become
familiar with how this vehicle works and
handles, and to become accustomed to the
vehicle's size and weight.
VEHICLE SAFETY
It is a proven fact, Helmet significantly reduces
the number and severity of head injuries. So
always wear a helmet and make sure your pillion
rider does the same. We also recommend that
you wear eye protection, sturdy boots, gloves
and other protective gear.
Before riding your vehicle
Take time to learn & practice your vehicle
Some drivers do not see vehicles because they
are not looking for them. To make yourself more
visible, wear bright reflective clothing, position
yourself so that others can see you, signal before
turning or changing lanes, and use horn which
will help others to notice you.
Keep your vehicle in safe condition
Make yourself easily visible
Do not drink and ride
For safe riding, its important to inspect your
vehicle before every ride and perform all
recommended maintenance. Never exceed
load limits, and only use accessories that have
been approved by HMCL Niloy Bangladesh
Ltd. for this vehicle.
Ride within your limits
Ride defensively
Pushing the limits is another major cause of
vehicle accidents. Never ride beyond your
personal abilities or faster than conditions
demand. Remember that fatigue and
negligence can significantly reduce your ability
to make good judgements and ride safely.
Always pay due attention to other vehicles
around you, and do not assume that other
drivers see you. Be prepared to stop quickly or
perform an evasive maneuver.
Riding under the influence of alcohol or drugs
is dangerous. Alcohol can reduce your ability
to respond to changing conditions and reduce
the reaction time. Do not drink and ride.
8

Helmets and eye protection
Additional riding gear
Your Helmet is your most important piece of
riding gear because it offers the best
protection against head injuries. A helmet
should fit your head comfortably and securely.
A bright coloured helmet can make you more
noticeable in traffic, as can reflective strips.
An open-face helmet offers some protection,
but a full-face helmet offers more. Always
were face shield or goggles to protect your
eyes and help your vision.
In addition to a helmet and eye protection, we
also recommend:
•Sturdy boots with non-slip soles to help
protect your feet and ankles.
•A two wheeler riding suit or jacket for
comfort as well as protection. Bright
coloured reflective clothing can help make
you more noticeable in traffic. Be sure to
avoid loose clothes that could get caught on
any part of your vehicle.
•Leather gloves to keep your hands warm
and help prevent blisters, cuts, burns, and
bruises.
If you are involved in a crash
Personal safety is your first priority. If you or
anyone else has been injured, take time to
assess the severity of the injuries and whether
it is safe to continue riding. Call for emergency
assistance if needed. Also follow applicable
laws and regulations if another person or
vehicle is involved in the crash.
Protective apparel
For your safety, we strongly recommend that
injury when you ride.
pants and a long sleeve shirt or jacket
whenever you ride. Take care of loose/
hanging clothes while solo/pillion riding.
Although complete protection is not possible,
Following are suggestions to help you choose
proper riding gear.
wearing proper gear can reduce the chance of
If you decide to continue riding, first evaluate
the condition of your vehicle. If the engine is
still running, turn it off. Inspect for fluid leaks,
check the tightness of critical nuts and bolts,
and check the handlebar, brake levers, brakes,
and wheels. Ride slowly and cautiously. Your
vehicle may have suffered damage that is not
immediately apparent. Have your vehicle
thoroughly checked at a qualified service
facility as soon as possible.
you always wear a helmet which should
conform as per your country standards, in
addition to eye protection, boots, gloves, long
9
•Be sure you and your pillion always wear a
helmet, eye protection and other protective
apparel when you ride.
•Not wearing a helmet increases the chance of
serious injury or death in a crash.
WARNING
!!

SAFE RIDING TIPS
10
•Ride defensively and at a steady speed
(between 40-50 km/hr).
•Always wear a helmet with chinstrap
securely fastened and insist on a helmet for
your pillion rider. Helmet should conform as
per safety standards applicable in your
country.
•While riding, sit in a comfortable position
with your legs close to fuel tank.
•To make yourself more visible, wear bright
reflective clothing that fits well.
•For stopping vehicle, use both brakes
simultaneously, keeping throttle in the close
position.
•During night time, dip headlamps of your
vehicle for oncoming traffic, or when
following another vehicle.
•Always conduct simple pre-ride inspection
(page 20).
Do's:
•Give way to others on the road and signal
before you make a turn.
•Tightly wrap loose/hanging clothes & avoid
entangling with moving parts.
•Get your vehicle serviced regularly by the
Authorised Distributor/Dealer.
•Before riding make sure in which mode you
are riding whether with i3s switch “ON’ or
“OFF”.
Don't:
•Never use cell phone while riding the
vehicle.
•Avoid sudden acceleration, braking and
turning of your vehicle.
•Never shift gears without disengaging the
clutch and closing the throttle.
•Never ride under the influence of alcohol or
drugs.
•Never touch any part of the hot exhaust
system like muffler.
•Concentrate on the road and avoid talking
to the pillion rider or others on the road.
•Do not litter the road.
•Do not cross the continuous white/yellow
line in the center of the road, while
overtaking.
•Do not attach large or heavy items to the
handlebars, front forks, or fenders.
•Never take your hands off the steering
handle while riding.

11
The following tips shall ensure a healthy vehicle, healthy environment, and a healthy you.
•Healthy engine: The engine is the lifeline of every vehicle. To keep it healthy, it should be
tuned regularly, which will also help reduce pollution and improve vehicle performance &
fuel efficiency.
•Noise pollution: Noise beyond a certain decibel is pollution. Whether it is from horns or
defective s, excessive noise will cause headaches and discomfort.muffler
•s r pFuel aving & educe ollution: Switch "OFF" the engine while waiting at traffic signal
points to save fuel and reduce pollution, if the waiting period is long.
•Genuine engine oil: Hero 4T Plus SAE 10W 30 SL grade (JASO MA2) engine oil
recommended by HMCL Niloy Bangladesh Ltd. and make sure you change it every 6000
km (with top up every 3000 kilometres) to keep the engine fit and environment healthy.
•sGenuine pares: Always insist on genuine parts as spurious or incompatible spares and
accessories can upset or deteriorate your vehicle’s running condition.
•sRegular ervicing: Get your vehicle serviced at an Authorised Distributor/Dealer, as per
the service schedule, for an optimum performance and keep the emission level under check.
TIPS FOR HEALTHY ENVIRONMENT

“LOCK” Position
PARTS FUNCTION
Ignition switch
2
1
3
(1) Ignition switch
(2) Ignition key
(3) Steering lock position
The engine can be started. Turn signal lamps,
Horn, Tail/Stop lamp, Fuel gauge and Pass
lamp will be functional. Key cannot be removed.
Engine cannot be started and no electrical
system will be functional. Key can be removed.
Key can be removed.
Key Removal
Steering can be locked.
Function
“LOCK”
“OFF”( )
Key Position
12
“ON” ( )
“ON” ( )
Position
“OFF”( )
Position/
Lock Open

Sl. No.
(1) High beam indicator Light glows when headlamp is in Hi Beam.
986
54
3
1
2
Instruments and Indicators
The indicators are in the speedometer panel
above the headlamp. The functions are as
below.
Description Function
13
10
7
(2) Turn signal indicators Flashes when turn signal switch is operated.
(3) Speedometer Indicates driving speed.
Indicates approximate quantity of fuel in the form of digital
(4) Fuel gauge segments. The fuel gauge segments will display its
maximum scale on the fuel gauge LCD panel once when
the ignition switch is turned "ON".
(6) Reset button To reset the tripmeter to zero before starting a new trip.
Service reminder
(7) Displays when the next service is due (page 14).
indicator
(8) Tripmeter Shows the distance travelled during a trip.
(9) Neutral indicator Light glows when vehicle is in neutral.
Indicator
(10) glows for few seconds and turns “OFF” i3s indicator indicating that i3s system is functional.
(5) Odometer Shows accumulated distance travelled.

(a) Fuel gauge
The fuel gauge (1) is of a Liquid Crystal
Display (LCD) type. The approximate
amount of fuel quantity available in the fuel
tank is indicated by the number of segments
(2) in the display. If all the segments (2) are
displayed it means fuel quantity in the fuel tank
is litres (Minimum). 1 1
The Odometer (3) shows accumulated
distance travelled.
If only one segment (2) is displayed and
blinks, this indicates that the fuel quantity is
low and is in reserve. The fuel tank should be
refilled as soon as possible.
The Tripmeter (4) shows distance travelled
per trip. The Tripmeter can be reset to zero by
pressing the RESET button (5).
(b) Odometer/Tripmeter/Service
reminder indicator
The Service Reminder Indicator (6) is to
indicate user to bring the vehicle to an
(1) Fuel gauge (2) Segments
14
(3) Odometer (4) Tripmeter
(5) Reset button (6) Service reminder indicator
Authorised Distributor/Dealer for service. The
indicator shall start blinking when the vehicle
covers kilometers as specified in the
maintenance schedule. The indicator will keep
on blinking throughout the kilometer interval
for a particular service and will stay ‘‘ON’’
thereafter. The Service Reminder Indicator
can only be reset at an Authorised Distributor/
Dealer.
the handle bar towards left or right & push the
key downwards & turn towards “LOCK”
position. After locking, take out the key.
Steering lock
Steering lock is with ignition switch, put the
ignition key (1) to “OFF” position & turn
2
1
FEATURES
4
3
65

4
5
15
1. Passing switch
2. Headlamp Dimmer switch
Gives an indication for passing ahead.
Press passing lamp switch(1) to operate the
passing lamp.
The headlamp operates only when the engine
(1) Ignition key
1
3
1
2
IMPORTANT: To switch “OFF” the turn signal
after completing the turn, gently push inside.
5. Horn switch ( )
Press the horn switch(5) to operate the horn.
6. Bystarter Knob ( )
To apply bystarter, pull the knob (6) towards
the rider.
(a) Left handlebar controls
HANDLEBAR SWITCHES CONTROL
(1) Passing switch (2) Headlamp dimmer switch
(3) Clutch switch
(4) Turn signal switch (5) Horn switch
(6) Bystarter knob
6
3. Clutch Switch
Shift the turn signal switch (4) sideways for
Right/Left indications and leave it to come
back to its normal position on its own.
Select “ ” for high beam and “ ” for low
beam.
is running or when passing switch is operated.
4. Turn signal switch ( )
There is a clutch switch (3) provided for the
safety of the rider. The vehicle cannot be started
by electric starter switch until the clutch lever is
operated when the vehicle is engaged in gear.

16
2. i3s Switch
There is an i3s switch provided to enable (2)
the rider for turning i3s mode “ON” or “OFF”
based on the traffic conditions.
•Never hold electric starter switch continuously
more than 5 seconds as continuous cranking
of engine will drain the battery.
•During electric or clutch start, the engine will
cut-off if engine reaches 900 rpm if the
relay is engaged for more than 5 seconds.
CAUTION
!!
Starting & Warm up the engine:
Start the engine and let it idle for 2-3
minutes.
Keep the i3s switch (1) to “OFF” position.
Turn the ignition key to “ON” position. The
i3s indicator (2) will glow on the speedometer
console for 2 seconds and turn “OFF”.
i3s (Idle stop start system)
(1) i3s switch
(2) i3s indicator
(b) Right handlebar controls
1. Electric starter switch
engaged in gear, press the clutch lever before
operating the starter switch. Release starter
switch after the engine has started.
Ensure starter switch ( ) is operated when the 1
vehicle is in neutral gear. If the vehicle is
1
(1) Starter switch (2) i3s switch
2
1
NOTE
Do not accelerate during starting when the
bystarter is “ON”.
2
