HERO HF-Deluxe ECO User manual

PREFACE
Your motorcycle is conforming to latest (Bharat Stage-III norms) regulation for
emission, safety & noise levels. We are also using non asbestos brake shoes and engine
gaskets which are environment friendly in nature.
This booklet is your guide to the basic operation and maintenance of your new Hero
MotoCorp HF-Deluxe ECO. Please take time to read it carefully. As with any fine
machine, proper care and maintenance are essential for trouble-free operation and
optimum performance.
Your Authorised Hero MotoCorp dealer will be glad to provide further information or
assistance and is equipped to handle your future service needs.
Let us make this world a safer, healthier and more environment friendly place.
We, at Hero MotoCorp, are committed to demonstrate excellence in our environment
performance on a continual basis, as an intrinsic element of our corporate philosophy. To
achieve this we commit ourselves to continue product innovations to improve
environment compatibility, comply with all applicable legislation including
environment legislation and strengthen the green supply chain.
Thank you for selecting a Hero MotoCorp HF-Deluxe ECO. We wish you many miles
of continued riding pleasure in the years ahead.

NOTE
ALL INFORMATION, ILLUSTRATION, PHOTOGRAPH, DIRECTIONS,
SPECIFICATIONS AND OTHER CONTENTS COVERED IN THIS OWNER'S
MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION
AVAILABLE AT THE TIME OF ITS PRINTING APPROVAL, AND THE
ACCURACY OR CORRECTNESS OF THE SAME IS NOT UNDERTAKEN OR
GUARANTEED. Hero MotoCorp Limited RESERVES THE RIGHT TO MAKE
CHANGES IN ITS CONTENTS AT ANY TIME WITHOUT NOTICE AND/OR
INCURRING ANY OBLIGATION, WHATSOEVER. NO ONE IS ALLOWED TO
REPRODUCE ANY PART OF THIS PUBLICATION WITHOUT OBTAINING
PRIOR WRITTEN PERMISSION FROM Hero MotoCorp Limited

17
18
18
19
20
22
23
24
15

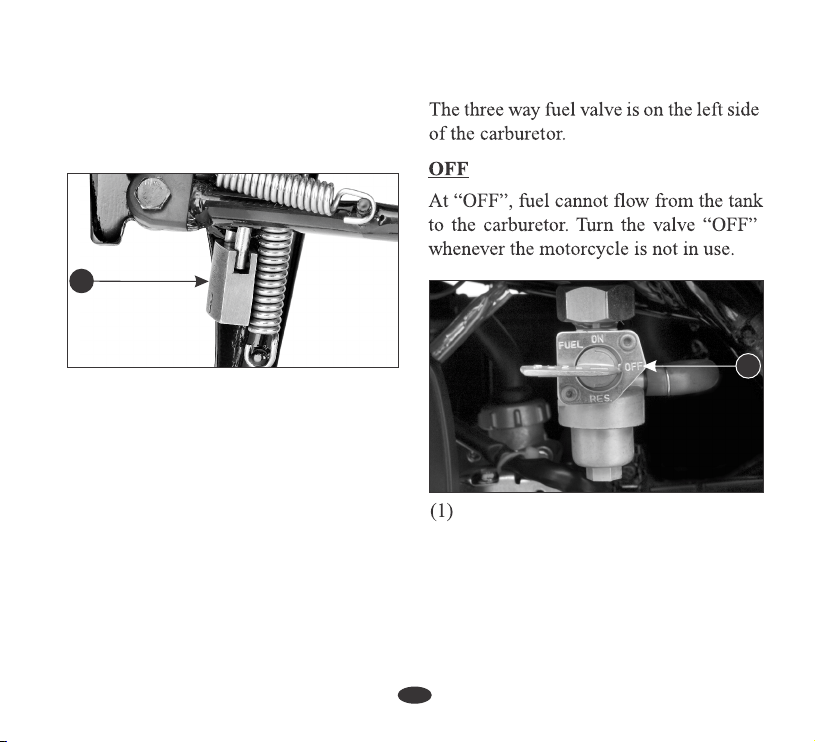

MAIN STAND LOCK / FUEL VALVE
ACCESSORIES AND MODIFICATIONS
7
STEERING LOCK 13
CLUTCH SWITCH 13
STARTER SWITCH 13
SIDE STAND INDICATOR/ SIDE STAND SWITCH 14
HELMET LOCK 14
25
BRAKING / PARKING
UTILITY BOX 26
27
29
ANTI THEFT TIPS 26
SAFETY PRECAUTIONS 28
29
31
32
33
35
35
37
37
39
41
42
MAINTENANCE SCHEDULE
53
56
48
49
50
51
52
CATALYTIC CONVERTER
44
46STOP LAMP SWITCH
48HEADLAMP ADJUSTMENT
47SIDE STAND
43BRAKE WEAR INDICATORS
46FUSE REPLACEMENT
HERO GENUINE PARTS

Model Code.:
Model Engine
HF-Deluxe ECO (Electric Start/Drum/Cast Wheel)
VIN
AF EF
MBLXXXXAFYZXYYYYY
MBL
Manufacturer
Code
XXXXAF
Vehicle
Description
Y
Year of
Mfg.
Z
Assembly
Plant
X
Month of
Mfg.
YYYYY
Serial
Number
MBLXXXXAFYZXYYYYY
XXXXEF
Engine
Description
Y
Year of
Mfg.
Z
Assembly
Plant
X
Month of
Mfg.
YYYYY
Serial
Number
XXXXEFYZXYYYYY
XXXXEFY
ZXYYYYY

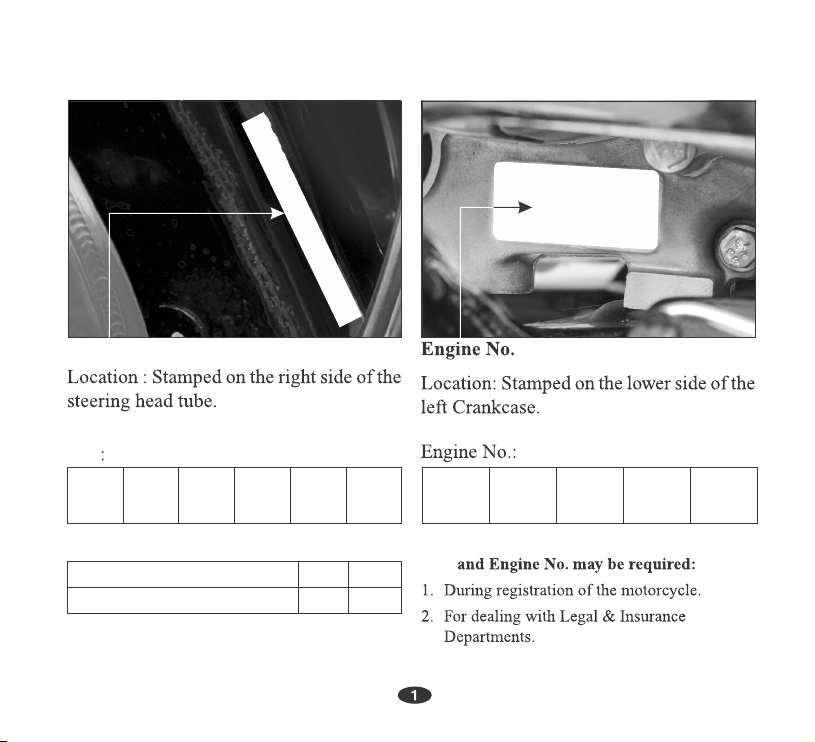

MOTORCYCLE IDENTIFICATION
Vehicle Identification Number (VIN)
VIN
VIN

112 kg
10.5 litres
1.8 litres
1965 mm
1045 mm
720 mm
1235 mm
165 mm
1.05 litres at disassmebly
0.85 litre at draining
805 mmSaddle Height
9.0 :1
0.6 - 0.7 mm
IN : 0.10 mm EX : 0.10 mm
5.74 kW (7.8 Ps) @ 7500 r/min
NGK-CR7HSA, BOSCH-UR4AC,
Champion-P-RZ9HC (Federal Mogul)
97.2 cc
163 ml

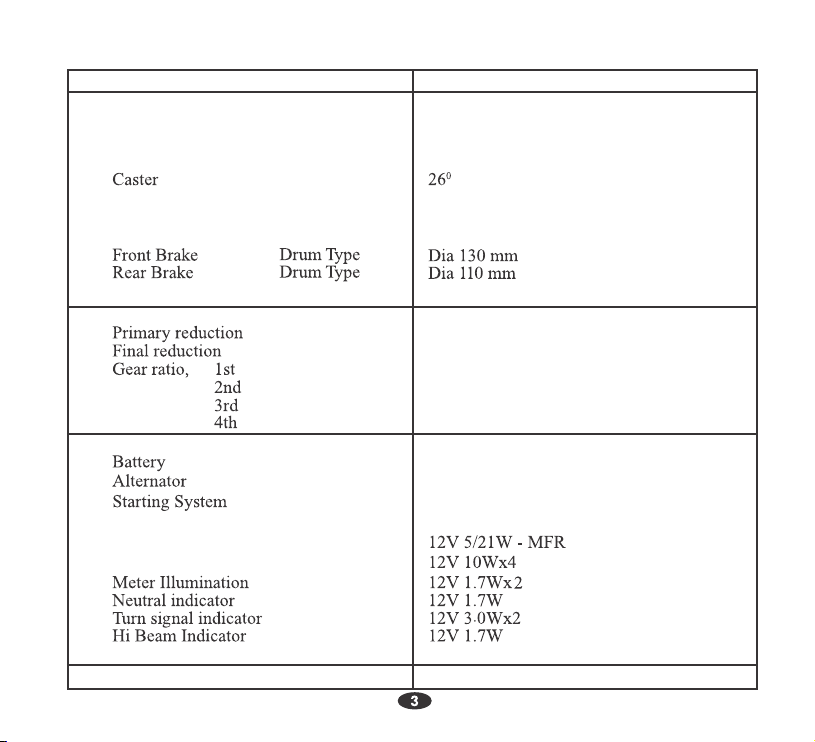

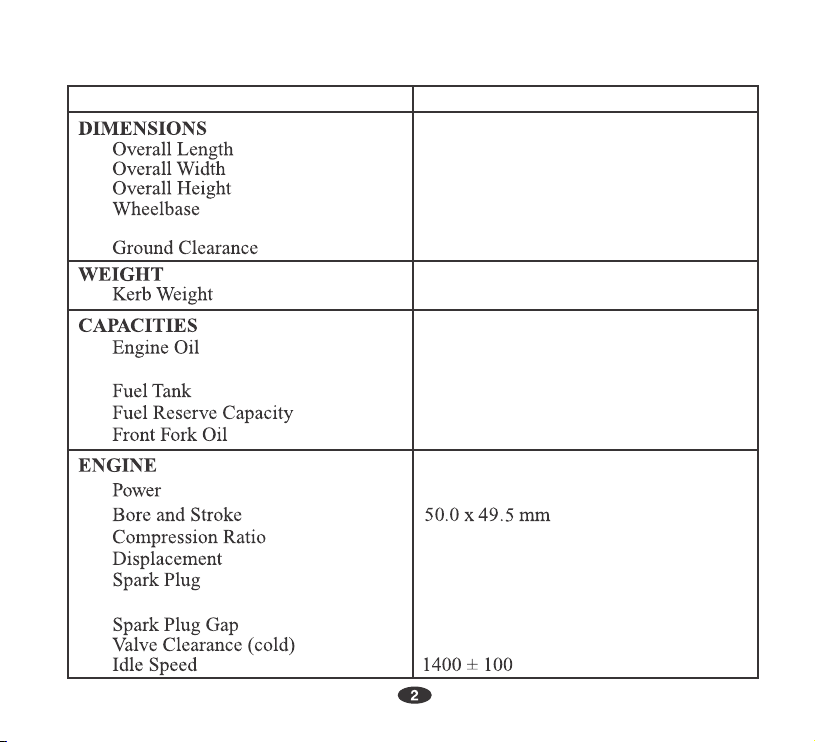

ITEM SPECIFICATIONS
PRODUCT SPECIFICATION
r/min

Front Suspension Telescopic Hydraulic Shock Absorbers
Rear Suspension Swing Arm with 2 step Adjustable Hydraulic
Shock Absorber
Trail length
2.75 x 18 - 4 PR / 42P
2.75 x 18 - 6 PR / 48P
3.722 (67 / 18)
3.071 (43 / 14)
3.182 (35 / 11)
1.706 (29 / 17)
1.238 (26 / 21)
0.958 (23 / 24)
10A / 15A
Front/ Rear wheel Cast Wheel
Electric Start
12V 35/35W Halogen Bulb (Trapezoidal MFR*)
115 W
89 mm
Headlamp (High/Low)
Tail/Stop lamp
Turn signal lamp
*
**MF Battery, MF-4:12V 3 Ah
(Amber bulb) with clear lens-MFR*
ITEM SPECIFICATIONS
CHASSIS AND SUSPENSION
POWER TRANSMISSION
ELECTRICAL
FUSE
Side Stand Indicator
12V 1.7W
* Multi Focal Reflector ** Maintenance Free
Tyre size, Front
Tyre size, Rear

1. Always conduct simple pre-ride
inspection (page no 22).
3. While riding, sit in a comfortable posi-
tion with your legs close to fuel tank.
10. Take care of loose / hanging clothes
while solo / pillion riding.
4. Ride defensively and at a steady speed
(between 40-50 km/hr).
9. To make yourself more visible, wear
bright reflective clothing that fits well.
2. Always wear a helmet (ISI marked)
with chinstrap securely fastened and
insist on a helmet for your pillion rider.
Do's:
5. For stopping motorcycle, use both
brakes simultaneously, keeping throttle
in the close position.
7. During night time, dip headlamp of
your motorcycle for oncoming traffic,
or when following another vehicle.
8. Give way to others on the road and sig-
nal before you make a turn.
11. Get your motorcycle serviced regularly
by the Authorised Hero MotoCorp
workshop.
6. Respect road signs and obey traffic rules
for your own safety and that of others on
the road (page no.56 & 57).

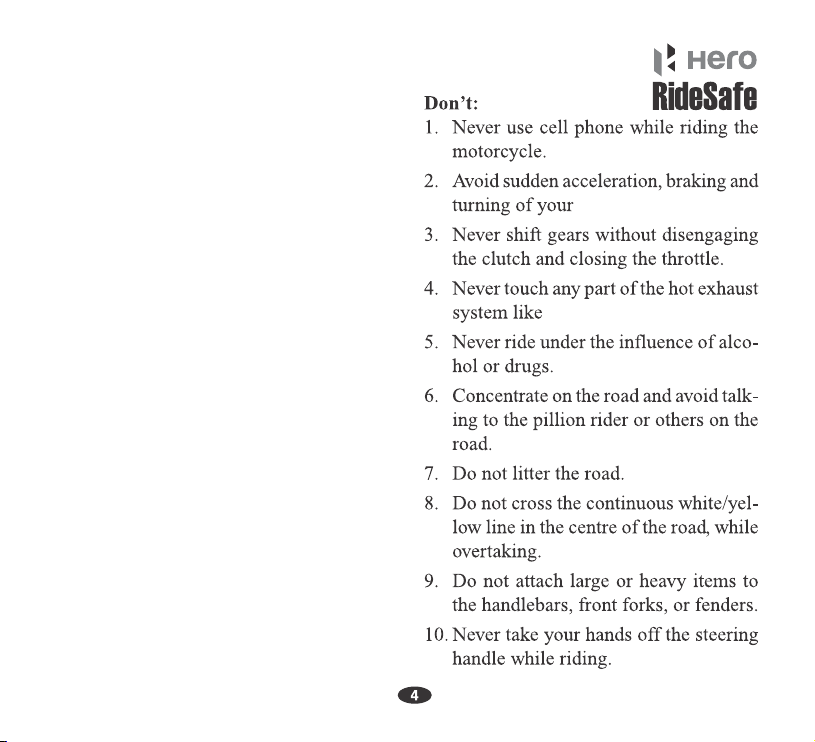

motorcycle.
muffler.
SAFE RIDING TIPS

Modifying your motorcycle or using non-
Hero MotoCorp accessories can make
your motorcycle unsafe. Before you
consider making any modifications or
adding an accessory, be sure to read the
following information.
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner's
manual regarding accessories and
modifications.
• Make sure that the accessory does not
obscure any lamps, reduce ground
clearance, limit suspension travel or
steering travel, affect your riding
position or interfere with operating any
controls.
• Be sure electrical equipment does not
exceed the motorcycle's electrical
system capacity (page 3). A blown fuse
can cause a loss of lights.
We strongly advise you not to remove
any original equipment or modify your
motorcycle in any way that would
change its design or operation. Such
changes could seriously impair your
motorcycle's handling, stability and
braking, making it unsafe to ride.
Removing or modifying your lamps,
mufflers, emission control system or
other equipment can also make your
motorcycle illegal.
Modifications
• Do not pull a trailer or sidecar with
your motorcycle. This motorcycle was
not designed for these attachments,
and their use can seriously impair your
motorcycle's handling.
Accessories
ACCESSORIES & MODIFICATIONS

Regular Servicing: Get your motorcycle serviced at an Authorised Hero MotoCorp
workshop, as per the service schedule, for an optimum performance and keep the
emission level under check.
Genuine Engine Oil: Hero 4T Plus SAE 10W 30 SL grade (JASO MA2) engine oil
recommended by Hero MotoCorp and make sure you change it every 6000 kms.
(with top up every 3000 kilometres) to keep the engine fit and environment healthy.

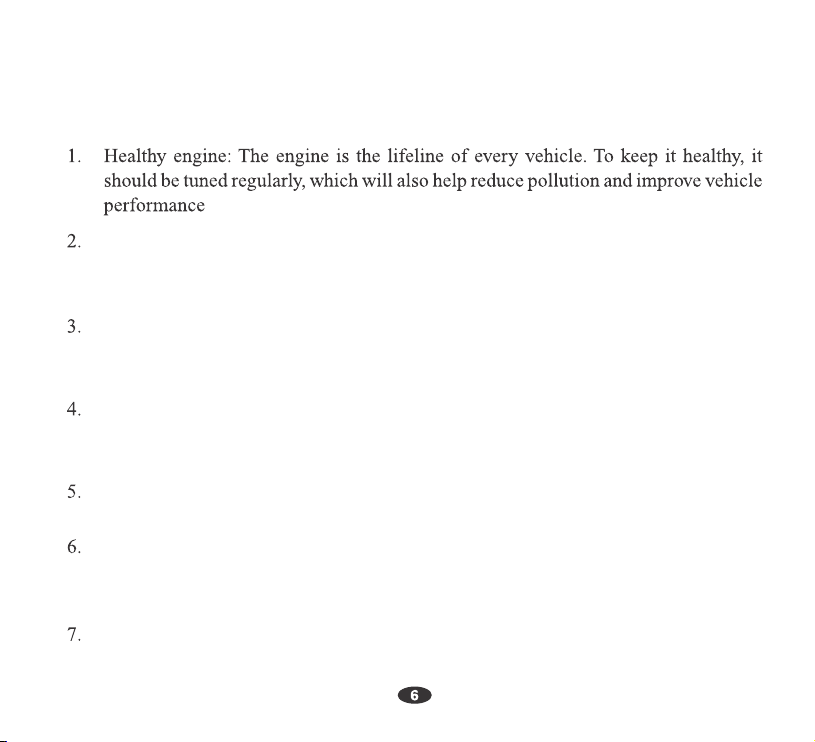

The following tips shall ensure a healthy motorcycle, healthy environment, and a healthy you.
Genuine Spares: Always insist on Hero MotoCorp genuine parts as spurious or
incompatible spares and accessories can upset or deteriorate your motorcycle’s
running condition.
& fuel efficiency.
Noise Pollution : Noise beyond a certain decibel is pollution. Whether it is from
horns or defective mufflers, excessive noise will cause headaches and discomfort.
Emission Pollution : Get emission of your motorcycle checked by Authorised
agencies atleast once every 3 months or as notified by the government from time to
time.
Fuel saving & reduce pollution : Switch "OFF" the engine while waiting at traffic
signal points to save fuel and reduce pollution, if the waiting period is long.
TIPS FOR HEALTHY ENVIRONMENT

(3) Clutch lever
(5) Rear view mirror
(6) Dimmer switch
(1) Horn switch
(2) Turn signal lamp switch
(4) Headlamp switch
(8) Speedometer
(7) Turn signal indicator
(9) Odometer
(11) Fuel gauge
(13) Side stand indicator
(17) Ignition switch with steering lock
(14) Front brake lever
(15) Throttle grip
(10) Neutral indicator
(12) High beam indicator
(16) Electric starter switch
(18) Leg guard with aerocovers
(19) Fuel tank cap
5
1
4
3
710 11
89
15
14
17
19
18
6 12 13
16

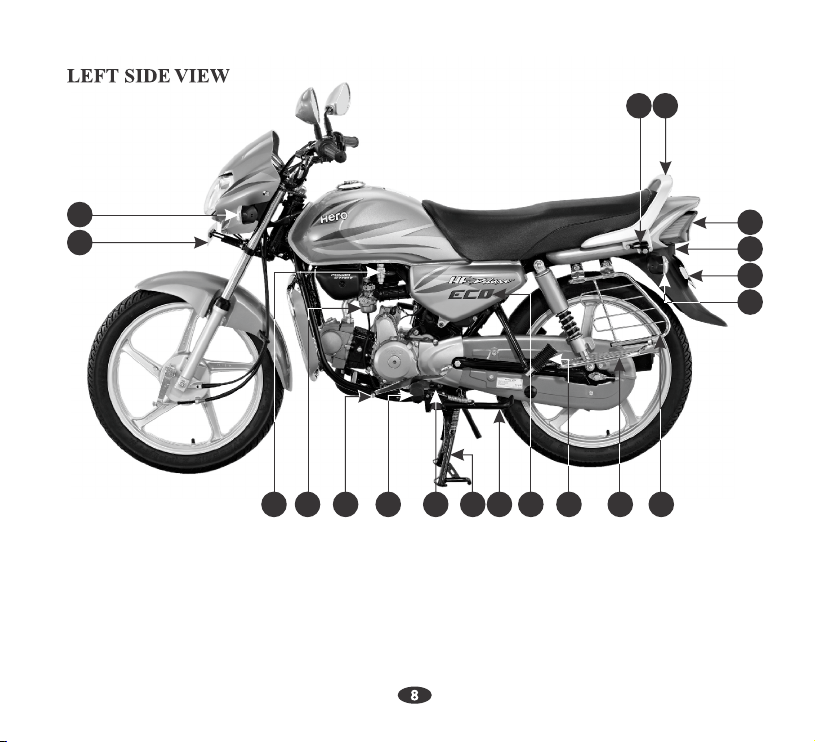

DESCRIPTION
2

278
14
18
(5) Side stand switch
(1) Fuel valve
(2) Carburetor
(3) Gear shift pedal
(6) Main stand
(7) Side stand
(4) Rider foot rest
(12) Rear turn signal lamp
(11) Saree guard
(10) Women pillion step
(8) Left side cover
(9) Pillion foot rest
(13) Rear number plate
(14) Reflex reflector
(19) Front number plate
(15) Tail / stop lamp
(18) Front turn signal lamp
(16) Rear grip
(17) Helmet lock
136910 11
15
12
13
17 16
19
54

21 347
Oil level dipstick
Front suspension
Rear brake pedal
Starter motor
68 5
10
Headlamp
11
14
Utility box
Fuel tank
12
(11) Front visor
Seat
13
Rear shock absorber
14
1213
Exhaust muffler
15
15
9

8
1 2
6
headlamp.
(1) Speedometer Indicates driving speed
Sl. No. Description Function
(4) Fuel gauge Indicates approximate fuel quantity
(8) Turn signal indicators Flashes when turn signal switch is operated
(5) High beam indicator Light glows when headlamp is in Hi Beam
(7) Neutral Indicator Light glows when vehicle is in neutral
(3) Gear shifting Maximum operating speed in each gear.
(6) Side stand indicator Light glows when the vehicle is parked on side stand
(2) Odometer Shows accumulated mileage
4
7
5
3
PARTS FUNCTION

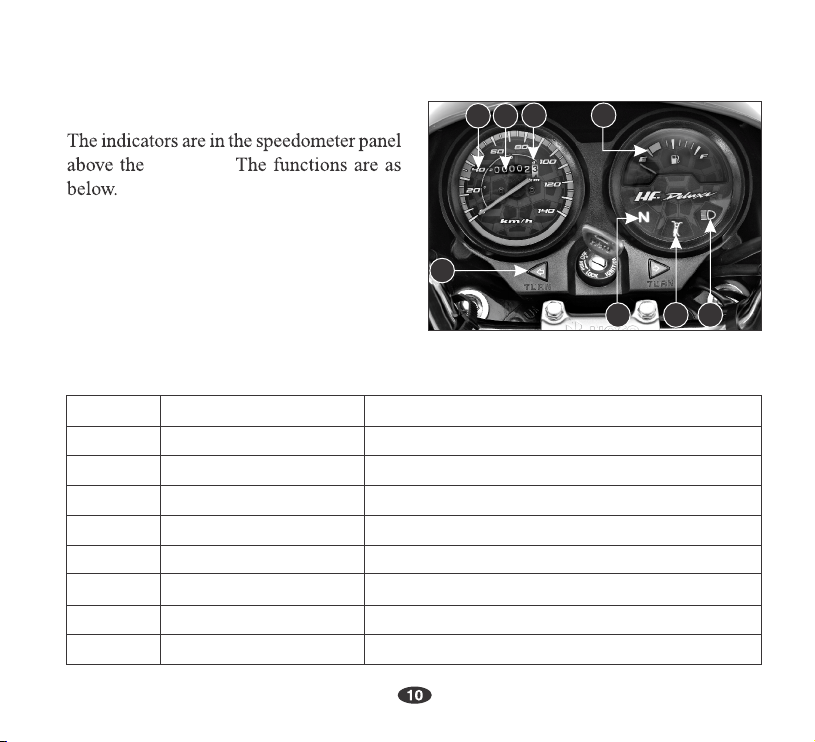

INSTRUMENTS AND INDICATORS

“ON”
“OFF”
The engine can be started, Turn
signal indicators, Horn, Tail/ Stop
lamp and Fuel Gauge will be
functional.
Steering can be locked
“LOCK”
3
2
1
Engine cannot be started and no
electrical system will be functional.
“OFF” Position /
Lock Open
“LOCK” Position
“ON” Position

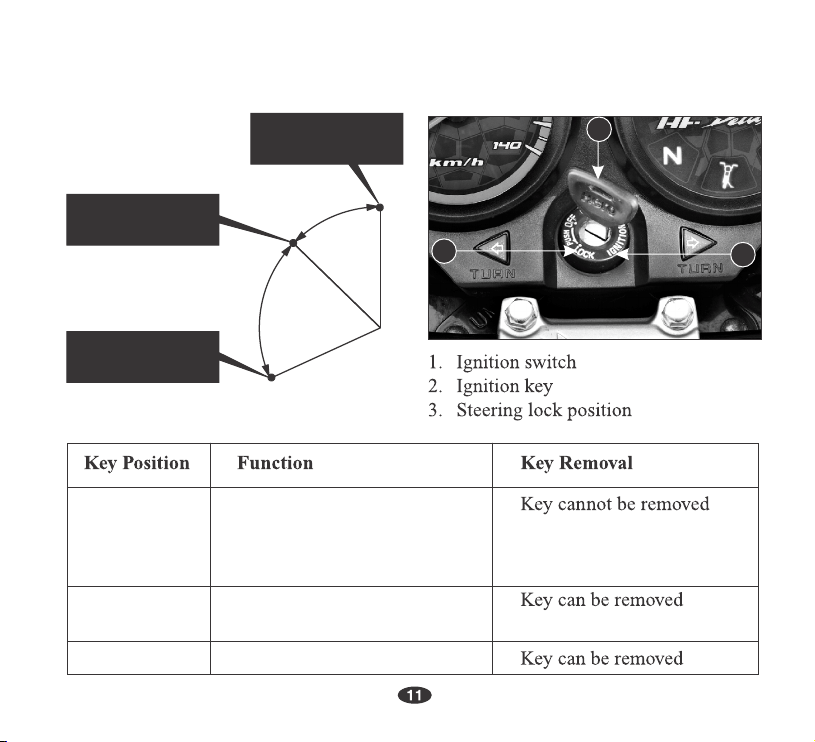

IGNITION SWITCH

Shift the turn signal switch sideways for
Right/Left indications and leave it to come
back to its normal position on its own.
4
IMPORTANT : To switch “OFF” the turn
signal after completing the turn, gently
push inside as directed on the knob.
4
3
1
2

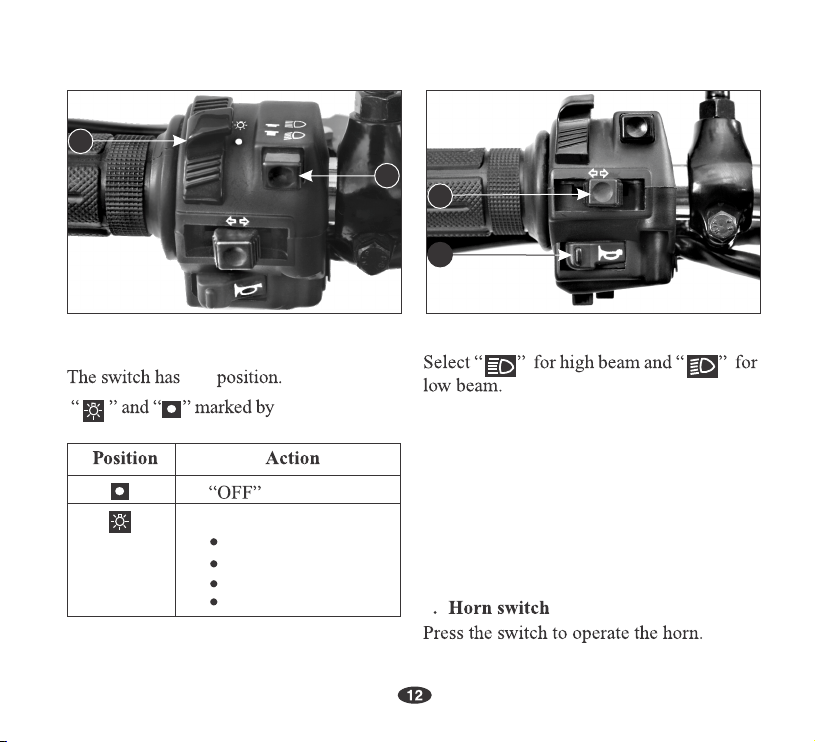

2. Dimmer Switch
3. Turn signal lamp switch
two
a white dot.
Following are “ON”
Headlamp
1. Headlamp switch
Tail / stop lamp
Fuel gauge lamp
Speedometer lamp
LEFT HANDLEBAR CONTROLS

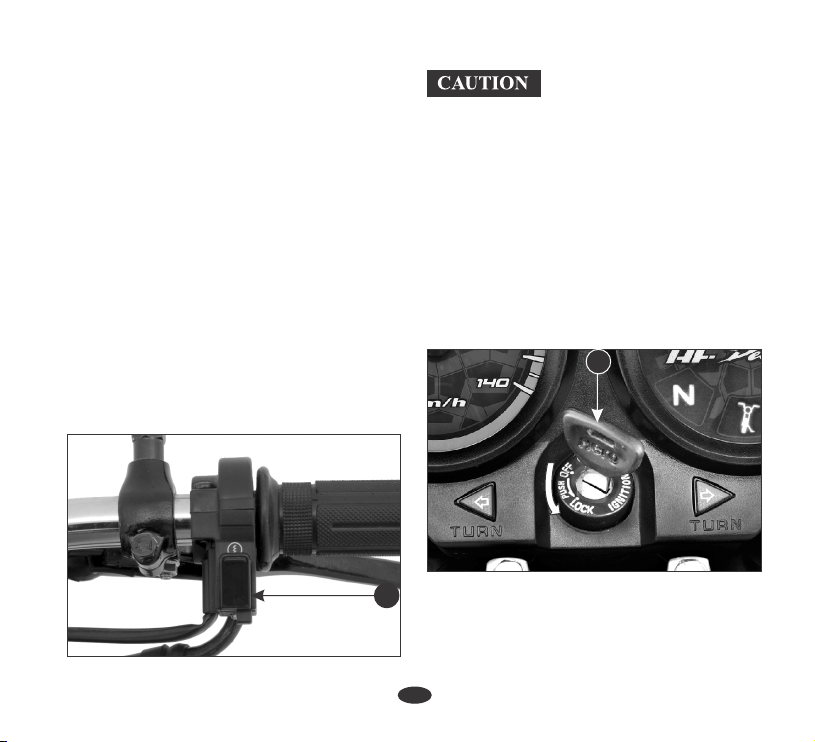

(1) Electric starter switch
(2) Ignition key
Never hold starter switch continuously for
more than 10 seconds as continuous
cranking of engine will drain the battery.
2
1
13
Ensure starter switch (1) is operated when
the vehicle is in neutral gear. If the vehicle
is engaged in gear press the clutch lever
before operating the starter switch. Release
starter switch after the engine has started.
There is a clutch switch provided for the
safety of the rider. The motorcycle cannot
be started by electric starter switch until the
clutch lever is operated when the vehicle is
engaged in gear.
CLUTCH SWITCH
STARTER SWITCH
Steering lock is with Ignition switch, turn
the key (2) to "OFF" position & turn the
handlebar towards left or right & push the
key downwards & turn towards "Lock"
position. After locking take out the key.
STEERING LOCK

14
(2) Knob
1
2
2

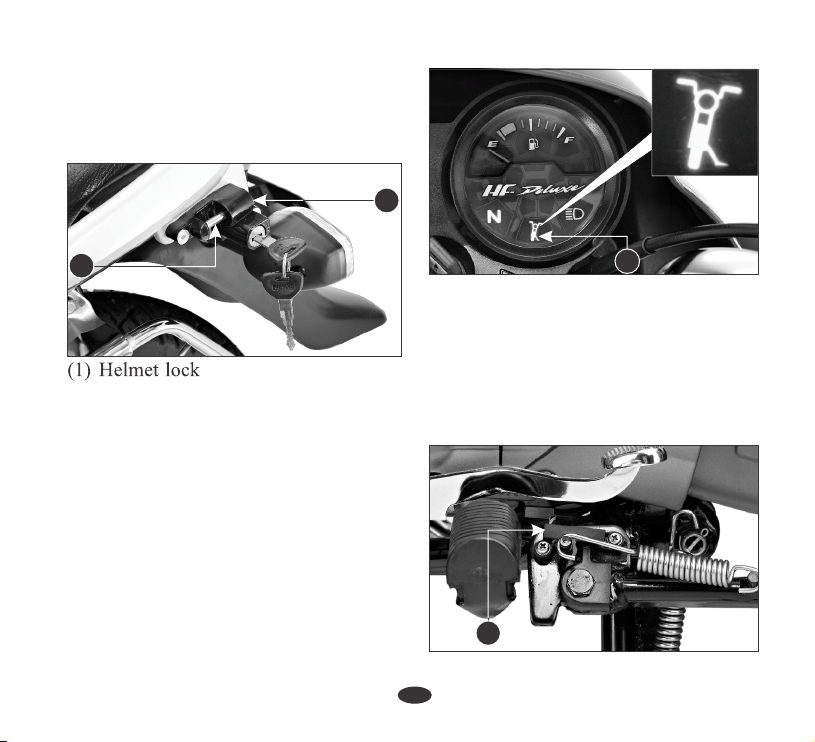

(1) Side stand indicator
To open lock (1), insert key and turn it
anti-clockwise. To lock, push knob (2) all
the way inside.
HELMET LOCK
For the safety of the customer a side stand
indicator (1) is provided.
When the vehicle is parked on side stand
(Ignition Switch “ON”), an indicator lamp
glows in the speedometer panel.
SIDE STAND INDICATOR
SIDE STAND SWITCH
A side stand switch (2) is provided in the
side stand, when the vehicle is parked on
side stand (Ignition Switch “ON”), the
switch enables the side stand indicator
lamp to glow on the speedometer panel.
1
(2) Side stand switch

15
(3) Padlock
MAIN STAND LOCK
As an anti-theft feature there is a provision
provided to lock the main stand by a
"Padlock" (3).
1
FUEL VALVE
3
“OFF” Position

16
8
motorcycle
3
2
NOTE
“RES” Position
“ON” Position
.

(1) Fuel tank cap (2) Key hole cover
(3) Ignition key
17
3
1
2
Fuel tank capacity is 10.5 litres including
reserve supply of 1.8 litres.
1. To remove the fuel tank cap (1), slide the
keyhole cover (2) insert the ignition key
(3), turn it clockwise and remove the cap.
2. Do not overfill the tank, there should be
no fuel in the filler neck (4). Fill the tank
with fuel (5) as shown.
3. For locking, position the cap with “▲”
mark facing towards the front, back on
the opening and press gently. The key
springs back to the normal position and
cap gets locked.
Do not park the motorcycle under direct
sunlight as it causes evaporation of petrol
due to heat and deterioration of paint gloss
due to ultra violet rays.
5
4
(4) Filler neck
(5) Fuel
