HERO IGNITOR User manual

PREFACE
This booklet is your guide to the basic operation and maintenance of your new
Hero MotoCorp IGNITOR. Please take time to read it carefully. As with any fine machine,
proper care and maintenance are essential for trouble-free operation and optimum
performance.
Let us make this world a safer, healthier and more environment friendly place.
Your motorcycle is conforming to latest (Bharat stage-III norms) regulation for emission,
safety & noise levels. We are also using non asbestos brake shoes / pads and engine gaskets
which are environment friendly in nature.
Your Authorised Hero MotoCorp dealer will be glad to provide further information or
assistance and is equipped to handle your future service needs.
Thank you for selecting a Hero MotoCorp IGNITOR. We wish you many miles of continued
riding pleasure in the years ahead.
We, at Hero MotoCorp, are committed to demonstrate excellence in our environment
performance on a continual basis, as an intrinsic element of our corporate philosophy. To
achieve this we commit ourselves to continue product innovations to improve environment
compatibility, comply with all applicable legislation including environment legislation and
strengthen the green supply chain.

NOTE
ALL INFORMATION, ILLUSTRATION, PHOTOGRAPH, DIRECTIONS,
SPECIFICATIONS AND OTHER CONTENTS COVERED IN THIS OWNER'S
MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION
AVAILABLE AT THE TIME OF ITS PRINTING APPROVAL, AND THE
ACCURACY OR CORRECTNESS OF THE SAME IS NOT UNDERTAKEN OR
GUARANTEED. Hero MotoCorp Ltd. RESERVES THE RIGHT TO MAKE
CHANGES IN ITS CONTENTS AT ANY TIME WITHOUT NOTICE AND/OR
INCURRING ANY OBLIGATION, WHATSOEVER. NO ONE IS ALLOWED TO
REPRODUCE ANY PART OF THIS PUBLICATION WITHOUT OBTAINING
PRIOR WRITTEN PERMISSION FROM Hero MotoCorp Ltd.

36PARKING
25
25
26
27
32
33
34
35
36
24
AIR CLEANER DRAIN TUBE
37
11
11
12
15
18
17
17
CLUTCH SWITCH
13
LCD PANEL
7
8
19
21
SEAT LOCK
23
DOCUMENT COMPARTMENT
18
FUEL VALVE
23
HELMET HOLDER

44
45
46
47
50
51
52
43
56
59
61
66
67
65
FUSE REPLACEMENT
STOP LAMP SWITCH
HEADLAMP ADJUSTMENT
67
68
70
71
72
72
73
78
HERO GENUINE PARTS
40
39
37
ANTI THEFT TIPS
38
SAFETY PRECAUTION

XXXXAA
Engine
Description
Y
Year of
Mfg.
Z
Assembly
Plant
X
Month of
Mfg.
YYYYY
Serial
Number
XXXXAAYZXYYYYY
XXXXAAY
ZXYYYYY
Engine No.
Location : Stamped on the lower side of the
left crankcase.
1. During registration of the motorcycle.
2. For dealing with Legal & Insurance
Departments.
VIN and Engine No. may be required:
MOTORCYCLE IDENTIFICATION
Model Code.:
Model Engine
IGNITOR Electric Start / Front Disc /
Rear Drum / Cast Wheel
VIN
AB AA
MBL
Manufacturer
Code
XXXXAB
Vehicle
Description
Y
Year of
Mfg.
Z
Assembly
Plant
X
Month of
Mfg.
YYYYY
Serial
Number
MBLXXXXEEYZXYYYYY
Vehicle Identification Number (VIN)
Location : Stamped on the left side of the
steering head tube.
VIN: MBLXXXXABYZXYYYYY
IGNITOR Electric Start / Front Drum /
Rear Drum / Cast Wheel
AA AA

PRODUCT SPECIFICATIONS
129 kg
0.9 litres at draining
Overall Width 710 mm
Overall Height 1095 mm
Ground Clearance 175 mm
Wheelbase 1270 mm
Saddle Height 795 mm
Overall Length 2010 mm
ITEM
DIMENSIONS
WEIGHT
Kerb Weight
CAPACITIES
1.1 litres at disassembly
Engine Oil
9.0 litres (minimum)
Fuel Tank
1.4 litres (usable)
Fuel Reserve Capacity
146 ml
Front Fork Oil at Disassembly
DoT 3 or DoT 4
Hydraulic Brake Fluid
SPECIFICATIONS

Tyre size Rear 100 / 90 x 17 - M/C 55 P (Tubeless Tyre)
Front Suspension Telescopic Hydraulic Shock Absorbers
O
Caster 25
Rear Suspension Swingarm with Adjustable Hydraulic
Shock Absorber
Trail 89 mm
Tyre size Front 80 / 100 x 17 - M/C 46 P (Tubeless Tyre)
Rear Brake Drum Dia 130 mm (Non Asbestos Type)
Front brake Disc/ Drum type Dia 240 mm / Dia. 130 mm (Non Asbestos Type)
Bore and Stroke 52.4 x 57.8 mm
ENGINE
Maximum Power 8.20 kW (11.00 BHP) @ 8000 r/min
Maximum Torque 11 N-m @ 5000 r/min
Displacement 124.7 cc
Compression Ratio 9.2:1
Spark Plug NGK - CPR 7 EA 9
Spark Plug Gap 0.8 - 0.9 mm
Idle speed 1400 ± 100 r/min
Valve Clearance (cold condition) IN:0.08 mm Ex : 0.12 mm
3
ITEM SPECIFICATIONS

* MFR stands for Multi-Focal Reflector Type
** MF stands for Maintenance Free Battery
Position Lamp 12 V 5 W
Turn Signal Indicator L.E.D.
Battery 12 V - 3 Ah, **MF Battery
Turn Signal Lamp 12 V - 10 Wx 4 MFR*
Neutral Indicator 12 V 1.7 W
Starting System Electric Start
Meter Illumination L.E.D.
Tail / Stop Lamp 12 V - 5/21 W MFR*
Headlamp 12 V - 35/35 W Halogen Bulb, MFR*
Hi Beam Indicator L.E.D.
Alternator 125 W
10A, 15A, 20A
POWER TRANSMISSION
1.944 (35/18)
3.350 (67/20)
1.473 (28/19)
3.077 (40/13)
1.190 (24/22)
3.071 (43/14)
1.038 (27/26)
Primary reduction
Final reduction
4th
5th
3rd
Gear ratio, 1st
2nd
ELECTRICAL
FUSE
4
ITEM SPECIFICATIONS

2. Always wear a helmet (ISI marked)
with chinstrap securely fastened and
insist on a helmet for your pillion rider.
6. Respect road signs and obey traffic rules
for your own safety and that of others on
the road (ref. page no.78-80).
Do's:
1. Always conduct simple pre-ride
inspection (ref. page no 32).
4. Ride defensively and at a steady speed
(between 40-50 km/hr).
5. For stopping motorcycle, use both
brakes simultaneously, keeping throttle
in the close position.
3. While riding, sit in a comfortable posi-
tion with your legs close to fuel tank.
motorcycle.
SAFE RIDING TIPS
5
muffler.

8. Give way to others on the road and sig-
nal before you make a turn.
11. Get your motorcycle serviced regularly
by the Authorised Hero MotoCorp
workshop.
Do's:
7. During night time, dip headlamp of your
motorcycle for oncoming traffic, or
when following another vehicle.
9. To make yourself more visible, wear
bright reflective clothing that fits well.
10. Take care of loose / hanging clothes
while solo / pillion riding.
SAFE RIDING TIPS
6

Regular Servicing: Get your motorcycle serviced at an Authorised Hero MotoCorp
workshop, as per the service schedule, for an optimum performance and keep the
emission level under check.
Genuine Engine Oil: Hero 4T Plus SAE 10W 30 SL grade (JASO MA2) engine oil
recommended by Hero MotoCorp and make sure you change it every 6000 kms.
(with top up every 3000 kilometres) to keep the engine fit and environment healthy.
The following tips shall ensure a healthy motorcycle, healthy environment, and a healthy you.
Genuine Spares: Always insist on Hero MotoCorp genuine parts as spurious or
incompatible spares and accessories can upset or deteriorate your motorcycle’s
running condition.
& fuel efficiency.
Noise Pollution : Noise beyond a certain decibel is pollution. Whether it is from
horns or defective mufflers, excessive noise will cause headaches and discomfort.
Emission Pollution : Get emission of your motorcycle checked by authorised agencies
atleast once every 3 months or as notified by the government from time to time.
Fuel saving & reduce pollution : Switch "OFF" the engine while waiting at traffic
signal points to save fuel and reduce pollution, if the waiting period is long.
7

(1) Fuel gauge
(2) Horn switch
(3) Turn signal switch
(4) Clutch lever
(5) Rear view mirror
(6) Headlamp switch
(7) Pass lamp switch
(15) Neutral indicator
(16) Front brake lever
(17) Throttle grip
(18) Starter switch
(19) Ignition switch
(20) Fuel tank cap
(21) Leg guard
5
4
2
1
3
18
16
17
19
20
21
TOP VIEW 15
13 14
12
11
10
8
7
69
(12) Tachometer
(8) Dimmer switch
(9) Select / Reset buttons
(10) High beam indicator
(11) Turn signal indicator
(13) LCD panel
(14) Master cylinder
8
*Accessories and features shown may not be part of standard fitment.

(1) Starter motor
(2) Gear shift pedal
(3) Main stand
(5) Women pillion step
(6) Saree guard
(4) Side stand (10) Seat lock
(7) Rear turn signal lamp
(8) Tail / Stop lamp
(9) Rear grip
(11) Side cover left
(14) Front turn signal lamp
(13) Fuel valve
(15) Choke knob
(12) Battery compartment (inside)
(16) Front reflex reflector
9
LEFT SIDE VIEW
12
16
15
14
34
10
56
7
8
9
13 12 11
*Accessories and features shown may not be part of standard fitment.

(2) Carburetor
(1) Pillion foot rest
(5) Kick starter arm
(6) Oil level dipstick
(4) Brake pedal
(3) Rider foot rest
(7) Caliper assembly
(9) Visor
(8) Headlamp
(10) Air suction valve (inside)
10
(12) Pillion seat
(11) Rider seat
(13) Rear reflex reflector
(14) Muffler

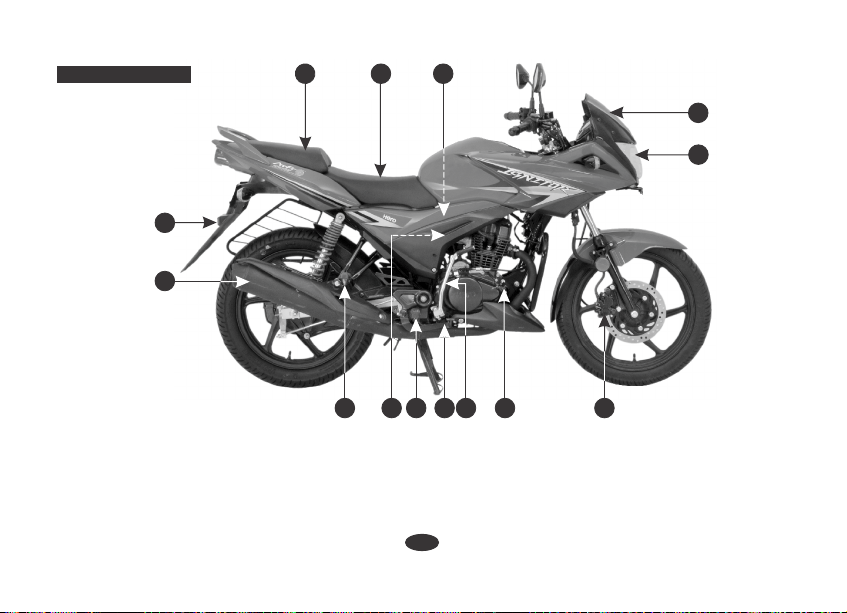

RIGHT SIDE VIEW 12 11 10
71
8
9
14
13
56
2 43
*Accessories and features shown may not be part of standard fitment.

11

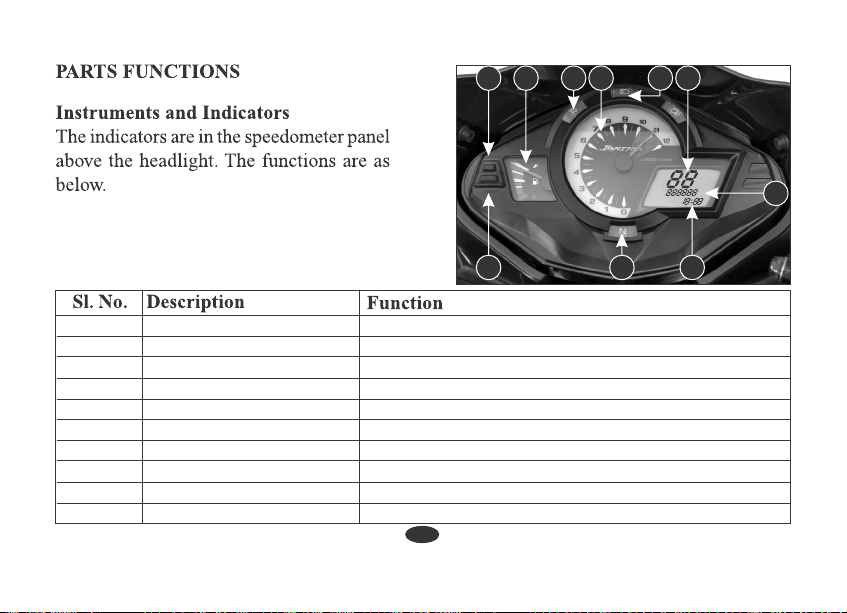

7 Tachometer Indicates engine r/min
1 Reset button Button when long pressed resets tripmeter to zero
2 Neutral indicator Light glows when vehicle is in neutral position
9 Fuel gauge Indicates approximate fuel quantity
3 Digital clock Indicates hour & minutes (refer page-13)
5 Speedometer Indicates riding speed
8 Turn signal indicator Flashes when turn signal switch is operated
4 Odometer / Tripmeter Shows accumulated mileage (refer page-14)
10 Select button Switches display between Odometer & Tripmeter
6 High beam indicator Light glows when headlamp is in Hi Beam
AM
PM
km
10 9 8 7 6
1 32
5
4

12
"ON"
"OFF"
The LCD panel illuminates & initial display of multi
function digital segments are displayed. The tachometer
needle and the fuel gauge needle will swing to the
maximum scale once and back to its normal position. The
engine can be started. Turn signal indicators, Horn, Tail /
Stop lamp, Fuel gauge, Pass lamp, Position lamp &
Neutral indicator will be functional.
Key cannot be removed
"LOCK"
Engine cannot be started and no electrical system
will be functional.
Key can be removed
Steering can be locked.
Key can be removed
1
3
2
1. Ignition key 2. Lock position 3. OFF position
IGNITION SWITCH
“OFF” Position /
Lock Open
“LOCK” Position
“ON” Position

Digital Clock

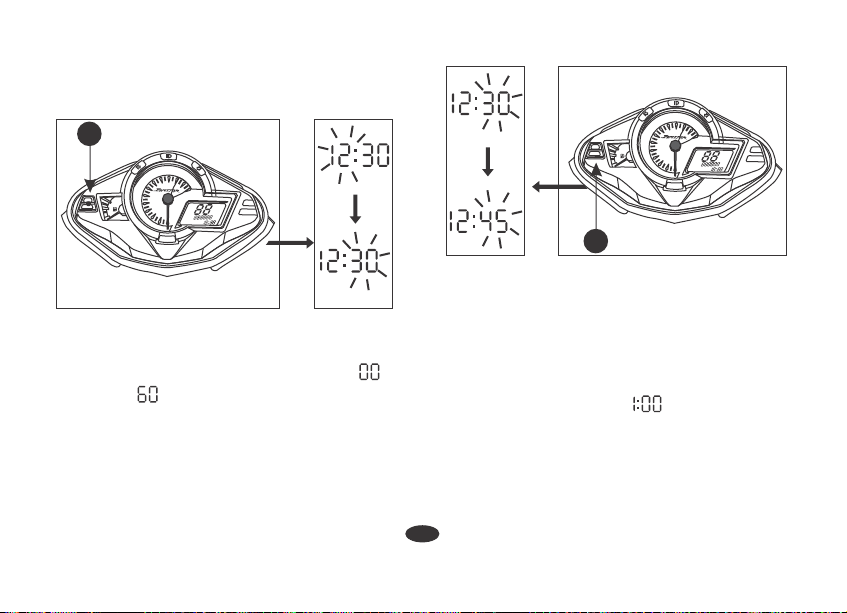

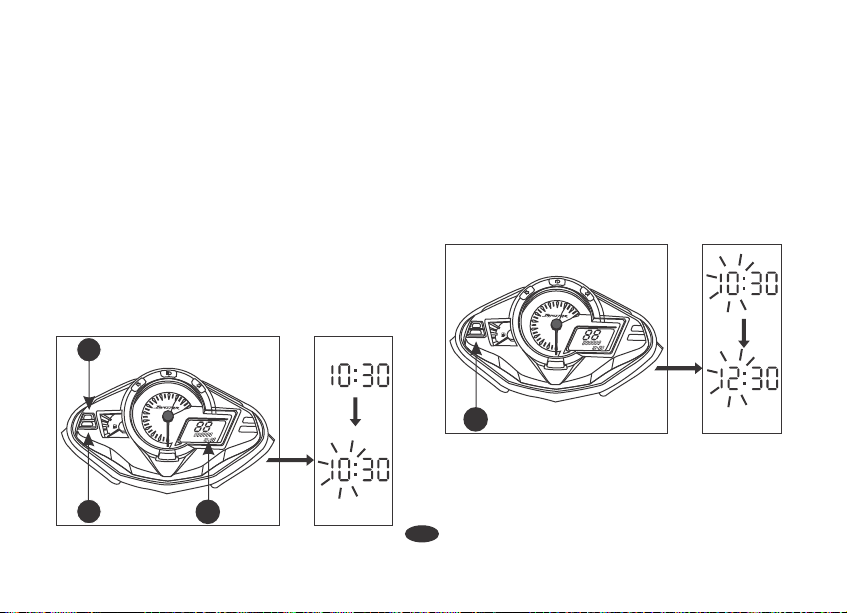

Digital Clock (1) shows hour and minute.
To adjust the time, proceed as follows :
1. Turn the ignition switch "ON".
2. Press and hold Select Button (2) and
Reset Button (3) simultaneously for
more than 2 seconds. The clock will be
set in the adjust mode with the hour's
digit display blinking.
3. To set the hour, press Reset Button (3)
until the desired hour is displayed.
• The time advances fast when the
button is pressed and held.
• AM will change to PM after 12.
• The time is advanced by 1 hour
each time the button is pressed.
13
x1000r/min
8
7
6
5
4
F
3
2
10
910
11
12
N
SELECT
RESET
AM
PM
km
2
3
LCD PANEL
1
x1000r/min
8
7
6
5
4
F
3
2
10
910
11
12
N
SELECT
RESET
AM
PM
km
3

14
6. To end the adjustment press Select Button
(2). The display will stop flashing
automatically and the adjustment will be
saved or if the button is not pressed for
about 30 seconds.
NOTE :
The clock will reset " " if the battery is
disconnected.
• The time advances fast when the button
is pressed and held.
• The time advances by 1 minute, each
time the button is pressed.
AM :
x1000r/min
8
7
6
5
4
F
3
2
10
910
11
12
N
SELECT
RESET
AM
PM
km
3
4. Press the Select Button (2). The minutes
display starts blinking.
5. To set the minute press Reset Button (3)
until the desired minute is displayed.
The minute display will return to " "
when " " is reached without affecting
the hour display.
x1000r/min
8
7
6
5
4
F
3
2
10
910
11
12
N
SELECT
RESET
AM
PM
km
2
Odometer / Tripmeter
The Odometer (1) shows accumulated
distance traveled.

LEFT HANDLEBAR CONTROLS
1
2
3
Press the push switch to operate the pass
lamp.
When Tripmeter is selected long press the
Reset button to reset Tripmeter to zero.
The Odometer can be displayed from "0 to
999999" kms.
Push the Select button (2) to select
Odometer, or Tripmeter. The Tripmeter
can display upto 99999.9 kms. If the
Tripmeter exceeds "99999.9" kms it will
return to "0.0" kms automatically.
The Tripmeter (3) shows distance traveled
since trip meter was reset last time.
x1000r/min
8
7
6
5
4
F
3
2
10
910
11
12
N
SELECT
RESET
AM
PM
km
km.
km..
3
1
21
15
1. Pass lamp switch
2. Headlamp switch
marked by white dot.

16
Shift the turn signal switch sideways for
Right/Left indications and leave it to come
back to its normal position on its own.
IMPORTANT : To switch off the turn
signal after completing the turn, gently
push the knob inside.
Push the switch inside to position “ ”
for “HI Beam”. Push the switch again to
bring back to position “ ” for “LOW
Beam.
5
4
4.
5.
Position lamp
Tail lamp
Speedometer lamp
Headlamp “ON”
3. Head lamp dimmer
