Scosche ITCLS01B User manual

•
•
•
•
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
>ABS<
7439RIGHT
7439RIGHT
1
2
3
4
5
6
7
8
~ SCDSCI-IE"
ITCLS01B
ISO DOUBLE DIN IN-DASH INSTALLATION KIT WITH
POCKET FOR 2006-2013 LEXUS IS MODELS
ITCLS01 B Kit Contents
ITCLS01 B Main Panel (7438)
Dual Touch Screen ITC Module
Touch Sensative Hazard Button
Passenger Airbag Light
Passenger Seatbelt Light
Left Bracket (7440)
Right Bracket (7439)
4x Bracket Mounting Screws
ITC Wiring harness•
LSAAB (Antenna Adapter)'
*(Not Shown)*
Tools Required
PRT (Panel Removal Tool)
Screwdriver
Picking Tool
10mm Socket Wrench
Designed & Engineered in U.S.A.
Custom Manufactured
in China
~
None ■ ,
Extremely high temperatures may
temporanlyaffectthed1splay Normal
operatonwllresumeoncetheun1tcools
(For Non-Nav Vehicles)
INTRODUCTION/PRELIMINARY
"'
~ ...
. ,, "'
"'
This premium installation kit is for 2006-13 Lexus IS series vehicles without navigation. Included are
all the parts you need to mount an Aftermarket head unit into your vehicle's dash. Refer to individual
instruction in this manual to remove your vehicle's factory radio and assemble the kit.
CAUTION: DISCONNECT YOUR VEHICLE NEGATIVE BATTERY TERMINAL BEFORE THE
INSTALLATION
TO HELP PREVENTELECTRICAL DAMAGE. WE RECOMMEND THE USE OF A VOLT/
OHM METER OVER A TEST LIGHT TO CHECK WIRING. A TEST LIGHT OR GROUNDED WIRE PROBE
CAN CAUSE
DAMAGE TO THE VEHICLE'S COMPUTER AND/OR DIAGNOSTIC SYSTEMS. AVOID ALL
FACTORY AIRBAG WIRING -AIRBAGS CAN ACCIDENTALLY DEPLOY CAUSING SERIOUS INJURY
OR DEATH.
NOTES---------------------------
• See your vehicle's instructions for any special tools your installation might require.
• Read all instructions accompanying your car stereo for proper wiring and mounting instructions.
IMPORTANT!
DO NOT RETURN PRODUCT TO THE RETAILER
IF YOU NEED ASSISTANCE OR REPLACEMENT PARTS CALL US TOLL FREE: 1800-621-3695 X3
HOURS: MON-FRI 8AM-5:30PM (PST) SATUROAY 8AM-2PM (PST)
LIABILITY DISCLAIMER
This instruction booklet is based on carefullydocumented data and research ofautomobile disassembly, wire harness/codes
and information pertaining to the installation ofthis kit. Scosche Industries, Inc. cannot be held responsible for discrepancies/
inconsistencies that may occur due to the automobile manufacturing changes or options, or damage that may occur in the
automobile during the installation of componentswhile using this booklet.
If you have any further questions, call our toll free technical help line at:
©2017 SCOSCHE INDUSTRIES, INC.
1-800-621-369Sx3
ITCLSO 1B 10/17

Vent Locking Tabs General Locations
INSTALLATION GUIDE Disassembly
Using a PRT (Panel Removal
Tool) remove side trim panels
on
each side of the center console
(Shaded Areas).
I-it§ ,f ..j Disassembly
Unscrew the shift knob.
Using a
PRT remove the center
console top panel to prevent
damaging
it, then remove any
wires and gently set aside for later
reassembly.
Extract 2 Screws securing the
ashtray to the center console; then
remove the ashtray.
Using a picking tool, push down
on the locking tabs at the top
of
the A/C vents to release the vent
panel from the dash. Remove the
vent panel then unplug any wires
attached.
©2017 SCOSCHE INDUSTRIES, INC. 2 ITCLS01B 10/17

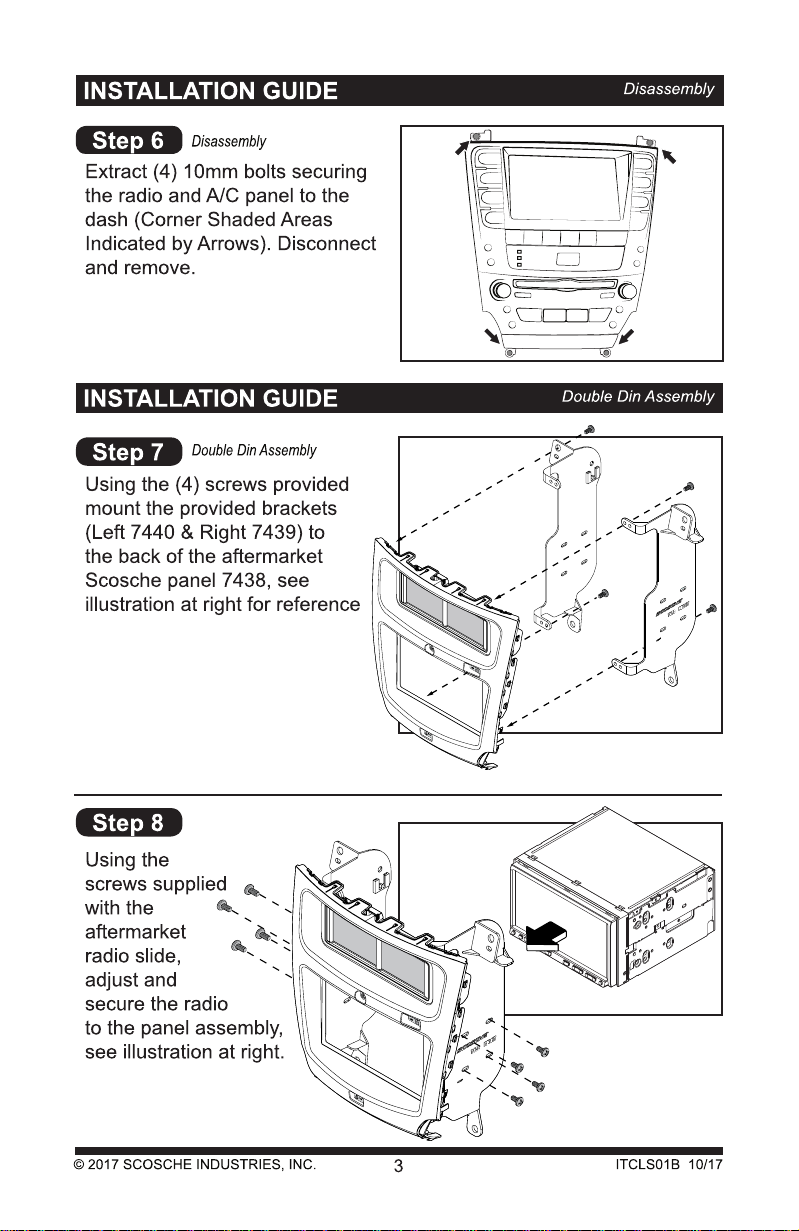

Double Din Assembly
INSTALLATION GUIDE Disassembly
Extract (4) 10mm bolts securing
the radio and A/C panel to the
dash (Corner Shaded Areas
Indicated byArrows). Disconnect
and remove. 0
0
o·~
'
cc'-
•
D 0
0
~'CO
~o
I o~
•
INSTALLATION GUIDE Double Din Assembly
Using the
screws supplied ,
with the ,
aftermarket
radio slide,
adjust and
secure the radio
to the panel assembly,
see illustration at right.
©2017 SCOSCHE INDUSTRIES, INC. 3 ITCLS01B 10/17

STEERING WHEEL CONTROL
INSTALLATION GUIDE
1.
2.
3.
4.
5.
6.
Retrieve the factory TPMS (Tire
Pressure Monitoring System) and
it's bracket from behind the OEM
radio panel and mount it to the
back of the left bracket. NOTE:
Use factory (OEM) screw(s) for
this part of the assembly.
Sample Illustration of OEM TPMS
TPMS- Tire Pressure Monitoring System
(Not Included with Kit)
Once the radio &TPMS is
mounted to the brackets, connect
all wiring. Then using the OEM
(4x)10mm
bolts secure the radio
panel assembly to the vehicle.
Lastly, reinstall everything in
reverse order to complete the
installation
FIGURE 1
1 2
3 4
E)_s
The Scosche ITCLS01B Lexus IS Series face
panel comes with a steering wheel control harness
that will retain the vehicles OEM steering wheel
capabilities when equipped. Refer to the wiring
diagrams on pages 5 (SWC Wiring Diagrma) &
6 (HVAC wiring diagram) for a connection guide.
For a more detailed understanding
of the steering
wheel controls, please refer to your vehicles
owner
manual for button functionalities.
©2017 SCOSCHE INDUSTRIES, INC. 4
Volume DOWN
Volume UP
Scan through stations & tracks DOWN
Scan through stations & tracks UP
Power ON/ Toggle through the multiple Audio Sources
Toggle through display items in cluster screen
(Nol operated
by UAC module)
ITCLS0 1B 10/17

If you have any further questions, call our toll-free technical help line at:

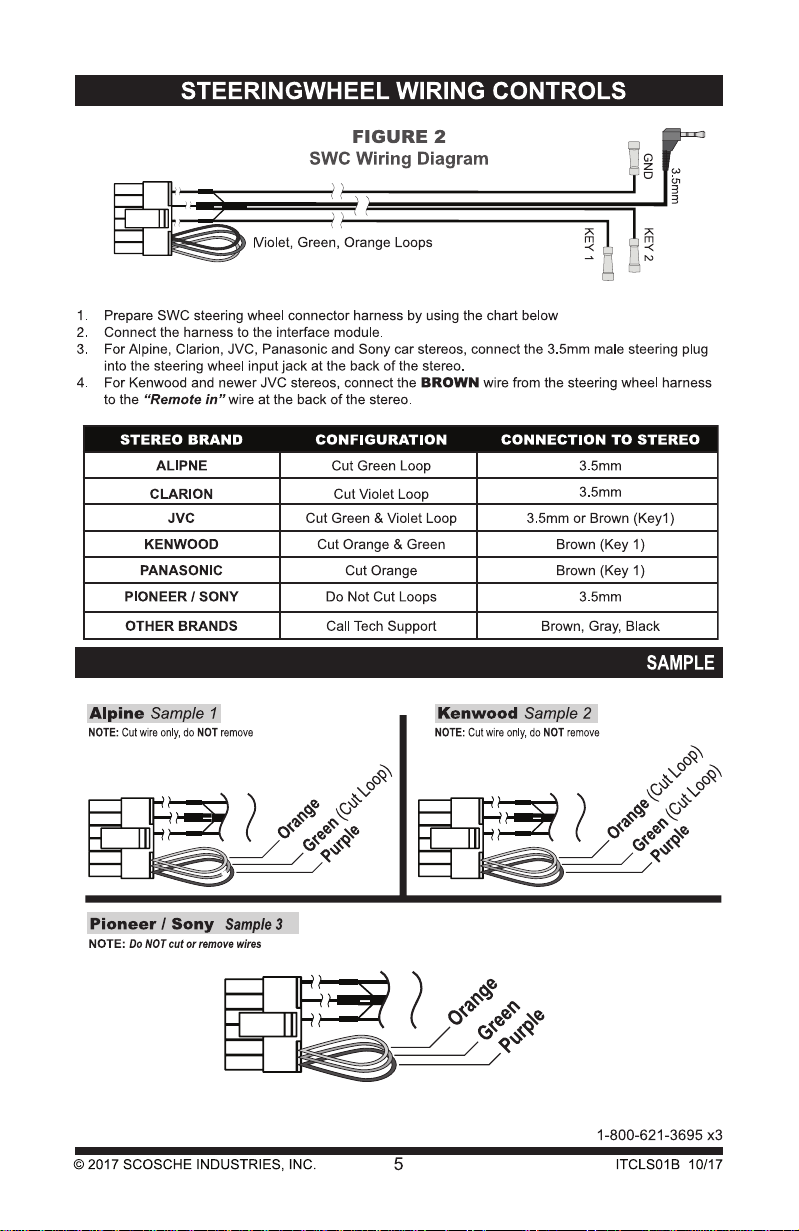

SWC HARNESS
STEERINGWHEEL WIRING CONTROLS
FIGURE 2
SWC Wiring Diagram
"'
~ :;_: ___ _
Violet, Green, Orange Loops
¥~
i:,,
3
3
~ ~
;,;
m
-<
"'
1. Prepare SWC steering wheel connector harness by using the chart below
2. Connect the harness to the interface module.
3. For Alpine, Clarion, JVC, Panasonic and Sony car stereos, connect the 3.5mm male steering plug
into the steering wheel input jack at the back
of the stereo.
4. For Kenwood and newer JVC stereos, connect the BROWN wire from the steering wheel harness
to the "Remote
in" wire at the back of the stereo.
STEREO BRAND
ALIPNE
CLARION
JVC
KENWOOD
PANASONIC
PIONEER/ SONY
OTHER BRANDS
Alpine Sample 1
NOTE: Cut wire only, do NOT remove
Pioneer/ Sony Sample 3
NOTE: Do NOT cut or remove wires
CONFIGURATION CONNECTION TO STEREO
Cut Green Loop 3.5mm
CutViolet Loop 3.5mm
Cut Green & Violet Loop 3.5mm or Brown (Key1)
Cut Orange & Green Brown (Key 1)
Cut Orange Brown (Key 1)
Do Not Cut Loops 3.5mm
Call
Tech Support Brown, Gray, Black
SAMPLE
Kenwood Sample 2
NOTE: Cut wire only, do NOT remove
1-800-621-3695 x3
©2017 SCOSCHE INDUSTRIES, INC. 5 ITCLS01B 10/17

UAC

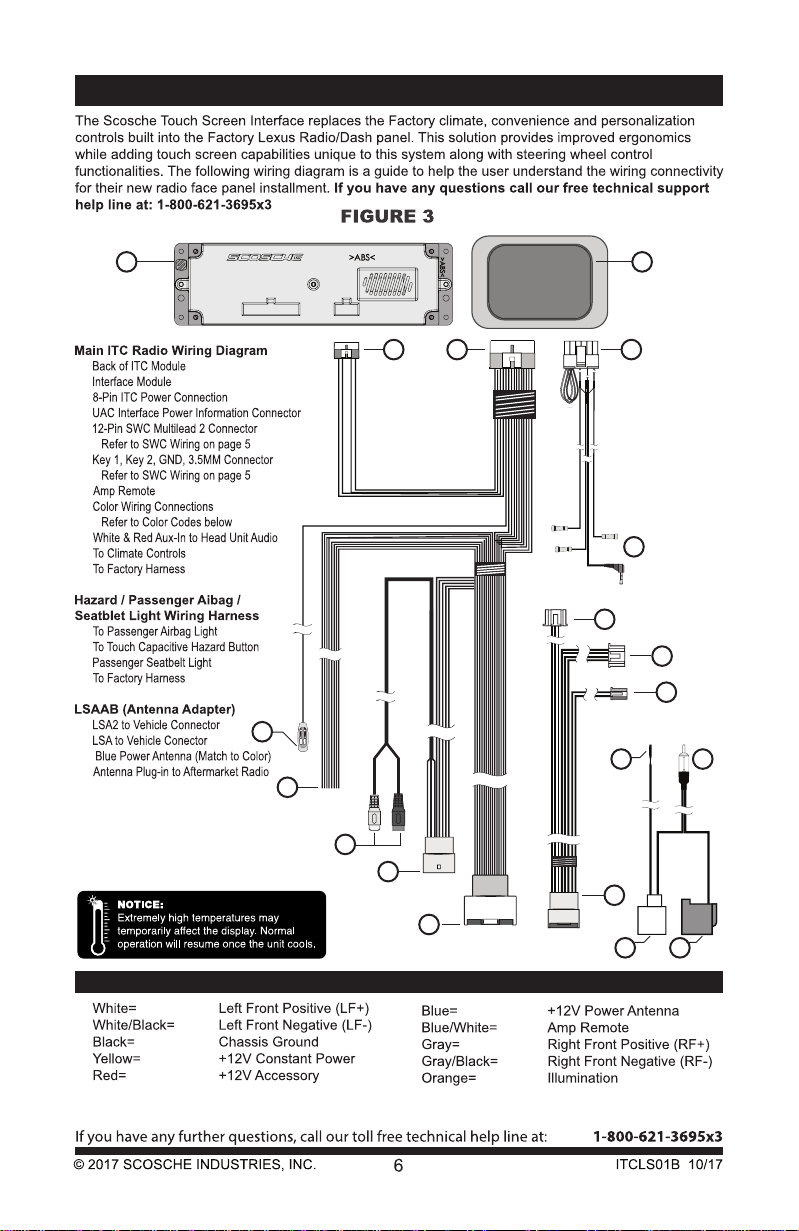

SCOSCHE HVAC WIRING DIAGRAM
WIRE COLOR CODES
1.
2.
3.
4.
5.
•
6.
•
7.
8.
•
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
1 2
3 4 5
6
8
9
10
11
12
13
14
15
18 19
16 17
7
The Scosche Touch Screen Interface replaces the Factory climate, convenience and personalization
controls built into the Factory Lexus Radio/Dash panel. This solution provides improved ergonomics
while adding touch screen capabilities unique to this system along with steering wheel control
functionalities. The following wiring diagram is a guide to help the user understand the wiring connectivity
for their new radio face panel installment.
If you have any questions call our free technical support
help line at: 1-800-621-3695x3
FIGURE 3
Main ITC Radio Wiring Diagram
Back of ITC Module
Interface Module
8-Pin ITC Power Connection
UAC Interface Power Information Connector
12-Pin SWC Multilead 2 Connector
Refer to SWC Wiring on page 5
Key 1, Key 2, GND, 3.5MM Connector
Refer to SWC Wiring on page 5
Amp Remote
Color Wiring Connections
Refer to Color Codes below
White & Red Aux-In to Head Unit Audio
To Climate Controls
To Factory Harness
Hazard / Passenger Aibag /
Seatblet Light Wiring Harness
To Passenger Airbag Light
To Touch CapacItIve Hazard Button
Passenger Seatbelt Light
To Factory Harness
LSAAB (Antenna Adapter)
LSA2 to Vehicle Connector
LSA to Vehicle Conector
Blue Power Antenna (Match to Color)
Antenna Plug-in to Aftermarket Radio 0--
~ Extremely high temperatures may
n
NOTICE:
:- temporarily affect the display. Normal
-operation will resume once the unit cools.
While=
While/Black=
Black=
Yellow=
Red=
Left Front Positive (LF+)
Left Front Negative (LF-)
Chassis Ground
+12V Constant Power
+12VAccessory
Blue=
Blue/White=
Gray=
Gray/Black=
Orange=
If you have any further questions, call our toll free technical help line at:
©2017 SCOSCHE INDUSTRIES, INC. 6
+12V PowerAntenna
Amp Remote
Right Front Positive (RF+)
Right Front Negative (RF-)
Illumination
1-8OO-621-3695x3
ITCLS01B 10/17

Down (Blue)
1 & 2
5 & 6
3 & 4
8
10
7
Temp #
Reading
Fan Speed
Setting Indicator
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
UAC
1 2
3 4
5 6
7 8
910 11
12

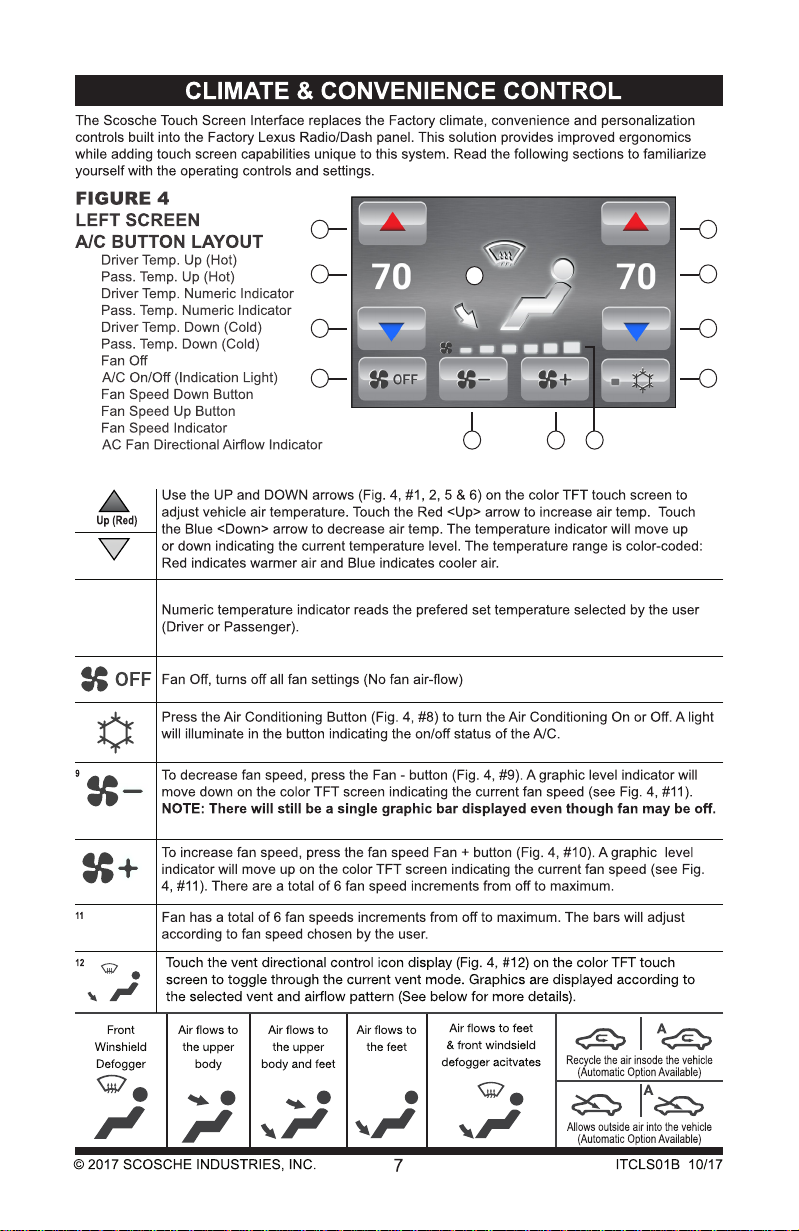

CLIMATE & CONVENIENCE CONTROL
The Scosche Touch Screen Interface replaces the Factory climate, convenience and personalization
controls built into the Factory Lexus Radio/Dash panel. This solution provides improved ergonomics
while adding touch screen capabilities unique to this system. Read the following sections to familiarize
yourself with the operating controls and settings.
FIGURE 4
LEFT SCREEN
0-- --0
A/C BUTTON LAYOUT
Driver Temp. Up (Hot) ()-
Pass. Temp. Up (Hot)
Driver Temp. Numeric Indicator
Pass. Temp. Numeric Indicator
Driver Temp. Down (Cold)
()-
Pass. Temp. Down (Cold)
Fan Off
A/C On/Off (Indication Light)
0-
Fan Speed Down Button
Fan Speed Up Button
Fan Speed Indicator
AC Fan Directional Airflow Indicator
--0
--0
---0
...
Use the UP and DOWN arrows (Fig. 4, #1, 2, 5 & 6) on the color TFT touch screen to
adjust vehicle airtemperature. Touch the Red <Up> arrow to increase air temp. Touch
Up(Red)
the Blue <Down> arrow to decrease air temp. The temperature indicatorwill move up
v
or down indicating the current temperature level. The temperature range is color-coded:
Red indicates warmer air and Blue indicates cooler air.
Numeric temperature indicator reads the prefered set temperature selected by the user
(Driver
or Passenger).
SoFF
Fan Off, turns offall fan settings (No fan air-flow)
¢ Press the
Air Conditioning Button (Fig. 4, #8) to turn the Air Conditioning On or Off. A light
will illuminate in the button indicating the on/off status
of the A/C.
g s-
To decrease fan speed, press the Fan - button (Fig. 4, #9). A graphic level indicator will
move down on the
colorTFTscreen indicating the current fan speed (see Fig. 4, #11).
NOTE: There will still be a single graphic bar displayed even though fan may be off.
S+
To increase fan speed, press the fan speed Fan + button (Fig. 4, #10). A graphic level
indicatorwill move up on the color TFT screen indicating the current fan speed (see Fig.
4,
#11 ). There are a total of 6 fan speed increments from offto maximum.
11
Fan has a total of 6 fan speeds increments from offto maximum. The bars will adjust
according to fan speed chosen by the user.
12
<;jji7
Touch the vent directional control icon display (Fig. 4, #12) on the colorTFT touch
• screen
to toggle through the current vent mode. Graphics are displayed according to
"
,,
the selected vent and airflow pattern (See below for more details).
Front Airflows to Airflows to Airflows to
Air flows to feet
~ I ~
Winshield the upper the upper the feet & front windsield
Defogger body body and feet defogger acitvates
Recycle the air insode the vehicle
\W.
(Automatic Option Available)
....
.....
•
~.
~
IA~
,,,
,,,
,,,,
,,,
,,,
Allows outside air into the vehicle
(Automatic Option Available)
©2017 SCOSCHE INDUSTRIES, INC. 7 ITCLS01B 10/17

1.
2.
3.
4.
5.
6.
7.
8.
MENU
DUAL
AUTO
4
3
1
6
7
8
5
2
1. Scosche Logo (Active Button)
2. Menu (Enter Settings Menu)
3. Dual Zone Climate Control Button
4. Automatic Temp. Setting
5. Air Recirculation Mode
6. Front Windshield Defogger
7. Rear Window Defogger
8. Micro Dust & Pollen Filter
CLIMATE CONVENIENCE CONTROLS
FIGURE 5
RIGHT SCREEN A/C BUTTON LAYOUT
--0
--0
0-
. -~
--0
~
Tap 5x's to display installer menu pop-up window
~
Press the MENU button to enter Configuration settings where the user can access
Vehicle, Picture
(Brightness ... ), Language Settings and the module's software
Version.
The air conditioning system switches between individual and simultaneous modes
each time the DUAL button is pressed.
The air conditioning system will begin to operate.
Air outlets and fan speed are
automatically adjusted according to the temperature setting.
Press the recirculation button (Fig.
5, #5) to turn on air recirculation. A light will
illuminate in the button indicating the on/offstatus
of the Recirculate mode. Interior air
~
will be re-circulated inside the vehicle. This mode helps to quickly cool the air inside
the vehicle
or prevent outside air and odors from entering. Operating recirculation
mode [while the A/C is off] increases humidity and may cause the windows to fog.
Recirculation is not available in the Defrost
or Defog modes.
Press the Defrost (Fig.
5, #6) to turn Defrost On or Off. This configuration helps clear
~
front windshield of fog or moisture. Air will be directed to the windshield. A light will
illuminate in the button indicating the on/off status
of the Defrost mode. NOTE: For best
results clear the windows of snow or ice before defrost settings. DO NOT OPERATE VEHICLE
UNTIL WINDOWS ARE CLEAR!
[@
Press the Rear window defogger button (Fig. 5, #7) to turn the rear window defogger on
or off. A light will illuminate in the button indicating the on/offstatus of the Defrost mode.
Rear defoggerwill also be turned off by turning the ignition to the OFF position.
P':+. Microdust and Pollen Filter (Fig.
5, #8) switches the outside air mode to recirculated air
-~
mode. Pollen is removed from the air and the air flows to the upper part of the body
©2017 SCOSCHE INDUSTRIES, INC. 8 ITCLS01B 10/17

1
6
7
8
2
3
4
1
3
4
5
6
7
5
2
1
2
3
4
5
1.
2.
3.
4.
5.
6.
7.
8.
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
6.
7.
MENU NAVIGATION
MENU Press the MENU button (Page 8 Fig.5, #2) to access Configuration Menu
Vehicle/Picture/Language/Version Settings
The following figures (6-8) are sample menu screen displays
to help you navigate and
understand the menu user interface ofthe module. Use the (Return arrow) to
go back to
the previous menu. Press the X to close the menu window and return to the TFT color
touch screen home screen. For further setting options refer to the Settings Chart on Page
10.
FIGURE 6
Navigation of Menu Settings
Menu Setting Legend
Return to previous menu
EnterVehicle Settings menu
Enter Picture Settings menu
Set Language settings
Software Version display
Configuration title header
Close menu settings
Arrow indicates more sub-menus
for the selected settings
FIGURE 7
Navigation Sub-Menu Settings
Sub-menu Settings Legend
Return to Previous Menu
Sub Menu Configuration Options
Sub-menu title header
Close Menu Settings
Scrollbar (Scroll Up/Down
for more options, only when
displayed).
FIGURE 8
Configuration Options Legend
Configuration Options Legend
Return to Previous Menu
•
•
•
•
•
•
•
•
•
Setting highlighted when selected
Setting Scrollbar
(Use to configure setting)
Options not selected
(Press to highlight and select)
Close Menu
Set Setting
Scrollbar
(when available)
•
•I
©2017 SCOSCHE INDUSTRIES, INC.
•
(--
Configuration Menu X •
Vehicle Settings ➔
•
Picture Settings
➔
Language
➔
Version
➔
•
(--
Vehicle Settings X •
Set Amplifier Volume 45
Fader 0
Auto Recirculation Fitted •
Driver Position Left
(--
Vehicle Settings X •
I
Set Amplifier Volume 45 i•
e
JTTlTl
•
Ell O I
Fader
Auto Recirculation Fitted
9 ITCLS01B 10/17

Feature Name Option 1 Option 2 Option 3 Option 4 Option 5

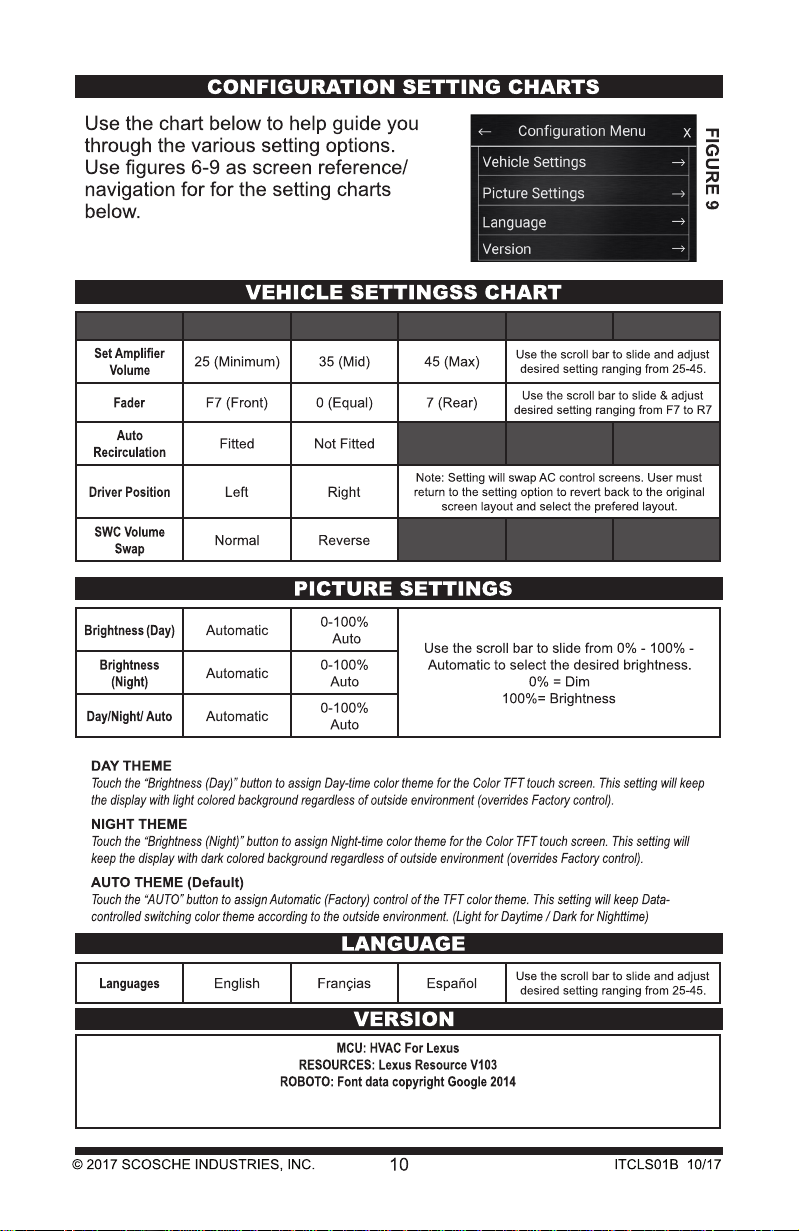

CONFIGURATION SETTING CHARTS
Use the chart below to help guide you
through the various setting options.
Use figures 6-9 as screen reference/
navigation for for the setting charts
below.
Configuration Menu
Vehicle Settings
Picture Settings
Language
Version
VEHICLE SETTINGSS CHART
"T1
ci
C
;:a
m
C0
Use the scroll bar to slide and adjust
desired setting ranging from 25-45.
Fader F7 (Front)
Auto
Fitted
Recirculation
Driver Position Left
SWCVolume
Normal
Swap
Brightness (Day) Automatic
Brightness
Automatic
(Night}
Day/Night/ Auto Automatic
DAY THEME
0 (Equal)
Not Fitted
Right
Reverse
Use the scroll bar to slide & adjust
desired setting ranging from F7 to R7
Note: Setting will swap AC control screens. User must
return to the setting option to revert back to the original
screen layout and select the prefered layout.
PICTURE SETTINGS
0-100%
Auto Use the scroll bar to slide from 0% -100% -
0-100% Automatic to select the desired brightness.
Auto 0% = Dim
0-100% 100%= Brightness
Auto
Touch the "Brightness (Day)" button to assign Day-time color theme for the Color TFT touch screen. This setting will keep
the display with light colored background regardless of outside environment (overrides Factory control).
NIGHT THEME
Touch the "Brightness (Night)" button to assign Night-time color theme for the Color TFT touch screen. This setting will
keep the display with dark colored background regardless of outside environment (overrides Factory control).
AUTO THEME (Default)
Touch the "AUTO" button to assign Automatic (Factory) control of the TFT color theme. This setting will keep Data-
controlled switching color theme according to the outside environment. (Light for Daytime I Dark for Nighttime)
Languages English
LANGUAGE
Fram;;ias Espanol
VERSION
MCU: HVAC For Lexus
RESOURCES: Lexus Resource V103
ROBOTO: Font data copyright Google 2014
©2017 SCOSCHE INDUSTRIES, INC. 10
Use the scroll bar to slide and adjust
desired setting ranging from 25-45.
ITCLS01B 10/17

NOTES
© 2017 SCOSCHE INDUSTRIES, INC.
11
ITCLS01B 10/17

NOTES
©2017 SCOSCHE INDUSTRIES, INC.
12
ITCLS01B 10/17
