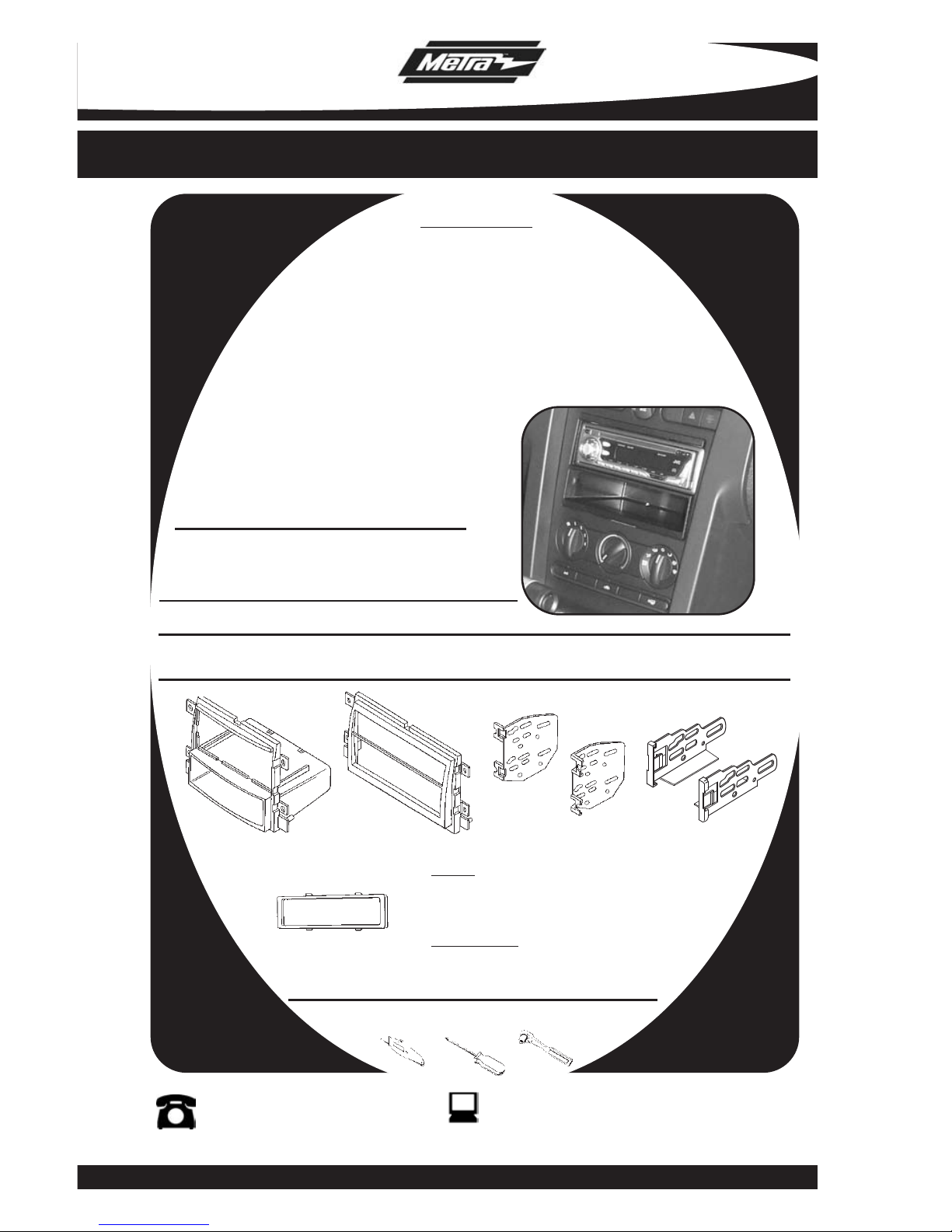

INSTALLATION INSTRUCTIONS FOR PART 99-5807
99-5807
KIT FEATURES
•DIN Mount Radio Provision with Pocket
•ISO Mount Radio Provision with Pocket
•Double DIN Mount Radio Provision
•Stacked ISO Units Provision
A) Radio Housing (single DIN w/ pocket) •B) Radio Housing (double DIN / stacked ISO DIN) • C) Double DIN
Brackets D) ISO Brackets E) Trim Plate
KIT COMPONENTS
TOOLS REQUIRED:
Cutting Tool • Phillips Screwdriver • Socket Set
1-800-221-0932
©COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
www.metraonline.com
BD
E
C
A
FORD
Edge 2007-2008
Expedition 2007-2008
Explorer 2005-2009
F-150 2004-2008
Five-Hundred 2005-2007
Freestyle 2005-2007
Mustang 2005-2009
Sport Trac 2006-2009
Taurus/Taurus X 2008-2009
LINCOLN
Mark LT 2004-2008
MERCURY
Montego 2005-2007
Mountaineer 2005-2009
Sable 2008-2009
APPLICATIONS
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Harness:
•70-5520 - FordHarness 2003-up
•70-5521 - Ford Amplified Harness 2003-up
•70-5522 - FordSub Harness 2003-up
•XSVI-5520 NAV - Ford Interface 2006-up
Antenna Adapter:
•40-CR10 - Chrysler/GM Antenna Adapter 2002-up

TABLE OF CONTENTS
99-5807
*Note:
Refer also to the instructions included with the aftermarket radio.
K NOWLEDGE IS P OWER
Enhanceyour installation and fabrication skillsby
enrolling in the most recognizedandrespected
mobile electronics school in our industry.
Log onto www.installerinstitute.comor call
800-354-6782 for more informationandtake steps
toward abetter tomorrow.
Dash Disassembly
FORD
- Edge2007-2008..................................... 2
-
Expedition2007-2008................................ 2
- Explorer2005-2009 .............................. . . . 1
- F-1502004-2008.............................. . . . . . 2
- Five Hundred 2005-2007 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
- Freestyle2005-2007............................ . . . . . 4
- Mustang2005-2009............................ . . . . . 5
-
Sport Trac 2006-2009 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
- Taurus 2008-2009 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
-Taurus X 2008-2009 . . . . . . . . . . . . . . . . . . . . . . . . . ......4
Lincoln
Mark LT2004-2008 . .......... .................. ..... 2
Mercury
-Montego 2005-2007............................... . . 3
-Mountaineer2005-2009.............................. 1
-Sable2008-2009.................................... 3
Kit Assembly
-DIN Mount Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . 6
-ISO Mount Radio Provision with Pocket .. . . . . . . . . . . . . . . . . . . . . . . 7
-Double DIN Radio Provision . . . . . . . . ........................ 8
-Stacked ISO Units Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Final Assembly ..........................................10

99-5807 DASH DISASSEMBLY
A
B
C
1
1

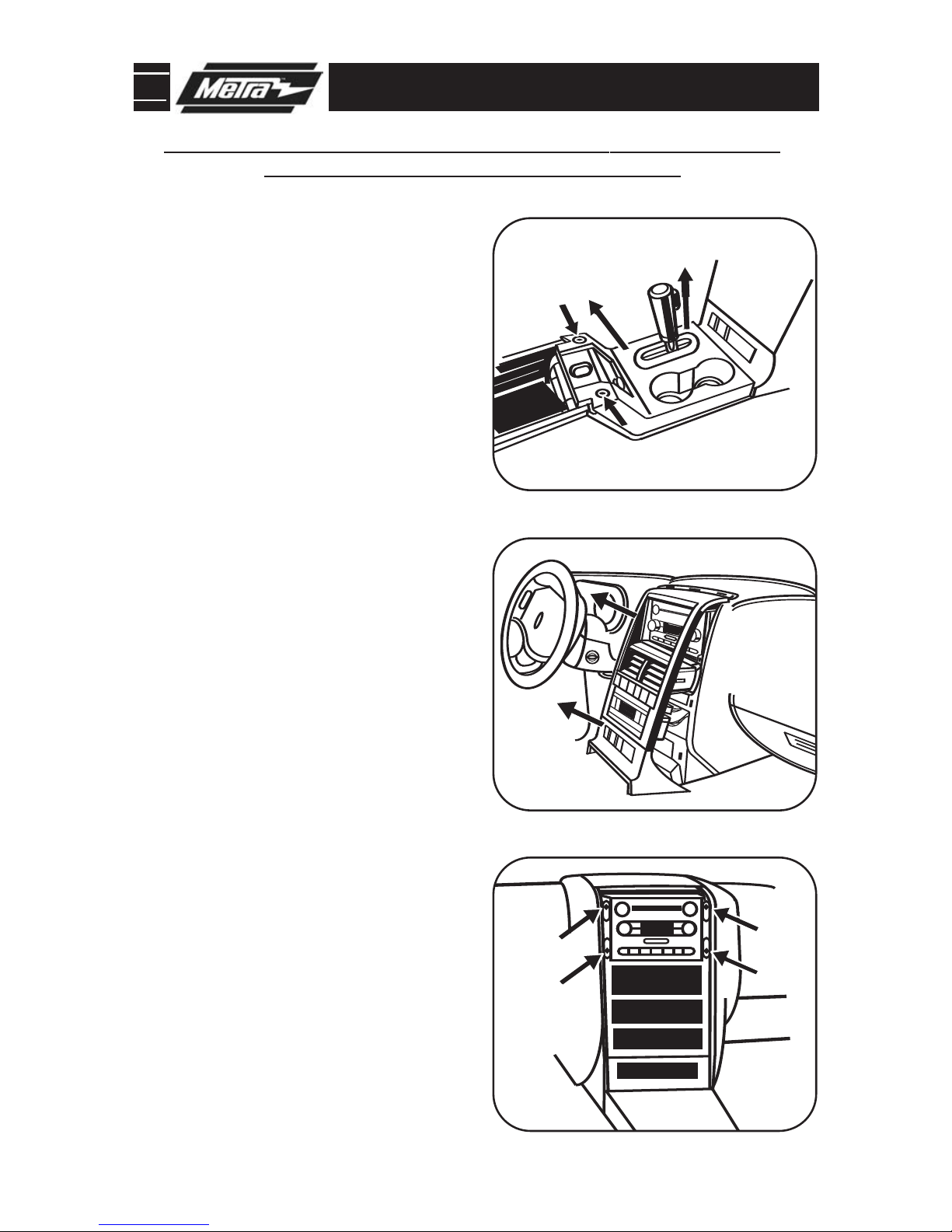

Remove dash panel surrounding radio
to access the factoryradio screws.
( Figure B)
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
3
Open center console and remove (2)
Phillips screws then unclip and
remove entire panel surrounding
shifter. (
Figure A)
2
Remove (4) 9/32” screws to remove
the factoryradio. (Figure C)
4
FORD EXPLORER 2005-2009/SPORT TRAC2006-2009
MERCURYMOUNTAINEER 2005-2009

99-5807 DASH DISASSEMBLY
A
B
2

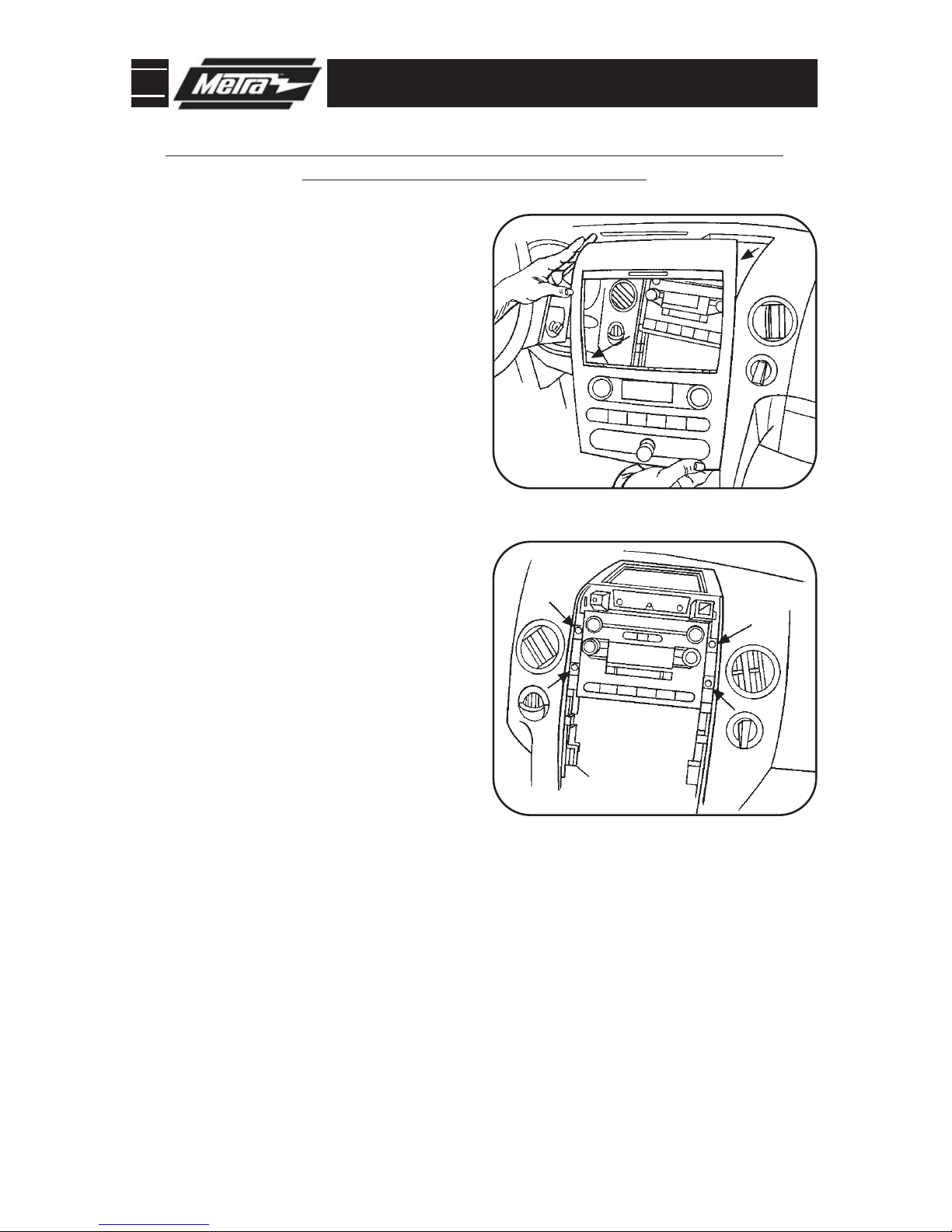

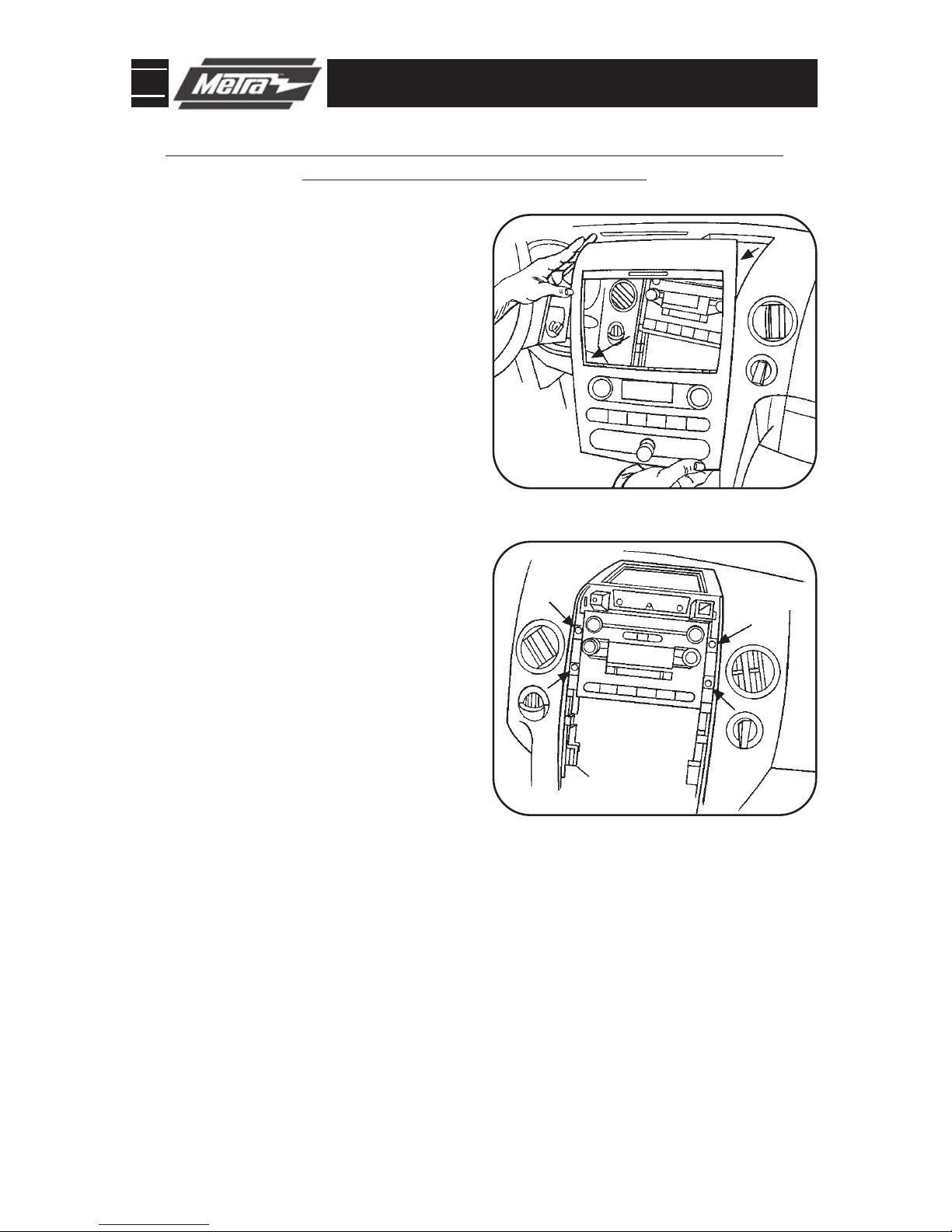

Unsnap and remove entire panel sur-
rounding the radio and climate con-
trols. ( Figure A)
2
Remove (4) 9/32” screws to remove
the factory radio. (Figure B)
3
Continue to kit assembly.
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
1
FORD EDGE/EXPEDITION 2007-2008/F-150 2004-2008
LINCOLN MARK LT2004-2008

99-5807 DASH DISASSEMBLY
A
B
C
D
E
3

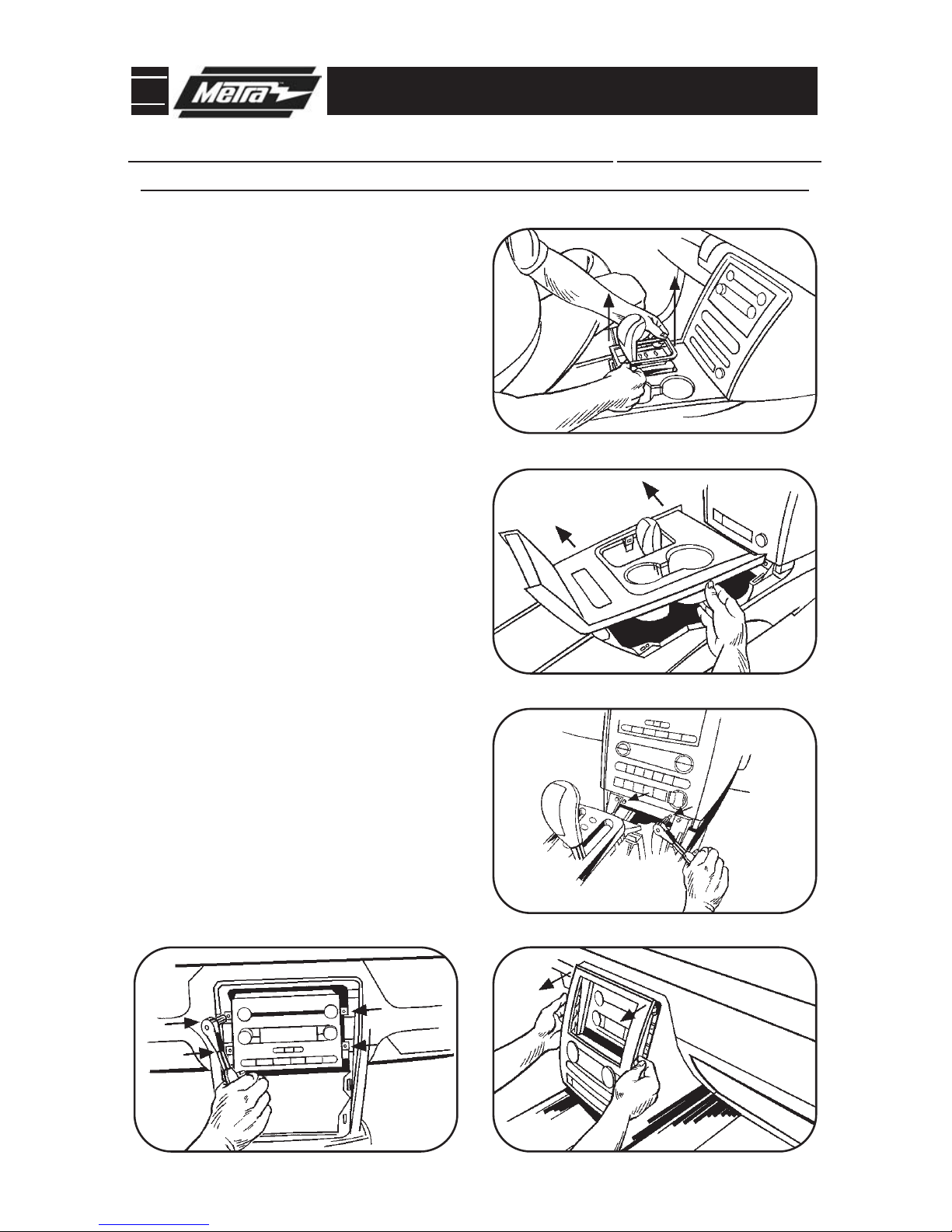

Unclip and remove the small rectangu-
lar trim around shift lever. ( Figure A)
2
Unclip and remove the entire panel
(including cup holders) surrounding
the shift lever.
(Figure B)
3
4
Remove (2) 9/32” screws at the bot-
tom of the center radio/ climate con-
trol panel.
(Figure C)
5
Unclip and remove the center panel.
(Figure D)
6
Remove (4) 9/32” screws from the
radio to remove.
Continue to kit assembly.
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
1
FORD FIVE HUNDRED 2005-2007/TAURUS 2008-09
MERCURYMONTEGO 2005-2007/SABLE 2008-09

99-5807 KIT ASSEMBLY
4
A
B
Disconnect the negative battery termi-
nal to prevent an accidental short cir-
cuit.
1
Unclip and remove the entire center
panel surrounding the radio and a/c
controls. (
Figure A)
2
Remove (4) 9/32” screws from radio to
remove.
( Figure B)
3
Continue to final assembly.
* Note: Refer also to the instructions included with the aftermarket radio.
FORD FIVE HUNDRED 2005-2007/TAURUS 2008-09
MERCURYMONTEGO 2005-2007/SABLE 2008-09

99-5807 DASH DISASSEMBLY
FORD MUSTANG 2005-2009
5
Remove the small rectangular shifter
lever trim panel if equipped. ( Figure A)
2
Unclip and remove panel. ( Figure B)4
Unclip and remove panel. ( Figure E)7
Remove (6) 9/32” screws from center
trim panel surrounding the radio and
climate controls then unclip and
remove panel. (
Figure D)
Unclip and remove the (2) center stack
trim panels from the left and right side
of the radio and climate controls.
(
Figure C)
5
6
Remove (2) Phillips screws from
under the center armrest at the back
of the shifter trim panel (including
cup holders).
(Figure B)
3
Continue to kit assembly.
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
1
A
B
C
D
E

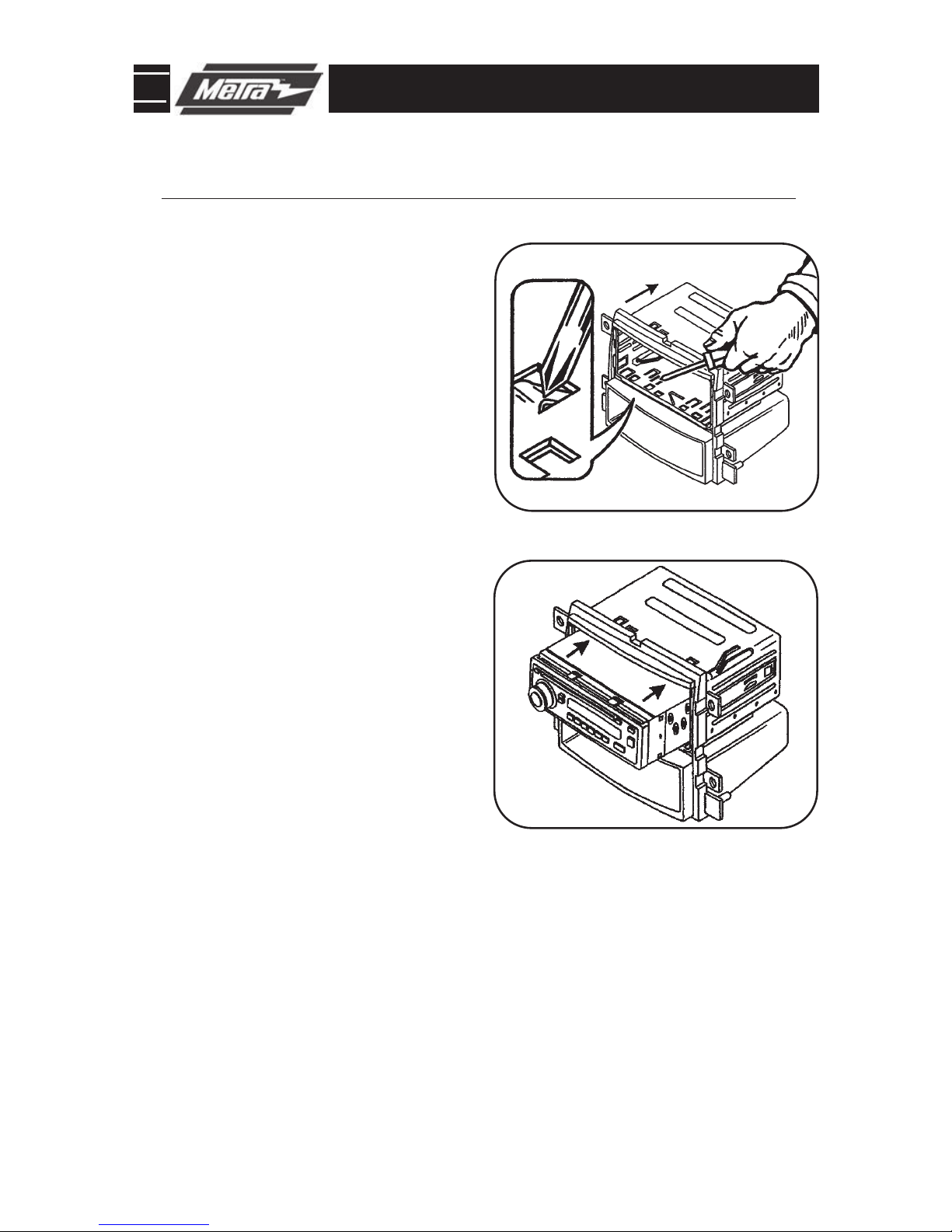

99-5807 KIT ASSEMBLY
6
A
B

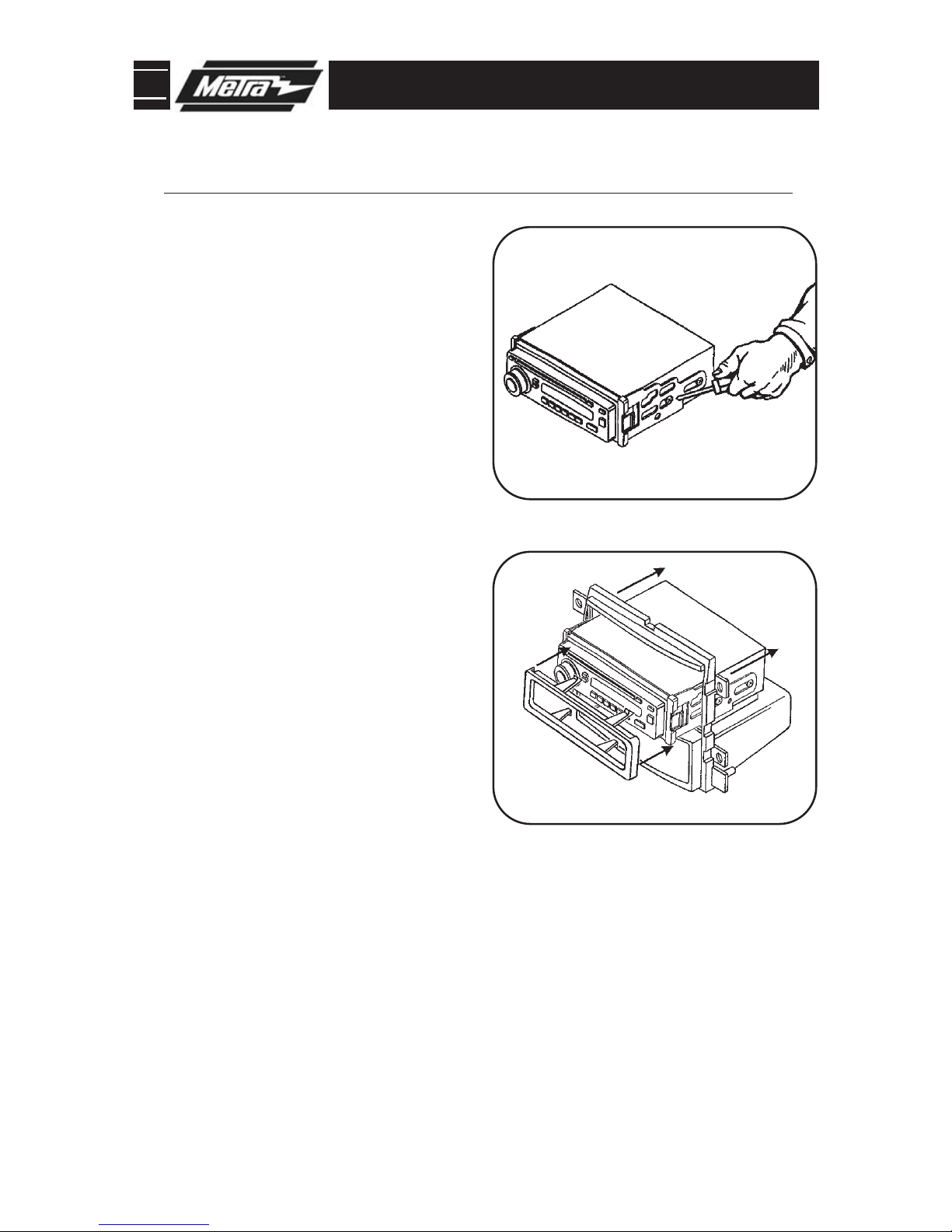

DIN RADIO PROVISION WITH POCKET
Slide the DIN cage into the Radio
Housing and secure by bending the
metal locking tabs down. (Figure A)
1
Slide the aftermarket head unit into the
cage and secure. (Figure B)
2
Continue to final assembly.
* Note: Refer also to the instructions included with the aftermarket radio.

99-5807 KIT ASSEMBLY
7
A
B
ISO RADIO PROVISION WITH POCKET
Mount the ISO Brackets to the head
unit with the screws supplied with
the unit. (Figure A)
1
Slide the head unit into the radio
opening until the side clips engage.
(Figure B)
2
Snap the Trim plate into the Radio
Housing.
3
Continue to final assembly.
* Note: Refer also to the instructions included with the aftermarket radio.

99-5807 KIT ASSEMBLY
8
DOUBLE DIN MOUNT RADIO PROVISION
Slide the appropriate side bracket over
the mounting legs of the Double DIN
trim plate aligning the holes in the trim
plate and the bracket.
(Figure B)
2
1
Slide the DDIN radio unit into the trim
plate bracket assembly and secure the
unit to the kit using the screws sup-
plied with the head unit. (Figure C)
3
Continue to final assembly.
* Note: Refer also to the instructions included with the aftermarket radio.
A
B
C
NOTE:
The notch in the housing should be
on top.
Remove the center bar from the
Double DIN trim plate.
(Figure A)

99-5807 KIT ASSEMBLY
9
A
B

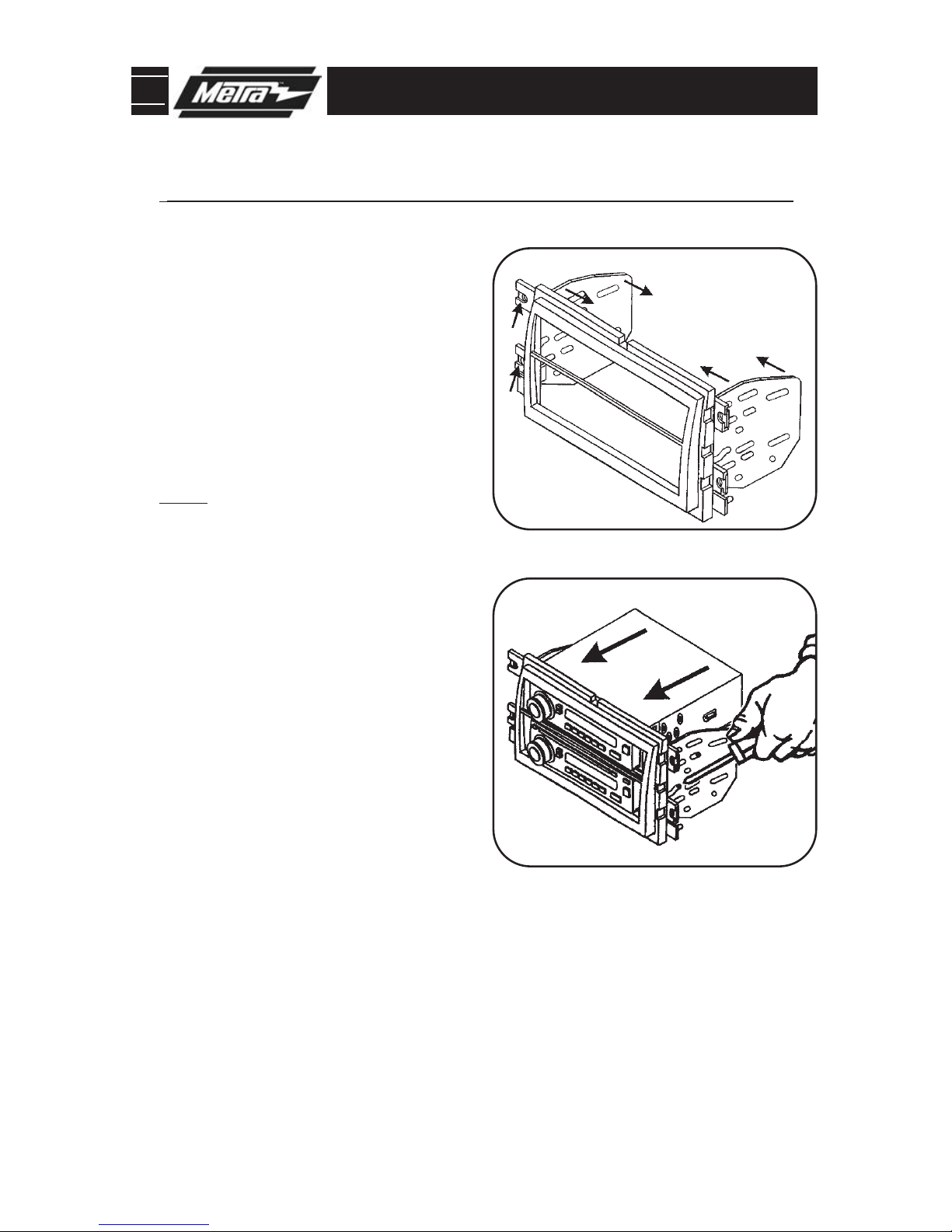

STACKED ISO UNITS PROVISION
Slide the appropriate side bracket over
the mounting legs of the Double DIN
trim plate aligning the holes in the trim
plate and the bracket.
(Figure A)
1
Slide the stacked ISO DIN units into the
trim plate bracket assembly and secure
the units to the kit using the screws
supplied with the head units. (Figure B)
2
NOTE:
The notch in the housing should be on
top.
3
Continue to final assembly.
* Note: Refer also to the instructions included with the aftermarket radio.

99-5807 FINAL ASSEMBLY
FINAL ASSEMBLY
(A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
A
B
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
proper mating adapter and making connections as shown. (Isolate and individ-
ually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
Reassemble radio and dash assemblies in reverse order of disassembly.
1
2
3
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown belowand the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc. . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer.................Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
10
1-800-221-0932
REV. 05/06/09 © COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION INST99-5807
www.metraonline.com

INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-5807
99-5807
CARACTERÍSTICAS DEL KIT
•Accesorio para radio de montaje DIN con bolsillo
•Accesorio para radio de montaje ISO con bolsillo
•Accesorio para radio de montaje DIN doble
•Accesorio para unidades ISO apiladas
A) Alojamiento del radio (DIN simple con bolsillo) •B) Alojamiento del radio (DIN doble/DIN ISO apilado) • C) Soportes DIN dobles
D) Soportes ISO • E) Placa de terminación
COMPONENTES DEL KIT
TOOLS REQUIRED:
Herramienta de corte •Destornillador Phillips •Juego de soportes
1-800-221-0932
© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
www.metraonline.com
BD
E
C
A
FORD
Edge 2007-2008
Expedition 2007-2008
Explorer 2005-2009
F-150 2004-2008
Five-Hundred 2005-2007
Freestyle 2005-2007
Mustang 2005-2009
Sport Trac 2006-2009
Taurus/Taurus X 2008-2009
LINCOLN
Mark LT 2004-2008
MERCURY
Montego 2005-2007
Mountaineer 2005-2009
Sable 2008-2009
APLICACIONES
CONEXIONES DE CABLEADO Y ANTENA (se venden por separado)
Arnés:
•70-5520 - Arnés de Ford 2003 y modelos posteriores
•70-5521 - Arnés amplificado de Ford 2003 y modelos posteriores
•70-5522 - Subarnés de Ford 2003 y modelos posteriores
•XSVI-5520 NAV - Ford Interface 2006-up
Antenna Adapter:
•40-CR10 - Adaptador de antena Chrysler/GM
2002 y modelos posteriores

ÍNDICE
99-5807
*Nota:
Asimismo, remítase a las instrucciones incluidas con el radio de posventa.
K
NOWLEDGE IS
P
OWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
DESMONTAJE DEL TABLERO
FORD
- Edge 2007-2008 . . . . . ........................ . ..... . .
2
-
Expedition 2007-2008 . ......... . . ... . ... . . . ........ . . 2
- Explorer 2005-2009...... . . . . . . ... . ..............
. . . 1
- F-150 2004-2008 . . . . . ... . . . . . . . . . . . . .......... . . . . . 2
- Five Hundred 2005-2007 ........ . . . . . ...........
. . . . . 3
- Freestyle 2005-2007 . . . . . . . . . .. ... . ........... . .
. . . . . 4
- Mustang 2005-2009 . . . . . . . .... ... . . . . . ....... . .
. . . . . 5
-
Sport Trac 2006-2009 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
- Taurus 2008-2009 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
- Taurus X 2008-2009 . . . . . . . . . . . . . . . . . . . . . . . . . ......4
Lincoln
Mark LT 2004-2008 ........... . . ....... . ... . . . . .
. . . . . 2
Mercury
- Montego 2005-2007........ . . ... . ........ . . . . . . . . . . . 3
- Mountaineer 2005-2009. ... . . . . . . . . . . ...... . ... . ... . .
1
- Sable 2008-2009 ... . ... . ... . . . . . . . . . ....... . . . . . . . . .
3
Montaje del kit
- DIN Mount Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . 6
- ISO Mount Radio Provision with Pocket .. . . . . . . . . . . . . . . . . . . . . . . 7
- Double DIN Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
- Stacked ISO Units Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Montaje final ..........................................10

99-5807 DESMONTAJE DEL TABLERO
A
B
C
1
1
Retire el panel del tablero que rodea el
radio para tener acceso a los tornillos del
radio de fábrica. (Figura B).
Desconecte el terminal negativo de la
batería, a fin de evitar un cortocircuito
accidental.
3
Abra la consola central y retire (2) tornillos
Phillips y, luego, desenganche y retire
todo el panel que rodea la palanca de
velocidades. (Figura A).
2
Retire (2) tornillos de 9/32 in en la parte
inferior del panel del radio central/de
control de clima. (Figura C).
4
FORD EXPLORER 2005-2009/SPORT TRAC 2006-2009
MERCURY MOUNTAINEER 2005-2009

99-5807 DESMONTAJE DEL TABLERO
A
B
2
Quite a presión y retire todo el panel que
rodea el radio y los controles de clima.
(Figura A).
2
Retire (4) tornillos de 9/32 in del radio
para retirarlo. (Figura B).
3
Continúe con el montaje del kit.
Desconecte el terminal negativo de la
batería, a fin de evitar un cortocircuito
accidental.
1
FORD EDGE/EXPEDITION 2007-2008/F-150 2004-2008
LINCOLN MARK LT 2004-2008

99-5807 DESMONTAJE DEL TABLERO
A
B
C
D
E
3
Desenganche y retire la terminación
pequeña rectangular alrededor de la
palanca de velocidades. (Figura A).
2
Desenganche y retire todo el panel (inc-
luidos los portavasos) que rodean la palan-
ca de velocidades. (Figura B).
3
4 Retire (2) tornillos de 9/32 in en la parte
inferior del panel del radio central/de
control de clima. (Figura C).
5 Desenganche y retire el panel central.
(Figura D)
6 Retire (4) tornillos de 9/32 in del radio
para retirarlo. (Figura E)
Continúe con el montaje del kit..
Desconecte el terminal negativo de la
batería, a fin de evitar un cortocircuito
accidental.
1
FORD FIVE HUNDRED 2005-2007/TAURUS 2008-09
MERCURY MONTEGO 2005-2007/SABLE 2008-09

99-5807 MONTAJE DEL KIT
4
A
B
Desconecte el terminal negativo de la
batería, a fin de evitar un cortocircuito
accidental.
1
Desenganche y retire todo el panel central
que rodea el radio y los controles del aire
acondicionado. (Figura A).
2
Retire (4) tornillos de 9/32 in del radio para
retirarlo. (Figura B).
3
Continúe con el montaje final..
*Nota: Asimismo, remítase a las instrucciones incluidas con el radio de posventa
.
FORD FIVE HUNDRED 2005-2007/TAURUS 2008-09
MERCURY MONTEGO 2005-2007/SABLE 2008-09

99-5807 DESMONTAJE DEL TABLERO
FORD MUSTANG 2005-2009
5
Retire el panel de terminación pequeño
rectangular de la palanca de velocidades,
si corresponde. (Figura A).
2
Desenganche y retire el panel. (Figura B). 4
Desenganche y retire el panel. (Figura E) 7
Retire (6) tornillos de 9/32 in del panel de
terminación central que rodea el radio y
los controles de clima y, luego, desengan-
che y retire el panel. (Figura D)
Desenganche y retire los (2) paneles de
terminación apilados centrales de los
lados izquierdo y derecho del radio y de
los controles de clima. (Figura C).
5
6
Retire (2) tornillos Phillips que se encuen-
tran debajo del apoyabrazos central en la
parte posterior del panel de terminación
de la palanca de velocidades (incluidos
los portavasos). (Figura B).
3
Continúe con el montaje del kit.
Desconecte el terminal negativo de la
batería, a fin de evitar un cortocircuito
accidental.
1
A
B
C
D
E

99-5807 MONTAJE DEL KIT
6
A
B
ACCESORIO PARA RADIO DIN CON BOLSILLO
Deslice la caja DIN en el alojamiento del
radio y sujétela doblando las lengüetas de
cierre de metal hacia abajo. (Figura A).
1
Deslice la unidad central de posventa en
la caja y sujétela. (Figura B).
2
Continúe con el montaje final..
*Nota: Asimismo, remítase a las instrucciones incluidas con el radio de posventa.
