Hi-ltte HT-480BSW User manual

USER MANUAL
480 Super Waterproof Beam Spot Wash 3 IN 1 IP65

FOREWORD
Thanks for choosing product of 480 IP65 Super Waterproof BSW Moving Head
Light,it is our newest the latest independent research and development of a
high-grade quality. Compared with other same power lights, it's more lightweight
and convenient, and with perfect combination of international advanced
electronic control technology and excellent human chemical. 480 BSW is in full
compliance with the CE standard supports the international DMX512 signal control
mode.
480 BSW used the USHIO NSL450 lamp with more brightness, strong light effect,
clear pattern, fast and smooth pan&tilt running, precise positioning and uniform
pure color high standards of color disc.

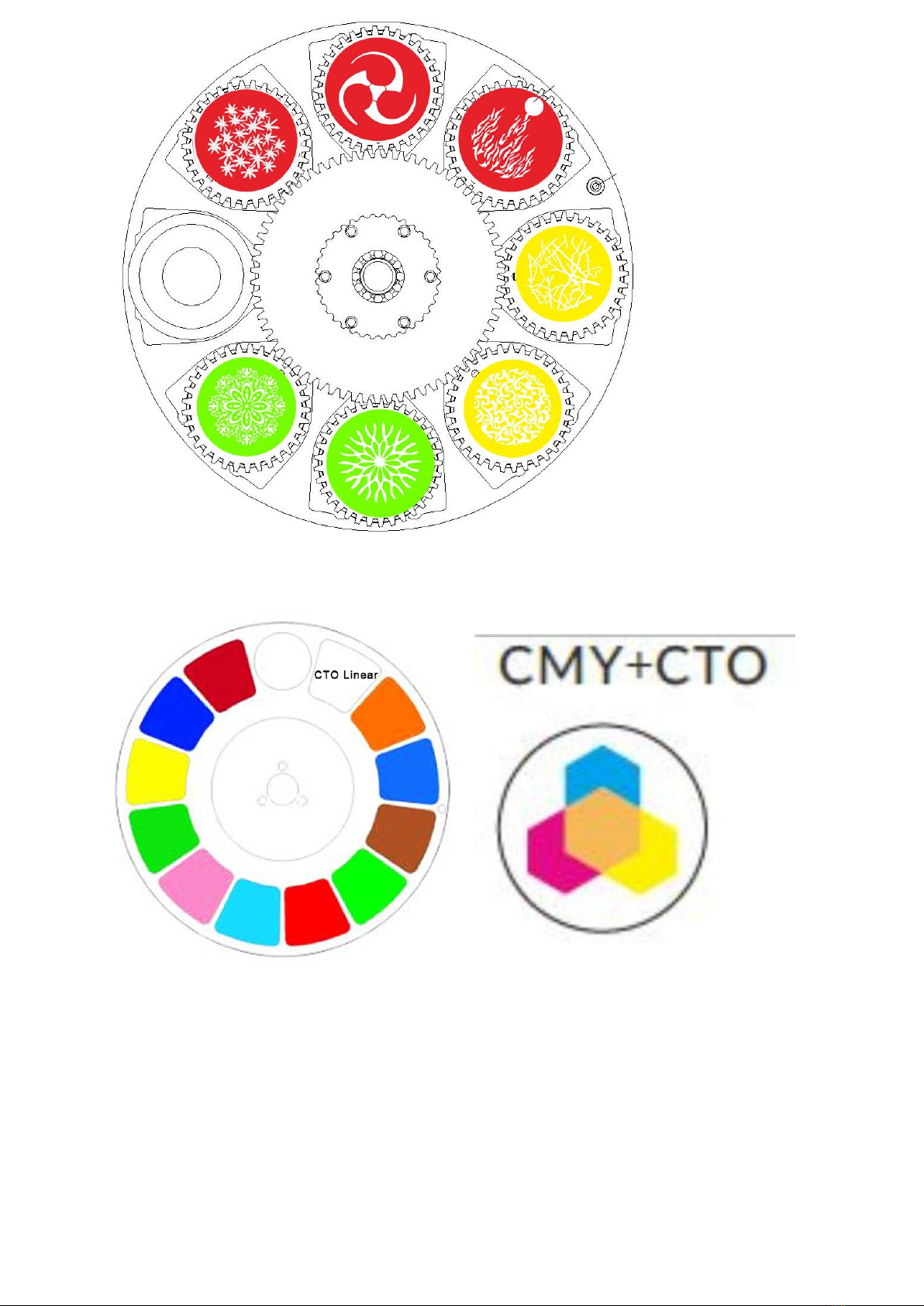

480 BSW have a super high and super long distance range, also has 19pcs static
gobos (11 gobos+8 open), a frost lens, 12 colors with white color wheel, with 5
kinds of prism effect comes from 3pcs prism combination, a rotating gobo wheel
with 7 glass gobos, and CMY+CTO effect.
480 BSW, which is commonly installed in outdoor environments and has been
designed with an enclosure that effectively protects the ingress (entry) of external
foreign objects such as dust and water. The International Protection (IP) rating
system is commonly expressed as "IP" (Ingress Protection) followed by two
numbers (i.e. IP65) where the numbers define the degree of protection. The first
digit (Foreign Bodies Protection) indicates the extent of protection against
particles entering the fixture and the second digit (Water Protection) indicates the
extent of protection against water entering the fixture. An IP65 rated lighting
fixture is one, which has been designed and tested to protect against the ingress of
dust (6) and high-pressure water jets from any direction (5).

PRODUCT CATALOG
1:SAFETY TIPS------------------------------------------------------------------------------4
2: TECHNICAL PARAMETERS-------------------------------------------------------------5-6
3:SCHEMATIC LIGHTING COMPONENTS---------------------------------------------6
4:PACKING AND SHIPPING--------------------------------------------------------------6-7
5:SAFETY STANDARDS-------------------------------------------------------------------7-11
6:AC POWER-------------------------------------------------------------------------------11
7:LAMP------------------------------------------------------------------------------------11-14
8:FUNCTIONS----------------------------------------------------------------------------14-17
9:DISPLAY SETUP------------------------------------------------------------------------17-25
10:CHANNEL-----------------------------------------------------------------------------25-29
11:FAILURE ANALYSIS AND RESOLUTION-----------------------------------------29-30
12:CLEAN LAMP-------------------------------------------------------------------------30
13:PHOTOMETRICS DIAGRAM -------------------------------------------------------31

1. SAFETY TIPS
◇Before using this product, please observe carefully the product is not unwrap or
damage during transportation. As a result of damage during transporting, please
do not use the lights, and contact with the dealer or manufacturer.
◇Before running products, ensure that the voltage and Hertz in accordance with
the requirements of lights.
◇It’s very important, connecting ground wire to avoid the electric shock.
◇This product must be installed on the sufficient space, adjacent to interface the
shortest distance of 100 cm, to ensure that the lights will not crash each other.
◇Before moving or repairing the product, please unplug the power.
◇When it working, ensure that no inflammable and explosive near objects.
◇When installing this product, please use the safety rope. When handling this
product, lift the armrest base, rather than the lamp body.
◇This product is suitable for a maximum temperature of 45 degrees Celsius, when
the surrounding environment is higher than 45℃, please do not use this product.
◇Do not touch. When working, the product running very fast, to prevent bruising
hands.
◇Problems happens when operating performances, should immediately stop
using the lights. Do not carry out maintenance, repair damage caused or likely to
cause other problems. Please contact the company's maintenance repair. During
the repair process, use the same type of accessories.
◇Please read the instructions carefully, especially regarding the installation, using,
maintenance parts. Important that the lighting in the transport process, must be
packed anti-shock protection carton or flight case.
Please read the guide book that contains the installation, use
and maintenance of important information

2. TECHNICAL PARAMETERS
◇DMX Channel: 25/30CHs
◇Control model:DMX512,RDM
◇LED LCD Display+Press button,English/Chinese
◇Light Source:USHIO NSL450 lamp+ lighter
◇XY axis super fast and ultra silence 3-phase step motors
◇Color temperature is 7500K,life span is 2000Hs
◇12 Color with white, semi color effect
◇11 fixed gobo with 8 open circle
◇7 glass rotating gobo, could be rotated in both direction
◇Prism: 8+16 prism can reverse rotation, stack with linear prism can have
multi-layer beam effect.
◇Optical lens: High precision glued optical lens combination
◇Frost effect: Adjustable Soft Spot Angle
◇Focus: linear focus
◇Dimmer：0-100% linear dimmer
◇CMY linear color mixing system with macro function
◇Beam Angle：0-2°◇Wash Angle: 2-48°◇Frost Angle: 8-54°
◇Strobe: two-pieces plate strobe(0.5-9FPS)
◇The motors are composed of special motors for high temperature and low
grease waterproof lamps, two three-phase motors, 16bit
◇Housing：High temperature resistant, UV resistant and antioxidant
alloy plastics+National standard die casting
◇Power Consumption:650Ｗ
◇IP Rate：IP65
◇Weight: 36KG

◇Size:326* 473* 752.5mm
Extended functions：support RDM，wireless signals is available.

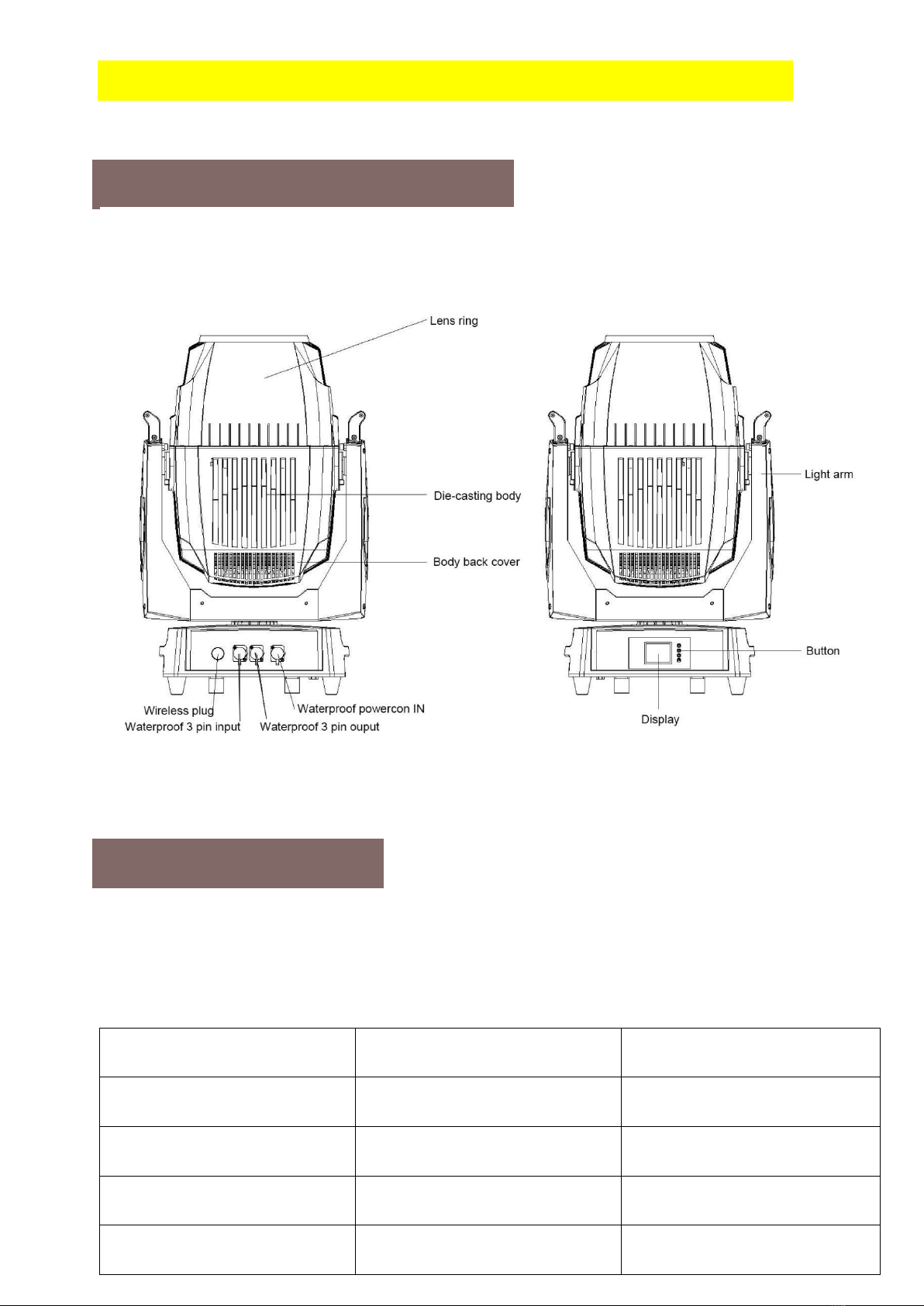

3. SCHEMATIC LIGHTING COMPONENTS
4. PACKING AND SHIPPING
4.1 Packing
480 Beam Spot Wash Moving Head is packaged by carton or standard 2in1 flight
case(selectable 1IN1 or 2IN1), accessories items are as below
Name
Quantity
unit
User manual
1
piece
Signal line
1
piece
safe rope
1
piece
Bracket and Clamp
2
piece

Power line
1
piece
4.2 Packing
1. Disconnect the power supply so that the lamp to cool completely before
packaging, at least 15 minutes or more.
2. Close the light protect lock after cleaning the surface of the light dust
3. Cover the light, seize the equipment both sides aluminum handles on to make it
upside down and gently placed in the box.
4. Add lighting accessories after placing the light in box.
5. Up to two crates stacked prohibited upside down.
4.3 Unpacking
1. Open the box and bag
2. Seizing the equipment handles, lifting and carrying away the light from the
box .Or opening the flight case, placing lift boom close to the light base, then
equipping clamps on light base bottom. Tightening quick install locks. At last rising
away boom to the top of the lamp from flight case, put the flight case away.
3. Before turning on the light, should open the light protecting lock.
Note: Upon receipt of lamps, please check if there is damage to the fold closure
caused by transport, where there is transportation damage, please do not use this
fixture, and as soon as possible contact.
5. SAFETY STANDARDS

Users should ensure that light and installation materials are checked for regular
safety check. Please do not install it yourself if you do not have the professional
work condition and similar experience. Please ask the professionals to operate it.
Incorrect installation will cause danger.
The working temperature for the equipment is available between 0 degree and 40
degrees Celsius. Do not use the equipment outside of this environment. Don’t
stand under the light when the light is installed, dismantled, moved or serviced.
The operator must ensure that the fixtures are securely connected. Installing the
light after professionals approving electrical parameters make sure that these
installation must be checked at least once per year by experts
5.1 Hook Installation
480 BSW light can be placed on the stage or on a stand in any direction，quick lock
system can quickly and easily remove or install a light hook.
Note: Two fixtures must be used to fix the equipment, and each hook is fixed with
four M8 stainless steel socket screws.
5.2 Fixing Equipment
1. Please confirm the rigging equipment is not damaged and can bear at least 10
times of light’s weight before installing. Also check the building can be bore at
least 10 times of total weights of light, fixture, and cable accessories.
2. Fix the lamp hook on the bottom box with the M8 stainless steel socket screw
with the inner hexagon tool. Install the second lamp hook in the same way. Make
sure the lamp hook is tightened on the bottom box.
3. If truss can be lifted the equipment can be directly clamped from flight case and
locked fixture base. Then hung on the light and fixed it. Before rising the light to
right height, connect the power line and signal line.

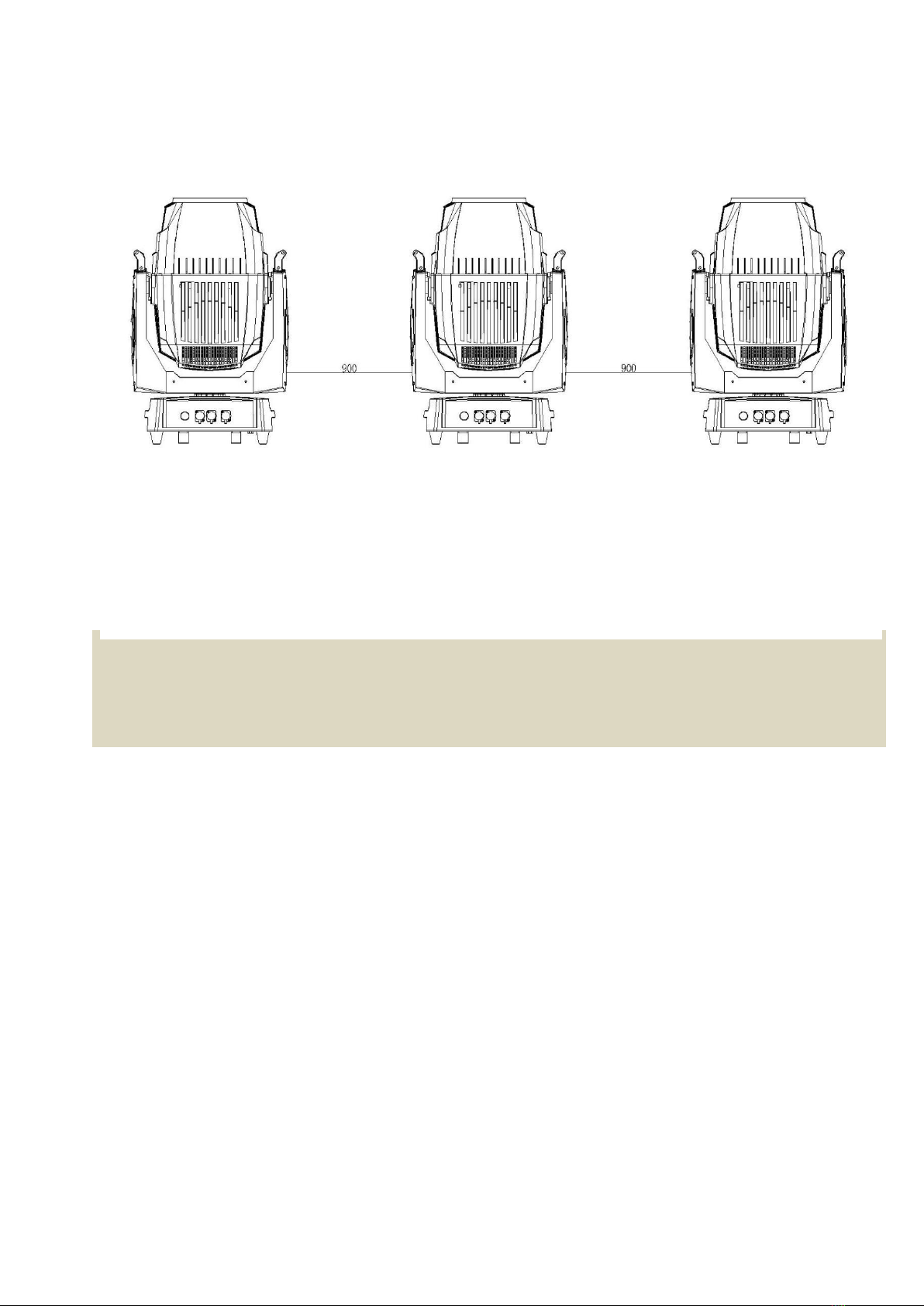

Note: Lights be placed vertically upward, the shortest distance between working
lights must be more than or equal 900mm, lighting installation layout as following.
5.3 Data cable
Data cable is DMX512 signal
Caution: Signal line connections is X-type connector
X-typeconnector-----If the external flexible cable or cord of this light is damaged,
please replace the professional cable or cord from the manufacture or its agent.
DMX of lights input and output connects to a 3&5-pin XLR, first pin is grounded,
second negative signal is second pin, third pin connects to the positive polarity
signal, the fourth and fifth is empty.
In order to prevent reception reflection and interference control signal, a terminal
plug must be installed on the first branch of the connected device last 3-pin output
jack

The controller connects to the nearest input XLR 3-pin, then from the output of
the device connects to the input of the next device, continuous connection one by
one, the final output data cable terminal equipment plug one end into the
terminal.
If the signal transmission is long-distance, 512 signal amplifier must be added.
DMX512 signal controller connect to the input of the amplifier first, then connect
to the fixture from its output, couple with the terminal plug last.

Note:
1. Do not use two separate output connections. To connect the branch, a
separating consecutive DMX512 signal amplifier must be used.
2. Please use the specialized DMX512 shielded twisted-pair cable. Standard
microphone cables can not be reliably controlled long-distance data.
6. AC POWER
6.1 Fuse Size
Power
Fuse
100-240V
10A 5*20 main fuse
6.2 Power Connection
If the external flexible cable or cord of this light is damaged, the line is up to
the manufacturer or its service agent or a similar qualified person to replace, in
order to avoid danger.
Connect the power supply personnel must have the appropriate qualifications
before proceeding, you must make sure you are using the power supply voltage
matches the voltage identified and have overload or leakage protection. Directly
connect the device to the power supply, do not connect to the silicon box dimming
system, otherwise damage to the equipment.
7. Lamp
7.1 Light Source Description
480 BSW waterproof light is fitted with USHIO NSL450 Single-ended lamp and is
short arc point light source, and its color temperature is 7500K and very stable, CRI
＞85. Life span is over 2000 hours(according the using situation)

Note:
1. Please do not install other similar light bulbs, otherwise it will cause safety
hazards or damage the equipment.
2. To reduce the risk of damage to luminaire, replace the lamp before it exceeds
the life of the lamp.
3. It is forbidden to use scratched and damaged LED light source

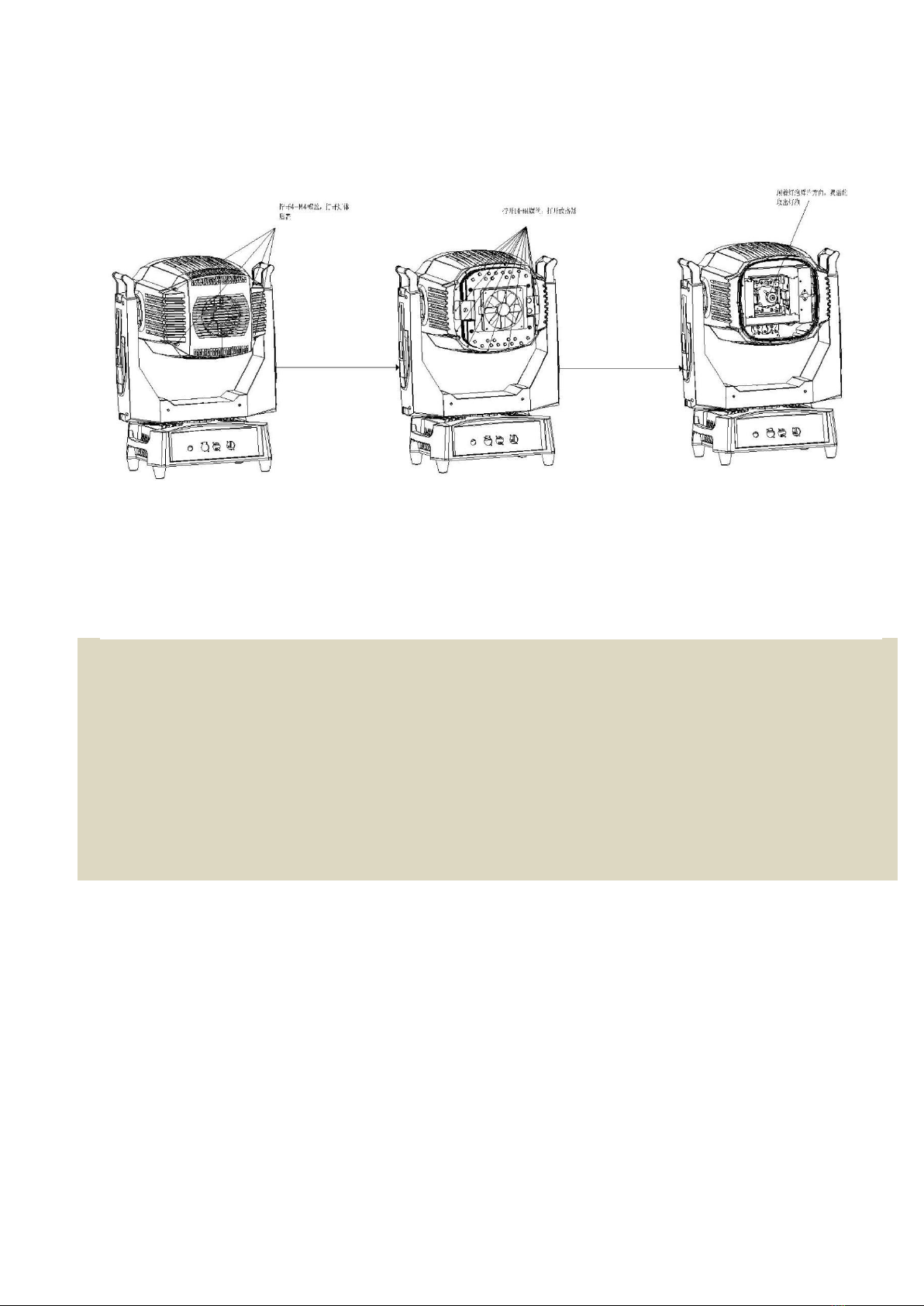

7.2 Lamp Replacement
1. Disconnect the power, so that the lamp cooling, the arm of the lamp body lock
locked in a horizontal position.
Split bulbs: Remove the four screws from the back cover of the lamp body, remove
the 14 screws fixed by the radiator, and place the waterproof sealing ring carefully.
With the appropriate force to push down the bulb when the lamp cup beyond the
edge of the stainless steel shrapnel, taking up the lamp.
Install the bulb is the opposite of the operation.
(Note: the waterproof sealing ring must be installed according to the orientation,
and ensure that every screw is tightened.Can determine the waterproof
performance of lamps and lanterns)

NOTE:
Avoiding oil stained hands.
To prevent damage, make sure you handle the lamp with care when installing and
dismantelling. Do not let the bulb hit hard objects around it as it will cause
damage.
7.3 Correction Bulbs
Lamp has been corrected before selling. In the rare case the lamp may need
correction, follow these steps:
The light is reseted by turning on the power, using the menu or console light bulb
to play the sharp beam.
Using cross screwdriver to open the light body one bonnet side which is printed
“this cover to replace the lamp”
Using a flat head screwdriver to adjust the lamp bracket adjustment screw, turn

the screw clockwise or counter clockwise, and the lamp can be right or left to
adjust.
8. FUNCTIONS
8.1 Fixed Gobo Wheel
A metal Gobo Wheel consisting of 11 fixed Gobo + 8 white, customers can change
their own custom simple pattern pieces as needed.
8.2 Rotating Gobo Wheel
A dynamic gobo wheel with seven glass gobos + white, customers can replace high
temperature resistant glass gobo pieces as needed.

8.3 Color Wheel (12 Colors+ White & CMY)
The color wheel is composed of 12 high-standard fixed colors. Users can easily
choose the color they like and create a perfect lighting effect. At the same time, it
can be used with the gobo wheel. The effect is better, and the colorful pattern can
be changed at will effect. (You can change your own custom color wheel at any
time according to customer needs)

8.4 ANIMATION Wheel
The effect wheel can achieve the infinite rotation and form the curtain effect,
which can have special gobo flow effect on the stage.
8.5 Optical lens focusing
Synchronous work with two high-precision screw motors is used to adjust the
optical lens to complete the pattern definition.
8.6 Prism Wheel
The prism wheel is equipped with a 8-facet prism, a 16-facet prism and a linear
prism. It can be rotated clockwise and counterclockwise. The speed is adjustable.
With the color and gobo, various brilliant lighting effects can be created. The prism
wheel passes two high precision and ultra fast. The eight-head screw motor
adjusts the size of the prism spot to create a dynamic effect of the amazing prism.
8.7 Dimmer & Strobe
0-100% mechanical dimming, instant switching, stroboscopic speed can be
adjusted freely, up to 12 times / sec, with special function of random strobe.
8.8 Frost

The frost consists of an frost piece, which is done according to the actual control to
achieve the soft light effect you want.
8.9 Pan & Tilt
Pan scanning 540°, Tilt scanning 270°, with 16BIT precise positioning function.
Pan & Tilt speed can be adjusted.
9. DISPLAY SETUP
9.1 LCD Display Introduction
9.2Menu Operation:
Press：
ENTER、UP、DOWN、ESC
一、Main Menu：
1、DMX Address：01-512
2、Channel Mode：1:30 2:25
3、Reset
Operation
1、Motor off
Yes/No
2、Pan/Tilt
3、Color
4、Gobo
5、Dimmer
6、Zoom/Prism
DMX SET
Number Setting
Number:1-255
Auto Numbering

Auto addressing
1. Goal: 1)Any model
1. Goal: 2)Converse model
2. Address by serial number
3. Unified address
5、Run
（DMX）
1、DMX
2、Auto1
3、Auto2
4、Auto3
5、User program
6、Lamp
Current open
Current off
7、Manual
control：
1、pan
0-255
2、Tilt
0-255
3、Color
0-255
4、Fixed Gobo
0-255
5、Rotating Gobo Wheel
0-255
6、Rotating Gobo Auto Rotating
0-255
7、Frost
0-255
8、Zoom
0-255
9、Focus
0-255
10、Shutter
0-255
11、Dimmer
0-255
12、Prism 1
0-255
13、Prism 1 Rotating
0-255
14、Prism 2
0-255
15、Prism 2 Rotating
0-255
16、CMY-C
0-255
17、CMY-M
0-255
18、CMY-Y
0-255
19、Prism Macro
0-255
20、CMY Macro
0-255
21、CTO1
0-255
22、Effect Wheel
0-255
23、Effect Wheel Rotating
0-255
24、Automatic
Return
30 Second
0-255
2 Minutes
Never
8、Run
settings
1、Tilt Setting
1、Direction
Yes/No
2、Start
0-255
3、End
255-0
2、Pan Setting
1、Direction
Yes/No
2、Start
0-255

3、End
255-0
3、Pan/Tilt
General
settings
1、Speed channel control mode
Speed/Time
2、Application scenario
Standard/ Entertainment
3、Speed channel real-time action
Yes/No
4、Manual scanning
Yes/No
4、
Master-slave
mode：
Slave
Master
5、Mixed scene
1、Play scene
1-12
2、First round
A-H
3、Second round
A-H
4、Third round
A-H
5、Fourth round
A-H
6、Fifth round
A-H
7、Sixth round
A-H
8、Seventh round
A-H
9、Eighth round
A-H
6、Scene
editing
1、Scene number
A-H
2、Step number
0-29
3、Step editing
Time
0-255
Channel
1-25
Value
0-255
4、Copy
5、Stick
6、Record
7、Lamp Power
Full power
Half power
8、Cut light
1、Pan/Tilt
Yes/No
2、Color
Yes/No
3、Gobo
Yes/No
4、Prism/Fire plate
Yes/No
9、Synchronous random frequency
conversion
Yes/No
10、Disable smooth dimming
Yes/No
9、Display
setting
1、Sleep
30 Second
2 Minutes
10 Minutes
Not sleeping
2、Brightness
1―10
3、Reverse display
Yes/No
4、Indicator light
Auto/Normally open
10、
Advanced
settings
1、Fine
Adjustment
（Code 000）
1、Pan
0…500…-500
2、Tilt
0…500…-500
3、Color
0…500…-500

4、CMY1
0…500…-500
5、CMY2
0…500…-500
6、CMY3
0…500…-500
7、CMY4
0…500…-500
8、Fixed Gobo
0…500…-500
9、Focus
0…500…-500
10、Dimmer
0…500…-500
11、Dimming mirror
0…500…-500
12、Prism arm 1
0…500…-500
13、Prism arm 2
0…500…-500
14、Prism rotating
0-500-500
15、Rotating gobo
0-500-500
16、Gobo rotating
0-500-500
17、Zoom
0-500-500
18、Effect Wheel Arm
0…500…-500
Lock the menu
Yes/No
2、Factory setting
（Code 2393）
Display Logo
Yes/No
3、Fine
adjustment
backup and
recovery
1、Recovery
2、Backup
3、Fine adjustment value
is cleared
4、View backup data
5、View local data
4、No DMX
1、
Execution
Middle
Keep
Auto（Test）
Auto（Gobo）
Auto（Color）
User program
2、Mode：
Only when
booting
Any time
Return
5、Gobo
coordination
Yes/No
6、Prism
coordination
Yes/No
7、Advanced
function
channel
Yes/No
8、Speed of the
fan
Full Speed/Auto
9、Language
1、Chinese
2、English
3、Spanish
