HIAB 322 HiPro CD User manual

This operator’s manual is an Original Instruction
and applies for cranes from serial number:
3221631, 3771320
2015-06
Operator's Manual GB
HIAB 322-377 HiPro CD

2Operator's Manual GB
Congratulations with your new crane!
You are now the owner of a quality product from
Cargotec, built to the highest standards of safety and
quality.
The aim of this manual is to help you handle your crane
safely and with full satisfaction.
Please read the complete manual. It provides detailed
information about the crane, safety system and the
practical management and maintenance of the crane.
We advise you to read it carefully and familiarize yourself
with your crane before you start to use it.
Help us to improve this manual. Please send your
comments and suggestions to [email protected]

3
Table of Contents
Operator's Manual GB
1. Knowledge required............................................................................... 6
1.1 This Operator's Manual is intended for operators of this HIAB crane. .... 6
1.2 Indications in the Operator’s Manual ................................................ 7
2. Structure and parts of the HIAB crane..................................................... 10
2.1 Main groups ............................................................................... 10
2.2 Crane base with column and slewing system .................................... 10
2.3 Boom system .............................................................................. 11
2.4 Stabiliser system.......................................................................... 13
2.5 Operating system - hydraulic components ........................................ 14
2.6 LHV Load holding valves ............................................................. 14
2.7 Description of Hiab 322-377 HiPro CD........................................... 15
2.8 Accessories that can be fitted in a 322-377 HiPro.............................. 16
3. Safety precautions and warnings............................................................. 17
3.1 Operating conditions .................................................................... 17
3.2 Definition of a HIAB loader crane.................................................. 18
3.2.1 Noise declaration................................................................. 19
3.2.2 Warning signs..................................................................... 20
3.2.3 Maximum load.................................................................... 20
3.2.4 Maximum load moment........................................................ 23
3.3 Signals when using a crane............................................................ 26
3.4 Wind speeds ............................................................................... 30
3.5 Use of the crane .......................................................................... 31
3.6 Use of lifting equipment ............................................................... 38
3.7 Use of dismountable cranes ........................................................... 38
4. The Safety system................................................................................ 40
4.1 Safety System SPACE 5000 with CombiDrive2................................ 40
4.2 How the safety system works......................................................... 40
4.3 Components of SPACE 5000 Safety System .................................... 42
4.4 Operating components .................................................................. 43
4.5 Main control valve....................................................................... 43
4.6 Stabiliser control valve ................................................................. 45
4.7 Extra stabiliser control valve [option].............................................. 45

4
Table of Contents
Operator's Manual GB
4.8 Cranes with high seat [option] ....................................................... 45
4.9 OPS Operator Protection System [option] ........................................ 46
4.10 User panel SPACE 5000............................................................... 46
4.10.1 Indicator lights on user panel SPACE 5000.............................. 47
4.11 CombiDrive2 .............................................................................. 49
4.12 Main menus CombiDrive2 ............................................................ 53
4.13 Battery charger CD2 .................................................................... 60
4.14 Functions ................................................................................... 61
5. Starting crane operation ........................................................................ 65
5.1 Starting operations ....................................................................... 65
5.2 Extend stabiliser extensions and set stabiliser legs ............................. 69
5.3 Operate the crane out of parked position.......................................... 75
6. During operation ................................................................................. 77
6.1 OLP (Overload protection) ............................................................ 77
6.2 BDA Boom Deployment Assistance [option].................................... 80
6.3 Manual extensions [option] ........................................................... 80
7. Ending crane operation ......................................................................... 83
7.1 Operate the crane to parking position .............................................. 83
7.2 Placing the stabiliser extensions and legs in transport position............. 84
7.3 Switching off the safety system...................................................... 87
7.4 Emergency operation Valve-V91.................................................... 88
7.5 TWI Transport warning interface [option]........................................ 89
8. Maintenance and Service ...................................................................... 91
8.1 Service ...................................................................................... 91
8.2 Warranty.................................................................................... 92
8.3 Follow the maintenance instructions! .............................................. 93
8.3.1 Daily inspection .................................................................. 94
8.3.2 Monthly inspection and maintenance....................................... 95
8.3.3 Annual maintenance............................................................. 97
8.4 Lubrication................................................................................. 97
8.4.1 Lubrication schedule ............................................................ 98
8.4.2 Lubrication of slide pads in the boom system ........................... 99

5
Table of Contents
Operator's Manual GB
8.4.3 Lubrication of the upper column bearing................................ 100
8.5 Hydraulics ................................................................................ 100
8.5.1 Slewing housing: checking the oil level/oil change .................. 100
8.5.2 Replacing the cartridge in return oil filter............................... 101
8.5.3 Replacing the cartridge in the pressure reduction filter.............. 102
8.5.4 Checking the oil tank level .................................................. 102
8.5.5 Changing the hydraulic oil................................................... 102
8.5.6 Bleeding air from the hydraulic system.................................. 105
8.6 Troubleshooting......................................................................... 106
8.6.1 Main fuses........................................................................ 106
8.6.2 Faults in the HiPro crane..................................................... 106
9. Decommissioning............................................................................... 110
9.1 Decommissioning a crane............................................................ 110
10. Technical Data .................................................................................. 112
10.1 Documentation .......................................................................... 112

6
Knowledge required
Operator's Manual GB
1
1.1 This Operator's Manual is in-
tended for operators of this
HIAB crane.
This manual describes:
• Operation
• Safety precautions and warnings
• The crane safety system
• Maintenance and troubleshooting
Enclosed to this manual the Installer will
provide:
• Technical Data for your crane
• Technical Data and manuals for add on
equipment if fitted
Study these instructions carefully
DANGER
If you do not study the complete Operator’s
Manual for your crane carefully, it could lead
to fatal accidents or serious damage.
Therefore you should:
• Study the entire Operator’s Manual carefully.
• Study the operating manuals for other add-on
equipment, if fitted.
• Use the crane only after having done so.
• Follow the directions for use, operation and
maintenance of the crane and add on equip-
ment exactly.
• Store the Technical Data and manuals from
the Installer, together with this Operator's
manual.
! NOTE
The manufacturer reserves the right to change
specifications, equipment, operating instructions
and maintenance instructions without prior notice.

7
Knowledge required
Operator's Manual GB
1.2
NOTE
HIAB shall at all times have the right to:
• install, maintain and dismantle automated re-
mote diagnostics system or similar sensor-
based system (the “System”) in and from the
Equipment; and
• access, send, receive, collect, store and use
any and all information and data gathered or
created by such System including but not
limited to information concerning operation,
operating environment, movement, condition,
logon, location and similar information relat-
ing to the Equipment (the “Information”).
The Customer shall not in any way remove or
alter the System, nor interfere with the use of the
System or the Information. The System and the
Information and all their further developments
shall at all times be and remain the exclusive
property of HIAB without granting any right or
license to the customer.

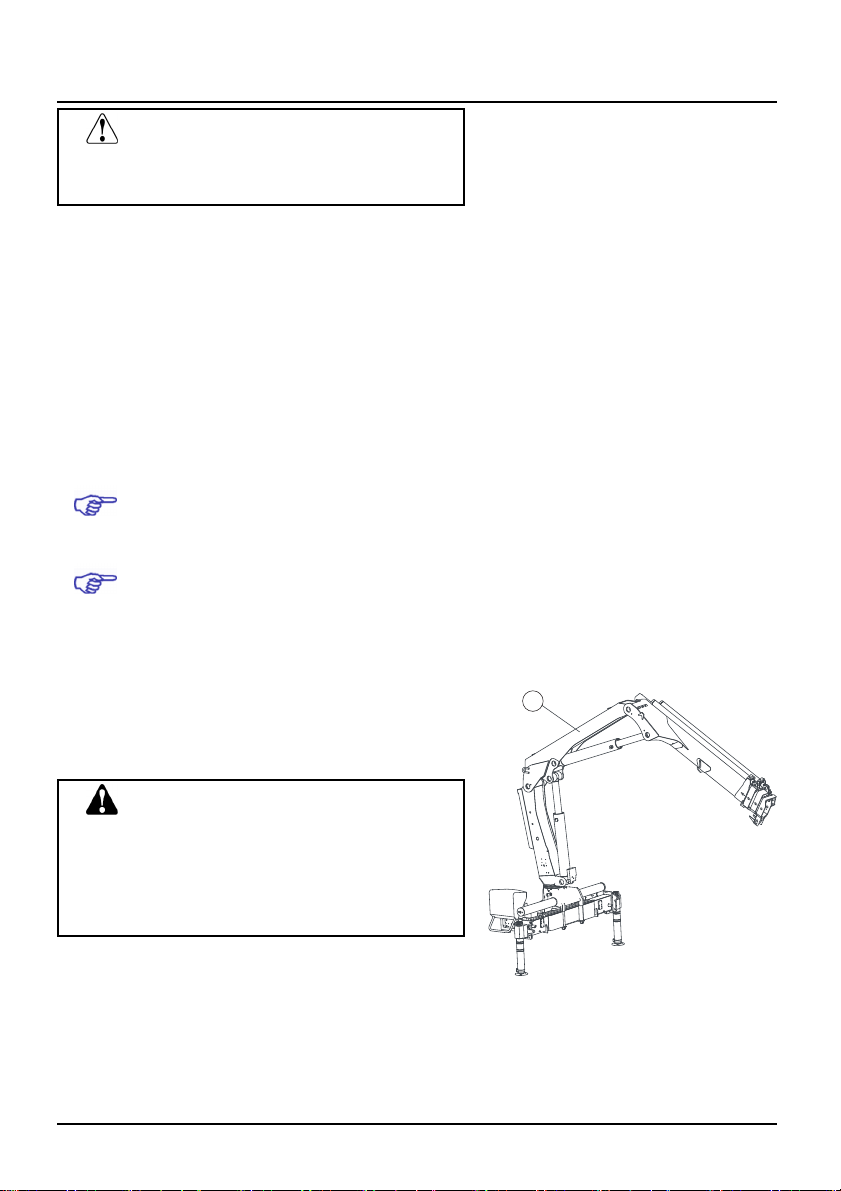

1.2 Indications in the Operator’s
Manual
What must you do and not do?
The following indications are used in the Opera-
tor’s Manual:
DANGER
Danger to life for yourself or to bystanders.
Follow the instructions carefully!
WARNING
Danger of injury to yourself or to bystanders,
or danger of serious damage to the crane or
other objects.
Follow the instructions carefully.

1
8
Knowledge required
Operator's Manual GB
1.2
CAUTION
Hazard for the crane or crane components.
Follow the instructions carefully.
Important:
If actions are numbered
1. Do this
2. Do that
3. ......
4. .....
5. .....
you should carry them out in numerical order!
! NOTE
Extra information that can prevent problems.
TIP
Tip to make the work easier to carry out.
Symbol for reference to a component in an
illustration.
①Refers to a component in an illustration.
[option]: Indication for parts that are not-standard
for the crane, but are an option.
DANGER
Only persons with the requisite knowledge and
experience with cranes may use the crane.
Never operate the crane when you are sick,
tired, under the influence of medicines, alcohol
or other drugs.
• Take the delivery instructions from your
HIAB Service workshop, or receive instruc-
tion from an experienced person from your
own company. Only then should you operate
your crane.

9
Knowledge required
Operator's Manual GB
1.2
• Ensure that you comply with the statutory
requirements of the country in which you use
the crane (for example, certificate, obligatory
safety-helmet).
DANGER
• Carry out yourself only the service and
maintenance work you have the requisite
knowledge and experience of.
• All other maintenance work may only be
carried out by a HIAB service workshop.
• Ensure that every defect is rectified imme-
diately, according to the instructions.
• Follow the instructions exactly!
• All other work to rectify faults must be
performed by personnel in a HIAB service
workshop!
WARNING
• Never clean the electronic system, plastic
components, signs or bearings with a high-
pressure jet cleaner. It could cause damage.
• Never expose the electronic system to high
electrical voltages. This could damage the
safety system.
• Never immerse the controller in water or
other liquid. This will make the controller
unusable.
If your crane is equipped with add-on lifting
equipment (hoist, rotator, etc.):
• The operation of the crane with add-on
lifting equipment can differ from the oper-
ation as described in this manual.
• You should therefore study the Operating
Manual for the add-on equipment careful-
ly, before you use the crane.
• Take particular note when placing the
crane in to or out of transport position.

10
Structure and parts of the HIAB crane
Operator's Manual GB
2
2.1 Main groups
The HIAB crane consists of the following main
groups:
• Crane base with column and slewing system
• Boom system
• Stabiliser system
• Operating system

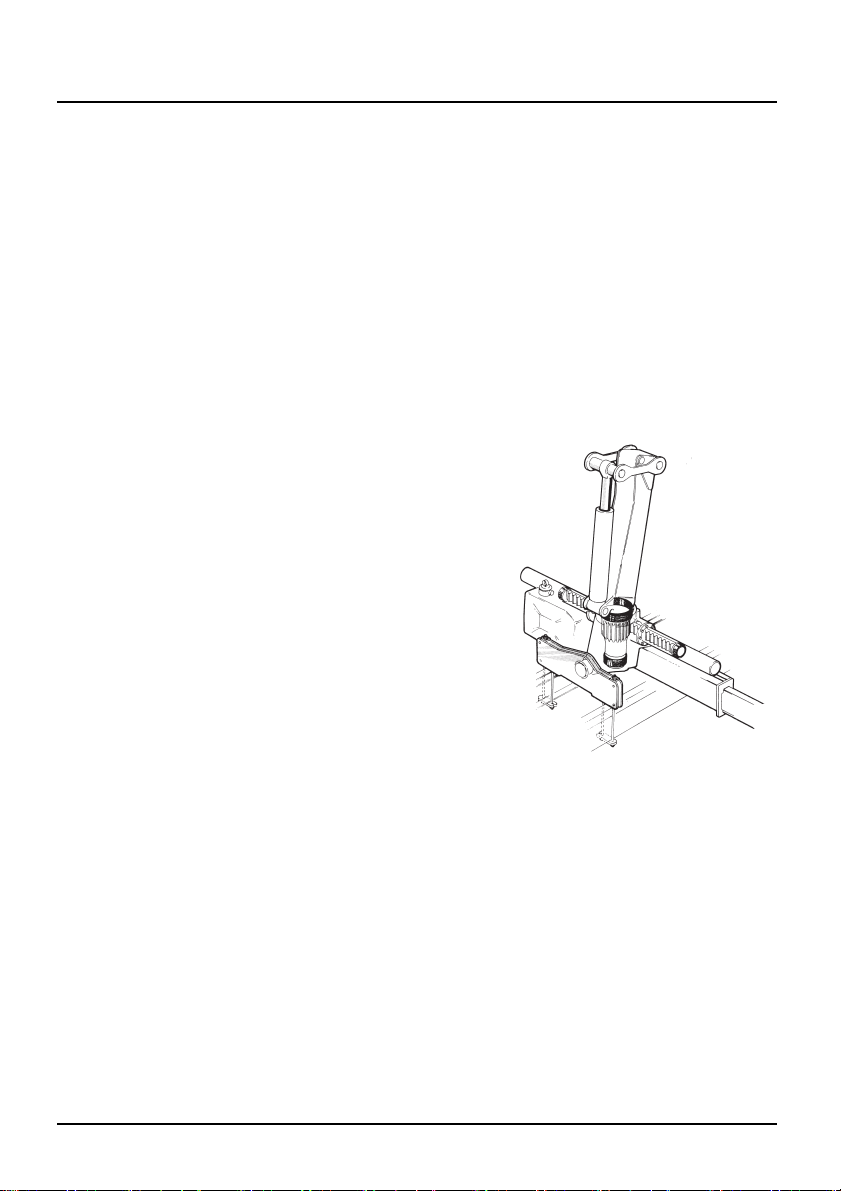

2.2 Crane base with column and
slewing system
The crane base, column and the slewing sys-
tem consist of the following components:
• Crane base
with stabiliser beam, column bearings and
three-point bridge.
• Column
this fitted to the crane base and turns in an
upper and a lower bearing.
• Slewing system

➁
➂
➃
➀
11
Structure and parts of the HIAB crane
Operator's Manual GB
2.3

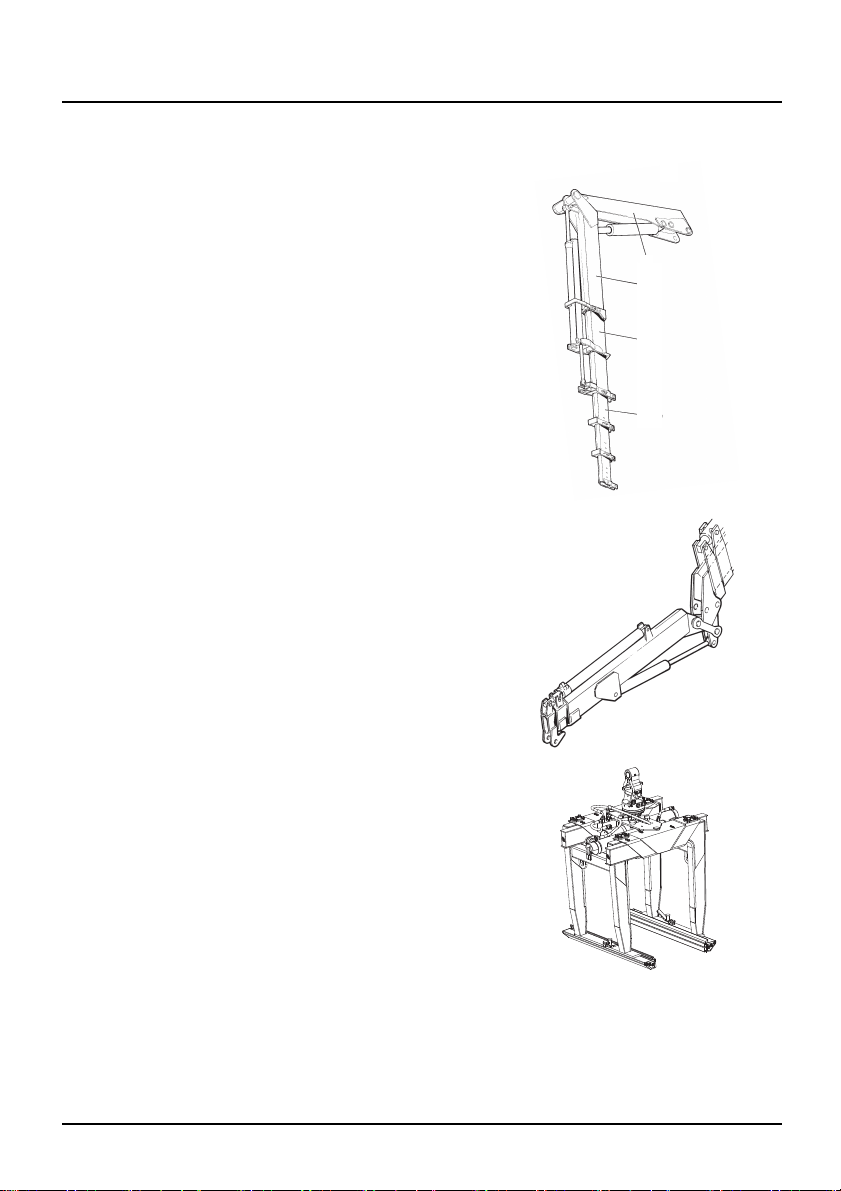

2.3 Boom system
The boom system consists of the following
components:
• 1st boom ①
• 2nd boom ②
• Hydraulic extensions ③
The length of the hydraulic extension depends
on the type of crane.
• Manual extensions ④[option]
These are slid by hand into the hydraulic
extension.
•JIB [option]
•Add-on lifting accessories [option]
Add-on lifting accessories are placed between
the boom tip and the load (e.g. brick grapple,
rotator) or on the crane (hoist).

12
Structure and parts of the HIAB crane
Operator's Manual GB
2.3

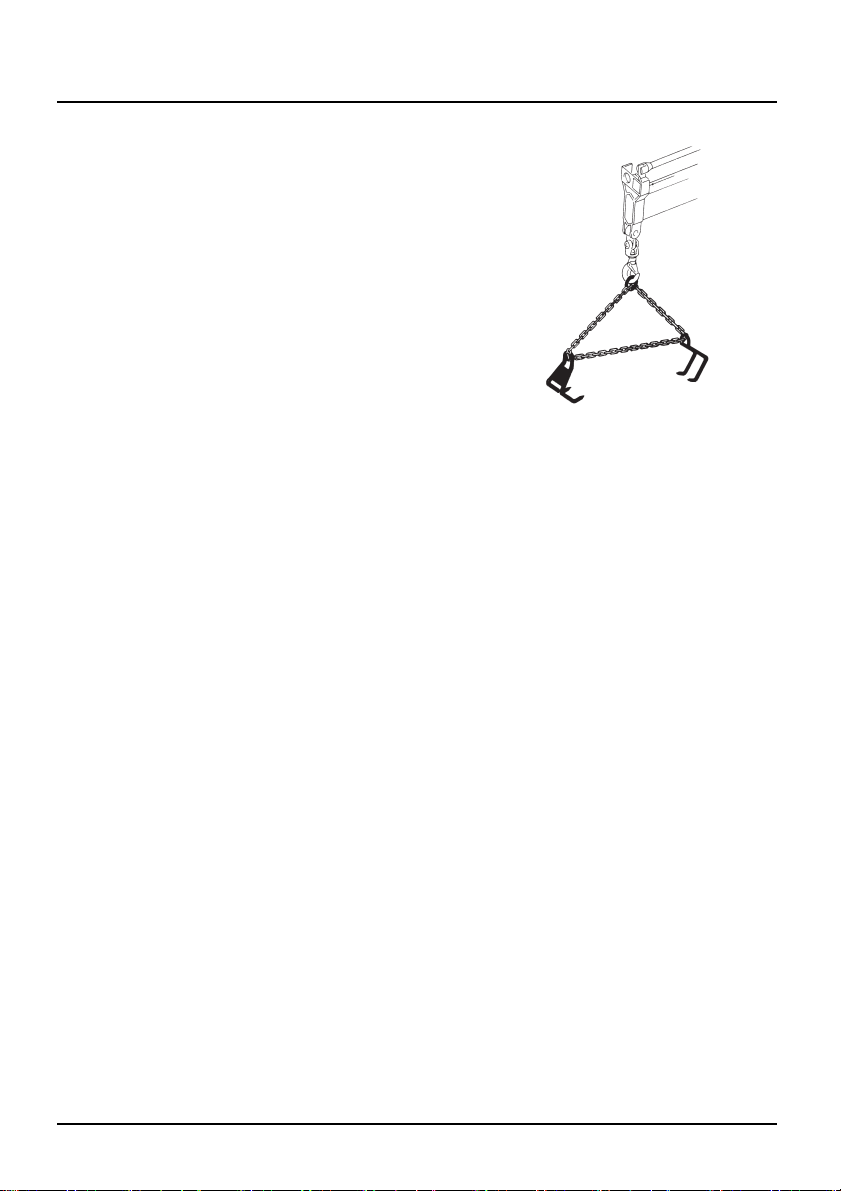

Separate lifting accessories [option]
Separate lifting accessories, help to make or use a
slinging device: eye-hooks, shackles, eye-bolts
etc.

13
Structure and parts of the HIAB crane
Operator's Manual GB
2.4

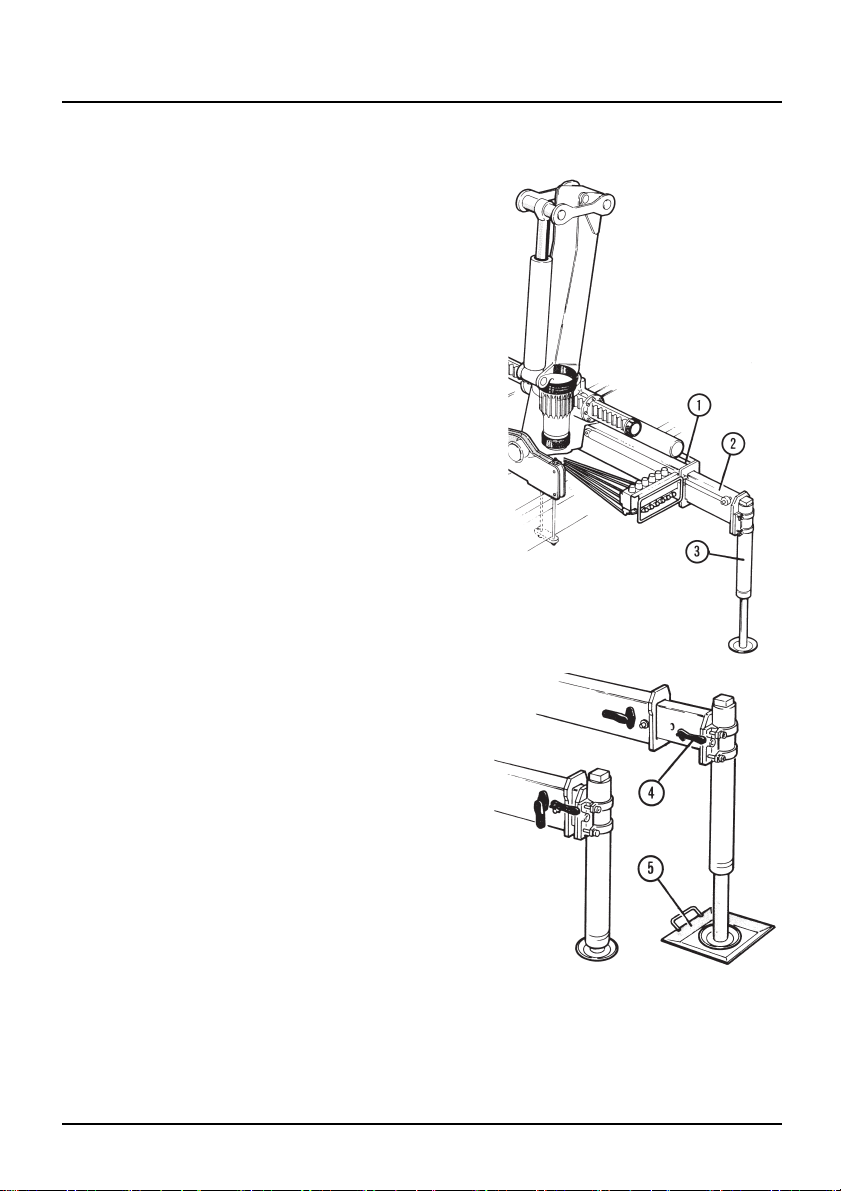

2.4 Stabiliser system
Every HIAB crane is equiped with two stabiliser
extensions and two stabiliser legs. Auxiliary
stabiliser systems may be needed for heavy
cranes.
• Stabiliser beam ①. The stabiliser beam is a
part of the crane base.
• Stabiliser extensions ②. The stabiliser exten-
sions are hydraulically slid out from the
stabiliser beam.
• Stabiliser legs ③. Place the stabiliser legs on
firm levelled ground to support the crane.
• Stabiliser locking device ④.
• Support plates ⑤. The support plates are used
under the stabiliser legs for additional sup-
port.

14
Structure and parts of the HIAB crane
Operator's Manual GB
2.5
2.5 Operating system - hydraulic
components
The operating system consists of the following
hydraulic components:
• oil tank
• hydraulic pump
• oil cooler [option on some cranes]
• main control valve
• stabiliser control valve [option on some
cranes]
• hydraulic hoses and lines
• actuators:
first boom cylinder
second boom cylinder
extension cylinder/s
slewing cylinders / motor reducers
• return filter
• pressure filter [option]
2.6 LHV Load holding valves
All cylinders are equipped with load-holding
valves as a safety device. After a crane move-
ment they hold the crane in position, also in the
unlikely event of a burst hose.
If there is a leak or a component fractures, such
as a pipe, hose or a coupling, the load-holding
valves will stop the booms from collapsing down,
even when the hydraulic system is switched off,
and you operate a particular crane function.
To operate a hydraulic cylinder equiped with a
load holding valve, an opening pressure is re-
quired.

15
Structure and parts of the HIAB crane
Operator's Manual GB
2.7
2.7 Description of Hiab 322-377 Hi-
Pro CD
The HIAB 322 and 377 are compact, fully
hydraulically operated goods cranes.
• HIAB 322 = 31.5 tonne metres
• HIAB 377 = 35.8 tonne metres
The cranes are supplied in many versions from:
• HIAB 322/377E-4 (reach 11.7 metres) to
HIAB 322/377E-8 (reach 21.0 metres)
• HIAB 322/377EP-2 (reach 8.0 metres) to the
HIAB 322/377EP-5 (reach 15.1 metres)
The main control valve V91, CombiDrive2 and
the SPACE 5000 safety system are standard
equipment on the HIAB 322/377 HiPro CD.
The crane type and the manufacturer are marked
on the serial number plate.
! NOTE
The exact technical information for your crane is
shown in the Technical Data.

16
Structure and parts of the HIAB crane
Operator's Manual GB
2.8
2.8 Accessories that can be fitted in
a 322-377 HiPro
Manual extensions available in combinations:
1 and 2 manual extensions
in crane 322/377 EP-2/3/4/5 + 1
322/377 E-4/5/6/7/8 + 1
322/377 EP-2/3/4 + 2
322/377 E-4/5/6/7 + 2
1 manual extension in JIB 322/377 E-5/6 + JIB 70X-2/3/4 + 1
Hoists available in combinations:
TC1 mounted on JIB
(Not compatible with man-
ual extensions in JIB, ex-
cept: JIB 70X-4)
322/377 E-5/6 + JIB70X-3/4 + TC1
322/377 E-4/5 + JIB100X-4/5 + TC1
TC2 322/377 EP-2/3/4/5 + TC2
322/377 E-4/5 + TC2
TC2L
Not compatible with manu-
al extensions in:
- 322/377 E-5/6
- 377 E-8
- JIB 70X-3
322/377 E-6/7/8 + TC2L
322/377 E-5/6 + JIB70X-3/4 + TC2L
322 E-5/6 + JIB75X-4 + TC2L (Only available in MEWP
version)
322/377 E-4/5 + JIB100X-4/5 + TC2L
Snatch block for TC2 and
TC2L Available in all combinations, except in the configuration 322 E-8
Not compatible with manual extensions
JIBS available in combinations:
70X 322/377 E-5/6 + JIB70X-2/3/4
75X 322 E-4/5 + JIB75X-3/4 (Only available in MEWP version)
377 E-4/5/6 + JIB75X-3/4 (Only available in MEWP
version)
100X 322/377 E-4/5 + JIB100X-2/3/4/5

17
Safety precautions and warnings
Operator's Manual GB
3
3.1 Operating conditions
You may only use the crane under the following
conditions:
• In the open air, or in spaces with sufficient
ventilation.
• With a mean wind velocity less than 13.3
m/sec (approx. 29.7 mph). See the wind
speed table.
DANGER
• If you use the crane in a confined space
you could suffocate from the exhaust gases
from the vehicle.
• Never use the crane in a high wind or
storm. When the mean wind velocity ex-
ceeds 13.3 m/sec (approx. 29.7 mph) the
crane will behave unpredictably. Never use
the crane during a thunderstorm.
•Never use the crane at temperatures below
-40°C (-40°F), as the steel's properties
deteriorate below this temperature.
WARNING
• At temperatures below 0°C (32°F):
Do not touch the operating levers during
the first few minutes.
• When starting in cold weather, the wear on
the hydraulic system is greater than at
normal working temperatures.
To get a good function of the crane, it should
be started as follows:
• Engage the power take-off at low rpm.
• Allow the system to idle for a few min-
utes.
• Operate stabiliser legs up and down for
one minute, in order to warm up the oil.

18
Safety precautions and warnings
Operator's Manual GB
3.2
3.2 Definition of a HIAB loader
crane
Usage of the crane
The HIAB loader crane is used to lift and move
loads in the working area permitted by the load
plate and the load diagram. The cranes are
normally mounted on a vehicle but they can also
be mounted on a fixed base plate. The crane can
be equipped with a number of accessories.
Loader cranes are designed for loading and
unloading the vehicle, as well as for other duties
as specified:
Permitted duties:
• Loading and unloading cargo from/to a vehi-
cle
• Lifting of loads from the ground/vehicle to a
higher place
• Installation work (beams, concrete plates,
windows...) in building constructions
• Lifting construction material (wall boards,
bricks, blocks…) on a pallet fork to a build-
ing, taking the material from the vehicle on
which the crane is mounted, from another
vehicle or from the ground
• Hoisting, e.g. beams, concrete plates and any
other material and equipment used in building
construction
• With a bucket, moving filling material at a
construction site
• Handling large loads (containers, boats, ma-
chinery, vehicles…)
• Collection of waste and recycling material
(glass, paper, cardboard, plastic…)
• Installation of informative posts, road signs,
notice boards, traffic lights, street lights…
• Handling submerged pumps in wells, using a
hoist

19
Safety precautions and warnings
Operator's Manual GB
3.2.1
Forbidden duties:
• Crane mounted onboard ships or floating
structures, only permitted in cases authorized
by HIAB
• Continuous use as a production crane in
assembly lines, foundries…, except for cranes
prepared for that purpose
• Handle loads, work with submerge boom
system or accessories, in strong currents such
as rivers
• Loading cargo that is partially loaded or
fastened by other means, without making sure
the capacity of the crane is enough for the
entire load
• Any duty which implies:
• Pressure against the ground, unless the
crane is specifically prepared for this
• Push/pull with the boom system against
any type of obstacle (wall, ground…)
• Using the JIB upside down [HiPro
cranes], except JIBs prepared for that.
(See Operator’s Manual for your JIB).
3.2.1 Noise declaration
The following values for emitted noise may be
taken as general and conservative values for
ordinary installations of loader cranes on normal
diesel engine powered trucks. Declared dual-
number noise emission values in accordance with
ISO 4871:
• Emitted A-weighted sound power level for
basic loader cranes in accordance with ISO
3744: LwA = 103 dB (Uncertainty: KwA = 2
dB)
• Emitted A-weighted sound power level for
loader cranes with hoist in accordance with
ISO 3744: LwA = 107 dB (Uncertainty: KwA
= 2 dB)

XXX X-X XXXXX
314 17 2 7
3714412
XXXX-X XXXXX
XXX X-X XXXXX
SLEWINGSTOP
8967083
SLEWINGSTOP
8967091
XXXX-XXXXXX
20
Safety precautions and warnings
Operator's Manual GB
3.2.2
• A-weighted sound pressure level at loader
crane control stations in accordance with ISO
11201: LpA = 95 dB (Uncertainty: KpA = 4
dB)
Particular installations can be quieter, in which
case a post installation noise measurement in
accordance with clause 6.3 of EN 12999:2011
may be used to prove this.
3.2.2 Warning signs
3.2.3 Maximum load
Lifting capacity
