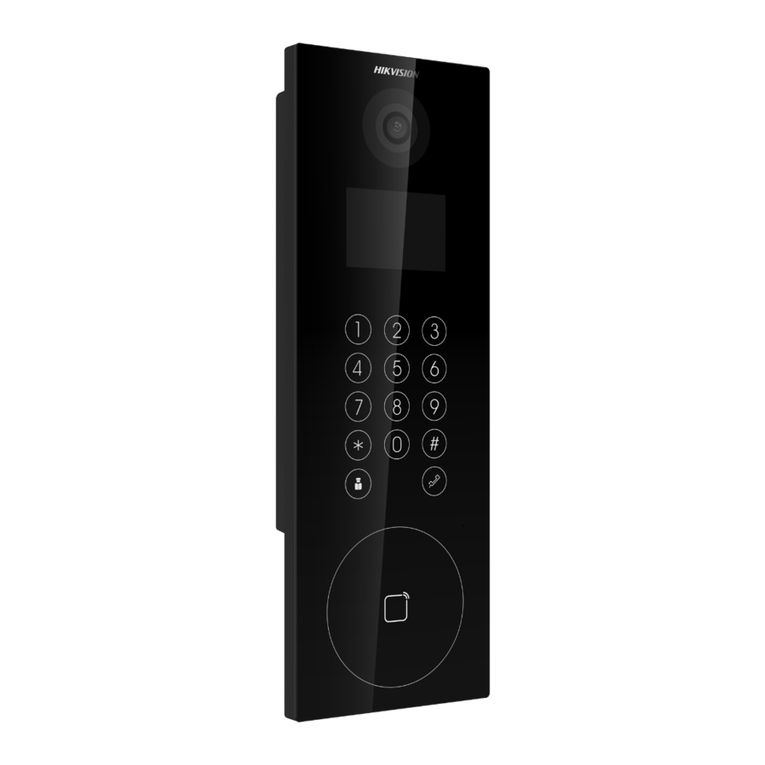

HIK VISION KD8023E6 Series User manual

Door Station
User Manual

Legal Informaon
©2020 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
About this Manual
The Manual includes instrucons for using and managing the Product.
Pictures, charts, images and all other informaon hereinaer are for
descripon and explanaon only. The informaon contained in the Manual
is subject to change, without noce, due to rmware updates or other
reasons. Please nd the latest version of this Manual at the Hikvision
website ( hps://www.hikvision.com/ ).
Please use this Manual with the guidance and assistance of professionals
trained in supporng the Product.
Trademarks
and other Hikvision's trademarks and logos are the
properes of Hikvision in various jurisdicons.
Other trademarks and logos menoned are the properes of their
respecve owners.
Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL
AND THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND
FIRMWARE, ARE PROVIDED “AS IS” AND “WITH ALL FAULTS AND ERRORS”.
HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR
FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS
AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR
ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,
INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR
LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT,
TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN
Video Intercom D Series Door Staon User Manual
i

CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR
INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY
RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR
OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS
INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION
WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE
LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE
CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE,
FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE
RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF
PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND
OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY
PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION
OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR
PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN
THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR
FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE
APPLICABLE LAW, THE LATER PREVAILS.
Video Intercom D Series Door Staon User Manual
ii

Symbol Convenons
The symbols that may be found in this document are dened as follows.
Symbol Descripon
Danger Indicates a hazardous situaon which, if not avoided, will or
could result in death or serious injury.
Cauon Indicates a potenally hazardous situaon which, if not
avoided, could result in equipment damage, data loss,
performance degradaon, or unexpected results.
Note Provides addional informaon to emphasize or
supplement important points of the main text.
Video Intercom D Series Door Staon User Manual
iii

Safety Instrucon
Warning
•All the electronic operaon should be strictly compliance with the electrical
safety regulaons, re prevenon regulaons and other related regulaons in
your local region.
•Please use the power adapter, which is provided by normal company. The power
consumpon cannot be less than the required value.
•Do not connect several devices to one power adapter as adapter overload may
cause over-heat or re hazard.
•Please make sure that the power has been disconnected before you wire, install
or dismantle the device.
•When the product is installed on wall or ceiling, the device shall be rmly xed.
•If smoke, odors or noise rise from the device, turn o the power at once and
unplug the power cable, and then please contact the service center.
•If the product does not work properly, please contact your dealer or the nearest
service center. Never aempt to disassemble the device yourself. (We shall not
assume any responsibility for problems caused by unauthorized repair or
maintenance.)
Cauon
•Do not drop the device or subject it to physical shock, and do not expose it to
high electromagnesm radiaon. Avoid the equipment installaon on vibraons
surface or places subject to shock (ignorance can cause equipment damage).
•Do not place the device in extremely hot (refer to the specicaon of the device
for the detailed operang temperature), cold, dusty or damp locaons, and do
not expose it to high electromagnec radiaon.
•The device cover for indoor use shall be kept from rain and moisture.
•Exposing the equipment to direct sun light, low venlaon or heat source such
as heater or radiator is forbidden (ignorance can cause re danger).
•Do not aim the device at the sun or extra bright places. A blooming or smear
may occur otherwise (which is not a malfuncon however), and aecng the
endurance of sensor at the same me.
Video Intercom D Series Door Staon User Manual
iv

•Please use the provided glove when open up the device cover, avoid direct
contact with the device cover, because the acidic sweat of the ngers may erode
the surface coang of the device cover.
•Please use a so and dry cloth when clean inside and outside surfaces of the
device cover, do not use alkaline detergents.
•Please keep all wrappers aer unpack them for future use. In case of any failure
occurred, you need to return the device to the factory with the original wrapper.
Transportaon without the original wrapper may result in damage on the device
and lead to addional costs.
•Improper use or replacement of the baery may result in hazard of explosion.
Replace with the same or equivalent type only. Dispose of used baeries
according to the instrucons provided by the baery manufacturer.
•Improper replacement of the baery with an incorrect type may defeat a
safeguard (for example, in case of some lithium baery types).
•Do not dispose of the baery into re or a hot oven, or mechanically crush or
cut the baery, which may result in an explosion.
•Do not leave the baery in an extremely high temperature surrounding
environment, which may result in an explosion or leakage of ammable liquid or
gas.
•Do not subject the baery to extremely low air pressure, which may result in an
explosion or the leakage of ammable liquid or gas.
•CAUTION: Risk of explosion if the baery is replaced by an incorrect type.
Video Intercom D Series Door Staon User Manual
v

Regulatory Informaon
FCC Informaon
Please take aenon that changes or modicaon not expressly approved
by the party responsible for compliance could void the user’s authority to
operate the equipment.
FCC compliance: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protecon against harmful
interference in a residenal installaon. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instrucons, may cause harmful interference to radio
communicaons. However, there is no guarantee that interference will not
occur in a parcular installaon. If this equipment does cause harmful
interference to radio or television recepon, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separaon between the equipment and receiver.
—Connect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help
FCC Condions
This device complies with part 15 of the FCC Rules. Operaon is subject to
the following two condions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference
that may cause undesired operaon.
This equipment complies with FCC/IC RSS-102 radiation exposure limits set
forth for an uncontrolled environment.
Video Intercom D Series Door Staon User Manual
vi

ce matériel est conforme aux limites de dose d'exposition aux
rayonnements, FCC / CNR-102 énoncée dans un autre environnement.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are
marked with "CE" and comply therefore with the applicable
harmonized European standards listed under the EMC Direcve
2014/30/EU, the RoHS Direcve 2011/65/EU
2012/19/EU (WEEE direcve): Products marked with this symbol
cannot be disposed of as unsorted municipal waste in the
European Union. For proper recycling, return this product to your
local supplier upon the purchase of equivalent new equipment, or
dispose of it at designated collecon points. For more informaon
see: www.recyclethis.info
2006/66/EC (baery direcve): This product contains a baery
that cannot be disposed of as unsorted municipal waste in the
European Union. See the product documentaon for specic
baery informaon. The baery is marked with this symbol,
which may include leering to indicate cadmium (Cd), lead (Pb),
or mercury (Hg). For proper recycling, return the baery to your
supplier or to a designated collecon point. For more informaon
see:www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operaon is subject to the following two condions:
1. this device may not cause interference, and
2. this device must accept any interference, including interference that may
cause undesired operaon of the device.
Video Intercom D Series Door Staon User Manual
vii

Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radioexempts de licence. L'exploitaon est autorisée aux deux
condions suivantes :
1. l'appareil ne doit pas produire de brouillage, et
2. l'ulisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est suscepble d'en compromere le
fonconnement.
Under Industry Canada regulaons, this radio transmier may only operate
using an antenna of a type and maximum (or lesser) gain approved for the
transmier by Industry Canada. To reduce potenal radio interference to
other users, the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (e.i.r.p.) is not more than that
necessary for successful communicaon.
Conformément à la réglementaon d'Industrie Canada, le présent émeeur
radio peut fonconner avec une antenne d'un type et d'un gain maximal (ou
inférieur) approuvé pour l'émeeur par Industrie Canada. Dans le but de
réduire les risques de brouillage radioélectrique à l'intenon des autres
ulisateurs, il faut choisir le type d'antenne et son gain de sorte que la
puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité
nécessaire à l'établissement d'une communication satisfaisante.
Video Intercom D Series Door Staon User Manual
viii

Contents
1 Appearance Descripon ............................................................................. 1
1.1 Appearance of 80 Series Door Staon .............................................................. 1
1.2 Appearance of 81 Series Door Staon .............................................................. 2
1.3 Appearance of 30 Series Door Staon .............................................................. 2
2 Terminal and Wiring Descripon ................................................................ 4
2.1 Terminal Descripon ......................................................................................... 4
2.2 Wiring Descripon ............................................................................................ 6
2.2.1 D-Series Door Lock Wiring ........................................................................ 6
2.2.2 D-Series Door Contact Wiring (8081 Series) ............................................. 6
2.2.3 D-Series Exit Buon Wiring (8081 Series) ................................................ 7
2.2.4 External Card Reader Wiring .................................................................... 8
2.2.5 D-Series Elevator Controller Wiring ........................................................ 10
2.2.6 Alarm Input Device Wiring ..................................................................... 10
2.2.7 Alarm Output Device Wiring .................................................................. 11
3 Installaon ................................................................................................ 13
3.1 Installaon of 80 Series Door Staon .............................................................. 13
3.1.1 Gang Box for 80 Series Door Staon ...................................................... 13
3.1.2 Flush Mounng with Gang Box .............................................................. 13
3.2 Installaon of 81 Series Door Staon .............................................................. 16
3.2.1 Gang Box for 81 Series Door Staon ...................................................... 16
3.2.2 Flush Mounng with Gang Box .............................................................. 17
3.3 Installaon of 30 Series Door Staon .............................................................. 18
Video Intercom D Series Door Staon User Manual
ix

3.3.1 Gang Box of 30 Series Door Staon ........................................................ 19
3.3.2 Flush Mounng with Gang Box .............................................................. 19
4 Acvaon ................................................................................................. 22
4.1 Acvate Device Locally .................................................................................... 22
4.2 Acvate Device via Client Soware ................................................................. 23
4.3 Acvate Device via Web .................................................................................. 24
5 Local Operaon ........................................................................................ 25
5.1 Local Conguraon ......................................................................................... 25
5.1.1 Edit Network Parameters ........................................................................ 25
5.1.2 Door Staon Sengs .............................................................................. 25
5.1.3 Add Residents ......................................................................................... 26
5.1.4 About ...................................................................................................... 27
5.2 Video Intercom Operaon .............................................................................. 27
5.2.1 Call Resident ........................................................................................... 27
5.2.2 Call Center .............................................................................................. 28
5.3 Unlock Door .................................................................................................... 28
5.3.1 Unlock by Password ................................................................................ 28
5.3.2 Unlock by Presenng Card ...................................................................... 29
5.3.3 Unlock by Fingerprint ............................................................................. 29
5.3.4 Unlock by QR Code ................................................................................. 29
6 Remote Conguraon via Web ................................................................ 31
6.1 Live View ......................................................................................................... 31
6.2 User Management .......................................................................................... 31
6.3 Device Management ....................................................................................... 32
Video Intercom D Series Door Staon User Manual
x

6.4 Parameters Sengs ........................................................................................ 32
6.4.1 Local Parameters Sengs ....................................................................... 32
6.4.2 System Sengs ....................................................................................... 34
6.4.3 Network Sengs .................................................................................... 36
6.4.4 Video & Audio Sengs ........................................................................... 41
6.4.5 Display Sengs ....................................................................................... 43
6.4.6 Event Sengs ......................................................................................... 44
6.4.7 Intercom Sengs .................................................................................... 47
6.4.8 Access Control Sengs ........................................................................... 49
7 Conguraon via Client Soware ............................................................. 54
7.1 Edit Network Parameters ................................................................................ 54
7.2 Add Device ...................................................................................................... 54
7.2.1 Add Online Device .................................................................................. 54
7.2.2 Add Device by IP Address ....................................................................... 55
7.2.3 Add Device by IP Segment ...................................................................... 55
7.3 Remote Conguraon ..................................................................................... 56
7.4 Device Management ....................................................................................... 56
7.5 Organizaon Management ............................................................................. 56
7.5.1 Add Organizaon .................................................................................... 56
7.5.2 Modify and Delete Organizaon ............................................................. 57
7.6 Person Management ....................................................................................... 57
7.6.1 Add Person ............................................................................................. 57
7.6.2 Modify and Delete Person ...................................................................... 59
7.6.3 Import and Export Person Informaon .................................................. 59
Video Intercom D Series Door Staon User Manual
xi

7.6.4 Get Person Informaon from Device ...................................................... 59
7.6.5 Change Person to Other Organizaon .................................................... 60
7.6.6 Add Person in Batch ................................................................................ 60
7.6.7 Issue Card in Batch ................................................................................. 61
7.6.8 Permission Sengs ................................................................................. 62
7.7 Video Intercom Sengs .................................................................................. 63
7.7.1 Receive Call from Door Staon ............................................................... 63
7.7.2 Live View via Door Staon ...................................................................... 64
7.7.3 Release Noce ........................................................................................ 64
7.7.4 Search Video Intercom Informaon ....................................................... 65
A. Communicaon Matrix and Device Command ....................................... 67
Video Intercom D Series Door Staon User Manual
xii

1 Appearance Descripon
Figure 1-1 Appearance of 80 Series Door Staon
Table 1-1 Descripons
No. Descripon No. Descripon
1 Low Illuminaon
Supplement Light
6 Keypad
2 Built-in Camera 7 Call Buon
3 LCD Display Screen 8 Microphone
4 Card Reading Area 9 Call Center Buon
5 Loudspeaker 10 TAMPER
Video Intercom D Series Door Staon User Manual
1

Figure 1-2 Appearance of 81 Series Door Staon
Table 1-2 Descripons
No. Descripiton No. Descripon
1 Low Illuminaon
Supplement Light
6 Call Center Buon
2 Built-in Camera 7 Microphone
3 LCD Display Screen 8 Card Reading Area
4 Keypad 9 Loudspeaker
5 Call Buon 10 TAMPER
Appearance of 30 Series Door Staon
Video Intercom D Series Door Staon User Manual
2

Table 1-3 Descripons
No. Descripon No. Descripon
1 Low Illuminaon
Supplement Light
6 Call Buon
2 Loudspeaker 7 Call Center Buon
3 LCD Display Screen 8 Microphone
4 Card Reading Area 9 TAMPER
5 Keypad
Video Intercom D Series Door Staon User Manual
3

2 Terminal and Wiring Descripon
2.1 Terminal Descripon
Figure 2-1 Terminal Descripon
Table 2-1 Descripons
Name Interface Descripon
LAN ANALOG Analog Interface
LAN Network Interface
ALARM IN SEN1 Door Contact Detecon Input 1/Door Contact
BTN1 Door Contact Detecon Input 1/Door Contact
SEN2 Door Contact Detecon Input 2/Door Contact
BTN2 Door Contact Detecon Input 2/Door Contact
GND Grounding
AIN1 Alarm Input 1
AIN2 Alarm Input 2
AIN3 Alarm Input 3
AIN4 Alarm Input 4
RS485 485A+ RS-485 Communicaon Interfaces
Video Intercom D Series Door Staon User Manual
4

Name Interface Descripon
485A-
GND Grounding
LOCK1 NO1 Door Lock Relay Output (NO)
COM1 Common Interface
NC1 Door Lock Relay Output (NC)
LOCK2 NO2 Door Lock Relay Output (NO)
COM2 Common Interface
NC2 Door Lock Relay Output (NC)
ALARM OUT` AO1+ Alarm Relay Output 1
AO1-
AO2+ Alarm Relay Output 2
AO2-
WIEGAND TAMP Tamper-proof Input of Wiegand Card Reader
OK Card Reader Indicator Output (Valid Card
Output)
ERR Card Reader Indicator Output (Invalid Card
Output)
BZ Card Reader Buzzer Output
W0 Data Input Interface Wiegand Card Reader: Data
0
W1 Data Input Interface Wiegand Card Reader: Data
1
GND Grounding
RES Reserved
RESERVED GND Grounding
Video Intercom D Series Door Staon User Manual
5

Name Interface Descripon
RES Reserved
POWER 12 VDC DC 12 V Power Supply Input
2.2 Wiring Descripon
2.2.1 D-Series Door Lock Wiring
Figure 2-2 Door Lock Wiring
Note
•Terminal NC1/COM1 is set as default for accessing electric bolt. Terminal NO1/
COM1 is set as default for accessing electric strike.
•To connect electric lock in terminal NO2/COM2/NC2, it is required to set the
output of terminal NO2/COM2/NC2 to be electric lock with iVMS-4200client
soware.
2.2.2 D-Series Door Contact Wiring (8081 Series)
Video Intercom D Series Door Staon User Manual
6

Figure 2-3 Door Contact Wiring
Note
Terminal SEN1/SEN2 can both connect to door contact.
2.2.3 D-Series Exit Buon Wiring (8081 Series)
Video Intercom D Series Door Staon User Manual
7
