How To Configure Hikvision DS-2TPx1B-xAxFx
Handheld Tem erature Screening
Thermogra hic Cameras
1. Relevant Products
•DS-2TP31B-3AUF Thermogra hic Handheld Camera
•DS-2TP21B-6AVFW Thermogra hic Handheld Camera
2. General Parameters
•Tem erature Measurement Range
86°113° F (30.0°45.0° C)
•Tem erature Measurement Accuracy
±0.9° F (±0.5° C)
•Camera Resolution
-DS-2TP31B-3AUF: Thermal: 160 × 120
-DS-2TP21B-6AVFW: Thermal: 160 × 120, Opti al: 640 × 480
•O erating Environment
Indoor environment with alm air, 50°95° F (10°35° C)
3. Installation
•Installation Cautions
The performan e of this temperature s reening s heme is greatly affe ted by the environment.
This s heme would apply only to indoor environments, or s enarios, with alm air and
onsistent temperature. Also, the relative installation lo ation of devi es greatly affe t the
a ura y of temperature measurement. In order to improve measurement a ura y, the
installation environment has to meet ertain requirements:
-Sele t a lo ation with a one-dire tion path to ensure that ameras apture the full fa es of
all passing persons. It is re ommended that people briefly stop movement during
measurements.
-Sele t indoor environments with alm air and onsistent temperature. Outdoor
environments with rapid temperature hanges are not re ommended.
-If this s heme is used in entran e lo ations that onne t indoor and outdoor environments,
it is suggested that the installation lo ation be kept at a distan e from the entran e (su h
as at ustoms or se urity he kpoints).
-Avoid pla ing obje ts with high temperature in the s ene.

© 2020 Hikvision USA Inc. • All Rights Reserved • Specifications sub ect to change without notice.
Hikvision USA Inc., 18639 Railroad Street, City of Industry, CA 91748, USA • Hikvision Canada, 4848 rue Levy, St-Laurent, Quebec, Canada, H4R 2P1
Tel: [phone] • Toll Free in USA: [phone] • E-Mail: [e-mail] • www.hikvision.com 052620NA 2
•Camera Installation
1. Atta h the amera to a tripod (highly re ommended).
NOTE: If using the amera hand held, minimize amera movement when taking a
measurement. Note that using the amera hand held will not be as a urate as
using it on a tripod.
NOTE: This amera an be mounted on a tripod without an adapter. Hikvision offers a
tripod for additional pur hase. As suppliers have not fully restored produ tion
apa ity re ently, there are multiple suppliers, and there may be slight
differen es of the same model, whi h will not affe t use. If you are on erned
about this, you an lo ally pur hase any tripod that meets the standards.
2. Set the amera in front of the one-dire tion path so that it an apture the full fa es of
passing people, as shown below.
3. Set installation height between 4' 11" and 5' 7" (1.5 m and 1.7 m), at the same height as
human fa es (or at a low elevation angle to redu e error by heat sour es near the ground).
4. Set the distan e between the amera and obje t as follows:
• DS-2TP31B-3AUF: Set at 3' 4" (1 m)
• DS-2TP21B-6AVFW: Set between 3' 4" and 6' 7" (1 m and 2 m)
NOTE: Avoid pla ing any obje t in the amera view’s ba kground with a temperature
higher than a human body’s.

© 2020 Hikvision USA Inc. • All Rights Reserved • Specifications sub ect to change without notice.
Hikvision USA Inc., 18639 Railroad Street, City of Industry, CA 91748, USA • Hikvision Canada, 4848 rue Levy, St-Laurent, Quebec, Canada, H4R 2P1
Tel: [phone] • Toll Free in USA: [phone] • E-Mail: [e-mail] • www.hikvision.com 052620NA 3
4. DS-2TP31B-3AUF Configuration

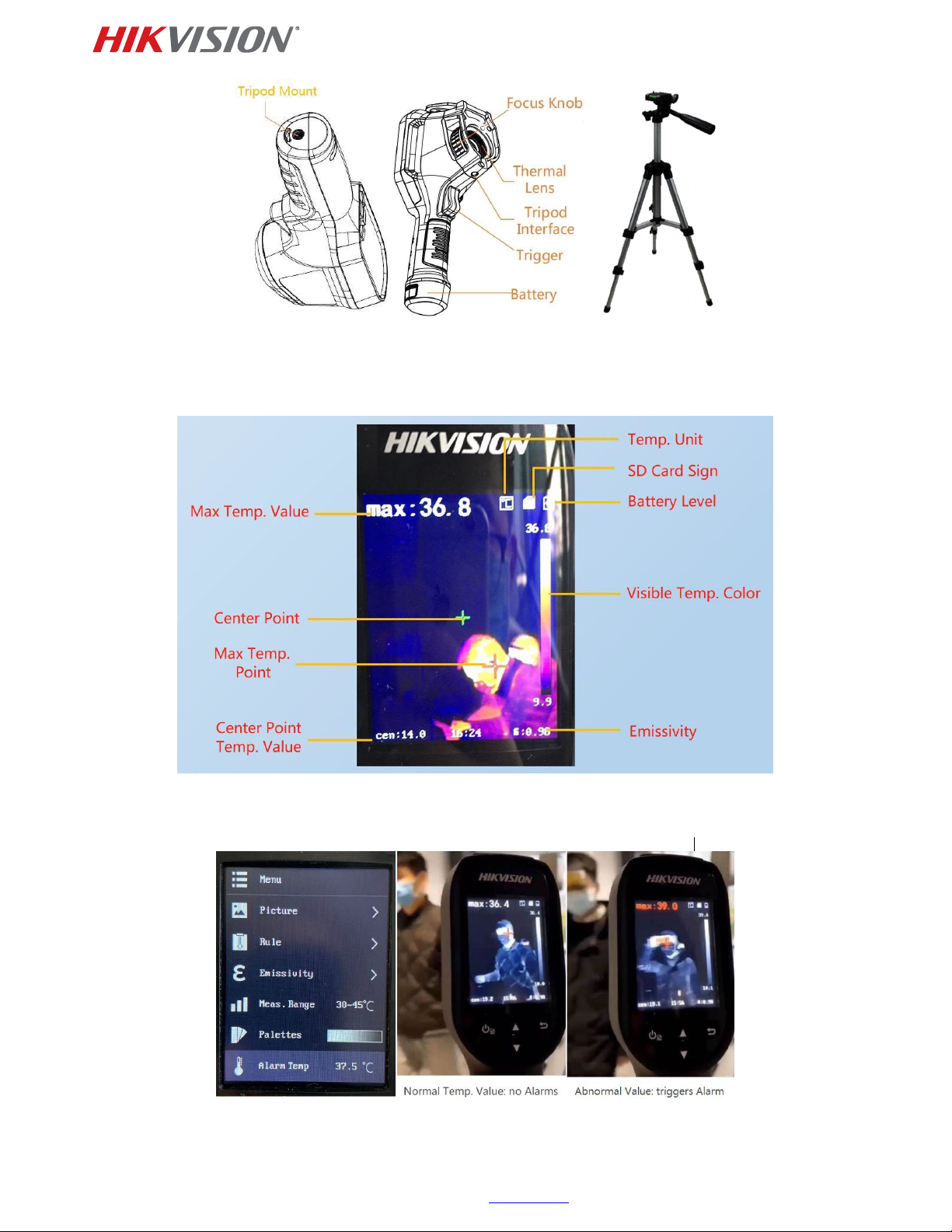

•User Interface. This handheld thermographi amera’s user interfa e is shown below.
•Alarm Tem .: Set to 99.5° F (37.5° C), or adjust it to your requirements. If the measured value
ex eeds the set value, the displayed Max Tem . Value turns red and flashes, as shown below.

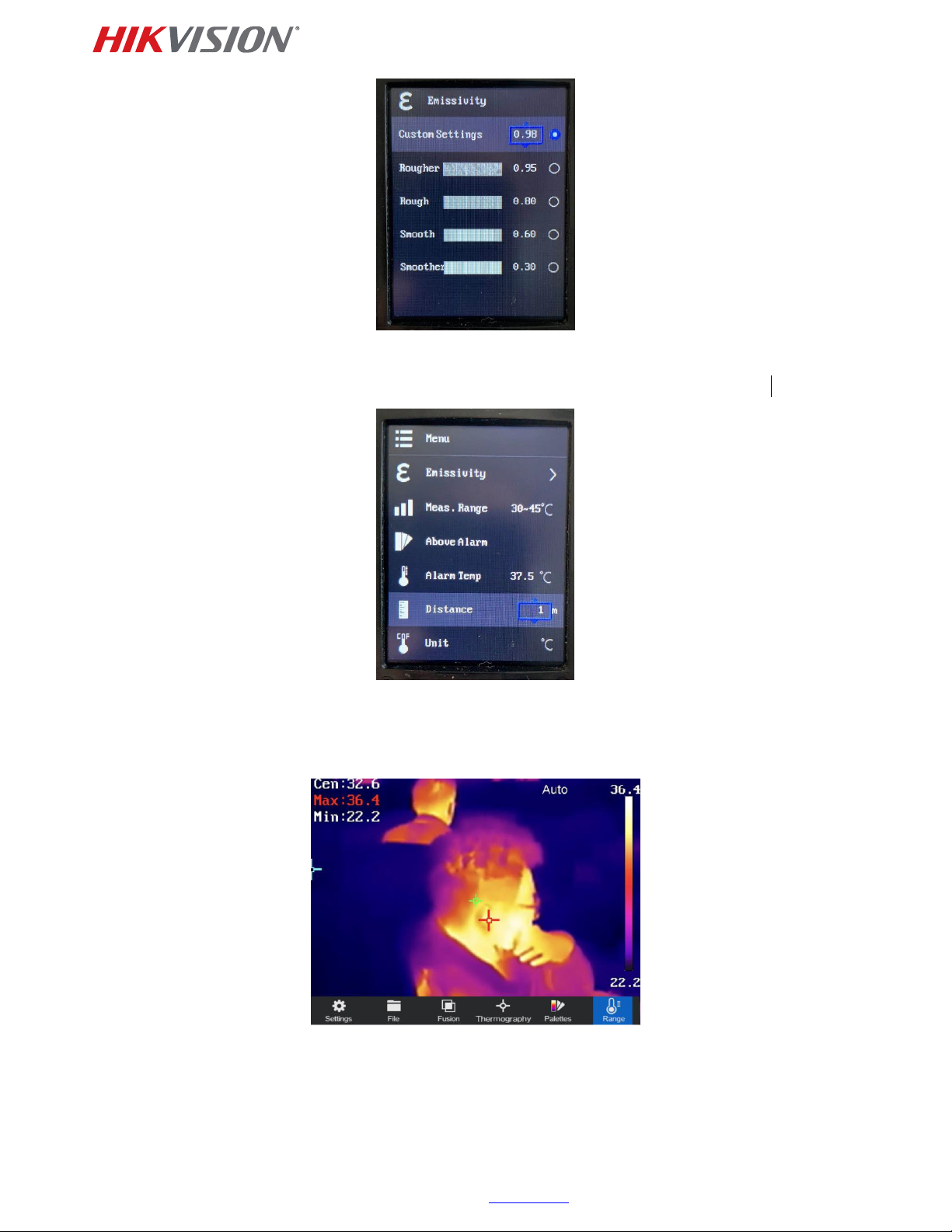

•Emissivity: Set to 0.98 for human skin thermography, as shown below.
