Component replacement
instructions

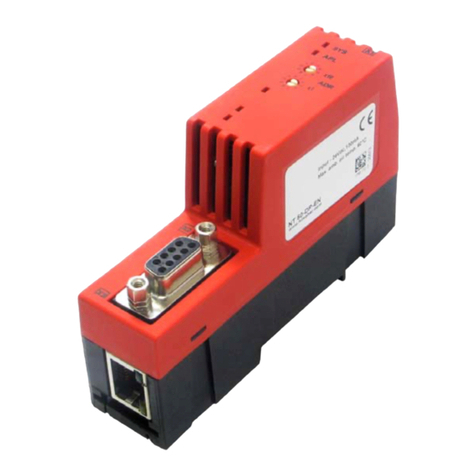

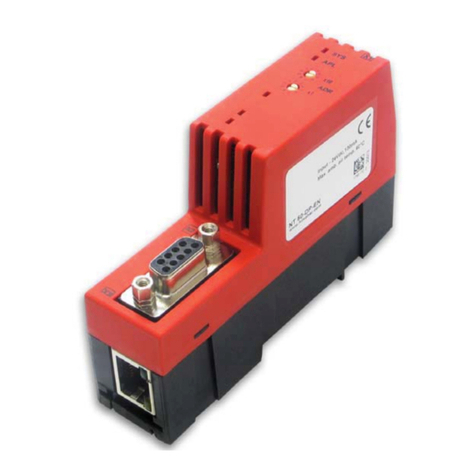

Hilscher Gateway NT50 CO-EN
BW_netTAP50_Gateway_00_en
Document ID: EMGDES-00011484

Table of contents
Hilscher Gateway NT50 CO-EN
2
BW_netTAP50_Gateway_00_en
EMG Automation GmbH
Table of contents
1
Component replacement instructions
3
1.1
Unpacking the new gateway
3
1.2
Removing the old gateway
3
1.3
Installing the new gateway
3
1.4
Configuring the new NT50-gateway
4

Component replacement instructions
Hilscher Gateway NT50 CO-EN
EMG Automation GmbH
BW_netTAP50_Gateway_00_en
3
Component replacement instructions
WARNING
Unauthorised start-up/operation of the device by a third party
may result in death or serious bodily injury.
The device must be de-energized.
Cordon-off access routes during repair work (for example, red/white tape)!
Tools required:
▪Screwdriver (5 mm blade width)
▪Ethernet standard cable
▪PC with Hilscher software
–SYCON.NET
–Ethernet Device Configuration
Unpacking the new gateway
Examine the device for visible damage or contamination.
Only use devices that are technically and visually flawless.
Removing the old gateway
Disconnect the supply voltage to the NT50-gateway. (Black plug-in block terminal, 2-
pin).
Prevent the device from being restarted.
Disconnect the electrical connections to the NT50-gateway (mostly plug connectors).
Disengage the NT50-gateway from the DIN rail.
Note the DIL switch settings for the new NT50-gateway.
Installing the new gateway
1. Transfer the DIL switch settings and other settings from the old NT50-gateway.
2. Insert the NT50-gateway into the vacant space.
3. Re-establish the electrical connections to the NT50-gateway (mostly plug con-
nectors).
4. Switch on the supply voltage. (Black plug-in block terminal, 2-pin).
1
1.1
1.2
1.3

Component replacement instructions
Hilscher Gateway NT50 CO-EN
4
BW_netTAP50_Gateway_00_en
EMG Automation GmbH

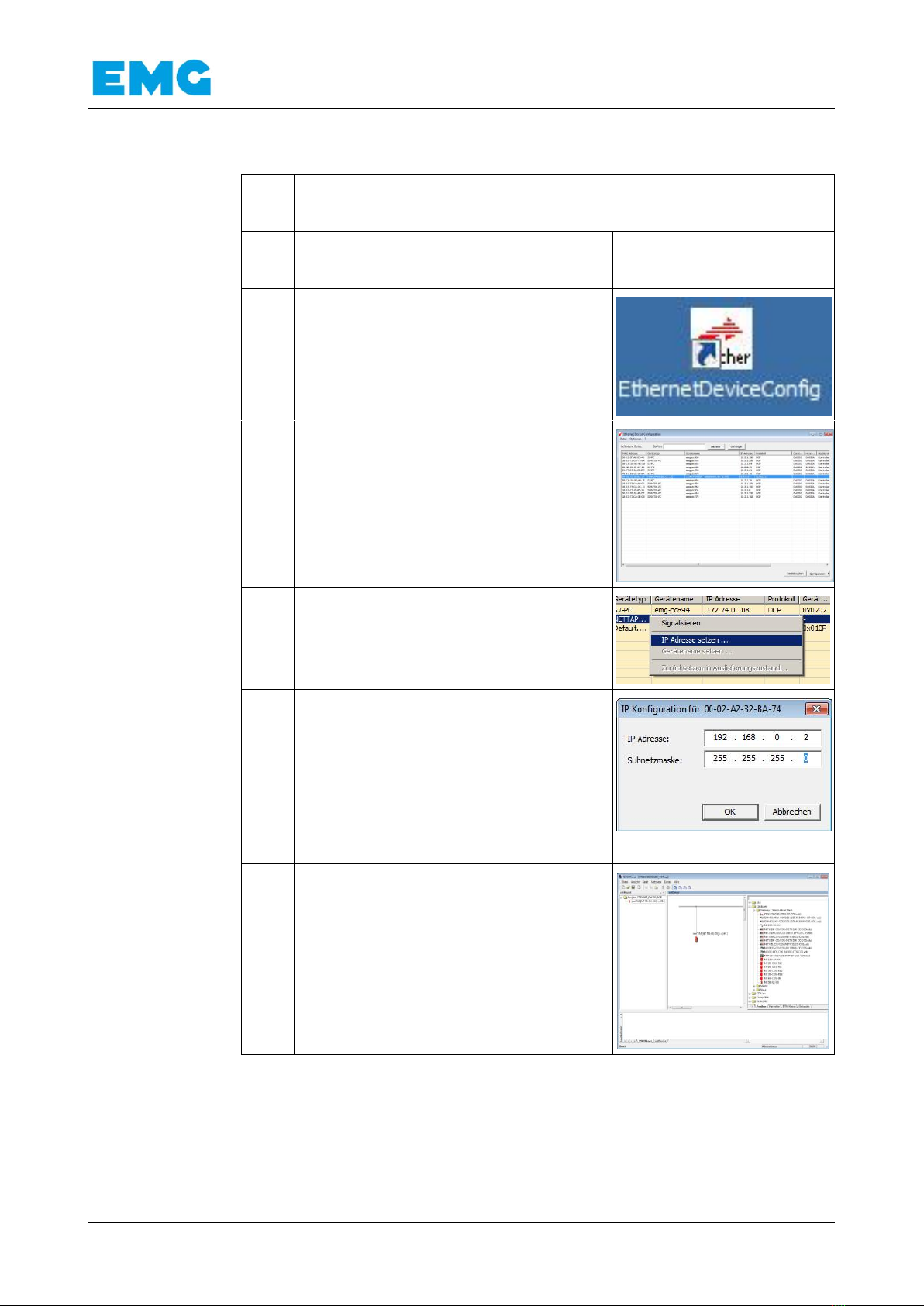

Configuring the new NT50-gateway

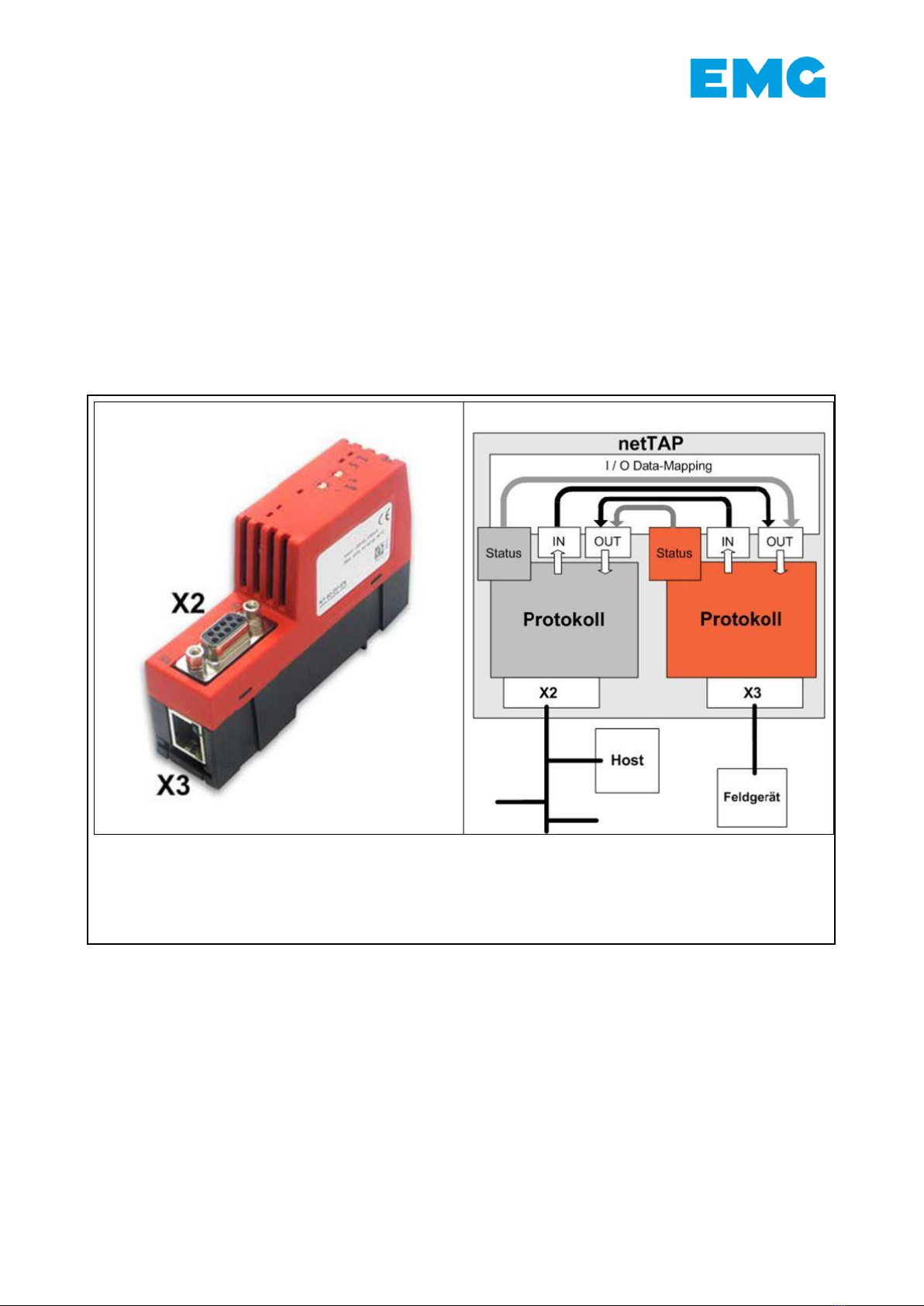

The NT50-gateway transfers the I/O data in both directions, thereby enabling data exchange
between two networks. The NT50-gateway is configured using the tool "SYCON.NET". (see:
www.hilscher.com) This software can also be found on the CD in the control cabinet.
1.
Before starting the software please connect the PC to
the gateway via CAT5 cable (RJ45) and set the network
interface card on the PC to IP address: 192.168.0.1.
2.
Start the Ethernet Device Configuration programme.
3.
Press the button labelled "Search devices". All Hilscher
and Ethernet-IP enabled devices are now listed.
4.
Highlight the desired device (right mouse button), e.g.
"netTAP 50" and select the option "Set IP address".
5.
Set the IP address and press OK to confirm the setting.
Create a SYCON.NET project.
6.
Start SYCON.net and create a new project under File →
New Project.
Then select the corresponding device from the right-
hand (device catalogue) window (here: NT 50-XX-XX,
which corresponds to the device NT 50-CO-EN used in
the example) and drag it to the bus string in the central
window.
1.4

Component replacement instructions
Hilscher Gateway NT50 CO-EN
EMG Automation GmbH
BW_netTAP50_Gateway_00_en
5

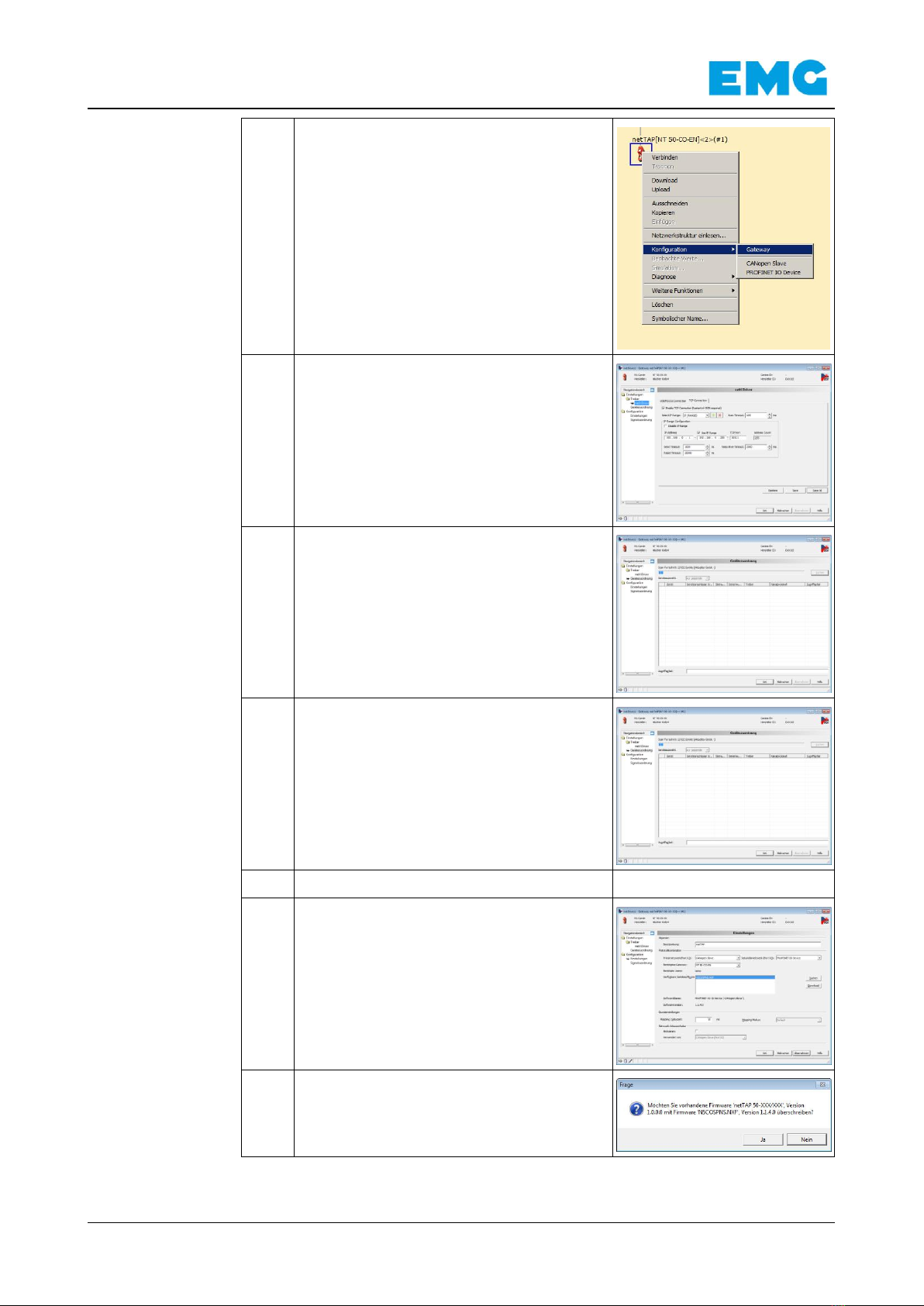

7.
Basic configuration for the gateway
Select the gateway with the right mouse button
8.
Now search for the gateway for basic configuration,
then apply the settings for the search process.
9.
The gateway is searched for in the set IP address
range.
10.
When it has been located it will be displayed in the list.
Protocol-specific configuration
11.
Now set up the required bus configuration in the dia-
logue window displayed (here: CANopen Slave on
Ethernet-IP Slave)
To provide the gateway with the set functionality, the
proposed firmware must be loaded into the gateway
(here: N5COSPNS.NXF). To do this, select the firmware
and press the "Download" button:
12.
Start the download process by pressing "Yes"; the
download is then started.

Component replacement instructions
Hilscher Gateway NT50 CO-EN
6
BW_netTAP50_Gateway_00_en
EMG Automation GmbH

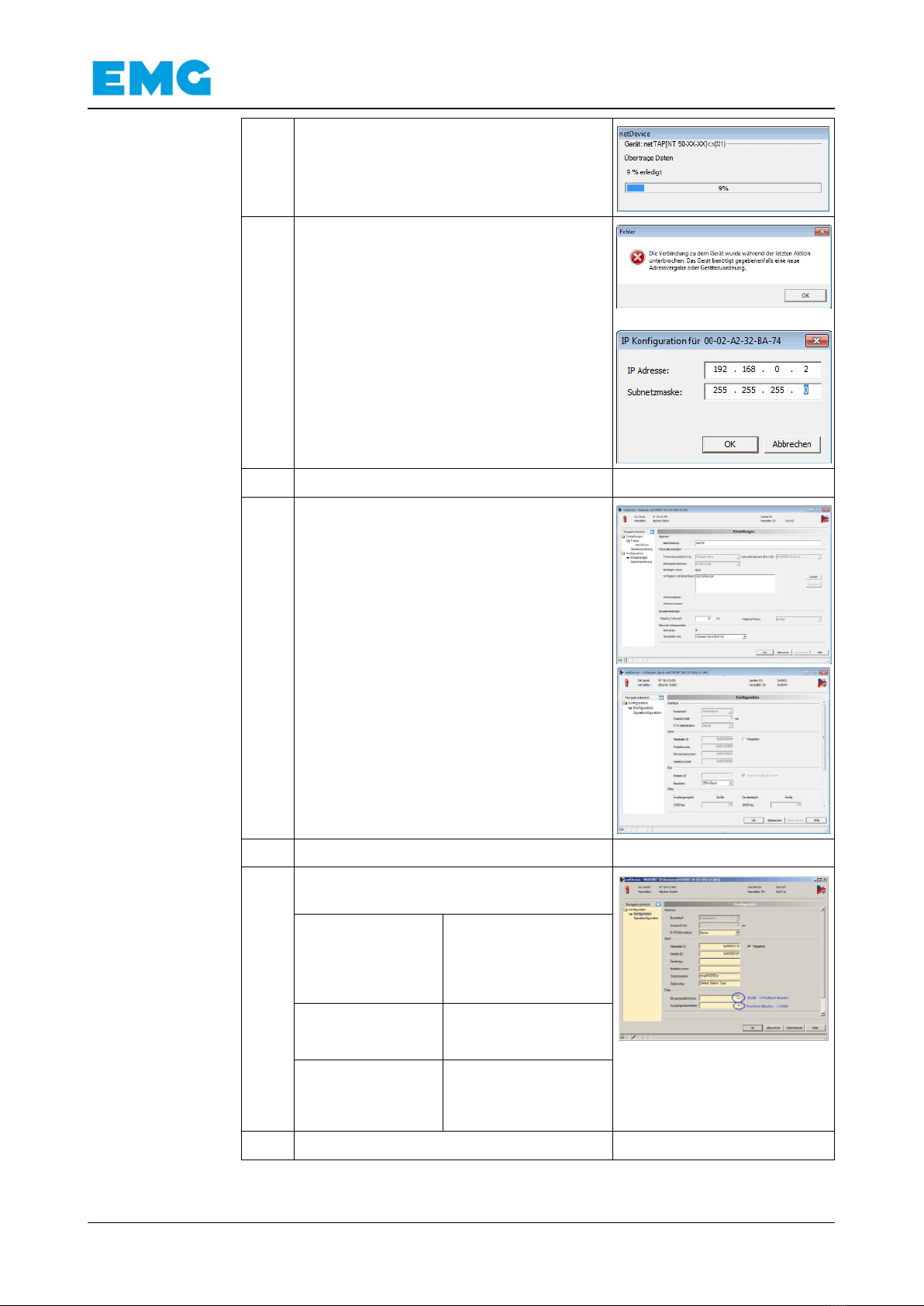

13.
The temporary IP address is deleted again after every
download process (restart of the gateway). An error
message is displayed.
CAUTION
The IP address will now need to be re-entered ("Ether-
net Device Configuration" programme, see point 1 - 5),
after which the device will need to be located again
under SYCON.net.
The configuration process can be continued after doing
this.
CANopen configuration
14.
(9-pin plug X2)
Apply the settings. These may need to be adapted to
the project (with the exception of the baud rate).
Profinet configuration
15.
(RJ45 plug X3)
Specific settings are to be entered here:
Station name:
emg004250por
The key here is:
emgProgrammenumberType
. This name must be entered
on the Profinet master side!
Input data bytes:
Enter the number of bytes
which are "received by the
master" and "sent"by iCON
Output data bytes:
Enter the number of bytes
which are "sent by the
master"and "received"by
iCON
Signal assignment or mapping

Component replacement instructions
Hilscher Gateway NT50 CO-EN
EMG Automation GmbH
BW_netTAP50_Gateway_00_en
7
16.
The configured data must be ultimately connected
(mapped) between X2 and X3. This can be implement-
ed manually or automatically (recommended).
To do this, select the entry "From Port3 to Port2" from
the selection field underneath the list.
The "Assigned signal" list is then populated.

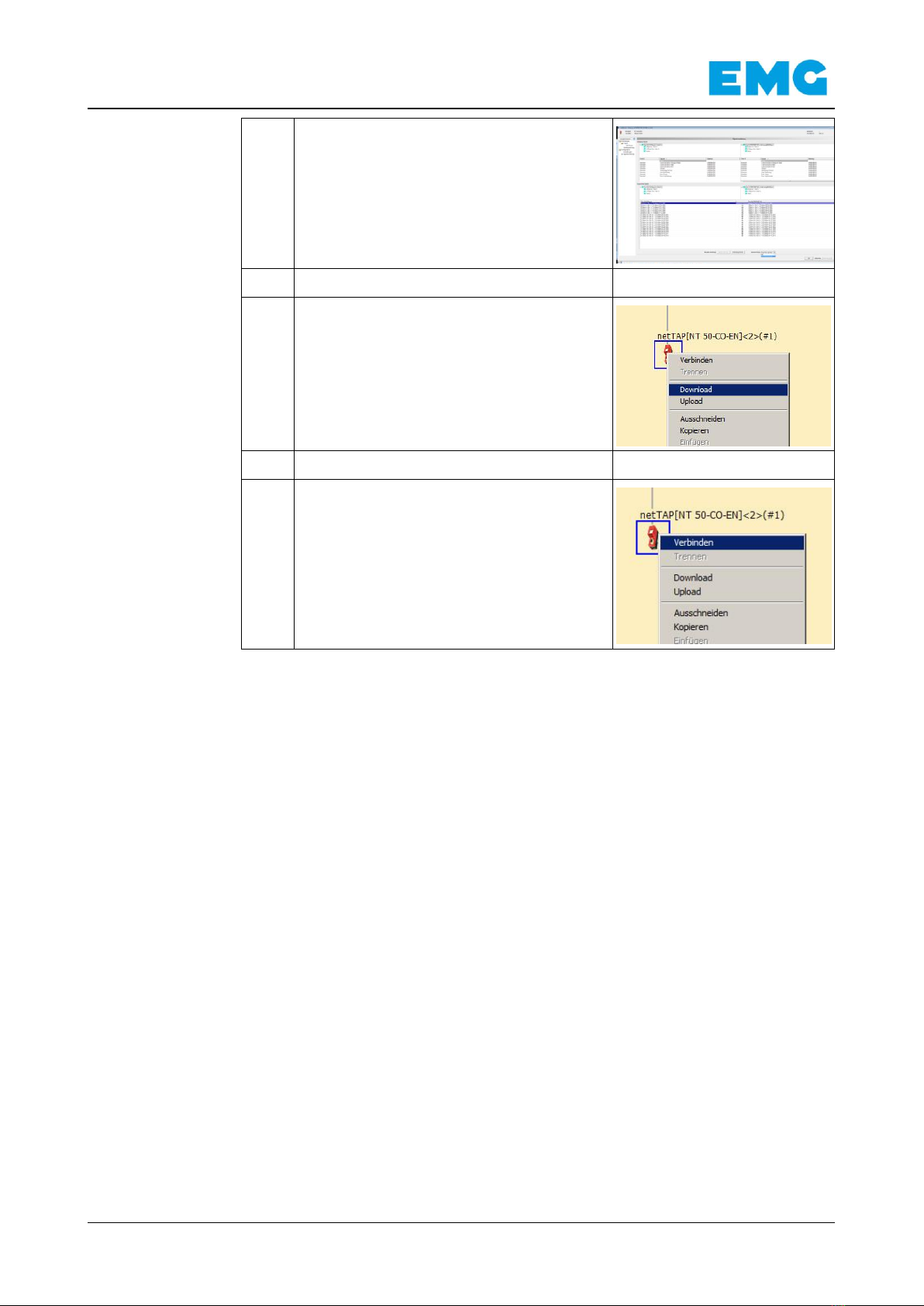

Final download of the project
17.
When all of the aforementioned settings have been
entered, everything must then be loaded into the gate-
way. This is once again implemented via the context
menu:
Connection diagnostics
18.
The operating status etc. can then be checked via the
diagnostic functions:
