Hilti DC-EX 125/5inch M User manual

DC-EX 125/5"M English
Printed: 08.06.2018 | Doc-Nr: PUB / 5128910 / 000 / 02

Printed: 08.06.2018 | Doc-Nr: PUB / 5128910 / 000 / 02

English 1
1 Information about the documentation
1.1 About this documentation
• Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free
handling and use of the product.
• Observe the safety instructions and warnings in this documentation and on the product.
• Always keep the operating instructions with the product and make sure that the operating instructions
are with the product when it is given to other persons.
1.2 Explanation of symbols used
1.2.1 Warnings
Warnings alert persons to hazards that occur when handling or using the product. The following signal words
are used:
DANGER
DANGER !
▶Draws attention to imminent danger that will lead to serious personal injury or fatality.
WARNING
WARNING !
▶Draws attention to a potential threat of danger that can lead to serious injury or fatality.
CAUTION
CAUTION !
▶Draws attention to a potentially dangerous situation that could lead to slight personal injury or damage
to the equipment or other property.
1.2.2 Symbols in the documentation
The following symbols are used in this document:
Read the operating instructions before use.
Instructions for use and other useful information
Dealing with recyclable materials
Do not dispose of electric equipment and batteries as household waste
1.2.3 Symbols in the illustrations
The following symbols are used in illustrations:
These numbers refer to the corresponding illustrations found at the beginning of these operating
instructions
The numbering reflects the sequence of operations shown in the illustrations and may deviate
from the steps described in the text
Item reference numbers are used in the overview illustrations and refer to the numbers used in
the product overview section
This symbol is intended to draw special attention to certain points when handling the product.
Wireless data transfer
Printed: 08.06.2018 | Doc-Nr: PUB / 5128910 / 000 / 02

2 English
1.3 Product-dependent symbols
1.3.1 Symbols
The following symbols are also used:
Wear protective goggles while working with the tool.
Wear ear protection while working with the tool.
Wear protective gloves while working with the tool.
1.4 Product information
products are designed for professional users and only trained, authorized personnel are
permitted to operate, service and maintain the products. This personnel must be specifically informed about
the possible hazards. The product and its ancillary equipment can present hazards if used incorrectly by
untrained personnel or if used not in accordance with the intended use.
The type designation and serial number are printed on the rating plate.
▶Write down the serial number in the table below. You will be required to state the product details when
contacting Hilti Service or your local Hilti organization to inquire about the product.
Product information
Hood DC-EX 125/5"M
Generation: 01
Serial no.:
2 Safety
2.1 Safety instructions
WARNING! Read all safety precautions and instructions in this documentation and the safety
instructions of the approved tools. Failure to follow the safety instructions and other instructions can result
in electric shock, fire and/or serious injury.
Keep all safety precautions and instructions for future reference.
▶Wear personal protective equipment and always wear protective goggles.
▶Use respiratory protection to keep residual dust away from the face and airways when working.
▶Even when the hood is fitted, always use the side handle of the approved Hilti power tool.
▶Wear protective gloves when changing the accessory tool.
Printed: 08.06.2018 | Doc-Nr: PUB / 5128910 / 000 / 02

English 3
3 Description
3.1 Product overview
@Connector
;Locking catch
=Front clip
%Carriage plate with cutting line indicator
&Catch
(Carriage plate
)Wheels
+Cover
Printed: 08.06.2018 | Doc-Nr: PUB / 5128910 / 000 / 02

4 English
§Direction-of-rotation arrow
/Side-handle attachment point
:Back panel
∙Carriage plate
$Positioning mark for fitting to angle grinder
£Depth gauge scale
|Locking screw
¡Direction of rotation indicator for position-
ing the angle grinder

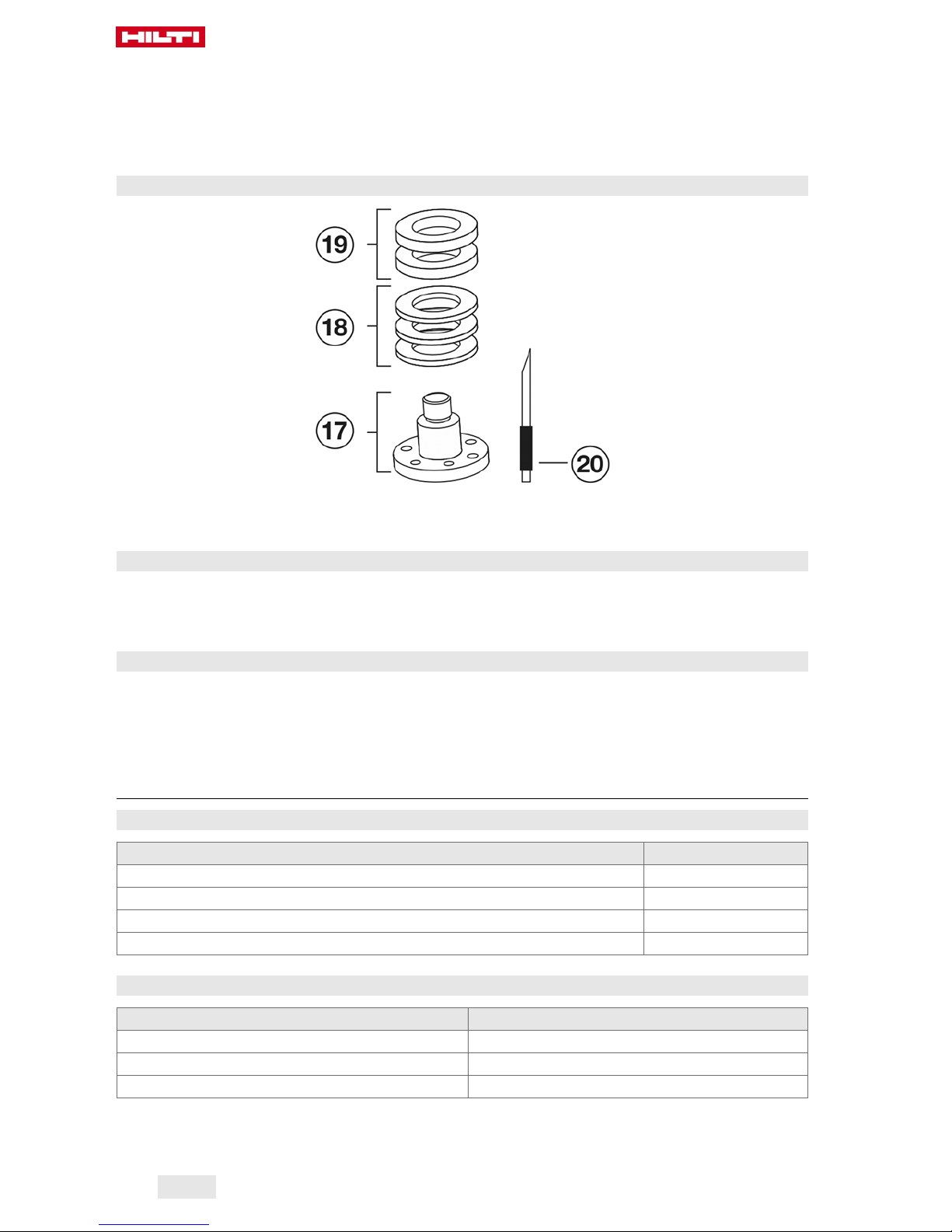

3.2 Slitting adapter set
QAdapter
W3 mm spacing washer
E6 mm spacing washer
RBreak-out tool
3.3 Intended use
The DCEX 125/ 5" M slitting hood is for cutting and slitting mineral materials, particularly masonry, with
125 mm / 5" discs in combination with a Hilti dust extractor. Use the DCEX 125/ 5" M slitting hood only for
the AG 500 11S, AG500 13D, AG 125-13S and AG 125-19SE angle grinders and only without water.
3.4 Items supplied
1 spacing adapter, 3 spacing washers (3 mm / 0.1 in), 2 spacing washers (6 mm / 0.2 in), break-out tool for
breaking out fillet
You can find other system products approved for your product at your local Hilti Center or online at:
www.hilti.com.
4 Technical data
4.1 Technical data
DC-EX 125/5"M
Weight 1.35 kg
Disc diameter 125 mm
Slitting width with twin discs 25 mm
Maximum cutting depth 28 mm
4.2 Diamond cutting discs
Diamond cutting disc
Application Cutting, slitting
Designation DCD
Material Mineral
Printed: 08.06.2018 | Doc-Nr: PUB / 5128910 / 000 / 02

English 5
5 Before use
5.1 Fitting the hood
1. Fit the guard on to the arbor collar so that the two triangular marks on the guard and on the power tool
are in alignment.
2. To bring the hood to the desired working position, pivot the device radially while pressing the catch on
the angle grinder.
◁The catch engages with an audible click.
5.2 Opening hood
1. Press the catch.
2. Open the front clip.
3. Press the locking catch.
4. Open the hood.
5.3 Fitting the diamond cutting disc for slitting applications
The use of Kwick-Lock nuts for this application is not permitted.
For this application you need the slitting adapter set, which is additionally available.
Printed: 08.06.2018 | Doc-Nr: PUB / 5128910 / 000 / 02

6 English
1. Remove the clamping flange for the arbor.
2. Screw the adapter on to the arbor and tighten it securely.
3. Insert a diamond cutting disc, observing the specified direction of rotation.
4. Fit the spacer rings for the desired width between slits.
5. Insert a diamond cutting disc, observing the specified direction of rotation.
6. Screw on the clamping nut and tighten it securely with the pin wrench.
7. Close the hood.
5.4 Fitting a diamond cutting disc
1. Fit the clamping flange on to the arbor.
2. Place the first diamond cutting disc on the clamping flange.
Observe the specified direction of rotation.
3. Screw on the Kwick-Lock nut until it is seated against the cutting disc.
4. Close the hood.
5.5 Setting depth
1. Release the locking screw.
2. Push the back panel to the desired position.
◁The scale shows the group.
3. Firmly tighten the locking screw.
5.6 Plunge function
1. Position the carriage plate on the work.
2. Switch on the tool.
Printed: 08.06.2018 | Doc-Nr: PUB / 5128910 / 000 / 02

English 7
3. Guide the cutting disc into the work.
You can disable the plunge function with the locking screw.

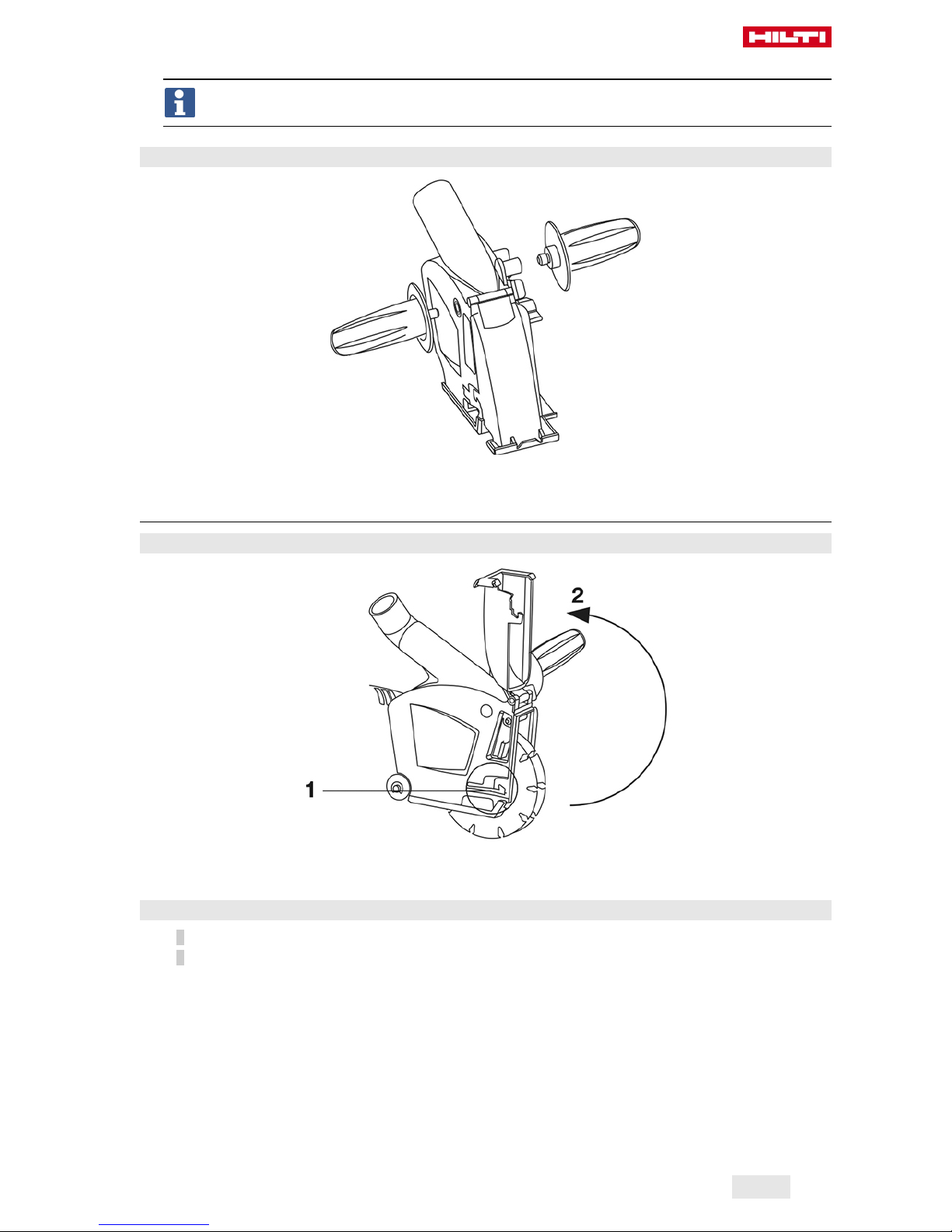

5.7 Fitting the side handle
▶Fit the side handle on the desired side.
6 Operation
6.1 Wall and corner accessibility
1. Press the locking catch.
2. Open the front clip more than 180 °.
6.2 Marks for cut positioning
Mark 1indicates the position of the inner cutting disc or single disc, as applicable.
Mark 2indicates the maximum slitting width (max. position of the second disc).
Printed: 08.06.2018 | Doc-Nr: PUB / 5128910 / 000 / 02

8 English
6.3 Removing the accessory tool
1. Open the hood. → page 5
2. Open the clamping nut.
3. Remove the diamond cutting disc.
4. Remove the spacer rings.
5. Remove the diamond cutting disc.
6. Use the pin wrench to release the adapter.
7. Press the catch on the angle grinder.
8. Turn the hood radially until it can be removed from the tool.
6.4 Breaking out the fillet
▶Break out the fillet.
7 Manufacturer’s warranty
▶Please contact your local Hilti representative if you have questions about the warranty conditions.
