Hilti DX 9-HSN User manual

DX 9-HSN
DX 9-ENP
Quick Start Guide – Supplement

2
INDEX
Additional resources available are:
Quick start guide
Tool Operating Instructions
How to video (use the resources in the Hilti Connect App, Hilti online or Hilti channel in YouTube)
SAFETY FIRST 3
TOOL ANATOMY 4 – 6
SELECTING THE RIGHT NAIL,
TOOL & CARTRIDGE
7
DOWNLOADING & USING
THE HILTI CONNECT APP
DOWNLOAD
ACCESS TOOL INFORMATION
8
9
FASTENING METAL DECK
TO THE STEEL STRUCTURE
INSTALLING THE DECKING NAIL
UNDERSTANDING THE SERVICE INDICATOR
CONNECTING TO HILTI CONNECT VIA BLUETOOTH
10 – 11
12
13
KNOWING HOW TO CLEAN
THE TOOL
14 – 15
KNOWING ESSENTIAL FIELD
TROUBLE SHOOTING
POSSIBLE CAUSES
TOOL STAYS COMPRESSED
TOOL CANNOT BE COMPRESSED
16
17 – 18
19 – 20

3
INDEX
SAFTEY FIRST
Requirements to be met by the user
The tool is intended for professional use. The tool may be operated, serviced and maintained only by trained, authorized personnel
who have received special instruction regarding the hazards that may be encountered.
Use the tool for the rst time only after you have been trained by a Hilti specialist on how to use it safely.

Personal safety
Never tamper with or modify the tool in any way.
Do not use the tool for purposes for which it was not intended.
Stay alert, watch what you are doing and use common sense when operating the tool.
Do not use the tool if you are not concentrating.
To reduce the risk of injury use only genuine Hilti accessories and spare parts or those of equivalent quality.
Use only fasteners of a type approved for use with the tool.
Observe the information printed in the operating instructions concerning operation, care and maintenance.
Never point the tool toward yourself or other persons.
Never press the nosepiece of the tool against your hand or against any other part of your body (or other persons hand or part of
their body).
Drive the fasteners only into structural steel members. Do not attempt to drive fasteners into other materials or into hardened or
brittle steel, cast iron or spring steel.
Pull the trigger only when the nosepiece of the tool is in contact with the working surface and the tool is fully compressed.
When driving fasteners, always hold the fastening tool at right angles to the working surface in order to help prevent the fastener
being deected by the surface.
Never redrive a fastener, as this may cause the fastener to brake.
Keep the grips dry, clean and free from oil and grease.
Never leave a loaded tool unattended.
Always remove the cartridges before cleaning, servicing or carrying out maintenance work on the tool.
Never leave the tool unattended.
When not in use, the tool should be unloaded (cartridge strips removed) and stored in a locked, dry place where it is inaccessible
to children.
Never compress the tool while operating the Pawl, as this presents a risk of injury to the operators hand.
Remove the cartridge strip from the tool carefully. Never attempt to pry a cartridge from the magazine strip or tool.
Do not disassemble the tool while it is hot. If this is unavoidable, wear protective gloves.
Store unused cartridges in a dry place, where they are locked away or high up and out of reach of children.
Do not operate the tool when parts are damaged or when the controls do not function correctly.
Have the tool repaired by Hilti Tool Service.

Personal Protective Equipment (PPE)
Operator and bystanders must wear helmet, eye and ear protection. Hilti recommends the operator wear hand gloves. In addition, all
the jobsite safety requirements (steel toe safety shoes, safety harness, high visibility vest, etc.), deemed necessary by the local regula-
tions and jobsite requirements must be adhered to.

Information here is general: read the operating instructions for complete details

TOOL ANATOMY 4
INDEX
Handle
Trigger Button
Cartridge Outlet
Nail Release Button
Magazine Guide
Carrying Handle
Stop
Nail Magazine
Pressure Pin
Magazine Release Button
Cartridge Inlet
Housing
Cartridge Channel
Pawl
Rotating Sleeve
Nail Detection Mechanism

TOOL ANATOMY 5
INDEX
Triggering Cable
Service Indicator
Grip Pipe
Triggering Cable Retainer
Firing Unit
Cartridge Transport Lever
Temperature Sensor
NailAdvancementCatch
Bearing Sleeve
Ball Holder
Cartridge Channel
Compression Spring
Piston

TOOL ANATOMY 6
INDEX
Bearing Sleeve
Piston Guide Assembly
Slider
Piston Piston
Piston Stop
Piston Brake Nail Magazine
Piston Retrainer Kit

SELECTING THE RIGHT NAIL, TOOL & CARTRIDGE 7
INDEX
A fastener selection guide is
available to aid in selecting
the right nail if doubtful. It
is included in every DX 9
tool case and can also be
ordered separately.
Selecting the right nail, tool and cartridge is a pre-requisite for good quality fastening.
In addition, improper selection can lead to excessive wear on the DX 9 deck fastening tool.
Select the right nail
X-HSN 24 fastener is used for
fastening deck to bar joist and
light gauge steel structure in
the thickness range 1/8”
(3.2 mm) to 3/8” (9.6 mm).

Select the right tool
For the X-HSN 24 nail you
need to use the DX 9-HSN
or the DX 860-HSN tool.

Select the right nail
X-ENP-19 L15MXR fastener
is used for fastening deck to
structural steel 1/4”(6.4 mm)
to full steel.

Select the right tool
For the X-ENP-19 L15MXR
nail you need to use the DX
9-ENP or the DX 860-ENP
tool.

Select the right cartridge
For the X-ENP-19 L15MXR nail and DX 9-ENP or the DX 860-
ENP tool you need to use the 6.8/18 M40 cartridge.

Select the right cartridge
For the X-HSN 24 nail and the DX 9-HSN or the DX 860-
HSN tool you need to use the 6.8/11 M40 cartridge.

See below reference chart to select the right color cartridge based on steel strength and steel thickness by nail type. The num-
ber within the box provides a quick reference for the tool power level. However, due to variability in base steel, check the nail
stand-off by performing test fastenings and adjust the power level accordingly.
4
3
4
3
red black
4
3
4
3
red
blue
Standard
steel
S235, S275
E 36, ST 37,
340-470 N/mm
2
High-strength
steel
Base material thickness
(inch/mm)
S355, S275
E 42, ST 52,
490-630 N/mm
2
>3/4"
(19.0 mm)
5/8"
(16.0 mm)
1/4"
(6.4 mm)
5/16"
(8.0 mm)
3/8"
(9.6 mm)
Standard
steel
S235, S275
E 36, ST 37,
340-470 N/mm
2
High-strength
steel
Base material thickness
(inch/mm)
S355, S275
E 42, ST 52,
490-630 N/mm
2
5/16"
(8.0 mm)
1/4"
(6.4 mm)
3/16"
(4.8 mm)
1/8"
(3.2 mm)
3/8"
(9.6 mm)
red
2
red
2

DOWNLOADING & USING THE HILTI CONNECT APP 8
INDEX
DOWNLOAD
App Store
Go to the Google Play Store
or the Apple App Store on
your phone or scan the QR
code.

Install
Search for the Hilti Connect
App and install it.

Select the country

Login
If you are an existing user,
you can push Login. If you
are a new user, you can
push register or you can
skip the login and use the
limited functionality.

+LOWL&RQQHFW
+LOWL&RQQHFW

DOWNLOADING & USING THE HILTI CONNECT APP 9
INDEX
ACCESS TOOL INFORMATION
Customers Owned/
Fleet
Usage Information
Last seen location
Purchase information
Service information
Repair information
 $
Tool on Demand
Usage Information
Last seen location
 %
Call to action
Request service
Related product
Learn more
 $
Call to action
Learn more
Related products
 %

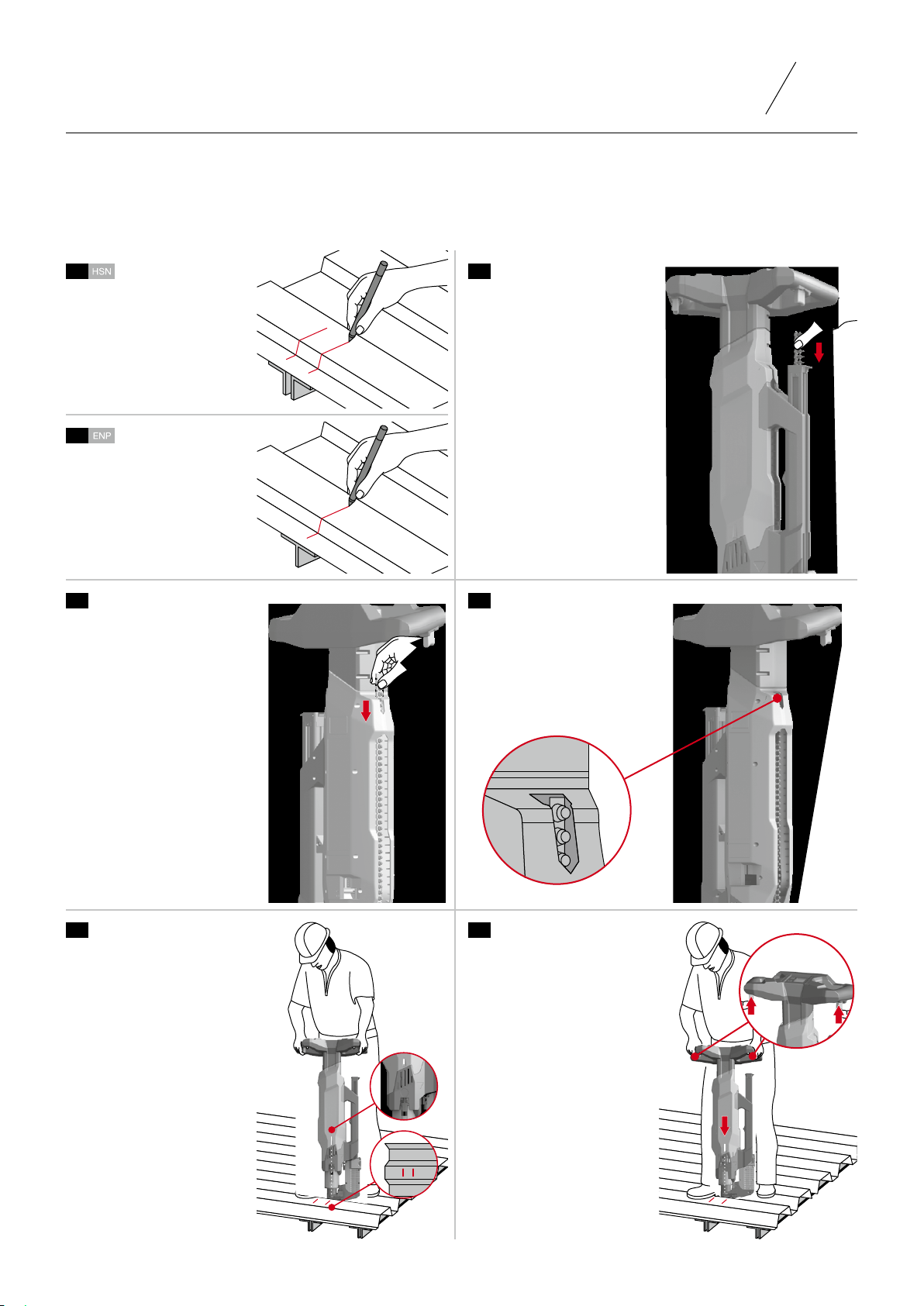

FASTENING METAL DECK TO THE STEEL STRUCTURE 10
INDEX
x1
Mark the deck
Marking the deck is import-
ant to fasten on the joist
or beam because you cant
see the joist or beam when
fastening the deck.

Mark the deck
Marking the deck is import-
ant to fasten on the joist
or beam because you cant
see the joist or beam when
fastening the deck.

Load the nail
It is a good practice to
always keep the Nail
Magazine full. This redu-
ces damage to the Piston
Brake/Stop and subsequent
damage to the Nail Detec-
tion Mechanism
Tip: For DX 9-HSN load 6
nail strips and DX 9-ENP
4 nail strips rst and then
always load nails when
cartridge strip runs out.

Align tool with the
deck marking
Align the tool with the
marking prior to fastening.
Piston jam is a reported
problem by our customers.
In most cases is due to
missing the joist or beam
while making the fastening.
Missing the joist and beam
at the time of fastening can
reduce the lifetime of the
Piston and Piston Brake/
Stop. Hence, it is important
to mark the deck and align
the tool with the mark while
fastening.

Compress the tool and
pull the trigger

Load the cartridge

Check cartridge strip
is ush
This step prevents missing
the rst cartridge on the
strip.

INSTALLING THE DECKING NAIL

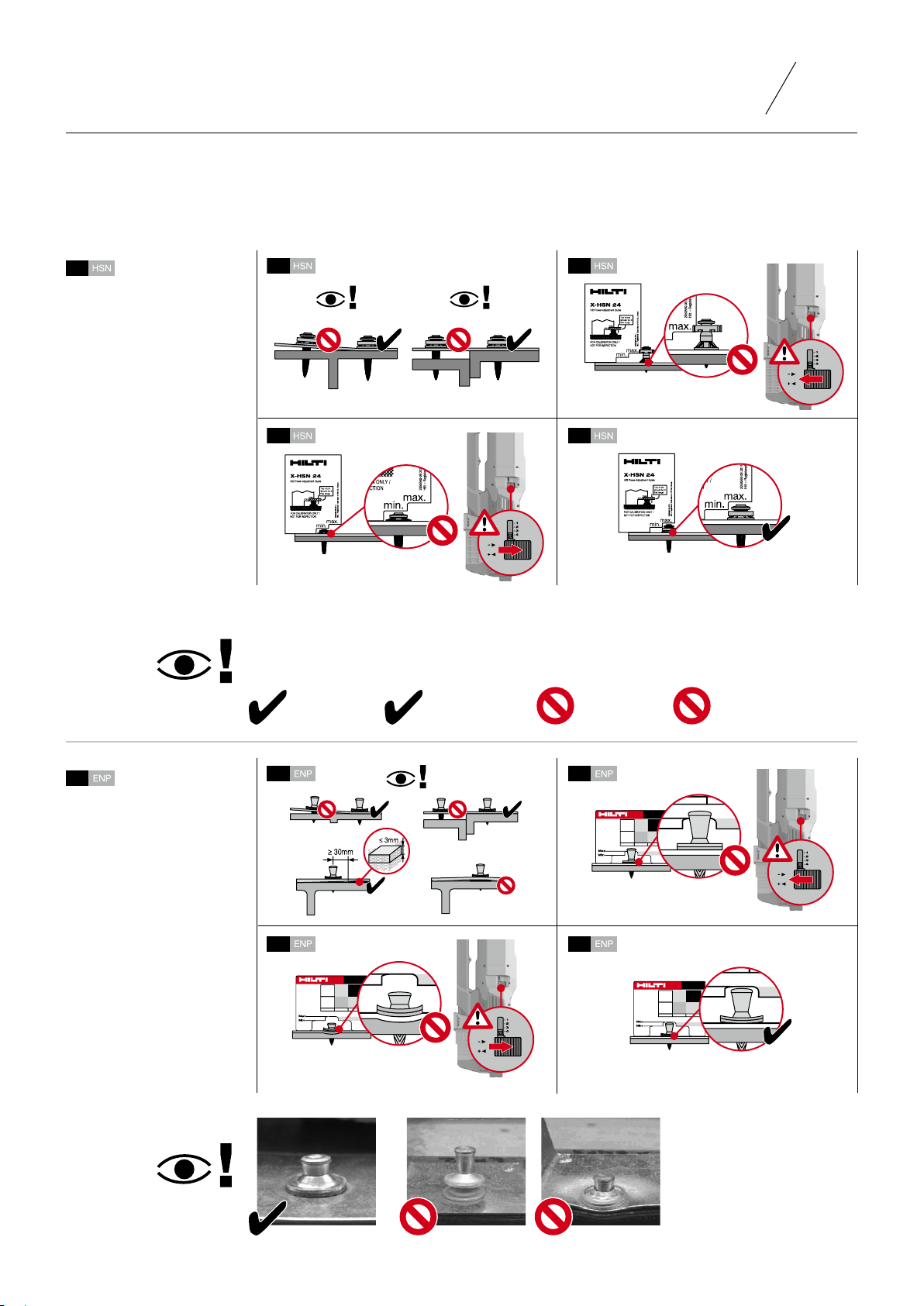

FASTENING METAL DECK TO THE STEEL STRUCTURE 11
INDEX
Check nail stand off
and adjust power level
if required
Initially, then periodically
while fastening, and any
time you change base mate-
rial, use the Power Adjust-
ment Gauge to check the
nail stand-off and adjust the
tool power level.

Check nail stand off
and adjust power level
if required
Initially, then periodically
while fastening, and any
time you change base mate-
rial, use the Power Adjust-
ment Gauge to check the
nail stand-off and adjust the
tool power level.



 
 




INSTALLING THE DECKING NAIL

FASTENING METAL DECK TO THE STEEL STRUCTURE 12
INDEX

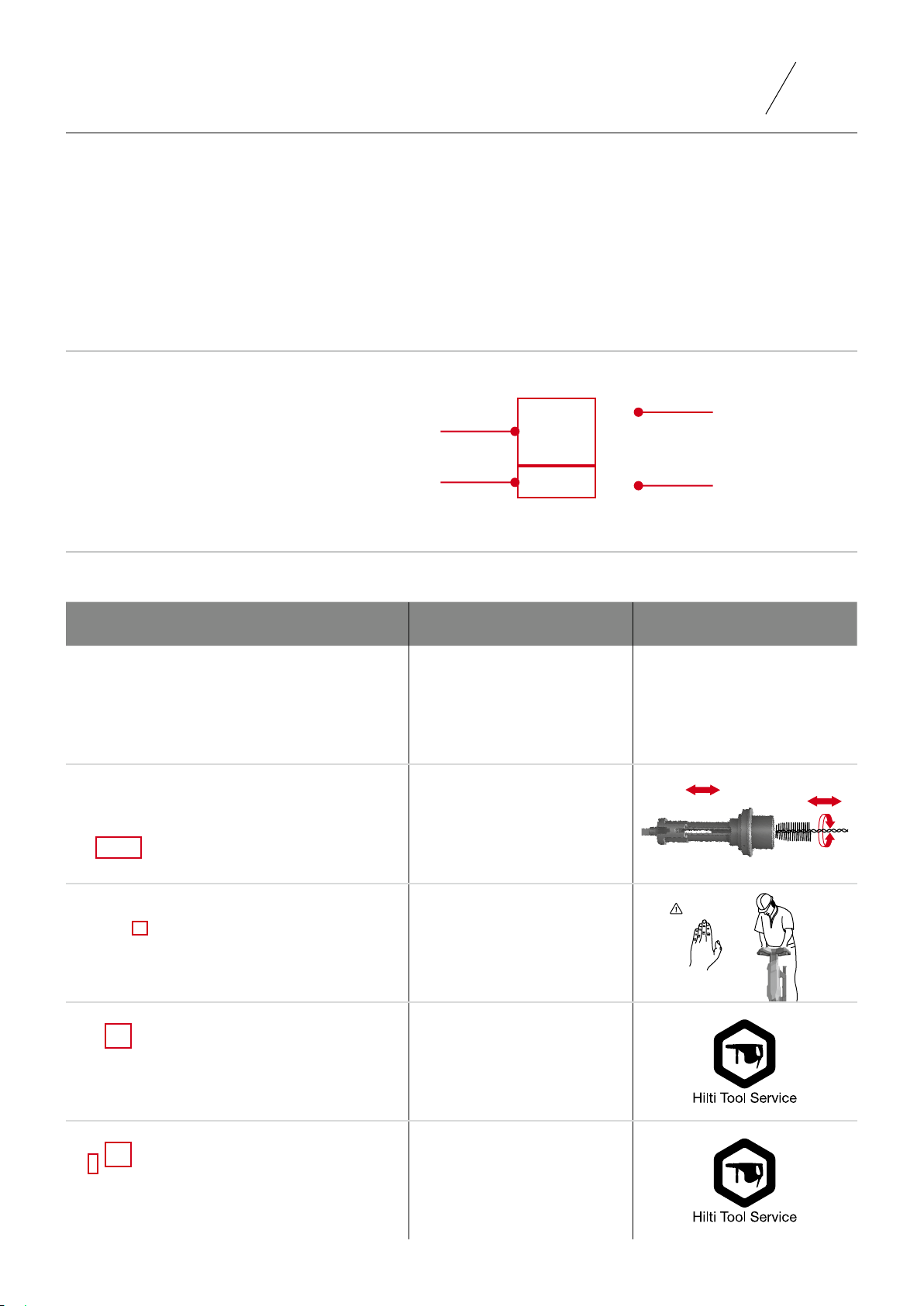

UNDERSTANDING THE SERVICE INDICATOR
The Hilti DX 9-HSN / DX 9-ENP tool has an integrated digital Service Indicator. The digital Service
Indicator on the DX 9 gives real-time feedback on when to clean and service the tool, maximizing
productivity on the job. The tools operating temperature range is also displayed, helping you to work
at the optimal pace.
The SI displays prompts and eld what it means and the action required is explained below.
The gauge shows the optimal operating temperature
(i.e. working at optimal installation pace). A warning sign
shows when the tool temperature is extremely high.
A tool wrench is displayed when the tool needs to be
sent to Hilti Tool Service Center for maintenance.
A large cleaning brush is displayed
when the tool requires cleaning.
A progression bar with 7 segments indicates
the number of settings since the last cleaning.
Bluetooth button
Counter reset button
Display What it means Action required
–Normal operation, tool cold.
Fastening count progressing. –
Cleaning brush appears on
the display.
Clean the tool and reset the
counter after cleaning.
Temperature warning appe-
ars on the display.
Tool is running too hot – con-
tinue fastening at reduced
speed. If fastening is stopped,
remove cartridge immediately.
SLOW
Wrench appears on the
display.
Tool needs maintenance. Send
the tool to Hilti Tool Service
Center.
Wrench appears on the
display but the temperature
bulb missing.
Temperature sensor dysfunc-
tional – send the tool to Hilti
Tool Service Center to get the
temperature sensor replaced.

FASTENING METAL DECK TO THE STEEL STRUCTURE 13
INDEX
Bluetooth
Turn on the Bluetooth on
your phone.

CONNECTING TO HILTI CONNECT VIA BLUETOOTH
>1 sec.
Connect
Press the Bluetooth button
on the digital Service
Indicator > 1sec.
The Bluetooth on the DX
9-HSN/DX p-ENP tool turns
off after 2min.

Start using the Hilti
Connect App
On page 9 you'll nd the
how to use it.


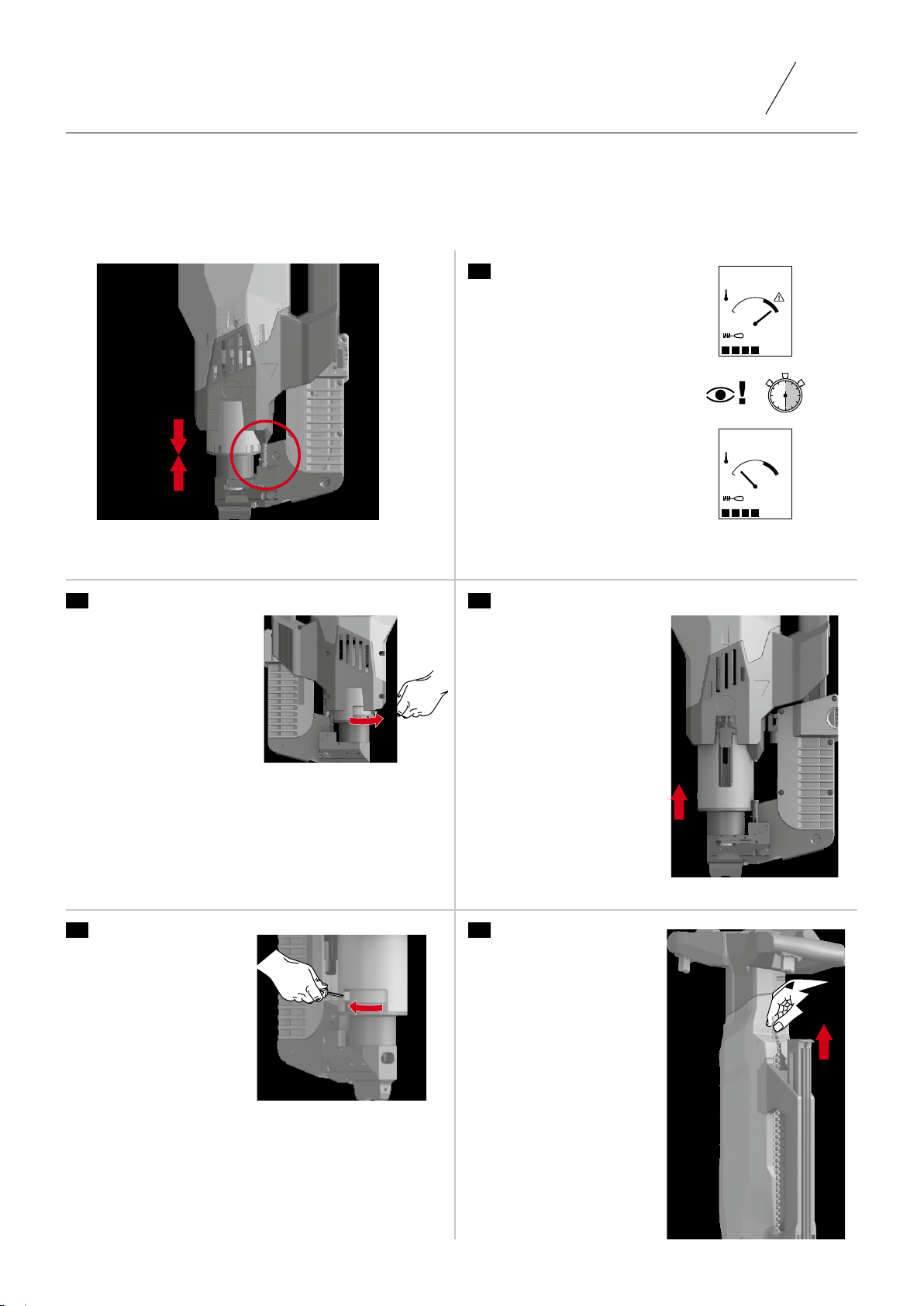

KNOWING HOW TO CLEAN THE TOOL 14
INDEX
Disassamble the tool

Check the Piston and
Piston Brake

Remove the cartridge strip and nails before disassembling the tool.
Change if either the Piston or Piston Brake is worn.
Change only as a set both Piston and Piston Brake.
a
b

 
 
 
 
a
b
c
Clean the tool

While cleaning the tool, the Hilti spray should be applied
ONLY on the Nail Magazine and NOT inside the tool.







a ab b

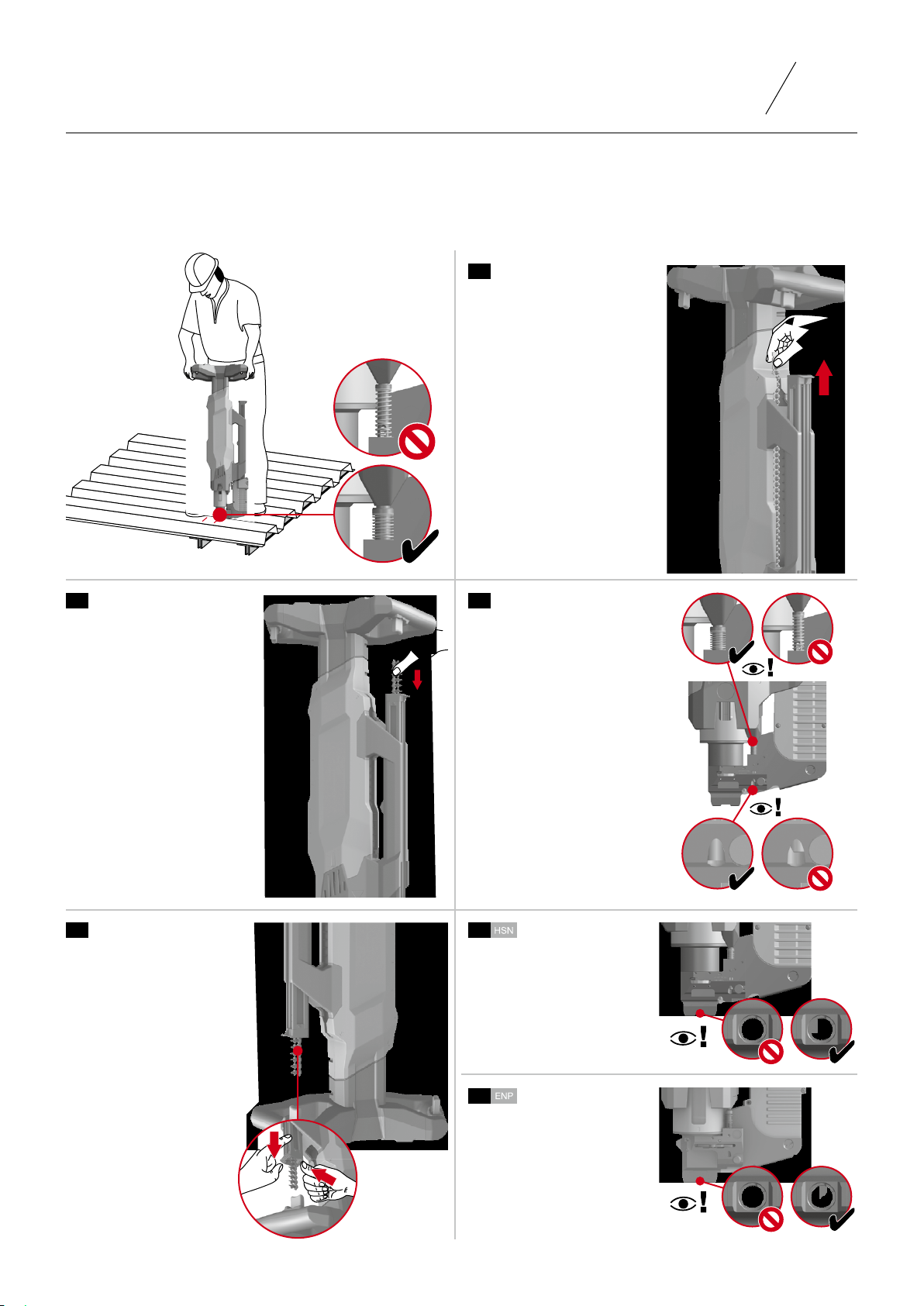

KNOWING HOW TO CLEAN THE TOOL 15
INDEX
Reset counter

See page 12 where to reset the counter.
Check the Piston and
Piston Stop

Change if either the Piston or Piston Stop is worn.
Change only as a set both Piston and Piston Stop.



a ab b
Check the Nail
Detection Mechanism

Checking the Nail Detection Mechanism will help early diagnosis and limit the tool damage.
If damaged send the Nail Magazine to Hilti Tool Service.






If not working
If not working





Assemble the tool

Check the Piston Brake/Stop and Piston is always assembled back in.
b
a

KNOWING ESSENTIAL FIELD TROUBLE SHOOTING 16
INDEX
POSSIBLE CAUSES
Problem Possible causes Recommended action
Tool stays
compressed
Piston stuck due to missing
the joist/steel beam see page 17 – 18
Piston Brake/Stop missing Send Nail Magazine to
Hilti Tool Service Center
Inside of Rotating Sleeve
not cleaned regularly Send DX 9 Tool to Hilti Tool Service Center
Tool cannot be
compressed
Ball stuck (Safety mechanism) Send DX 9 Tool to Hilti Tool Service Center
Nail Detection Mechanism damaged Send Nail Magazine to
Hilti Tool Service Center
No nail or nail not positioned
see page 19 –20
Debris in Nail Magazine
Trigger failure
No cartridge Load cartridge and try again
Tool hot Remove cartridges and wait for
the tool to cool down
Trigger mechanism failed Send DX 9 Tool to Hilti Tool Service Center
Crushed
cartridges
Cartridge feeding mechanism failed Send DX 9 Tool to Hilti Tool Service Center
Tool hot and cartridge was
not removed immediately
Jobsite troubleshoot – Remove cartridge
stuck in base of Piston Guide Assembly
Nail jams,
Highly deformed nails,
Nail failures
Stop on housing missing Send DX 9 Tool to Hilti Tool Service Center
Nail Magazine is damaged Send Nail Magazine to
Hilti Tool Service Center
Nail stand-off increasing
need to increase power Piston Retainer Kit damaged Send Nail Magazine to
Hilti Tool Service Center
There are few instances the tool ceases to function on the jobsite.We identify below problems the customer may encounter,
their possible causes and the recommended actions. Tool lifetime can be extended and higher tool performance can be achie-
ved when the tool is cleaned and checked at regular intervals.

KNOWING ESSENTIAL FIELD TROUBLE SHOOTING 17
INDEX
TOOL STAYS COMPRESSED
Wait for the tool to
cool down
Wait for the tool to cool
down before troubleshoo-
ting the tool. The tempera-
ture gauge on the tool can
be used as a reference to
check if the tool is still hot.

Close the Rotating
Sleeve

Remove the cartridge
When the tool is compres-
sed the cartridges cannot
be removed. Hence decom-
press the tool rst and then
remove the cartridges

Use the scraper and
open Rotating Sleeve
Tool should be pointing
downwards while opening
the Rotating Sleeve. Use
only the scraper or a punch.
Dont use hammer or stone
as it will damage the Rot-
ating Sleeve.

Tool decompresses


KNOWING ESSENTIAL FIELD TROUBLE SHOOTING 18
INDEX
TOOL STAYS COMPRESSED
Release the Magazine
Guide

Disassemble the Nail
Magazine

Replace Piston and
Piston Brake/Stop
Replace the jammed Piston
and Piston Brake/Stop with
a new one.

a
b
a b





Assemble the tool

b
a

KNOWING ESSENTIAL FIELD TROUBLE SHOOTING 19
INDEX
TOOL CANNOT BE COMPRESSED
Remove the cartridge

Remove the nails

Visually check Nail
Magazine
Visually check the Nail Maga-
zine to see if the nail detection
lever is intact and visible. If bro-
ken send the Nail Magazine to
Hilti Tool Service to get it xed.

Visually check Nail
Magazine
Visually check the Nail Maga-
zine to see if the nail detection
lever is intact and visible. If bro-
ken send the Nail Magazine to
Hilti Tool Service to get it xed.

Insert the nails
One reason why the tool
cannot be compressed is
the nails are not loaded, or
nails are not loaded into the
right position.
Tip: For DX 9-HSN load 6
nail strips and DX 9-ENP
4 nail strips rst and then
always load the nails when
cartridge strip runs out.

Visual check Pressure
Pin
Try to compress the tool
and visually check if the
Pressure Pin is getting fully
compressed.


KNOWING ESSENTIAL FIELD TROUBLE SHOOTING 20
INDEX
TOOL CANNOT BE COMPRESSED
Check movment of Nail
Detection Mechanism
Use the scraper and check
the movement of the Nail
Detection Mechanism.

Check movment of Nail
Detection Mechanism
Use the scraper and check
the movement of the Nail
Detection Mechanism.

If Damaged, send the
Nail Magazine to Hilti Tool
Service Center.
If Damaged, send the
Nail Magazine to Hilti Tool
Service Center.
If Damaged, send the
Nail Magazine to Hilti Tool
Service Center.
If Damaged, send the
Nail Magazine to Hilti Tool
Service Center.
Check movement of
the Pressure Pin

Check movement of
the Pressure Pin

