Harbor Breeze 42079 User manual

1
ATTACH YOUR RECEIPT HERE
Purchase Date ___________________________
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST, Monday - Sunday.
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
RR20275
ITEM #0883775, 2758998
ALTISSA CEILING FAN
MODEL #42079, 42242
Español p. 22
H
H
a
r
b
o
r
B
r
e
e
z
e
a
r
b
o
r
B
r
e
e
z
e
LISTED FOR
DAMP LOCATION

2
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................7
Standard or Angle Mounting Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Wiring .........................................................................11
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operating Instructions .............................................................17
Care and Maintenance ............................................................18
Troubleshooting..................................................................18
Limited Lifetime Warranty ..........................................................20
Replacement Parts List ............................................................21

3
PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Downrod 1
B Downrod Pin (preassembled to Downrod [A]) 1
C Downrod Clip (preassembled to Downrod [A]) 1
D Mounting Bracket (preassembled to Canopy [E]) 1
E Canopy 1
F Canopy Cover (preassembled to Canopy [E]) 1
G Yoke Cover 1
H Light Pan 1
I Glass Bowl 1
JMotor Assembly 1
K Set Screw (preassembled to Motor Assembly [J]) 2
L Fitter Plate (preassembled to Motor Assembly [J]) 1
M Fitter Plate Screw (preassembled to Fitter Plate [L]) 3
N Light Kit 1
O Light Frame 1
P Bulb 2
Q Finial Cap 1
RBlade Arm 5
S Blade 5
T Hex Nut (preassembled to light kit [N]) 1
U Finial (preassembled to Light Kit [N]) 1
V Mounting Bracket Screw (preassembled to Mounting Bracket [D]) 4
W Light Pan Screw (preassembled to Light Pan [H]) 3
X Light Kit Screw (preassembled to Light Pan [H]) 3
A
B
C
D
E
FG
H
W X
N
L
K
J
I
OP
Q
S
U
V
R
MT

4
HARDWARE CONTENTS (shown actual size)
Wire Connector
Qty. 3
+ 1 extra
Blade Screw
Qty. 15
+ 1 extra
Blade Washer
Qty. 15
+ 1 extra
Pull Chain Extension
Qty. 2
Motor Screw
Qty. 15 + 1 extra
AA BB CC DD XX
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e

5
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning o󰀨 the circuit
breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the oor and at least 30 in. from the end of the blades to any obstruction.
• The net weight of this fan is: 22.42 lbs.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming
noise from the fan. To reduce the risk of re or electric shock, do NOT use a full-range dimmer switch
to control the fan speed.
WARNING: To reduce the risk of re, electric shock or personal injury, mount the fan to an
outlet box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with
the outlet box. Most outlet boxes commonly used for the support of lighting xtures are not acceptable
for fan support and may need to be replaced. Consult a qualied electrician if in doubt. Secure the
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.).
WARNING: To reduce the risk of re, electric shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge and/or there is more than one house wire to connect to the
two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: To reduce the risk of re, electric shock or personal injury, do not bend the blade
arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.

6
SAFETY INFORMATION
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are
secured.
CAUTION: This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment o󰀨 and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver
-- Connect the equipment into an outlet on a circuit di󰀨erent from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
HKC-US
3350 Players Club Parkway, Suite 225
Memphis, TN 38125
[phone]
PREPARATION
Before beginning the assembly of this product, ensure all parts are present. Compare all parts with
the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, Wire Cutters and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure and Wiring Handbook

7
INITIAL INSTALLATION
1. Turn o󰀨 the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power
supply prior to installation may result in serious injury
or death.
2. Determine the mounting method to use.
Standard Mounting is best suited for ceilings 8 ft.
or higher. For taller ceilings you may want to use a
longer downrod (not included).
Angle Mounting is best suited for angled or vaulted
ceilings. A longer downrod is sometimes necessary
to ensure proper blade clearance. Note: If using the
angle mount, check to ensure the ceiling angle is not
steeper than 16°.
Flushmount Installation is not available for this item.
Closemount Installation is not available for this item.
2
Standard Mounting
Flushmount Closemount
Angle Mounting
3. Ensure the blades (S) will be at least 30 in. from
any obstructions. Also check the downrod (A) length
to ensure the blades (S) will be at least 7 ft. above
the oor.
7 ft. min.
30 in. min.
3
A
S
1

8
INITIAL INSTALLATION
4. Loosen all four preassembled mounting bracket
screws (V), then completely remove the two mounting
bracket screws (V) from the round holes of canopy
(E). Set aside for later use.
Detach mounting bracket (D) from canopy (E).
5. Secure the mounting bracket (D) to the outlet box
(not included) using screws and washers provided
with the outlet box.
CAUTION: It is very important you use the proper
hardware when installing the mounting bracket (D) as
this will support the fan.
E
V
D
4
5
D
D
Standard
Mount
Angle
Mount
D
D

9
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
1. Remove the downrod clip (C) and downrod pin (B)
from the downrod (A). Then partially loosen the
set screws (K) in the yoke at the top of the motor
assembly (J).
2. Insert the downrod (A) through the canopy (E) and
yoke cover (G). Feed the wires from the motor
assembly (J) through the downrod (A).
3. Slide the downrod (A) into the yoke of the motor
assembly (J), align the holes, then re-install the
downrod pin (B) and downrod clip (C). Secure with
set screws (K).
C
B
A
A
G
J
E
2
3
Yoke
B
A
J
C
K
K
J
1

10
STANDARD OR ANGLE MOUNTING INSTRUCTIONS

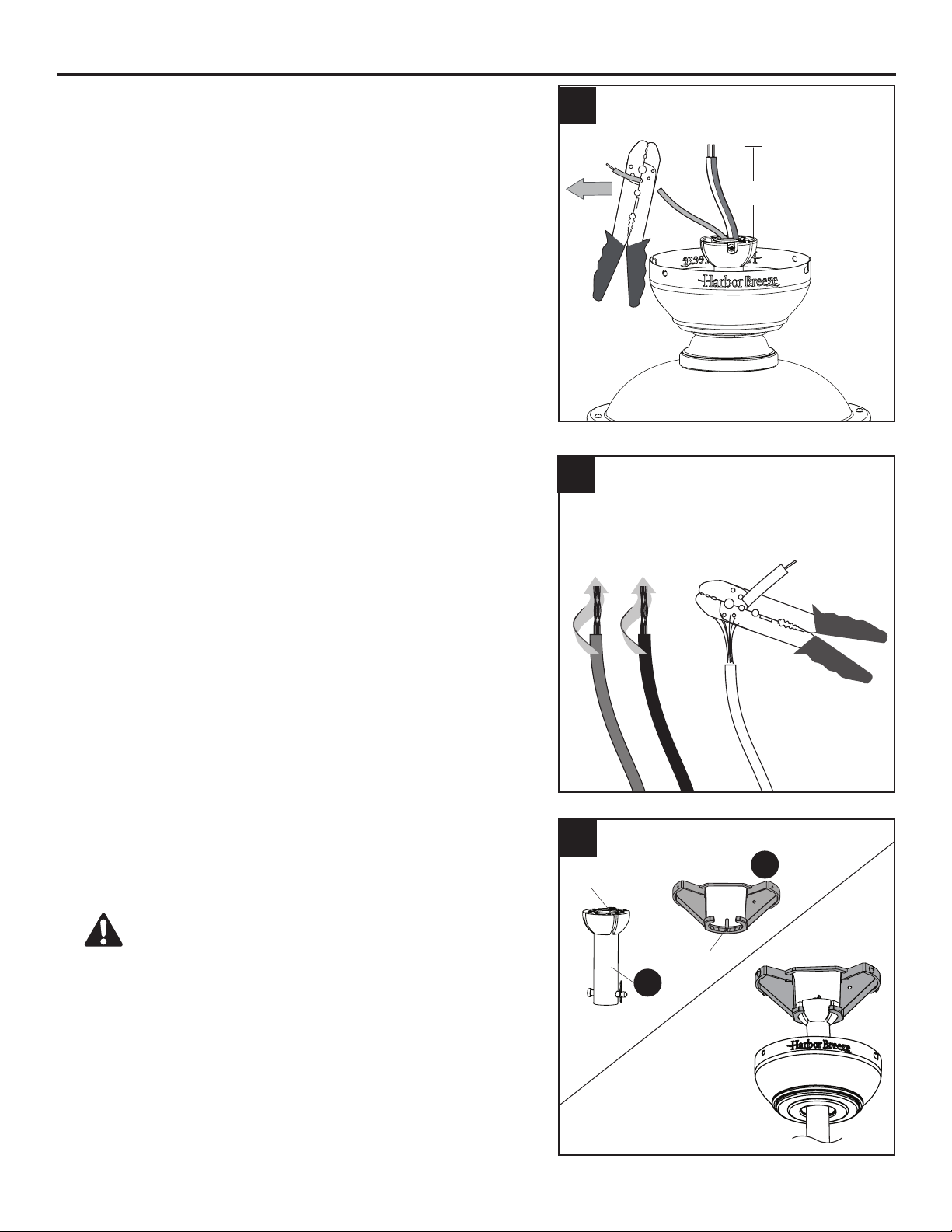

4. Depending on the length of downrod you use, you may
need to cut the lead wires back to simplify the wiring. If
you decide to cut back the lead wires, it is suggested
you do so in the following manner: Take the lead wires
and make sure you have pulled them all the way
through the top of the downrod. Measure 8 inches of
lead wire, then cut the excess wire o󰀨 with wire cutters
(not included).
5. If you decided to cut back the lead wire in Step 4, strip
1/2 in. of insulation from the end of the white wire.
Twist the stripped ends of each strand of wire within the
insulation with pliers (not included). Repeat this step for
black, blue and green wires.
Note: If you did not cut back the lead wires in Step 4, Step
5 is not necessary and you may proceed to Step 6.
6. Install the ball end of the downrod (A) into the opening of
mounting bracket (D). Align one of the four slots in the
ball with the tab in the mounting bracket (D). Note: The
downrod (A) should not rotate if installed correctly.
DANGER: Failure to align the slot in the downrod
(A) with the tab of the mounting bracket (D) may cause
the fan to wobble or fall, which could result in serious
injury or death.
5
4
A
D
Tab
Slot
8 in.
6

11
WIRING
WARNING: To reduce the risk of re, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires
from the fan. If your house wire is larger than 12-gauge and/or there is more than one house wire to
connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box is properly grounded or that a Ground (Green or Bare) wire is present.
1. Connect household supply and fan wires according to
the diagram and these steps:
• Connect the Green wire from the downrod (A) and
mounting bracket (D) to the Bare/Green (ground)
supply wire.
• Connect the White wire from the fan to the White
(neutral) supply wire.
• Connect the Black and Blue wires from the fan to the
Black (hot) supply wire.
• Secure all wiring connections together with wire
connectors (AA).
Note: If there is a second hot/power wire coming from
the outlet box, connect it to the Blue (light power) fan
wire for separate light and fan control.
Note: The Black wire is hot power for the fan. The
White wire is common for the fan and light kit. The Blue
wire is hot power for light. The Green wire is the ground
wire. If household supply wires are di󰀨erent colors than
referred to above, it is recommended a professional
electrician determines the proper wiring.
Hardware Used
AA Wire Connector x 3
2. Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
3. Turn the spliced/taped wires upward and gently push the
wires and wire connectors (AA) into the outlet box.
WARNING: Ensure no bare wire or wire strands
are visible after making connections. Place the Green
and White wire connections on the opposite side of the
outlet box from the Black and Blue wire connections.
1
2
3
AA
D
Black (Hot)
White (Neutral)
Bare/Green (Ground)
Black Blue White
Green

12
FINAL INSTALLATION
1. Align the canopy (E) over the loose mounting bracket
screws (V) preassembled on mounting bracket (D).
Place the J-shaped slot of the canopy (E) onto the
mounting bracket screws (V) and rotate the canopy
(E) clockwise.
2. Secure the canopy (E) with the mounting bracket
screws (V) previously removed (Step 4, page 8).
Tighten all mounting bracket screws (V) securely.
3. Partially insert the blade screws (BB) along with the
blade washers (CC) through the blade (S) and into
the blade arm (R). Tighten each blade screw (BB) with
a Phillips screwdriver (not included), starting with the
one in the middle. Repeat this step for the remaining
blades (S) and blade arms (R).
Hardware Used
BB Blade Screw x 15
Blade Washer x 15
S
CC BB
R
3
E
V
E
D
V
1
2
CC
J-shaped Slot

13
FINAL INSTALLATION
4. Insert blade arm (R) through slots in the side of the
motor assembly (J). Align the holes of one blade arm
(R) with three motor screw holes in underside of the
motor assembly (J). Secure with three motor screws
(XX). Repeat this step for the remaining blade arms
(R).
Hardware Used
XX Motor Screw x 15
5. Remove one of the three tter plate screws (M)
from the tter plate (L) and save. Loosen but do not
remove the other two tter plate screws (M).
6. Align the two key slots in the light pan (H) with the
loosened tter plate screws (M). Place the light pan
(H) over the two screws and turn the light pan (H)
clockwise. Then tighten the two tter plate screws (M).
Re-install the tter plate screw (M) that was removed
in the previous step and tighten rmly.
4
J
R
XX
5
M
L
6
H
M
Slot
Key Slot

14
FINAL INSTALLATION
7. Remove one and loosen the other two light kit screws
(X) from the underside of the light pan (H).
8. Connect the 9-pin connector from the fan to the 9-pin
connector from the light kit (N).
9. Align the two key slots in the light kit (N) with the two
previously loosened light kit screws (X). Place the
light kit (N) over the two screws and turn the light kit
(N) clockwise. Re-install the previously removed light
kit screw (X) and tighten all three screws securely.
7
8
9
H
X
N
XN
Key Slot
9-pin Connector

15
FINAL INSTALLATION
10. Install the bulbs (P) into the sockets on the light kit
(N). Then, remove the nial (U) and hex nut (T) from
threaded rod at the bottom of the light kit (N).
11. Lift the glass globe (I) over the threaded rod on light kit
(N). Feed the pull chains through the appropriate holes
in the nial cap (Q). Lift the nial cap (Q) up until it is
ush with the glass bowl (I) and secure with hex nut
(T). Attach the nial (U).
12. Loosen two and completely remove one light pan screw
(W) preassembled to the light pan (H). Then lift the light
frame (O) over the glass bowl (I). Align the two key slots
in the light frame (O) with the two previously loosened
light pan screws (W). Place the light frame (O) over
the two screws and turn clockwise. Re-install the
previously removed light pan screw (W) and tighten all
three screws securely.
N
U
T
P
Q
T
U
I
11
12
W
O
H
10
Threaded Rod
Key Slot

16
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
FINAL INSTALLATION
13. Attach the pull chain extensions (DD) or custom pull
chain extensions (not included) to the fan and light
pull chains.
Hardware Used
DD Pull Chain
Extension x 2
14. Turn on power supply to the fan.
Assembly is complete.
13
14
DD
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
Light Pull Chain Fan Pull Chain

17
Fig. 1a Fig. 1b
Fig. 1c
OPERATING INSTRUCTIONS
1. Using a ceiling fan will allow you to raise your
thermostat setting in the summer and lower your
thermostat setting in the winter without feeling a
di󰀨erence in your comfort.
Note:To access the reverse switch, remove the glass
bowl (I) and light frame (O).The reverse switch is
located on light kit (N).
Note:Wait for the fan to stop before moving the
reverse switch.
1a. In warmer weather, push the reverse switch to
the left to display the sun icon, which will result in
downward airow creating a wind chill e󰀨ect.
1b. In cooler weather, push the reverse switch to the
right to display the snowake icon, which will result in
upward airow that can help move stagnant, hot air o󰀨
the ceiling area.
Important:The reverse switch must be set either
completely to the right or to the left in order for the fan
to function correctly. If the reverse switch is set in the
middle position, the fan will not operate (Fig. 1c).
2. The fan pull chain has four positions to control the fan
speed. One pull is HIGH, two is MEDIUM, three is
LOW, and four turns the fan OFF. The pull chain in the
center of the light kit (N), turns the lights ON and OFF.
1
Reverse
Switch
Light Pull Chain Fan Pull Chain
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
2

18
CARE AND MAINTENANCE
At least twice each year, tighten all screws on the fan. Clean the motor housing with only a soft brush
or lint-free cloth to avoid scratching the nish. Clean the blades with a lint-free cloth.
Bulb Replacement: Use 60-watt max. E26-base LED, CFL or incandescent bulbs. Halogen bulbs are
not recommended for this item.
Important: Shut o󰀨 the main power supply before you begin any maintenance tasks. Do not use
water or a damp cloth to clean the ceiling fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does
not move.
1. The reverse switch is not
engaged.
2. The wall switch is turned o󰀨.
3. The power is o󰀨 or the fuse
(breaker) is blown.
4. There is a faulty wire connection.
1. Firmly push the reverse switch completely
left or right.
2. Make sure the wall switch is turned on.
3. Turn the power on or check the fuse
(breaker).
4. Turn the power o󰀨 and check all
connections at the ceiling outlet box.
There is
excessive
wobbling.
1. The blades and/or blade arms are
loose.
2. The blades are unbalanced.
3. The fan mounting is not secure.
4. The fan is too close to the vaulted
ceiling.
5. The set screws on the motor
assembly yoke is loose.
1. Check and tighten all screws that hold
the fan blades to the blade arms and the
blade arms to the motor.
2. Switch one blade with a blade from the
opposite side. Or balance the fan using a
blade balancing kit (sold separately).
3. Turn o󰀨 the power. Loosen the canopy
and verify that the mounting bracket is
secure to the electrical outlet box. The
bracket must be ush without movement
against the outlet box. Verify the outlet
box is secure.
4. Use a longer downrod (sold separately) or
move the fan to another location.
5. Lift up the yoke cover and tighten the set
screws on the yoke until secure.

19
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. The wall control is not
compatible with the fan.
4. The outlet box is not secure.
5. The mounting bracket is not
secure.
1. Check and tighten all screws that hold
the fan blades to the blade arms and the
motor.
2. Replace the cracked blade.
3. Do not use a full-range dimmer switch to
control the fan speed.
4. Ensure the outlet box is secured to the
building structure.
5. Ensure the mounting bracket is secured
to the outlet box and that the screws are
tight.
The fan operates
correctly, but the
lights are not
working.
1. The bulbs are not installed
correctly.
2. The light kit wire plugs are not
connected properly.
3. There is a faulty wire
connection.
1. Re-install the bulb(s).
2. Ensure the 9-pin connectors in the light
kit are connected properly.
3. Turn the power o󰀨 and check all
connections at the ceiling outlet box.

20
LIMITED LIFETIME WARRANTY
The manufacturer warrants this fan to be free from defects in workmanship and materials present at
time of shipment from the factory for a lifetime from the date of purchase by the original purchaser.
The retailer also warrants that all other fan parts, excluding any glass or plastic blades, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of one
year after the date of purchase by the original purchaser. The manufacturer agrees to correct such
defects without charge or at its option replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Any damage to any part such as by accident or
misuse or improper installation or by a󰀩xing any accessories, is not covered by this warranty. The
manufacturer assumes no responsibility whatsoever for fan installation during the limited lifetime
warranty. Any service performed by an unauthorized person will render the warranty invalid.
Due to varying climate conditions, this warranty does not cover any changes in plated nishes,
including rusting, pitting, corroding, tarnishing or peeling. Plated metals give their longest useful life
when protected from varying weather conditions. Any glass provided with this fan is not covered by
the warranty.
Any replacement of defective parts from the ceiling fan must be reported within the rst year from the
date of purchase. For the balance of the warranty, call our customer service department for return
authorization and shipping instructions so that we may repair or replace the ceiling fan. Any fan or
parts returned improperly is the sole responsibility of the purchaser. There is no other expressed
warranty. The manufacturer disclaims any and all warranties. The duration of any implied warranty
which cannot be disclaimed is limited to the time period as specied in the expressed warranty. The
manufacturer shall not be liable for incidental, consequential, or special damages arising out of or
in connection with product use or performance except as may otherwise be accorded by law. This
warranty gives specic legal rights, and you may also have other rights which vary from state to state.
This warranty supersedes all prior warranties.
Note:A small amount of “wobble” is normal and should not be considered a defect.
