Hirschmann MICE MS20-1600 Series User manual

Installation MS20/MS30
Release 11 07/2013
Technische Unterstützung
https://hirschmann-support.belden.eu.com
User Manual
Installation
Industrial ETHERNET Switch MICE
MS20/MS30
MICE MS20 MICE MS30

The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.
© 2013 Hirschmann Automation and Control GmbH
Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use. For devices with embedded software, the end-user license agreement on the
enclosed CD/DVD applies.
The performance features described here are binding only if they have been expressly agreed
when the contract was made. This document was produced by Hirschmann Automation and
Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right
to change the contents of this document without prior notice. Hirschmann can give no guarantee
in respect of the correctness or accuracy of the information in this document.
Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.
You can get the latest version of this manual on the Internet at the Hirschmann product site
(www.hirschmann.com).
Printed in Germany
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Deutschland
Tel.: [phone]
Installation MS20/MS30 039 530-001-11-0713 – 25.7.13

Installation MS20/MS30
Release 11 07/2013 3
Contents
Safety instructions 5
About this Manual 14
Legend 14
1 Description 15
1.1 General device description 15
1.2 Device name and product code 16
1.3 Description of the device variants 17
1.3.1 Number of ports and connections 18
1.3.2 Media modules 21
1.3.3 Digital I/O Module MM24 25
1.3.4 MB20 extender module 26
1.3.5 SFP Transceiver 26
1.4 Display elements 26
1.4.1 Device status 28
1.4.2 Display status 29
1.4.3 Port status 29
2 Assembly and start-up 31
2.1 Unpacking and checking 31
2.2 Installing the media modules 32
2.3 Filling out and attaching labels 32
2.4 Installing the SFP transceivers (optional) 33
2.5 Adjusting the DIP switch settings on the basic module (4-pin
DIP switch) 34
2.6 Adjusting the DIP switch settings on the MS20/MS30-...E...
basic module (3-pin DIP switch) 35
2.7 Adjusting the DIP switch settings on the
MM20-A8A89999SAHH media module 37
2.8 Connecting the MM22-T1T1T1T1 PoE media module 37
2.9 Terminal block for supply voltage and signal contact 39
2.9.1 Supply voltage 39
2.9.2 Signal contacts 39

Installation MS20/MS30
Release 11 07/2013 4
2.10 Connecting the terminal blocks, start-up procedure 40
2.10.1 Terminal blocks on MS20/MS30-...A... and
MS20/MS30-...C... 40
2.10.2 Terminal block on MS20/MS30-...E... 41
2.10.3 Startup procedure 41
2.11 Installing the device on the DIN rail, grounding 42
2.11.1 Mounting on the DIN rail 42
2.11.2 Grounding 42
2.12 Connecting the data lines 43
2.12.1 10/100 Mbit/s twisted pair port 43
2.12.2 10/100 Mbit/s PoE/PSE port 43
2.12.3 10/100/1000 Mbit/s twisted pair port 44
2.12.4 100 Mbit/s F/O port 45
2.12.5 1000 Mbit/s F/O port 45
2.12.6 AUI port 45
2.13 Assembly of the MB20 extender module 47
2.14 Defining the meaning of the display LEDs 47
3 Basic set-up 48
4 Maintenance and service 50
5 Deinstallation 51
6 Technical data 52
A Further Support 75

Installation MS20/MS30
Release 11 07/2013 5
Safety instructions
Certified usage
Only use the device for application cases that are described in the
Hirschmann product information, including this manual. Only operate the
device according to the technical specifications.
Supply voltage
For safety reasons the devices have been designed to operate at low
voltages. Thus, they may only be connected to the supply voltage
connections and to the signal contact with SELV circuits with the voltage
restrictions in accordance with IEC/EN 60950-1.
The supply voltage is electrically isolated from the housing.
Use undamaged parts.
Relevant for North America:
The device may only be connected to a Class 2 supply voltage that
fulfills the requirements of the National Electrical Code, Table 11(b). If
the voltage is being supplied redundantly (two different voltage
sources), the combined supply voltages must fulfill the requirements of
the National Electrical Code, Table 11(b).
Relevant for North America: For use in Class 2 circuits.
Only use copper wire/conductors of class 1, 75 °C (167 °F).
Relevant for North America for modules certified for Hazardous
Locations:
This equipment is suitable for use in Class 1, Division 2, Groups A, B,
C and D or Non-Hazardous (unclassified) locations only.
Make sure that peripheral devices are suitable for the application
environment. The wiring for the voltage supply and for the inputs and
outputs (I/O) must adhere to the wiring regulations for Class 1,
Division 2 [article 501(b) of the National Electrical Code (USA),
NFPA 70] and to the applicable statutory regulations.
Note: Observe the control drawing (document number
000160011DNR) on the following pages.
Relevant for Europe
for devices installed in explosive gas atmospheres according to ATEX
directive 94/9 EC:
Make sure that the device has the following label:
II 3G (... followed by additional specifications).
Note: Observe the control drawing (document number
000160011DNR) on the following pages.

6Installation MS20/MS30
Release 11 07/2013
CONTROL DRAWING IRU,QGXVWULDO(7+(51(75DLO6ZLWFK06DQG06GHYLFHV

943-435-999 according to the directive 94/9/EC
or Class I Division 2 Hazardous Locations
Version: 2 Document No.: 000160011DNR Page 1/4

P1
P2
2UGLQDU\ RFDWLRQ
1RQ+D]DUGRXV$UHD
QRQH[SORVLYHDWPRVSKHUH
WARNING! The USB connection and the V.24
Interface connection are for temporary
connection only, for maintenance use. Do not
use, connect or disconnect unless the area is
known to be non-hazardous. Connection or
disconnection in an explosive atmosphere could
result in an explosion!
Relay
Rela
y
The earth conductor must be at
least the same wire size (mm²
or AWG) as the supply
conductors.
Power Supply range “C” (P1, P2 Redundant)
18 – 60 VDC;
4.0 – 1.2 A; max. 72 W
Relay contacts:
Equipment with nonincendive field wiring
parameters.
Polarity is not relevant.
THE RELAY TERMINALS ARE DEPENDENT
UPON THE FOLLOWING ENTITY
PARAMETERS:
1
)
2
)
Temperature Code: T4
Ambient Temperature rating:
Ta: 0 °C to +60 °C for “S” types
Ta: -40 °C to +70 °C for “T” or “E” types
²UHIHUWRWKHW\SHGHVLJQDWLRQRQWKHGHYLFH
 3RVLWLRQRIQRPHQFODWXUH´7HPSHUDWXUHUDQJHµ
MS20/30 switch basic module
with voltage range type “C”
=RQH([SORVLYH$WPRVSKHUH
RU&ODVV,'LYLVLRQ
*URXSV$%&'
+D]DUGRXV RFDWLRQ
U
i
I
i
C
i
L
i
30 V 90 mA 2 nF 1 µH

Installation MS20/MS30
Release 11 07/2013 7
CONTROL DRAWING IRU,QGXVWULDO(7+(51(75DLO6ZLWFK06DQG06GHYLFHV

943-435-999 according to the directive 94/9/EC
or Class I Division 2 Hazardous Locations
Version: 2 Document No.: 000160011DNR Page 2/4
WARNING! The USB connection and the V.24
Interface connection are for temporary
connection only, for maintenance use. Do not
use, connect or disconnect unless the area is
known to be non-hazardous. Connection or
disconnection in an explosive atmosphere could
result in an explosion!
Relay
Relay
P1
P2
Power Supply range “A” (P1, P2 Redundant)
18 – 32 VDC;
4.0 – 2.25 A; max. 72 W
Temperature Code: T4
Ambient Temperature rating:
Ta: 0°C to +60°C for “S” types
Ta: -40°C to +70°C for “T” or “E” types
²UHIHUWRWKHW\SHGHVLJQDWLRQRQWKHGHYLFH
3RVLWLRQRIQRPHQFODWXUH´7HPSHUDWXUHUDQJHµ
=RQH([SORVLYH
$WPRVSKHUH
RU&ODVV,'LYLVLRQ
*URXSV$%&'
+D]DUGRXV RFDWLRQ
2UGLQDU\ RFDWLRQ
1RQ+D]DUGRXV$UHD
QRQH[SORVLYHDWPRVSKHUH
The earth conductor must be at
least the same wire size (mm²
or AWG) as the supply
conductors.
MS20/30 switch basic module
with voltage range type “A”
Relay contacts:
Equipment with nonincendive field wiring
parameters.
Polarity is not relevant.
THE RELAY TERMINALS ARE DEPENDENT
UPON THE FOLLOWING ENTITY
PARAMETERS:
1
)
2
)
U
i
I
i
C
i
L
i
30 V 90 mA 2 nF 1 µH

8Installation MS20/MS30
Release 11 07/2013
For Use in explosive atmospheres under the European directive 94/9/EC:
Applied Standards: EN60079-0, 2009
EN60079-15, 2010
EN60079-11, 2012
7KH8VHLQ+D]DUGRXV RFDWLRQVZLWKH[SORVLYHDWPRVSKHUHVLVRQO\DOORZHGIRU06RU06PRGHO
1RVZKLFKDUHLQGLYLGXDOO\ODEHOOHG

´,,*µDQG´([Q$LF,,&7*FµDQG´'(.5$$7(;;µIRU06[[GHYLFHV
´,,*µDQG´([Q$,,&7*FµDQG´'(.5$$7(;;µIRU0%GHYLFHV

6SHFLDOFRQGLWLRQVIRUVDIHXVH

7KHPRGXOHVVKDOOEHLQVWDOOHGLQDVXLWDEOHHQFORVXUHLQDFFRUGDQFHZLWK(1WDNLQJLQWR
DFFRXQWWKHHQYLURQPHQWDOFRQGLWLRQVXQGHUZKLFKWKHHTXLSPHQWZLOOEHXVHG

3URYLVLRQVVKDOOEHPDGHWRSUHYHQWWKHUDWHGYROWDJHIURPEHLQJH[FHHGHGE\WUDQVLHQW
GLVWXUEDQFHVRIPRUHWKDQ9

:KHQWKHWHPSHUDWXUHXQGHUUDWHGFRQGLWLRQVH[FHHGV&DWWKHFDEOHRUFRQGXLWHQWU\SRLQWRU
&DWWKHEUDQFKLQJSRLQWRIWKHFRQGXFWRUVWKHWHPSHUDWXUHVSHFLILFDWLRQRIWKHVHOHFWHGFDEOH
VKDOOEHLQFRPSOLDQFHZLWKWKHDFWXDOPHDVXUHGWHPSHUDWXUHYDOXHV

Note
1
):
The nonincendive field wiring circuit concept allows interconnection of nonincendive field
wiring apparatus and associated nonincendive field wiring apparatus using any of the wiring
methods permitted for unclassified locations when certain parametric conditions are met.
Capacity: C
0
C
i
+ C
Cable
; Inductivity: L
0
L
i
+ L
Cable
  
The maximum cable length has to be determined as follows:
(a) max. Cable Length < (L
0
-L
i
) / Cable
L
(“Cable
L
” denotes the inductance per unit length of used cable) and
(b) max. Cable Length < (C
0
-C
i
) / Cable
C
(“Cable
C”
denotes the capacitance per unit length of used cable).
The lower value of (a) and (b) is to apply.
Manufactured in 72654 Neckartenzlingen / Germany by Hirschmann Automation and Control GmbH.
DOM: ww/yyyy (Date of manufactur: w - week, y - year. Refer to the device label).
CONTROL DRAWING IRU,QGXVWULDO(7+(51(75DLO6ZLWFK06DQG06GHYLFHV
943-435-999 according to the directive 94/9/EC
or Class I Division 2 Hazardous Locations
Rev.: 2 Document No.: 000160011DNR Page 3/4

Installation MS20/MS30
Release 11 07/2013 9
For Use in Hazardous Locations Class I Division 2 Groups A, B, C, D:
Applied standard: ANSI/ISA 12.12.01-2011.

2QO\DOORZHGIRU06RU06PRGHO1RVZKLFKDUHLQGLYLGXDOO\ODEHOOHG
 ´)2586(,1+$=$5'286 2&$7,216µ 
1RQLQFHQGLYHILHOGZLULQJFLUFXLWVPXVWEHZLUHGLQDFFRUGDQFHZLWKWKH
1DWLRQDO(OHFWULFDO&RGH1(&1)3$DUWLFOH
WARNING – EXPLOSION HAZARD – SUBSTITUTION OF ANY COMPONENTS MAY
IMPAIR SUITABILITY FOR HAZARDOUS LOCATIONS OR EXPLOSIVE
ATMOSPHERES.
WARNING – EXPLOSION HAZARD – DO NOT DISCONNECT EQUIPMENT UNLESS
POWER HAS BEEN SWITCHED OFF OR THE AREA IS KNOWN TO BE NON-
HAZARDOUS.
Use 60/75 or 75 °C copper (CU) wire only.
Only for connection to a Class 2 power supply.
Note
2
):
The nonincendive field wiring circuit concept allows interconnection of nonincendive field
wiring apparatus and associated nonincendive field wiring apparatus using any of the
wiring methods permitted for unclassified locations when certain parametric conditions are
met.
Capacity: C
a
C
i
+ C
Cable
; Inductivity: L
a
L
i
+ L
Cable

  
The maximum cable length has to be determined as follows:
(a) max. Cable Length < (L
a
-L
i
) / Cable
L
(“Cable
L
” denotes the inductance per unit length of used cable) and
(b) max. Cable Length < (C
a
-C
i
) / Cable
C
(“Cable
C
” denotes the capacitance per unit length of used cable).
The lower value of (a) and (b) is to apply.
Manufactured in 72654 Neckartenzlingen / Germany by Hirschmann Automation and Control
GmbH.
DOM: ww/yyyy (Date of manufactur: w - week, y - year. Refer to the device label).
CONTROL DRAWING IRU,QGXVWULDO(7+(51(75DLO6ZLWFK06DQG06GHYLFHV

943-435-999 according to the directive 94/9/EC
or Class I Division 2 Hazardous Locations
Rev.: 2 Document No.: 000160011DNR Page 4/4

10 Installation MS20/MS30
Release 11 07/2013
Shielded ground
The shielded ground wire of the twisted pairs lines is connected to the
front panel as a conductor.
Beware of possible short circuits when connecting a cable section with
conductive shield braiding.
Housing
Only technicians authorized by the manufacturer are permitted to open
the housing.
The lower panel of the device is grounded by means of the DIN rail and
optionally by means of the separate ground screw.
The switch basic module is an inseparable unit. The switch basic
module may be damaged by detachment of the display and
connection part.
Verify that the electrical installation meets locally or nationally
applicable safety regulations.
Keep the ventilation slits free to ensure good air circulation.
Make sure there is at least 10 cm of space in front of the ventilation
slits of the housing.
The device has to be mounted in an upright position (see figure 18).
If you are operating the device in a living area or office environment,
only operate it in switch cabinets with fire protection characteristics in
accordance with EN 60950-1.
WARNING
ELECTRIC SHOCK
Never insert sharp objects (small screwdrivers, wires, etc.) into the inside of
the device.
Never insert sharp objects (small screwdrivers, wires, etc.) into the
connection terminals for the supply voltage or the signal contact, and do not
touch the terminals!
Failure to follow these instructions can result in death, serious injury,
or equipment damage.
CAUTION
OVERHEATING OF THE DEVICE
When installing the device, ensure that the ventilation slots are not covered.
Make sure there is at least 10 cm (3.94 in) of space.
Failure to follow these instructions can result in injury or equipment
damage.

Installation MS20/MS30
Release 11 07/2013 11
Environment
Only operate the device at the specified ambient temperature
(temperature of the ambient air at a distance of up to 5 cm from the
device) and at the specified relative humidity.
See “General technical data” on page 52.
When you are selecting the installation location, make sure you
observe the climatic threshold values specified in the technical data.
Only to be used in an environment with the pollution degree specified
in the technical data.
Qualification requirements for personnel
Qualified personnel as understood in this manual and the warning signs,
are persons who are familiar with the setup, assembly, startup, and
operation of this product and are appropriately qualified for their job. This
includes, for example, those persons who have been:
trained or directed or authorized to switch on and off, to ground and to
label power circuits and devices or systems in accordance with current
safety engineering standards;
trained or directed in the care and use of appropriate safety equipment
in accordance with the current standards of safety engineering;
trained in providing first aid.

12 Installation MS20/MS30
Release 11 07/2013
General safety instructions
This device is operated by electricity. You must follow precisely the
prescribed safety requirements for the voltage connections in this
document.
See “Supply voltage” on page 5.
Non-observance of these safety instructions can cause material damage
and/or injuries.
Only appropriately qualified personnel should work on this device or in
its vicinity. The personnel must be thoroughly familiar with all the
warnings and maintenance procedures outlined in this operating
manual.
The proper and safe operation of this device depends on proper
handling during transportation, proper storage and assembly, and
conscientious operation and maintenance procedures.
Never start operation with damaged components.
Only use the devices in accordance with this manual. In particular,
observe all warnings and safety-related information.
Any work that may be required on the electrical installation may only
be carried out by personnel trained for this purpose.
Note: LED or LASER components in compliance with IEC 60825-1
(2007):
CLASS 1 LASER PRODUCT
CLASS 1 LED PRODUCT
Note: You will find additional warning information and security
instructions for the MICE media modules in the “Description and
Operating Instructions” supplied with every module.
National and international safety regulations
Make sure that the electrical installation meets local or nationally
applicable safety regulations.
CE marking
The labeled devices comply with the regulations contained in the following
European directive(s):
2011/65/EU (RoHS)
Directive of the European Parliament and of the Council on the restriction
of the use of certain hazardous substances in electrical and electronic
equipment.
2004/108/EC (EMC)
Directive of the European Parliament and the council for standardizing the
regulations of member states with regard to electromagnetic
compatibility.

Installation MS20/MS30
Release 11 07/2013 13
In accordance with the above-named EU directive(s), the EU conformity
declaration will be at the disposal of the relevant authorities at the
following address:
The product can be used in living areas (living area, place of business,
small business) and in industrial areas.
Interference immunity: EN 61000-6-2
Emitted interference: EN 55022
Warning! This is a class A device. This device can cause interference in
living areas, and in this case the operator may be required to take
appropriate measures.
Note: The assembly guidelines provided in these instructions must be
strictly adhered to in order to observe the EMC threshold values.
FCC note
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference; (2) this device must accept any interference received,
including interference that may cause undesired operation.
Appropriate testing has established that this device fulfills the
requirements of a class A digital device in line with part 15 of the FCC
regulations.
These requirements are designed to provide sufficient protection against
interference when the device is being used in a business environment.
The device creates and uses high frequencies and can also radiate high
frequencies, and if it is not installed and used in accordance with this
operating manual, it can cause radio transmission interference. The use
of this device in a living area can also cause interference, and in this case
the user is obliged to cover the costs of removing the interference.
Recycling note
After usage, this device must be disposed of properly as electronic waste,
in accordance with the current disposal regulations of your county, state,
and country.
About this Manual
The “Installation” user manual contains a device description, safety
instructions, a description of the display, and the other information that you
need to install the device.

14 Installation MS20/MS30
Release 11 07/2013
The following manuals are available as PDF files on the CD/DVD supplied:
Installation user manual
Basic Configuration user manual
Redundancy Configuration user manual
Reference manual for the graphical user interface
Command Line Interface user manual
The Industrial HiVision Network Management Software provides you with
additional options for smooth configuration and monitoring:
Simultaneous configuration of multiple devices
Graphical user interface with network layout
Auto-topology discovery
Event log
Event handling
Client/server structure
Browser interface
ActiveX control for SCADA integration
SNMP/OPC gateway.
Legend
The symbols used in this manual have the following meanings:
Listing
Work step
Subheading

Installation MS20/MS30
Release 11 07/2013 15
1 Description
1.1 General device description
Figure 1: MICE basic module equipped with media modules
1 - basic module
2 - media module
3 - slot for media module
You can choose from between a wide range of variants. You have the option
to set up your device individually based on different criteria:
Number of ports
Transmission speed
Temperature range
Voltage range
Certifications
Software variant
The MS20/MS30 devices are designed for the special requirements of
industrial automation. They meet the relevant industry standards, provide
very high operational reliability, even under extreme conditions, and also
provide long-term reliability and flexibility.
The devices allow you to set up switched industrial Ethernet networks that
conform to the IEEE 802.3 standard.
The devices work without a fan.
The following installation options are available:
simply snapping them onto a DIN rail
The redundancy concept allows the network to be reconfigured quickly.
There are convenient options for managing the device. Administer your
devices via:
a Web browser
Telnet
12 34 1 2 3 4 5
MS20 MS30
1 1
2 2 2 2 2 2 2 23

16 Installation MS20/MS30
Release 11 07/2013
management software (such as Industrial HiVision)
a V.24 interface (locally on the device)
The devices provide you with a large range of functions, which the manuals
for the operating software inform you about. You will find these manuals as
PDF files on the enclosed CD/DVD, or you can download them from the
Internet on the Hirschmann product pages (www.hirschmann.com).

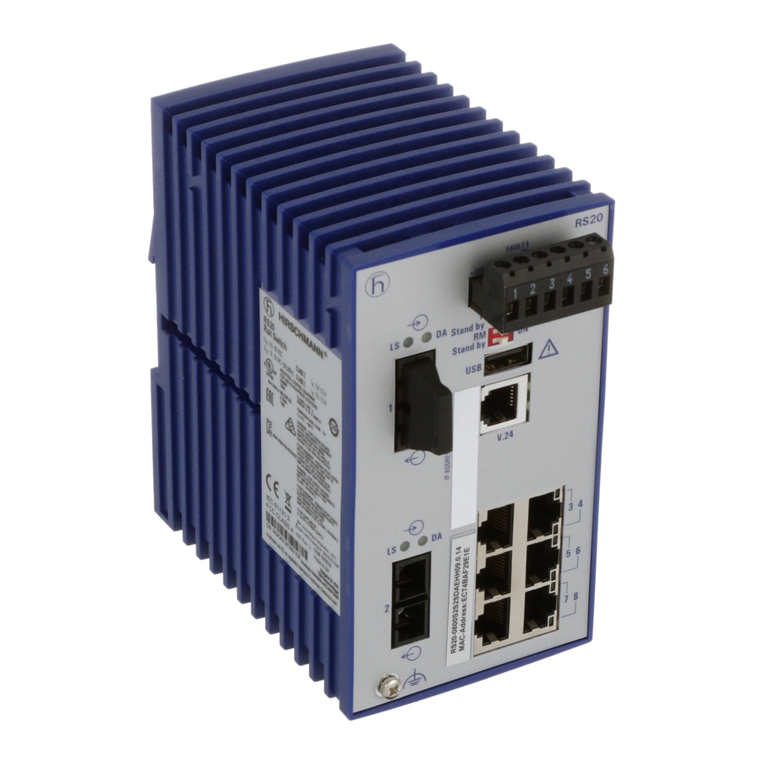

The addition, to the MS20/MS30 MICE range, of the RS20/RS30 Open Rail
range of switches, the MACH range of backbone switches, the BAT wireless
transmission system, the EAGLE security system, and products for the LION
control room, provides continuous communication across all levels of the
company.
1.2 Device name and product code
The device name corresponds to the product code. The product code is
made up of characteristics with defined positions. The characteristic values
stand for specific product properties.
Position Attribute Ident. Feature
1 to 4 Product MS20 Modular Switch without gigabit ports
MS30 Modular Switch with gigabit ports
5 - (hyphen) -
6 to 7 Number of 10/100 Mbit
ports
08 8 × 10/100 Mbit Ethernet
16 16 × 10/100 Mbit Ethernet
24 24 × 10/100 Mbit Ethernet
8 to 9 Number of 1000 Mbit
ports
00 0 × 1000 Mbit Ethernet
02 2 × 1000 Mbit Ethernet
10 Temperature range S Standard 0 °C ... +60 °C
T Extended −40 °C ... +70 °C
E Extended −40 °C ... +70 °C, Conformal Coating
11 Voltage range A 18 VDC ... 32 VDC
C 18 VDC ... 60 VDC
E 18 VDC ... 60 VDC / 6-pin
Table 1: Combination options of the MS20/MS30 device versions

Installation MS20/MS30
Release 11 07/2013 17
1.3 Description of the device variants
The industrial ETHERNET series MICE (Modular Industrial Communication
Equipment) consists of a basic switch module and the media modules. These
devices can be managed. A basic module contains all the functions of this
industrial Switch, with the exception of the interfaces to the LAN that is
connected. Pluggable media modules provide these interfaces. They differ
with regard to the number of interfaces and the media type for connecting
segments. An expansion module enables you to add 2 slots for media
modules to the basic module.
12 Specifications A CE, UL 508, ISA 12.12.01 Class I Division 2
B CE, UL 508, ISA 12.12.01 Class I Division 2, GL,
ATEX 100a Zone 2
E CE, UL 508, GL, EN 50121-4
H CE, UL 508, ISA 12.12.01 Class I Division 2, GL,
IEC 61850-3, IEEE 1613,EN 50121-4
S CE, UL 508, GL, IEC 61850-3, IEEE 1613,
EN 50121-4
Y CE, UL 508
ZCE
13 Software variant E Enhanced
P Professional
Product code Product features
Modular switch with gigabit ports
8 × 100 Mbit Ethernet ports
2 × 1000 Mbit Ethernet ports
Temperature range standard (0 °C to 60 °C)
Voltage range 18 VDC to 32 VDC
Specifications CE, UL 508, ISA 12.12.01 Class I
Division 2
Software version enhanced
Table 2: Example for product code: MS30-0802SAAE
Position Attribute Ident. Feature
Table 1: Combination options of the MS20/MS30 device versions
MS30- 08 02 S A A E
MS30- =
08 =
02 =
S=
A=
A=
E=

18 Installation MS20/MS30
Release 11 07/2013
For the sake of simplicity, the basic switch module with various plugged in
media modules will be referred to as MICE in this document.
The MS20-... device variants are modular switches with up to 8, 16 or
24 * 10/100 Mbit/s Ethernet ports. You can choose the media for the ports
via the media modules.
The MS30-... device variants are modular switches with up to 8, 16 or
24 * 10/100 Mbit/s Ethernet ports and up to 2 additional Gigabit ports
(1000 Mbit/s Ethernet). You can choose the media for the ports via the
media modules.
The basic module of the MS20/MS30 contains all the function units, such as:
switch function, management function, redundancy function, display control,
voltage connection, management connection, adjustable controls, slots for
media modules.
1.3.1 Number of ports and connections
Device versions with 10/100 Mbit/s ports
MS20-0800..., MS20-1600..., MS20-2400...
Depending on the variant, the MS20 basic modules provide you with the
following number of slots for media modules and the following maximum
number of connectable network segments:
Family Designed for
MS20 Larger numbers of ports, number of 100 Mbit ports desired, temperature range,
voltage range, certificates and software variant can be selected.
MS30 Larger numbers of ports and larger bandwidth requirement,
number of 100/1000 Mbit ports desired, temperature range, voltage range,
certificates and software variant can be selected.
Basic module Number of slots for
10/100 Mbit/s media
modules
Max. possible number of connectible
10/100 Mbit/s network segments when
connecting 4-port media modules
MS20-0800... 2 8
MS20-1600... 4 16 a
a. Can be expanded to 24 ports with the MB20 extender module
MS20-2400... 6 24

Installation MS20/MS30
Release 11 07/2013 19
Figure 2: Overview interfaces, display elements and controls of the MS20 -...
1 - Grounding screw
2 - Terminal block, V.24 port, USB port, DIP switch
3 - Key for display status
4 - Switch basic module MS20-...
5 - LEDs for device status, display status
6 - 4 slots for media modules MM2-... or MM3-... with 2-4 ports each
Figure 3: Interfaces of the MS20-... and MS30-... on the bottom of the device
1 - Terminal block (power 2)
2 - DIP switch
3 - Terminal block (power 1)
4 - USB port
5 - V.24 port
6 - MICE MS20/30 switch basic module with 18 to 60 VDC voltage range
7 - Terminal block (power 2)
MS20-1600... MS20-2400...
MS20-0800...
46 6 6 6
3
2
1
5
4
6
3
2
1
5
10
12
9
8
7
11

20 Installation MS20/MS30
Release 11 07/2013
8 - Terminal block (power 1)
9 - DIP switch
10 - USB port
11 - V.24 port
12 - MICE MS20/30 switch basic module with 18 to 32 VDC voltage range
Figure 4: Connections of the MS20-.../MS30-...E on the bottom of the device
1 - Terminal block 6-pin for power and signal contact
2 - DIP switch
3 - USB port
4 - V.24 port
5 - MICE MS20/30-...E... switch basic module with 18 to 60 VDC
voltage range / 6-pin
4
3
2
1
5
