Hirschmann HiSecOS EAGLE20 User manual

Installation EAGLE20/30
Release 06 04/2014
Technical support
https://hirschmann-support.belden.eu.com
User Manual
Installation
Industrial Security Router
EAGLE20/30
EAGLE20-0400...EAGLE30-0402...

The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.
© 2014 Hirschmann Automation and Control GmbH
Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use. For devices with embedded software, the end-user license agreement on the
enclosed CD/DVD applies.
The performance features described here are binding only if they have been expressly agreed
when the contract was made. This document was produced by Hirschmann Automation and
Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right
to change the contents of this document without prior notice. Hirschmann can give no guarantee
in respect of the correctness or accuracy of the information in this document.
Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.
You can get the latest version of this manual on the Internet at the Hirschmann product site
(www.hirschmann.com).
Printed in Germany
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
Tel.: [phone]
EAGLE20/30 039 793-001-06-0414 - 14.04.2014

Installation EAGLE20/30
Release 06 04/2014 3
Contents
Safety instructions 5
About this manual 13
Key 14
1 Description 15
1.1 General device description 15
1.2 Device name and product code 16
1.3 Combination options 19
1.4 Device views 20
1.4.1 Front view 20
1.4.2 Rear view 21
1.5 Power supply 21
1.5.1 Working voltage with the characteristic value K 21
1.5.2 Working voltage with the characteristic value C 21
1.6 Ethernet ports 22
1.6.1 10/100 Mbit/s twisted pair port 22
1.6.2 100/1000 Mbit/s F/O port (optional) 22
1.6.3 100/1000 Mbit/s twisted pair port (optional) 22
1.7 Display elements 23
1.7.1 Device state 23
1.7.2 Additional status information 25
1.7.3 Input 25
1.7.4 Port state 25
1.8 Management interfaces 25
1.8.1 V.24 interface (external management) 25
1.8.2 SD card interface 26
1.8.3 USB interface 26
1.9 Input/output interfaces 27
1.9.1 Signal contact 27
1.9.2 Input 27
2 Installation 28
2.1 Unpacking and checking the content of the package 28
2.2 Installing the SD card (optional) 28
2.3 Installing and grounding the device 29
2.3.1 Installing the device onto the DIN rail 29
2.3.2 Grounding the device 30

4Installation EAGLE20/30
Release 06 04/2014
2.4 Installing an SFP transceiver (optional) 30
2.5 Connecting the terminal blocks 31
2.5.1 Working voltage with the characteristic value K 31
2.5.2 Working voltage with the characteristic value C 32
2.5.3 Signal contact 33
2.6 Operating the device 34
2.7 Connecting data cables 34
2.7.1 10/100 Mbit/s twisted pair port 34
2.7.2 100/1000 Mbit/s twisted pair port (optional) 34
2.7.3 100/1000 Mbit/s F/O port 35
2.8 Insert data in label area 35
3 Basic set-up 36
4 Maintenance and service 37
5Disassembly 38
5.1 Removing the device 38
5.2 Removing an SFP transceiver (optional) 39
6 Technical data 40
A Further Support 55

Installation EAGLE20/30
Release 06 04/2014 5
Safety instructions
General safety instructions
You operate this device with electricity. The proper and safe operation of
this device depends on proper handling during transportation, proper
storage and assembly, and conscientious operation and maintenance
procedures. Improper use of this device is associated with the risk of
personal injury or property damage.
Read this documentation as well as the safety instructions and
warnings before connecting any cables.
Never start operation with damaged components.
The device does not contain any service components. If the device is
not functioning correctly, or if it is damaged, switch off the voltage
supply and return the device to Hirschmann for inspection.
Qualification requirements for personnel
Only allow qualified personnel to work on the device.
Qualified personnel have the following characteristics:
Qualified personnel are properly trained. Training as well as practical
knowledge and experience make up their qualifications. This is the
prerequisite for grounding and labeling circuits, devices, and systems
in accordance with current standards in safety technology.
Qualified personnel are aware of the dangers that exist in their work.
Qualified personnel are familiar with appropriate measures against
these hazards in order to reduce the risk for themselves and others.
Qualified personnel receive training on a regular basis.
Certified usage
Use the device solely for the application cases described in the
Hirschmann product information, including this manual.
Operate the device solely according to the technical specifications.
See “Technical data” on page 40.
WARNING
UNCONTROLLED MACHINE ACTIONS
To avoid uncontrolled machine actions caused by data loss, configure all
the data transmission devices individually.
Before you start any machine which is controlled via data transmission, be
sure to complete the configuration of all data transmission devices.
Failure to follow these instructions can result in death, serious injury,
or equipment damage.

6Installation EAGLE20/30
Release 06 04/2014
National and international safety regulations
Verify that the electrical installation meets local or nationally applicable
safety regulations.
Grounding the device
Grounding the device is by means of a separate ground connection on the
device.
Ground the device before connecting any other cables.
Disconnect the grounding solely after disconnecting all other cables.
The overall shield of a connected shielded twisted-pair cable is connected
to the ground connector on the front panel as a conductor.
Working voltage
The working voltage is connected to the chassis through protective
elements exclusively.
Connect solely an working voltage that corresponds to the type plate
of your device.
Solely for device variants featuring working voltage with the
characteristic value K:
For the working voltage to be connected, make sure the following
requirements are met:
The supply voltage complies with the description on the data plate
of your device.
The power supply conforms to overvoltage category I or II.
The voltage supply has an easily accessible disconnecting device
(e.g. a switch or a plug). This disconnecting device is clearly
identified. So in the case of an emergency, it is clear which
disconnecting device belongs to which line.
Disconnect device for equipment supplied from IT supply system,
shall disconnect both poles of mains supply.a
The electrical wires are voltage-free.
Supply with DC voltage:
A fuse suitable for DC voltage is located in the plus conductor of the
power supply.
The minus conductor is on ground potential. Otherwise, a fuse is
also located in the minus conductor.
Regarding the properties of this fuse: See “General technical data”
on page 40.
a. IT supply system according to the technical standard UL 60950-1

Installation EAGLE20/30
Release 06 04/2014 7
Supply with AC voltage:
A fuse is located in the outer conductor of the power supply.
The neutral conductor is on ground potential. Otherwise, a fuse is
also located in the neutral conductor.
Regarding the properties of this fuse: See “General technical data”
on page 40.
Supply with DC voltage:
The wire diameter of the power supply cable is at least 1 mm²
(North America: AWG16) on the working voltage input.
The wire diameter of the power supply cable is at least 0.75 mm²
(North America: AWG18) on the working voltage input.
The cross-section of the protective conductor is the same size as
or bigger than the cross-section of the power supply cables.
The power supply cables used are permitted for the temperature
range required by the use case.
Relevant for North America:
The power cords are suitable for ambient air temperatures of at
least 167 °F (75 °C). The power cord wires are made of copper.
Start connecting the electrical wires solely if all the above
requirements are fulfilled.
For device variants with operating voltage characteristic value C
exclusively.
For the working voltage to be connected, make sure the following
requirements are met:
Relevant for North America:
The power supply is Class 2 compliant.
The power supply conforms to overvoltage category I or II.
The voltage supply has an easily accessible disconnecting device
(e.g. a switch or a plug). This disconnecting device is clearly
identified. So in the case of an emergency, it is clear which
disconnecting device belongs to which line.
The electrical wires are voltage-free.
A fuse suitable for DC voltage is located in the plus conductor of the
power supply.
The minus conductor is on ground potential. Otherwise, a fuse is
also located in the minus conductor.
Regarding the properties of this fuse: See “General technical data”
on page 40.
The wire diameter of the supply voltage at the input is at least 1
mm² (North America AWG16).
The wire diameter of the supply voltage at the input is at least 1
mm² (North America AWG16).

8Installation EAGLE20/30
Release 06 04/2014
The power supply cables used are permitted for the temperature
range required by the use case.
Relevant for North America:
The power cords are suitable for ambient air temperatures of at
least 167 °F (75 °C). The power cord wires are made of copper.
Start connecting the electrical wires solely if all the above requirements
are fulfilled.
Internal fuses are triggered solely in the case of a detected error in the
device. In case of damage or malfunction of the device, turn off the
working voltage and return the device to the plant for inspection.
For power supply connections with protective conductor connection:
First connect the protective conductor before connecting the wires for
the working voltage.
Only switch on the operating voltage for the device when the following
requirements are fulfilled:
The housing is closed
The terminal blocks are wired correctly
The terminal blocks for the operating supply are connected
Signal contact
For the signal contact to be connected, make sure the following
requirements are met:
The signal contact connection wires are voltage-free.
The connected voltage is limited by a current limitation device or a
fuse.
Observe the electrical threshold values for the signal contact.
See “General technical data” on page 40.
Start connecting the signal contact solely if all the above requirements are
fulfilled.
Installation site requirements
Verify that there is at least 4 in (10 cm) of space above and below the
device.
Verify that there is at least 0.8 in (2 cm) of space on the right and left
sides of the device.
Install the device in a fire protected enclosure according to EN 60950-
1.
Solely for device variants featuring working voltage with the
characteristic value K:
Install this device solely in a switch cabinet or in an operating site with
restricted access, to which maintenance staff have exclusive access.
Operate the device at the specified ambient temperature (temperature
of the ambient air at a distance of 2 inches (5 cm) from the device) and
at the specified relative humidity exclusively.

Installation EAGLE20/30
Release 06 04/2014 9
When you are selecting the installation location, make sure you
observe the climatic threshold values specified in the technical data.
Use the device in an environment with a maximum pollution degree
that complies with the specifications in the technical data.
Housing
Only technicians authorized by the manufacturer are permitted to open
the housing.
Never insert pointed objects (narrow screwdrivers, wires, etc.) into the
device or into the connection terminals for electric conductors. Do not
touch the connection terminals.
Keep the ventilation slits free to ensure good air circulation.
Make sure there is at least 3.94 inches (10 cm) of space in front of the
ventilation slits of the housing.
Install the device in the vertical position.
Instructions for Use in Hazardous Locations
SUITABLE FOR USE IN CLASS I, DIVISION 2, GROUPS A, B, C AND D
HAZARDOUS LOCATIONS, OR NONHAZARDOUS LOCATIONS
ONLY.
WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT
EQUIPMENT WHILE THE CIRCUIT IS LIVE OR UNLESS THE AREA IS
KNOWN TO BE FREE OF IGNITABLE CONCENTRATIONS.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF ANY
COMPONENT MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION 2.
For USB and Relay: Install per Control Drawing 000172287DNR.

10 Installation EAGLE20/30
Release 06 04/2014
USB connection:
Equipment with non-incendive field wiring parameters.
USB entity parameters:
VOC =5.5V I
SC = 1.25 A
Ca= 10 µF La= 10 µH
For usage with Hirschmann USB devices certified and labelled
according Class I Div 2 hazardous location requirements such
as ACA21-USB EEC, or succeeding types.
Temperature Code: T4
Ambient Temperature rating:
Ta : 0rC to +60rC for “S” temperature types
Ta: -40rC to +70rC for “T” or “E” temperature types
(Refer to the temperature code of the type designation on the
device)
Relay contacts:
Equipment with non-incendive field wiring parameters.
Polarity is not relevant.
The relay terminals are dependent upon the following entity
parameters:
Vi= 30 V Ii= 90 mA
Ci= 2 nF Li= 1 µH
Power Supply unit type C: 24 V DC – 48 V DC
Power Supply unit type K: 110 V AC – 230 V AC or
60 V DC – 250 V DC
(Refer to the power supply code of the type designation on the
device)
Explosive Atmosphere
Class I, Division 2
Groups A, B, C, D
Hazardous Location
EAGLE20/30
ZĞůĂLJ
h^
Ordinary Location, Non-Hazardous Area,
non-explosive atmosphere
Rev.: 2 Doc. No.: 000172287DNR Page 1 of 2

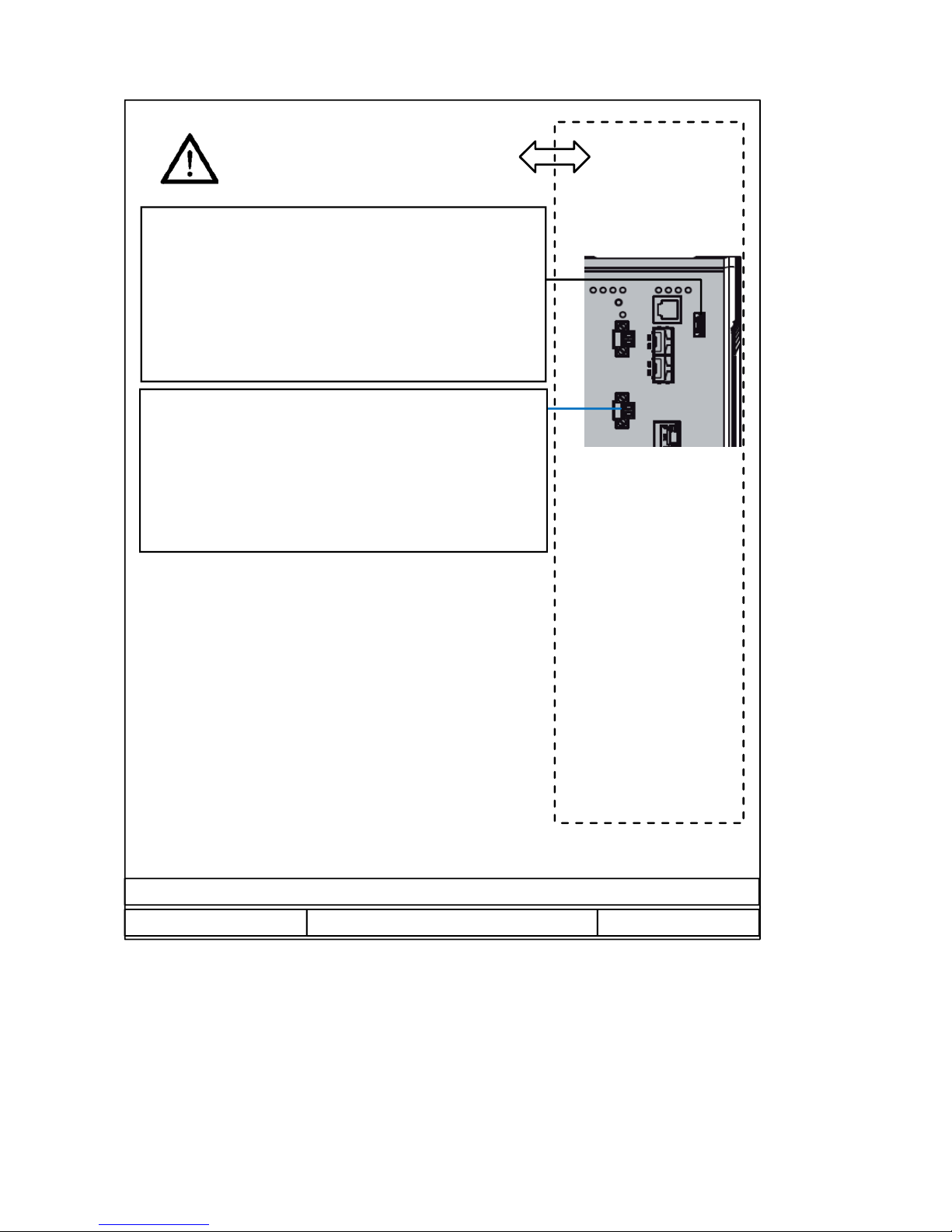

Control Drawing for EAGLE20/30 devices according to Class I Division 2 Hazardous Locations

Installation EAGLE20/30
Release 06 04/2014 11
For Use in Hazardous Locations Class I Division 2 Groups A, B ,C ,D:
Only allowed for EAGLE20/30 model No´s. which are individually labelled
“FOR USE IN HAZARDOUS LOCATIONS”
Non-incendive field wiring circuits must be wired in accordance with
the National Electrical Code (NEC), NFPA 70 , article 501.
The earth conductor must be at least the same wire size (mm² or AWG) as the supply
conductors.
WARNING – EXPLOSION HAZARD – SUBSTITUTION OF ANY COMPONENTS MAY
IMPAIR SUITABILITY FOR HAZARDOUS LOCATIONS OR EXPLOSIVE
ATMOSPHERES.
WARNING – EXPLOSION HAZARD – DO NOT DISCONNECT EQUIPMENT UNLESS
POWER HAS BEEN SWITCHED OFF OR THE AREA IS KNOWN TO BE NON-
HAZARDOUS.
Rev.: 2 Doc. No.: 000172287DNR Page 2 of 2
Control Drawing for EAGLE20/30 devices according to Class 1 Division 2 Hazardous Locations

12 Installation EAGLE20/30
Release 06 04/2014
CE marking
The labeled devices comply with the regulations contained in the following
European directive(s):
In accordance with the above-named EU directive(s), the EU conformity
declaration will be at the disposal of the relevant authorities at the
following address:
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
Tel.: [phone]
The product can be used in the industrial sector.
Interference immunity: EN 61000-6-2
Emitted interference: EN 55022
Solely for device variants featuring working voltage with the
characteristic value K:
Reliability: EN 60950-1
Warning! This is a class A device. This device can cause interference in
living areas, and in this case the operator may be required to take
appropriate measures.
Note: The assembly guidelines provided in these instructions must be
strictly adhered to in order to observe the EMC threshold values.
LED or laser components
LED or LASER components according to IEC 60825-1 (2007):
CLASS 1 LASER PRODUCT
CLASS 1 LED PRODUCT
Device variant Directive
All variants 2011/65/EU (RoHS)
Directive of the European Parliament and of the Council on the
restriction of the use of certain hazardous substances in
electrical and electronic equipment.
All variants 2004/108/EC (EMC)
Directive of the European Parliament and the council for
standardizing the regulations of member states with regard to
electromagnetic compatibility.
Solely for device variants
featuring working voltage with
the characteristic value K:
2006/95/EC
Directive of the European Parliament and the council for
standardizing the regulations of member states with regard to
electrical equipment to be used within specific voltage ranges.

Installation EAGLE20/30
Release 06 04/2014 13
FCC note
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference; (2) this device must accept any interference received,
including interference that may cause undesired operation.
Appropriate testing has established that this device fulfills the
requirements of a class A digital device in line with part 15 of the FCC
regulations.
These requirements are designed to provide sufficient protection against
interference when the device is being used in a business environment.
The device creates and uses high frequencies and can also radiate high
frequencies, and if it is not installed and used in accordance with this
operating manual, it can cause radio transmission interference. The use
of this device in a living area can also cause interference, and in this case
the user is obliged to cover the costs of removing the interference.
Recycling note
After usage, this device must be disposed of properly as electronic waste,
in accordance with the current disposal regulations of your county, state,
and country.
About this manual
The “Installation” user manual contains a device description, safety
instructions, a description of the display, and the other information that you
need to install the device.
The following manuals are available as PDF files on the CD/DVD supplied:
Installation user manual
Basic Configuration user manual
Reference manual for the graphical user interface
Command Line Interface user manual

14 Installation EAGLE20/30
Release 06 04/2014
The Industrial HiVision network management software provides you with
additional options for smooth configuration and monitoring:
ActiveX control for SCADA integration
Auto-topology discovery
Browser interface
Client/server structure
Event handling
Event log
Simultaneous configuration of multiple devices
Graphical user interface with network layout
SNMP/OPC gateway
Key
The symbols used in this manual have the following meanings:
Listing
Work step
Subheading

Installation EAGLE20/30
Release 06 04/2014 15
1 Description
1.1 General device description
You can choose from between a wide range of variants. You have the option
to set up your device individually based on different criteria:
Number of ports
Transmission speed
Types of connectors
Temperature range
Working voltage range
Certifications
The EAGLE20/30 devices are designed for the special requirements of
industrial automation. They meet the relevant industry standards, provide
very high operational reliability, even under extreme conditions, and also
long-term reliability and flexibility.
The devices allow you to set up switched and routed industrial Ethernet
networks that conform to the IEEE 802.3 standard.
The devices work without a fan.
The device is mounted by latching in place on a hat rail.
You have the option of choosing various media to connect to the terminal
devices and other network components:
twisted pair cable
multimode F/O
singlemode F/O
There are convenient options for managing the device. Administer your
devices via:
a Web browser
SSH
HiDiscovery (Software for putting the device into operation)
Network management software (e.g. Industrial HiVision)
a V.24 interface (locally on the device)
The devices provide you with a large range of functions, which the manuals
for the operating software inform you about. You will find these manuals as
PDF files on the enclosed CD/DVD, or you can download them from the
Internet on the Hirschmann product pages (www.hirschmann.com).
The Hirschmann network components help you ensure continuous
communication across all levels of the company.

16 Installation EAGLE20/30
Release 06 04/2014
1.2 Device name and product code
The device name corresponds to the product code. The product code is
made up of characteristics with defined positions. The characteristic values
stand for specific product properties.
Item Product
characteristic
Character
istic value
Description
1 ... 7 Device EAGLE20 Router without gigabit ports
EAGLE30 Router with gigabit ports
8 (hyphen) –
9 ... 10 Number:
Fast ethernet ports
04 4 × Fast ethernet ports
11 ... 12 Number:
Gigabit ethernet ports
00 0 × Gigabit ethernet ports
02 2 × Gigabit ethernet ports
13 ... 15 Configuration of the
uplink ports
2O6 2 × SFP slot
999 Not present
16 ... 17 Configuration of the
other ports
TT All the other ports are RJ45 sockets for twisted
pairs
18 Cellular phone
interface
9 Not present
19 ... 20 WAN port 99 Not present
21 Temperature range S Standard 0 °C ... +60 °C (+32 °F ...
+140 °F)
T Extended −40 °F ... +158 °F (−40 °C
... +70 °C)
E Extended with
conformal coating
−40 °F ... +158 °F (−40 °C
... +70 °C)
22 Operating voltage C Voltage input
Rated voltage range DC
24 V ... 48 V
K Voltage input
Rated voltage range AC
110 V ... 230 V, 50 Hz ... 60 Hz
Rated voltage range DC
60 V ... 250 V
23 Operating voltage C Voltage input
Rated voltage range DC
24 V ... 48 V
9 Not present
24 ... 25 Certifications Note: You will find detailed information on the certificates
and declarations applying to your device in a separate
overview.
See table 3 on page 18.
Table 1: Device name and product code

Installation EAGLE20/30
Release 06 04/2014 17
Item Product characteristic Description
EAGLE20
1 ... 7 Device Router without gigabit ports
—
8 (hyphen)
04
9 ... 10 Number:
Fast ethernet ports
4 × Fast ethernet ports
00
11 ... 12 Number:
Gigabit ethernet ports
0 × Gigabit ethernet ports
999
13 ... 15 Configuration of the uplink
ports
None
TT
16 ... 17 Configuration of the other
ports
RJ45 socket for 10/100 Mbit/s twisted-pair port
9
18 Cellular phone interface None
99
19 ... 20 WAN port None
S
21 Temperature range Hirschmann standard
C
22 Operating voltage Voltage input
Rated voltage range DC
24 V ... 48 V
C
23 Operating voltage Rated voltage range DC
Voltage input
24 V ... 48 V
Z9
24 ... 25 Certifications Note: You will find detailed information on the
certificates and declarations applying to your
device in a separate overview.
See table 3 on page 18.
Table 2: Sample product code (left column):

18 Installation EAGLE20/30
Release
06
04/2014
Application case Certificates and
declarations
Characteristic valueab
a. X = approval or self-declaration is present
(x) = approval or self-declaration possible on request
b. The EN60950-1 and UL60950-1 approvals are solely applicable for device variants with operating voltage characteristic value “K” (see
device description item 22).
T9 TY U9 UT UY UX V9 VT VU VY X9 Y9 Z9
Standard applications CE XXXXXXXXXXXXX
UL508 X XXX XXXXX
EN 60950-1 XXXXXXXXXXXXX
EN 61131-2 XXXXXXXXXXXXX
FCC XXXXXXXXXXXXX
UL 60950-1
Oil and gas applications ATEX Zone 2
ISA 12.12.01 –
Class I, Div. 2
XX
CSA C22.2 No. 213
Substation applications IEC 61850-3 XXXX
IEEE1613 XXXX
Navy applications ABS (x) (x) (x) (x) (x)
BV (x)(x)(x)(x) (x)
DNS (x) (x) (x) (x) (x)
GL XXXX X
KR
LR (x)(x)(x)(x) (x)
RINA
Railway applications EN 50121-4 X X X X
Table 3: Assignment: application cases, certificates and declarations, characteristic values

Installation EAGLE20/30 Release
06
04/2014 19
1.3 Combination options
Item 1 ... 5 6 ... 7 89 ... 10 11 ... 12 13 ... 15 16 ... 17 18 19 ... 20 21 22 ... 23 24 ... 25
Charac-
teristic
Product
Name
Data rate
and
hardware
type
-
(hyphen)
Number
of 10/100
Mbit/s
ports
Number of
100/1000
Mbit/s
ports
Configur
ation of
uplink
ports
Configur
ation of
other
ports
Cellular
phone
interface
WAN port Temperatur
e range
Operating
voltage
Certifications
Descrip-
tion
EAGLE 20 — 04 00 999 TT 9 99 S; T; E CC; K9 Z9; Y9; X9; V9; VY;
VU; VT; U9; UY; UX;
UT; T9; TY; SY
EAGLE 30 — 04 02 2O6 TT 9 99 S; T; E CC; K9 Z9; Y9; X9; V9; VY;
VU; VT; U9; UY; UX;
UT; T9; TY; SY
Table 4: Combination options for the device variants of the EAGLE20/30

20 Installation EAGLE20/30
Release 06 04/2014
1.4 Device views
1.4.1 Front view

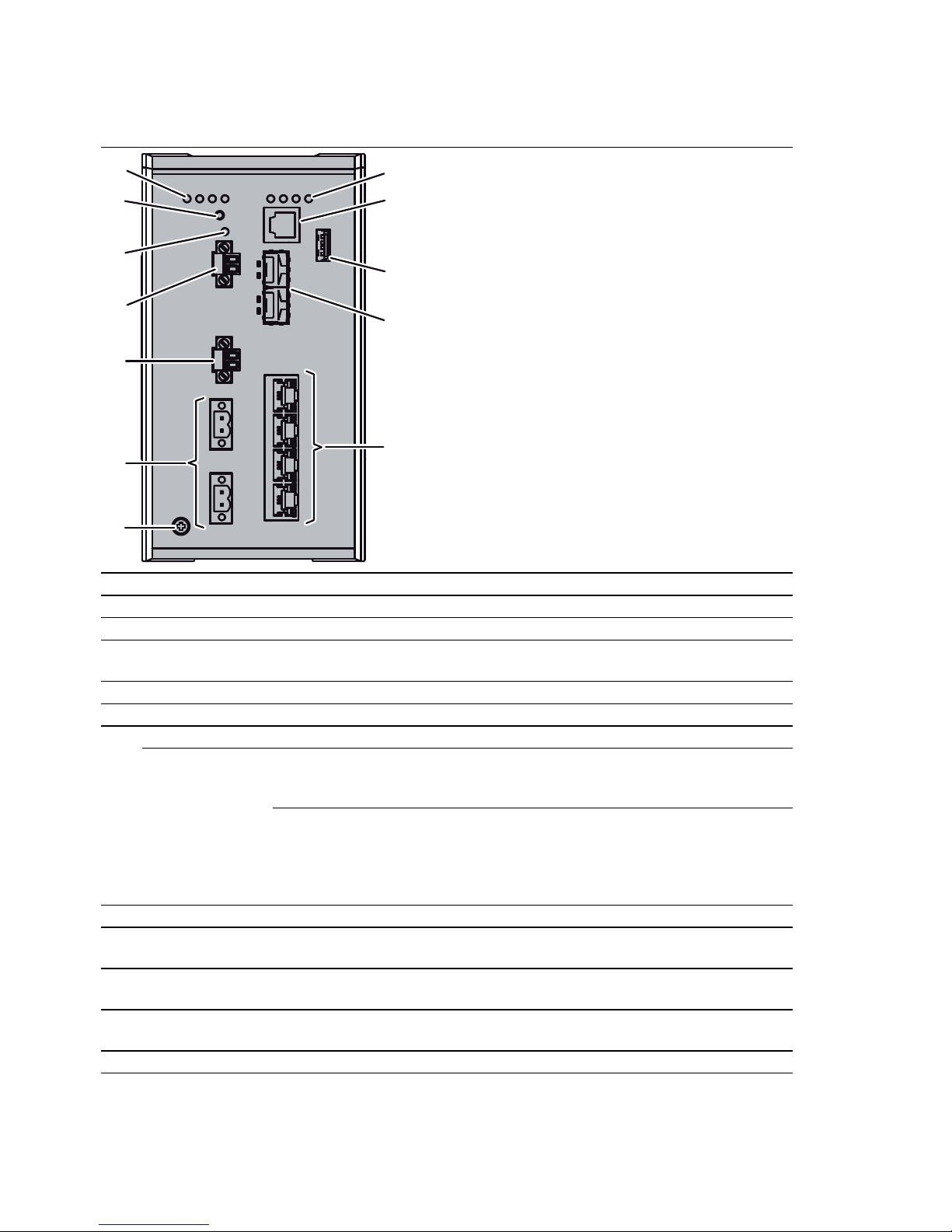

1 LED display elements for device status
2 V.24 interface
3 USB interface
4 Optional:
2× SFP slot
5 4 × 10/100 Mbit/s twisted pair ports
6 Grounding screw
7 Working voltage connection
alternatively,
depending on
device variant
2 × Operating voltage
characteristic value:
C
Rated voltage range DC
24 V ... 48 V
2-pin terminal block
1 × Operating voltage
characteristic value:
K
Rated voltage range AC
110 V ... 230 V, 50 Hz ... 60 Hz
Rated voltage range DC
60 V ... 250 V
3-pin terminal block
8 Connection for the signal contact
9 Connection for input
(no function in the existing device version)
10 LED display element for input
(no function in the existing device version)
11 Save/Load/Reset button
(no function in the existing device version)
12 LED display elements for additional status information
Table 5: Front view (example EAGLE30-04022O6TT999SCC...)
6
7
8
9
10
11
12 1
2
3
4
5
