Installation OCTOPUS 8M/16M/24M/OS32
Release 16 06/2018 3
Contents
Safety instructions 5
About this Manual 10
Legend 11
1 Description 12
1.1 General device description 12
1.2 Description of the device variants 13
1.2.1 Devices without Power over Ethernet 13
1.2.2 Devices with Power over Ethernet 14
1.3 Power supply 15
1.4 PoE voltage (optional) 16
1.5 Ethernet ports 16
1.5.1 10/100 Mbit/s twisted pair port 16
1.5.2 10/100 Mbit/s PoE port 17
1.5.3 10/100/1000 Mbit/s twisted pair port 17
1.5.4 100/1000 Mbit/s F/O port 18
1.5.5 Pin assignments 18
1.6 Display elements 19
1.6.1 Device state 19
1.6.2 Port Status 20
1.7 Management interfaces 20
1.7.1 V.24 interface (external management) 20
1.7.2 ACA interface (ACA21-M12) 21
1.8 “FAULT” signal contact 22
2 Installation 23
2.1 Checking the package contents 23
2.2 Installing an SFP transceiver (optional) 24
2.3 Installing and grounding the device 25
2.3.1 Mounting on a flat surface 25
2.3.2 Grounding the device 25
2.4 Wiring the connectors for supply voltage and signal contact 26
2.5 Connecting the PoE voltage (optional) 27
2.6 Operating the device 27
2.7 Connecting data cables 28

4Installation OCTOPUS 8M/16M/24M/OS32
Release 16 06/2018
3 Making basic settings 29
4 Monitoring the ambient air temperature 30
5 Maintenance and service 31
6Disassembly 32
6.1 Removing the device 32
6.2 Unmounting an SFP transceiver (optional) 33
7 Technical data 34
7.1 General technical data 34
7.2 Dimension drawings 36
7.3 EMC and immunity 39
7.4 Network range 40
7.5 Power consumption/power output 41
8 Scope of delivery, order numbers and
accessories 42
9 Underlying technical standards 45
A Further support 46

Installation OCTOPUS 8M/16M/24M/OS32
Release 16 06/2018 5
Safety instructions
General safety instructions
You operate this device with electricity. Improper usage of the device
entails the risk of physical injury or significant property damage. The
proper and safe operation of this device depends on proper handling
during transportation, proper storage and installation, and careful
operation and maintenance procedures.
Before connecting any cable, read this document, and the safety
instructions and warnings.
Operate the device with undamaged components exclusively.
The device is free of any service components. In case of a damaged
or malfunctioning the device, turn off the supply voltage and return the
device to Hirschmann for inspection.
Certified usage
Use the product only for the application cases described in the
Hirschmann product information, including this manual.
Operate the product only according to the technical specifications.
See “Technical data” on page 34.
Connect to the product only components suitable for the requirements
of the specific application case.
Operational environment:
On the inside of vehicles
On the inside of buildings
WARNING
UNCONTROLLED MACHINE ACTIONS
To avoid uncontrolled machine actions caused by data loss, configure all
the data transmission devices individually.
Before you start any machine which is controlled via data transmission, be
sure to complete the configuration of all data transmission devices.
Failure to follow this instruction can result in death, serious injury, or
equipment damage.

6Installation OCTOPUS 8M/16M/24M/OS32
Release 16 06/2018
Device casing
Only technicians authorized by the manufacturer are permitted to open
the casing.
Never insert pointed objects (narrow screwdrivers, wires, etc.) into the
device or into the connection terminals for electric conductors. Do not
touch the connection terminals.
At ambient temperatures > 140 °F (60 °C):
The surfaces of the device housing may become hot. Avoid touching
the device while it is operating.
To preserve the suitability of your device for IP65/67, proceed as
follows:
Remove the provided transport protection caps and the transport
protection screws from the device.
Seal unused sockets and plugs with the type of protection screws
which you can order separately.
Qualification requirements for personnel
Only allow qualified personnel to work on the device.
Qualified personnel have the following characteristics:
Qualified personnel are properly trained. Training as well as practical
knowledge and experience make up their qualifications. This is the
prerequisite for grounding and labeling circuits, devices, and systems
in accordance with current standards in safety technology.
Qualified personnel are aware of the dangers that exist in their work.
Qualified personnel are familiar with appropriate measures against
these hazards in order to reduce the risk for themselves and others.
Qualified personnel receive training on a regular basis.
National and international safety regulations
Verify that the electrical installation meets local or nationally applicable
safety regulations.
Grounding the device
The housing is grounded via the separate ground screw on the bottom left
of the front panel.
Use a wire diameter for the ground conductor that is no smaller than
the diameter of the supply voltage connection, however of at least
0.5 mm² (AWG20).
Ground the device before connecting any other cables.
Disconnect the grounding only after disconnecting all other cables.
Shielding ground
The overall shield of a connected shielded twisted-pair cable is connected
to the metal housing as a conductor.
Beware of possible short circuits when connecting a cable section with
conductive shielding braiding.

Installation OCTOPUS 8M/16M/24M/OS32
Release 16 06/2018 7
Supply voltage
The devices are designed for operation with safety extra-low voltage.
Connect only SELV circuits with voltage restrictions in line with IEC/EN
60950-1 to the supply voltage connections and signal contacts.
The supply voltage is electrically isolated from the housing.
Only use voltage supply cables with the permitted diameter specified
by the manufacturer of the right angled cable socket.
Relevant for North America:
Devices without Power-over-Ethernet (PoE) may only be connected to
a supply voltage of class 2 that fulfills the requirements of the National
Electrical Code, Table 11(b). If the voltage is being supplied
redundantly (two different voltage sources), the combined supply
voltages must fulfill the requirements of the National Electrical Code,
Table 11(b).
Relevant for North America: For use in Class 2 circuits.
Only use copper wire/conductors of class 1, 75 °C (167 °F).
E marking
(Relevant for OCTOPUS 8M-8PoE, OCTOPUS 8M-6PoE, OCTOPUS
16M-8PoE, OCTOPUS 24M-8PoE)
The labeled devices comply with the regulations contained in the following
European directive(s):
72/245/EEC
Council Directive on the approximation of the laws of the Member States
relating to the suppression of radio interference produced by sparkignition
engines fitted to motor vehicles.
2009/19/EC
Commission Directive amending, for the purposes of its adaptation to
technical progress, Council Directive 72/245/EEC relating to the radio
interference (electromagnetic compatibility) of vehicles.
Devices with an approval are labeled with the E type-approval mark.
(Relevant for OCTOPUS OS32...)
Regulation No. 10 of the Economic Commission for Europe of the United
Nations (UN/ECE): Devices with an approval are labeled with the
E type approval mark.
Note: For use in connection with a suitable type approved power supply
only.

8Installation OCTOPUS 8M/16M/24M/OS32
Release 16 06/2018
CE marking
The labeled devices comply with the regulations contained in the following
European directive(s):
2011/65/EU (RoHS)
Directive of the European Parliament and of the Council on the restriction
of the use of certain hazardous substances in electrical and electronic
equipment.
2014/30/EU (EMC)
Directive of the European Parlament and of the Council on the
harmonisation of the laws of the Member States relating to
electromagnetic compatibility.
In accordance with the above-named EU directive(s), the EU conformity
declaration will be at the disposal of the relevant authorities at the
following address:
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
www.hirschmann.com
The device can be used in the industrial sector.
Interference immunity: EN 61000-6-2
Emitted interference: EN 55032
Warning! This is a class A device. This device can cause interference in
living areas, and in this case the operator may be required to take
appropriate measures.
Note: The assembly guidelines provided in these instructions must be
strictly adhered to in order to observe the EMC threshold values.
LED or laser components
Relevant for OCTOPUS OS32-08xx02O6O6...:
LED or LASER components according to IEC 60825-1 (2014):
CLASS 1 LASER PRODUCT
CLASS 1 LED PRODUCT

Installation OCTOPUS 8M/16M/24M/OS32
Release 16 06/2018 9
FCC note:
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference; (2) this device must accept any interference received,
including interference that may cause undesired operation.
Appropriate testing has established that this device fulfills the
requirements of a class A digital device in line with part 15 of the FCC
regulations.
These requirements are designed to provide sufficient protection against
interference when the device is being used in a business environment.
The device creates and uses high frequencies and can also radiate these
frequencies. If it is not installed and used in accordance with this
operating manual, it can cause radio transmission interference. The use
of this device in a residential area can also cause interference, and in this
case the user is obliged to cover the costs of removing the interference.
Recycling note
After usage, this device must be disposed of properly as electronic waste,
in accordance with the current disposal regulations of your county, state,
and country.

10 Installation OCTOPUS 8M/16M/24M/OS32
Release 16 06/2018
About this Manual
The “Installation” user manual contains a device description, safety
instructions, a description of the display, and the other information that you
need to install the device.
The documentation for your device is made up of the following documents:
General safety instructions
Installation user manual
Basic Configuration user manual
Redundancy Configuration user manual
Reference manual for the graphical user interface
Command Line Interface reference manual
You find these manuals as PDF files on the Internet on the Hirschmann
product pages (www.hirschmann.com).
The HiVision Network Management software provides you with additional
options for smooth configuration and monitoring:
ActiveX control for SCADA integration
Auto-topology discovery
Browser interface
Client/server structure
Event handling
Event log
Simultaneous configuration of multiple devices
Graphical user interface with network layout
SNMP/OPC gateway

Installation OCTOPUS 8M/16M/24M/OS32
Release 16 06/2018 11
Legend
The symbols used in this manual have the following meanings:
Listing
Work step
Subheading

12 Installation OCTOPUS 8M/16M/24M/OS32
Release 16 06/2018
1 Description
1.1 General device description
The OCTOPUS 8M/16M/24M/OS32 devices are designed for the special
requirements of industrial automation. They meet the relevant industry
standards, provide very high operational reliability, even under extreme
conditions, and also long-term reliability and flexibility.
The devices allow you to set up switched industrial Ethernet networks that
conform to the IEEE 802.3 standard.
The devices work without a fan.
The devices comply with the degrees of protection IP65/67.
The voltage is supplied redundantly.
Depending on the device variant, you can choose various media to connect
terminal devices and other infrastructure components:
twisted pair cable
multimode F/O
singlemode F/O
The redundancy concept allows the network to be reconfigured quickly.
There are convenient options for managing the device. Administer your
devices via:
Telnet
a Web browser
network management software (e.g. HiVision)
a V.24 interface (locally on the device)
The devices provide you with a large range of functions, which the manuals
for the operating software inform you about. You find these manuals in the
form of PDF files for downloading on the Internet on the Hirschmann product
pages (www.hirschmann.com).
The Hirschmann network components help you ensure continuous
communication across all levels of the company.

Installation OCTOPUS 8M/16M/24M/OS32
Release 16 06/2018 13
1.2 Description of the device variants
1.2.1 Devices without Power over Ethernet
The following device variants provide 8 to 24 10BASE-T/100BASE-TX ports
(RJ45 connections) for connecting network segments or terminal devices:
OCTOPUS 8M, OCTOPUS 8M-Train, OCTOPUS 8M-Train-BP
OCTOPUS 16M, OCTOPUS 16M-Train, OCTOPUS 16M-Train-BP
OCTOPUS 24M, OCTOPUS 24M-Train, OCTOPUS 24M-Train-BP
The following device variants also feature a bypass function on two ports for
bridging periods without power:
OCTOPUS 8M-Train-BP
OCTOPUS 16M-Train-BP
OCTOPUS 24M-Train-BP
As long as the device is switched off and during the system start, relays
connect port 4 and port 8 to each other on a crossed basis. This passive
bypass enables data communication between the devices connected to
these ports.
As soon as the device is ready to operate, it automatically deactivates the
bypass function and actively exchanges data.
The OCTOPUS devices … Train and Train-BP correspond to the
requirements as per EN 50155:
Rail applications – electronic systems in railway vehicles.
Device Number of TX
Ports
Number of these that are
relay ports (bypass
function)
OCTOPUS 8M, OCTOPUS 8M-Train 8 -
OCTOPUS 8M-Train-BP 8 2
(Port 4 and port 8)
OCTOPUS 16M, OCTOPUS 16M-Train 16 -
OCTOPUS 16M-Train-BP 16 2
(Port 4 and port 8)
OCTOPUS 24M, OCTOPUS 24M-Train 24 -
OCTOPUS 24M-Train-BP 24 2
(Port 4 and port 8)

14 Installation OCTOPUS 8M/16M/24M/OS32
Release 16 06/2018
1.2.2 Devices with Power over Ethernet
The following device variants, i.e. OCTOPUS ...PoE... and OS32..., support
Power over Ethernet (PoE) in accordance with IEEE 802.3af:
OCTOPUS 8M-8PoE
OCTOPUS 8M-6PoE
OCTOPUS 16M-8PoE
OCTOPUS 24M-8PoE
OCTOPUS OS32-081602T6T6TPEPHH
OCTOPUS OS32-080802T6T6TPEPHH
OCTOPUS OS32-081602O6O6TPEPHH
OCTOPUS OS32-080802O6O6TPEPHH
OCTOPUS OS32-080802O6O6TPEPH1
OCTOPUS OS32-080802O6O6TPEPH2
The devices support the connection and a remote power supply of e.g., IP
phones (Voice-over-IP), webcams, sensors, print servers, and WLAN access
points via 10BASE-T/100BASE-TX. With PoE, these end devices are
powered by the twisted pair cable.
Depending on the device variant, the OCTOPUS ...PoE... and OS32
provides 6 to 8 10BASE-T/100BASE-TX ports (M12 sockets) for connecting
network segments or PoE end devices (PD, Powered Device) for all
IEEE802.3af classes up to a maximum output power of 15.4 W.
Device Number
FX ports
Number
TX ports
Gigabit-
capable TX
ports
included
PoE-capable
TX ports
included
OCTOPUS 8M-8PoE — 8 — 8
(ports 1 to 8)
OCTOPUS 8M-6PoE — 8 — 6
(ports 1 to 3 and
5 to 7)
OCTOPUS 16M-8PoE — 16 — 8
(ports 1 to 8)
OCTOPUS 24M-8PoE — 24 — 8
(ports 1 to 8)
OCTOPUS OS32-
081602T6T6TPEPHH
—182
(ports 1 and 2)
8
(ports 3 to 10)
OCTOPUS OS32-
080802T6T6TPEPHH
—102
(ports 1 and 2)
8
(ports 3 to 10)
OCTOPUS OS32-
081602O6O6TPEPHH
2 (unequipped SFP
slots)
16 — 8
(ports 3 to 10)
OCTOPUS OS32-
080802O6O6TPEPHH
2 (unequipped SFP
slots)
8—8
(ports 3 to 10)
OCTOPUS OS32-
080802O6O6TPEPH1
2 (M-Fast-SFP
SM/LC EEC pre-
installed)
8—8
(ports 3 to 10)

Installation OCTOPUS 8M/16M/24M/OS32
Release 16 06/2018 15
You will recognize the PoE-capable ports from the printed PoE logo.
The voltage is supplied through the wire pairs transmitting the signal
(phantom voltage). The individual ports are not electrically insulated from
each other.
The following conditions are met in accordance with IEEE 802.3af:
Endpoint PSE
Alternative A
The OCTOPUS ...PoE... and OS32... devices meet the requirements of
EN 50155:
Railway applications – electronic systems in railway vehicles.
1.3 Power supply
The supply voltage and the signal contact are connected by means of a 5-pin
M12 connector.
You find the prescribed tightening torque in General technical data section
on page 34.
The supply voltage can be connected redundantly. Both inputs are
uncoupled. There is no distributed load. With redundant supply, the power
supply unit with the higher output voltage supplies the device on its own. The
supply voltage is electrically isolated from the housing.
With non-redundant supply of the mains voltage, the device reports a power
failure. You can avoid this message by changing the configuration in the
management, or, with power supply units of the same type, by feeding the
supply voltage in through both inputs.
For more detail see
“Wiring the connectors for supply voltage and signal contact” on page 26.
OCTOPUS OS32-
080802O6O6TPEPH2
2 (1 M-Fast-SFP
SM/LC EEC pre-
installed in slot 1,
SFP slot 2
unequipped)
8—8
(ports 3 to 10)
Device Number
FX ports
Number
TX ports
Gigabit-
capable TX
ports
included
PoE-capable
TX ports
included

16 Installation OCTOPUS 8M/16M/24M/OS32
Release 16 06/2018
1.4 PoE voltage (optional)
The PoE voltage for the OCTOPUS ...PoE... and OS32... devices is
connected via a 5-pin M12 connector (“A”-coded, e.g. ELWIKA 5012 PG7
from Hirschmann, supplied).
You find the prescribed tightening torque in General technical data section
on page 34.
The OCTOPUS ... PoE... and OS32... devices are supplied with PoE voltage
(48 V DC safety low voltage) via an external power supply unit. The PoE
voltage is fed into the 5-pin M12 connector of the OCTOPUS ... PoE... or
OS32... The PoE voltage to the twisted-pair cables is supplied via the wire
pairs transmitting the signal (phantom voltage).
For more detail see
“Connecting the PoE voltage (optional)” on page 27.
1.5 Ethernet ports
You can connect end devices and other segments to the device ports using
twisted pair cables or optical fibers (F/O).
You find information on pin assignments for making patch cables here:
“Pin assignments” on page 18.
1.5.1 10/100 Mbit/s twisted pair port
This port is a 4-pin, “D”-coded M12 socket.
The 10/100 Mbit/s twisted pair port allows you to connect network
components according to the IEEE 802.3 10BASE-T/100BASE-TX standard.
This port supports:
Autonegotiation
Autopolarity
Autocrossing (if autonegotiation is activated)
100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
Delivery state: Autonegotiation activated
The socket housing is electrically connected with the device housing.

Installation OCTOPUS 8M/16M/24M/OS32
Release 16 06/2018 17
1.5.2 10/100 Mbit/s PoE port
This port is designed as an 4-pin M12 socket.
The 10/100 Mbit/s PoE port allows you to connect network components as a
PoE voltage sink according to the standard IEEE 802.3 10BASE-
T/100BASE-TX and IEEE 802.3af.
This port supports:
Autonegotiation
Autopolarity
Autocrossing (if autonegotiation is activated)
100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
Power over Ethernet (PoE)
Delivery state: Autonegotiation activated
The socket housing is electrically connected with the device housing.
The PoE voltage is input via the wire pairs transmitting the signal (phantom
supply).
1.5.3 10/100/1000 Mbit/s twisted pair port
This port is an 8-pin, “X”-coded M12 socket.
The 10/100/1000 Mbit/s twisted pair port allows you to connect network
components according to the IEEE 802.3 10BASE-T/100BASE-
TX/1000BASE-T standard.
This port supports:
Autonegotiation
(10/100/1000 Mbit/s half and full duplex)
Autopolarity
Autocrossing
The socket housing is electrically connected with the device housing.

18 Installation OCTOPUS 8M/16M/24M/OS32
Release 16 06/2018
1.5.4 100/1000 Mbit/s F/O port
This port is an IP67-V1 socket according to IEC 61076-3-106, variant 1, for
SFP transceivers.
The 100/1000 Mbit/s F/O port allows you to connect network components
according to the IEEE 802.3 100BASE-FX/1000BASE-SX/1000BASE-LX
standard.
This port supports:
Full duplex mode
State on delivery:
OCTOPUS OS32-08xx02O6O6TPEPHH:
Empty SFP slots, prepared for the use of SFP transceivers
See “Accessories” on page 42.
OCTOPUS OS32-08xx02O6O6TPEPH1:
SFP shafts equipped with the Fast Ethernet transceiver M-Fast
SFP-SM/LC EEC
OCTOPUS OS32-080802O6O6TPEPH2:
SFP slot 1 equipped with the Fast Ethernet transceiver M-Fast
SFP-SM/LC EEC
See figure 3 on page 24.
SFP slot 2 empty, prepared for the use of SFP transceivers
See “Accessories” on page 42.

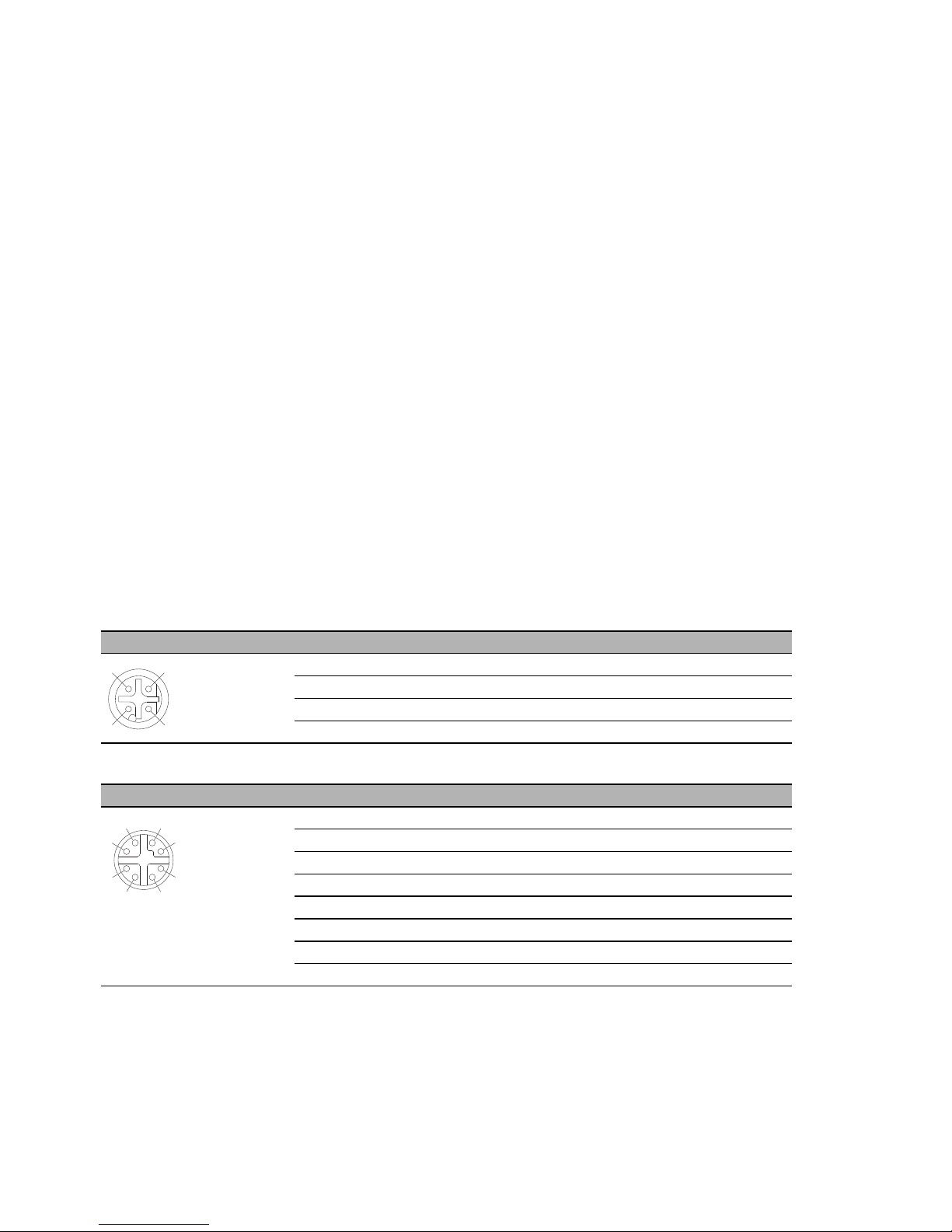

1.5.5 Pin assignments
M12 4-pin (“D”-coded) Pin Data PoE
1 TX+ Positive VPSE
2 RX+ Negative VPSE
3TX−Positive VPSE
4RX−Negative VPSE
M12 8-pin (“X”-coded) Pin 10/100 Mbit/s 1000 Mbit/s PoE
1 RX+ BI_DB+ Negative VPSE
2RX−BI_DB−Negative VPSE
3 TX+ BI_DA+ Positive VPSE
4TX−BI_DA−Positive VPSE
5 — BI_DC+ —
6— BI_DC−—
7— BI_DD−—
8 — BI_DD+ —
1
23
4
18
2
36
7
45

Installation OCTOPUS 8M/16M/24M/OS32
Release 16 06/2018 19
1.6 Display elements
After the supply voltage is set up, the software starts and initializes itself.
Afterwards, the device performs a self-test. During this process, various
LEDs light up. The process takes around 60 seconds.
Figure 1: Display elements
1 - Port status LEDs (here: for ports 1 to 4)
2 - Device status LEDs
1.6.1 Device state
These LEDs provide information about conditions which affect the operation
of the whole device.
If the manual adjustment is active on the “FAULT” signal contact, then the
detected error display is independent of the setting of the signal contact.
LED Display Color Activity Meaning
P1 Supply voltage 1 Green Lights up Supply voltage is on
None Supply voltage is too low
P2 Supply voltage 2 Green Lights up Supply voltage is on
None Supply voltage is too low
FAULT Signal contact Red None The signal contact is closed - it is not
reporting any detected errors.
Lights up The signal contact is open - it is reporting
a detected error.
RM Ring Manager — None The RM function is deactivated.
Green Lights up The RM function is active.
The redundant port is disabled.
flashing The device detects an incorrect
configuration of the HIPER-Ring (e.g. the
ring is not connected to the ring port).
Yellow Lights up The RM function is active.
The redundant port is enabled.
O
CT
O
P
US
1
2

20 Installation OCTOPUS 8M/16M/24M/OS32
Release 16 06/2018
1.6.2 Port Status
These LEDs display port-related information. During the boot phase, they
indicate the status of the boot process.
Note: You can query the port status for activated Power over Ethernet via the
software management.
1.7 Management interfaces
1.7.1 V.24 interface (external management)
At the V.24 connection, a serial interface is provided for the local connection
of an external management station (VT100 terminal or PC with
corresponding terminal emulation). This enables you to set up a connection
to the Command Line Interface (CLI) and to the system monitor.
The socket housing is electrically connected to the housing of the device.
For devices with PoE the V.24 interface uses the housing potential, and for
devices without PoE it uses the supply voltage potential.
LED Display Color Activity Meaning
Port No Link status — None Device detects an invalid or
missing link
Green Lights up Device detects a valid link
Flashes 1 time a period Port is switched to stand-by
Flashes 3 times a period Port is switched off
Yellow Flashing Device is transmitting and/or
receiving data
VT 100 terminal settings
Speed 9600 Baud
Data 8 bit
Stopbit 1 bit
Handshake off
Parity none
Figure Pin Function
1 TX. Transmit Data
2 RX Receive Data
3 N.C. Not used
4 GND Ground
Table 1: Pin assignment of the V.24 interface (M12 socket)
