Hisense KF-5002GWE Parts list manual

● Thank you for purchasing or distributing Hisense products.
● Please read this manual carefully before using the appliance.
● Please keep this manual in a safe place.
● Specifications may vary slightly to those indicated due to technical
improvements.
Contents
1. FEATURES
2. SAFETY NOTICE
3. COMPONENTS INTRODUCTION
4. OPERATION MANUAL
5. MAINTENANCE
6. WISE OPERATION
7. TROUBLE SHOOTING
8. TECHNICAL TABLES AND DIAGRAMS
APPENDIX: INSTALLATION
1
2
5
9
15
17
18
21
23
RZA-0-1000-908-SM-B

Features
Novel exterior
Excellent selected material, compact structure, arc
streamline, simple line, luxurious and elegant, novel
design, representing international prevalent trend.
Microcomputer controlled operation
Internal microcomputer with powerful function, easy
operation and use of remote control unit, air
conditioner can automatically adjust the room
temperature and humidity without troubling you, give
you a pleasant enjoyment.
Air freshing function
Multi-photocatalyst comprehensive functions, effetely
eliminate the soot, bacteria and peculiar smell in the
indoor are, provide you with a green and healthy space.
Automatic adjustment of airflow speed and airflow
direction
The airflow of the indoor unit can be set to four modes
of AUTO/HIGH/LOW/MUTE, and the airflow from the air
conditioner can be blown to each corner of the room
through changing the angle of the flap vanes.
12 -Hour ON and OFF Timer
This Timer can be set to automatically turn the unit on
or off at any time within a 12-hour period.
Trouble shooting
When it has fault, the microcomputer can self-diagnose
and display the reason of the fault, convenient for
m a i n t e n a n c e .
Ultra-mute operation
Excellent flue design, best angle for airflow intake and
outlet, enable the airflow to be quiet and smooth with
minimum noise.
Night energy saving mode
This function can automatically change the room
temperature setting, providing you with comfortable
environment, saving energy.
1

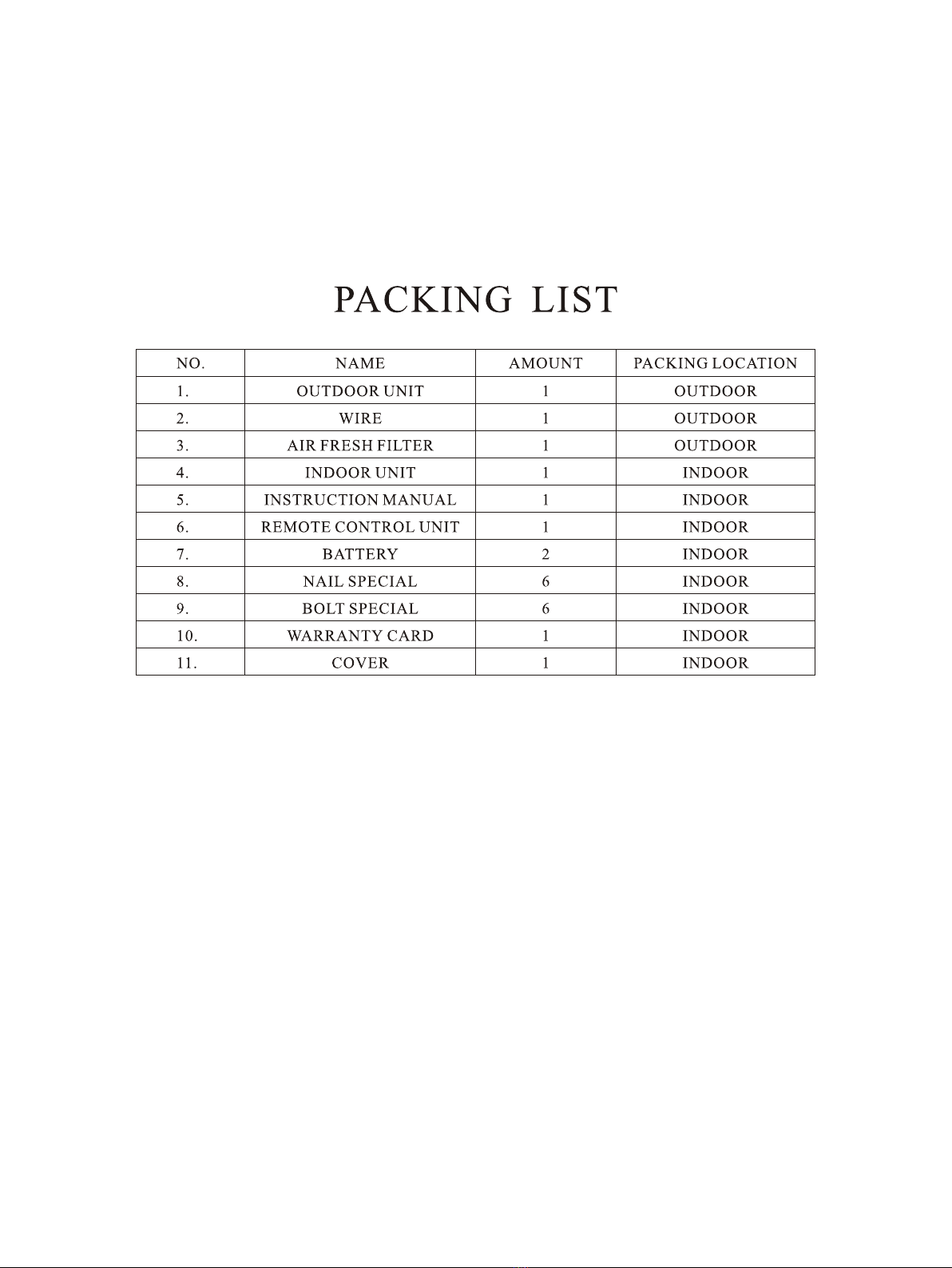

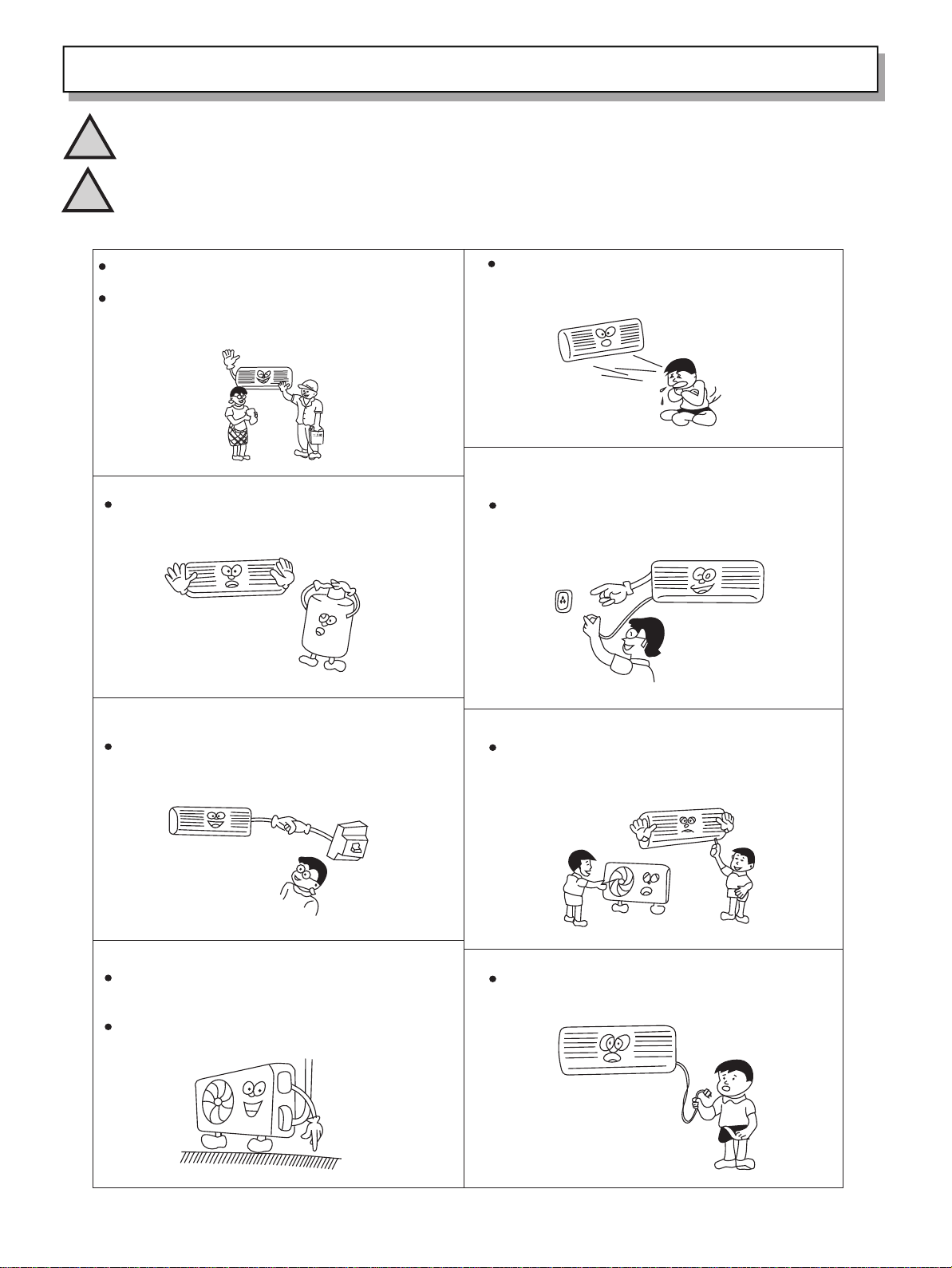

Safety Notice
2
!
!
WARNING:
CAUTION:
Operations displaying this symbol may result in fatal injury.
Operations displaying this symbol may result in serious injury.
A. Instructions for installation B. Instructions for operation
Installation only by authorized professionals
through local distributors.
Attention should be paid to power source, supply
capacity, electrical wire or sockets.
Do not sit directly in the cold air stream from the
appliance, or set excessively low operation
temperature.
Never install the appliance in an area near
inflammable gas.
Connect the appliance, using a separate cable and
plug, to a dedicated socket with a capacity not less
than 16A.
Install a correctly rated circuit breaker. Don't insert articles into the air inlet and keep
children away from the appliance.
Use the correctly rated electrical cable and protect
from damage or heat sources.
The appliance must be earthed. Never earth the
appliance to a gas or water pipe, lighting rod or
phone wire.
Correctly install tubes to avoid water leakage.
R

3

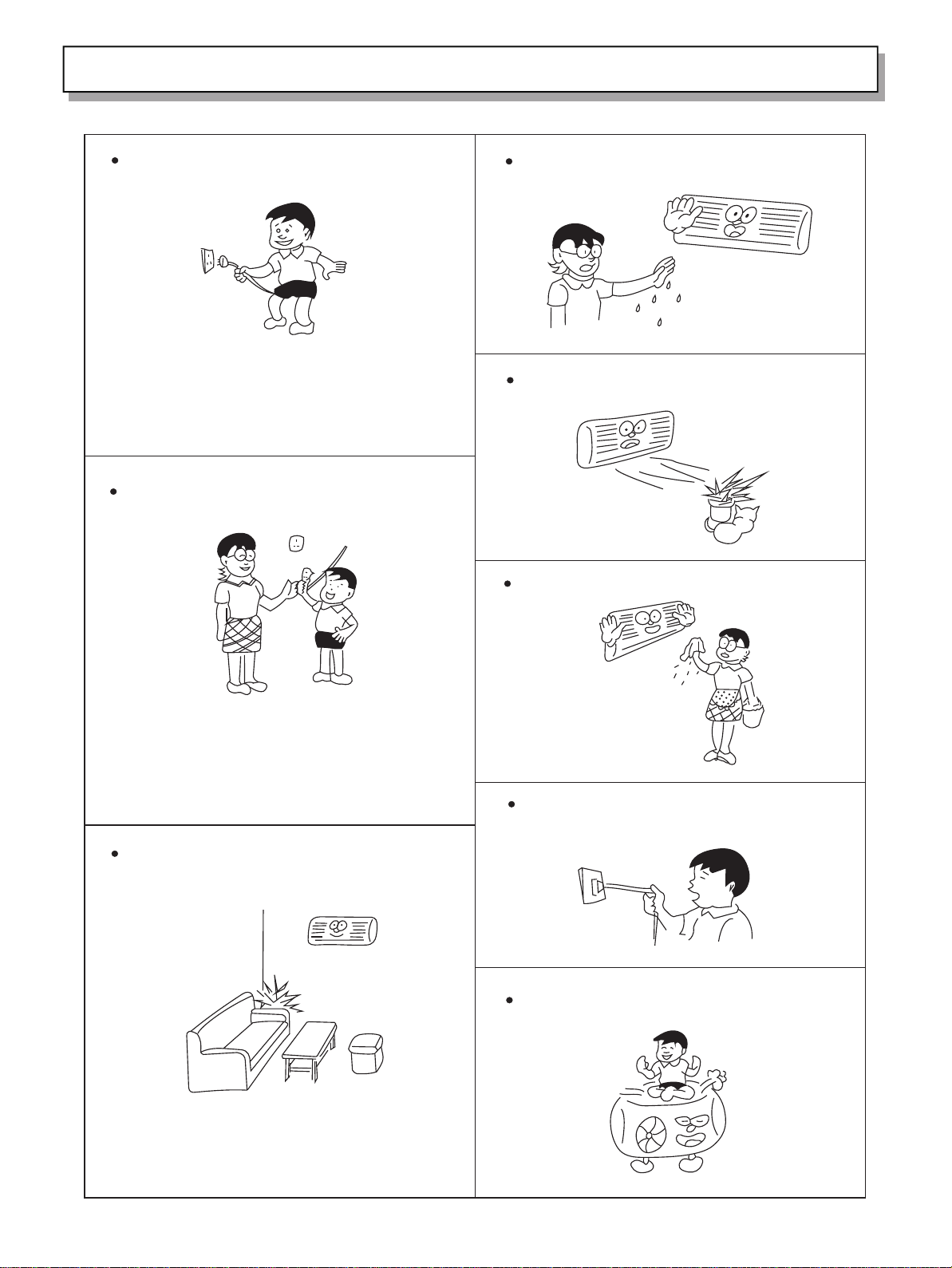

Avoid unnecessarily plugging and unplugging the
appliance.
Be sure that the power plug is clean and completely
inserted to the socket.
The appliance must only be used for room air
conditioning.
Never operate the appliance with wet hand.
Keep plants or pets away from the air source.
Do not clean the appliance by washing with water.
Hold the plug, not the wire, when unplugging the
appliance.
Do not let the appliance under heavy load.
Safety Notice

Keep the room well ventilated, especially in rooms
where burners are used.
Disconnect the appliance when cleaning. Unplug the
appliance when operation of the appliance stops.
Make sure that fan stops before cleaning.
Keep gas burners away from moving air from the
appliance.
Unplug the appliance when operation is suspended
for long periods.
Regularly check the securing bolts and support rack
of the outdoor unit.
Do not place other electrical appliance under the air
conditioner.
Unplug the appliance in the event of abnormal
operation and contact a distributor or the after-sales
service for repair.
Only qualified professionals should move the
appliance for reinstallation. Contact the distributor or
after-sales service for assistance.
Only qualified professionals should repair the
appliance. Contact the distributor or after-sales
service for assistance.
4
Safety Notice

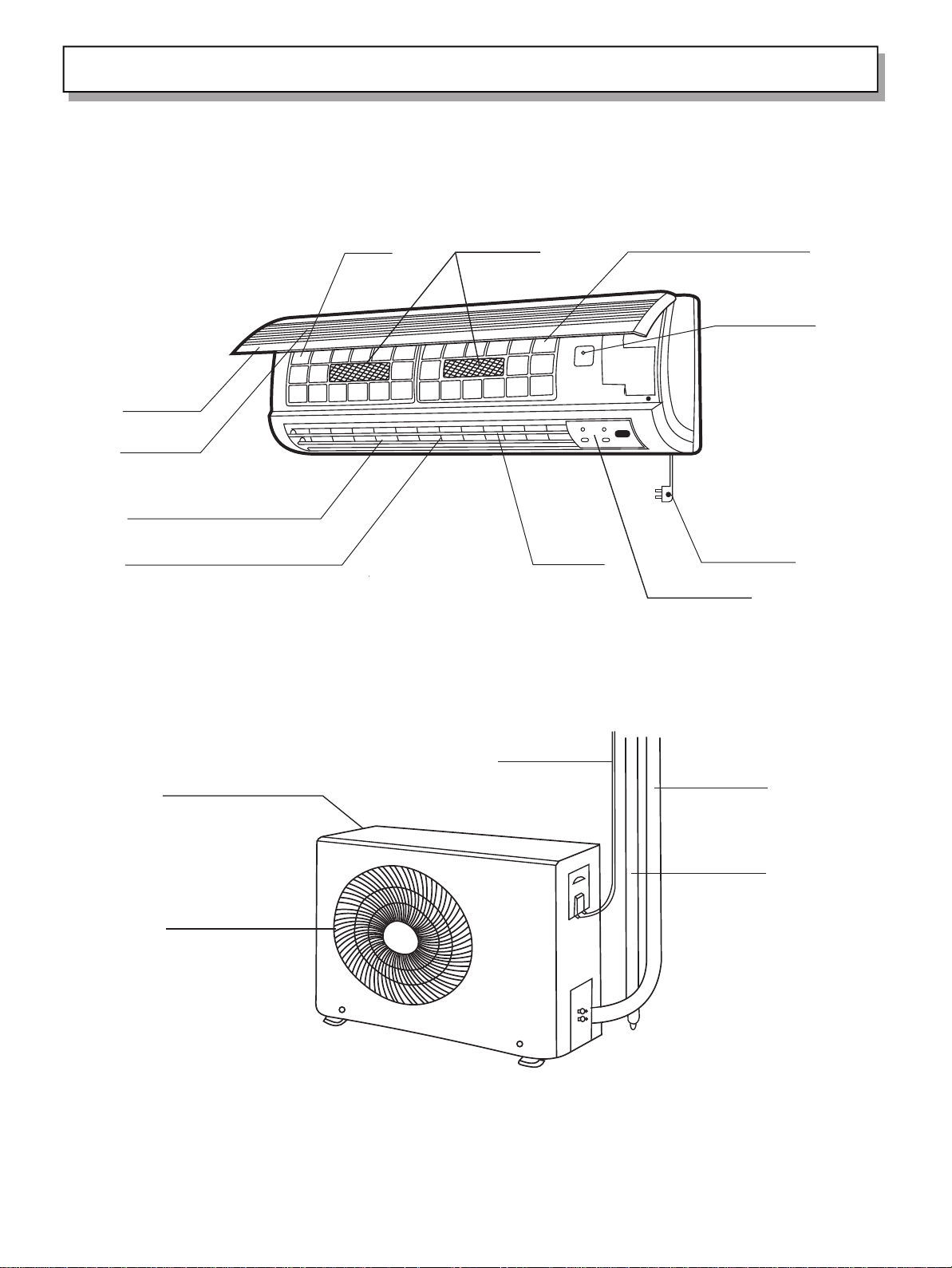

Components Introduction
Air filter Indoor unit sensor(inside)
Switch button
Power plug
Air outlet
Impeller (left-right adjustment)
Impeller (up-down adjustment)
Air inlet
Front cover
INDOOR UNIT
OUTDOOR UNIT
5
Display panel
Air fresh filter
Tubes
Drainage hose
Air inlet (rear and side)
Cable
Air outlet

Components Introduction
6
POWER HI-POWER
TIMER OPERATING
INDOOR UNIT DISPLAY PANEL
ON/OFF
Each part stands for:
1. Power indicator illuminating means the appliance in operating condition.
2. Timer indicator illuminating means the appliance in timer or sleep condition.
3. Operating indicator illuminating means the compressor in work condition.
4. Hi-power indicator illuminating means the appliance in hi-power condition.
INDOOR UNIT SWITCH PANEL
Indoor unit switch panel is under the front cover, it can be
used while remote control unit is bad or losing.

Components Introduction
REMOTE CONTROL UNIT
AA
T.SETTINGT.SETTING
C
A
A
ＨＯＵＲ
ＯＮ
ＯＦＦ
Ｈ．Ｐ． ＯＮ／ＯＦＦ ＴＥＭＰ．
ＳＬＥＥＰ
ＦＬＡＰ
ＯＮ ＯＦＦ
ＳＥＴ ＣＬＲ
ＳＥＮＳＯＲ
ＢＡＴＴＥＲＹ
ＦＡＮ／ＭＵＴＥ
ＲＥＳＥＴ
ＭＯＤＥ
Sensor
Testing the ambient temperature
of the remote control unit
LCD
Displaying the running condition.
Hi-power running button
Sleep button
Press the button, the appliance enter
sleep mode.
Flap
Up-down adjustment
Timer on/off button
Setting the time of appliance on/off.
Set/cancel timer button
Set or cancel the time of appliance
on/off.
A/C sensor button
Press the button if the remote
control unit is liable to be affected by
the heat resource, such as electric
blanket, radiator or sunlight, this will
use the sensor of indoor unit, the
symbol will appear on the LCD.
Transmitter
Transmitting signals to the indoor unit,
the symbol will appear on the top of
LCD.
On/Off button
Press the button to run, press again
to cease.
Temperature setting button
Press the button marked " "or
" " to increase or decrease
the temperature.
Mode selection button
Auto dehumidification
Fan cooling
Fan speed selection button
Reset button
Press the button after batteries are
loaded and indication appears on
LCD.
Sliding cover
Battery compartment
Remove the batteries in the remote control unit when it is not used for a long period.
Replace the batteries when the indication on the LCD of the remote control unit is faint, or the remote control unit cannot be set
or operated.
Properly dispose of used batteries.
Keep the remote control unit away from cold or hot air, sunlight or heat sources.
Contact the local distributor if the receiver in the appliance does not work in a room illuminated by fluorescent tubes.
Remote control unit must be used within its effective range or the timer and the temperature control will not function properly.
Control will fail if two of the same model appliances are installed in the same room.
If the remote control unit is fixed on the wall, press the On/Off button to ensure that the appliance is receiving a signal from the
device.
7
COMMONSENSE

Components Introduction
8

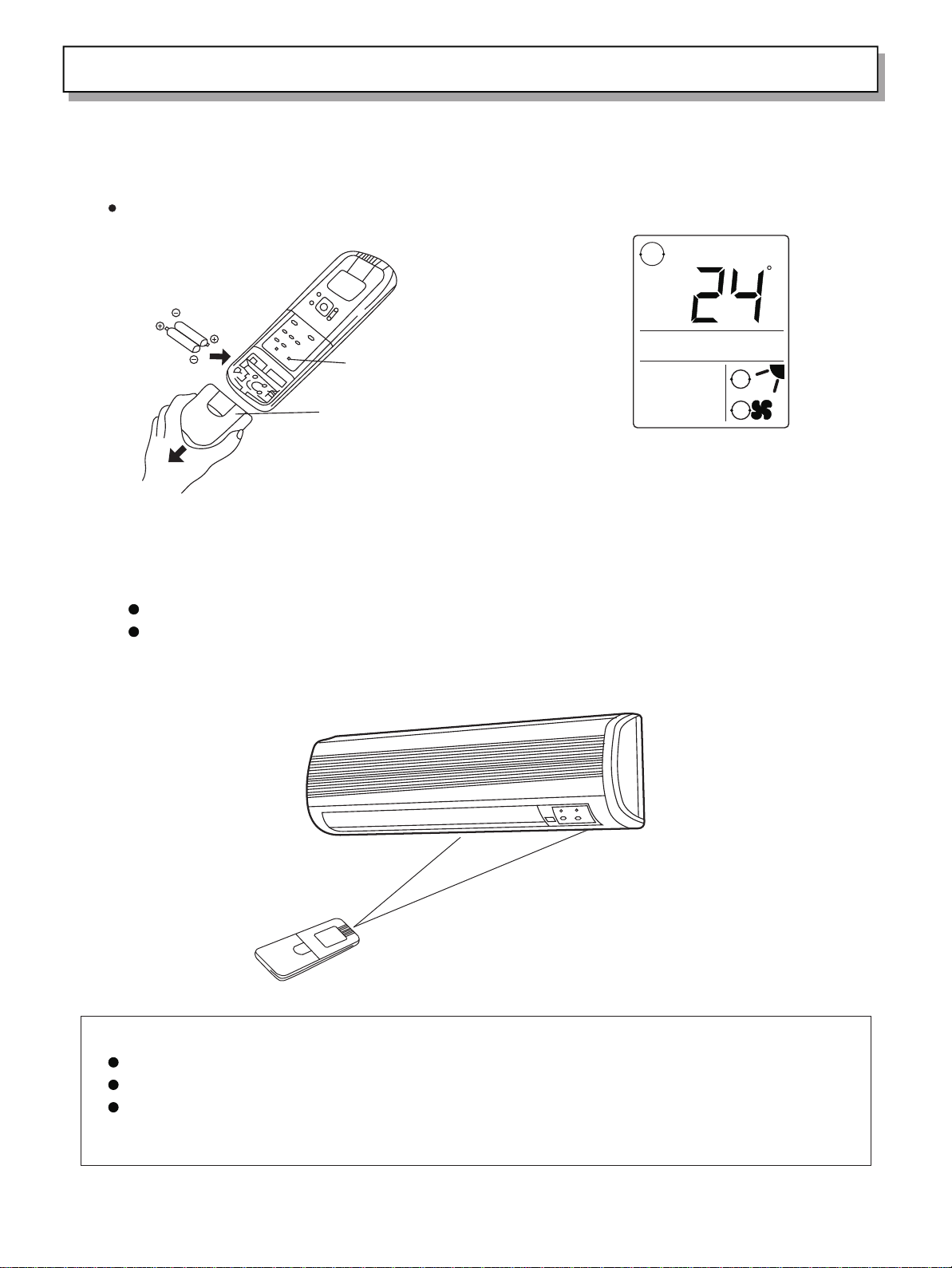

HOW TO USE REMOTE CONTROL UNIT
Install the battery
1
2
3
RESET button
Sliding cover
After replacement of batteries,
the LCD on the remote control
unit will display the status.
1. Press the two sides of the cover of the battery
component and slide it downward and remove.
2. Insert two AAA #7 Alkali batteries, and make sure
that,
The anode (+) and cathode (-) are properly placed.
Do not use Manganese batteries.
3. Press the Reset button with a pointed tool and then
replace the cover.
COMMONSENSE
Please make the remote control unit transmitter aim at the receiver of indoor unit.
There shouldn't have any obstacle between the remote control unit transmitter and the receiver of indoor unit.
Don't throw and break the remote control unit.
AA
T.SETTINGT.SETTING
C
A
A

Operation Manual
PREPARATION BEFORE RUNNING
Raise the front cover, and then install the air filter.
MANUAL OPERATION (COOLING, DEHUMIDIFICATION, FAN)
Basic operation
1.Before running the appliance, press the "MODE" for selection
one mode of the dehumidification, cooling and fan.
2.Press the "ON/OFF" button to start the appliance.
3.Press the "TEMP." button to set the temperature you wish.
COMMONSENSE
●A certain period of time is required to reach the desired
temperature since the air of room cycles all the time.
●When appliance works in cooling and dehumidification
mode, if blocked by accumulated water drops, then air
filter should be cleaned and air fresh filter should be
cleaned or replaced.
9
T.SETTINGT.SETTING
C
Ｈ．Ｐ． ＯＮ／ＯＦＦ ＴＥＭＰ．
ＳＬＥＥＰ
ＦＬＡＰ
ＯＮ ＯＦＦ
ＳＥＴ ＣＬＲ
ＳＥＮＳＯＲ
ＢＡＴＴＥＲＹ
ＦＡＮ／ＭＵＴＥ
ＲＥＳＥＴ
ＭＯＤＥ
2
3
1

Operation Manual

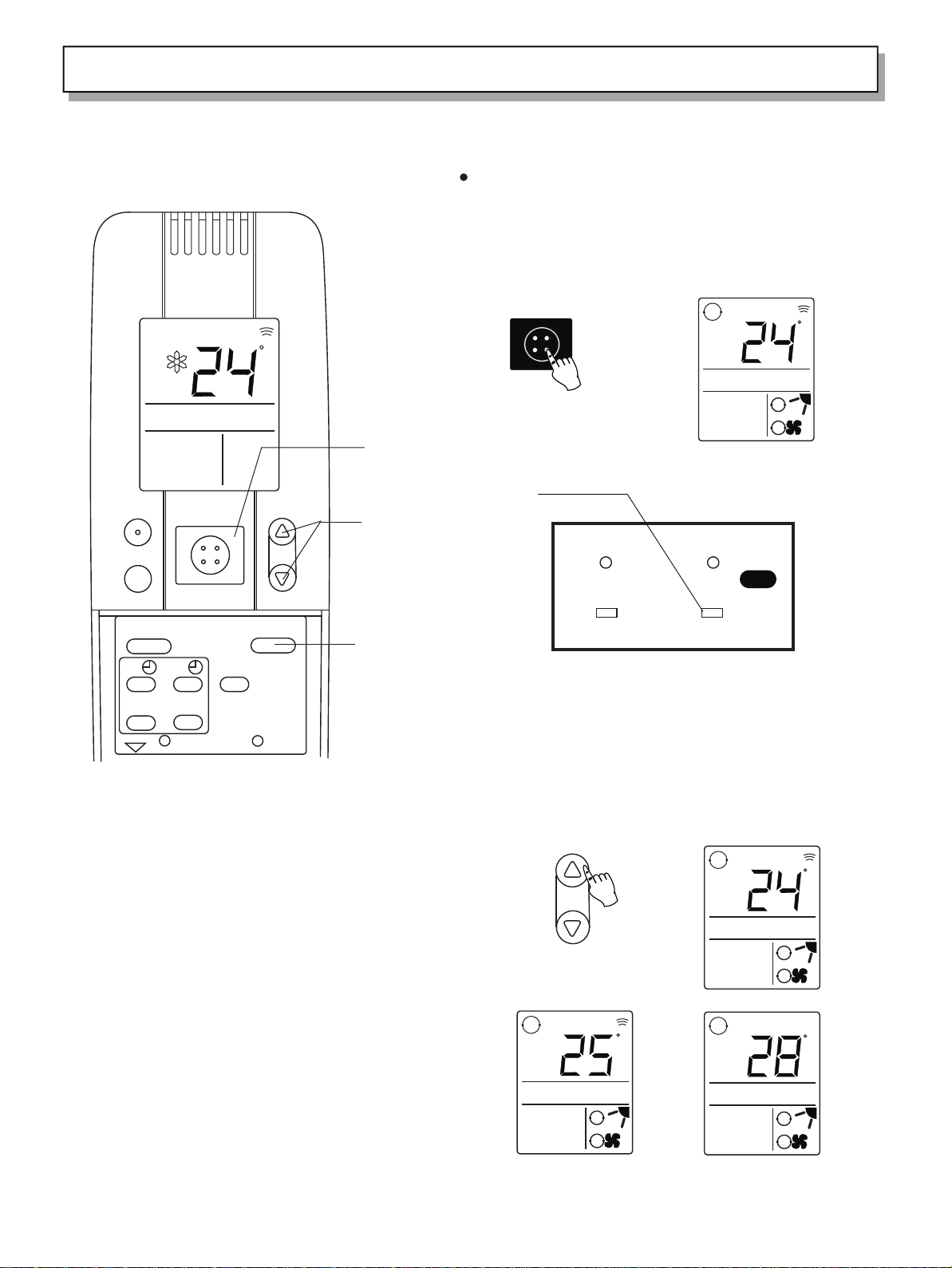

AUTO RUN
Basic operation
1. Press the "MODE" button for selection of the "AUTO" function
for automatic cessation of the appliance.
2. Press the "ON/OFF" button and the appliance is then set in
automatic mode.
NOTICE:
The appliance is designed to control the function of
operating mode automaticly, as well as airflow and air
direction, according to the temperature in the room
detected by the appliance or the setting. A time lapse of a
few seconds will occur before alteration of airflow.
10
T.SETTINGT.SETTING
C
Ｈ．Ｐ． ＯＮ／ＯＦＦ ＴＥＭＰ．
ＳＬＥＥＰ
ＦＬＡＰ
ＯＮ ＯＦＦ
ＳＥＴ ＣＬＲ
ＳＥＮＳＯＲ
ＢＡＴＴＥＲＹ
ＦＡＮ／ＭＵＴＥ
ＲＥＳＥＴ
ＭＯＤＥ
2
3
1
Press again the "ON/OFF" button to cease the operation of the
appliance.
3. Temperature Setting
Each press of the "TEMP." will result in a temperature
o
adjustment of 1 C.
A few seconds later, the room temperature will be displayed
on the LCD of remote control unit.
ON/OFF AA
T.SETTINGT.SETTING
C
A
A
AA
T.SETTINGT.SETTING
C
A
A
AA
T.SETTINGT.SETTING
C
A
A
AA
C
A
A
POWER HI-POWER
TIMER OPERATING
Illuminating

ＦＬＡＰ
Operation Manual

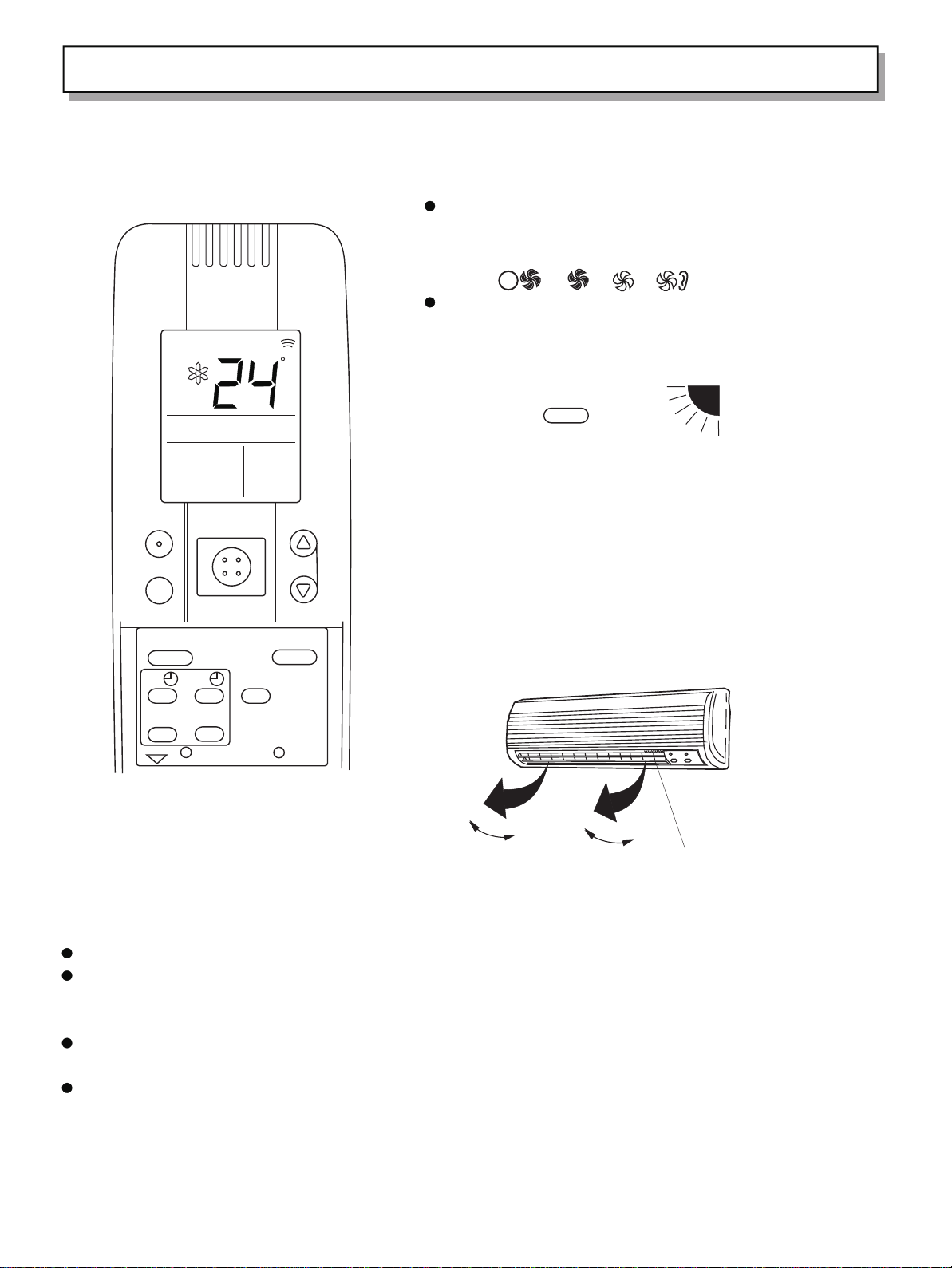

FAN SPEED AND DIRECTION ADJUSTMENT
Basic operation
When the appliance works, press "FAN/MUTE" change airflow
speed.
Press "FAN/MUTE" each time, indoor unit fan speed can be altered
among , , , .
When the appliance works, press "FLAP" change vertical airflow
direction.
Press "FLAP" each time, fan impeller will appears the following in
turn:
1. Vertical airflow adjustment
Fan auto mode: fan impeller sways between 6 and 3 in cooling and
dehumidification mode.
Fan sweep mode: fan impeller sways from top and bottom.
2.Horizontal airflow adjustment
Adjust horizontal airflow by pushing the left-right fan impeller with
hands.
A
１
２
３
４
５
６
When the appliance works in dehumidification mode, fan speed is low and can not be altered.
The remote control unit can be used to adjust the air direction. Manual adjustment may result in conflict between the actual
position and the desired position by the remote control unit. Turn off the appliance with the remote control unit and restart the
appliance after the fan imperller is completely closed.
Water drops may accumulate around the air inlet if the appliance is operated for cooling in humid seasons or for dehumidifying.
Adjust the fan imperller correctly.
Never attempt to touch the rotating fan impeller for whatever reason.
11
Left-right airflow
fan impeller
T.SETTINGT.SETTING
C
Ｈ．Ｐ． ＯＮ／ＯＦＦ ＴＥＭＰ．
ＳＬＥＥＰ
ＦＬＡＰ
ＯＮ ＯＦＦ
ＳＥＴ ＣＬＲ
ＳＥＮＳＯＲ
ＢＡＴＴＥＲＹ
ＦＡＮ／ＭＵＴＥ
ＲＥＳＥＴ
ＭＯＤＥ

Operation Manual
TIMER SWITCH ON/OFF
Postponed Start Setting
The appliance will start operating after the period set by the timer.
When the appliance is set in the "Cooling" mode, a desired temperature
will be reached after a desired set time (the reservation function).
Postponed cessation setting
Set the time for cessation of the appliance, the appliance will then
stop operating upon expiry of the set period.
1. Press the "ON / OFF "
button. Each press will alter the
hour indication by one.
Maximum number is 12.
For example: If you wish the
appliance start three hours
later.
For example: If you wish the
appliance stop one hour later.
AA
T.SETTINGT.SETTING
C
ＨＯＵＲ
ＯＮ
AA
T.SETTINGT.SETTING
C
A
A
ＨＯＵＲ
ＯＦＦ
2. Press the "SET" button to confirm the time setting.
Press the "CLR" button to inactivate the time setting.
12
The timer switch illuminates when the timer
is set.
POWER HI-POWER
TIMER OPERATING
illuminating
T.SETTINGT.SETTING
C
Ｈ．Ｐ． ＯＮ／ＯＦＦ ＴＥＭＰ．
ＳＬＥＥＰ
ＦＬＡＰ
ＯＮ ＯＦＦ
ＳＥＴ ＣＬＲ
ＳＥＮＳＯＲ
ＢＡＴＴＥＲＹ
ＦＡＮ／ＭＵＴＥ
ＲＥＳＥＴ
ＭＯＤＥ

C
A
A
T.SETTINGT.SETTING
Operation Manual

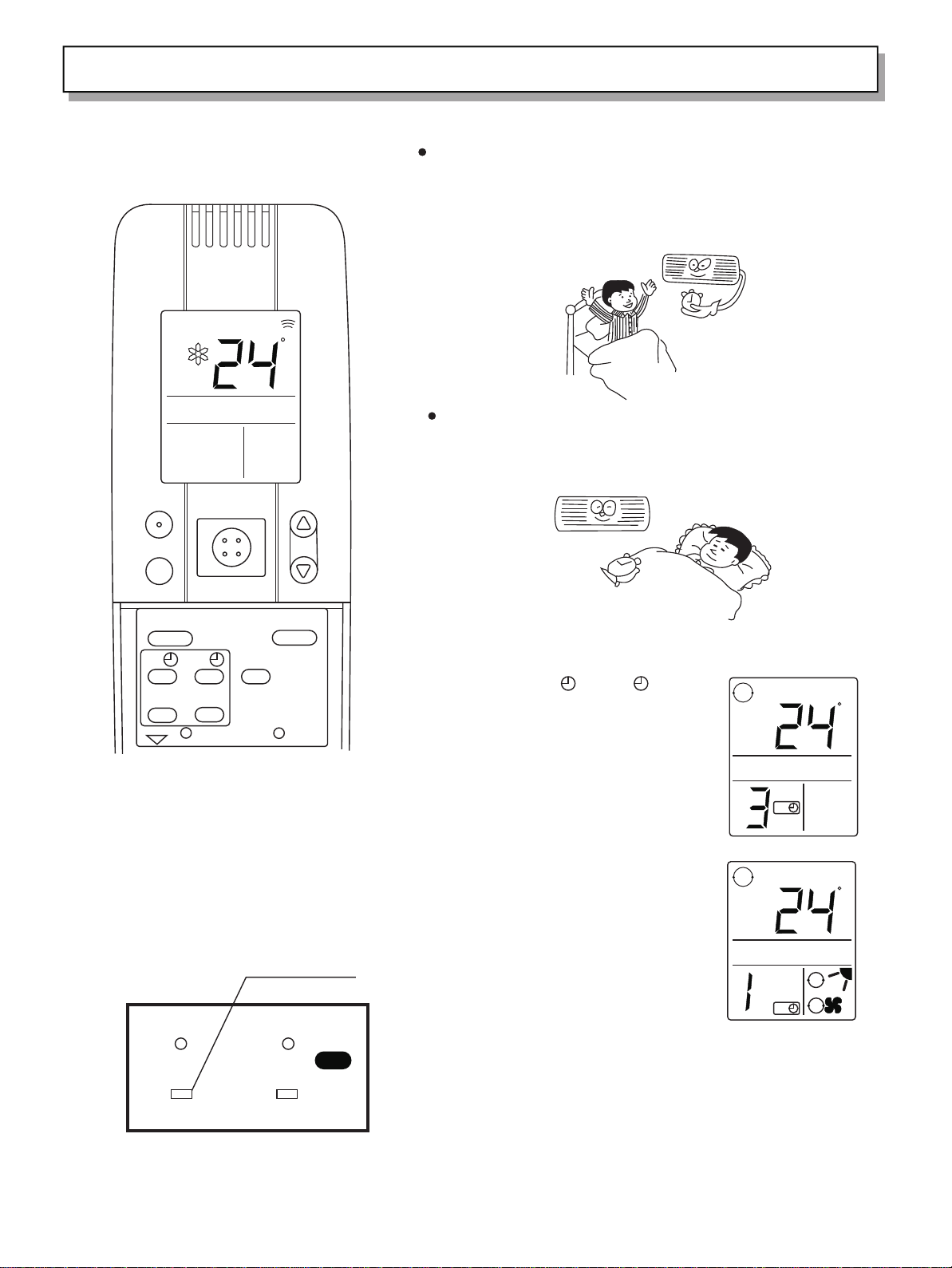

SLEEP SETTING MODE/HI-POWER OPERATION/AIR FRESHING
Hi-power operation
The appliance set in this mode will produce lower temperature air
than ordinary condition. This function can make you feel
comfortable rapidly in summer.
Press "H.P." button, the appliance start to work in this mode.
Press "H.P." button again, to cancel this mode.
Sleep Setting Mode
This mode can be manually set to save energy while maintaining a
desired well conditioned atmosphere at night.
Press the "SLEEP" button during dehumidifying and cooling.
Cancellation of "SLEEP"
Press the "SLEEP" button once.
13
T.SETTINGT.SETTING
C
Ｈ．Ｐ． ＯＮ／ＯＦＦ ＴＥＭＰ．
ＳＬＥＥＰ
ＦＬＡＰ
ＯＮ ＯＦＦ
ＳＥＴ ＣＬＲ
ＳＥＮＳＯＲ
ＢＡＴＴＥＲＹ
ＦＡＮ／ＭＵＴＥ
ＲＥＳＥＴ
ＭＯＤＥ
Air freshing
When appliance works, the air fresh filter of indoor
unit can effectively filter, absorb and decompose
harmful ingredient.
EMERGENCY OPERATION
Open the front cover, the switch panel can be found.
Press the "ON/OFF" button to start the appliance, and in this condition the appliance will automatically select operating mode in
terms of indoor temperature.
Press the "ON/OFF" button again to cease the appliance.
NOTICE:
The operation can be only used while remote control unit is bad or losing. Moreover, don't often press the button.

Maintenance
22
11
!
CAUTION Cuts and abrasions may result from contact with the sharp components inside the appliance.
Clean the air filter once very two weeks.
1. Cleaning of indoor unit
Wipe the indoor unit with a dry soft cloth damped
in 40℃ water.
2. Front cover cleaning
In terms of the operation shown as picture,
unload the front cover.
Wipe and dry the front cover with a sponge or
similar substance.
Mild detergent can be used for excessive dirt.
In terms of the operation shown as picture, load
the front cover.
3. Cleaning the air filter
Raise the front cover and take out the air filter.
After cleaning the dirt of the air filter, please
wash the air filter by water then dry it.
Install the air filter and hold both sides of the
front cover as shown by the arrows.
14

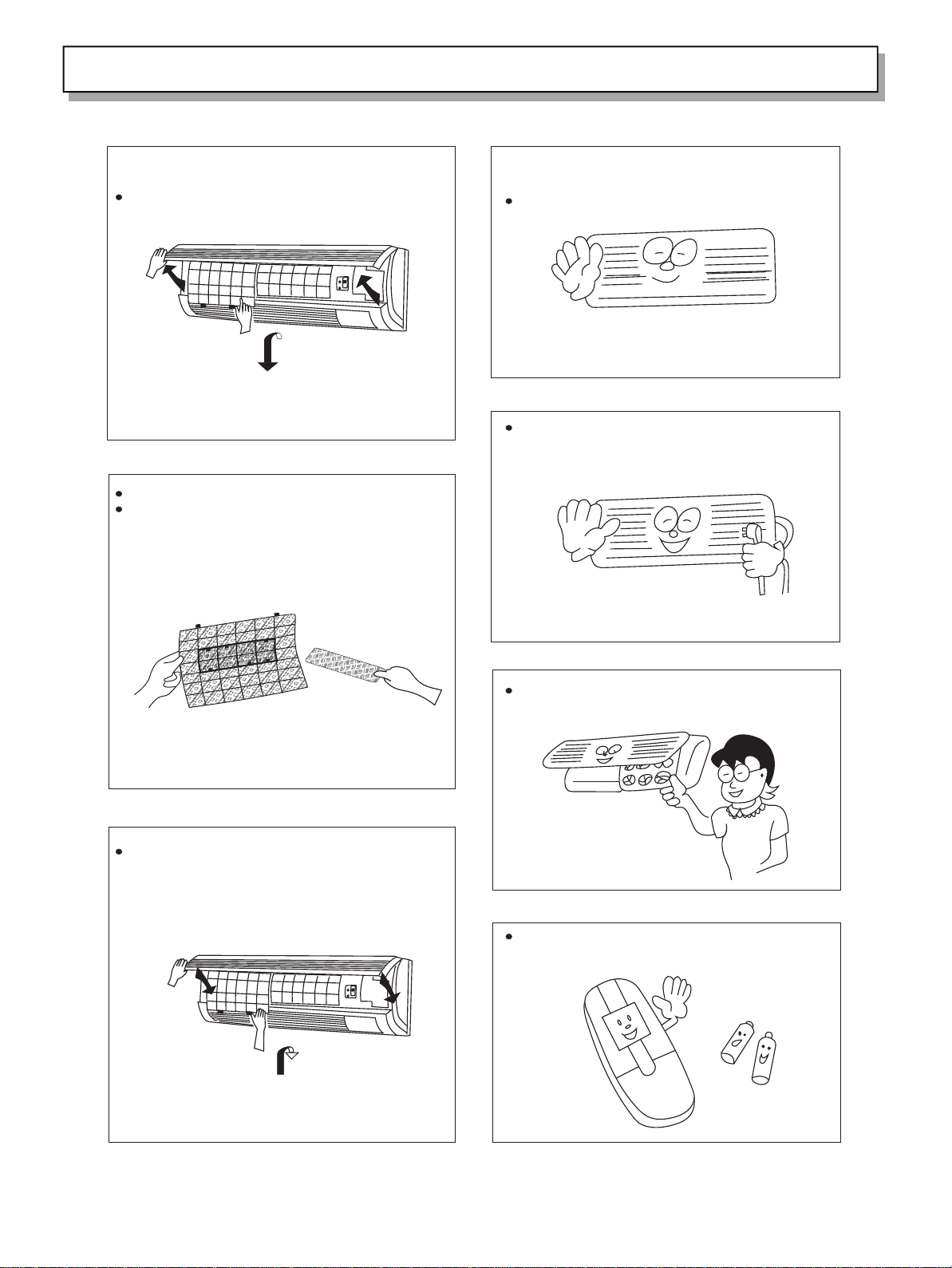

Maintenance
4. Cleaning and replacement of air fresh filter
Raise the front cover and take out the air filter.
Take out the dirty air fresh filter from the air filter.
There are two kinds of air fresh filter, the
photocatalyst health filter can be used again after
washed by water and dried; the electrocstatic air
cleaning filter should be replaced with a new one.
Install the air fresh filter onto the air filter and
close the front cover as shown by the arrows.
5. Long-term cessation
Warm and air the inside to dry the appliance.
Before unplug the appliance for cessation of
operation, press "ON/OFF" button to cease the
appliance, then pull out the power plug.
Cl ean the air filter and take out the air fresh filter.
Remove the batteries from the remote control
unit.
15

Wise Operation
Blockage of the air inlet or outlet may reduce the
cooling capacity of the appliance.
Cooling capacity can be reduced by
accumulated dirt on the air filter. Clean the air
filter when noise is heard or water drops
accumulate at the outlet.
Adjust the wind direction to level for cooling.
Please use the timer reasonably to save
consumption.
Excessively low temperature setting may be
harmful to health and will result in high power
consumption.
Make sure windows and doors are properly
closed. Draft strips are recommended for use in
summer .
Window blind reduces 15% of sunlight and
window strips reduce 50%.
Properly set the temperature.
When setting for cooling, the most desirable
difference between inside and outside
temperature is 5 . 1 increase of the set
temperature will save 10% of power
consumption.
℃℃
16

Trouble Shooting
Failure of airflow conversion
Airflow cannot be altered when the
dehumidification are started.
Postponed operation
The safety function postpones 3 or 5 minutes
before operation after the appliance is
connected to the power supply.
Ka da
Wait
a minute
Strange odor
Odors from wall carpet or clothing will be
absorbed and transmitted by the appliance.
Sound of water flow
From circulating refrigerant inside.
Strange sound
Caused by shrinkage due to coldness.
17
