Hitachi RAC-D10EX2 User manual

INDOOR UNIT/OUTDOOR UNIT
SPLIT TYPE AIR CONDITIONER
MODEL
RAS-D10EX2/ RAC-D10EX2
RAS-D14EX2/ RAC-D14EX2
INDOOR UNIT
Instruction manual Page 1~36
To obtain the best performance and ensure years of
trouble free use, please read this instruction manual
completely.
Manual de instrucciones Página 145~180
Para obtener el mejor funcionamiento y asegurar años
de uso libre de problemas, lea cuidadosamente este
manual de instrucciones.
Bedienungsanleitung Seite 37~72
Bitte lesen Sie diese Bedienungsanleitung aufmerksam
durch, um durch richtige Bedienung jahrelangen und
störungsfreien Betrieb zu gewährleisten.
Manual de instruções Página 181~216
A fim de obter um bom funcionamento e de garantir
uma utilização sem falhas durante muitos anos, é favor
ler este manual de instruções completamente.
Mode d’emploi Page 73~108
Des performances optimales et un fonctionnement à
long terme seront assurés en appliquant les présentes
instructions après avoir entièrement lu ce mode
d’emploi.
O‰ËÁ›Â˜ ¯Ú‹Ûˆ˜ ÛÂÏ›‰· 217~252
°È¿ Ó· Â›Ó·È ÂÁÁ˘Ë̤ÓË Ë Î·Ï‡ÙÂÚË ‰˘Ó·Ù‹ ÏÂÈÙÔ˘ÚÁ›·
Î·È Ë ¯ˆÚ›˜ ‚Ï¿‚˜ Ì·ÎÚÔÚfiıÂÛÌË ¯Ú‹ÛË Ù˘
Û˘Û΢‹˜, ‰È·‚¿ÛÙ fiϘ ÙȘ οوıÈ Ô‰ËÁ›Â˜.
Manuale di istruzioni Pag. 109~144
Per garantire la migliore prestazione e la più lunga
durataleggere attentamente e al completo le seguanti
istruzioni.
RAS-D10EX2
RAS-D14EX2
OUTDOOR UNIT
RAC-D10EX2
RAC-D14EX2
Инструкция по эксплуатации стр. 253~288
Для oбecпeчeния нaилyушиx экcплyaтaциoнныx
xapaктepиcтик и мнoгoлeтнeй бeзoткaзнoй paбoты
oбopyдo aния нeoбxoдимo пoлнocтью oзнaкoмитьcя c
дaннoй Инcтpyкциeй пo экcплyaтaции.

–2 –

–3 –
ENGLISH
DEUTSCHFRANÇAISITALIANOSPANISHPORTUGUÊS∂ÏÏËÓÈοРУССКИЙ
•Do not reconstruct the unit.
Water leakage, fault, short circuit or fire may occur if you reconstruct the unit by
yourself.
•Please ask your sales agent or qualified technician for the installation of your unit.
Water leakage, short circuit or fire may occur if you install the unit by yourself.
•Please use earth line.
Do not place the earth line near water or gas pipes, lightning-conductor, or the earth
line of telephone. Improper installation of earth line may cause electric shock.
•Be sure to use the specified piping set for R410A. Otherwise, this may result in broken
copper pipes or faults.
•A circuit breaker should be installed depending on the mounting site of the unit. Without
a circuit breaker, the danger of electric shock exists.
•Do not install the unit near location where there is flammable gas.
The outdoor unit may catch fire if flammable gas leaks around it. Piping shall be
suitable supported with a maximum spacing of 1m between the supports.
•Please ensure smooth flow of water when installing the drain hose. If any failure is
found in the drain path, water drops from the indoor and outdoor units, causing wet
household effects.
•Make sure that a single phase 230V power source is used.
The use of other power sources may cause electrical components to overheat and lead
to fire.
WARNING
WARNING
CAUTION
•Please read the “Safety Precaution”carefully before operating the unit to ensure correct usage of the unit.
•Pay special attention to signs of “WARNING”and “CAUTION”. The “Warning”section contains matters which, if
not observed strictly, may cause death or serious injury. The “Caution”section contains matters which may result in
serious consequences if not observed properly. Please observe all instructions strictly to ensure safety.
•The signs indicate the following meanings. (The following are examples of signs.)
•Please keep this manual after reading.
SAFETY PRECAUTION
PRECAUTIONS DURING INSTALLATION
PROHIBITION
PROHIBITION
•Should abnormal situation arise (like burning smell), please stop operating the unit
and remove plug from the socket or turn off the circuit breaker. Contact your agent.
Fault, short circuit or fire may occur if you continue to operate the unit under abnormal
situation.
•Please contact your agent for maintenance.
Improper self maintenance may cause electric shock and fire.
•Please contact your agent if you need to remove and reinstall the unit.
Electric shock or fire may occur if you remove and reinstall the unit yourself improperly.
•Avoid an extended period of direct air flow for your health.
•Do not connect the power cable with an extension cable or do not plug too many leads
of the other electric appliance into the socket where this cable is plugged. In addition,
wire the cable with some allowances to prevent the cable from stretching. Not doing
so will cause an electrical shock, heat generation or fire.
•Do not bundle the power cable, pull it, put something on it, heat it, process it, or put
it between things. Breakage of the power cable may result.
Use of a damaged cable may cause an electrical shock or a fire.
•Do not put objects like thin rods into the panel of blower and suction side because the
high-speed fan inside may cause danger.
PRECAUTIONS DURING SHIFTING OR MAINTENANCE
"OFF"
PROHIBITION
CONNECT EARTH LINE
PROHIBITION
PROHIBITION
PROHIBITION
PROHIBITION
This sign in the figure indicates prohibition. Indicates the instructions that must be followed.

–4 –
•Do not use any conductor as fuse wire, this could cause fatal accident.
•During thunder storm, please stop operating the unit and turn off the circuit breaker.
•Spray cans and other combustibles should not be located within a meter of the air outlets
of both indoor and outdoor units.
As a spray can’s internal pressure can be increased by hot air, a rupture may result.
•The product shall be operated under the manufacturer specification and not for any
other intended use.
•Do not attempt to operate the unit with wet hands. this could cause fatal accident.
•When operating the unit with burning equipments, regularly ventilate the room
to avoid oxygen insufficiency.
•Do not direct the cool air coming out from the air-conditioner panel to face household
heating apparatus as this may affect the working of apparatus such as the electric kettle,
oven etc.
•Please ensure that outdoor mounting frame is always stable, firm and without defect. If
not, the outdoor unit may collapse and cause danger.
•Do not wash the unit with water or place a water container such as a vase on the indoor
unit.
Electrical leakage could be present and cause electric.
•Do not place plants or animals directly under the air flow as it is bad for the plants or
animals.
•Do not climb on the outdoor unit or put objects on it.
•When operating the unit with the door and windows opened, (the room humidity is
always above 80%) and with the air deflector facing down or moving automatically for
a long period of time, water will condense on the air deflector and drips down
occasionally.This will wet your furniture.Therefore, do not operate under such condition
for a long time.
•If the amount of heat in the room is above the cooling or heating capability of the unit (for
example: more people entering the room, using heating equipments and etc.), the preset
room temperature cannot be achieved.
•Indoor unit cleaning must be performed by authorized personnel only. Consult your
sales agent.
Using a commercially available detergent or similar can damage the plastic parts or
clog the drain pipe, causing water to drip with potential electric shock hazard.
•Do not touch the air outlet, bottom surface and aluminum fin of the outdoor
unit.
You may get hurt.
•Do not touch the refrigerant pipe and connecting valve.
Burns may result.
CAUTION
WARNING
PRECAUTIONS DURING OPERATION
"OFF"
DON'T WET
PROHIBITION
PROHIBITION
PROHIBITION
PROHIBITION
DON’T TOUCH
PROHIBITION
PROHIBITION
PROHIBITION
STRICTLY OBSERVE
PRECAUTIONS
PROHIBITION
PROHIBITION
PROHIBITION
PROHIBITION
DON’T TOUCH

–5 –
ENGLISH
DEUTSCHFRANÇAIS
ITALIANOSPANISHPORTUGUÊS
∂ÏÏËÓÈοРУССКИЙ
Drain Hose
Drains the dehumidified water from the indoor unit to the
outdoor during “cooling”or “dehumidifying”operation.
Piping and Wiring
Air Inlets (Rear and left sides)
Air Outlet
When “heating”operation is performed,
cool air blows and when “cooling”or
“dehumidifying”operation is performed,
warm air blows.
Drain Port (Bottom)
Earth Terminal
(Lower section of the side)
Two Way Air Exchange Hose
This vents air from outside the room when the fresh air in is
operating. This vents air within the room to the outside when
the exhaust is operating.
Remote Controller
Send out operation signal to the indoor unit. So as to operate
the whole unit. (Refer page 8)
Fresh Air Window
This blows air from outside into the room while the fresh air in
is operating.
Two Way Air Exchange Fan (Internal)
This operates when the Two Way Air Exchange is operating.
Indoor Unit Indicators
Light
indicator showing the operating condition. (Refer page 7)
Signal Receiver
Receive the signal from the remote controller.
Horizontal deflector/Vertical deflector
(Air outlet)
(Refer page 24)
Air Purification Unit (Internal)
This traps cigarette smoke, pollen, etc.
(Refer page 10)
Pre-Filter (Internal)
To prevent dust from coming into the
indoor unit. (Refer page 27)
NAMES AND FUNCTIONS OF EACH PART
INDOOR UNIT
MODEL NAME AND DIMENSIONS
OUTDOOR UNIT
MODEL WIDTH (mm) HEIGHT (mm) DEPTH (mm)
RAS-D10EX2, RAS-D14EX2790 298 210
RAC-D10EX2, RAC-D14EX2750 548 288
About the outdoor unit:
•When “Stop”is selected during operation of the
indoor unit, the fan of the outdoor unit continues
turning for 10 to 60 seconds to cool the electric
parts down.
•In heating operation, condensate or water due
to defrosting will flow.
Do not cover the drain port of the outdoor unit
because such water may freeze in the chilly area.
•When the outdoor unit is hung on the ceiling,
install the bush and drain pipe on the drain port
and drain water.

–6 –
NAMES AND FUNCTIONS OF EACH PART
Exhaust Pre-Filter
This traps dirt and dust particles in
the air while the exhaust is
operating.
(Refer to page 25)
Nano-Titanium Disinfecting Deodorizing/
Dust Collecting Fresh Air In Filter
This deodorizes and eliminates dust from the air
ventilated from the outside.
(Refer to pages 11, 25)
Fresh Air In Pre-Filter
This traps dirt and dust particles in
the air ventilated from the outside.
(Refer to pages 11, 25)
Front Panel
Two Way Air Exchange Selection Switch
Select one of the following: “Prohibit Two Way Air Exchange”, “Only Exhaust”,
and “Operate Two Way Air Exchange”.
Please refer to page 33 regarding installation when the Two Way Air Exchange
cannot be operated.
(When the device is shipped out of the factory, it is set to “Operate Two Way Air
Exchange”.)

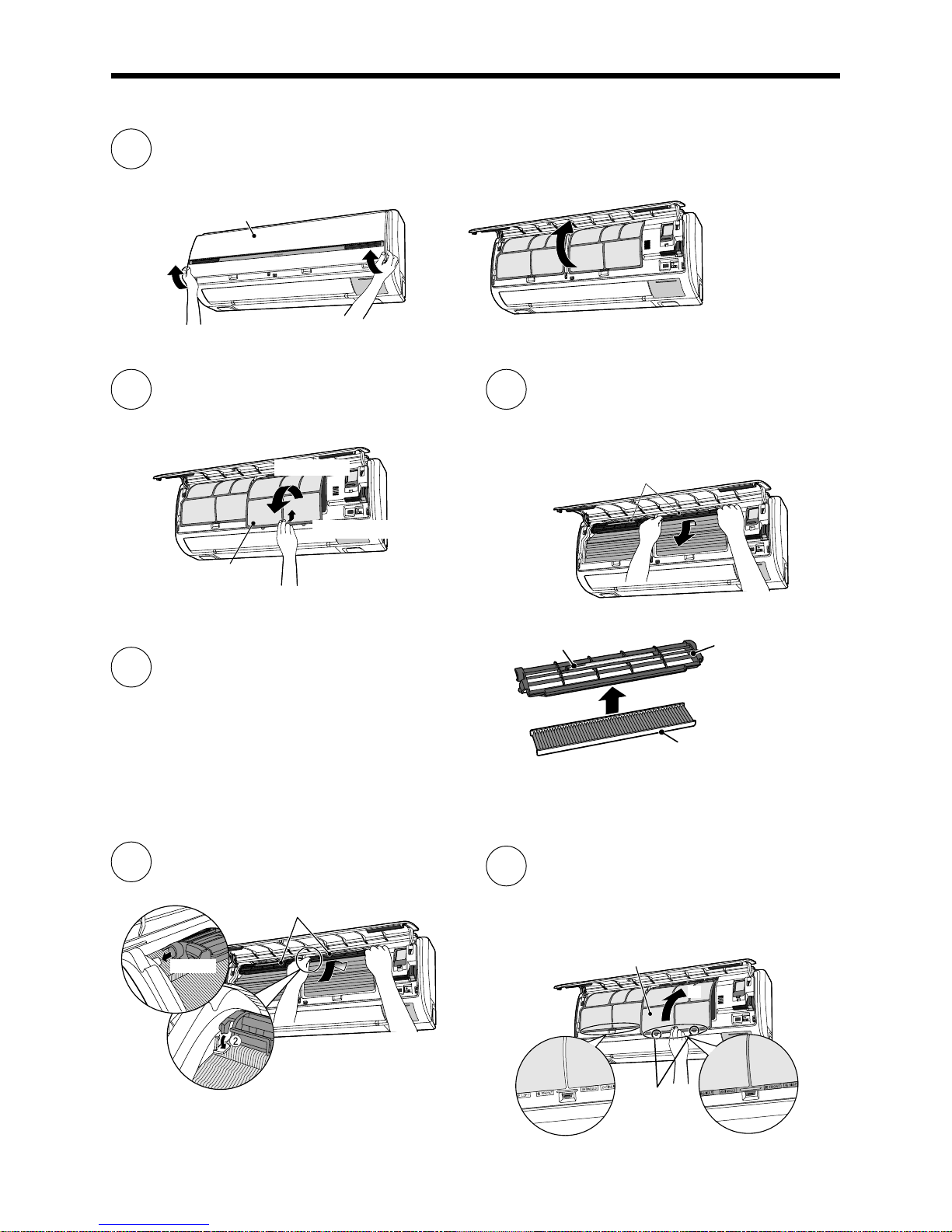

■Operate after opening the front panel. (How to open the front panel, refer to page 10.)
Temporary Switch
If the remote controller does not work due
to battery failure, press this switch to start
and stop operation.
•This temporary operation will be at the
most recent setting mode. (The unit will
immediately go into automatic operation
once power is switched on.)
Power Switch
CAUTION
Turn off the circuit breaker or pull out
the power plug if the unit is not be
operated for a long period.
TWO WAY AIR EXCHANGE DUCT FILTER
✩If the power stays on and the unit is not operated, power is slightly consumed in the control circuit. The power is
saved by turning off the power switch (or the circuit breaker when the power is supplied from the outdoor unit).
INDOOR UNIT CONTROL PANEL
Dirt Sensor
The Dirt Sensor detects cigarette
smoke, sprays (pesticides), alcohol,
etc. (Refer to pages 19, 34)

–7 –
ENGLISH
DEUTSCHFRANÇAIS
ITALIANOSPANISHPORTUGUÊS
∂ÏÏËÓÈοРУССКИЙ
■The “Two Way Air Exchange”lamp blinks in the following cases (It is not abnormal).
Configuring the Two Way Air Exchange Selection Switch to prohibited setting
•When “
Only Exhaust ”is selected and “ Fresh Air In During Sleep Mode Operation ”(page 23) is configured with the
remote controller to operate the
fresh air in (page 18), the device beeps twice and the “Two Way Air Exchange”lamp
blinks (10 seconds).
•When “Prohibit Two Way Air Exchange”is selected and the “
Fresh Air In During Sleep Mode Operation ”(page 23) or the
“Automatic Two Way Air Exchange”(page 19) is configured with the remote controller to operate the
fresh air in (page 18),
the device beeps twice and the “Two Way Air Exchange”lamp blinks (10 seconds).
While Operating the Two Way Air Exchange
•The two way air exchange is stopped during operation to prevent dew condensation on the two way air exchange fan
and hose and to protect the two way air exchange fan due to changes in the room temperature and outside air temperature.
At this time, the “Two Way Air Exchange”lamp blinks (lights for 10 seconds/out for 1 second) (page 32).
■If the “Two Way Air Exchange”lamp blinks except for the above-mentioned case, the “Two Way Air Exchange”
Fan is abnormal. (Refer page 32)
Self Clean Lamp (Yellow)
This lamp lights when the device
is configured to self clean.
(Refer page 19)
Two Way Air Exchange Lamp (Green)
This lamp lights when the fresh air in and
exhaust are operating.
Filter Lamp (Green)
When the device is operated for a total
of about 200 hours, the FILTER lamp
lights indicates that it is time to clean
the filter.The lamp goes out when the
“(AUTO SWING)”button is pressed
while the operation is stopped. But it
does not turn off when self clean is
working.
Operation Lamp (Yellow)
This lamp lights during operation.
The OPERATION LAMP blinks in the following cases during
heating.
(1) During Preheating
For about 2-3 minutes after starting up.
(2) During Defrosting
Defrosting will be performed about once an hour when frost
forms on the heat exchanger of the outdoor unit, for 5-10
minutes each time.
Timer Lamp (Orange)
This lamp lights when the timer is working.
INDOOR UNIT INDICATORS

–8 –
NAMES AND FUNCTIONS OF EACH PART
●Signal Emitting Window/Transmission Sign
Point this window toward the indoor unit when controlling it.
The transmission sign blinks when a signal is sent.
●Display
This indicates the room temperature selected, current time, timer status,
function and intensity of circulation selected.
●START / STOP Button
Press this button to start operation. Press it again to stop operation.
●HEATING Button
Heating mode direct selection.
●AUTO Button
Auto mode direct selection.
●COOLING Button
Cooling mode direct selection.
●TEMPERATURE Button
Use these buttons to raise or lower the temperature setting.
(Keep pressing and the value will change more quickly.)
●FAN Button
This determines the fan speed. Every time you press these buttons, the
intensity of circulation will change from “(AUTO) ↔(HI) ↔
(MED) ↔(LOW) ↔(SILENT)”(This button allows selecting the
optimal or preferred fan speed for each operation mode.)
●SLEEP Button
Use this button to set the sleep timer.
●TWO WAY AIR EXCHANGE Button
Press this button to start the two way air exchange mode.
REMOTE CONTROLLER
•This controls the operation of the indoor unit.The range of control is about 7 meters. If indoor lighting is controlled
electronically, the range of control may be shorter, in some cases, the control signal may not be received. This
unit can be fixed on a wall using the fixture provided. Before fixing it, make sure the indoor unit can be controlled
from the remote controller.
•Handle the remote controller with care. Dropping it or getting it wet may compromise its signal transmission
capability.
•After new batteries are inserted into the remote controller, the unit will initially require approximately 10 seconds
to respond to commands and operate.

–9 –
ENGLISH
DEUTSCHFRANÇAIS
ITALIANOSPANISHPORTUGUÊS
∂ÏÏËÓÈοРУССКИЙ
●SELF CLEAN Button
Use this button to set the self clean mode.
●AUTOMATIC TWO WAY AIR EXCHANGE Button
Press this button to set the automatic two way air exchange mode.
●AIR PURIFIER Button
Press this button to start the air purifier mode.
●FAN SPEED Selector
This determines the fan speed. Every time you press this button, the
intensity of circulation will change from “(AUTO) ➔(HI) ➔(MED)
➔(LOW) ➔(SILENT)”cyclically.
●FUNCTION Selector
Use this button to select the operating mode. Every time you press this
button, the mode will change from “(AUTO) ➔(HEAT) ➔
(DEHUMIDIFY) ➔(COOL) ➔(FAN)”cyclically.
●AUTO SWING Button
Controls the angle of the horizontal air deflector.
●FRESH AIR IN DURING SLEEP MODE Button
Use this button to set the fresh air in during sleep mode.
●RESERVE Button…Time setting reservation.
●CANCEL Button…Cancel time reservation.
●TIMER Control…Use these buttons to set the timer.
●TIME Button…Use this button to set and check the time.
●OFF-TIMER Button …Select the turn OFF time.
●ON-TIMER Button …Select the turn ON time.
●RESET Button
Press this button after the batteries are replaced or when some irregular
operation is found.
AUTO
HEAT
DEHUMIDIFY
COOL
FAN
FAN SPEED
TWO WAY AIR EXCHANGE
TWO WAY AIR EXCHANGE FAN SPEED
EXHAUST
FRESH AIR IN
FRESH AIR IN DURING SLEEP MODE
SILENT
LOW
MED
HI
HI
MED
LOW
SLEEPING
STOP (CANCEL)
START (RESERVE)
START/STOP
TIME
TIMER SET
TIMER SELECTOR
ON TIMER
OFF TIMER
AUTO SWING
SELF CLEAN
AUTOMATIC TWO WAY AIR EXCHANGE
AIR PURIFIER
Precautions for Use
•Do not put the remote controller in the following places.
•In direct sunlight.
•In the vicinity of a heater.
•Handle the remote controller carefully. Do not drop it on the floor, and protect it from water.
•
Once the outdoor unit stops, it will not restart for about 3 minutes (unless you turn the power switch off and
on or unplug the power cord and plug it in again).This is to protect the device and does not indicate a failure.
•If you press the FUNCTION selector button during operation, the device may stop for about 3 minutes for
protection.

–10 –
Open the Front Panel
•Hold both sides of the front panel and lift up.
Front Panel
Removing the Pre-Filter
•Pull out the pre-filters on the right and left.
Removing the Air Purifying Unit
•Remove the air purifying unit (2 pieces) by pulling
out while pushing up with both hands.
Pre-Filter
Attaching the Air Purifying Filter on the
Air Purifying Unit
•Open the air purifying unit and attach the air
purifying filter with the jagged side up. Air Purifying Filter
(Included)
Attaching the Air Purifying Unit Attaching the Pre-Filter
•Please attach the pre-filter with the “FRONT”
indication. (The configuration of the left and right
pre-filters is different.)
Air Purifying Unit
1
4
2 3
56
1Insert
2Pull Out
1Push and Lift
2Insert
■ Please install the filters after turning off the device with the remote controller.
INSTALLING AND VERIFYING THE AIR PURIFYING FILTER/DUCT FILTER (FRESH
Pre-Filter
Air Purifying Unit
Air Purifying Unit
1
DEODORIZING/DUST COLLECTING FRESH AIR IN FILTER)
•This filter can be used for about 2 years. Please
do not wash this filter.This filter is disposable type.
Negative Ion Stick

–11 –
ENGLISH
DEUTSCHFRANÇAIS
ITALIANOSPANISHPORTUGUÊS
∂ÏÏËÓÈοРУССКИЙ
Removing the Fresh Air In Pre-Filter
•Please pull out.
Removing the Nano-Titanium Disinfecting
Deodorizing/Dust Collecting Fresh Air In
Filter Case
•Please hold the
handle of the Nano-
Titanium Dis-
infecting Deodori-
zing/Dust Collecting
Fresh Air In Filter
Case and pull out.
Attaching the Nano-Titanium Disinfecting
Deodorizing/Dust Collecting Fresh Air In
Filter
Attaching the Nano-Titanium Disinfecting
Deodorizing/Dust Collecting Fresh Air In
Filter Case
•Please hold the
handle of the case
and attach along
the slot, and then
keep pressing until
the case clicks.
•Improper filter
installation may
result in abnormal
noises.
Attaching the Fresh Air In Pre-Filter
•Please hold the handle and install the filter by
pushing it along the inner grooves.
Closing the Front Panel
•Hold the front panel with both hands and pull
forward, then down.
•Keep pressing the front panel in the direction of
the arrow (3 places) until the panel clicks.
Front Panel
•If the front panel is loose, the panel may come off and fall.
•When opening the front panel, please do not use excessive force. If the front panel
comes off the device, this may cause it to malfunction.
•Please do not operate the device without the pre-filter. If dust enters the machine, this
may cause it to malfunction.
•When removing and installing the pre-filter, please take sufficient care not to cut your
hand with the fin of the heat exchanger.
9
7 8
1211
10
CAUTION
Groove
AIR IN PRE-FILTER, EXHAUST PRE-FILTER, NANO-TITANIUM DISINFECTING
Nano-Titanium Disinfecting Deodorizing/Dust
Collecting Fresh Air In Filter (included)

–12 –
VARIOUS FUNCTIONS
•If there is a power failure, operation will be automatically restarted when the power is resumed with previous
operation mode and airflow direction. (As the operation is not stopped by remote controller.)
•If you intend not to continue the operation when the power is resumed, switch off the power supply.
When you switch on the circuit breaker, the operation will be automatically restarted with previous operation
mode and airflow direction.
Note: 1. If you do not require Auto Restart Control, please consult your sales agent.
2. Auto Restart Control is not available when Timer or Sleep Timer mode is set.

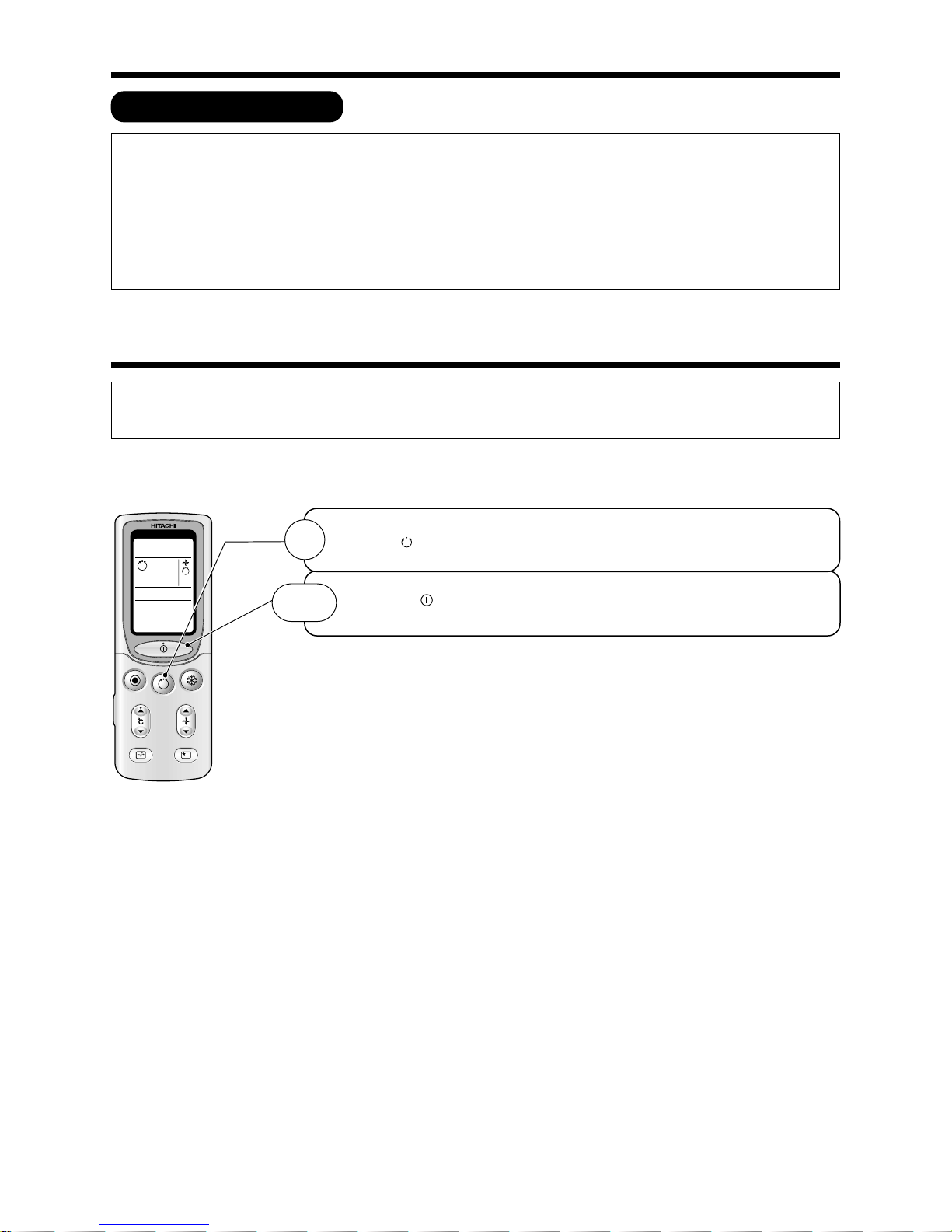

AUTOMATIC OPERATION
Press the (START/STOP) button.
■Direct selection
Press the (AUTO) button. Operation start with a beep at previous AUTO mode.
1
STOP
AUTO RESTART CONTROL
The device will automatically determine the mode of operation, HEAT or COOL depending on the initial room
temperature. The selected mode of operation will change when the room temperature varies.

–13 –
ENGLISH
DEUTSCHFRANÇAIS
ITALIANOSPANISHPORTUGUÊS
∂ÏÏËÓÈοРУССКИЙ
You can raise or lower the temperature setting as necessary by maximum of 3°C.
Press the temperature button and the temperature setting will
change by 1°C each time.
•The preset temperature and the actual room temperature may vary somewhat
depending on conditions.
Press the FUNCTION selector so that the display indicates the
(AUTO) mode
of operation.
•When
AUTO has been selected, the device will automatically determine the
mode of operation, HEAT or COOL depending on the current room temperature.
•When AUTO is first selected, the device will determine the current room
temperature and select the proper operation mode accordingly.
•When the air conditioner has adjusted the room’s temperature to the near
preset temperature, it will begin to monitor operation. If the room temperature
subsequently changes, the air conditioner will once again select the appropriate
operation (heating or cooling) to adjust the temperature to the preset
temperature. The monitoring operation range is ±3°C relative to the preset
temperature.
•If the mode automatically selected by the unit is not satisfactory, manually
change the mode setting (heat, dehumidify, cool or fan).
Press the (START/STOP) button.
Operation starts with a beep.
Press the button again to stop operation.
■As the settings are stored in memory in the remote controller, you only have to press
the (START/STOP) button next time.
Press the (FAN SPEED) button to select AUTO, LOW and SILENT.
1
■Manual selection
START
STOP

–14 –

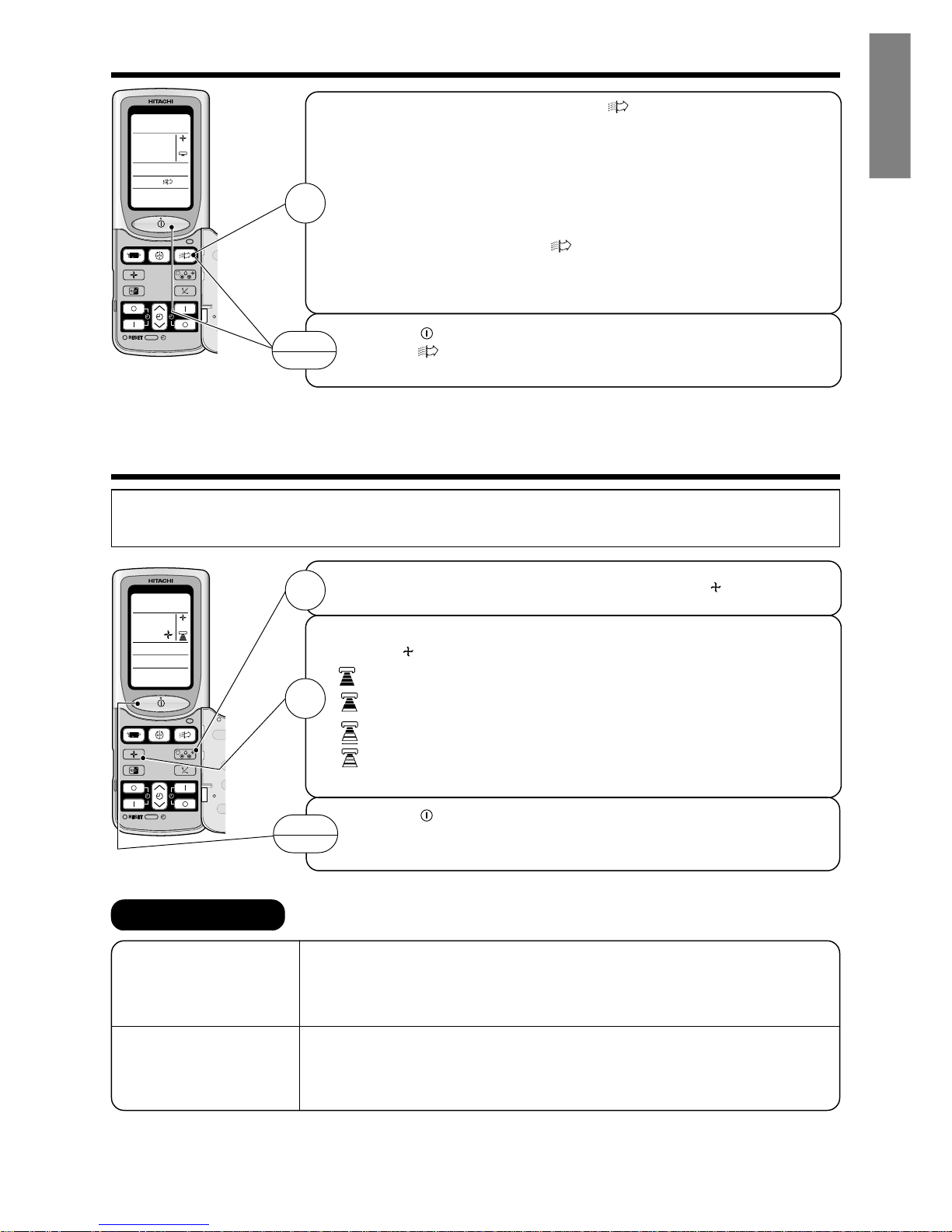

HEATING OPERATION
Press the FUNCTION selector so that the display indicates (HEAT).
Set the desired FAN SPEED with the (FAN SPEED) button (the display
indicates the setting).
(AUTO) : The FAN SPEED changes automatically according to the
temperature of the air which blows out.
(HI) : Economical as the room will become warm quickly. But you
may feel a chill at the beginning.
(MED) : Quiet.
(LOW) : More quiet.
(SILENT) : Silent.
■As the settings are stored in memory in the remote controller, you only have to press
the (START/STOP) button next time.
1
Press the (HEAT) button. Operation start with a beep at previous HEAT mode.
1
Press the (START/STOP) button.
■Direct selection
■Manual selection
STOP
•Use the device for heating when the outdoor temperature is under 21°C. When it is too warm (over 21°C), the
heating function may not work in order to protect the device.
•In order to keep reliability of the device, please use this device above -15°C of the outdoor temperature.
DEFROSTING
Defrosting will be performed about once an hour when frost forms on the heat exchange of the outdoor unit, for
5~10 minutes each time.
During defrosting operation, the operation lamp blinks in cycle of 3 seconds on and 0.5 second off. The maximum
time for defrosting is 20 minutes. (If the piping length used is longer than usual, frost will likely to form.)
2
Press the (START/STOP) button.
Heating operation starts with a beep.
Press the button again to stop operation.
START
STOP
Set the desired room temperature with the TEMPERATURE buttons (the display
indicates the setting).
The temperature setting and the actual room temperature may vary somewhat
depending on conditions.
3

–15 –
ENGLISH
DEUTSCHFRANÇAIS
ITALIANOSPANISHPORTUGUÊS
∂ÏÏËÓÈοРУССКИЙ
DEHUMIDIFYING OPERATION
Press the FUNCTION selector so that the display indicates (DEHUMIDIFY).
Press the (FAN SPEED) button to select LOW and SILENT.
Press the (START/STOP) button.
■When you want to change the operation mode, please use the FUNCTION
selector.
■Set the desired temperature is available.
■You also can use the FUNCTION selector to select this operation.
START
STOP
•Dehumidifying takes place with a target temperature which is slightly lower than the room temperature setting.
(However, target temperature is 16°C for a temperature setting of 16°C.) If the room temperature becomes lower
than the target value, operation stops. If the room temperature becomes higher than the target value, operation
restarts.
•The preset room temperature may not be reached depending on the number of people present in the room
conditions.
DEHUMIDIFYING FUNCTION
Use the device for dehumidifying when the room temperature is over 16°C.When it is under 15°C, the dehumidifying
function will not work.
1

–16 –
Set the desired room temperature with the TEMPERATURE buttons (the display
indicates the setting).
The temperature setting and the actual room temperature may vary somewhat
depending on conditions.
COOLING OPERATION
Set the desired FAN SPEED with the (FAN SPEED) button (the display
indicates the setting).
(AUTO) : The FAN SPEED is HI at first and varies to MED automatically
when the preset temperature has been reached.
(HI) : Economical as the room will become cool quickly.
(MED) : Quiet.
(LOW) : More quiet.
(SILENT) : Silent.
Press the (START/STOP) button.
■Direct selection
■Manual selection
STOP
Press the FUNCTION selector so that the display indicates (COOL).
1
2
3
Press the (COOL) button. Operation start with a beep at previous COOL
mode.
1
Press the (START/STOP) button. Cooling operation starts with a beep. Press
the button again to stop operation. The cooling function does not start if the
temperature setting is higher than the current room temperature (even though
the (OPERATION) lamp lights).
The cooling function will start as soon as you set the temperature below the
current room temperature.
■As the settings are stored in memory in the remote controller, you only have to press
the (START/STOP) button next time.
START
STOP
Use the device for cooling when the outdoor temperature is 22-42°C.
If humidity is very high (over 80%) indoors, some dew may form on the air outlet grill of the indoor unit.

–17 –
ENGLISH
DEUTSCHFRANÇAIS
ITALIANOSPANISHPORTUGUÊS
∂ÏÏËÓÈοРУССКИЙ
AIR PURIFIER OPERATION (FAN)
The air purifier is operated by pressing the (AIR PURIFIER) button.
•The device beeps when it has received the signal and then the air purifier
starts.
•The OPERATION lamp on the indoor unit indicators turn on.
•The fan speed can be changed as desired.
Either HI, MED, LOW or SILENT can be selected.
The power of the air purifier is increased by increasing the speed of the air
conditioner’s fan, by pressing the (AIR PURIFIER) button while the HEAT,
COOL or DEHUMIDIFY operates.
(Depending on the operation conditions, there is a case that the fan speed does
not increase.)
FAN OPERATION
Press the (START/STOP) button to stop operation.
Press the (AIR PURIFIER) button again to cancel the air purifier operation.
(During HEAT, COOL or DEHUMIDIFY operation)
Press the FUNCTION selector so that the display indicates (FAN).
Press the (START/STOP) button.
Fan operation starts with a beep.
Press the button again to stop operation.
Press the (FAN SPEED) button.
(HI) : The strongest air blow.
(MED) : Quiet.
(LOW) : More quiet.
(SILENT) : Silent
•The fan speed will automatically change according to the temperature of discharged
air.
•As room temperature reaches the preset temperature, a very light breeze will blow.
•Operation starts in the “HI”mode to reach the preset temperature.
•As room temperature approaches the preset temperature, fan speed automatically
switches to “LOW”.
For the heating operation
For the cooling operation
1
2
START
STOP
FAN SPEED (AUTO) …When the AUTO fan speed mode is set in the cooling/heating operation:
1
Y ou can use the device simply as an air circulator. Use this function to dry the interior of the indoor unit at the end
of summer.
STOP
CANCEL

–18 –
TWO WAY AIR EXCHANGE OPERATION
(Please refer to page 32, Understanding The Operating Mechanism)
Press the button.
•The device beeps when it has received the signal
and the two way air exchange starts. By pressing
the button, the display changes as on the right.
•The OPERATION and the "Two Way Air Exchange"
lamps on the indoor unit indicators turns on.
•Although the ventilated air is deodorized by the
Nano-Titanium Disinfecting Deodorizing/Dust
Collecting Fresh Air In Filter, the odor of the
ventilated air may enter the room according to the
environment where the filter is utilized. If there is
concern regarding any odors, please stop the
device.
•Operate the exhaust for about 10 minutes every 2
hours during fresh air in to prevent dew
condensation on the two way air exchange fan and
hose and to prevent dust from plugging the hose.
•It is recommended that the self clean operation is
configured to dry the inside of the two way air
exchange hose (Refer page 30).
Press the (START/STOP) button.
Press the button. Until Fresh Air In or Exhaust on the remote controller
turns off. (During HEAT, COOL and DEHUMIDIFY operation)
Turns off
(Stop)
•Operate the fresh air in and exhaust by operating the two way air exchange fan.
•The fresh air in and exhaust can be operated in combination by configuring the Two Way Air Exchange Operation
while the air conditioning operates.
•The fresh air in and exhaust cannot be operated simultaneously.
WARNING
•If the fresh air in/exhaust function is insufficient when the air conditioning is utilized in a sealed room or
simultaneously with a heating appliance, open a window often or ventilate with a ventilating fan.
•If ventilation is insufficient, oxygen deficiency may cause asphyxiation.
•When the humidity inside the room is HIGH (more than 70%), do not use the fresh air in operation.
Dew condensation may be the cause of failure.
1
STOP

–19 –
ENGLISH
DEUTSCHFRANÇAIS
ITALIANOSPANISHPORTUGUÊS
∂ÏÏËÓÈοРУССКИЙ
SELF CLEAN OPERATION
(Please refer to page 34, Understanding The Operating Mechanism)
To cancel, press the button again.
•The on the remote controller turns off.
•The “TWO WAY AIR EXCHANGE”lamp on the indoor unit indicators turns
off.
To cancel, press the
(SELF CLEAN) button again.
•The (SELF CLEAN) button on the remote controller turns off.
•The “SELF CLEAN”lamp on the indoor unit indicators turns off.
AUTOMATIC TWO WAY AIR EXCHANGE OPERATION
(Please refer to page 34, Understanding The Operating Mechanism)
•By configuring Self Clean operation, once cooling and dehumidifying operation are performed, the device
automatically performs Self Clean operation suppressing the outbreak of mold. (This does not eliminate the
presence of mold or have a bactericidal effect.)
•As this operation cause the two way air exchange fan and hose dry, it is recommended that to set Self Clean
operation when utilizing the fresh air in operation (Refer page 18).
•By configuring the Automatic Two Way Air Exchange, the “Dirt Sensor”detects the dust in the room’s air. If the air
is dirty, the air conditioning automatically operates the blower and exhaust and when the air becomes clean, the
Fresh Air In is operated.
•When the prohibit Two Way Air Exchange is selected with the Two Way Air Exchange Selection Switch (Refer
page 6), please do not configure the Automatic Two Way Air Exchange. Aside from , the remote controller is
not able to configure any other settings.
•If Fresh Air In or Exhaust is operated using the button during Automatic Two Way Air Exchange Set, Fresh Air
In or Exhaust Operation perform in the priority.
Press the button.
•The device beeps when it has received the signal and the on the remote
controller turns on.
•The “TWO WAY AIR EXCHANGE”lamp on the indoor unit indicators turns on.
1
CANCEL
CANCEL
Press the (SELF CLEAN) button.
•The device beeps when it has received the signal and the
(SELF CLEAN)
button on the remote controller turns on.
•The “SELF CLEAN”lamp on the indoor unit indicators turns on.
•This operates for about one hour and automatically stops.
•The “OPERATION”lamp on the indoor unit indicators turns on during the self
clean operation and then the “SELF CLEAN”lamp blinks. (When drying the
two way air exchange fan and hose operation is performed, the “TWO WAY
AIR EXCHANGE”lamp also turns on.)
•When cooling and dehumidifying operation are performed for a short time (less
than 1 hr.), the Self Clean operation does not perform.
1
•Exhaust operation may not perform in Automatic Two Way Air Exchange Operation when the air inside the room
is dirt.
In this case, please operate Exhaust operation manually by pressing the (Two Way Air Exchange) button or
open the windows for ventilation.
CAUTION

–20 –
Example: The current time is P.M.1:30.
You can set only one of the OFF-timer,
ON-timer and ON/OFF-timer.
•The device will turn on (off) and
off (on) at the designated times.
•The switching occurs first at the
preset time that comes earlier.
•The arrow mark appearing on
the display indicates the
sequence of switching opera-
tions.
HOW TO SET THE TIMER
Time
After you change the
batteries:
1 Set the current time with the TIMER
control button.
NOTE
OFF-Timer
1 Press the (OFF-TIMER) button.
The (OFF) mark blinks on the display.
You can set the device to turn off at
the present time.
Start Stop
The device will turn on at the designated
times.
1 Press the (ON-TIMER) button.
The (ON) mark blinks on the display.
Stop Start
2 Set the turn-off time
with the TIMER control
button. Press the
(RESERVE) button.
3 Press the (ON-
TIMER) button so that the
(OFF) mark lights and
the (ON) mark blinks.
OFF TIMER
ON TIMER
RESERVE
CANCEL
TIME (Current
Time)
ON-Timer
➝
➝
Start Stop
ON/OFF-Timer
1 Press the (OFF-
TIMER) button so that
the (OFF) mark blinks.
How to Cancel Reservation
Point the signal window of the remote controller toward the indoor unit, and press the (CANCEL) button.
The (RESERVED) sign goes out with a beep and the (TIMER) lamp on the indoor unit indicators turns off.
