Hitachi RCI-1.5UNE1NH Manual

HPM2017008HA
INSTALLATION AND MAINTENANCE MANUAL
Installation and Maintenance Manual
HITACHI SPLIT AIR CONDITIONERS
Models
< Outdoor Units >
< Indoor Units >
RAS-1.5UNESNH1*
RAS-2.0UNESNH1*
RAS-3.0UNESNH1
RAS-4.0UNESNH1
RAS-5.0UNESMH1
RAS-6.0UNESMH1
RAS-6.5UNESMH1
RCI-1.5UNE1NH*
RCI-2.0UNE1NH*
RCI-3.0UNE1NH
RCI-4.0UNE1NH
RCI-5.0UNE1NH
RCI-6.0UNE1NH
RCI-6.5UNE1NH
Heat Pump Type
Heat Pump Type
RCI-1.5TNE1NH*
RCI-2.0TNE1NH*
RCI-3.0TNE1NH*
RCI-4.0TNE1NH*
RCI-5.0TNE1NH*
RCI-6.0TNE1NH*
RCI-6.5TNE1NH*
Cooling Only Type
RAS-1.5TNESNH1*
RAS-2.0TNESNH1*
RAS-3.0TNESNH1*
RAS-4.0TNESNH1*
RAS-5.0TNESMH1*
RAS-6.0TNESMH1*
RAS-6.5TNESMH1*
Cooling Only Type

This manual should be considered as a permanent part of the air conditioning equipment and should remain with
the air conditioning equipment.
The numbers in the model represent the cooling capacity HP. For example,
●
RCI-1.5UNE1NH or RAS-1.5UNESNH1 represent 1.5HP
●We pursue a policy of continuous improvement in design and performance of products. Company reserves
● We cannot anticipate every possible circumstance that might involve a potential hazard.
● This air conditioner is designed for standard air conditioning only. Do not use this air conditioner for
purposes such as drying clothes, refrigerating foods or for any other cooling or heating process.other
● The installer and system specialist shall secure safety against leakage according to local regulations
or standards.
● No part of this manual may be reproduced without written permission.
● Signal words (DANGER, WARNING and CAUTION) are used to identify levels of hazard seriousness.
Definitions for identifying hazard levels are provided below with their respective signal words.
Immediate hazards which WILL result in severe personal injury or
death.
Hazards or unsafe practices which COULD result in severe personal
injury or death.
Hazards or unsafe practices which COULD result in minor personal
injury or product or property damage.
: Useful information for operation and/or
maintenance.
● It is assumed that this air conditioner will be operated and serviced by English speaking people.
If this is not the case, the customer should add safety, caution and operating signs in the native language.
● If you have any questions, contact your dealer.
● This manual gives a common description and information for the air conditioner you operate as well as
for other models.
● This air conditioner has been designed for the following temperatures. Operate it within this range.
● Storage condition: Temperature -25~60℃
Humidity 30%~80%
IMPORTANT NOTICE
Series Mode Outdoor operation temperature range
Maximum(℃) Minimum(℃)
Heat Pump Cooling Operation 48 -15
Heating Operation 24 -15
Cooling Only Cooling Operation 48 -15
the right to vary specifications without prior notice.

●
CHECKING PRODUCT RECEIVED
Upon receiving this product, inspect it for any shipping damage.Claims for damage, either apparent
or concealed, should be filed with the shipping company immediately.
●Check the model number, electrical characteristics (power supply,voltage and frequency) and
accessories to determine if they are correct.
The standard utilization of the unit shall be explained in this manual.
Therefore, the utilization of the unit other than those specified in this manual is not recommended.
Please contact your dealer, as the occasion arises.
We recommend that this air-conditioner is installed properly by qualified in personnel accordance with
the installation instructions provided with the unit.
Before installation, check if the voltage of the power supply at installation site is the same as the voltage
shown on the nameplate.
Do not perform any alterations to this product, otherwise, it may possibly cause water
leakage, breakdown, short-circuit, electric shock, fire, and so on.
Piping and welding work should be carried out far away from the flammable explosive
material vessels, including the air-conditioner refrigerant, to guarantee the security of
the site.
To protect the air-conditioner from heavy corrosion, avoid installing the outdoor unit
where can splash directly onto it or in sulphurous air near a spa. Do salt water not
install the air-conditioner where excessively high heat-generating objects are
placed.
If the supply cord is damaged, it must be replaced by the factory or its service
department danger.to avoid
The place where this product is installed must have reliable electrical earth facility and
protections. Please do not connect the grounding of this product to various kinds of air-
feeding ducts, drain piping, lightning protection facility as well as other piping lines to
avoid an electric shock and damages caused by other factors.
Wiring must be done by a qualified electrician. All the wiring must comply with the local
electrical codes.
Consider the capacity of the electric current of your electrical meter and socket before
installation.
The power wire where this product is installed independent should have leakage
protective provided for this device and the electric current over-load protection device
product.
This appliance is not intended for use by persons (including children) who lack of
experience and knowledge , unless they of using air-conditioner are supervised by
adults. Children should be supervised to ensure that they do not play with the
appliance.
Means for disconnection to provide disconnection in all poles, must be complete
incorporated in the fixed wiring in accordance with the wiring regulations.
When abnormalities like burnt smell, deformation, fire, smoke, and so on is observed,
using the
stop and so on is observed, stop air conditioner, cut off the main power
supply immediately and contact the dealer.
DANGER
WARNING

Contents
Safety Precautions..............................................................................................................1
Identification of Parts .........................................................................................................3
Before Operation.................................................................................................................5
Diagram of Refrigerant Cycle & Wiring.............................................................................8
1. Refrigerant Flow Diagram .................................................................................................8
2. Electrical Wiring Diagram..................................................................................................8
Installation and Maintenance.............................................................................................9
1. Safety Notice.....................................................................................................................9
2. The Tools and Instruments for Installation ......................................................................10

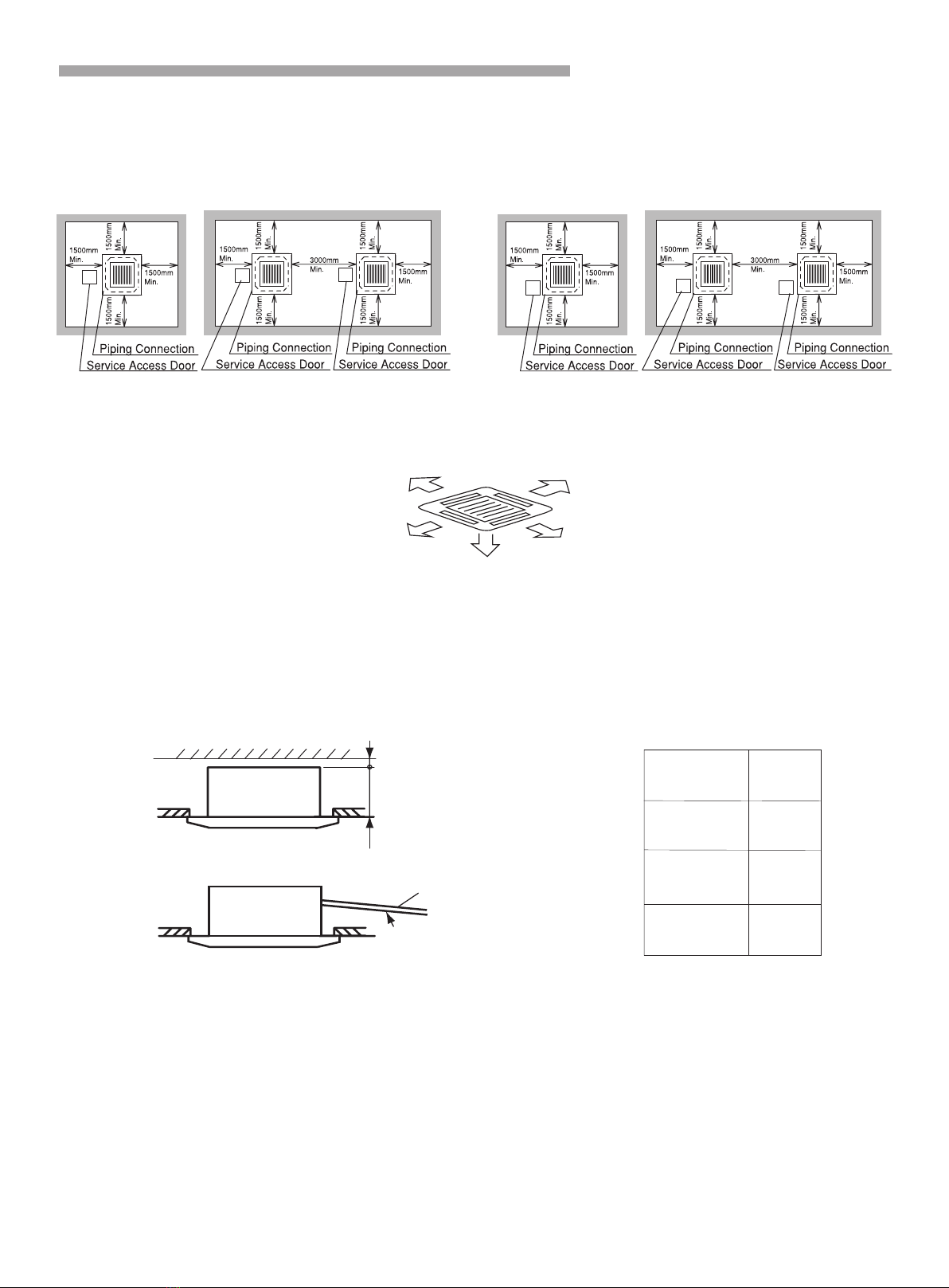

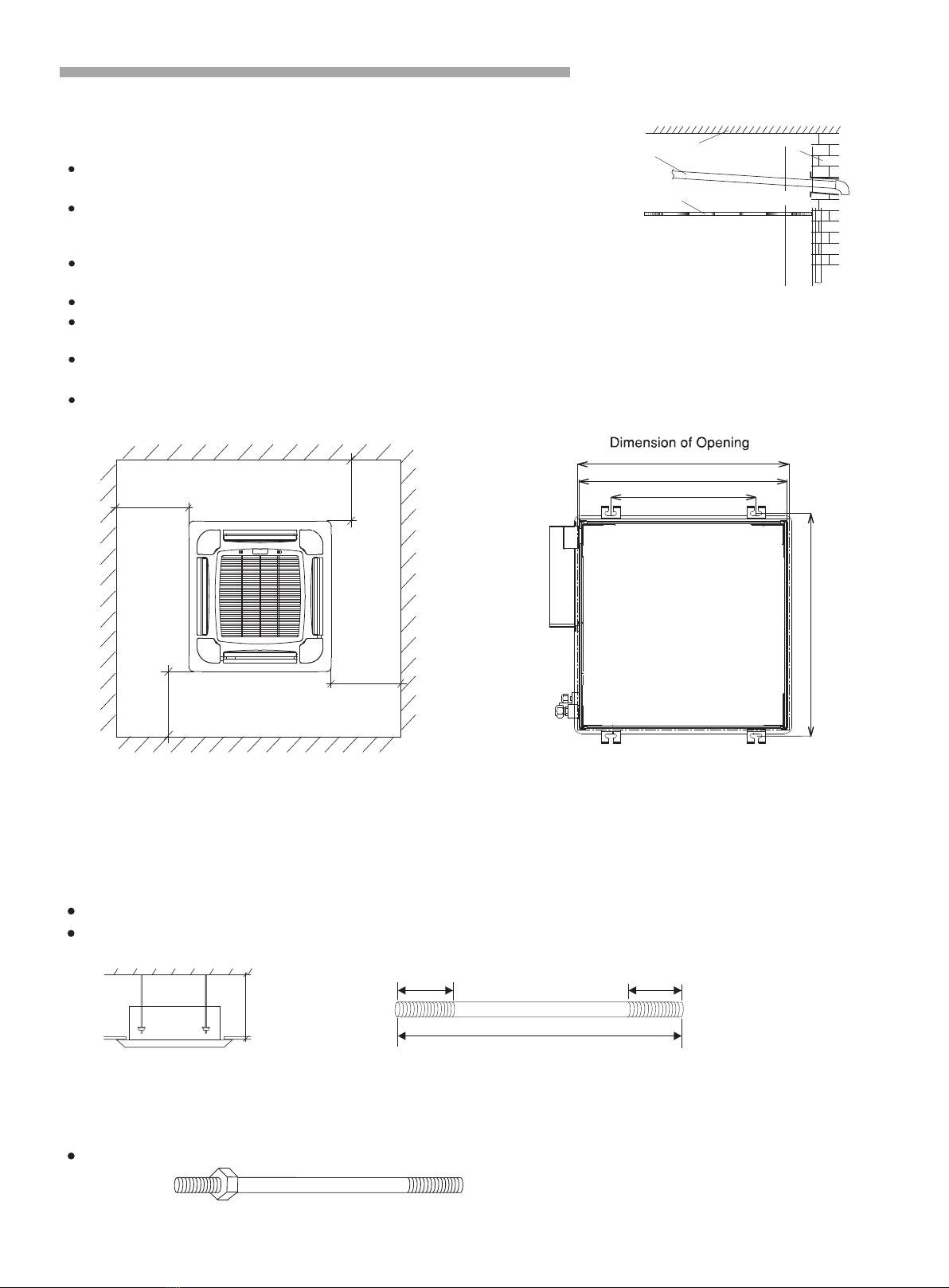

3. The Installation of the Indoor Unit ..................................................................................10
3.1 The Initial Check .......................................................................................................11

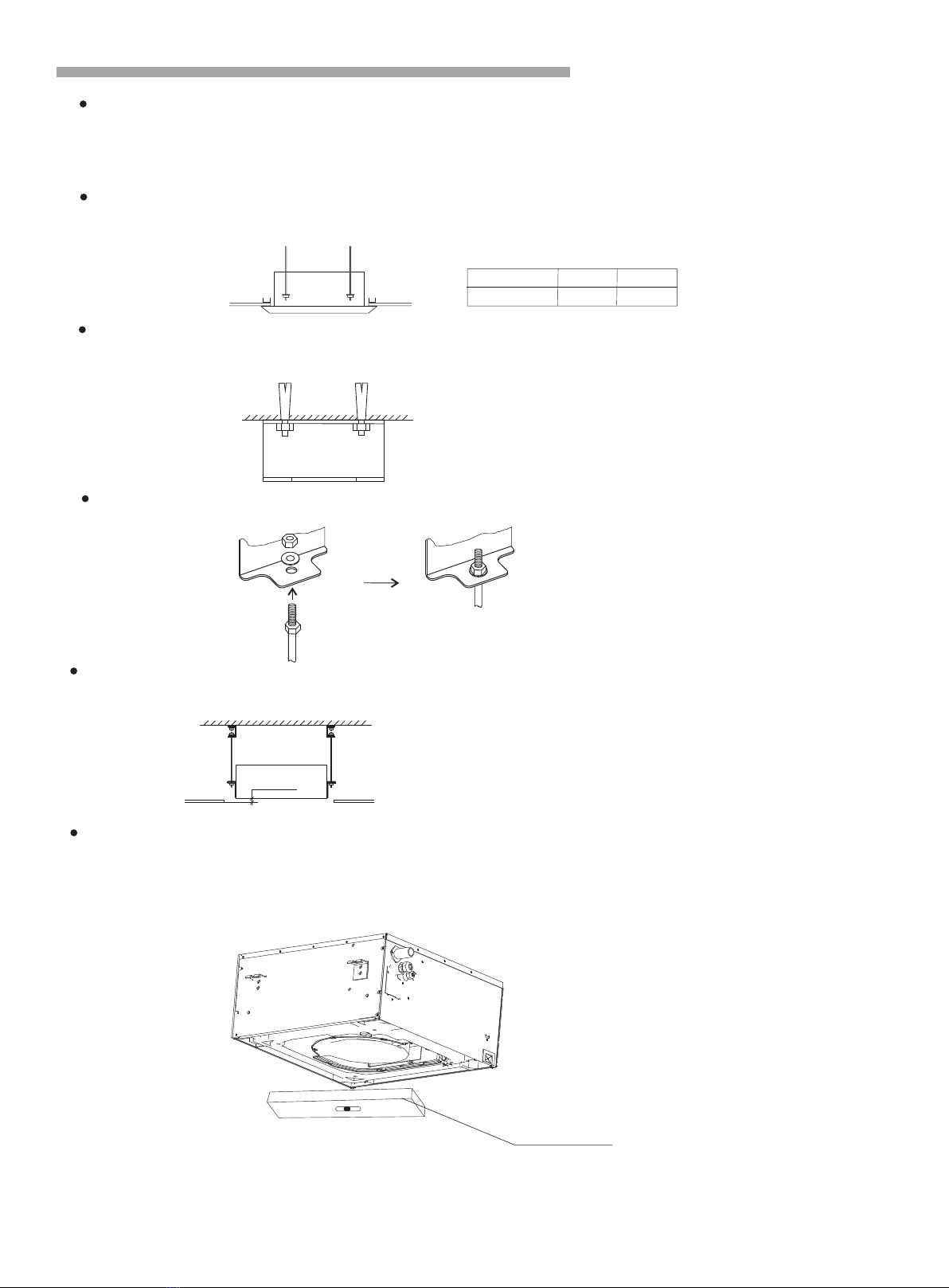

3.2 Installation(1.5HP~2HP) ...........................................................................................13
3.3 Installation(3HP~6.5HP) ...........................................................................................15
3.4 Installation Details for Air Panels ..............................................................................17
4. The Installation of Outdoor Unit ......................................................................................18
4.1 The Initial Check .......................................................................................................18
4.2 Installation.................................................................................................................18
4.3 Refrigerant Length between Indoor and Outdoor .....................................................19
5. Refrigerant Piping ...........................................................................................................20
5.1 The Piping Material...................................................................................................20
5.2 The Piping connection ..............................................................................................20
5.3 Air Exhaust ...............................................................................................................21
6. Drain Piping ....................................................................................................................22
7. Electrical Wiring ..............................................................................................................24
7.1 General Check..........................................................................................................24
7.2 Electrical Wiring Connection.....................................................................................24
8. Test Run..........................................................................................................................25
9. Electrical installation .......................................................................................................26

1
Symbols in this Installation Manual are interpreted as shown below:
Be sure not to do.
The feature of the appliance,
instead of a fault.
Pay attention to such a situation.
Grounding is necessary.
Be sure to follow the instruction.
Do not use the power supply circuit
breaker or pull off the plug to turn it
off during operation. This may cause
a fire due to spark, etc.
Avoid dirt accumulation on power
supply circuit breaker. Connect
the power supply cord to it firmly
and correctly, Otherwise it may
lead to electric shock or a fire
Do not , pull apply excess pressure
or press the power supply cord,
otherwise, the power supply cord can
break leading to electric shock or fire.
Never insert a stick or similar object
to the unit. Since the fan is rotating
at high speed, this may cause an
Do not repair the appliance on your
own, this may lead to electric shock
and so on.
Turn off the appliance first and then
cut off power supply when appliance
It is harmful for your health if you are
exposed to cold air for prolonged
period of time. Hence it is
Prevent the air flow from reaching the
gas burners and stove.
Do not operate the unit with wet
hands.
It is user's responsibility to make the
appliance grounded according to
local codes or ordinances by a
licensed person.
OFF OFF
OFF
ON
ON ON
Warning: Incorrect handling could
cause a serious hazard, such as death,
serious injury, etc.
Provideaccurate power supply
in accordance with the rating
plate requirement. Otherwise,
serious faultsmay occur or a fire
Safety Precautions
break out due to insufficient
contact. may be break out.
injury.
recommended for uniform
distribution of airflow in the room.
malfunctions.

Safety Precautions
2
Features of protector
Inspection
Noise pollution
The protective device will work at
following cases:
Turning off the appliance and restarting it at
once or changing mode during operation,
you need to wait at least 3 minutes.
After operating for a long time , the air
conditioner should be inspected on the
following items:
Overheat of the power supply cord
and plug or even a smell. burnt
Abnormal operating sound or vibration.
Water leakage from indoor unit.
Electrification of metal cabinet.
Stop the air conditioner if above trouble
occurs.
It is advisable to have a detailed inspection
after using the appliance for 5 years even
if none of the above condition occurs.
Install the air conditioner at a place that
can bear its weight to for quiet operation.
Features of HEATING modeFeatures of HEATING mode
Preheating
It is hard to increase the room temperature when outdoor temperature is very low. lt might
take longer time if the working temperature range not closer to the operation limits.
Defrosting
At the beginning of HEATING operation, the airflow from indoor unit is discharged 2-5
minutes later.
During HEATING operation the appliance will defrost automatically to improve
efficiency. This procedure usually lasts for 2-10 minutes. During defrosting, fans stop
operation. After defrosting completes, it returns to "HEATING" mode automatically.
Safety Precautions
Operating condition
The protective device may trip and stop the if it is
operated outside allowed temperature range.
If the air conditioner runs in "COOLING" or
"DRY" mode with door or window open
for a long time when relative humidity is above
85%, dew may drip down from the air outlet.

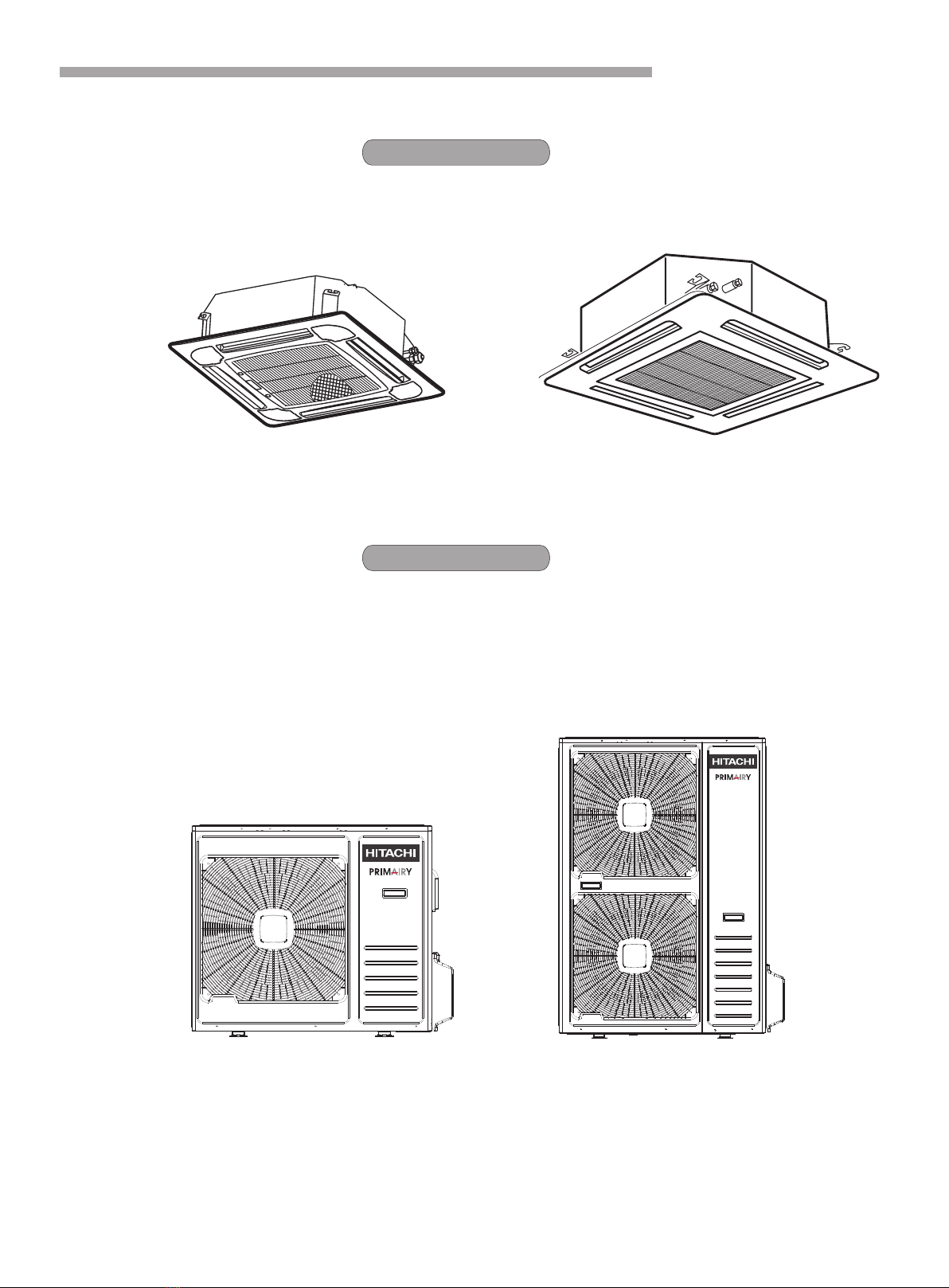

Indoor unit
outdoor unit
Identification of Parts
3.0~6.5HP
1.5~5.0HP
1.5/2.0HP
6.0/6.5HP
3
Consequently, the shape may differ from that of the air conditioner you have selected.
Note: The figures are based on the external views of a standard model.

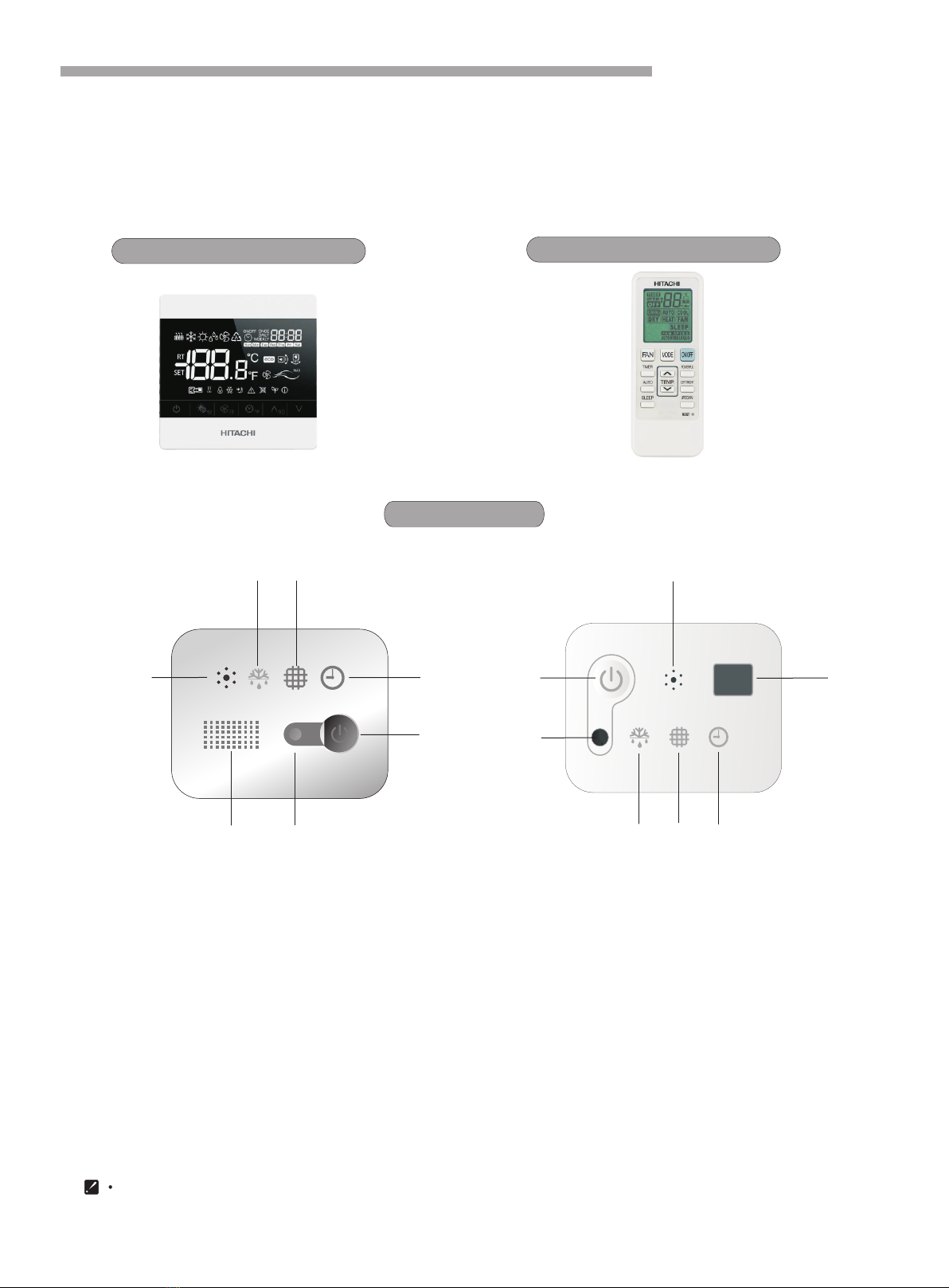

Display Panel
56
4
62
1
13
754
2
37
HCWA21NEWH
Wire Controller
Remote Controller
Identification of Parts
Remote Controller (Optional)
You can control the air-conditioner with the wired controller or remote controller.
It is used for power ON/OFF, setting the operation mode, temperature, fan speed and other functions.
There are different types of remote controllers that can be used.
Operation instructions will be further specified in remote controller's manual .
Please read it carefully before using this appliance and keep it for future reference.
The figures in this manual are based on the external view of a standard model.
Consequently, the shape may differ you have selected.for the air conditioner model
*It can be set or canceled by professional after-sale staff.
4
1
Run indicator (Red)
It lights on during operation. It lights off during SLEEP mode.
2 Emergency switch
The filter clean indicator is displayed on the screen when this switch is pressed. The unit will stop
operation if you continue to press this button, if pressed for more than 5s, the unit will operate in
3 Timer indicator (Green)
It lights on when timer is in use. It lights off when timer completes.
4 Filter clean (Yellow)
It lights on when the filter should be cleaned.
5 Defrost indicator (Green)
It lights on during defrosting and it lights off when defrosting is complete.
6 Buzzer
It rings when the signal from remote controller is received.
7 Infrared receiver
Receives signal from the remote controller.
cooling mode.
Remote Controller
HCRA31NEWH

5
Before Operation
●
Supply electrical power to system for approximately 12 hours before start-up after long time shutdown.
●Do not start the system immediately after power supply, it may cause a compressor failure, because the
compressor is not heated well.
●Make sure that the outdoor unit is not covered with snow or ice. If covered, remove it by using hot water
(approximately 50℃).If the water temperature is more than 50℃, it will damage the plastic parts.
●When the system is started after a long time shutdown of more than 3 months, it is recommended that the
system be checked by your service dealer.
●Turn OFF the main switch when the system is stopped for a long period of time. If the main switch is not
turned OFF, electricity is consumed because the oil heater is always energized during compressor stopping.
Heating capacity depends on external factors like outdoor unit temperature. Heating capacity might decrease if outdoor ambient
temperature is too low.
●
Cold air prevention
In several minutes after the heating mode is started, the fan of the indoor unit will not run until the heat exchanger of the indoor
unit reaches a certain temperature to prevent cold draft.
●
When the outdoor temperature is too low, frost or ice may form on the outdoor heat exchanger, reducing
heating performance. When this happens, a defrosting system of the air conditioner will operate. At the same time the fan
in the indoor unit stops (or runs at a very low speed in some cases), to prevent cold draft. After defrosting is over, the heating
operation and fan speed restarts.
●
●
1. Special Remarks
●
To protect compressor, it will be continue to be off for at least 3 minutes once it has stopped.
● 5 minutes protection
Compressor must run running. In this 5 minutes, compressor will not stop even if the roomat least for 5 minutes once it starts
temperature reaches the setting temperature point unless you use remote controller to turn off the unit (all indoor unit can be
turned off by user).
● Cooling operation
The fan of the indoor unit will never stop running during the cooling operation. It remains running even if the compressor stops
working.
Anti-freezing function during cooling
When the temperature of the air from the indoor outlet is too low, the unit will run for some time under the fan mode, to avoid
frost or ice forming in the indoor heat exchanger.
Defrosting
Blowing out the residual heating air
Auto restart from Power Break
When the power supply is recovered after power break, all presets are still effective and the air-conditioner will run according to
the previous setting.
For more details, please refer to the Manual of Remote Controller.
2. Setting of Automatic Swing Louver
Do not adjust the air louver by hand, to avoid damage to the louver mechanism.
Before Operation
● Heating operation
●
When normal operation, the fan motor would run with low speed for a while to blow out air conditioner is stopped during residual
3 minutes protection after compressor stop
heating air.

3. Filter Cleaning
Do not operates the system without air filter to protect the indoor unit heat exchanger against being
clogged.
Turn OFF the main power switch before taking filter. (The previous operation mode may appear.)
3.1 Setting the Cleaning Period of Filter
Step 1
Enter choose and set mode
It is time to clean the filter, when the filter icon ( add filter icon) turns on.
Step 2
Cancel the setting
Press Emergency switch to return to the standard state.
3.2 Take Out the Filter
Take out the air filter according to the following steps.
Step 1
Open the air inlet grille after pushing the two knobs as shown by the arrow mark.
Step 2
Take out the air filter from the air inlet grille by supporting the air grille and lifting the air filter after detaching
the filter from the hinges.
Filter
Emergency
switch
6

3.3 Clean the Filter
Clean the air filter according to the following steps.
Step 1
Use a vacuum cleaner or let water flow onto the air filter for removing the dirt from the air filter.
Do not use hot water with temperature more than 40℃.
Step2
Dry the air filter in the shade to remove excess moisture.
3.4 Reset of Filter Indication
After cleaning the air filter, press the “Emergency switch” button. The FILTER indication will disappear and
the next filter cleaning time will be set.
4.1 If Trouble Still Persists
If the trouble still persists even after checking the following, contact your dealer and inform them
of the following items.
(1) Unit Model Name
(2) Content of Trouble
4.2 No Operation
4.3 Not Cooling or Heating Properly
Check for obstruction of air flow in outdoor or indoor units.
Check if too many heating sources are located in the room.
Check if the air filter is clogged with dust.
Check if the doors or windows are open.
Check if the temperature condition is within the operation range.
4.4 This is Not Abnormal
Smells from indoor unit
Smell adheres on indoor unit after a long period of time. Clean the air filter and panels or allow a
good ventilation.
Sound from Deforming Parts
During system starting or stopping, a sound might be heard. However, this is due to thermal
deformation of plastic parts. It is not abnormal.
Steam from Outdoor Heat Exchanger
During defrosting operation, ice on the outdoor heat exchanger is melted, resulting in making steam.
Dew on Air Panel
When the cooling operation continues for a long period of time under high humidity conditions, dew can
form on the air panel.
Refrigerant Flow Sound
While the system is being started or stopped, sound from the refrigerant flow may be heard.
4. Trouble Shooting
When drain water overflows from the indoor unit, stop the operation and contact your dealer.
When you smell or see white smoke coming out of the unit, turn OFF the main power supply and
contact your dealer.
Check whether the SET TEMP is set at the correct temperature.
7
Before Operation

8
5.0~6.5HP
1.5~4.0HP
Diagram of Refrigerant Cycle & Wiring
1. Refrigerant Flow Diagram
2. Electrical Wiring Diagram
Gas piping
Wide service valve
Compressor
Accumulator
4-way valve
Heat exchanger
Liquid piping
Heating cycle
Cooling cycle
INDOOR UNIT OUTDOOR UNIT
Heat exchanger
EEV
Service valve
Outdoor unit Outdoor unit
Indoor unit Indoor unit
Terminal
Terminal
Power supply
Power supply
SI
L
N
SI
L
N
Power connecting cord
N
L
Terminal Terminal
SI
L
N
SI
L
N
Power connecting cord
N
W
U
V

9
Installation and Maintenance
1. Safety Notice
WARNING
·
Installation should be performed by a (Improper installation may cause water leakage, qualified personnel.
electrical shock or fire.)
·Install the unit according to the instructions given in this manual. (Incomplete installation may cause water
leakage, electrical shock or fire).
·Be sure to use the supplied or specified installation parts. (Use of other parts may cause the unit to get
loosened, water leakage, electrical shock or fire).
·Install the air conditioner on a solid base that can support the unit weight. (An inadequate base or incomplete
installation may cause injury in the unit falls off the base).
·Electrical work should be carried out in accordance with the installation manual and the local national electrical
wiring rules or code of practice.
(Insufficient capacity or incomplete electrical work may cause electrical shock or fire).
·Be sure to use a dedicated power circuit. (Never use a power supply shared by another appliance).
·For wiring, use a cable long enough to cover the entire distance. Do not use an extension cord.
·Do not put other loads on the power supply, use a dedicated power circuit.
·Use the specified types of wires for electrical connections between the indoor and outdoor units. (Firmly clamp
the interconnecting wires so their terminals receive no external stresses).
·Incomplete connections or clamping may cause terminal overheating or fire.
·After connecting be sure to fix the cables so that they do not put all the wires undue force on the electrical
covers or panels. (Install covers over the wires, incomplete cover installation may cause terminal overheating,
electrical shock or fire).
·When installing or relocating the system, be sure to keep the refrigerant circuit free from substances other
than the specified refrigerant, such as air. (Any presence of air or other foreign substance in the
refrigerant circuit causes an abnormal pressure rise or rupture, resulting in injury).
·If any refrigerant has leaked out during the installation work, ventilate the room.
·After all installation is completed, check to make sure that no refrigerant is leaking out. (The refrigerant
produces a toxic gas if exposed to flames).
·When carrying out piping connection, take care not to let air substances other than the specified refrigerant
get into refrigeration cycle. (Otherwise, it will cause lower , abnormal high pressure in the performance
refrigeration cycle, explosion and injury).
·
Make sure that the installation Do not the unit to a utility pipe, arrester, is properly grounded. ground lightning
or telephone Incomplete may cause electrical shock. (A high surge current from lightning grounding. grounding
or other sources may cause damage to the air conditioner).
·An earth leakage circuit breaker may be required depending on the site condition to prevent electrical shock.
·Disconnect the power supply before wiring, piping, or checking the unit.
·When moving the indoor unit and outdoor unit, please be careful, do not make the outdoor unit incline over
45 degree. sharp edges of the air conditioner
·During remote controller installation, ensure that the length of the wire between the indoor unit and
remote controller is within 40 meters.
Pay attention to the to avoid any injury.
·Do not install the air conditioner in a place where there is danger of exposure to inflammable gas leakage. (If
the gas leaks and builds up around the unit, it may catch fire).
·Establish drain piping according to the instructions in this manual. (Inadequate piping may cause flooding).
·Tighten the flare nut according to the with a torque wrench. (If the flare nut is specifications tightened beyond
specified torque, the flare nut may crack after a long time and cause refrigerant leakage).
CAUTION

10
2.
3.
Do not install the indoor unit in a flammable environment to avoid fire or an explosion.
● Check to ensure that the ceiling slab is strong enough. Otherwise the indoor unit may topple, and
fall down causing injury.
● Do not install the indoor unit outdoors. If done, an electric hazard or electric leakage
will occur.
The Tools and Instruments for Installation
The Installation of the Indoor Unit
Number
1
2
3
4
5
6
7
Tool
Standard screwdriver
Vacuum pump
Charge hose
Pipe bender
Adjustable wrench
Pipe cutter
Cross head screw-driver
Number
8
9
10
11
12
13
14
Tool
Leveller
Hammer
Churn drill
Knife or wire stripper
Pipe expander
Inner hexagon spanner
Measuring Tape
Installation and Maintenance

11
(unit : mm)
Model
Capacity (HP)
H
1.5/2.0 270
3.0/4.0 248
5.0/6.0/6.5 298
1.5/2.0HP 3.0~6.5HP
3.1 The Initial Check
● Install the indoor unit with a proper clearance around it for operation and maintenance space,
as shown in Fig.3.1.
● Provide a service access door near the unit piping connection area on the ceiling.
● Ensure that the ceiling has sufficient strength to hang the indoor unit.
● Check that the ceiling surface is flat for the air panel installation work.
Installation and Maintenance
● Select the installation location as shown in Fig 3.2:
(A) Minimum Space
(B) Down Slope Pitch of Drain Piping:1/25～1/100
H
● Consider the air distribution from the indoor unit to the space of the room, and select a suitable
location so that uniform air temperature distribution can be obtained in the room. It is recommended that the
indoor unit is installed 2.5 to 3 meters from the floor level.
● Do not install flammable parts in the service space for the indoor unit.
● Avoid obstacles which may hamper the air intake or the air discharge flow.
Distance from Wall Side
500mm Min. 100mm Min.
100mm Min. 500mm Min.
1000mm Min.
Piping
Connection Side
Service Space
Fig. 3.1 Space around Indoor Unit
Fig. 3.2 Installation Location of Indoor Unit
Clearance 10 to 20mm
Unit Hight
in False Ceiling
Drain Piping
Down Slope
Pitch: 1/25 to 1/100

12
● Do not install the indoor unit in a machinery shop or kitchen where or its mist flowsoil vapor
to the indoor unit. The oil will deposit on the heat exchanger, thereby reducing the indoor unit
performance, and may deform and in severe case, break the plastic parts of the indoor unit.
● Pay attention to the following points when the indoor unit is installed in a hospital or other facilities
where there are waves from medical equipment:electromagnetic
(A) Do not install the indoor unit where the electromagnetic wave is directly radiated to the electrical
box, remote control cable or remote control switch.
(B) Install the indoor unit and components at least 3 meters from the electromagnetic wave radiator.
(C) Prepare a steel case and install the remote control switch in it. Prepare a steel conduit tube and
wire the remote control cable in it. Then, connect the ground wire with the box and the tube.
(D) Install a noise filter when the power supply emits harmful noises.
● To avoid any corrosive action to the heat exchanger, do not install the indoor unit in an acid or alkaline
environment. If the indoor unit has to be installed in such environments, use corrosion-proof type unit.
Ensure that the number is within 0.3kg/m³. Otherwise it may causebelow calculated
danger situation if the refrigerant in the Outdoor Unit leaks into the room where the Indoor
Unit is installed.
Installation and Maintenance
the

3.2 Installation(1.5~2.0Hp)
Installation and Maintenance
Ceiling
Roof Wall
Drain pipe
Over 1500mm
Over 1500mm
Over 1500mm
Over 1500mm
Avoid installing the unit at a place with greasy dirt or steam.
3.2.1 Location for Installing Indoor Unit
Do no put anything near the air inlet grill to obstruct air absorption.
To prevent the effects of a fluorescent lamps, keep the indoor
unit at least 1.5m away from it.
Keep the unit and remote controller from at least 1m away
television, radio etc.
Where the roof is strong enough to bear the weight of indoor unit,
and does not tend to increasing operation sound and vibration.
Where there is no obstacle near the air outlet and air can be easily
blown to every corner.
Where drain pipe can extend outside of the wall from the ceiling
board.
It is preferable to have a special draining facility.
575 to 590
570(Unit Size)
400
610
3.2.3 Indoor Unit Installation
3.2.2 Height of Ceiling Board
13
Normally, keep the ceiling board 2.5m-3m above the ground.
Pattern board for installation is placed in the packing. Cut off the pattern for opening the false ceiling
and for installation of suspension bolts.
Measure the distance H between the roof surface and the ceiling board ;
Make four suspending poles with M10 screw thread on both ends (metric system) as shown in the
below figure. (processed with 10 pole)
H
L1 L1
L
Value of L and L1 are calculated as below：
L1=50mm (when H<255mm，L1=40mm）
L=1.5L1+H-230 (unit: mm)
Turn 4 attached nuts onto the thread ends on the suspending poles as shown below:
(Note: Below reference is only applicable to a house made of concrete.)

Installation and Maintenance
14
1.5/2.0HP
A(mm) B(mm)
Model
575~590 575~590
Cut an opening (A x B) on the ceiling board with assistance of the pattern board, make sure to follow
the same direction of the holes for roof bolts. Fix the edges of the opening with the “ [”-shaped aluminum
Take out the moulding board from the packing carton of indoor unit, do not fold it, just use it to decide an
installation location and direction of the unit on the roof and ceiling.
Press the moulding board tightly onto the surface of the roof, draw out the hole position for suspension
bolts the moulding board, drill 8 holes for the bolts.with a pencil, then take off suspension
It is preferable if the depth of holes just reveal the thread of the poles.
bars.
Take out the suspending poles with nut on one end, mount them on the fixed suspending bracket, then
tighten the nuts and washers on top of the suspending brackets.
Mount the attached suspending brackets with bolts M8X50 on the roof surface.suspension
Make sure to tighten the bolts and nuts well. The opening of brackets should face suspension suspension
outward as shown below.
8~13mm
Fix the main unit onto the suspending poles with attached nuts and washer.
The nuts on the bottom should turn to about half of the thread length.
( Note: This task needs at least two people).
Adjust the nuts on the bottom of the suspending poles, allow the bottom of the unit 8-13mm higher than that
of the ceiling board. ( )as shown in the above figure
Then adjust each corner of the bottom horizontally with a leveller.
( Levelness should be within the scope of 1/100).
Leveller

3.3 Installation(3.0~6.5HP)
3.3.2 Mounting Position of the Indoor Unit
Installation and Maintenance
15
Model
3.0/4.0
5.0/6.0/6.5
Fig.3.5 Mounting Position
3.3.1 Opening of False Ceiling and Suspension Bolts
(1) Determine the final location of the indoor unit paying careful attentionand direction of installation
to the space for the piping, wiring and maintenance.
Pattern board for installation is printed on the packing. Cut off the pattern for opening the false
ceiling and installation suspension bolts.
(2) Cut out the area for the indoor unit in the false ceiling and install suspension bolts, as shown
in Fig.3.3.
Fig.3.3 Opening of False Ceiling and Suspension Bolts
(3) Check to ensure that the ceiling is horizontally level, otherwise drainage can not flow.
(4) Strengthen the opening parts of the false ceiling.
(5) Mount suspension bolts, as shown in Fig.3.4.
Fig.3.4 Mounting Suspension Bolts
150 to 160mm
I Beam
Suspension Boit (W3/8 or M10)
For Concrete Slab For steel Beam
Insert
(100 to 150kg)
Concrete
Anchor Bolt
(W3/8 or M10)
(mm)
(4-Suspension Bolts)
M10 or W3/8 (Field-Spplied)
W-Nut (Field Supplied)
Washer (Accessary)
Surface of Ceiling
a
* indicates the dimension between
lower face of indoor unit and
surface of ceiling.
Liquid Pipe Connection
Gas Pipe Connection
(mm)
Drain Pipe Connection
Wiring Hole (ø32.5 Hole)
118 ( Drain Pipe)
(for Spare)
Wiring Hole (30x30)
(for Cable)
127 (Liquid Pipe Connection)
102 (Gas Pipe Connection)
Fig.3.6 Indoor Unit and Air Panel
248
298

16
3.3.3 Mounting the Indoor Unit
(1) Mount the nuts and washers into the suspension bolts.
Fig.3.7 Mounting Nuts and washer
*Place the washer so that the surface with insulation faces downwards.
(2) Lift the Indoor Unit by hoist, and do not apply any force on the drain pan.
(3) Secure the indoor unit using the nuts and washer.
NOTE: If a false ceiling is already constructed, complete all piping and wiring work
inside the ceiling before fixing the indoor unit.
Installation and Maintenance
●Check the level of the drain pan using a leveller to avoid incorrect operation of the
drain discharge mechanism in the indoor unit. The drain piping side of the indoor unit
must be approximately 5mm lower than the other part.
●Tighten the nuts of the suspension brackets after the adjustment is completed.Apply
LOCK-TIGHT paint* to the bolts and nuts to prevent them from loosening, Otherwise,
abnormal noises or sounds may occur and the indoor unit may fall down.
LOCK-TIGHT paint*: Paint the lock bolts and nuts. Adjust the indoor unit to the correct position
while checking with the scale (factory-supplied).
(1) Pattern Board for installation is attached with the packing.
(2) Adjust the position of indoor unit, using scale as shown below:
3.3.4 Adjusting the Space between Indoor Unit and False Ceiling Opening
Suspension Bolt (Field Supplied)
*Washer with Insulation (Accessary)
Nut (Field Supplied)
Suspension Blacket (Attaced Indoor Unit)
*Washer (Accessary)
Nut (Field Supplied)
Surface of Ceiling
(mm)
Approx. 50
Approx. 52
102
Fig.3.8 Mounting the Indoor Unit
Suspension Bolt
Suspension Bracket
Drain Pan
