Hitachi RAM-130QH5 User manual

RAM-130QH5
NO. 0365E
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT
ROOM AIR CONDITIONER
OUTDOOR UNIT
MARCH 2007 Refrigeration & Air-Conditioning Division
SERVICE MANUAL
PM
REFER TO THE FOUNDATION MANUAL
TECHNICAL INFORMATION
FOR SERVICE PERSONNEL ONLY
CONTENTS
SPECIFICATIONS ------------------------------------------------------------------- 5
INSTALLATION ---------------------------------------------------------------------- 13
CONSTRUCTION AND DIMENSIONAL DIAGRAM ---------------------- 17
MAIN PARTS COMPONENT --------------------------------------------------- 18
CAPACITY DIAGRAM ------------------------------------------------------------- 20
WIRING DIAGRAM ----------------------------------------------------------------- 25
CIRCUIT DIAGRAM ---------------------------------------------------------------- 27
BLOCK DIAGRAM ------------------------------------------------------------------ 33
BASIC MODE ------------------------------------------------------------------------ 35
REFRIGERATING CYCLE DIAGRAM ---------------------------------------- 55
DESCRIPTION OF MAIN CIRCUIT OPERATION ------------------------ 57
TROUBLE SHOOTING ------------------------------------------------------------ 88
DISASSEMBLY AND REASSEMBLY ----------------------------------------- 95
PARTS LIST AND DIAGRAM --------------------------------------------------- 98
RAM-130QH5
After installation
NOTE:
This manual describes only points that differ from RAF-25, 35,
50NH5, RAD-25, 35NH5, RAD-25, 35NH5 and RAM-80QH5 (TC
No. 0771EF), RAI-25, 35NH5 (PM No. 0271E), RAI-50NH5 and
RAC-50NH5 (PM No. 0274E), RAK-18, 25, 35NH5 (PM No.
0269E), RAK-50NH5 and RAC-50NH5 (PM No. 0302E) for items
not described in this manual.
855
1450
308
113
(W)
(A)
COOLING CAPACITY
DC INVERTER DUAL SYSTEM MULTI
TYPE
MODEL
POWER SOURCE
TOTAL INPUT
TOTAL AMPERES
SPECIFICATIONS
OUTDOOR UNIT
RAM-130QH5
HEATING CAPACITY
DIMENSIONS (mm)
NET WEIGHT
1ø, 220 - 240V, 50Hz
W
H
D
(kg)
(kW)
(B.T.U.)
REFER TO THE SPECIFICATIONS PAGE

– 1 –
SAFETY DURING REPAIR WORK
1. In order to disassemble and repair
the unit in question, be sure to
disconnect the power cord plug
from the power outlet before starting
the work.
2. If it is necessary to replace any parts, they should be replaced with respective genuine parts for the unit, and
the replacement must be effected in correct manner according to the instructions in the Service Manual of
the unit.
If the contacts of electrical parts
are defective, replace the
electrical parts without trying to
repair them.
3. After completion of repairs, the initial state
should be restored.
4. Lead wires should be connected and laid as
in the initial state.
5. Modification of the unit by user himself should
absolutely be prohibited.
6. Tools and measuring instruments for use in repairs or inspection should be accurately calibrated in advance.
7. In installing the unit having been repaired, be careful to prevent the occurence of any accident such as
electrical shock, leak of current, or bodily injury due to the drop of any part.
8. To check the insulation of the unit, measure the insulation resistance between the power cord plug and
grounding terminal of the unit. The insulation resistance should be 1M or more as measured by a 500V
DC megger.
9. The initial location of installation such as window, floor or the other should be checked for being and safe
enough to support the repaired unit again.
If it is found not so strong and safe, the unit should be installed at the initial location reinforced or at a new
location.
10. Any inflammable thing should never
be placed about the location of
installation.
11. Check the grounding to see whether
it is proper or not, and if it is found
improper, connect the grounding
terminal to the earth.
DANGER
First, I must disconnect
the power cord plug
from the power outlet.

– 2 –
WORKING STANDARDS FOR PREVENTING BREAKAGE OF SEMICONDUCTORS
1. Scope
The standards provide for items to be generally observed in carrying and handling semiconductors in relative
manufacturers during maintenance and handling thereof. (They apply the same to handling of abnormal goods
such as rejected goods being returned).
2. Object parts
(1) Micro computer
(2) Integrated circuits (IC)
(3) Field-effect transistors (FET)
(4) P.C. boards or the like on which the parts mentioned in (1) and (2) of this paragraph are equipped.
3. Items to be observed in handling
(1) Use a conductive container for carrying and storing of parts. (Even rejected goods should be handled in
the same way).
Fig. 1. Conductive Container
(2) When any part is handled uncovered (in counting, packing and the like), the handling person must always
use himself as a body earth. (Make yourself a body earth by passing one M ohm earth resistance through
a ring or bracelet).
(3) Be careful not to touch the parts with your clothing when you hold a part even if a body earth is being
taken.
(4) Be sure to place a part on a metal plate with grounding.
(5) Be careful not to fail to turn off power when you repair the printed circuit board. At the same time, try
to repair the printed circuit board on a grounded metal plate.
1M
Fig. 2. Body Earth
Body earth
(Elimik conductive band)
Clip for connection with a
grounding wire
IC
A conductive polyvinyl bag IC
Conductive sponge

– 3 –
(6) Use a three wire type soldering iron including a grounding wire.
Bare copper wire (for body earth)
Working
table
Resistor of 1 M (1/2W)
Earth wire

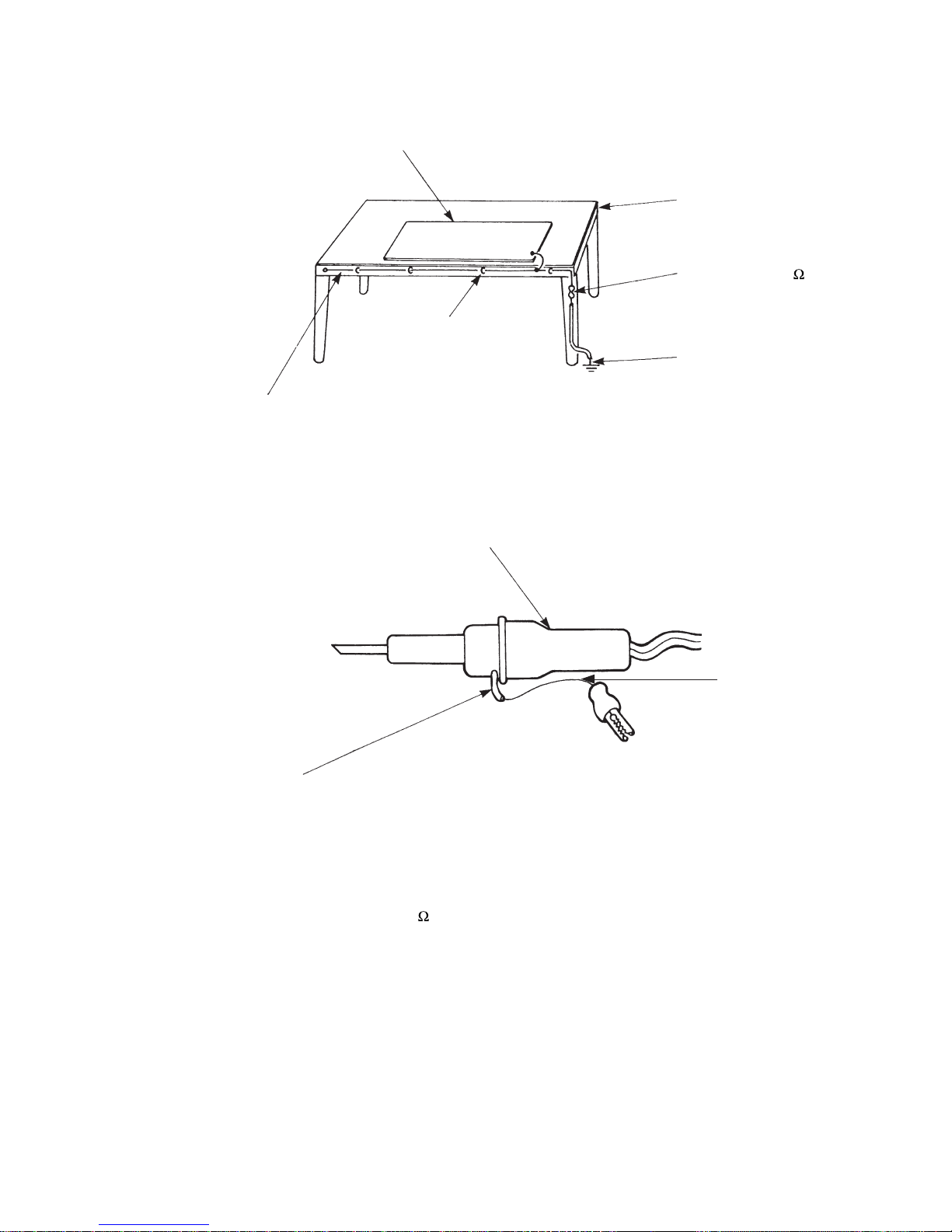

Fig. 3. Grounding of the working table
Screw stop at the screwed
part using a rag plate
Soldering iron
Grounding
wire
Fig. 4. Grounding a soldering iron
Use a high insulation mode (100V, 10M or higher) when ordinary iron is to be used.
(7) In checking circuits for maintenance, inspection or some others, be careful not to have the test probes of the
measuring instrument shortcircuit a load circuit or the like.
Metal plate (of aluminium, stainless steel, etc.)
Staple

– 4 –
1. In quiet operation or stopping the running, slight flowing noise of refrigerant in the refrigerating cycle is
heard occasionally, but this noise is not abnormal for the operation.
2. When it thunders near by, it is recommend to stop the operation and to disconnect the power cord plug
from the power outlet for safety.
3. The room air conditioner does not start automatically after recovery of the electric power failure for
preventing fuse blowing. Re-press START/STOP button after 3 minutes from when unit stopped.
4. If the room air conditioner is stopped by adjusting thermostat, or missoperation, and re-start in a moment,
there is occasion that the cooling and heating operation does not start for 3 minutes, it is not abnormal
and this is the result of the operation of IC delay circuit. This IC delay circuit ensures that there is no
danger of blowing fuse or damaging parts even if operation is restarted accidentally.
5. This room air conditioner should not be used at the cooling operation when the outside temperature is
below –10°C (14°F).
6. This room air conditioner (the reverse cycle) should not be used when the outside temperature is below
–15°C (5°F). If the reverse cycle is used under this condition, the outside heat exchanger is frosted and
efficiency falls.
7. When the outside heat exchanger is frosted, the frost is melted by operating the hot gas system, it is not
trouble that at this time fan stops and the vapour may rise from the outside heat exchanger.
8. This outdoor room airconditioner contain two refregeremt cycle with two compessor separately. Unit 1, 2, 3
and unit 4, 5, 6 are with different cycle
9. Unit 3 and unit 6 has to be connected to ensure no frost or ice remain at bottom of condensor.
10. Unit 2, 3 and unit 5, 6 has to be connected at least to ensure the compessor liability last longer.
!
CAUTION

– 5 –
SPECIFICATIONS
MODEL
FAN MOTOR
FAN MOTOR CAPACITOR
FAN MOTOR PROTECTOR
COMPRESSOR
COMPRESSOR MOTOR CAPACITOR
OVERLOAD PROTECTOR
OVERHEAT PROTECTOR
FUSE (for MICROPROCESSOR)
POWER RELAY
POWER SWITCH
TEMPORARY SWITCH
SERVICE SWITCH
TRANSFORMER
VARISTOR
NOISE SUPPRESSOR
THERMOSTAT
REMOTE CONTROL SWITCH (LIQUID CRYSTAL)
40 W
NO
NO
NO
YES
YES
5.0A
G4A
NO
NO
YES
NO
450NR
YES
YES(IC)
NO
1650g + 1650g
WITHOUT REFRIGERANT BECAUSE
COUPLING IS FLARE TYPE.
UNIT
PIPES
REFRIGERANT CHARGING
VOLUME
(Refrigerant 410A)
RAM-130QH5
JU1013D2
This outdoor unit has two separated refrigerant cycle with two compressors which indoor units 1, 2, 3 are
for upper refrigerant cycle and indoor units 4, 5, 6 are for lower refrigerant cycle. In case the total pipe
length of each cycle is more than 35m, add refrigerant R410A at 20 gram per every meter exceeded.
MAX. 45m MAX. 45m
INDOOR 1, 2, 3 INDOOR 4, 5, 6

– 6 –
SPECIFICATIONS FOR INDOOR UNITS COMBINATION
OPERATION SCOPE
TYPE DC INVERTER SIX SYSTEM MULTI COOLING AND HEATING
MODEL OUTDOOR UNIT
PHESE/VOLTAGE/FREQUENCY
CIRCUIT AMPERES TO CONNECT (A)
COOLING
(SIX UNITS)
CAPACITY (kW)
(B.T.U./h)
TOTAL INPUT (W)
EER (B.T.U./hW)
TOTAL AMPERES (A)
POWER FACTOR (%)
HEATING
(SIX UNITS)
CAPACITY (kW)
(B.T.U./h)
TOTAL INPUT (W)
EER (B.T.U./hW)
TOTAL AMPERES (A)
POWER FACTOR (%)
MAXIMUM LENGTH OF PIPING
STANDARD
RAM-130QH5
1ø, 220 - 240V, 50Hz
30
12.60 (1.50 - 13.20)
43,010 (5,120 - 45,060)
4,190 (200 - 4,400)
10.26
19.2 - 17.6
99
14.40 (1.50 - 14.40)
49,140 (5,120 - 49,140)
3,800 (200 - 4,220)
12.93
17.40 - 16.00
99
MAX. 45m (EACH CYCLE)
CE (EMC&LVD)
RAM-130QH5
MODEL
W
PACKING
(mm)
H
D
cu.ft.
1,070
1,590
450
27.04
130
GROSS WEIGHT (kg)
6.35D/9.52DX6 FLARENUTSIZE (SMALL/LARGE)
INDOOR SUCTION
TEMPERATURE (˚C)
COOLING OPERATION SCOPE
OUTDOOR SUCTION
TEMPERATURE (˚C)
INDOOR SUCTION
HUMIDITY (%)
DEHUMIDIFYING
OPERATION
HEATING OPERATION
SCOPE
16 - 32 22 - 41 BELOW 80
16 - 32 22 - 42 BELOW 80
BELOW 27 –15 - 23 —

SIX ROOM SYSTEM MULTI R.A.C. RAM-130QH5
COOL / HEAT CAPACITY SPEC. FOR INDOOR UNITS
COMBINATIONS TO BE ABLE TO OPERATE SIMULTANEOUSLY
Whichever indoor units are installed, cooling and heating capacity depends on how many and which indoor units
are operating at that time.
6 ROOM MULTI-SPLIT INVERTER TYPE RAM-130QH5
POSSIBLE COMBINATION TO OPERATE (SAME TIME OPERATION)
POSSIBLE COMBINATIONS TO OPERATE
ONE UNITTWO UNITSTHREE UNITSFOUR UNITS
CAPACITY
REATING (KW)
(RANGE)
COOLING
OUTDOOR UNIT
POWER
CONSUMPTION
(W)
COP AMPERE (A)
at 230V
CAPACITY
REATING (KW)
(RANGE)
HEATING
OUTDOOR UNIT
POWER
CONSUMPTION
(W)
COP AMPERE (A)
at 230V
– 7 –
FIVE UNITSSIX UNITS
* Four indoor units should be connected at least
* ONE UNIT INDICATED ARE ONLY FOR ONE UNIT OPERATION WHEN FOUR INDOOR UNITS OR MORE ARE CONNECTED.
* TWO UNITS INDICATED ARE ONLY FOR TWO UNITS OPERATION WHEN FOUR INDOOR UNITS OR MORE ARE CONNECTED.
* THREE UNITS INDICATED ARE ONLY FOR THREE UNITS OPERATION WHEN FOUR INDOOR UNITS OR MORE ARE CONNECTED.
* FOUR UNITS INDICATED ARE ONLY FOR FOUR UNITS OPERATION WHEN FOUR INDOOR UNITS OR MORE ARE CONNECTED.
* FIVE UNITS INDICATED ARE ONLY FOR FIVE UNITS OPERATION WHEN FIVE INDOOR UNITS OR MORE ARE CONNECTED.
RATING CONDITON (DRY BLUB / WET BULB)
COOLING
HEATING
INDOOR OUTDOOR
27 / 19 ˚C
20 / –˚C
35 / –˚C
7 / 6˚C

– 9 –
SIX ROOMS SYSTEM MULTI R.A.C. RAM-130QH5
INDOOR UNITS COMBINATIONS TO BE ABLE TO INSTALL
Four or more indoor units can be installed with one outdoor unit.
And total nominal cooling capacity should not be more than 18.0kW
INDOOR UNIT
MODEL
NOMINAL
COOLING
CAPACITY
(kW)
CAPACITY (kW)
at one unit operation
SUITABLE ROOM SIZE (m2)
at one unit operation
COOLING HEATING COOLING HEATING
RAK-25NH5
RAK-25NH6 2.5 1.00 - 2.80 1.10 - 4.70 11 - 17 14 - 18
RAF-25NH5 2.5 1.00 - 2.80 1.10 - 4.70 11 - 17 14 - 18
RAK-18NH5
RAK-18NH6 1.8 1.00 - 2.50 1.10 - 3.20 8 - 12 9 - 11
RAD-25NH5
RAD-25NH7 2.5 1.00 - 2.80 1.10 - 4.70 11 - 17 14 - 18
RAI-25NH5 2.5 1.00 - 2.80 1.10 - 4.70 11 - 17 14 - 18
RAK-35NH5
RAK-35NH6 3.5 1.00 - 3.90 1.10 - 5.80 16 - 24 17 - 22
RAF-35NH5 3.5 1.00 - 3.90 1.10 - 5.80 16 - 24 17 - 22
RAD-35NH5
RAD-35NH7 3.5 1.00 - 3.90 1.10 - 5.80 16 - 24 17 - 22
RAI-35NH5 3.5 1.00 - 3.90 1.10 - 5.80 16 - 24 17 - 22
RAK-50NH5
RAK-50NH6 5.0 1.00 - 5.60 1.10 - 7.20 23 - 34 23 - 29
RAF-50NH5 5.0 1.00 - 5.60 1.10 - 7.20 23 - 34 23 - 29
RAI-50NH5 5.0 1.00 - 5.60 1.10 - 7.20 23 - 34 23 - 29
Be sure to connect four or more indoor units to this outdoor unit. If not, condensed water may drop, resulting in
trouble.
At least four indoor unit to be connected to the outdoor unit which means two indoor units for each cycle (upper
and lower). Anyway indoor unit 3 and 6 must be connected.
RAD-50NH7 5.0 1.00 - 5.60 1.10 - 7.50 23 - 34 23 - 29

– 11 –
SIX ROOM SYSTEM MULTI R.A.C. RAM-130QH5
CONNECTING POSISION TO BE ABLE TO INSTALL

– 13 –
INSTALLATION
PIPE LENGTH
(1) Total 45m maximum pipe length for each refregrant cycle (upper cycle and lower cycle).
(2) Pipe length for one indoor unit : maximum 25m.
Hight Difference between indoor units should be not more than 5m
To the outdoor unit, up to three indoor units can be connected until the total value of
capacity from 5.0kW to 9.0kW for each refregrant cycle (upper cycle and lower cycle).
Make sure to connect to two or three indoor units for each refregerant cycle.
Indoor unit 5 Indoor unit 6
Indoor unit 4
Indoor unit 2 Indoor unit 3
Indoor unit 1
Outdoor unit
L1 L2 L3
Indoor unit 2 Indoor unit 3
Indoor unit 1
Outdoor unit
L4 L5 L6
Indoor unit 5 Indoor unit 6
Indoor unit 4
(L1 + L2 + L3) = (L4 + L5 + L6) = Maximum 45m
Minimum piping length for each indoor unit is 5m.
Maximum piping length for one indoor unit is 25m.

– 14 –
Dimension of Mounting Stand of
the Outdoor Unit
(Unit: mm)
Air blow
Mounting stand
Flare adaptor for piping
• ø9.52 (3/8") ø12.7 (1/2")
parts number TA261D-4 001
The flare adaptor for piping is
required depending on combination
of indoor units.
CAUTION
• This outdoor unit contain 2 difference
refrigerant cycle with two compressors
and two separated electrical.
• For refrigerant cycle at upper side of unit,
shall be for connection for indoor 1, 2
and 3.
• For refrigerant cycle at lower side of unit,
shall be for connection for indoor 4, 5
and 6.
• Each refrigerant cycle must be connected
indoor units at least 2 connections.
• And connection no. 3 and no. 6 are
compulsory. if not, there will be an icing
at the condensor base during winter
season.
• Install the unit in a stable place to minimize vibrationor noise.
Connecting the pipe
• After arranging the cord and pipes, secure them inplace.
• Hold the handle of the side cover. Slide down and takeoff the corner hook,
then pull. Reverse these stepswhen installing.
• Remove the side cover.
• For installation, refer as shown below.
• The space indicated with a mark is required to
guarantee the air conditioner's performance. Install the airconditioner in a
place big enough to provide ample space for servicing and repairs later on.
507
10 (10)
320 340
198
12 37
57
One unit of 1.8kW, 2.5kW or 3.5kW
One unit of 1.8kW, 2.5kW or 3.5kW
One unit of 1.8kW, 2.5kW or 3.5kW
One unit of 1.8kW, 2.5kW or 3.5kW
One unit of 1.8kW, 2.5kW, 3.5kW or 5.0kW
(5kW unit: Optional flare adaptor for piping is
necessary)
One unit of 1.8kW, 2.5kW, 3.5kW or 5.0kW
(5kW unit: Optional flare adaptor for piping is
necessary)
Outdoor unit pipe connection port
Indoor unit 4Indoor unit 6 Indoor unit 5 Indoor unit 3 Indoor unit 2 Indoor unit 1
above 200mm
above 700mm
above 200mm
Anchor Bolt (4 places)
above 50mm when
installed on the
ceiling of balcony
()
above 100mm
above 100mm
give clearance as
wide as possible
INDOOR 1
C1 D1 C2 D2
INDOOR 2
C3 D3
INDOOR 3
After remove the
screw and cover,
put the connecting
cords and fix
the cover with
screw.
After remove the
screw and cover,
put the connecting
cords and fix
the cover with
screw.
Earth line
Type of grounding rod Length
900mm
SP-EB-2
AC 220V~240V ONLY
LN
INDOOR 4
C4 D4 C5 D5
INDOOR 5
C6 D6
INDOOR 6
Connect the
earth cord
!
MODEL: RAM-130QH5

– 15 –
•
•
•
•
Condensed water disposal of outdoor unit
When Using and Installing in Cold Areas
There is holes on the base of outdoor unit for condensed water to exhaust.
To lead condensed water to the drain hole, place the outdoor unit on the mounting stand (optional) or on blocks to raise its
level more than 100mm from the ground surface. Connect the drain pipe as shown in the figure. Cover two other water
drain holes with the bushings included. (To insall a bushing, push in both ends of the bushing so that it aligns with the drain
hole.)
When connecting the drain pipe, make sure that the bushing does not lift off or deviate from the base.
1.Remove flare nut from service valve.
4.Perform air purge and gas leak inspection.
2.Apply refrigerant oil to flare nut sections of servicevalve and pipings.
5.Wrap the provided insulating material around sidepiping using vinyl tape.
3.Match center of piping to large diameter side service valve and tank assembly, and tighten flarenut first by hand,
then securely tighten using torque wrench.
Install the outdoor unit on a stable, flat surface and check to see that the condensed water drains.
For more details, refer to the Installation Manual for Cold Areas.
When the air conditioner is used in low temperature and in snowy conditions, water from the heat exchanger may freeze
on the base surface to cause poor drainage. When using the air conditioner in such areas, do not install the bushings. Keep a
minimum of 250mm between the drain hole and the ground. When using the drain pipe, consult your sales agent.
100 mm ABOVE
12
BUSH
DRAIN PIPE
BASE
DRAIN PIPE
11
BUSH
10
A

– 16 –
Screw
Insulating plate
Cord band
Connecting cord
Connection of the connecting cords and power cord. (Outdoor unit)
RAM-130QH5
WARNING
!
Connecting cord should be connected according to Fig.1, that the Indoor unit No. shall match with terminal board No.
of Outdoor unit.
Be sure to fix the connecting cord with the band as shown below. Otherwise water leakage causes short circuit or faults.
•
•
•
CAUTION
!
•If earth line cannot be taken from
the power supply connection, use
the optional grounding rod to do
earthing.
Type of grounding rod
SP-EB-2
Length
900mm
WARNING
!
Connection of the power cord and connecting
cord
Securely screw in the power cord
and connecting cord so that it will not
get loose or disconnect.
Tightening torque reference value:
1.2 to 1.6 N•m (12 to 16 kgf•cm)
Excessive tightening may damage
the interior of the cord requiring
replacement.
Power cord and
Connecting cord
CAUTION
!
•
To prevent a connection error, connecting cords
should be bundled and taped to each respective
pipe. If connecting cords are mixed with other indoor
units, a refrigeration cycle abnormality may occur,
causing dripping.
When putting two connecting cords through the band.
•Hold the handle of the side cover, slide down and take off the corner hook, then pull. Reverse these steps when installing.
WARNING
!
•
•
Leave some space in the connecting cord for maintenance purpose
and be sure to secure it with the cord band.
Secure the connecting cord along the coated part
of the wire using the cord band. Do not exert
pressure on the wire as this may cause
overheating or fire.
Screw for ground, earth screw
Outdoor Unit
Wiring Pattern
Indoor Unit
Power cord
CD
C1 D1
Indoor unit No. 1
Screw for ground, earth screw
Screw for ground, earth screw
For Indoor unit No. 1
Terminal board
Terminal board
Connecting cord
Ø1.6 or 2.0
Green-and-
Yellow
CD
C2 D2
Indoor unit No. 2
Screw for ground, earth screw
Screw for ground, earth screw
For Indoor unit No. 2
Terminal board
Terminal board
Green-and-
Yellow
CD
C3 D3 LN
Indoor unit No. 3
Screw for ground, earth screw
Screw for ground,
earth screw
For Indoor unit No. 3
Terminal board
Terminal board
Terminal board
Green-and-
Yellow
Green-and-Yellow
Screw for ground, earth screw
CD
C4 D4
Indoor unit No. 4
Screw for ground, earth screw
Screw for ground, earth screw
For Indoor unit No. 4
Terminal board
Terminal board
Green-and-
Yellow
CD
C5 D5
Indoor unit No. 5
Screw for ground, earth screw
Screw for ground, earth screw
For Indoor unit No. 5
Terminal board
Terminal board
Green-and-
Yellow
CD
C6 D6
Indoor unit No. 6
Screw for ground, earth screw
For Indoor unit No. 6
Terminal board
Terminal board
Connecting cord
Ø1.6 or 2.0
Green-and-Yellow
Grounding rod (optional)
Earth line and grounding rod are not supplied.
Please use optional items below.
( )
INDOOR 1
C1 D1 C2 D2
INDOOR 2
C3 D3
INDOOR 3
After remove the
screw and cover,
put the connecting
cords and fix
the cover with
screw.
After remove the
screw and cover,
put the connecting
cords and fix
the cover with
screw.
Earth line
AC 220V~240V ONLY
LN
INDOOR 4
C4 D4 C5 D5
INDOOR 5
C6 D6
INDOOR 6
Connect the
earth cord

– 17 –
CONSTRUCTION AND DIMENSIONAL DIAGRAM
MODEL RAM-130QH5
Service space
ATTENTION
During service, before opening the side cover, please switch off power supply.
Note:
1. Insulated pipes should be used for both small and large diameter pipes.
2. Piping length should be within 25m for one room and within 45m in total.
3. Height difference of piping between indoor unit and outdoor unit should be within 10m.
4. Overhead clearance of outdoor unit should be 200mm to allow servicing.
5. For electrical connection, please refer to the installation manual.
Air
Outlet
Holes for anchor bolt
More than
700
More than
100
More than
100
More than
100
855
1416
1450
79 308
201
22 50
46
563
62.60
26.50
353
28.50
408
Notch for anchor bolt
(2-ø12 Notchs)
Indoor unit 1
Service valve (ø6.35)
Indoor unit 2
Service valve (ø6.35)
Indoor unit 3
Service valve (ø6.35)
Indoor unit 1
Service valve (ø9.52)
Indoor unit 2
Service valve (ø9.52)
Indoor unit 3
Service valve (ø9.52)
107.5 52 52 52 52 52
Indoor unit 4
Service valve (ø6.35)
Indoor unit 5
Service valve (ø6.35)
Indoor unit 6
Service valve (ø6.35)
Indoor unit 4
Service valve (ø9.52)
Indoor unit 5
Service valve (ø9.52)
Indoor unit 6
Service valve (ø9.52)
107.5 52 52 52 52 52

– 18 –
MAIN PARTS COMPONENT
FAN MOTOR

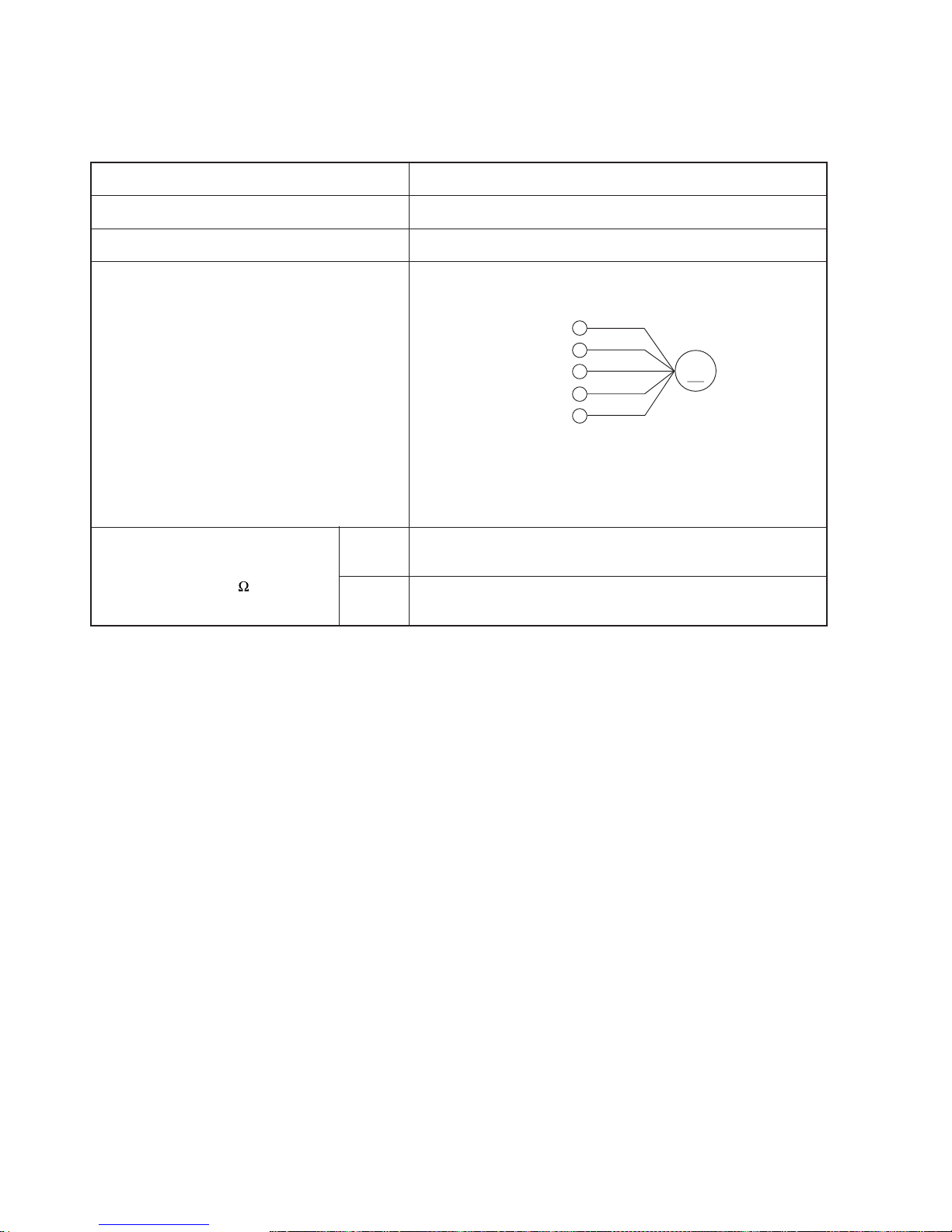

Fan Motor Specifications
CONNECTION
MODEL
POWER SOURCE
OUTPUT
BLU : BLUE YEL : YELLOW BRN : BROWN WHT : WHITE
GRY : GRAY ORN : ORANGE GRN : GREEN RED : RED
BLK : BLACK PNK : PINK VIO : VIOLET
RAM-130QH5
DC : 140-330V
40W
RESISTANCE VALUE
( )
20˚C
(68˚F)
75˚C
(167˚F)
—
—
M
RED
BLK
WHT
YEL
BLU
(Control circuit built in)
140-330V
15V
0V
0-6V
0-15V

– 19 –
MODEL
COMPRESSOR MODEL
PHASE
RATED VOLTAGE
RATED FREQUENCY
POLE NUMBER
COMPRESSOR

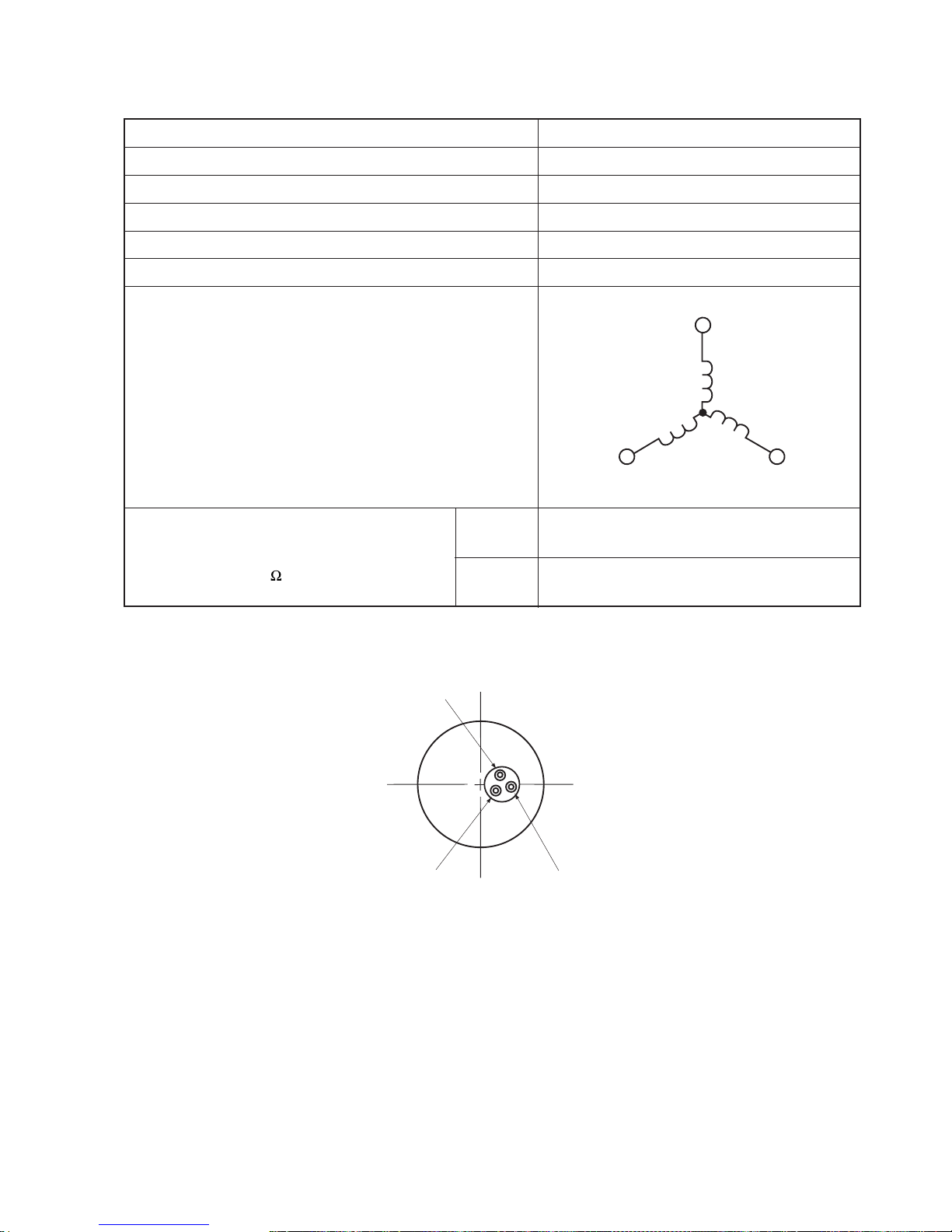

Compressor Motor Specifications
CONNECTION
25°C
(68°F)
75°C
(167°F)
( )
RESISTANCE VALUE 2M = 1.063
2M = 1.268
RAM-130QH5
JU1013D2
SINGLE
DC: 280-330V
50Hz
4
(U)
(V) (W)
M
M
M
WHITE
YELLOW RED
WHITE
RED
YELLOW

– 20 –
14
12
RATING
CAPACITY
WHEN SIX
COOLING CAPACITY ( ROOM TEMPERATURE 27˚C )
INDOOR UNITS OPERATE
10
8
6
4
2
0
6000
4000
2000
INPUT (W)
AMBIENT TEMP (˚C)
COOLING CAPACITY (kW)
0
20 25 30 35 40 45
11. 90
2480
3530
4060 4190 4480
12. 64
13
12. 60
11. 70
CAPACITY DIAGRAM (RELATED TO THE AMBIENT TEMPERATURE)
MODEL : RAM-130QH5

– 21 –
RATING
CAPACITY
MAX CAPACITY
OUTDOOR UNIT
WITHOUT FROST
OUTDOOR UNIT
WITH FROST
WHEN SIX INDOOR UNITS OPERATE
HEATING CAPACITY ( ROOM TEMPERATURE 20˚C )
0. 0 0
7. 0˚C5. 5˚C
–8. 5˚C
1000
2000
4000
3000
5000
2. 0
4. 0
6. 0
8. 0
10. 0
12. 0
14. 0
16. 0
INPUT (W)
AMBIENT TEMP. (˚C)
HEATING CAPACITY (kW)
–15 –10 –5 0 5 10 15
CAPACITY DIAGRAM (RELATED TO THE AMBIENT TEMPERATURE)
MODEL : RAM-130QH5

– 22 –
CAPACITY DIAGRAM (RELATED TO THE PIPING LENGTH)
MODEL : RAM-130QH5
