Hitachi RAS-08LH2 User manual

– 1 –
ENGLISH
SPLIT TYPE AIR CONDITIONER
INDOOR UNIT/OUTDOOR UNIT
MODEL
RAS-08LH2/RAS-08LH2(B) / RAC-08LH1
RAS-10LH2/RAS-10LH2(B) / RAC-10LH1
RAS-14LH2/RAS-14LH2(B) / RAC-14LH1
Instruction manual Page 1~26
To obtain the best performance and ensure years of trouble free use, please read this instruction manual
completely.
Инструкция по эксплуатации стр. 27~55
Для обеспечения наилучших эксплуатационных характеристик и многолетней безотказной работы
оборудования необходимо ознакомиться с данной Инструкцией по эксплуатации.
OUTDOOR UNIT INDOOR UNIT
RAS-08LH2/RAS-08LH2(B)
RAS-10LH2/RAS-10LH2(B)
RAS-14LH2/RAS-14LH2(B)
RAC-08LH1
RAC-10LH1
RAC-14LH1
RAS-08-10-14LH2(B) (EN1) 1 3/20/12 9:44 AM

– 2 –
!
SAFETY PRECAUTION
● Please read the “Safety Precaution” carefully before operating the unit to ensure correct usage of the unit.
● Pay special attention to signs of “ Warning” and “ Caution”. The “Warning” section contains matters which,
if not observed strictly, may cause death or serious injury. The “Caution” section contains matters which may
result in serious consequences if not observed properly. Please observe all instructions strictly to ensure safety.
● The sign indicate the following meanings.
● Please keep this manual after reading.
WARNING
PRECAUTIONS DURING INSTALLATION
●Do not reconstruct the unit.
Water leakage, fault, short circuit or re may occur if you reconstruct
the unit by yourself.
●Please ask your sales agent or qualied technician for the installation
of your unit. Water leakage, short circuit or re may occur if you install
the unit by yourself.
●Please use earth line.
Do not place the earth line near water or gas pipes, lightning-conductor,
or the earth line of telephone. Improper installation of earth line may
cause electric shock.
●A circuit breaker should be installed depending on the mounting site of
the unit. Without a circuit breaker, the danger of electric shock exists.
●Do not install the unit near a location where there is ammable gas.
The outdoor unit may catch re if ammable gas leaks around it.
●Please ensure smooth ow of water when installing the drain hose.
CAUTION
!
!
PRECAUTIONS DURING SHIFTING OR MAINTENANCE
●Should abnormal situation arises (like burning smell), please stop operating the unit
and turn off the circuit breaker. Contact your agent. Fault, short circuit or re may
occur if you continue to operate the unit under abnormal situation.
●Please contact your agent for maintenance. Improper self maintenance may cause
electric shock and re.
●Please contact your agent if you need to remove and reinstall the unit. Electric
shock or re may occur if you remove and reinstall the unit yourself improperly.
●If the supply cord is damaged, it must be replaced by the special cord obtainable
at authorized service/parts centers.
!
Make sure to connect earth line.
Indicates the instructions that must be followed.
The sign in the gure indicates prohibition.
W
A
R
N
I
N
G
!
PRECAUTIONS DURING OPERATION
●Avoid an extended period of direct air ow for your health.
W
A
R
N
I
N
G
!
●Do not insert a nger, a rod or other objects into the air outlet or inlet. As
the fan is rotating at a high speed, it will cause injury. Before cleaning, be
sure to stop the operation and turn the breaker OFF.
●During thunder storm, disconnect and turn off the circuit breaker.
●Do not use any conductor as fuse wire, this could cause fatal accident.
●This unit has UV LED which emits ultra violet light.
AVOID DIRECT EYE EXPOSURE.
!
RAS-08-10-14LH2(B) (EN1) 2 3/20/12 9:44 AM

– 3 –
ENGLISH

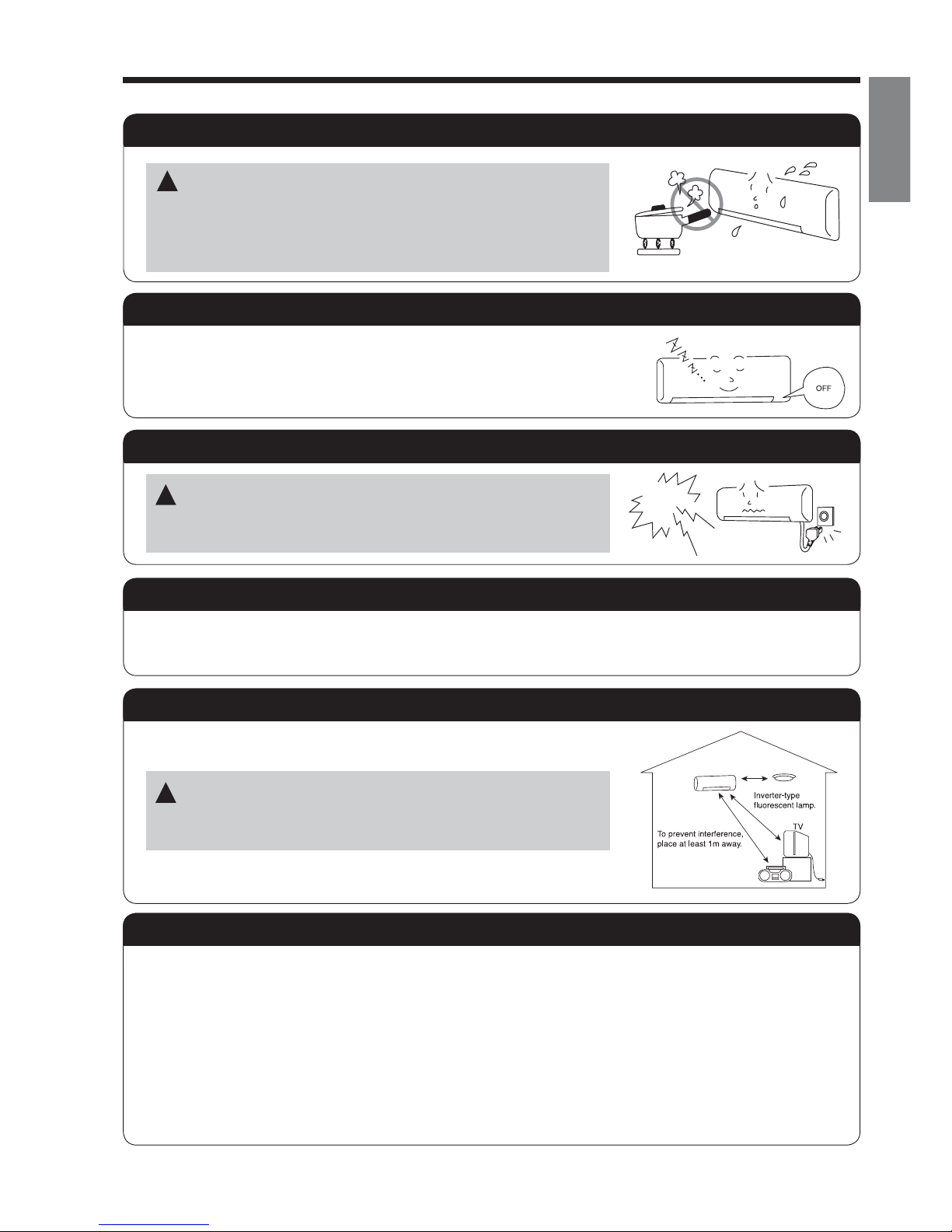

PRECAUTIONS DURING OPERATION
●Do not attempt to operate the unit with wet hands, this could cause fatal
accident.
●When operating the unit with burning equipments, regularly ventilate the
room to avoid oxygen insufciency.
●Do not direct the cool air coming out from the air-conditioner panel to face
household heating apparatus as this may affect the working of apparatus
such as the electric kettle, oven etc.
●Do not place plants directly under the air ow as it is bad for the plants.
●Please ensure that outdoor mounting frame is always stable, rm and
without defect. If not, the outdoor unit may collapse and cause danger.
●Do not splash or direct water to the body of the unit when cleaning it as
this may cause short circuit.
●When operating the unit with the door and windows opened, (the room humidity is always above
80%) and with the air deector facing down or moving automatically for a long period of time,
water will condense on the air deector and drips down occasionally. This will wet your furniture.
Therefore, do not operate under such condition for a long time.
●If the amount of heat in the room is above the cooling or heating capability of the unit (for
example: more people entering the room, using heating equipments and etc.), the preset room
temperature cannot be achieved.
●This appliance is not intended for use by young children or inrm persons unless they have
been adequately supervised by a responsible person to ensure that they can use the appliance
safely.
●Young children should be supervised to ensure that they do not play with the appliance.
●Do not climb on the outdoor unit or put objects on it.
●Please switch off the unit and turn off the circuit breaker during cleaning,
the high-speed fan inside the unit may cause danger.
●Turn off the circuit breaker if the unit is not to be operated for a long period.
C
A
U
T
I
O
N
!
●The product shall be operated under the manufacturer specication and
not for any other intended use.
●Do not put water container (like vase) on the indoor unit to avoid water
dripping into the unit. Dripping water will damage the insulator inside the
unit and causes short-circuit.
●Do not use any aerosol or hair sprays near the indoor unit. This chemical
can adhere on heat exchanger n and blocked the evaporation water
ow to drain pan. The water will drop on tangential fan and cause water
splashing out from indoor unit.
RAS-08-10-14LH2(B) (EN1) 3 3/20/12 9:44 AM

– 4 –
Drain pipe
Condensed water drain to outside.
Connecting cord and insulation pipe for piping
Air inlet (Back, Left side)
Air outlet
INDOOR UNIT
NAMES AND FUNCTIONS OF EACH PART
PRE-lter
To prevent dust from coming into the indoor unit.
(Refer page 21)
Front panel
Indoor unit indicators
Light indicator showing the operating condition.
(Refer page 5)
Horizontal deector ●Vertical deector
(Air Outlet)
(Refer page 16)
Remote controller
Send out operation signal to the indoor unit. So as
to operate the whole unit.
(Refer page 6)
WIDTH (mm)
780
700
MODEL
RAS-08LH2/10LH2/14LH2
RAS-08LH2(B)/10LH2(B)/14LH2(B)
RAC-08LH1/10LH1/14LH1
HEIGHT (mm)
280
468
DEPTH (mm)
220
258
MODEL NAME AND DIMENSIONS
OUTDOOR UNIT
RAC-08LH1
RAC-10LH1
RAC-14LH1
CAUTION
●When heating operation, drain or defrosted water ows
out from outdoor unit. Don’t close drain outlet portion
in chilly area so as not to freeze these.
!
RAS-08-10-14LH2(B) (EN1) 4 3/20/12 9:44 AM

– 5 –
ENGLISH
INDOOR UNIT INDICATORS

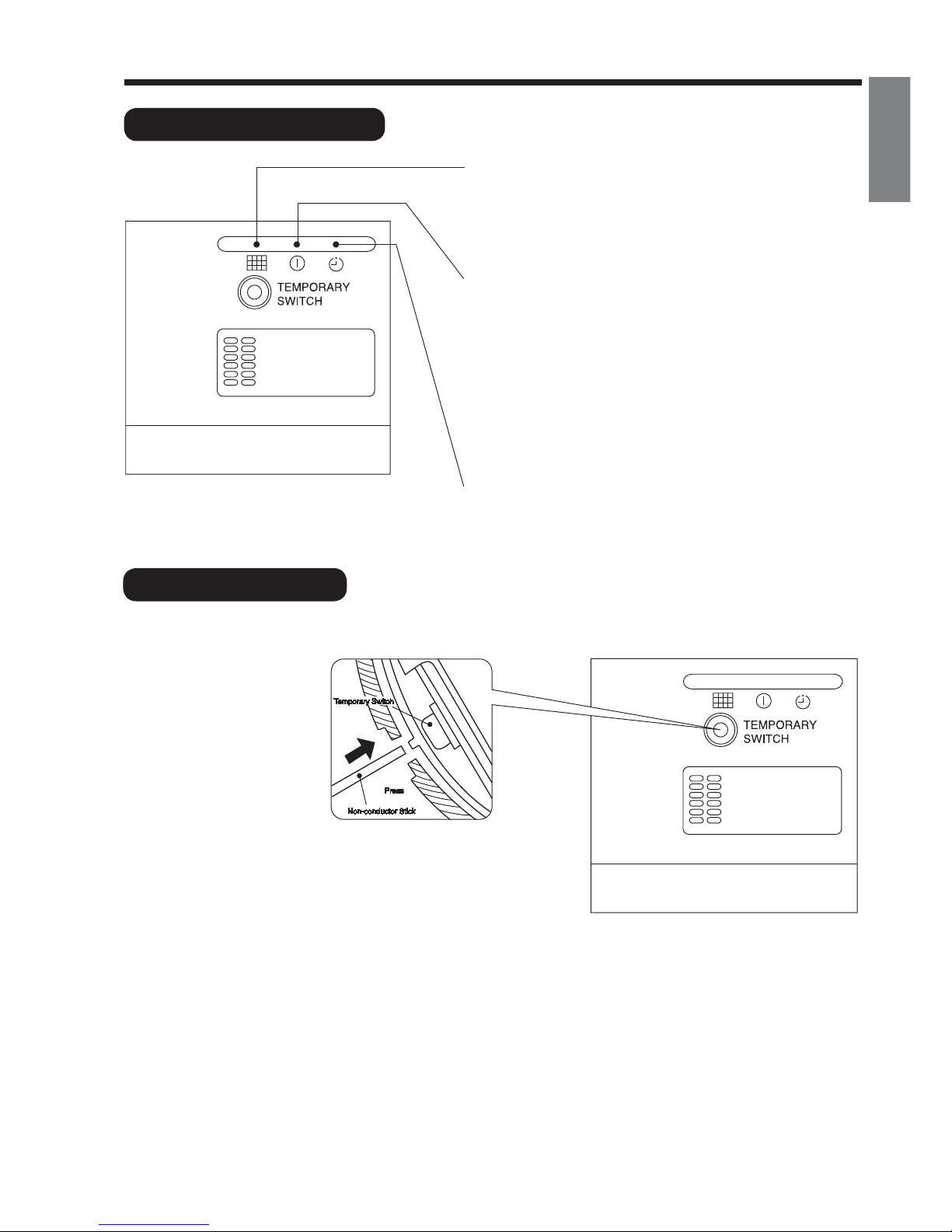

TEMPORARY SWITCH
Use this switch to start and stop when the remote controller does not work. [Use non-conductor stick
(example toothpick)]
●By pressing the temporary switch, the operation is done in previously set operation mode.
●When the operation is done using the temporary switch after the power source is turned off and turn
on again, the operation is done in automatic mode.
OPERATION INDICATOR
FILTER LAMP
When the device is operated for a total of about 100
hours, the FILTER lamp lights to indicate that it is time
to clean the lter. The lamp goes out when the POWER
SWITCH set to OFF and ON again.
OPERATION LAMP
This lamp lights during operation.
The OPERATION LAMP ashes in the following cases
during heating.
(1) During preheating
For about 2–3 minutes after starting up.
(2) During defrosting
Defrosting will be performed about once every one
hour when frost forms on the heat exchanger of the
outdoor unit, for 5–10 minutes each time.
TIMER LAMP
This lamp lights when the timer is working.
RAS-08-10-14LH2(B) (EN1) 5 3/20/12 9:44 AM

– 6 –

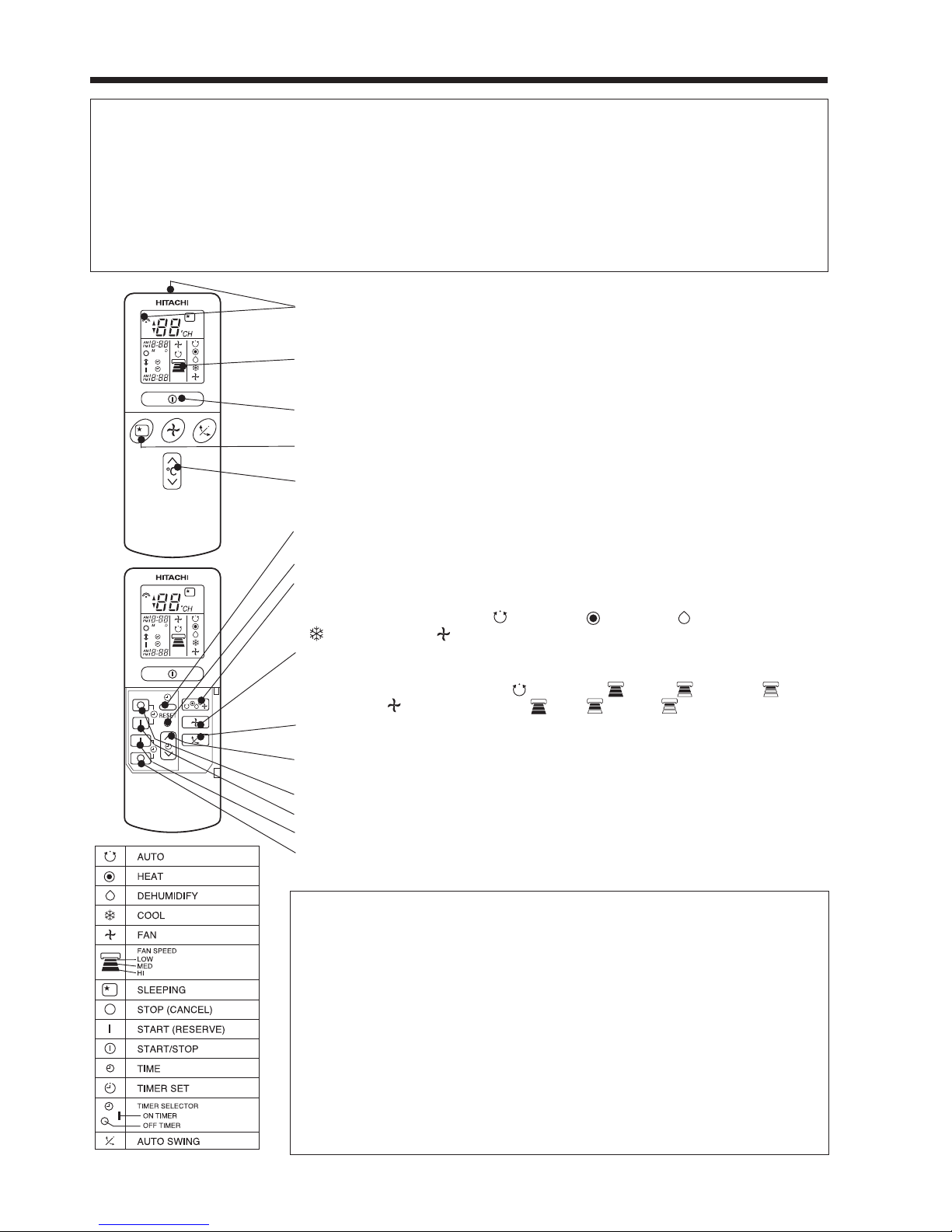

NAMES AND FUNCTIONS OF REMOTE CONTROL UNIT
REMOTE CONTROLLER
●This controls the operation of the indoor unit. The range of control is about 7 meters. If indoor lighting is
controlled electronically, the range of control may be shorter.
This unit can be xed on a wall using the xture provided. Before xing it, make sure the indoor unit can
be controlled from the remote controller.

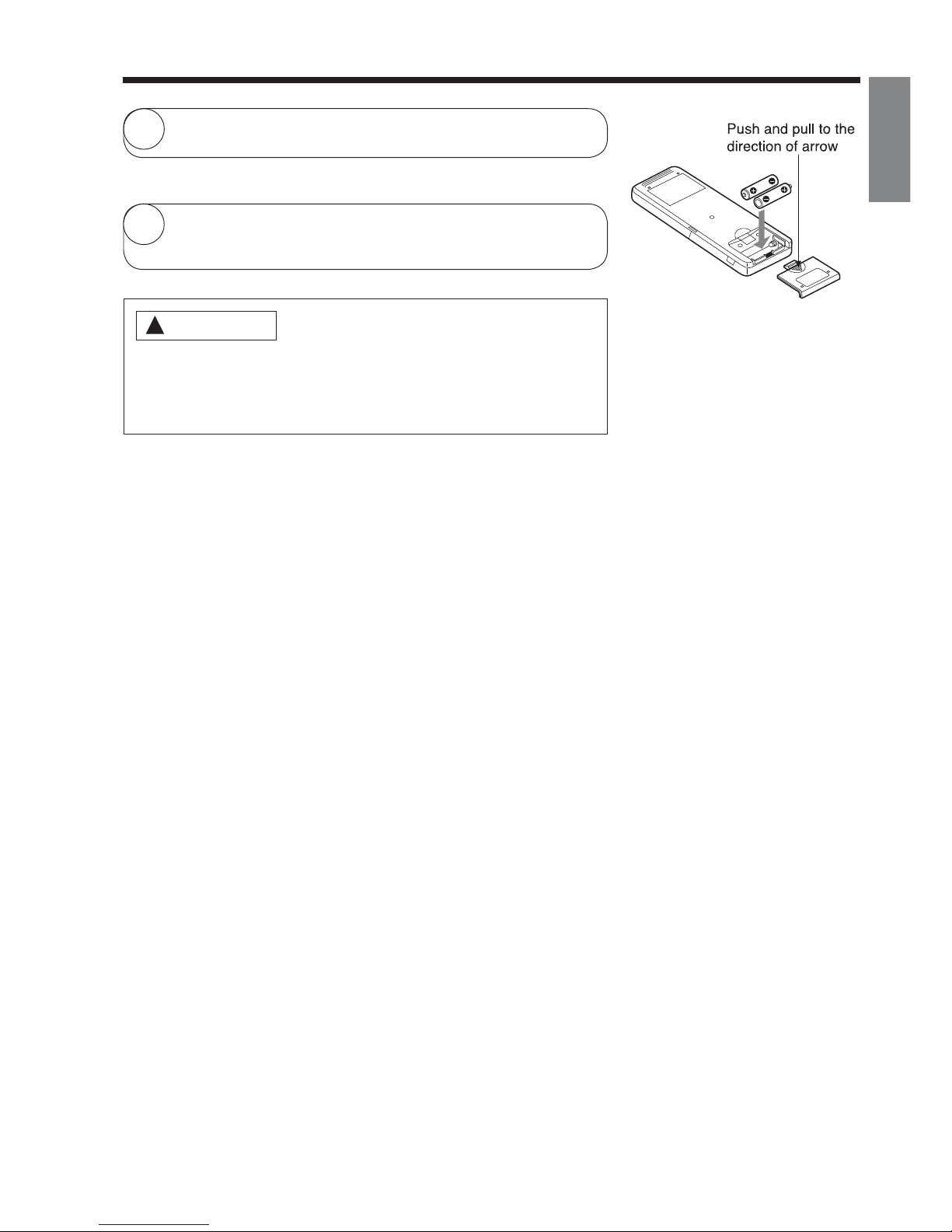

●Handle the remote controller with care. Dropping it or getting it wet may compromise its signal transmission
capability.
●After new batteries are inserted into the remote controller, the unit will initially require approximately 10
seconds to respond to commands and operate.
●Signal emitting window/transmission sign
Point this window toward the indoor unit when controlling it.
The transmission sign blinks when a signal is sent.
●Display
This indicates the room temperature selected, current time, timer status, function
and intensity of circulation selected.
●START/STOP button
Press this button to start operation. Press it again to stop operation.

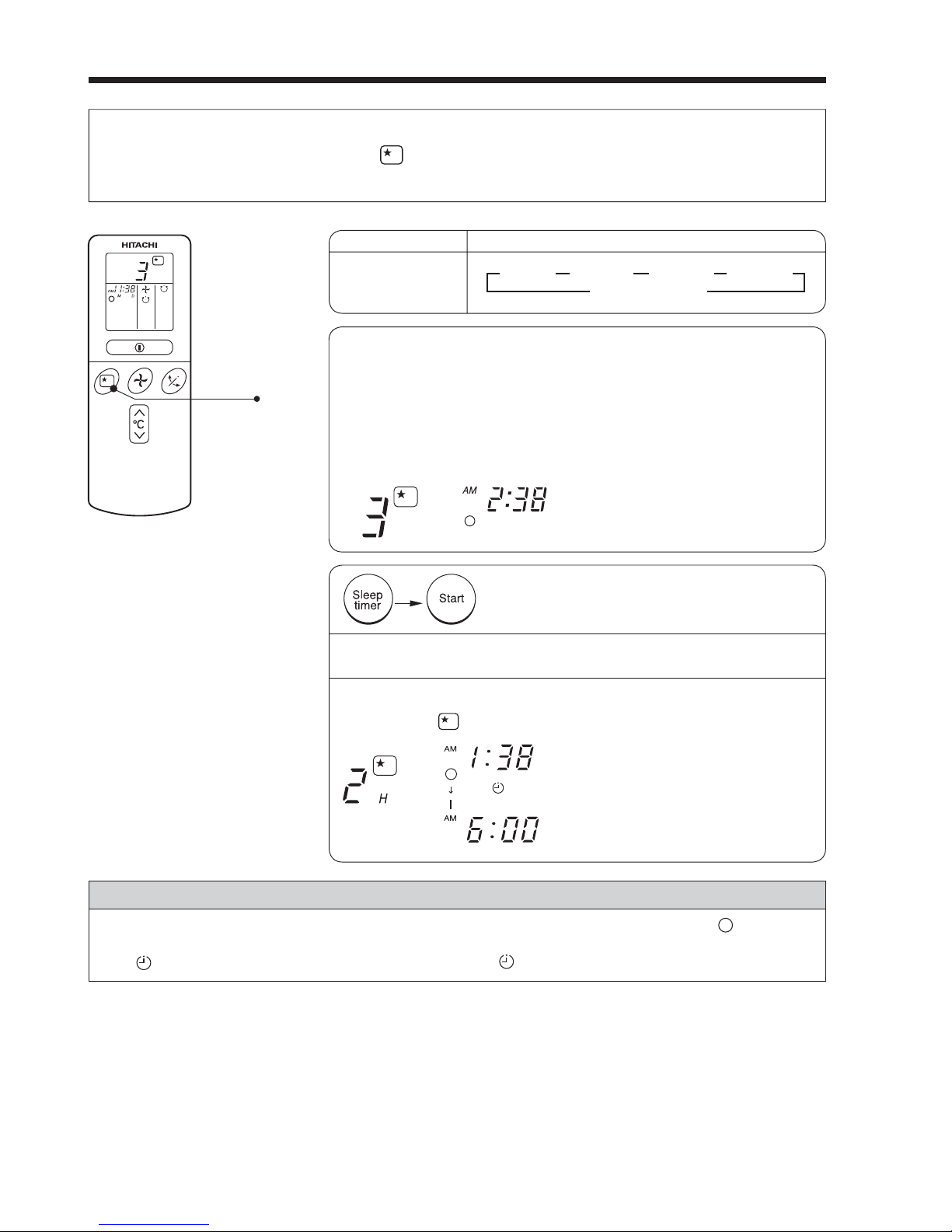

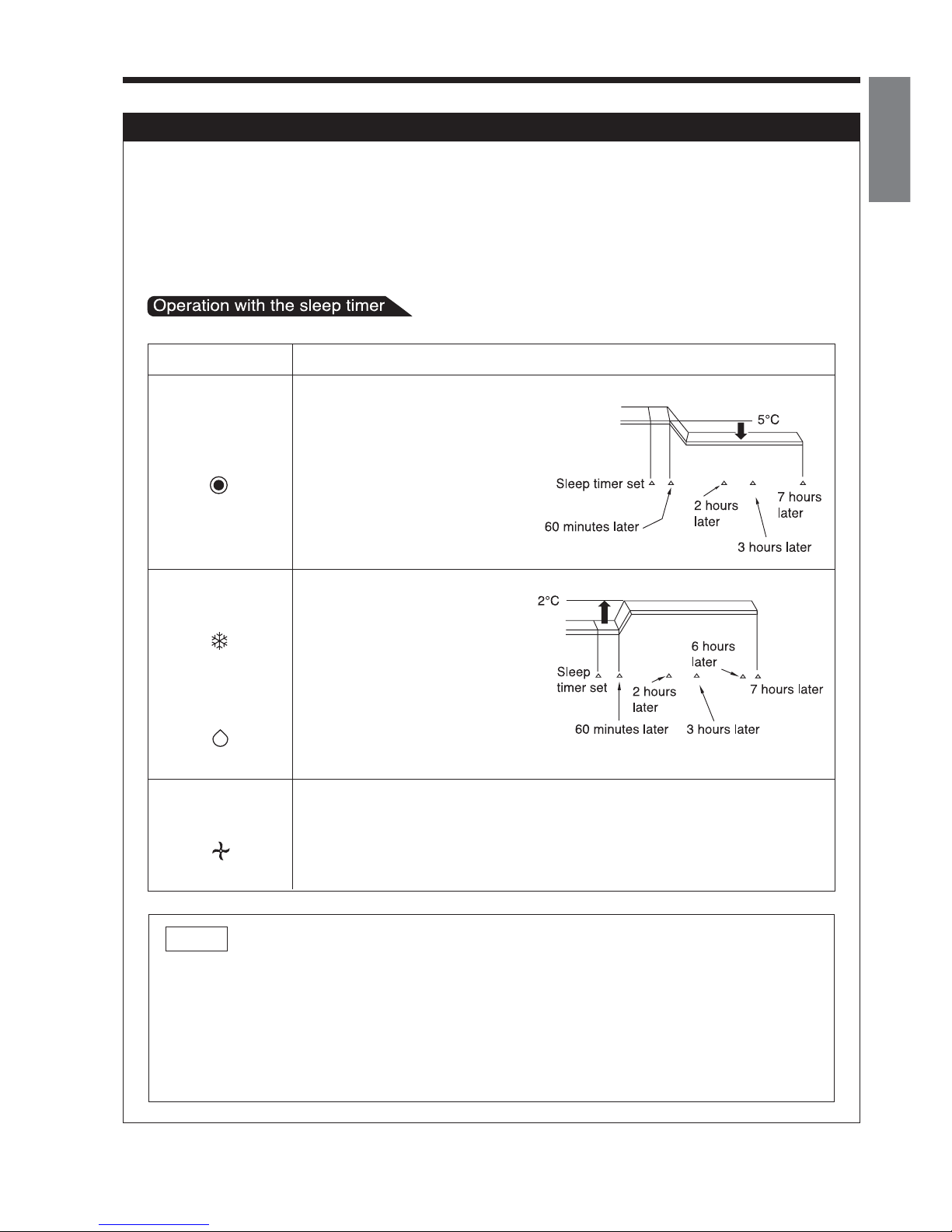

●SLEEP button
Use this button to set the sleep timer.
●TEMPERATURE buttons
Use these buttons to raise or lower the temperature setting. (Keep pressed,
and the value will change more quickly.)
●TIME button
Use this button to set and check the time and date.
●RESET buttons
●FUNCTION selector
Use this button to select the operating mode. Every time you press it,
the mode will change from (AUTO) to (HEAT) to (DEHUMIDIFY) to
(COOL) and to (FAN) cyclically.
●FAN SPEED selector
This determines the fan speed. Every time you press this button, the intensity
of circulation will change from (AUTO) to (HI) to (MED) to (LOW)
(during the (FAN) mode, from HI to MED to LOW).
●AUTO SWING button
Controls the angle of the horizontal air deector.

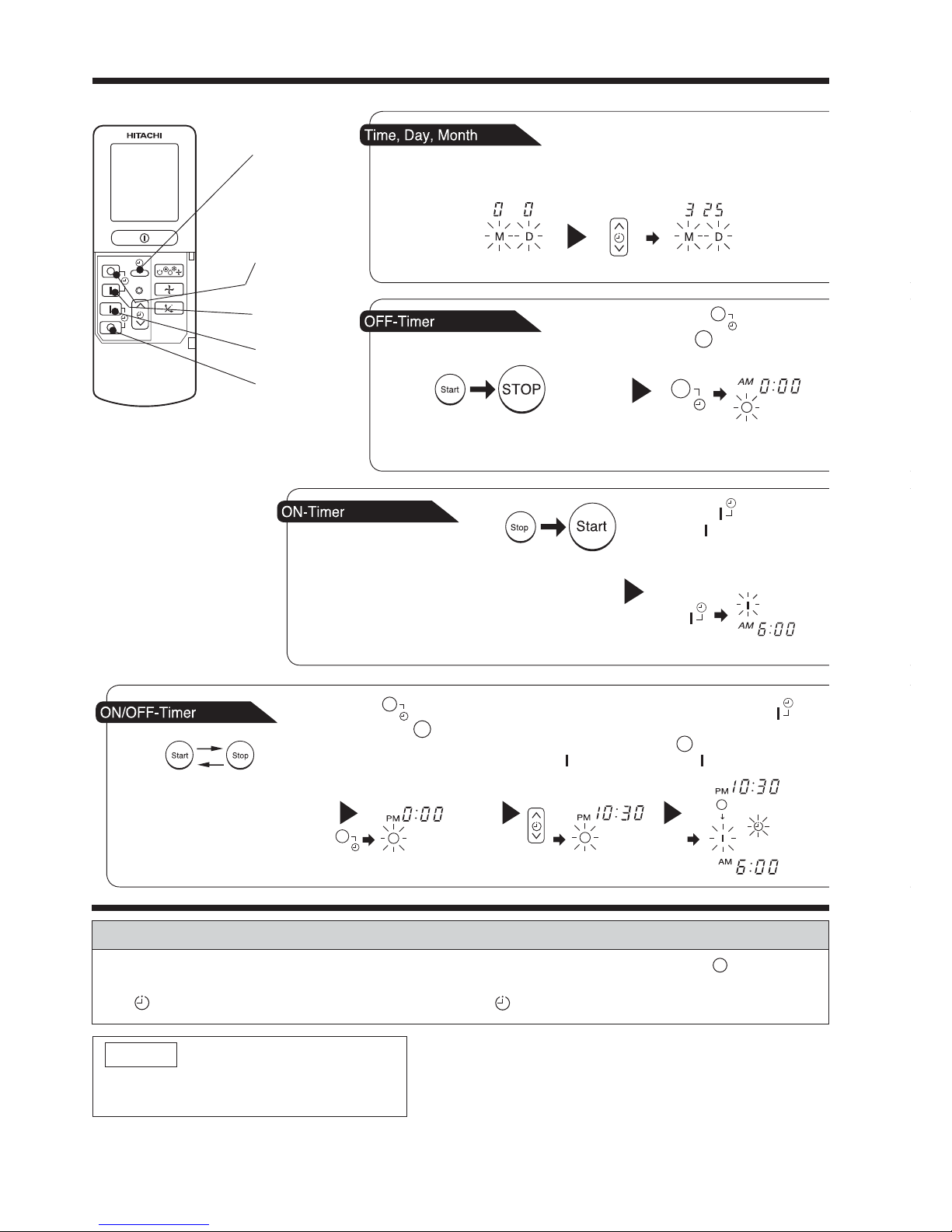

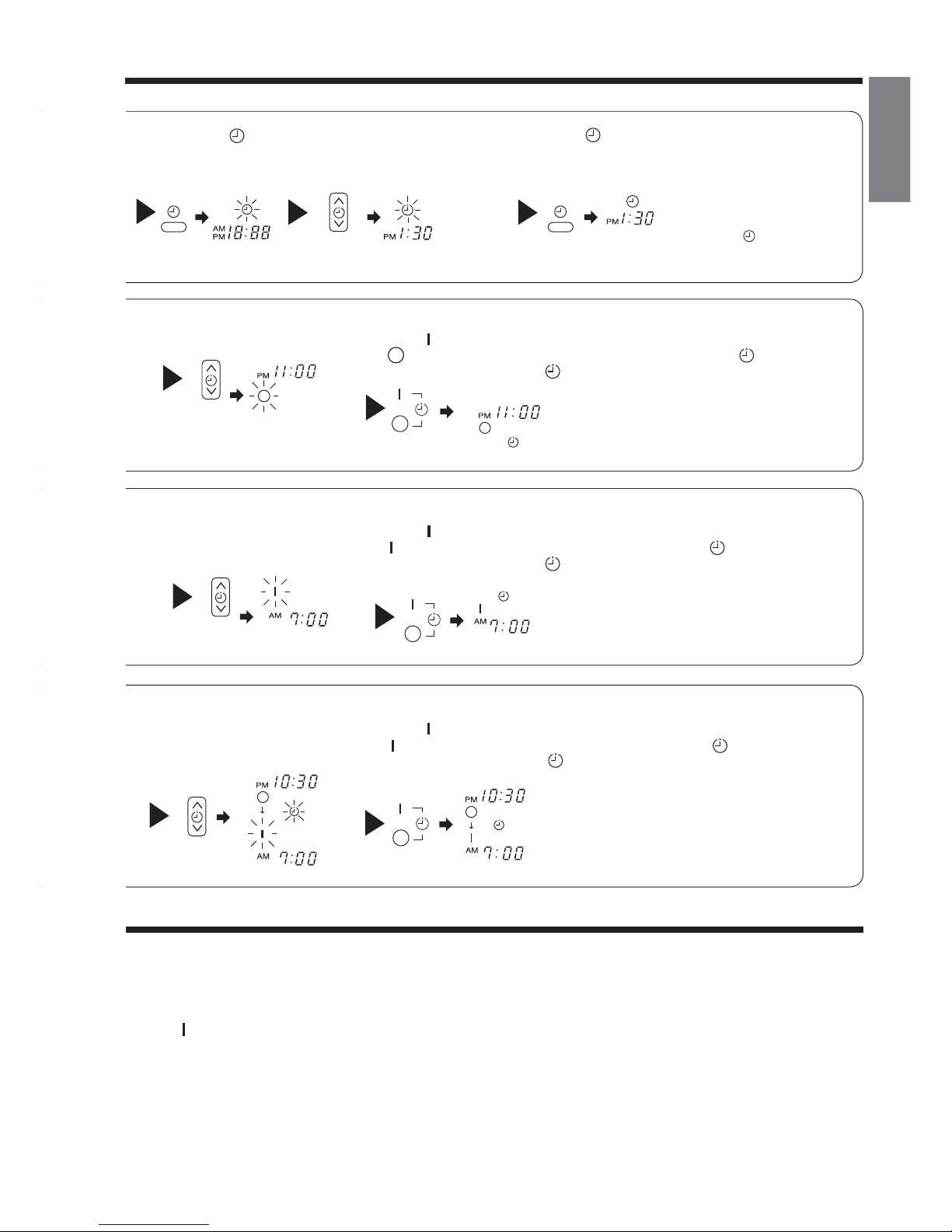

●TIMER control
Use this button to set the timer.
●OFF-TIMER button Select the turn OFF time.
●ON-TIMER button Select the turn ON time.
●RESERVE button Time setting reservation.
●CANCEL button Cancel time reservation.
Precautions for Use
●Do not put the remote controller in the following places.
●Under direct sunlight.
●In the vicinity of a heater.
●Handle the remote controller carefully. Do not drop it on the oor,
and protect it from water.
●Once the outdoor unit stops, it will not restart for about 3 minutes
(unless you turn the power switch off and on or unplug the power
cord and plug it in again).
This is to protect the device and does not indicate a failure.
●If you press the FUNCTION selector button during operation, the
device may stop for about 3 minutes for protection.
RAS-08-10-14LH2(B) (EN1) 6 3/20/12 9:44 AM

– 7 –
ENGLISH
AUTOMATIC OPERATION
The device will automatically determine the mode of operation, HEAT, COOL or DEHUMIDIFY depending on the
initial room temperature. The selected mode of operation will not change when the room temperature varies.
■As the settings are stored in memory in the remote controller, you only have
to press the (START/STOP) button next time.

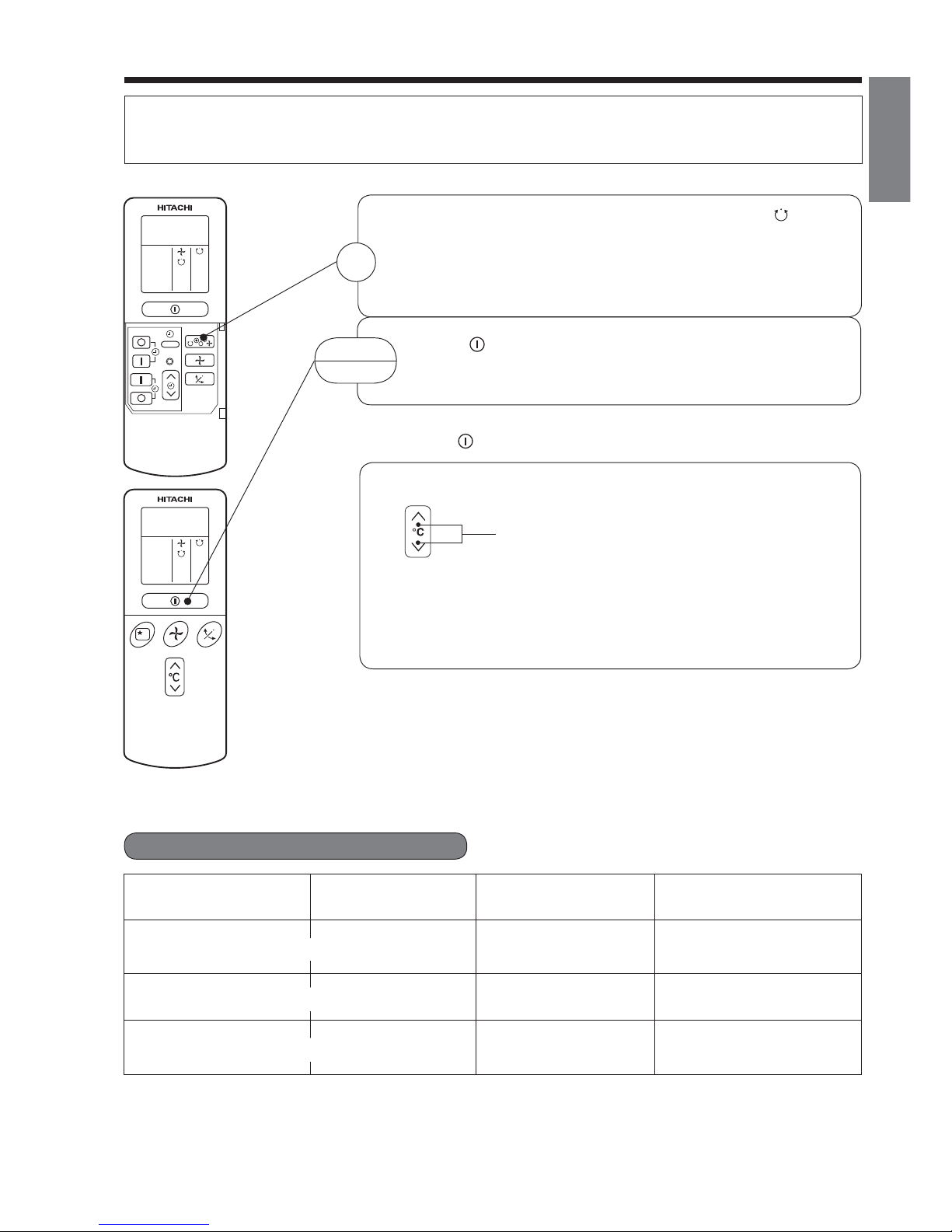

Press the FUNCTION selector so that the display indicates the (AUTO)
mode of operation.
●When AUTO has been selected, the device will automatically determine
the mode of operation, HEAT, COOL or DEHUMIDIFY depending on
the initial room temperature.
Press the (START/STOP) button.
Operation starts with a beep.
Press the button again to stop operation.
You can raise or lower the temperature setting as necessary by maximum of 3°C.
Press the temperature button and the temperature setting
will change by 1°C each time.
●The preset temperature and the actual room temperature may vary
somewhat depending on conditions.
●The display does not indicate the preset temperature in the AUTO mode.
If you change the setting, the indoor unit will produce a beep.
1
START
STOP
RESET
Over 27°C COOL
23~27°C
Under 23°C HEAT
Temperature settingFunction
27°C
23°C
Slightly lower than the
room temperature LOW
FAN SPEED
HI at start, MED or LOW
after the preset temperature
is reached
HI at start, MED or LOW
after the preset temperature
is reached
--
DEHUMIDIFY
-
Initial room temperature
(approx.)
■Condition of Automatic Operation
RAS-08-10-14LH2(B) (EN1) 7 3/20/12 9:44 AM

– 8 –
HEATING OPERATION
●Use the device for heating when the outdoor temperature is under 21°C.
When it is too warm (over 24°C), the heating function may not work in order to protect the device.
●In order to keep reliability of the device, please use this device above –10°C of the outdoor temperature.
Press the FUNCTION selector so that the display indicates
(HEAT).
Set the desired FAN SPEED with the (FAN SPEED) button
(the display indicates the setting).
(AUTO): The fan speed is HI at rst and varies to MED or
LOW automatically when the preset temperature
has been reached.
(HI) : Economical as the room will become warm
quickly.
But you may feel a chill at the beginning.
(MED) : Quiet.
(LOW) : More quiet.
Set the desired room temperature with the TEMPERATURE
buttons (the display indicates the setting).
The range of 18-22°C is recommended as the
room temperature for heating.
If the temperature setting is 20°C, the room
temperature will be controlled at around 20°C.
The temperature setting and the actual room temperature may
vary somewhat depending on conditions.
Press the (START/STOP) button. Heating operation starts
with a beep. Press the button again to stop operation.
■As the settings are stored in memory in the remote controller, you
only have to press the (START/STOP) button next time.
1
2
3
START
STOP
˚C
RESET
˚C
RAS-08-10-14LH2(B) (EN1) 8 3/20/12 9:44 AM

– 9 –
ENGLISH
RESET
˚C
˚C
DEHUMIDIFYING OPERATION
Use the device for dehumidifying when the room temperature is over 16°C.
When it is under 15°C, the dehumidifying function will not work.
■Dehumidifying Function
When the room temperature is higher than the temperature setting: The device will dehumidify the room,
reducing the room temperature to the preset level.
When the room temperature is lower than the temperature setting: Dehumidifying will be performed at
the temperature setting slightly lower than the current room temperature, regardless of the temperature
setting. The function will stop (the indoor unit will stop emitting air) as soon as the room temperature
becomes lower than the setting temperature.
Set the desired room temperature with the TEMPERATURE
button (the display indicates the setting).
The range of 20-26C is recommended as
the room temperature for dehumidifying.
Press the (START/STOP) button. Dehumidifying operation
starts with a beep. Press the button again to stop operation.
2
■As the settings are stored in memory in the remote controller, you
only have to press the (START/STOP) button next time.
START
STOP
Press the FUNCTION selector so that the display indicates
(DEHUMIDIFY).
The FAN SPEED is set at LOW automatically.
The FAN SPEED button does not work.
1

C
RAS-08-10-14LH2(B) (EN1) 9 3/20/12 9:44 AM

– 10 –
˚
C
RESET
˚
C
COOLING OPERATION
Use the device for cooling when the outdoor temperature is 21-43°C.
If indoor humidity is very high (over 80%), some dew may form on the air outlet grille of the indoor unit.
Press the FUNCTION selector so that the display indicates
(COOL).
Set the desired FAN SPEED with the (FAN SPEED) button
(the display indicates the setting).
(AUTO): The FAN SPEED is HI at rst and varies to
MED or LOW automatically when the preset
temperature has been reached.
(HI) : Economical as the room will become cool quickly.
(MED) : Quiet.
(LOW) : More quiet.
Set the desired room temperature with the TEMPERATURE
button (the display indicates the setting).
The range of 25-28°C is recommended as the
room temperature for cooling.
If the temperature setting is 27°C, the room
temperature will be controlled at around 27°C.
The temperature setting and the actual room temperature may
vary some how depending on conditions.
Press the (START/STOP) button. Cooling operation starts
with a beep. Press the button again to stop operation. The
cooling function does not start if the temperature setting is
higher than the current room temperature (even though the
(OPERATION) lamp lights). The cooling function will start
as soon as you set the temperature below the current room
temperature.
■As the settings are stored in memory in the remote controller, you
only have to press the (START/STOP) button next time.
1
2
3
START
STOP

C
RAS-08-10-14LH2(B) (EN1) 10 3/20/12 9:44 AM

– 11 –
ENGLISH
FAN SPEED (AUTO) ..... When the AUTO fan speed mode is set in the cooling/heating operation:
For the heating operation
●The fan speed will automatically change according to the temperature
of discharged air.
●When the difference of room temperature and setting temperature is
large, fan starts to run at HI speed.
●When the room temperature reaches setting temperature, fan speed
changes to LOW automatically.
●When the difference of room temperature and setting temperature is
large, fan starts to run at HI speed.
●After room temperature reaches the preset temperature, the cooling
operation, which changes the fan speed and room temperature to obtain
optimum conditions for natural healthful cooling will be performed.
For the cooling operation
FAN OPERATION
You can use the device simply as an air circulator. Use this function to dry the interior of the indoor
unit at the end of summer.
Press the FUNCTION selector so that the display indicates
(FAN).
Press the (FAN SPEED) button.
Press the (START/STOP) button. Fan operation starts with
a beep. Press the button again to stop operation.
1
2
START
STOP
RESET
RAS-08-10-14LH2(B) (EN1) 11 3/20/12 9:44 AM

– 12 –
HOW TO SET THE TIMER
●The device will turn on (off) and off
(on) at the designated times.
●The switching occurs rst at the
preset time that comes earlier.
●The arrow mark appearing on the
display indicates the sequence of
switching operations.
You can set the device to turn off
at the present time.
After you change the
batteries;
How to Cancel Reservation
Point the signal window of the remote controller toward the indoor unit, and press the (CANCEL)
button.
The (RESERVED) sign goes out with a beep and the (TIMER) lamp turns off on the indoor unit.
1Set the current month and
day with the TIMER control
button.
1Press the (OFF-TIMER)
button. The (OFF) mark blinks
on the display.
NOTE
You can set only one of the OFF-timer,
ON-timer and ON/OFF-timer.
●The device will turn on
at the designated times.
TIME, DAY,
MONTH
(current time,
day, month)
OFF TIMER
ON TIMER
RESERVE
CANCEL
RESET
1Press the (ON-TIMER)
button the (ON) mark blinks
on the display.
1Press the (ON-OFF)
button so that the (OFF)
mark blinks.
2Set the turn-off time
with the TIMER control
button.
Press the (RESERVE)
button.
3Press the (ON-
TIMER) button so that the
(OFF) mark lights and
the (ON) mark blinks.
RAS-08-10-14LH2(B) (EN1) 12 3/20/12 9:44 AM

– 13 –
ENGLISH
●The time indication will disappear
automatically in 10 second.
●To check the current time setting,
press the (TIME) button twice.
The setting of the current time is
now complete.
●The timer may be used in three ways: off-timer, on-timer, and ON/OFF (OFF/ON)-timer. Set
the current time at rst because it serves as a reference.
●As the time settings are stored in memory in the remote controller, you only have to press
the (RESERVE) button in order to use the same settings next time.
Example: The current time is 1:30 p.m.
The setting of turn-off time is now complete.
Example: The device will turn off at 11:00p.m.
Example:
The device will automatically turn on earlier so that the preset
temperature can be reached at 7:00 a.m.
The setting of the turn-on time is now complete.
4Set the turn-on time with the
TIMER control button.
5Point the signal window of the remote controller toward the indoor unit, and
press the (RESERVE) button.
The (ON) mark starts lighting instead of ashing and the (RESERVED) sign
lights. A beep occurs and the (TIMER) lamp lights on the indoor unit.
2Set the turn-on time with the
TIMER control button.
Example:
The device will turn off at 10:30 p.m. and then automatically
turn on earlier so that the preset temperature can be reached
at 7:00 a.m.
The settings of the turn-on/off times are now complete.
2Press the
(TIME) button.
3Set the current time with the
TIMER control button.
4Press the (TIME) button again.
The time indication starts lighting
instead of ashing.
3Point the signal window of the remote controller toward the indoor unit, and
press the (RESERVE) button.
The (OFF) mark starts lighting instead of ashing and the sign (RESERVED)
lights. A beep occurs and the (TIMER) lamp lights on the indoor unit.
2Set the turn-off time with the
TIMER control button.
3Point the signal window of the remote controller toward the indoor unit, and
press the (RESERVE) button.
The (ON) mark starts lighting instead of ashing and the (RESERVED) sign
lights. A beep occurs and the (TIMER) lamp lights on the indoor unit.
RAS-08-10-14LH2(B) (EN1) 13 3/20/12 9:44 AM

– 14 –
HOW TO SET THE SLEEP TIMER
1Set the ON-timer.
Set the current time at rst if it is not set before (see the pages for setting
the current time). Press the (SLEEP) button, and the display changes
as shown below.
Mode
Sleep timer
Indication
1 hour 2 hours 3 hours 7 hours
Sleep timer off
44 44
1
Sleep Timer: The device will continue working for the designated
number of hours and then turn off.
Point the signal window of the remote controller toward the indoor
unit, and press the SLEEP button.
The timer information will be displayed on the remote controller.
The TIMER lamp lights with a beep from the indoor unit. When the
sleep timer has been set, the display indicates the turn-off time.
Example: If you set 3 hours sleep
time at 11:38 p.m., the turn-off
time is 2:38 a.m.
2Press the (SLEEP) button and set the sleep timer.
The device will be turned off by the sleep
timer and turned on by on-timer.
How to Cancel Reservation
Point the signal window of the remote controller toward the indoor unit, and press the (CANCEL)
button.
The (RESERVED) sign goes out with a beep and the (TIMER) lamp turns off on the indoor unit.
Example:
In this case, the device will turn
off in 2 hours (at 1:38 a.m.) and
turn on early so that the preset
temperature will be almost reached
at 6:00 next morning.
SLEEP
H
H

RAS-08-10-14LH2(B) (EN1) 14 3/20/12 9:44 AM

– 15 –
ENGLISH
Cooling
“ ”
and
dehumidifying
“ ”
Explanation of the sleep timer
The device will control the FAN SPEED and room temperature automatically
so as to be quiet and good for people’s health.
You can set the sleep timer to turn off after 1, 2, 3 or 7 hours. The FAN
SPEED and room temperature will be controlled as shown below.
Function Operation
The settings of room temperature and circulation are varied.
The room temperature will
be controlled 2°C above the
temperature and the FAN
SPEED will be set to LOW
setting 60 minutes after the
setting of the sleep timer.
Fan
“ ”
Heating
“ ”
The room temperature will
be controlled 5°C below the
temperature and the FAN
SPEED will be set to LOW
setting 60 minutes after the
setting of the sleep timer.
●If date or current time is not set, sleep timer can not be set.
●If you set the sleep timer after the off-, on/off- or off/on-timer has been set, the sleep timer
becomes effective instead of the off-, on/off- or off/on-timer set earlier.
●You can not set other timer during sleep timer operation.
●After sleep timer time is up and when press sleep button again, the sleep timer will be set
as last setting.
●Sleep timer effective only once.
NOTE
RAS-08-10-14LH2(B) (EN1) 15 3/20/12 9:44 AM

– 16 –

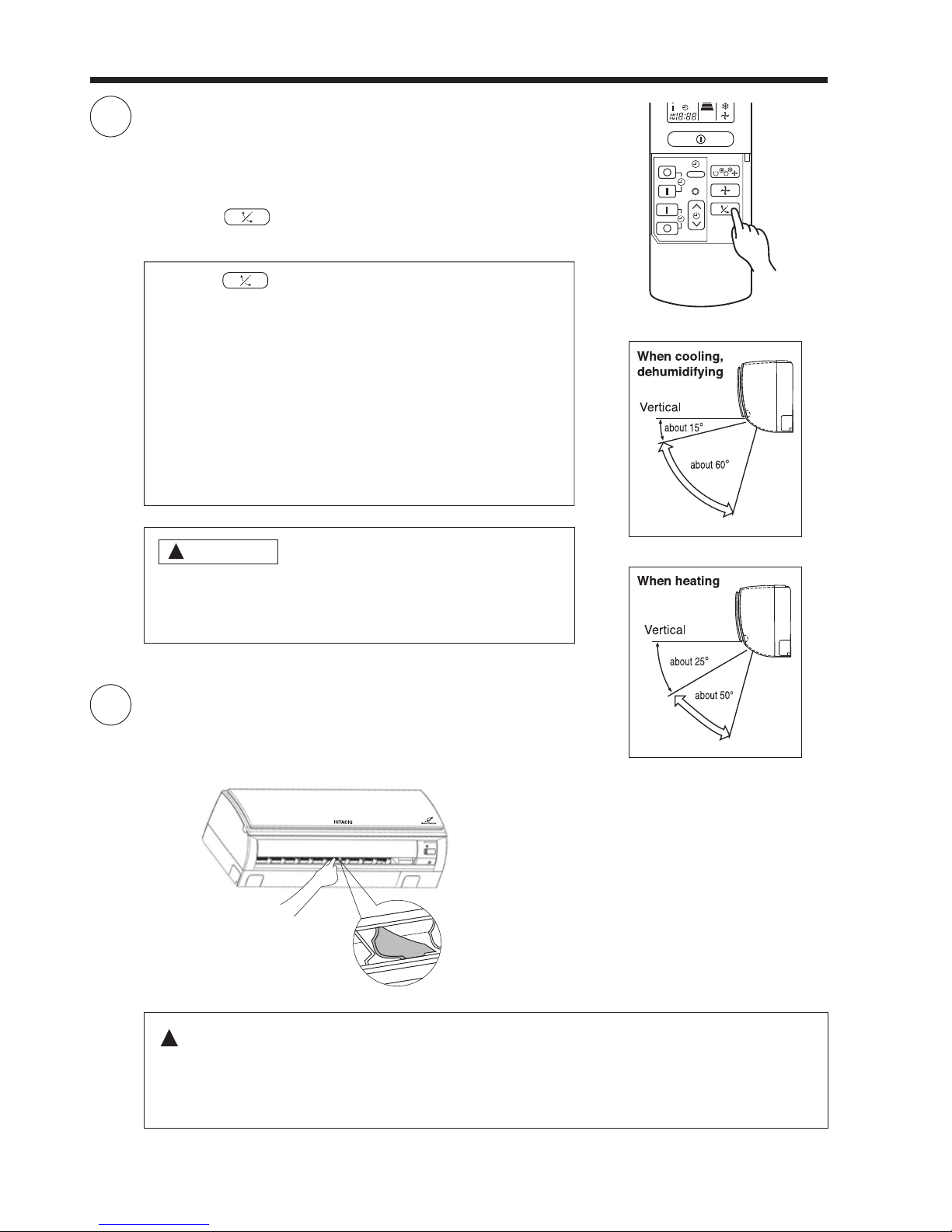

ADJUSTING THE AIR DEFLECTOR
1
2Adjustment of the conditioned air to the left and right.
Hold the vertical air deector as shown in the gure and adjust
the conditioned air to the left and right.
!
CAUTION
●In “Cooling” operation, do not keep the horizontal air
deector swinging for a long time. Some dew may form
on the horizontal air deector and dew may drop.
●If the " (AUTO SWING)" button is pressed once,
the horizontal air deector swings up and down. If the
button is pressed again, the deeector stops in its current
position. Several seconds (about 6 seconds) may be
required before the deector starts to move.
●Use the horizontal air deector within the adjusting range
shown on the right.
● When the operation is stopped, the horizontal air deector
moves and stops at the position where the air outlet
closes.
RESET
Adjustment of the conditioned air in the upward and downward
directions.
The horizontal air deector is automatically set to the proper
angle suitable for each operation. The deector can be swung
up and down continuously and also set to the desired angle
using the “ (AUTO SWING)” button.
!
CAUTION
When operating the unit in cooling operation with the air deector facing down and moving
automatically for a long period of time, water will condensed on the air deector and drips
down occasionally. This will wet your furniture.
RAS-08-10-14LH2(B) (EN2) 16 3/20/12 9:44 AM

– 17 –
ENGLISH
HOW TO EXCHANGE THE BATTERIES IN THE REMOTE CONTROLLER
1Remove the cover as shown in the gure and take out the
old batteries.
=
2Install the new batteries.
The direction of the batteries should match the marks in the
case.
1. Do not use new and old batteries, or different kinds of batteries
together.
2. Take out the batteries when you do not use the remote controller
for 2 or 3 months.
!
CAUTION
RAS-08-10-14LH2(B) (EN2) 17 3/20/12 9:44 AM

– 18 –
Suitable Room Temperature Install curtain or blinds
Ventilation Effective Usage Of Timer
Do Not Forget To Clean The Pre-Filter Please Adjust Suitable Temperature
For Baby And Children
Warning
Freezing temperature
is bad for health and a
waste of electric power.
It is possible
to reduce heat
entering the
room through
windows.
At night, please use the “OFF or ON timer
operation mode”, together with your wake up
time in the morning. This will enable you to
enjoy a comfortable room temperature. Please
use the timer effectively.
Dusty pre-lter will reduce the air volume and
the cooling efciency. To prevent from wasting
electric energy, please clean the pre-lter
every 2 weeks.
Please pay attention to the room temperature
and air ow direction when operating the unit
for baby, children and old folks who have
difculty in movement.
Caution
Do not close the room for a long period of
time. Occasionally open the door and windows
to allow the
entrance of
fresh air.
THE IDEAL WAYS OF OPERATION
!
!
RAS-08-10-14LH2(B) (EN2) 18 3/20/12 9:44 AM

– 19 –
ENGLISH
FOR USER’S INFORMATION
The Air Conditioner And The Heat Source In The Room
Not Operating For A Long Time
When Lightning Occurs
Caution
If the amount of heat in the room is above the cooling capability
of the air conditioner (for example: more people entering the room,
using heating equipments and etc.), the preset room temperature
cannot be achieved.
When the indoor unit is not to be used for a long period of time,
please switch off the power from the mains. If the power from mains
remains “ON”, the indoor unit still consumes about 8W in the operation
control circuit even if it is in “OFF” mode.
Warning
To protect the whole unit during lightning, please stop operating the
unit and remove the plug from the socket.
Interference From Electrical Products
Caution
To avoid noise interference, please place the indoor unit and its
remote controller at least 1m away from electrical products.
UV-LED
UV-LED will be “ON” when the START/STOP button is pressed except for FAN only operation. During
selected operation, this UV-LED will be “ON” and “OFF”. Light UV glare is visible when the UV-LED
is “ON” and this is normal (not malfunction).
Product Operating Life
This term is valid only for the products, being purchased on the territory of Russian Federation.
In accordance with the article 5.2 of the Law “On Protection of Consumers” in operational conditions in Russian
Federation the operating life of a domestic air conditioner is determined as 7 years from the date of manufacture.
Considering the high quality, reliability and high level of operating safety of “Hitachi” products, the actual operating
life may considerably exceed the ofcial one.
This operating life is related to those parts of the product that are needed for its proper functioning under the fol-
lowing conditions:
●The item is properly assembled by a certied company and is used according to the service and operation manual.
●The repair and annual technical service are carried out by the company which installed this product
!
!
!
RAS-08-10-14LH2(B) (EN2) 19 3/20/12 9:44 AM

– 20 –
!
!CAUTION
ATTACHING THE AIR PURIFYING FILTERS
Open the front panel.
●Pull up the front panel by holding it at both sides with
both hands.
2Remove the pre-lters.
●Push upward to release the claws and pull out the
pre-lters.
3Attaching the air purifying lters to the pre-lter.
●Attach the air purifying lters to the frame by gently
compress its both sides and release after insertion
into lter frame.
Attach the pre-lters.
●Attach the pre-lters by ensuring that the surface
written “FRONT” is facing front.
●After attaching the pre-lters, push the front panel at
three arrow portion as shown in gure and close it.
Cleaning and maintenance must be carried out only by qualied service personal. Before cleaning,
stop operation and switch off the power supply.
CAUTION
Do not bend the air purifying lter as
it may cause damage to the structure.
Please do not smell direct from source
of lter.
NOTE
●In case of removing the air purifying lters, please follow the above procedures.
●The cooling capacity is slightly weakened and the cooling speed becomes slower when the air purifying lters are
used. So, set the fan speed to "HIGH" when using it in this condition.
●Air purifying lters are not washable. It is recommended to use vacuum cleaner to clean it. It can be use for 1 year
time. Type number for this air purifying lter is <SPX-CFH22>. Please use this number for ordering when you want
to renew it.
●Do not operate the air conditioner without pre-lter. Dust may enter the air conditioner and fault may occur.
1
4
Claws
(4 places)
Claws
(4 places)
RAS-08-10-14LH2(B) (EN2) 20 3/20/12 9:44 AM
