Hitachi RAS-F10CF User manual

– 1 –
ENGLISH
SPLIT TYPE AIR CONDITIONER
INDOOR UNIT/OUTDOOR UNIT
MODEL
RAS-F10CF/RAC-F10CF
OUTDOOR UNIT INDOOR UNIT
Instruction manual Page 1~20
To obtain the best performance and ensure years of trouble free use, please read this instruction manual completely.
Arahan pengendalian Muka surat 21~40
Untuk mendapatkan prestasi yang tinggi dan mengelakkan masalah untuk jangka masa yang lama, sila baca arahan
ini sepenuhnya.
Hướng dẫn sửdụng Trang 41~62
Để máy hoạt động tốt nhất, và để đảm bảo máy sửdụng được lâu bền mà không gặp sựcố, vui lòng đọc kỹ
hướng dẫn trước khi sửdụng
RAS-F10CF
RAC-F10CF
(EN1) RAS-F10CF 1(EN1) RAS-F10CF 1 3/10/15 3:03 PM3/10/15 3:03 PM

– 2 –
!

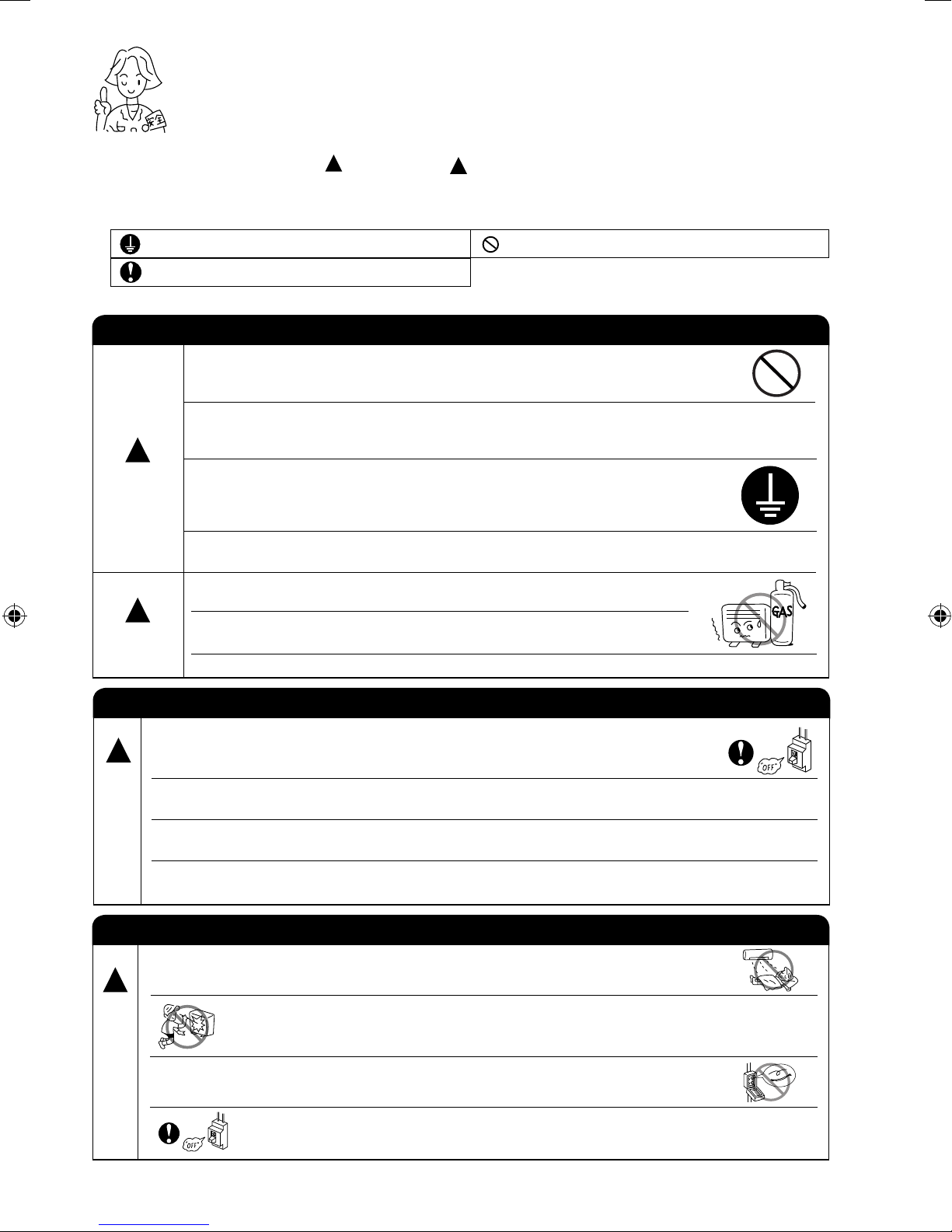

SAFETY PRECAUTION
PRECAUTIONS DURING SHIFTING OR MAINTENANCE
●Should abnormal situation arises (like burning smell), please stop operating the unit
and turn off the circuit breaker. Contact your agent. Fault, short circuit or fire may
occur if you continue to operate the unit under abnormal situation.
●Please contact your agent for maintenance. Improper self maintenance may cause
electric shock and fire.
●Please contact your agent if you need to remove and reinstall the unit. Electric
shock or fire may occur if you remove and reinstall the unit yourself improperly.
●If the supply cord is damaged, it must be replaced by the special cord obtainable
at authorized service/parts centers.
!
Make sure to connect earth line.
Indicates the instructions that must be followed.
The sign in the figure indicates prohibition.
W
A
R
N
I
N
G
!
PRECAUTIONS DURING OPERATION
●Avoid an extended period of direct air flow for your health.
W
A
R
N
I
N
G
!
●Do not insert a finger, a rod or other objects into the air outlet or inlet. As
the fan is rotating at a high speed, it will cause injury. Before cleaning, be
sure to stop the operation and turn the breaker OFF.
●During thunder storm, disconnect and turn off the circuit breaker.
●Do not use any conductor as fuse wire, this could cause fatal accident.
●
Please read the “Safety Precaution” carefully before operating the unit to ensure correct usage of the unit.
●
Pay special attention to signs of “ Warning” and “ Caution”. The “Warning” section contains matters which,
if not observed strictly, may cause death or serious injury. The “Caution” section contains matters which may result
in serious consequences if not observed properly. Please observe all instructions strictly to ensure safety.
●
The sign indicate the following meanings.
●
Please keep this manual after reading.
WARNING
PRECAUTIONS DURING INSTALLATION
●Do not reconstruct the unit.
Water leakage, fault, short circuit or fire may occur if you reconstruct
the unit by yourself.
●Please ask your sales agent or qualified technician for the installation
of your unit. Water leakage, short circuit or fire may occur if you install
the unit by yourself.
●Please use earth line.
Do not place the earth line near water or gas pipes, lightning-conductor,
or the earth line of telephone. Improper installation of earth line may
cause electric shock.
●Be sure to use the specified piping set for R410A. Otherwise, this may
result in broken copper pipes or faults.
●A circuit breaker should be installed depending on the mounting site of
the unit. Without a circuit breaker, the danger of electric shock exists.
●Do not install the unit near a location where there is flammable gas.
The outdoor unit may catch fire if flammable gas leaks around it.
●Please ensure smooth flow of water when installing the drain hose.
CAUTION
!
!
(EN1) RAS-F10CF 2(EN1) RAS-F10CF 2 3/10/15 3:03 PM3/10/15 3:03 PM

– 3 –
ENGLISH
PRECAUTIONS DURING OPERATION
●Do not attempt to operate the unit with wet hands, this could cause fatal
accident.
●Do not direct the cool air coming out from the air-conditioner panel to face
household heating apparatus as this may affect the working of apparatus
such as the electric kettle, oven etc.
●Do not place plants directly under the air flow as it is bad for the plants.
●Please ensure that outdoor mounting frame is always stable, firm and
without defect. If not, the outdoor unit may collapse and cause danger.
●Do not splash or direct water to the body of the unit when cleaning it as
this may cause short circuit.
●When operating the unit with the door and windows opened, (the room humidity is always
above 80%) and with the air deflector facing down or moving automatically for a long period
of time, water will condense on the air deflector and drips down occasionally. This will wet your
furniture. Therefore, do not operate under such condition for a long time.
●If the amount of heat in the room is above the cooling capability of the unit (for example: more
people entering the room, using heating equipments and etc.), the preset room temperature
cannot be achieved.
●This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not be made
by children without supervision.
●Do not climb on the outdoor unit or put objects on it.
●Please switch off the unit and turn off the circuit breaker during cleaning,
the high-speed fan inside the unit may cause danger.
●Turn off the circuit breaker if the unit is not to be operated for a long period.
C
A
U
T
I
O
N
!
●The product shall be operated under the manufacturer specification and
not for any other intended use.
●Do not put water container (like vase) on the indoor unit to avoid water
dripping into the unit. Dripping water will damage the insulator inside the
unit and causes short-circuit.
●Do not use any aerosol or hair sprays near the indoor unit. This chemical
can adhere on heat exchanger fin and blocked the evaporation water
flow to drain pan. The water will drop on tangential fan and cause water
splashing out from indoor unit.
(EN1) RAS-F10CF 3(EN1) RAS-F10CF 3 3/10/15 3:03 PM3/10/15 3:03 PM

– 4 –
INDOOR UNIT
NAMES AND FUNCTIONS OF EACH PART
Air filter
To prevent dust from coming into the indoor unit.
(Refer page 16)
Front panel
Indoor unit indicators
Light indicator showing the operating condition.
(Refer page 5)
Horizontal deflector ●Vertical deflector
(Air Outlet)
(Refer page 12)
Remote controller
Send out operation signal to the indoor unit. So as
to operate the whole unit.
(Refer page 6)
OUTDOOR UNIT
Drain pipe
Condensed water drain to outside.
Connecting cord and insulation pipe for piping
Air inlet (Back side)
Air outlet
WIDTH (mm)
785
700
MODEL
RAS-F10CF
RAC-F10CF
HEIGHT (mm)
248
468
DEPTH (mm)
200
258
MODEL NAME AND DIMENSIONS
(EN1) RAS-F10CF 4(EN1) RAS-F10CF 4 3/10/15 3:03 PM3/10/15 3:03 PM

– 5 –
ENGLISH
INDOOR UNIT INDICATORS
TEMPORARY SWITCH
Use this switch to start and stop when the remote controller does not work. [Use non-conductor stick
(example toothpick)]
Normal operation:
●By pressing the temporary switch, operation is done based on current room temperature.
If detected room temperature is more than 27°C, unit will enter cooling mode.
If detected room temperature is 27°C and less, unit will enter dehumidifying mode.
●This judgement also applied when power source is turned OFF and ON again when operation is done
using temporary switch.
Force cooling operation: (For servicing purpose only)
●By pressing and hold the temporary switch for more than 5 second, the unit will enter “Force Cooling
Operation”. Timer lamp will blink 2 times.
●Press again the temporary switch to cancel the force cooling operation.
●Do not operate in this mode for more than 5 minutes.
* To be conduct by authorised personel only.
OPERATION INDICATOR
OPERATION LAMP
This lamp lights during operation.
TIMER LAMP
This lamp lights when the timer is working.
(EN1) RAS-F10CF 5(EN1) RAS-F10CF 5 3/10/15 3:03 PM3/10/15 3:03 PM

– 6 –
NAMES AND FUNCTIONS OF REMOTE CONTROL UNIT
REMOTE CONTROLLER
This controls the operation of the indoor unit. Signal range to reach indoor unit is about 7 meters. If
inverter lamp is used, the range of control may be shorter.
This unit can be fixed on a wall using the fixture provided. Before fixing it, make sure the indoor unit
can be controlled from the remote controller.
●Transmission sign
The transmission sign blinks when a signal is sent.
●Display
This indicates the room temperature selected, timer status, function
and intensity of circulation selected.
●CIRCULATION button
Use this button to set air circulation in the room or start operation.
●DEHUMIDIFYING button
Use this button to dehumidify the room or start operation.
●COOLING button
Use this button to set cooling mode in the room or start operation.
●RESET button
●STOP button
Press this button to stop operation only.
●SLEEP button
Use this button to set the sleep timer.
●FAN SPEED selector
This determines the fan speed. Each time you press this button, the
intensity of circulation will change from (AUTO) to (HI) to
(MED) to (LOW).
●AUTO SWING button
Controls the angle of the horizontal air deflector.
●TEMPERATURE button
Use this button to raise or lower the temperature setting. (Keep
pressed, and the value will change more quickly.)
●OFF-TIMER button
Select to turn OFF time.
●ON-TIMER button
Select to turn ON time.
Precautions for Use
●Do not put the remote controller in the following places.
●In direct sunlight.
●In the vicinity of a heater.
●Handle the remote controller carefully. Do not drop it on the
fl
oor, and protect it from water.
●Once the outdoor unit stops, it will not restart for about 3
minutes (unless you turn the power switch off and on or unplug
the power cord and plug it in again).
This is to protect the device and does not indicate a failure.
(EN2) RAS-F10CF 6(EN2) RAS-F10CF 6 3/10/15 3:03 PM3/10/15 3:03 PM

– 7 –
ENGLISH
Use the device for cooling when the outdoor temperature is 21 ~ 43°C.
If indoors humidity is very high (over 80%), some dew may form on the air outlet grille of the indoor unit.
Press the button so that the display indicates
(COOL).
Cooling operation starts with a beep.
The cooling function does not start if the temperature setting
is higher than the current room temperature (even though the
(OPERATION) lamp lights). The cooling function will start
as soon as you set the temperature below the current room
temperature.
Set the desired FAN SPEED with the (FAN SPEED)
button (the display indicates the setting).
(AUTO): The FAN SPEED is HI at first and varies to
MED or LOW automatically when the preset
temperature has been reached.
(HI) : Hi fan speed mode.
(MED) : Medium fan speed mode.
(LOW) : Low fan speed mode.
Set the desired room temperature with the TEMPERATURE
button (the display indicates the setting).
The range of 25 ~ 28°C is recommended as
the room temperature for cooling.
If the temperature setting is 27°C, the room
temperature will be controlled at around 27°C.
The temperature setting and the actual room temperature may
vary somewhat depending on conditions.
Press the (STOP) button to stop operation.
■As the settings are stored in memory of the remote controller, you
only have to press the (COOLING) button to repeat the same
settings next time.
1
2
STOP
3
COOLING OPERATION
(EN2) RAS-F10CF 7(EN2) RAS-F10CF 7 3/10/15 3:03 PM3/10/15 3:03 PM

– 8 –
DEHUMIDIFYING OPERATION
Use the device for dehumidifying when the room temperature is over 16°C.
When it is under 15°C, the dehumidifying function will not work.
■Dehumidifying Function
When the room temperature is higher than the temperature setting: The device will dehumidify the room
and reducing the room temperature to the preset level.
When the room temperature is lower than the temperature setting: Dehumidifying will be performed at
the temperature setting slightly lower than the current room temperature, regardless of the temperature
setting. The function will stop (the indoor unit will stop emitting air) as soon as the room temperature
becomes lower than the setting temperature. You might feel a bit colder in dehumidifying operation.
■As the settings are stored in memory in the remote controller, you only
have to press the button next time.
Set the desired room temperature with the TEMPERATURE
button (the display indicates the setting).
The range of 20~26˚C is recommended as the
room temperature for dehumidifying.
2
Press the button. Dehumidifying operation starts with
a beep.
The FAN SPEED is set at LOW automatically.
The FAN SPEED button does not work.
1
Press the button to stop operation.
STOP
˚
C
(EN2) RAS-F10CF 8(EN2) RAS-F10CF 8 3/10/15 3:03 PM3/10/15 3:03 PM

– 9 –
ENGLISH
CIRCULATION OPERATION
■Circulation Function
●During circulation operation, compressor does not run and there is no cooling operation with only indoor
fan running.
●When the setting temperature is higher than room temperature, indoor fan will stop running.
Press the button so that the display indicates
(CIRCULATION).
Circulating operation starts with a beep.
Press the FAN SPEED button and select the desired FAN
SPEED (the display indicates your choice).
Press the temperature control button to set to the desired
temperature.
■As the settings are stored in memory in the remote controller, you
only have to press the (CIRCULATION) button next time.
3
Press the button to stop operation.
STOP
1
2
(EN2) RAS-F10CF 9(EN2) RAS-F10CF 9 3/10/15 3:03 PM3/10/15 3:03 PM

– 10 –
HOW TO SET THE SLEEP TIMER
Press the button, and the display changes as shown below.
Mode
Sleep timer
Indication
1 hour 2 hours 3 hours 7 hours
Sleep timer off
44 44
1
Sleep Timer: The device will continue working for the designated
number of hours and then turn off.
Point the signal window of the remote controller toward the indoor
unit, and press the SLEEP button.
The timer information will be displayed on the remote controller.
The TIMER lamp lights with a beep from the indoor unit.
Cooling
“ ”
and
dehumidifying
“ ”
Explanation of the sleep timer
The device will control the FAN SPEED and room temperature automatically
so as to be quiet and good for people’s health.
You can set the sleep timer to turn off after 1, 2, 3 or 7 hours. The FAN
SPEED and room temperature will be controlled as shown below.
Function Operation
The room temperature will
be controlled 2°C above the
setting temperature and the FAN
SPEED will be set to the lowest
speed setting 1 hour after the
setting of the sleep timer.
SLEEP
(EN2) RAS-F10CF 10(EN2) RAS-F10CF 10 3/10/15 3:03 PM3/10/15 3:03 PM

– 11 –
ENGLISH
HOW TO SET THE TIMER
■ON Timer and OFF Timer are available.
OFF TIME setting
●Select the OFF TIME by pressing the (OFF TIMER)
Button.
●Setting time will change according to the below sequence
when you press the button.
OFF Timer Reservation ■Operation stop at setting time
ON TIME setting
●Select the ON TIMER by pressing the (ON
TIMER) Button.
●Setting time will change according to the below
sequence.
ON Timer Reservation
■Operation will start for setting
temperature at setting time (The starting
time may different depend on the room
temperature and set temperature).
(EN2) RAS-F10CF 11(EN2) RAS-F10CF 11 3/10/15 3:03 PM3/10/15 3:03 PM

– 12 –
AIR FLOW LOUVERS ADJUSTMENTS
1
2Adjustment of the conditioned air to the left and right.
Move the vertical air deflector as shown in the figure and adjust
the conditioned air to the left or right.
●If the “ (AUTO SWING)” button is pressed
once, the horizontal air deflector swings up and down.
If the button is pressed again, the deflector stops in its
current position. Several seconds (about 6 seconds) may
be required before the deflector starts to move.
●Use the horizontal air deflector within the adjusting range
shown on the right.
●When the operation is stopped, the horizontal air deflector
moves and stops at the position where the air outlet
closes.
!CAUTION
●In “Cooling” operation, do not keep the horizontal air
deflector swinging for a long time. Some dew may form
on the horizontal air deflector and dew may drop.
Adjustment of the conditioned air in the upward and downward
directions.
The horizontal air deflector is automatically set to the proper
angle suitable for each operation. The deflector can be swung
up and down continuously and also set to the desired angle
using the “ (AUTO SWING)” button.
Do not insert a finger, a rod or other objects into the air outlet or inlet as the fan is rotating at a high speed,
it will cause injury. Before any cleaning or adjusting the deflectors, be sure to switch OFF the operation.
WARNING
(EN2) RAS-F10CF 12(EN2) RAS-F10CF 12 3/10/15 3:03 PM3/10/15 3:03 PM

– 13 –
ENGLISH
HOW TO EXCHANGE THE BATTERIES IN THE REMOTE CONTROLLER
1Remove the cover as shown in the figure and
take out the old batteries.
=
2Install the new batteries.
The direction of the batteries should match the
marks in the case.
1. Do not use new and old batteries, or different kinds
of batteries together.
2. Take out the batteries when you do not use the remote
controller for 2 or 3 months.
3. Use high quality and high performance AAA batteries
to avoid short operating life and electrolyte leakages.
CAUTION
!
When using the remote control, if there is no response from the air conditioner unit and or the remote
control has fading and dim displays, the batteries in the remote control device need to be removed and
replaced with new ones
(EN2) RAS-F10CF 13(EN2) RAS-F10CF 13 3/10/15 3:03 PM3/10/15 3:03 PM

– 14 –
Suitable Room Temperature Install curtain or blinds
Ventilation Effective Usage Of Timer
Do Not Forget To Clean The Pre-Filter Please Adjust Suitable Temperature
For Baby And Children
!
It is possible
to reduce heat
entering the
room through
windows.
At night, please use the “OFF or ON timer
operation mode”, together with your wake up
time in the morning. This will enable you to
enjoy a comfortable room temperature. Please
use the timer effectively.
Dusty pre-filter will reduce the air volume and
the cooling efficiency. To prevent from wasting
electric energy, please clean the filter every
2 weeks.
Please pay attention to the room temperature
and air flow direction when operating the unit
for baby, children and old folks who have
difficulty in movement.
!
THE IDEAL WAYS OF OPERATION
Warning
Freezing temperature
is bad for health and a
waste of electric power.
Caution
Do not close the room for a long period of
time. Occasionally open the door and windows
to allow the
entrance of
fresh air.
(EN3) RAS-F10CF 14(EN3) RAS-F10CF 14 3/10/15 3:04 PM3/10/15 3:04 PM

– 15 –
ENGLISH
FOR USER’S INFORMATION
The Air Conditioner And The Heat Source In The Room
Not Operating For A Long Time
When Lightning Occurs
!
When the indoor unit is not to be used for a long
period of time, please switch off the power from the
mains. If the power from mains remains “ON”, the
indoor unit still consumes about 8W in the operation
control circuit even if it is in “OFF” mode.
!
Interference From Electrical Products
!
Warning
To protect the whole unit during lightning, please
stop operating the unit and remove the plug from
the socket.
Caution
If the amount of heat in the room is above the cooling
capability of the air conditioner (for example: more
people entering the room, using heating equipments
and etc.), the preset room temperature cannot be
achieved.
Caution
To avoid noise interference, please place the indoor
unit and its remote controller at least 1m away from
electrical products.
(EN3) RAS-F10CF 15(EN3) RAS-F10CF 15 3/10/15 3:04 PM3/10/15 3:04 PM

– 16 –
MAINTENANCE
Before cleaning, stop operation and switch off the power supply.
1. PRE-FILTER
Clean the pre-filter, as it removes dust inside the room. In case the pre-filter is full of dust, the air
flow will decrease and the cooling capacity will be reduced. Further, noise may occur. Be sure to
clean the filter following the procedure below.
CAUTION
1Open the front panel and remove the filter
2Vacuum dust from the pre-filter and using
vacuum cleaner. If there is too much dust, rinse
under running tap water and gently brush it with
soft bristle brush. Allow filters to dry in shade.
3●Set the pre-filter with “FRONT” mark facing
front, and slot them into the original state.
●After attaching the pre-filters, push the front
panel at three arrow portions as shown in
figure and close it.
CAUTION
●Do not wash with hot water at more than 40°C. The filter may shrink.
●When washing it, shake off moisture completely and dry it in the shade; do not expose it directly
to the sun. The filter may shrink.
●Do not use detergent on the air cleansing filter as some detergent may deteriorate the filter
electrostatic performance.
!
!
(EN3) RAS-F10CF 16(EN3) RAS-F10CF 16 3/10/15 3:04 PM3/10/15 3:04 PM

– 17 –
ENGLISH
2. CLEANING OF FRONT PANEL
●Remove the front panel and wash with clean water.
Wash it with sponge. After using detergent, wash
throughly with clean water.
●When front panel is not removed, wipe it with a soft
dry cloth.
●When it is excessively dirty, wipe with a soft cloth
soaked in lukewarm water or neutral detergent. Then
wipe thoroughly with a soft dry cloth.
●Wipe the remote controller thoroughly with a soft dry
cloth.
●Wipe the water thoroughly.
If water remains at the indicators or signal receiver of
indoor unit, it causes trouble.
Method of Removing the Front Panel
●Be sure to hold the front panel with both hands to
detach and attach it.
CAUTION
●Never use hot water (above 40°C), benzine, gasoline, acid, thinner
or a brush, because they will damage the plastic surface and the
coating.
Removing the Front Panel
●When the front panel is fully opened with both
hands, push the right arm to the inside to
release it, and while closing the front panel
slightly, pull it out forward.
Attaching the Front Panel
●Move the projections of the left and right
arms into the Flanges in the unit and securely
insert them into the holes.
!
(EN3) RAS-F10CF 17(EN3) RAS-F10CF 17 3/10/15 3:04 PM3/10/15 3:04 PM

– 18 –
Cleaning and maintenance must be carried out only by qualified service personnel. Before cleaning,
stop operation and switch off the power supply.
!
CAUTION
●Please use earth line.
Do not place the earth line near water or gas pipes, lightning-conductor, or the earth
line of telephone. Improper installation of earth line may cause electric shock.
●A circuit breaker should be installed depending on the mounting site of the unit. Without a circuit
breaker, the danger of electric shock exists.
IMPORTANT
The wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow : Earth
Blue : Neutral
Brown : Live
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is
marked with the letter E or by the earth symbol or coloured green or green-and-yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter
N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter
L or coloured red.
NOTE
If the supply cord is damaged, it must be replaced by the special cord obtainable at authorized service/
parts centers.
1
2
3
REGULAR INSPECTION
PLEASE CHECK THE FOLLOWING POINTS BY QUALIFIED SERVICE PERSONNEL EITHER
EVERY HALF YEARLY OR YEARLY. CONTACT YOUR SALES AGENT OR SERVICE SHOP.
Is the earth line disconnected or broken?
Is the mounting frame seriously affected by rust and is the
outdoor unit tilted or unstable?
Is the plug of power line firmly plugged into the socket?
(Please ensure no loose contact between them).
!CAUTION
(EN3) RAS-F10CF 18(EN3) RAS-F10CF 18 3/10/15 3:04 PM3/10/15 3:04 PM

– 19 –
ENGLISH
AFTER SALE SERVICE AND WARRANTY
WHEN ASKING FOR SERVICE, CHECK THE FOLLOWING POINTS
When it does not operate
●Is the fuse all right?
●Is the voltage extremely high or low?
●Is the circuit breaker “ON”?
●Was the air filter cleaned?
●Does sunlight fall directly on the outdoor unit?
●Is the air flow of the outdoor unit obstructed?
●Are the doors or windows opened, or is there any source
of heat in the room?
●Is the set temperature suitable?
CONDITION CHECK THE FOLLOWING POINTS
Notes
●In quiet or stop operation, the following phenomena may occassionally
occur, but they are not abnormal for the operation.
(1)
Slight flowing noise of refrigerant in the refrigerating cycle.
(2) Slight rubbing noise from the fan casing which is cooled and then
gradually warmed as operation stops.
●The odor will possibly be emitted from the room air conditioner because
the various odor, emitted by smoke, foodstuffs, cosmetics and so on,
sticks to it. So the air filter and the evaporator regularly must be cleaned
to reduce the odor.
●Please contact your sales agent immediately if the air conditioner still fails to operate normally after the above
inspections. Inform your agent of the model of your unit, production number, date of installation. Please also
inform him regarding the fault.
●Power supply shall be connected at the rated voltage, otherwise the unit will be broken or could not reach
the specified capacity.
When it does not cool well
(EN3) RAS-F10CF 19(EN3) RAS-F10CF 19 3/10/15 3:04 PM3/10/15 3:04 PM

– 20 –
MEMO
......................................................................................................................................................................................
......................................................................................................................................................................................
......................................................................................................................................................................................
......................................................................................................................................................................................
......................................................................................................................................................................................
......................................................................................................................................................................................
......................................................................................................................................................................................
......................................................................................................................................................................................
......................................................................................................................................................................................
......................................................................................................................................................................................
......................................................................................................................................................................................
......................................................................................................................................................................................
......................................................................................................................................................................................
......................................................................................................................................................................................
......................................................................................................................................................................................
......................................................................................................................................................................................
......................................................................................................................................................................................
......................................................................................................................................................................................
......................................................................................................................................................................................
......................................................................................................................................................................................
......................................................................................................................................................................................
......................................................................................................................................................................................
......................................................................................................................................................................................
......................................................................................................................................................................................
Please note:
On switching on the equipment, particularly when the room light is dimmed, a slight brightness fluctuation
may occur. This is of no consequence.
The conditions of the local Power Supply Companies are to be observed.
Minimum Maximum
Indoor Dry bulb °C 21 32
Wet bulb °C 15 23
Outdoor Dry bulb °C 21 43
Wet bulb °C 15 26
Note
●Avoid to use the room air conditioner for cooling operation when the outside temperature is below
21°C (70°F).
The recommended maximum and minimum operating temperatures of the hot and cold sides
should be as below:
(EN3) RAS-F10CF 20(EN3) RAS-F10CF 20 3/10/15 3:04 PM3/10/15 3:04 PM
