SAFETY PRECAUTION
●
Please read the “Safety Precaution” carefully before operating the unit to ensure correct usage of the unit.
●
Pay special attention to signs of “ Warning” and “ Caution”. The “Warning” section contains matters which,
if not observed strictly, may cause death or serious injury. The “Caution” section contains matters which may
result in serious consequences if not observed properly. Please observe all instructions strictly to ensure safety.
●
The sign indicate the following meanings.
●
Please keep this manual after reading.
WARNING
PRECAUTIONS DURING INSTALLATION
●Do not reconstruct the unit.
Water leakage, fault, short circuit or fire may occur if you reconstruct
the unit by yourself.
●Please ask your sales agent or qualified technician for the installation
of your unit. Water leakage, short circuit or fire may occur if you install
the unit by yourself.
●Please use earth line.
Do not place the earth line near water or gas pipes, lightning-conductor,
or the earth line of telephone. Improper installation of earth line may
cause electric shock.
●A circuit breaker should be installed depending on the mounting site of
the unit. Without a circuit breaker, the danger of electric shock exists.
●Do not install near location where there is flammable gas. The outdoor
unit may catch fire if flammable gas leaks around it.
●Please ensure smooth flow of water when installing the drain hose.
CAUTION
!
PRECAUTIONS DURING SHIFTING OR MAINTENANCE
●Should abnormal situation arises (like burning smell), please stop operating the unit
and turn off the circuit breaker. Contact your agent. Fault, short circuit or fire may
occur if you continue to operate the unit under abnormal situation.
●Please contact your agent for maintenance. Improper self maintenance may cause
electric shock and fire.
●Please contact your agent if you need to remove and reinstall the unit. Electric
shock or fire may occur if you remove and reinstall the unit yourself improperly.
●If the supply cord is damaged, it must be replaced by the special cord obtainable
at authorized service/parts centers.
Make sure to connect earth line.
Indicates the instructions that must be followed.
The sign in the figure indicates prohibition.
W
A
R
N
I
N
G
!
!
PRECAUTIONS DURING OPERATION
●Avoid an extended period of direct air flow for your health.
W
A
R
N
I
N
G
!
●Do not insert a finger, a rod or other objects into the air outlet or inlet. As the fan
is rotating at a high speed, it will cause injury. Before cleaning, be sure to stop the
operation and turn the breaker OFF.
●During thunder storm, disconnect and turn off the circuit breaker.
●Do not use any conductor as fuse wire, this could cause fatal accident.

– 3 –

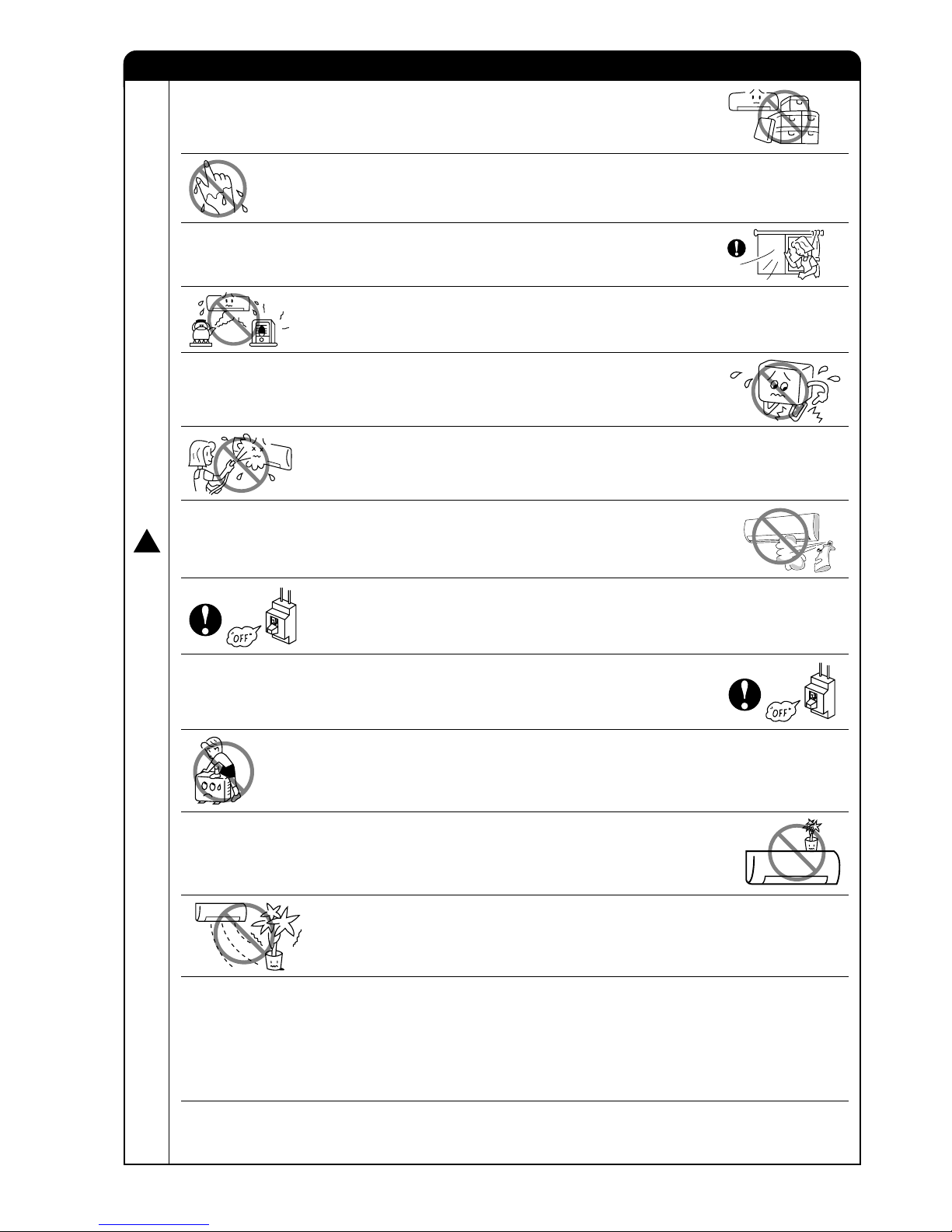

PRECAUTIONS DURING OPERATION
●Do not attempt to operate the unit with wet hands, this could cause fatal
accident.
●When operating the unit with burning equipments, regularly ventilate the
room to avoid oxygen insufficiency.
●Do not direct the cool air coming out from the air-conditioner panel to face
household heating apparatus as this may affect the working of apparatus
such as the electric kettle, oven etc.
●Do not use any aerosol or hair sprays near the indoor unit. This chemical
can adhere on heat exchanger fin and blocked the evaporation water flow
to drain pan. The water will drop on tangential fan and cause water splashing
out from indoor unit.
●Please ensure that outdoor mounting frame is always stable, firm and
without defect. If not, the outdoor unit may collapse and cause danger.
●Do not splash or direct water to the body of the unit when cleaning it as this
may cause short circuit.
●When operating the unit with the door and windows opened, (the room humidity is always above
80%) and with the air deflector facing down or moving automatically for a long period of time,
water will condense on the air deflector and drips down occasionally. This will wet your furniture.
Therefore, do not operate under such condition for a long time.
●If the amount of heat in the room is above the cooling or heating capability of the unit (for
example: more people entering the room, using heating equipments and etc.), the preset room
temperature cannot be achieved.
●Do not climb on the outdoor unit or put objects on it.
●Please switch off the unit and turn off the circuit breaker during cleaning, the
high-speed fan inside the unit may cause danger.
●Turn off the circuit breaker if the unit is not to be operated for a long period.
C
A
U
T
I
O
N
●The product shall be operated under the manufacturer specification and
not for any other intended use.
●Do not put water container (like vase) on the indoor unit to avoid water
dripping into the unit. Dripping water will damage the insulator inside the unit
and causes short-circuit.
●Do not place plants directly under the air flow as it is bad for the plants.
!
●This appliance is not intended for use by young children or infirm persons unless they have been
adequately supervised by a responsible person to ensure that they can use the appliance safely.
●Young children should be supervised to ensure that they do not play with the appliance.

– 4 –

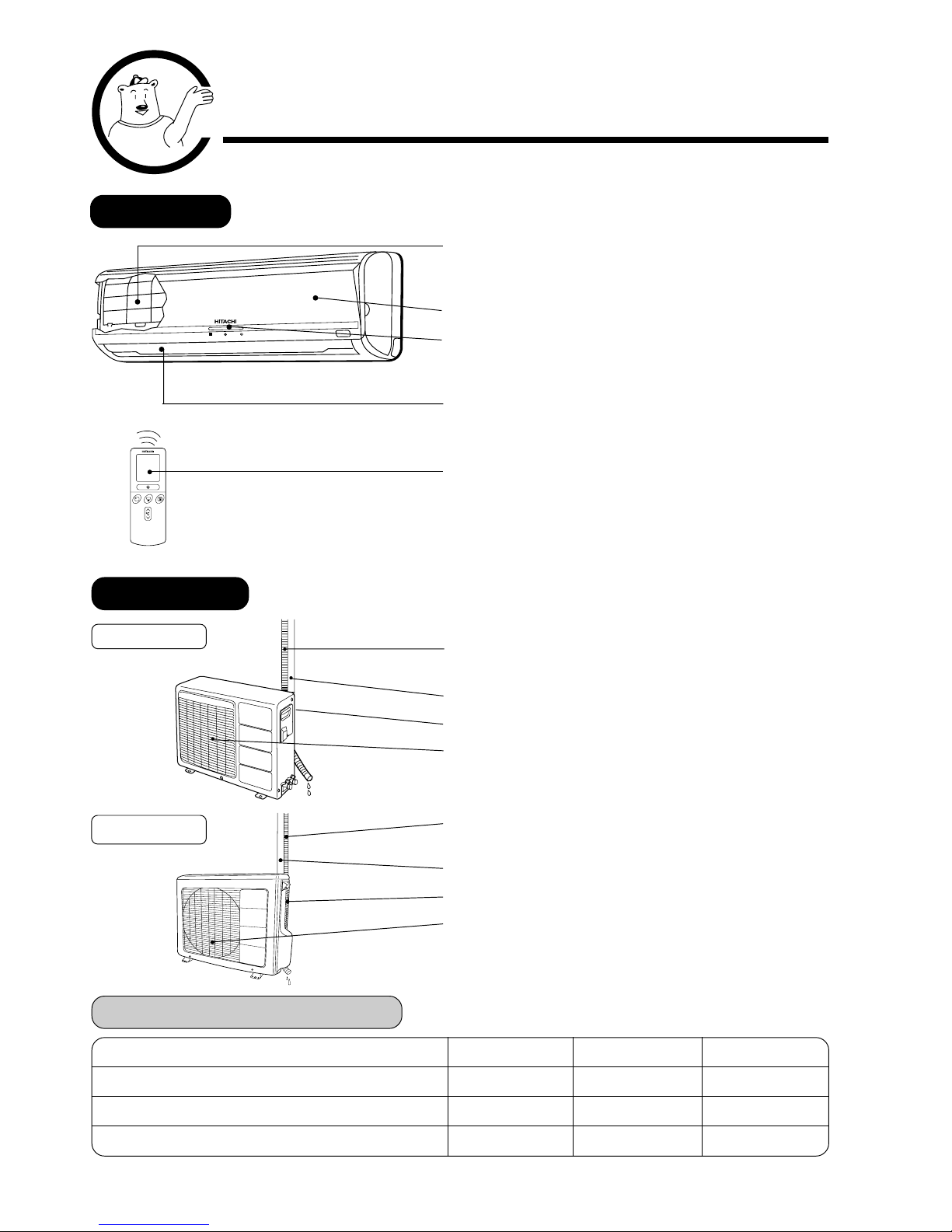

INDOOR UNIT
NAMES AND FUNCTIONS OF EACH PART
AIR FILTER
To prevent dust from coming into the indoor unit.
(Refer page 21)
FRONT PANEL (AIR INLET).
INDOOR UNIT INDICATORS
Light indicator showing the operating condition.
(Refer page 5)
HORIZONTAL DEFLECTOR ●VERTICAL
DEFLECTOR (AIR OUTLET)
(Refer page 13)
REMOTE CONTROL
Send out operation signal to the indoor unit. So as to
operate the whole unit.
(Refer page 6)
OUTDOOR UNIT
WIDTH (mm)MODEL
RAS-T10CE / T13CE
RAC-T10CE
RAC-T13CE
HEIGHT (mm) DEPTH (mm)
MODEL NAME AND DIMENSIONS
860
700
750
285
570
570
188
210
280
DRAIN PIPE
Condensed water drain to outside.
CONNECTING CORD
AIR INLET (BACK, LEFT SIDE)
AIR OUTLET
DRAIN PIPE
Condensed water drain to outside.
CONNECTING CORD
AIR INLET (BACK, LEFT SIDE)
AIR OUTLET
RAC-T10CE
RAC-T13CE

– 5 –
HITACHI

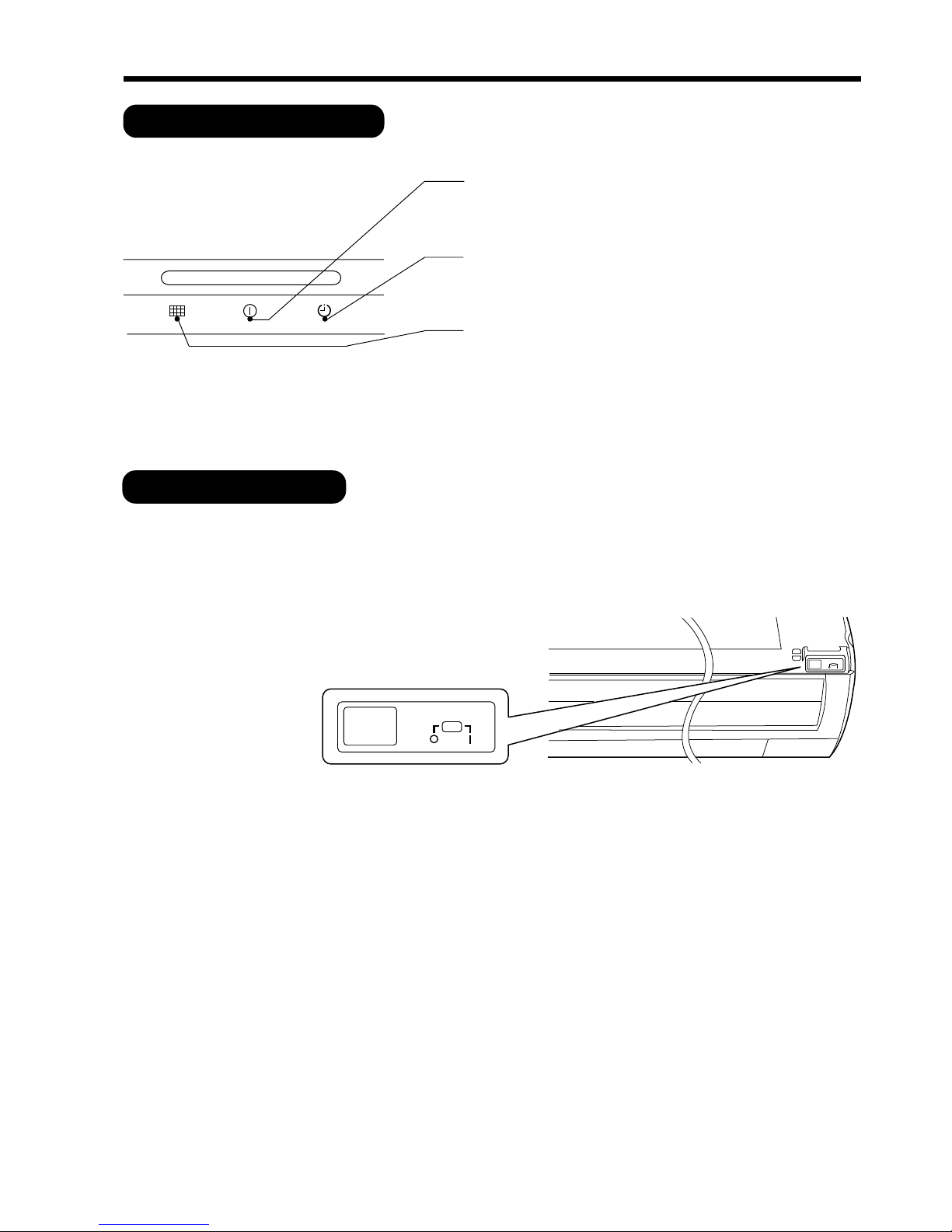

INDOOR UNIT INDICATORS
AUTO RESTART SWITCH
●In the event of power failure, the air conditioner will restart automatically in the previously selected mode once
the power is restored.
●In the event of power failure during TIMER operation, the timer will be reset and the unit will begin or stop
operating under a new timer setting.
OPERATION INDICATOR
●This figure shows the opening condition of
front panel. Refer to page 20 in relation to
how to open or close the front panel.
OPERATION LAMP
This lamp lights during operation.
TIMER LAMP
This lamp lights when the timer is working.
FILTER LAMP
When the device is operated for a total of about 200
hours, the FILTER lamp lights to indicate that it is time
to clean the filter. The lamp goes out when the POWER
SWITCH set to OFF and ON again.
TEMPORARY / AUTO RESTART
TEMPORARY / AUTORESTART
TEMPORARY SWITCH
●By setting the temporary switch, the operation is done in previously set operation mode.
●When the operation is done using the temporary switch after the power source is turned off and turn on again,
the operation is done in automatic mode.
Use this switch to start and stop when the remote controller does not work.

–6 –
RESET
˚
CH
AUTO
HEAT
DEHUMIDIFY
COOL
FAN
FAN SPEED
HI
MED
LOW
SLEEPING
STOP (CANCEL)
START (RESERVE)
START/STOP
TIME
TIMER SET
TIMER SELECTOR
ON TIMER
OFF TIMER
AUTO SWING
˚
CH
Signal Transmission

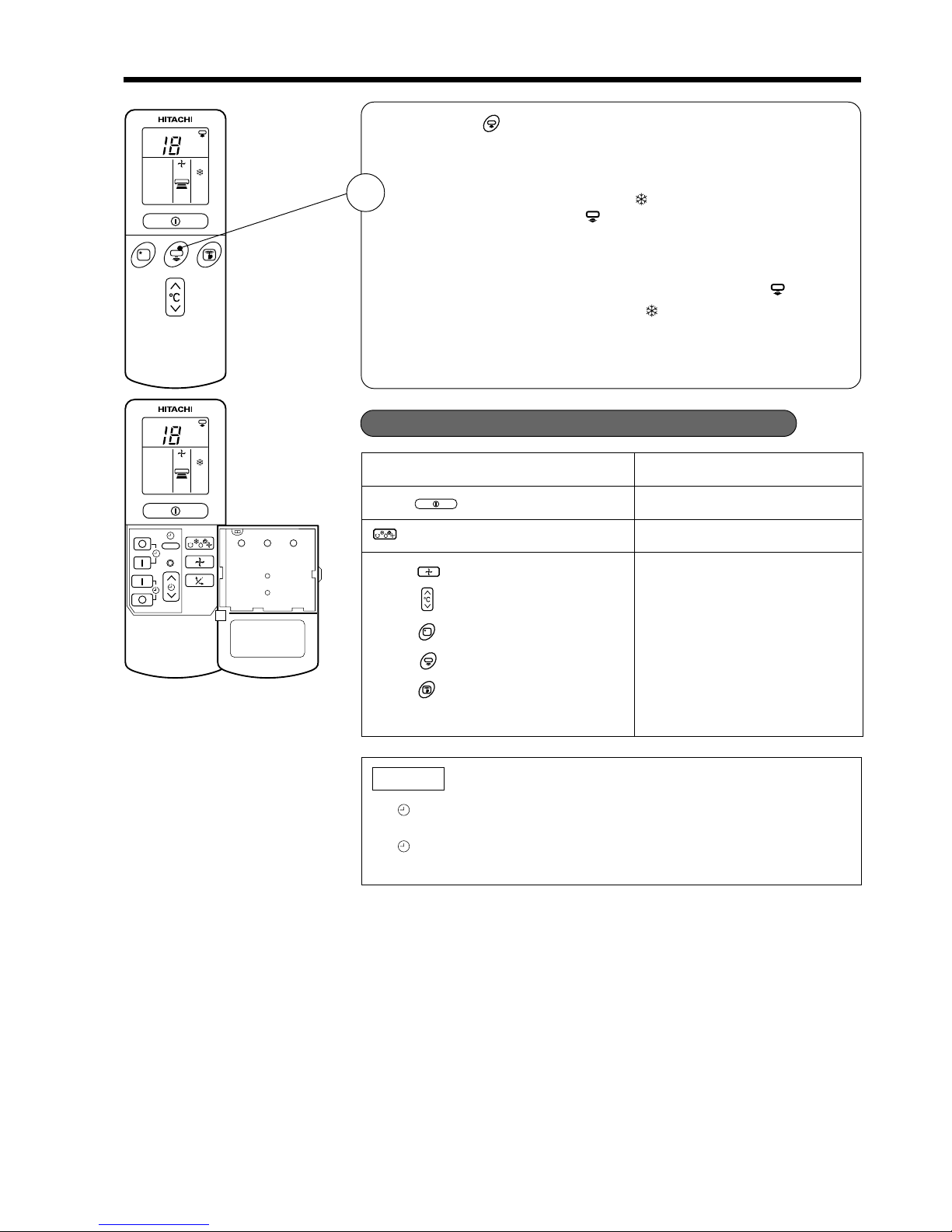

NAMES AND FUNCTIONS OF REMOTE CONTROL UNIT
REMOTE CONTROLLER
This controls the operation of the indoor unit. The range of control is about 7 meters. If indoor lighting
is controlled electronically, the range of control may be shorter.
This unit can be fixed on a wall using the fixture provided. Before fixing it, make sure the indoor unit can
be controlled from the remote controller.
●Transmission sign
The transmission sign blinks when a signal is sent.
●Display
This indicates the room temperature selected, current time, timer status,
function and intensity of circulation selected.
●START/STOP button
Press this button to start operation. Press it again to stop operation.
●SLEEP button
Use this button to set the sleep timer.
●SUPER SILENT button
Use this button to set silent condition.
●SUPER COOLING button
Use this button to set super cooling operation.
●TEMPERATURE button
Use this button to raise or lower the temperature setting. (Keep pressed,
and the value will change more quickly.)
●OFF-TIMER button Select the turn OFF time.
●ON-TIMER button Select the turn ON time.
●TIME button
Use this button to set and check the time and date.
●RESET button
●FUNCTION selector
Use this button to select the operating mode. Every time you press it,
the mode will change from (AUTO) to (COOL) to (DEHUMIDIFY)
to (CIRCULATION) and to (FAN) cyclically.
●FAN SPEED selector
This determines the fan speed. Every time you press this button, the intensity
of circulation will change from (AUTO) to (HI) to (MED) to (LOW)
(during the (FAN) mode, from HI to MED to LOW).
●AUTO SWING button
Controls the angle of the horizontal air deflector.
●TIMER control
Use this button to set the timer.
●RESERVE button Time setting reservation.
●CANCEL button Cancel time reservation.
Precautions for Use
●Do not put the remote controller in the following places.
●In direct sunlight.
●In the vicinity of a heater.
●Handle the remote controller carefully. Do not drop it on the floor,
and protect it from water.
●Once the outdoor unit stops, it will not restart for about 3 minutes
(unless you turn the power switch off and on or unplug the power
cord and plug it in again).
This is to protect the device and does not indicate a failure.
●If you press the FUNCTION selector button during operation, the
device may stop for about 3 minutes for protection.

–7 –
RESET
AUTOMATIC OPERATION
The device will automatically determine the mode of operation COOL, or Dehumidify, depending on the
initial room temperature. The selected mode of operation will not change when the room temperature
varies.
■As the settings are stored in memory in the remote controller, you
only have to press the (START/STOP) button next time.
Press the FUNCTION selector so that the display indicates
the (AUTO) mode of operation.
●When AUTO has been selected, the device will
automatically determine the mode of operation COOL or
Dehumidify, depending on the initial room temperature
and outdoor temperature.
Press the (START/STOP) button.
Operation starts with a beep.
Press the button again to stop operation.
You can raise or lower the temperature setting as necessary by
maximum of 3°C.
Press the temperature button and the
temperature setting will change by 1°C each
time.
●The preset temperature and the actual room temperature may
vary somewhat depending on conditions.
●The display does not indicate the preset temperature in the
AUTO mode. If you change the setting, the indoor unit will
produce a beep.
1
°C
■CONDITION OF AUTOMATIC OPERATION
START
STOP
Over 27°C COOL
16~27°C
TEMPERATURE
SETTING
FUNCTION
27°C
HIGH at start, LOW after
the preset temperature is
reached.
-
DEHUMIDIFY
-
INITIAL ROOM
TEMPERATURE (APPROX.) FAN SPEED
Slightly lower than the
room temperature LOW
●The selected mode of operation will not change during the operation even though the room temperature
change.

–8 –
˚
C
RESET
˚
C
˚
C
COOLING OPERATION
Use the device for cooling when the outdoor temperature is 21-43°C.
If humidity is very high (over 80°C) indoors, some dew may form on the air outlet grille of the indoor unit.
Press the FUNCTION selector so that the display indicates
(COOL).
Set the desired FAN SPEED with the (FAN SPEED) button
(the display indicates the setting).
(AUTO): The FAN SPEED is HI at first and varies to
MED or LOW automatically when the preset
temperature has been reached.
(HI) : Economical as the room will become cool
quickly.
(MED) : Fan speed slow.
(LOW) : Fan speed slower.
Set the desired room temperature with the TEMPERATURE
button (the display indicates the setting).
The range of 25-28°C is recommended as the
room temperature for cooling.
If the temperature setting is 27°C, the room
temperature will be controlled at around 27°C.
The temperature setting and the actual room temperature may
vary somewhat depending on conditions.
Press the (START/STOP) button. Cooling operation starts
with a beep. Press the button again to stop operation. The
cooling function does not start if the temperature setting is
higher than the current room temperature (even though the
(OPERATION) lamp lights). The cooling function will start as
soon as you set the temperature below the current room
temperature.
■As the settings are stored in memory in the remote controller, you only
have to press the (START/STOP) button next time.
1
2
START
STOP
3

–9 –
RESET
˚
C
˚
C
DEHUMIDIFYING OPERATION
Use the device for dehumidifying when the room temperature is over 16°C.
When it is under 15°C, the dehumidifying function will not work.
■Dehumidifying Function
When the room temperature is higher than the temperature setting: The device will dehumidify the room,
reducing the room temperature to the preset level.
When the room temperature is lower than the temperature setting: Dehumidifying will be performed at the
temperature setting slightly lower than the current room temperature, regardless of the temperature
setting. The function will stop (the indoor unit will stop emitting air) as soon as the room temperature
becomes lower than the setting temperature.
■As the settings are stored in memory in the remote controller, you
only have to press the (START/STOP) button next time.
Set the desired room temperature with the TEMPERATURE
button (the display indicates the setting).
The range of 20-26˚C is recommended as the
room temperature for dehumidifying.
˚
C
2
Press the FUNCTION selector so that the display indicates
(DEHUMIDIFY).
The FAN SPEED is set at LOW automatically.
The FAN SPEED button does not work.
1
Press the (START/STOP) button. Dehumidifying operation
starts with a beep. Press the button again to stop operation.
START
STOP

–10 –
RESET
˚
C
˚
C
RESET
FAN OPERATION
You can use the device simply as an air circulator. Use this function to dry the interior of the indoor
unit at the end of summer.
Press the FUNCTION selector so that the display indicates
(FAN).
Press the (FAN SPEED) button.
Press the (START/STOP) button. Fan operation starts
with a beep. Press the button again to stop operation.
FAN SPEED (AUTO) ..... When the AUTO fan speed mode is set in Automatic or cooling operation
START
STOP
2
1
CIRCULATION OPERATION
Press the FUNCTION selector so that the display indicates
(CIRCULATE).
Press the FAN SPEED button and select the desired FAN
SPEED (the display indicates your choice).
Press the temperature control button to set to the desired
temperature.
■As the settings are stored in memory in the remote controller,
you only have to press the (START/STOP) button next time.
2
1
3
START
STOP
Press the (START/STOP) button. Circulating operation
starts with a beep. Press the button again to stop operation.

–11 –
˚
C
RESET
˚
C

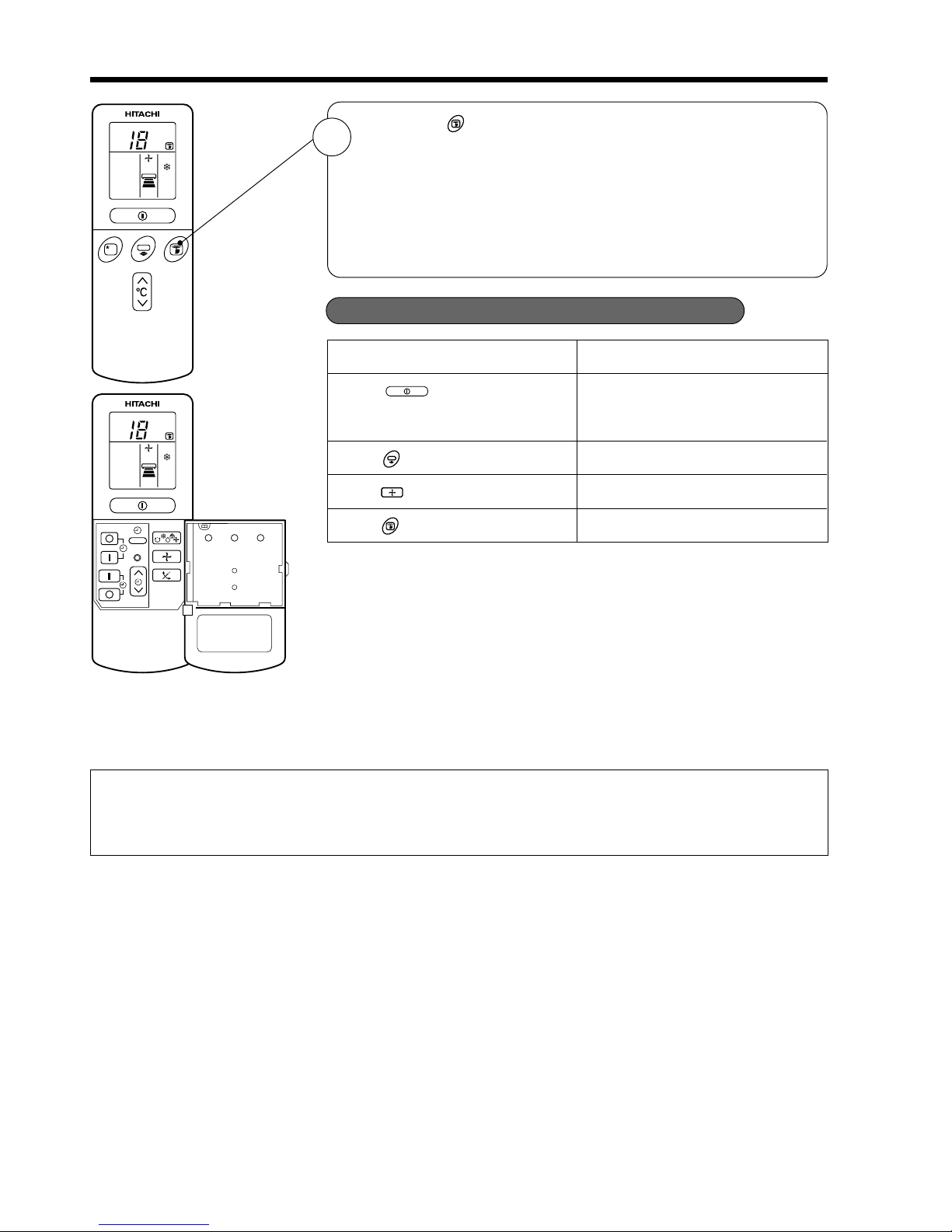

SUPER COOLING
Press the button.
●Operation start with a signal received sound “beep”.
●Unit will be forced operate in (COOL) with SUPER HI fan
speed for 20 minutes. Indicator appear during this period
while temperature and fan speed setting display remain
unchanged. (Operation lamp at indoor unit is blinking).
●After 20 minutes, operation lamp stop blinking and indicator
will disappear while unit will be in (COOL) mode. Temperature
and fan speed will change to previous setting.
●Air blow sound will be slightly high due to forced operation.
1
NOTE
(1) OFF TIME setting : OFF timer will be a priority over the
SUPER COOLING operation time.
(2) ON TIME setting : SUPER COOLING operation will be a
priority over the ON timer operation time.
CANCELLATION of SUPER COOLING Operation
Cancel Condition Operation mode after cancel
Press or OFF timer time is up Stop operation
key press DEHUMIDIFYING operation
Press or
Press or
Press or
Press or
Press or
20 minutes time is up
Normal COOLING operation

–12 –
˚
C
RESET
˚
C
SUPER SILENT
Press the button.
●Operation start with a signal received sound “beep”.
●Unit will be forced operate in any operation mode as before
with SUPER SILENT fan speed. The indication of operation
mode, temperature setting, fan speed and timer value on
remote controller will remain no change.
1
CANCELLATION of SUPER SILENT Operation
Cancel Condition Operation mode after cancel
Press button.
OFF timer time is up
Sleeping timer time is up
Stop operation
Press SUPER COOL button SUPER COOL operation
Press button
Press SUPER SILENT button.
Next fan speed operation
Existing operation mode
NOTE:
Under SUPER SILENT operation and quiet environment, phenomena like flowing noise of refrigerant in
the refrigerating cycle may occur, but this is normal for the operation.

– 13 –
Adjustment of the conditioned air in the upward and
downward directions.
According to “Dehumidifying” or “Cooling” operation, the
horizontal air deflector is automatically set to the proper
angle suitable for each operation. The deflector can be swing
up and down and also set to the desired angle using the
“ (AUTO SWING)” button. (If the angle of the deflector
is changed, it will not return to the auto-set position after
operations start unless the operation mode is switched.)
ADJUSTING THE AIR DEFLECTOR
1
2Adjustment of the conditioned air to the left and right.
Hold the vertical air deflector as shown in the figure and
adjust the conditioned air to the left and right.
HOW TO EXCHANGE THE BATTERIES IN THE REMOTE CONTROLLER
●If the “ (AUTO SWING)” button is pressed once,
the horizontal air deflector swings up and down. If the
button is pressed again, the deflector stops in its current
position. Several seconds (about 6 seconds) may be
required before the deflector starts to move.
●In “Cooling” operation, do not keep the horizontal air
deflector swinging for a long time. Some dew may form
on the horizontal air deflector and dew may drop.
1Remove the cover as shown in the figure and take out the old
batteries.
=
2Install the new batteries.
The direction of the batteries should match the marks in the case.
1. Do not use new and old batteries, or different kinds of batteries
together.
2. Take out the batteries when you do not use the remote controller
for 2 or 3 months.
CAUTION
Push and pull to the
direction of arrow
RESET
!

–14 –
PM
Start Stop
PM
AM
PM
AM
Start
Stop
RESET

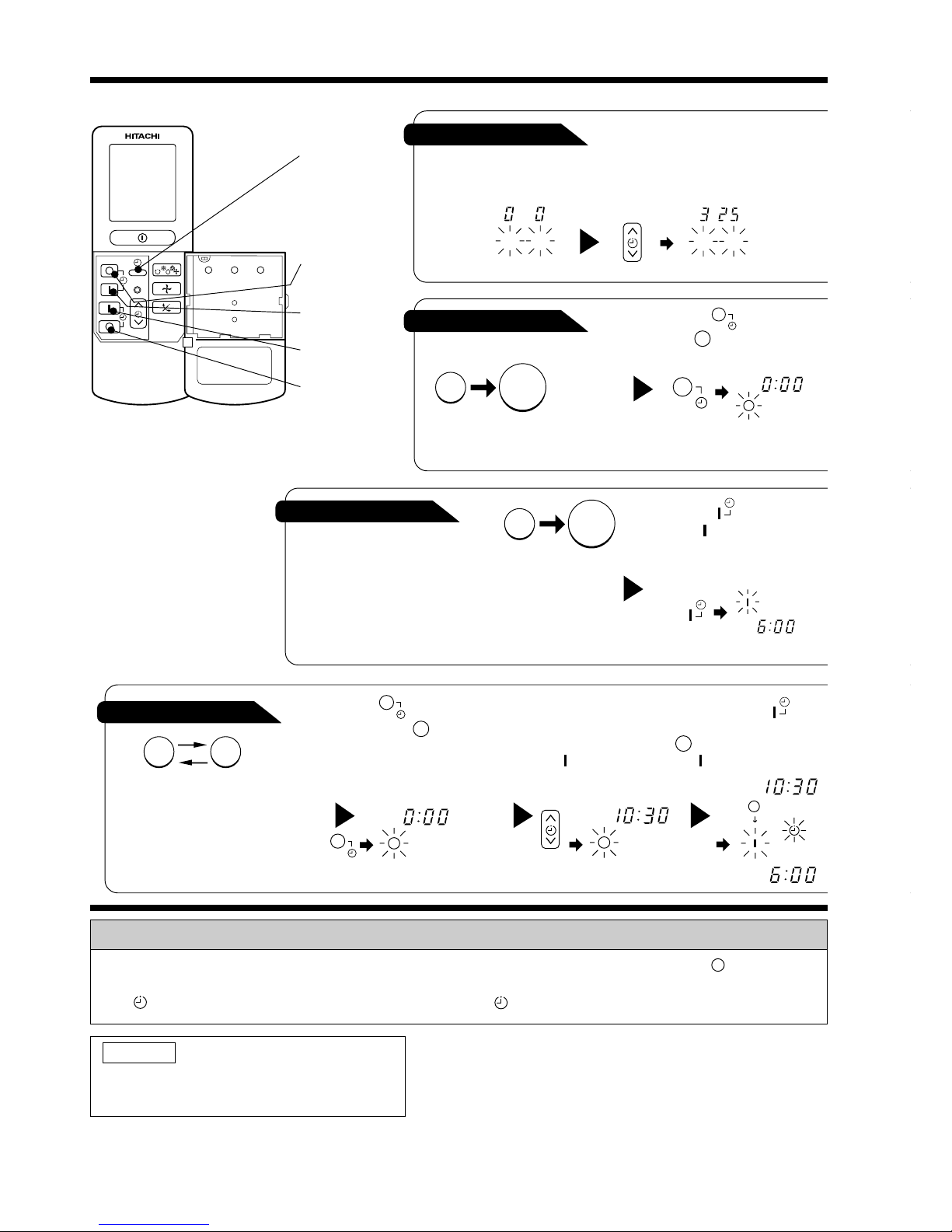

HOW TO SET THE TIMER
ON/OFF-Timer
●The device will turn on (off) and off
(on) at the designated times.
●The switching occurs first at the
preset time that comes earlier.
●The arrow mark appearing on the
display indicates the sequence of
switching operations.
1Press the (ON-OFF)
button so that the (OFF)
mark blinks.
OFF-Timer
You can set the device to turn off
at the present time.
After you change the
batteries;
How to Cancel Reservation
Point the signal window of the remote controller toward the indoor unit, and press the (CANCEL)
button.
The (RESERVED) sign goes out with a beep and the (TIMER) lamp turns off on the indoor unit.
1Set the current month and
day with the TIMER control
button.
1Press the (OFF-TIMER)
button. The (OFF) mark blinks
on the display.
1Press the (ON-TIMER)
button the (ON) mark blinks
on the display.
2Set the turn-off time
with the TIMER control
button.
Press the (RESERVE)
button.
3Press the (ON-
TIMER) button so that the
(OFF) mark lights and
the (ON) mark blinks.
NOTE
You can set only one of the OFF-timer,
ON-timer and ON/OFF-timer.
ON-Timer
Time, Day, Month
●The device will turn on at
the designated times.
TIME, DAY,
MONTH
(current time,
day, month)
OFF TIMER
ON TIMER
RESERVE
CANCEL
M D
M D
AM
STOP
Start

–15 –
3Point the signal window of the remote controller toward the indoor unit, and
press the (RESERVE) button.
The (OFF) mark starts lighting instead of flashing and the sign (RESERVED)
lights. A beep occurs and the (TIMER) lamp lights on the indoor unit.
●The time indication will disappear
automatically in 10 seconds.
●To check the current time setting,
press the (TIME) button twice.
The setting of the current time is
now complete.
●The timer may be used in three ways: off-timer, on-timer, and ON/OFF (OFF/ON)-timer. Set
the current time at first because it serves as a reference.
●As the time settings are stored in memory in the remote controller, you only have to press
the (RESERVE) button in order to use the same settings next time.
2Press the
(TIME) button.
3Set the current time with the
TIMER control button.
Example: The current time is 1:30 p.m.
2Set the turn-off time with the
TIMER control button.
The setting of turn-off time is now complete.
Example: The device will turn off at 11:00p.m.
Example:
The device will automatically turn on earlier so that the preset
temperature can be reached at 7:00 a.m.
The setting of the turn-on time is now complete.
4Set the turn-on time with the
TIMER control button.
5Point the signal window of the remote controller toward the indoor unit, and
press the (RESERVE) button.
The (ON) mark starts lighting instead of flashing and the (RESERVED) sign
lights. A beep occurs and the (TIMER) lamp lights on the indoor unit.
3Point the signal window of the remote controller toward the indoor unit, and
press the (RESERVE) button.
The (ON) mark starts lighting instead of flashing and the (RESERVED) sign
lights. A beep occurs and the (TIMER) lamp lights on the indoor unit.
2Set the turn-on time with the
TIMER control button.
Example:
The device will turn off at 10:30 p.m. and then automatically
turn on earlier so that the preset temperature can be reached
at 7:00 a.m.
The settings of the turn-on/off times are now complete.
4Press the (TIME) button again.
The time indication starts lighting
instead of flashing.
PM PM
AM PM
PM
PM
AM AM
AM
AM
PM
PM

–16 –
HOW TO SET THE SLEEP TIMER
1Set the ON-timer.
Set the current time at first if it is not set before (see the pages for setting
the current time). Press the (SLEEP) button, and the display changes as
shown below.
Mode
Sleep timer
Indication
1 hour 2 hours 3 hours 7 hours
Sleep timer off
44 44
1
Sleep Timer: The device will continue working for the designated
number of hours and then turn off.
Point the signal window of the remote controller toward the indoor
unit, and press the SLEEP button.
The timer information will be displayed on the remote controller.
The TIMER lamp lights with a beep from the indoor unit. When the
sleep timer has been set, the display indicates the turn-off time.
Example: If you set 3 hours sleep
time at 11:38 p.m., the turn-off
time is 2:38 a.m.
2Press the (SLEEP) button and set the sleep timer.
The device will be turned off by the sleep
timer and turned on by on-timer.
How to Cancel Reservation
Point the signal window of the remote controller toward the indoor unit, and press the (CANCEL)
button.
The (RESERVED) sign goes out with a beep and the (TIMER) lamp turns off on the indoor unit.
In this case, the device will turn off
in 2 hours (at 1:38 a.m.) and starts
at 6:00 a.m. next morning.
SLEEP
H
H
AM
AM
Sleep
timer Start
H

–17 –
Cooling
“”
and
dehumidifying
“”

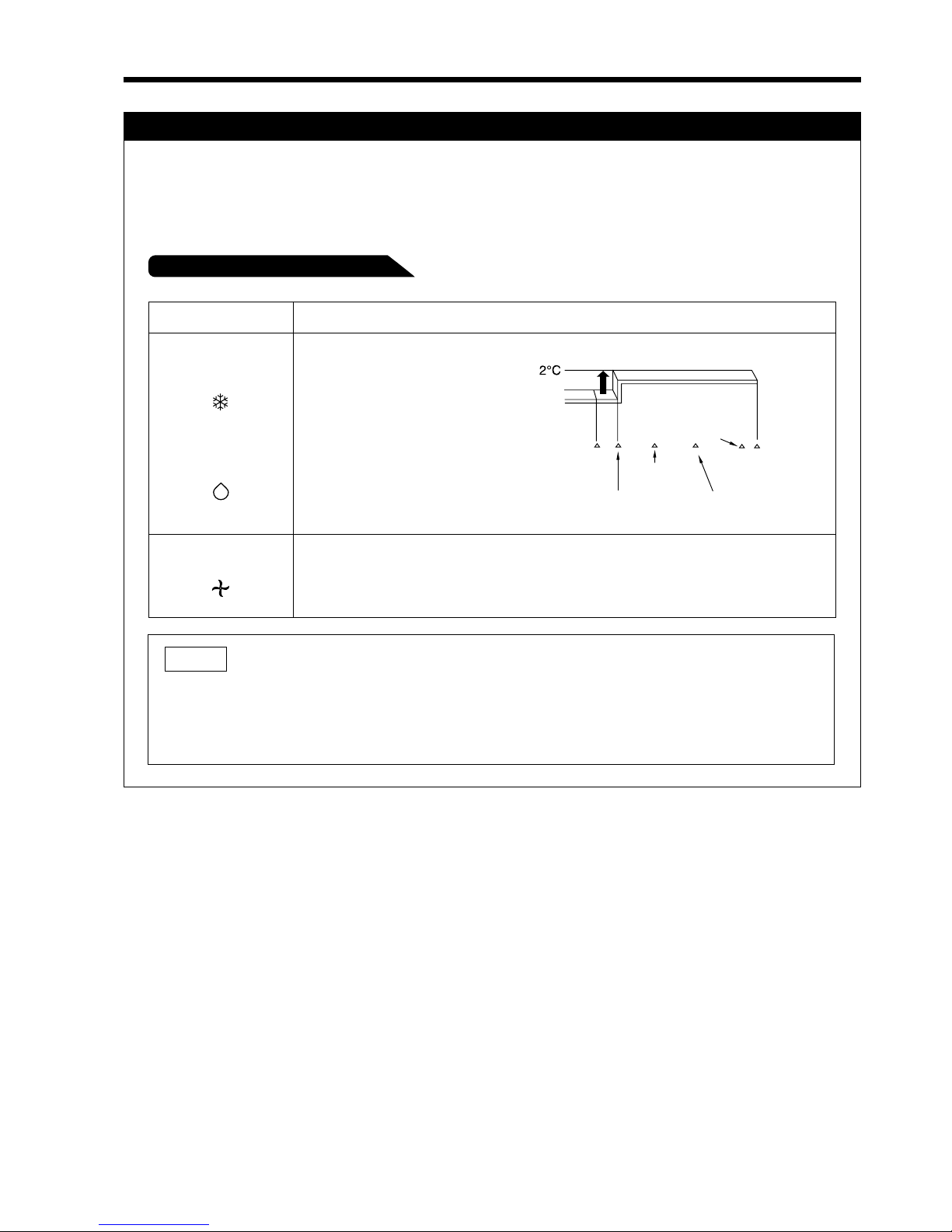

Explanation of the sleep timer
The device will control the FAN SPEED and room temperature automatically so as to be quiet and
good for people’s health.
You can set the sleep timer to turn off after 1, 2, 3 or 7 hours. The FAN SPEED and room
temperature will be controlled as shown below.
Function Operation
The settings of room temperature and circulation are varied.
The room temperature will be
controlled 2°C above the
temperature and the FAN
SPEED will be set to LOW
setting 1 hour after the setting
of the sleep timer.
Fan
“”
Operation with the sleep timer
●If date or current time is not set, sleep timer can not be set.
●If you set the sleep timer after the off-, on/off- or off/on-timer has been set, the sleep timer
becomes effective instead of the off-, on/off- or off/on-timer set.
●You can not set other timer during sleep timer operation.
NOTE
Sleep
timer set
1 hour 3 hours later
7 hours later
2 hours
later
6 hours
later

–18 –
THE IDEAL WAYS OF OPERATION
Suitable Room Temperature Install curtain or blinds
Ventilation Effective Usage Of Timer
Do Not Forget To Clean The Air Filter Please Adjust Suitable Temperature
For Baby And Children
Warning
Freezing temperature
is bad for health and a
waste of electric power.
!
It is possible to
reduce heat
entering the
room through
windows.
At night, please use the “sleep timer operation
mode”, together with your wake up time in the
morning. This will enable you to enjoy a
comfortable room temperature. Please use the
timer effectively.
Dusty air filter will reduce the air volume and
the cooling efficiency. To prevent from wasting
electric energy, please clean the filter every 2
weeks.
Please pay attention to the room temperature
and air flow direction when operating the unit
for baby, children and old folks who have
difficulty in movement.
(The ideal temperature
difference between
outdoor and indoor
is about ±5°C).
Caution
Do not close the room for a long period of
time. Occasionally open the door and windows
to allow the
entrance of
fresh air.
!

–19 –

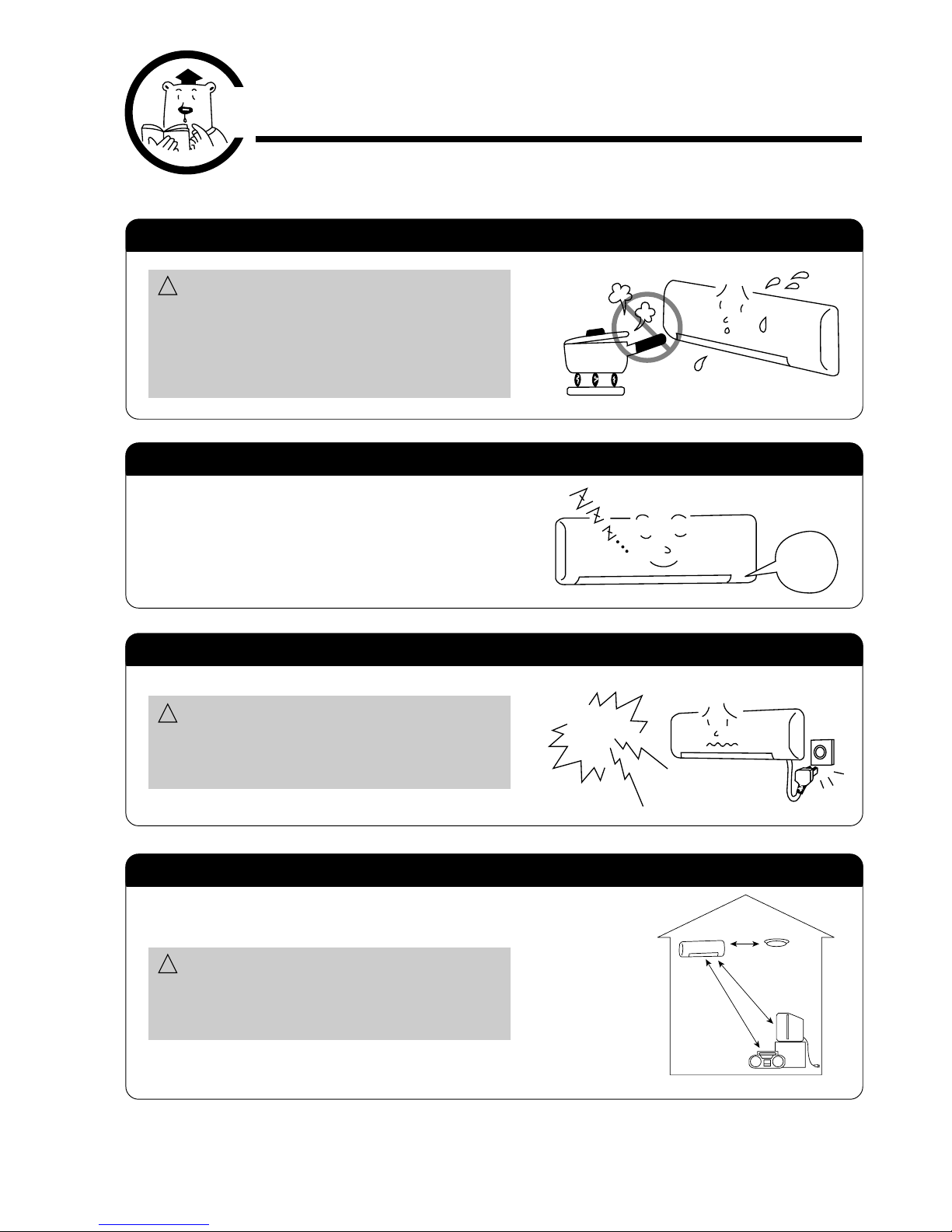

FOR USER’S INFORMATION
The Air Conditioner And The Heat Source In The Room
Not Operating For A Long Time
When Lightning Occurs
Caution
If the amount of heat in the room is above the cooling
capability of the air conditioner (for example: more
people entering the room, using heating equipments
and etc.), the preset room temperature cannot be
achieved.
When the indoor unit is not to be used for a long
period of time, please switch off the power from the
mains. If the power from mains remains “ON”, the
indoor unit still consumes about 8W in the operation
control circuit even if it is in “OFF”mode.
Warning
To protect the whole unit during lightning, please
stop operating the unit and remove the plug from the
socket.
OFF
Interference From Electrical Products
Inverter-type
fluorescent
lamp.
To prevent
interference,
place at least
1m away.
TV
Caution
To avoid noise interference, please place the indoor
unit and its remote controller at least 1m away from
electrical products.
!
!
!

–20 –
ATTACHING THE AIR CLEANSING FILTERS
1Open the front panel.
●Pull up the front panel by holding it at both sides
with both hands.
2Remove the filter.
●Push upward to release the claws and pull out the
filter.
3Attaching the air cleansing filters to the filter.
●Attach the air cleansing filters to the frame by gently
compress its both sides and release after insertion
into filter frame.
4Attach the filters.
●Attach the filters by ensuring that the surface written
“FRONT”is facing front.
●After attaching the filters, push the front panel at
three arrow portion as shown in figure and close it.
Cleaning and maintenance must be carried out only by qualified service personal. Before cleaning,
stop operation and switch off the power supply.
CAUTION
CAUTION
Do not bend the air cleansing
filter as it may cause damage
to the structure.
NOTE
●In case of removing the air cleansing filters, please follow the above procedures.
●The cooling capacity is slightly weakened and the cooling speed becomes slower when the air
cleansing filters are used. So, set the fan speed to "HIGH" when using it in this condition.
●Air cleansing filters are washable and reusable up to 20 times by using vacuum cleaner or water rinse
under running tap water. Type number for this air cleansing filter is <SPX-CFH18>.
●Do not operate the air conditioner without filter. Dust may enter the air conditioner and fault may occur.
Claws
(4 places)
!
!
