Hitachi RAS-V10CDT User manual

– 1 –
ENGLISH
SPLIT TYPE AIR CONDITIONER
INDOOR UNIT/OUTDOOR UNIT
MODEL
RAS-V10CDT / RAC-V10CDT
RAS-V13CDT / RAC-V13CDT
OUTDOOR UNIT INDOOR UNIT
RAS-V10CDT
RAS-V13CDT
RAC-V10CDT
RAC-V13CDT
Instruction manual Page 1~22
To obtain the best performance, please read this instruction manual completely.
คู่มือการใช้งาน หน้า 23-44
เพื่อได้รับการทํางานที่ดีที่สุด โปรดอ่านคู่มืออย่างละเอียด
RAS-V10CDT-V13CDT (EN1) 1RAS-V10CDT-V13CDT (EN1) 1 1/4/14 10:31 AM1/4/14 10:31 AM

– 2 –
!
!
SAFETY PRECAUTION
●
Please read the “Safety Precaution” carefully before operating the unit to ensure correct usage of the unit.
●
Pay special attention to signs of “ Warning” and “ Caution”. The “Warning” section contains matters which,
if not observed strictly, may cause death or serious injury. The “Caution” section contains matters which may
result in serious consequences if not observed properly. Please observe all instructions strictly to ensure safety.
●
The sign indicate the following meanings.
●
Please keep this manual after reading.
PRECAUTIONS DURING SHIFTING OR MAINTENANCE
●
Should abnormal situation arises (like burning smell), please stop operating the unit and turn off
the circuit breaker. Contact your agent. Fault, short circuit or fire may occur if you continue to
operate the unit under abnormal situation.
●
Please contact your agent for maintenance. Improper self maintenance may cause electric
shock and fire.
●
Please contact your agent if you need to remove and reinstall the unit. Electric shock or fire
may occur if you remove and reinstall the unit yourself improperly.
●
If the supply cord is damaged, it must be replaced by the special cord obtainable at authorized
service/parts centers.
Make sure to connect earth line.
Indicates the instructions that must be followed.
The sign in the figure indicates prohibition.
W
A
R
N
I
N
G
!
PRECAUTIONS DURING OPERATION
●
Avoid an extended period of direct air flow for your health.
W
A
R
N
I
N
G
!
●
Do not insert finger(s), rod or other objects into the air outlet or inlet. As the fan is rotating at
a high speed, it will cause injury. Before cleaning, be sure to stop the operation and turn the
breaker OFF.
●
During thunder storm, disconnect and turn off the circuit breaker.
●
Do not use any conductor as fuse wire, this could cause fatal accident.
WARNING
PRECAUTIONS DURING INSTALLATION
●
Do not reconstruct the unit.
Water leakage, fault, short circuit or fire may occur if you reconstruct the unit by yourself.
●
Please ask your sales agent or qualified technician for the installation of your unit. Water
leakage, short circuit or fire may occur if you install the unit by yourself.
●
Please use earth line.
Do not place the earth line near water or gas pipes, lightning-conductor, or the earth
line of telephone. Improper installation of earth line may cause electric shock.
●
A circuit breaker should be installed depending on the mounting site of the unit. Without
a circuit breaker, the danger of electric shock exists.
●
Do not install near location where there is flammable gas. The outdoor unit may catch
fire if flammable gas leaks around it.
●
Please ensure smooth flow of water when installing the drain hose.
●
Do not install the indoor unit in a machine shop or kitchen where vapor from oil or its
mist flows to the indoor unit. The oil will deposit on the heat exchanger, thereby reducing
the indoor unit performance and may deform and in the worst case, breake the plastic
parts of the indoor unit.
CAUTION
!
!
●
This unit has UV LED which emits ultra violet light.
AVOID DIRECT EYE EXPOSURE.
!
RAS-V10CDT-V13CDT (EN1) 2RAS-V10CDT-V13CDT (EN1) 2 1/4/14 10:31 AM1/4/14 10:31 AM

– 3 –
ENGLISH
PRECAUTIONS DURING OPERATION
●Do not attempt to operate the unit with wet hands, this could cause fatal
accident.
●Do not direct the cool air coming out from the air-conditioner panel to face
household heating apparatus as this may affect the working of apparatus
such as the electric kettle, oven etc.
●Do not place plants directly under the air flow as it is bad for the plants.
●Please ensure that outdoor mounting frame is always stable, firm and
without defect. If not, the outdoor unit may collapse and cause danger.
●Do not splash or direct water to the body of the unit when cleaning it as
this may cause short circuit.
●When operating the unit with the door and windows opened, (the room humidity is always above
80%) and with the air deflector facing down or moving automatically for a long period of time,
water will condense on the air deflector and drips down occasionally. This will wet your furniture.
Therefore, do not operate under such condition for a long time.
●If the amount of heat in the room is above the cooling capability of the unit (for example: more
people entering the room, using heating equipments and etc.), the preset room temperature
cannot be achieved.
●This appliance is not intended for use by young children unless they have been adequately
supervised by a responsible person to ensure that they can use the appliance safely.
●Young children should be supervised to ensure that they do not play with the appliance.
●Do not climb on the outdoor unit or put objects on it.
●Please switch off the unit and turn off the circuit breaker during cleaning,
the high-speed fan inside the unit may cause danger.
●Turn off the circuit breaker if the unit is not to be operated for a long period.
C
A
U
T
I
O
N
●The product shall be operated under the manufacturer specification and
not for any other intended use.
●Do not put water container (like vase) on the indoor unit to avoid water
dripping into the unit. Dripping water will damage the insulator inside the
unit and causes short-circuit.
●Do not use any aerosol or hair sprays near the indoor unit. This chemical
can adhere on heat exchanger fin and blocked the evaporation water
flow to drain pan. The water will drop on tangential fan and cause water
splashing out from indoor unit.
!
RAS-V10CDT-V13CDT (EN1) 3RAS-V10CDT-V13CDT (EN1) 3 1/4/14 10:31 AM1/4/14 10:31 AM

– 4 –

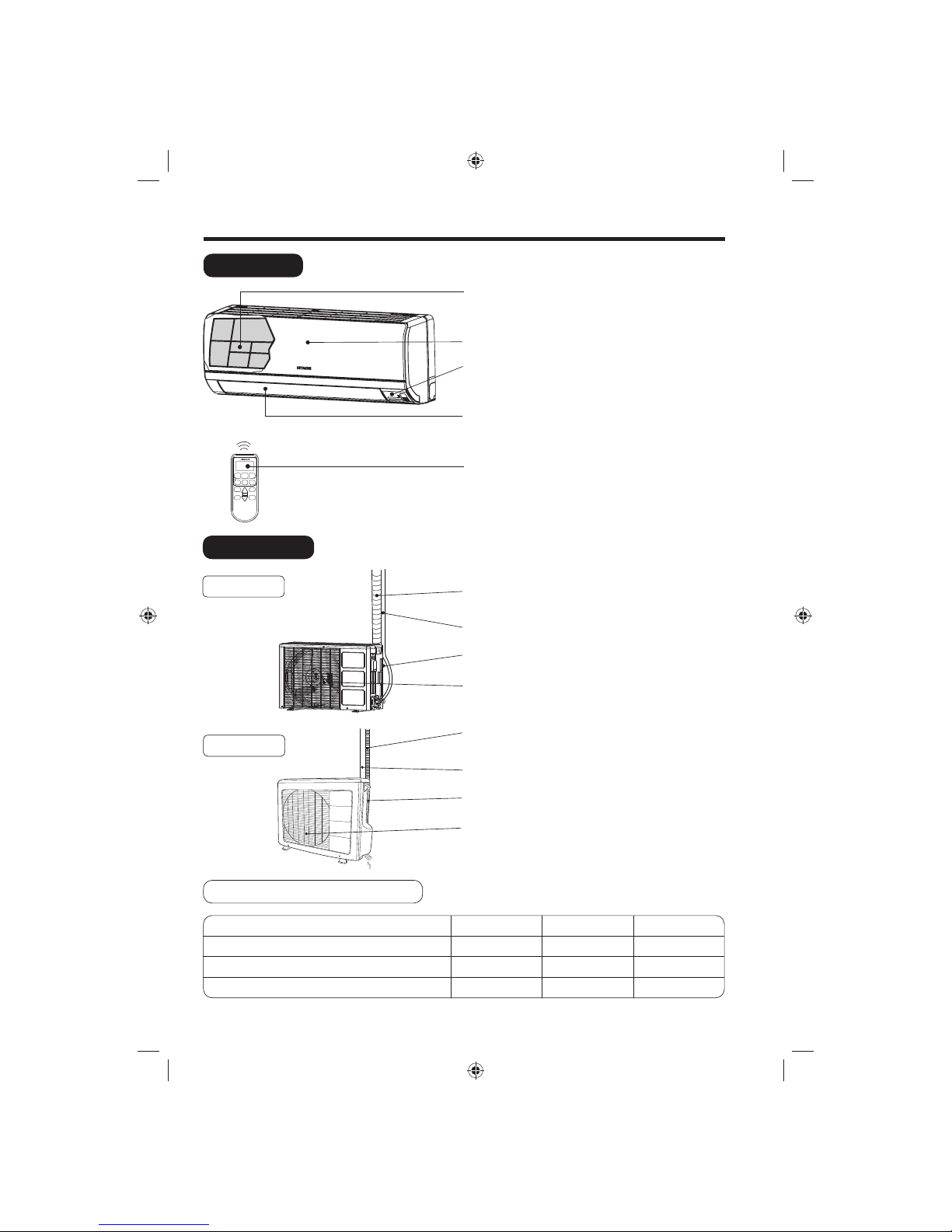

INDOOR UNIT
NAMES AND FUNCTIONS OF EACH PART
Pre-filter
To prevent dust from coming into the indoor unit.
(Refer page 18)
Front panel
Indoor unit indicators
Light indicator showing the operating condition.
(Refer page 5)
Horizontal deflector ●Vertical deflector
(Air Outlet)
(Refer page 13)
Remote controller
Send out operation signal to the indoor unit. So as
to operate the whole unit.
(Refer page 6)
OUTDOOR UNIT
Drain pipe
Condensed water drain to outside.
Connecting cord and insulation pipe for piping
Air inlet (Back, Left side)
Air outlet
WIDTH (mm)
790
700
750
MODEL
RAS-V10CDT/RAS-V13CDT
RAC-V10CDT
RAC-V13CDT
HEIGHT (mm)
300
468
570
DEPTH (mm)
230
258
280
MODEL NAME AND DIMENSIONS
Drain pipe
Condensed water drain to outside.
Connecting cord and insulation pipe for piping
Air inlet (Back, Left side)
Air outlet
RAC-V10CDT
RAC-V13CDT
RAS-V10CDT-V13CDT (EN1) 4RAS-V10CDT-V13CDT (EN1) 4 1/4/14 10:31 AM1/4/14 10:31 AM

– 5 –
ENGLISH

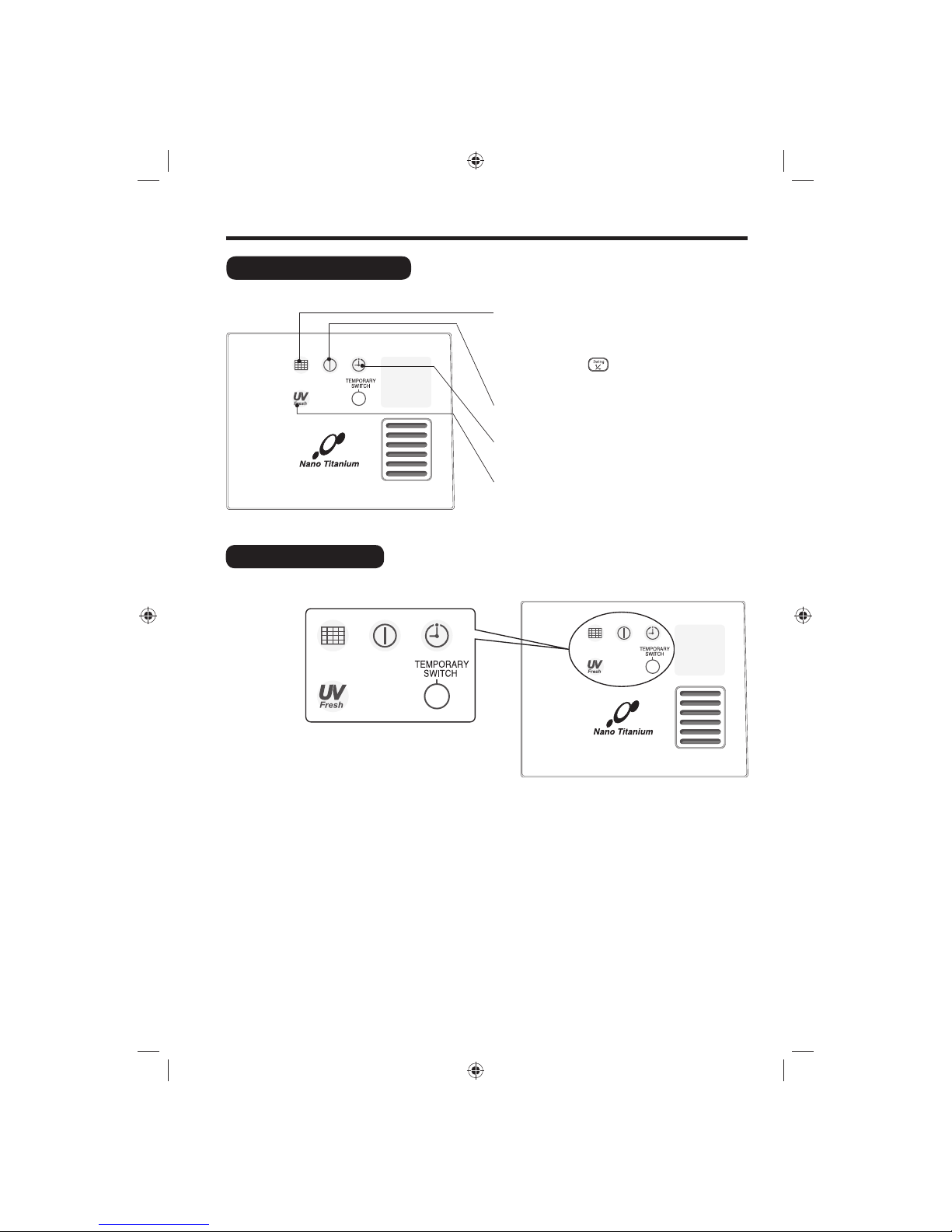

INDOOR UNIT INDICATORS
TEMPORARY SWITCH
Use this switch to start and stop when the remote controller does not work.
●By pressing the temporary switch, the operation is done in automatic mode.
●When the operation is done using the temporary switch after the power source is turned off and turn
on again, the operation is done in automatic mode.
OPERATION INDICATOR
FILTER LAMP
When the device is operated for a total of about
200 hours, the FILTER lamp lights to indicate
that it is time to clean the filter. The lamp goes
out when the “ (AUTO SWING)” button is
pressed while the device is on “STANDBY MODE”.
OPERATION LAMP
This lamp lights during operation.
TIMER LAMP
This lamp lights when the timer is working.
UV FRESH
UV Fresh lamp will be ON by press the operation
button. This lamp will be OFF when STOP button
is pressed.
RAS-V10CDT-V13CDT (EN1) 5RAS-V10CDT-V13CDT (EN1) 5 1/4/14 10:31 AM1/4/14 10:31 AM

– 6 –

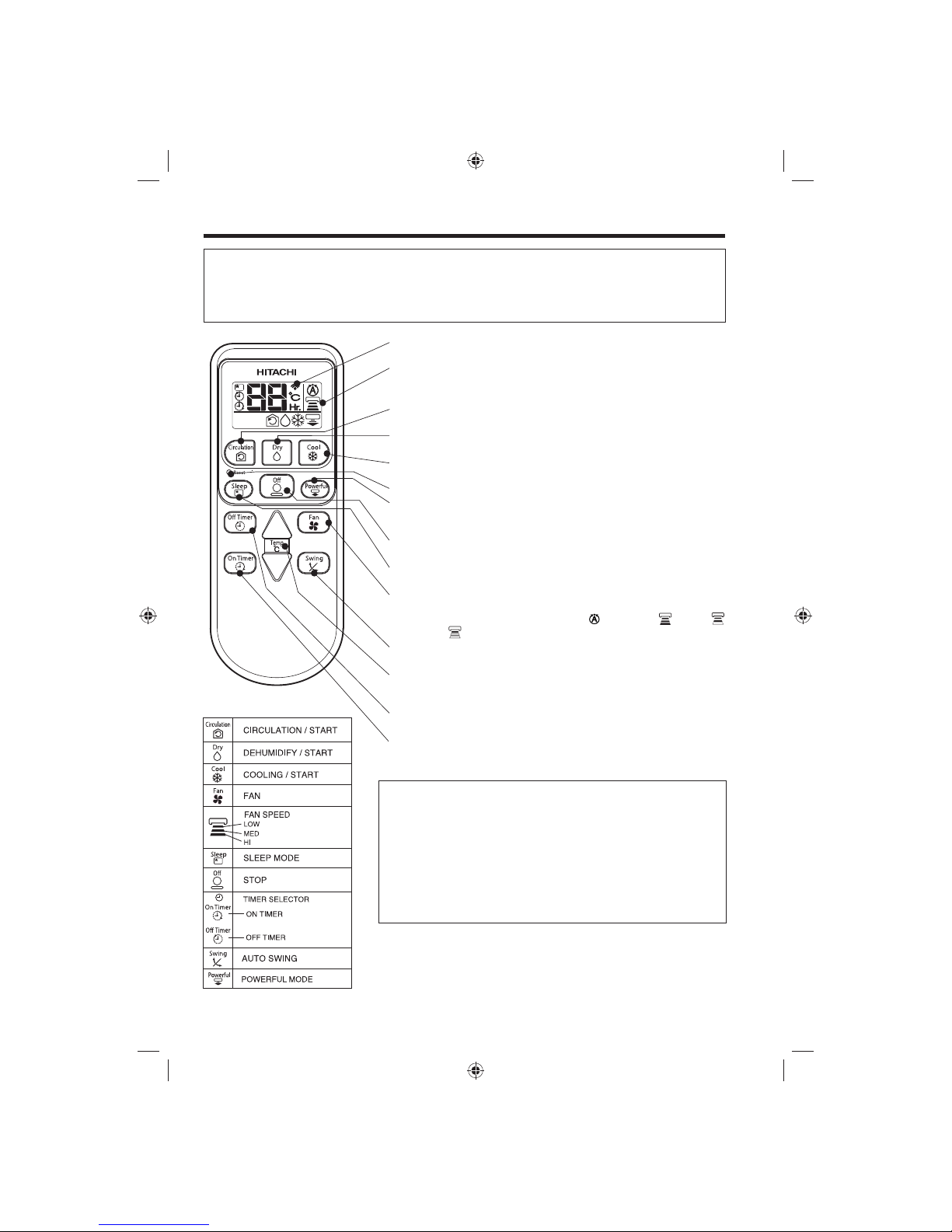

NAMES AND FUNCTIONS OF REMOTE CONTROL UNIT
REMOTE CONTROLLER
This controls the operation of the indoor unit. Signal range to reach indoor unit is about 7 meters. If
inverter lamp is used, the range of control may be shorter.
This unit can be fixed on a wall using the fixture provided. Before fixing it, make sure the indoor unit
can be controlled from the remote controller.
●Transmission sign
The transmission sign blinks when a signal is sent.
●Display
This indicates the room temperature selected, timer status, function
and intensity of circulation selected.
●CIRCULATION button
Use this button to set air circulation in the room or start operation.
●DEHUMIDIFYING button
Use this button to dehumidify the room or start operation.
●COOLING button
Use this button to set cooling mode in the room or start operation.
●RESET button
●POWERFUL MODE buttonA
Use this button to deliver faster and more comfortable air-conditioning
or start operation.TO
●STOP button
Press this button to stop operation only.
●SLEEP MODE button
Use this button to set the sleep mode.
●FAN SPEED selector
This determines the fan speed. Each time you press this button, the
intensity of circulation will change from (AUTO) to (HI) to
(MED) to (LOW).
●AUTO SWING button
Controls the angle of the horizontal air deflector.
●TEMPERATURE button
Use this button to raise or lower the temperature setting. (Keep
pressed, and the value will change more quickly.)
●OFF-TIMER button
Select to turn OFF time.
●ON-TIMER button
Select to turn ON time.
Precautions for Use
●Do not put the remote controller in the following places.
●In direct sunlight.
●In the vicinity of a heater.
●Handle the remote controller carefully. Do not drop it on the
floor, and protect it from water.
●Once the outdoor unit stops, it will not restart for about 3
minutes (unless you turn the power switch off and on or unplug
the power cord and plug it in again).
This is to protect the device and does not indicate a failure.
RAS-V10CDT-V13CDT (EN1) 6RAS-V10CDT-V13CDT (EN1) 6 1/4/14 10:31 AM1/4/14 10:31 AM

– 7 –
ENGLISH
˚
C
Use the device for cooling when the outdoor temperature is 21 ~ 43°C.
If indoors humidity is very high (over 80%), some dew may form on the air outlet grille of the indoor unit.
Press the button so that the display indicates (COOL).
Cooling operation starts with a beep.
The cooling function does not start if the temperature setting
is higher than the current room temperature (even though
the (OPERATION) lamp lights). The cooling function will
start as soon as you set the temperature below the current
room temperature.
Set the desired FAN SPEED with the (FAN SPEED)
button (the display indicates the setting).
(AUTO): The FAN SPEED is HI at first and varies to
MED or LOW automatically when the preset
temperature has been reached.
(HI) : Hi fan speed mode.
(MED) : Medium fan speed mode.
(LOW) : Low fan speed mode.
Set the desired room temperature with the TEMPERATURE
button (the display indicates the setting).
The range of 25 ~ 28°C is recommended as
the room temperature for cooling.
If the temperature setting is 27°C, the room
temperature will be controlled at around 27°C.
The temperature setting and the actual room temperature may
vary somewhat depending on conditions.
Press the (STOP) button to stop operation.
■As the settings are stored in memory of the remote controller, you
only have to press the (COOLING) button to repeat the same
settings next time.
1
2
STOP
3

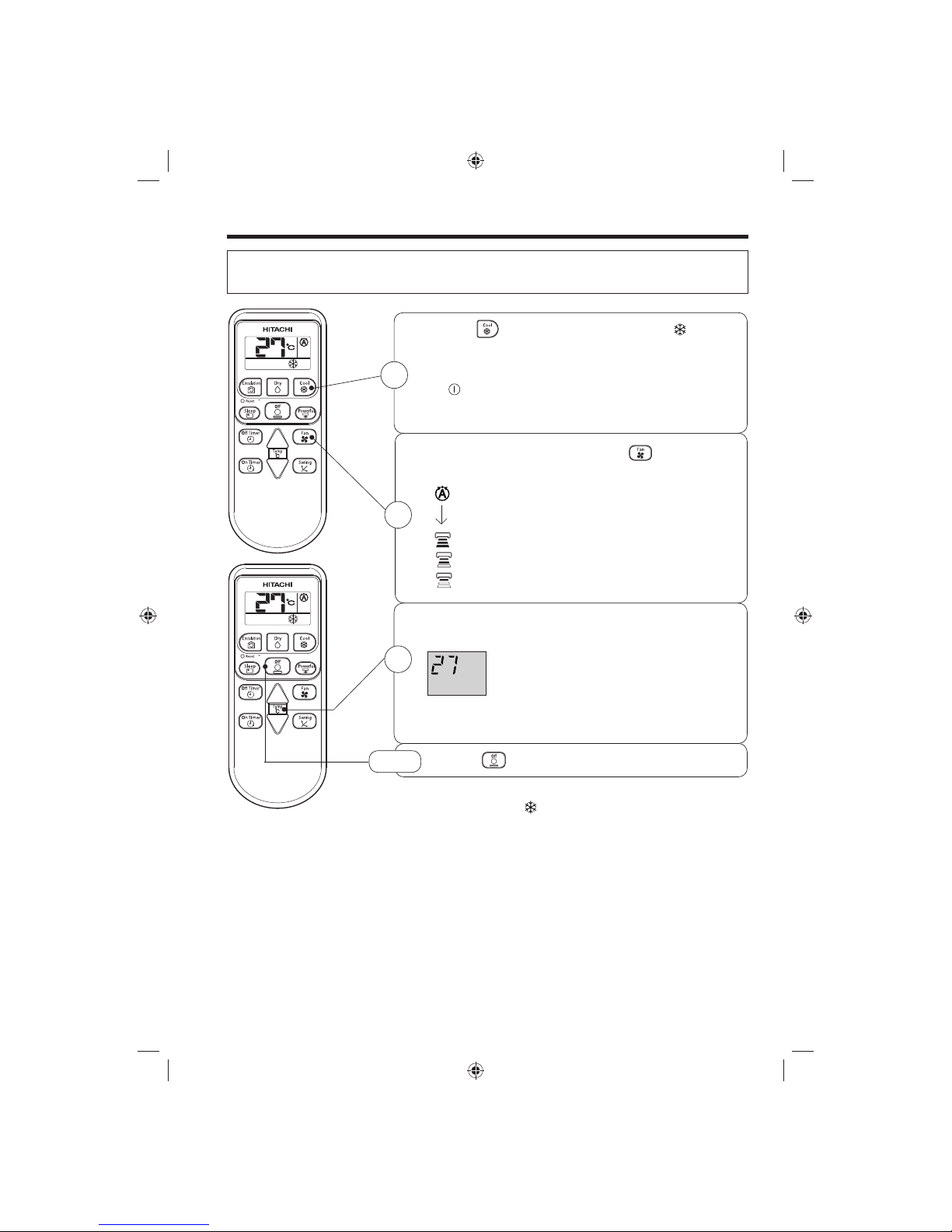

COOLING OPERATION
RAS-V10CDT-V13CDT (EN1) 7RAS-V10CDT-V13CDT (EN1) 7 1/4/14 10:31 AM1/4/14 10:31 AM

– 8 –
DEHUMIDIFYING OPERATION
Use the device for dehumidifying when the room temperature is over 16°C.
When it is under 15°C, the dehumidifying function will not work.
■Dehumidifying Function
When the room temperature is higher than the temperature setting: The device will dehumidify the room
and reducing the room temperature to the preset level.
When the room temperature is lower than the temperature setting: Dehumidifying will be performed at
the temperature setting slightly lower than the current room temperature, regardless of the temperature
setting. The function will stop (the indoor unit will stop emitting air) as soon as the room temperature
becomes lower than the setting temperature. You might feel a bit colder in dehumidifying operation.
■As the settings are stored in memory in the remote controller, you only
have to press the button next time.
Set the desired room temperature with the TEMPERATURE
button (the display indicates the setting).
The range of 20~26˚C is recommended as the
room temperature for dehumidifying.
2
Press the button. Dehumidifying operation starts with a
beep.
The FAN SPEED is set at LOW automatically.
The FAN SPEED button does not work.
1
Press the button to stop operation.
STOP
˚
C
RAS-V10CDT-V13CDT (EN1) 8RAS-V10CDT-V13CDT (EN1) 8 1/4/14 10:31 AM1/4/14 10:31 AM

– 9 –
ENGLISH
CIRCULATION OPERATION
■Circulation Function
●During circulation operation, compressor does not run and there is no cooling operation with only indoor
fan running.
●When the setting temperature is higher than room temperature, indoor fan will stop running.
Press the button so that the display indicates
(CIRCULATE).
Circulating operation starts with a beep.
Press the FAN SPEED button and select the desired FAN
SPEED (the display indicates your choice).
Press the temperature control button to set to the desired
temperature.
■As the settings are stored in memory in the remote controller,
you only have to press the (CIRCULATION) button next time.
3
Press the button to stop operation.
STOP
1
2
RAS-V10CDT-V13CDT (EN1) 9RAS-V10CDT-V13CDT (EN1) 9 1/4/14 10:31 AM1/4/14 10:31 AM

– 10 –
ONE-TOUCH POWERFUL
Press the button.
●Operation start with a signal received sound “beep”.
●Unit will be forced operate in (COOL) with SUPER COOL
fan speed for 20 minutes. Indicator appear during this
period while temperature and fan speed setting display remain
unchanged. (Operation lamp at indoor unit is blinking).
●After 20 minutes, operation lamp stop blinking and
indicator will disappear while unit will be in (COOL) mode.
Temperature and fan speed will change to previous setting.
●Air blow sound will be slightly high due to forced operation.
1
NOTE
(1) OFF TIME setting : OFF timer will be a priority over the
POWERFUL operation time.
(2) ON TIME setting : POWERFUL operation will be a priority
over the ON timer operation time.
CANCELLATION of POWERFUL Operation
Cancel Condition Operation mode after cancel
Press or OFF timer time is up Stop operation
key press DEHUMIDIFYING operation
Press or
Press or
Press or
20 minutes time is up
Normal COOLING operation
key press CIRCULATION operation
COOLING operation
(SLEEP Mode)
Press SLEEP operation
RAS-V10CDT-V13CDT (EN1) 10RAS-V10CDT-V13CDT (EN1) 10 1/4/14 10:31 AM1/4/14 10:31 AM

– 11 –
ENGLISH
HOW TO SET THE SLEEP MODE
Press the button, and the display changes as shown below.
Mode
Sleep timer
Indication
1 hour 2 hours 3 hours 7 hours
Sleep timer off
44 44
1
Sleep Timer: The device will continue working for the designated
number of hours and then turn off.
Point the signal window of the remote controller toward the indoor
unit, and press the SLEEP button.
The timer information will be displayed on the remote controller.
The TIMER lamp lights with a beep from the indoor unit.
Cooling
“ ”
and
dehumidifying
“ ”
Explanation of the sleep timer
The device will control the FAN SPEED and room temperature automatically
so as to be quiet and good for people’s health.
You can set the sleep timer to turn off after 1, 2, 3 or 7 hours. The FAN
SPEED and room temperature will be controlled as shown below.
Function Operation
The room temperature will
be controlled 2°C above the
setting temperature and the
FAN SPEED will be set to LOW
setting 1 hour after the setting
of the sleep timer.
SLEEP
RAS-V10CDT-V13CDT (EN1) 11RAS-V10CDT-V13CDT (EN1) 11 1/4/14 10:31 AM1/4/14 10:31 AM

– 12 –

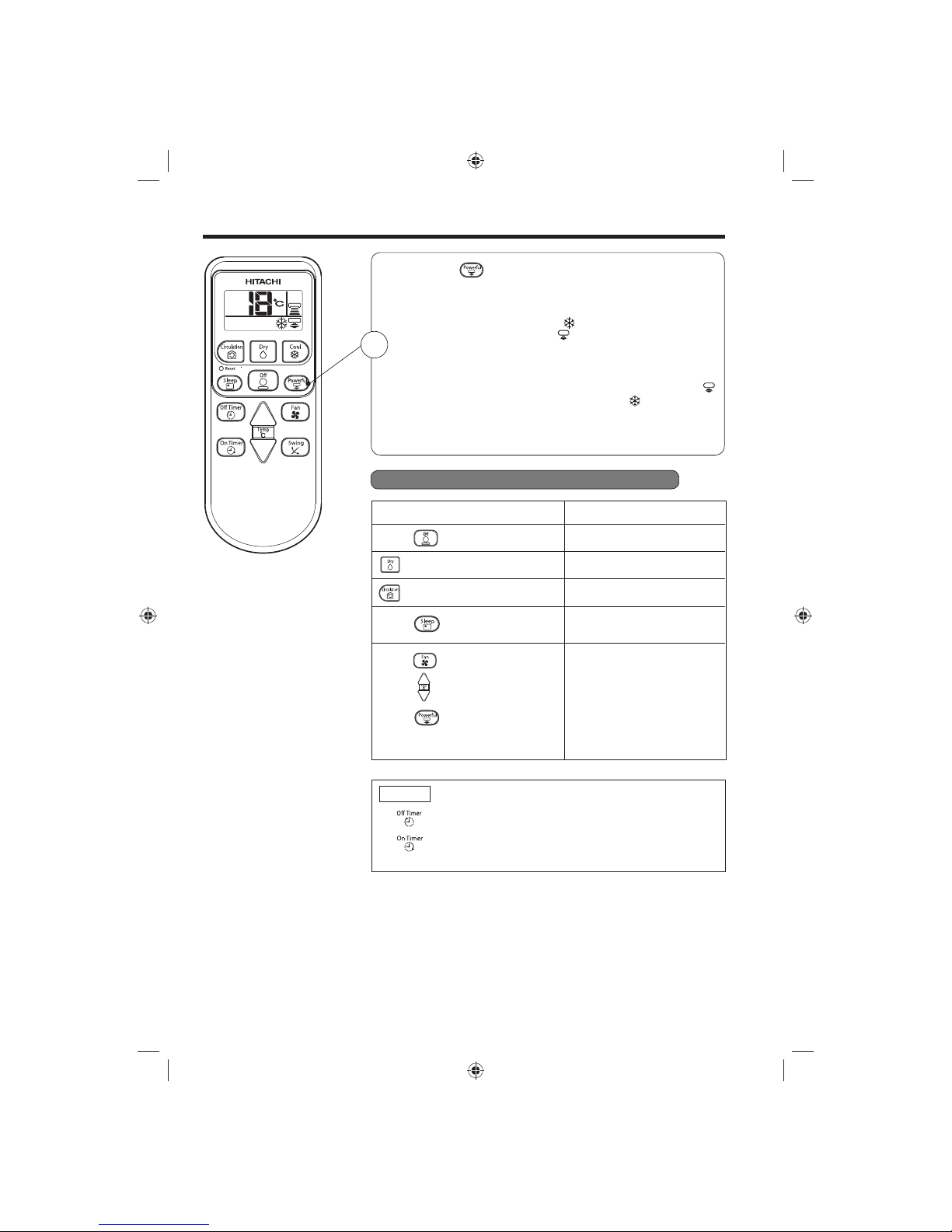

HOW TO SET THE TIMER
■ON Timer and OFF Timer are available.
OFF TIME setting
●Select the OFF TIME by pressing the (OFF TIMER)
Button.
●Setting time will change according to the below sequence
when you press the button.
OFF Timer Reservation
■Operation stop at setting time
ON TIME setting
●Select the ON TIMER by pressing the (ON
TIMER) Button.
●Setting time will change according to the below
sequence.
ON Timer Reservation ■Operation will start for setting
temperature at setting time (The starting
time may different depend on the room
temperature and set temperature).
RAS-V10CDT-V13CDT (EN1) 12RAS-V10CDT-V13CDT (EN1) 12 1/4/14 10:31 AM1/4/14 10:31 AM

– 13 –
ENGLISH

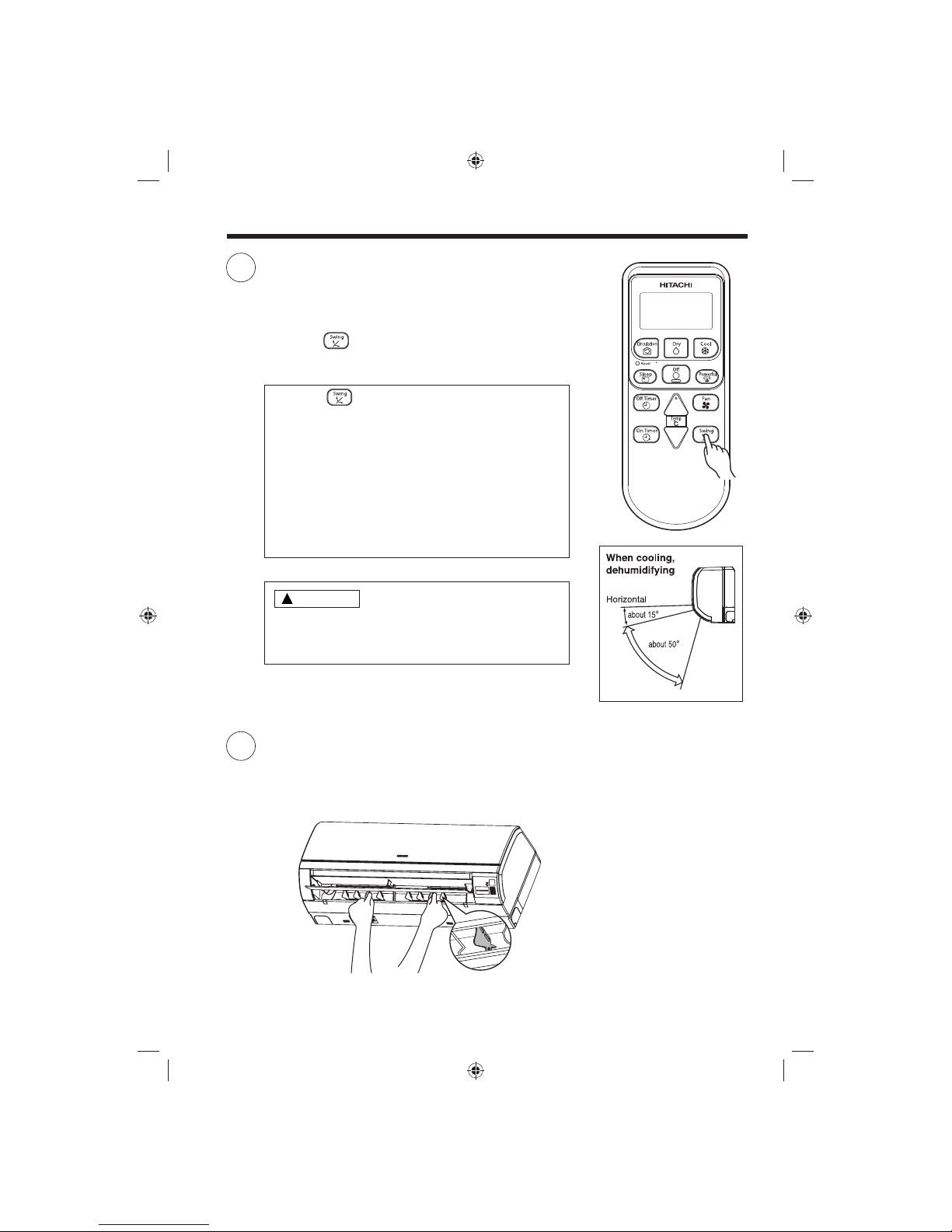

AIR FLOW LOUVERS ADJUSTMENTS
1
2Adjustment of the conditioned air to the left and right.
Hold the second vertical air deflector of each set of vertical
air deflectors from right as shown in the figure and adjust the
conditioned air to the left or right.
●If the “ (AUTO SWING)” button is pressed once,
the horizontal air deflector swings up and down. If the
button is pressed again, the deflector stops in its current
position. Several seconds (about 6 seconds) may be
required before the deflector starts to move.
●Use the horizontal air deflector within the adjusting range
shown on the right.
●When the operation is stopped, the horizontal air deflector
moves and stops at the position where the air outlet
closes.
!
CAUTION
●In “Cooling” operation, do not keep the horizontal air
deflector swinging for a long time. Some dew may form
on the horizontal air deflector and dew may drop.
Adjustment of the conditioned air in the upward and downward
directions.
The horizontal air deflector is automatically set to the proper
angle suitable for each operation. The deflector can be swung
up and down continuously and also set to the desired angle
using the “ (AUTO SWING)” button.
RAS-V10CDT-V13CDT (EN1) 13RAS-V10CDT-V13CDT (EN1) 13 1/4/14 10:31 AM1/4/14 10:31 AM

– 14 –

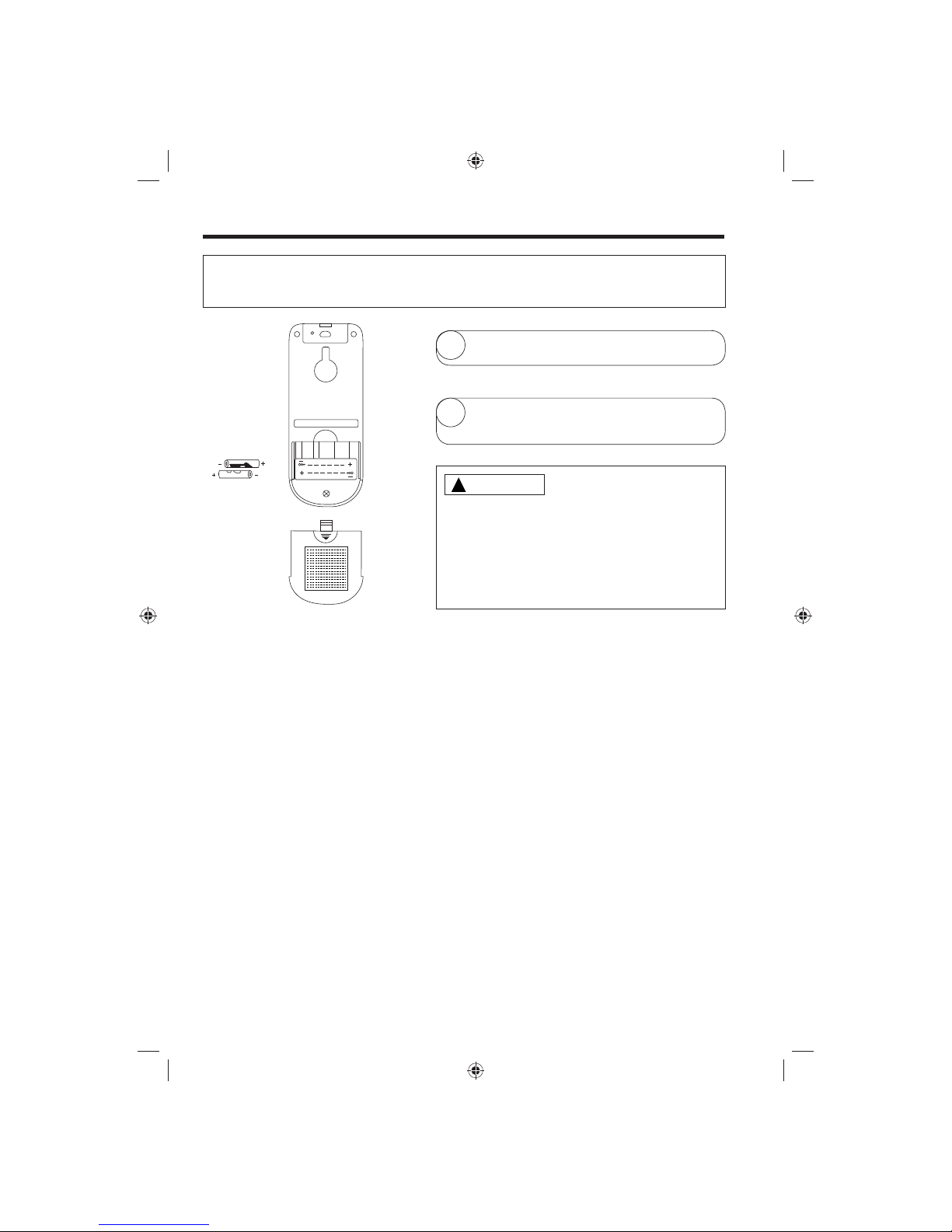

HOW TO EXCHANGE THE BATTERIES IN THE REMOTE CONTROLLER
1Remove the cover as shown in the figure and
take out the old batteries.
=
2Install the new batteries.
The direction of the batteries should match the
marks in the case.
1. Do not use new and old batteries, or different kinds
of batteries together.
2. Take out the batteries when you do not use the remote
controller for 2 or 3 months.
3. Use high quality and high performance AAA batteries
to avoid short operating life and electrolyte leakages.
4. After batteries are replaced or when an operation is
abnormal, press the reset button with a pen point.
CAUTION
!
When using the remote control, if there is no response from the air conditioner unit and or the remote
control has fading and dim displays, the batteries in the remote control device need to be removed and
replaced with new ones
RAS-V10CDT-V13CDT (EN1) 14RAS-V10CDT-V13CDT (EN1) 14 1/4/14 10:31 AM1/4/14 10:31 AM

– 15 –
ENGLISH
THE IDEAL WAYS OF OPERATION
Suitable Room Temperature Install curtain or blinds
Ventilation Effective Usage Of Timer
Do Not Forget To Clean The Pre-Filter Please Adjust Suitable Temperature
For Baby And Children
Warning
Freezing temperature
is bad for health and a
waste of electric power.
!
It is possible
to reduce heat
entering the
room through
windows.
Dusty air filter will reduce the air volume and
the cooling efficiency. To prevent from wasting
electric energy, please clean the filter every
2 weeks.
Caution
Do not close the room for a long period of
time. Occasionally open the door and windows
to allow the
entrance of
fresh air.
!
At night, please use the “OFF or ON timer
operation mode”, together with your wake up
time in the morning. This will enable you to
enjoy a comfortable room temperature. Please
use the timer effectively.
Please pay attention to the room temperature
and air flow direction when operating the unit for
baby, children and old folks who have difficulty
in movement.
RAS-V10CDT-V13CDT (EN2) 15RAS-V10CDT-V13CDT (EN2) 15 1/4/14 10:32 AM1/4/14 10:32 AM

– 16 –

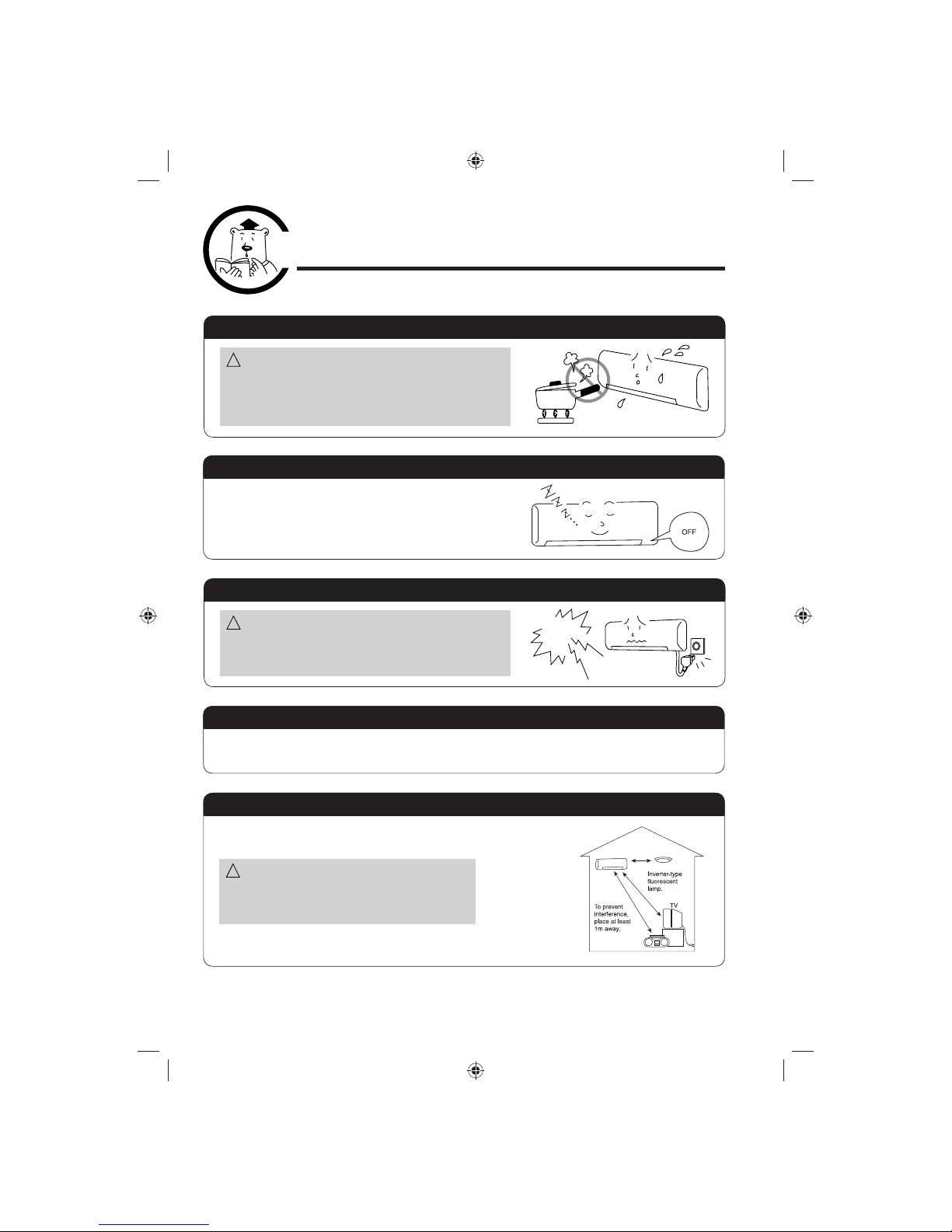

FOR USER’S INFORMATION
The Air Conditioner And The Heat Source In The Room
Not Operating For A Long Time
When Lightning Occurs
Caution
If the amount of heat in the room is above the cooling
capability of the air conditioner (for example: more people
entering the room, using heating equipments and etc.), the
preset room temperature cannot be achieved.
When the indoor unit is not to be used for a long period of
time, please switch off the power from the mains. If the power
from mains remains “ON”, the indoor unit still consumes about
8W in the operation control circuit even if it is in “OFF” mode.
Warning
To protect the whole unit during lightning, please stop
operating the unit and remove the plug from the socket.
Interference From Electrical Products
Caution
To avoid noise interference, please place the indoor
unit and its remote controller at least 1m away from
electrical products.
!
!
!
UV-LED
UV-LED will be “ON” when the MODE button is pressed. Light UV glare is visible when he UV-LED is
“ON” and this is normal (not malfunction).
RAS-V10CDT-V13CDT (EN2) 16RAS-V10CDT-V13CDT (EN2) 16 1/4/14 10:32 AM1/4/14 10:32 AM

– 17 –
ENGLISH

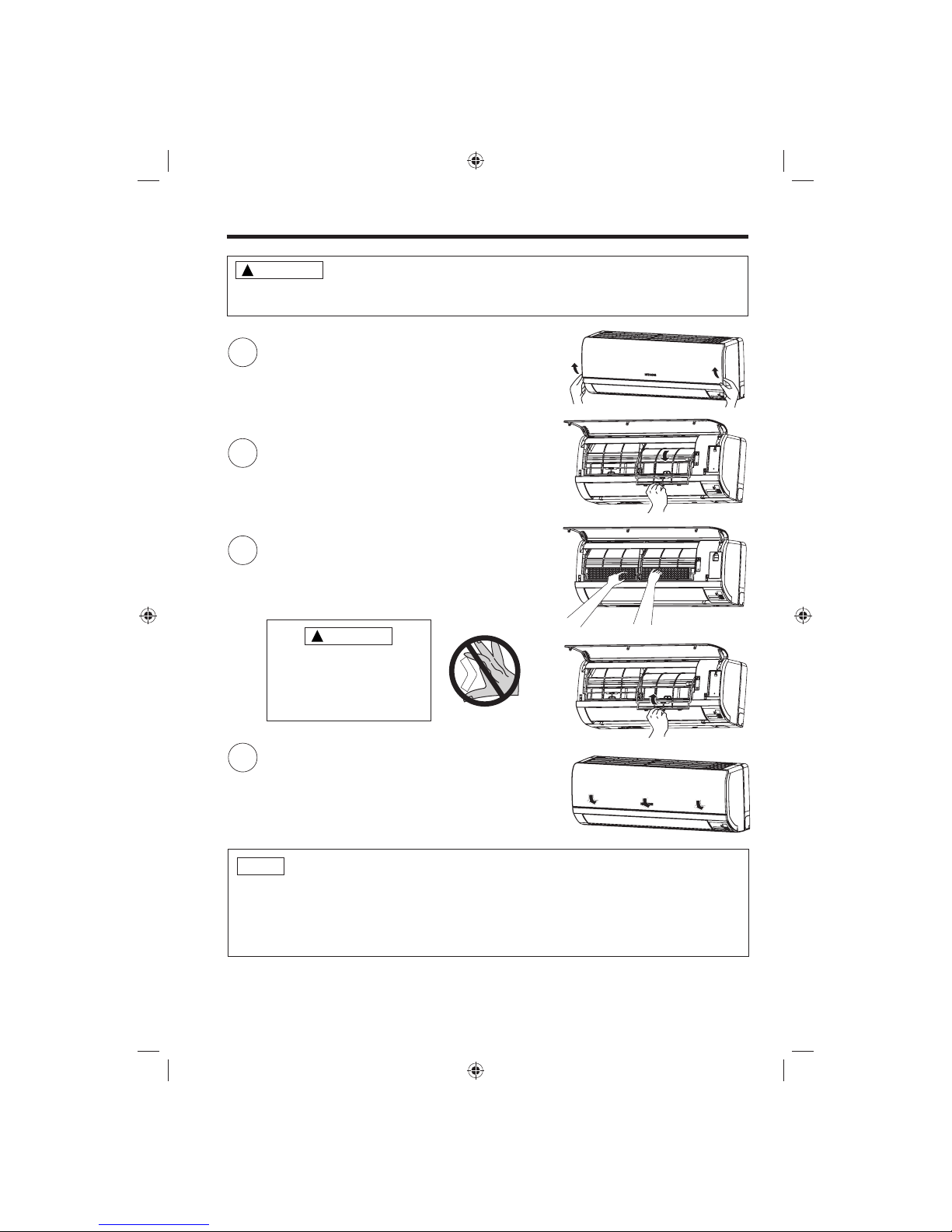

ATTACHING THE AIR PURIFYING FILTERS
1Open the front panel
●Pull up the front panel by holding it at both sides with
both hands.
2Remove the Pre-filter
●Push upward to release the claws and pull out the
Pre-filter.
3Attaching the air purifying filters
●Attach the air purifying filters to the frame by gently
compress its both sides and release after insertion
into Pre-filter frame.
4Attach the Pre-filters
●Attach the Pre-filters by ensuring that the surface
written “FRONT” is facing front.
●After attaching the Pre-filters, push the front panel at
three arrow portions as shown in figure and close it.
Cleaning and maintenance must be carried out when filter lamp lights. Before cleaning, stop
operation and switch off the power supply.
CAUTION
!
!CAUTION
Do not bend the air purifying
filter as it may cause damage
to the structure.
Please do not smell direct from
source of filter.
NOTE
●The cooling capacity is slightly weakened and the cooling speed becomes slower when the air
purifying filters are used. So, set the fan speed to "HIGH" when using it in this condition.
●Air purifying filters are not washable. It is recommended to use vacuum to clean it. It can be use
for 1 year time. Type number for this air purifying filter is <SPX-CFH22>. Please use this number
for ordering when you want to renew it.
RAS-V10CDT-V13CDT (EN2) 17RAS-V10CDT-V13CDT (EN2) 17 1/4/14 10:32 AM1/4/14 10:32 AM

– 18 –
MAINTENANCE
Cleaning and maintenance must be carried out when filter lamp lights. Before cleaning, stop
operation and switch off the power supply.

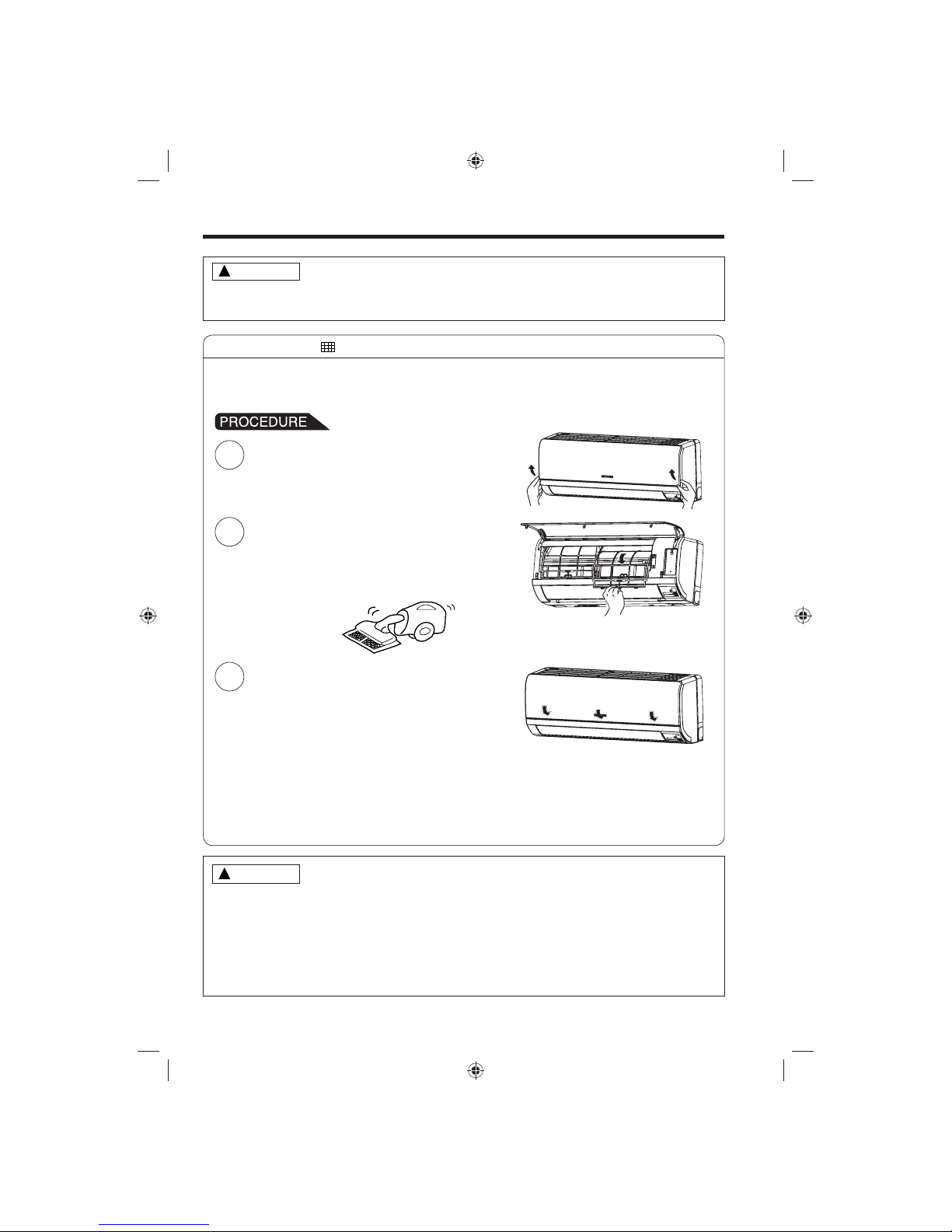

1. PRE-FILTER
Clean the Pre-filter, as it removes dust inside the room. In case the Pre-filter is full of dust, the air
flow will decrease and the cooling capacity will be reduced. Further, noise may occur. Be sure to
clean the Pre-filter following the procedure below.
!
CAUTION
1Open the front panel and remove the Pre-filter
●Gently lift and remove the air purifying filters
from the air purifying filter frame.
2Vacuum dust from the Pre-filter and air purifying
filter using vacuum cleaner. If there is too much
dust, rinse Pre-filter under running tap water
and gently brush it with soft bristle brush. Allow
Pre-filter to dry in shade.
3●Re-insert the air purifying filter to the filter
frame. Set the Pre-filter with “FRONT” mark
facing front, and slot them into the original
state.
●After attaching the Pre-filters, push the front
panel at three arrow portions as shown in
figure and close it.
!CAUTION
●Do not wash with hot water at more than 40°C. The Pre-filter may shrink.
●When washing it, shake off moisture completely and dry it in the shade; do not expose it directly
to the sun. The Pre-filter may shrink.
●Do not use detergent on the Pre-filter as some detergent may deteriorate the Pre-filter electrostatic
performance.
●Do not operate the air conditioner without Pre-filter. Dust may enter the air conditioner and fault
may occur.
NOTE:
●Air purifying filter should be cleaned every month or sooner if noticeable loading occurs. When
used overtime, it may loose its deodorizing function. For maximum performance, it is recommended
to replace it every 1 year depending on application requirements.
RAS-V10CDT-V13CDT (EN2) 18RAS-V10CDT-V13CDT (EN2) 18 1/4/14 10:32 AM1/4/14 10:32 AM

– 19 –
ENGLISH
2. CLEANING OF FRONT PANEL
CAUTION
●Never use hot water (above 40°C), benzine, gasoline, acid, thinner
or a brush, because they will damage the plastic surface and the
coating.
Removing the Front Panel
●When the front panel is fully opened with both
hands, push the right arm to the inside to
release it, and while closing the front panel
slightly, pull it out forward.
Attaching the Front Panel
●Move the projections of the left and right
arms into the Flanges in the unit and securely
insert them into the holes.
!
●Remove the front panel and wash with clean water.
Wash it with a soft sponge.
After using neutral detergent, wash thoroughly with
clean water.
●When front panel is not removed, wipe it with a
soft dry cloth. Wipe the remote controller thoroughly
with a soft dry cloth.
●Wipe the water thoroughly.
If water remains at indicators or signal receiver of
indoor unit, it causes trouble.
Method of removing the front panel.
Be sure to hold the front panel with both hands to
detach and attach it.
RAS-V10CDT-V13CDT (EN2) 19RAS-V10CDT-V13CDT (EN2) 19 1/4/14 10:32 AM1/4/14 10:32 AM

– 20 –
Cleaning and maintenance must be carried out only by qualified service personnel. Before cleaning,
stop operation and switch off the power supply.
!
CAUTION
CAUTION
●Please use earth line.
Do not place the earth line near water or gas pipes, lightning-conductor, or the earth
line of telephone. Improper installation of earth line may cause electric shock.
●A circuit breaker should be installed depending on the mounting site of the unit. Without a circuit
breaker, the danger of electric shock exists.
IMPORTANT
The wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow : Earth
Blue : Neutral
Brown : Live
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is
marked with the letter E or by the earth symbol or coloured green or green-and-yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter
N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter
L or coloured red.
NOTE
If the supply cord is damaged, it must be replaced by the special cord obtainable at authorized
service/parts centers.
1
2
3
REGULAR INSPECTION
PLEASE CHECK THE FOLLOWING POINTS BY QUALIFIED SERVICE PERSONNEL EITHER
EVERY HALF YEARLY OR YEARLY. CONTACT YOUR SALES AGENT OR SERVICE SHOP.
Is the earth line disconnected or broken?
Is the mounting frame seriously affected by rust and is the
outdoor unit tilted or unstable?
Is the plug of power line firmly plugged into the socket?
(Please ensure no loose contact between them).
!
RAS-V10CDT-V13CDT (EN2) 20RAS-V10CDT-V13CDT (EN2) 20 1/4/14 10:32 AM1/4/14 10:32 AM
