Hitachi SJ300-EL Series Configuration guide

•Three-phase Input 200V Class
•Three-phase Input 400V Class
NOTE: REFER ALSO TO SJ300 SERIES INSTRUCTION MANUAL NB613X
Hitachi America, Ltd.
After reading this manual,
keep it handy for future reference.
Manual Number:
HAL6114X
February 2005
SJ300-EL Series Inverter for
Elevator Applications
Instruction Manual Supplement

NOTES:
2

Table of Contents
Table of Contents
1. General Description..................................................................................................5
1.1 Functionality ...............................................................................................................5
1.2 Instruction manual......................................................................................................5
1.3 Functionality ...............................................................................................................5
1.4 Added and modified functions vs. standard SJ300.................................................5
1.5 Deleted functions vs. SJ300 ......................................................................................6
2. Explanation of Functions .........................................................................................9
2.1 S-curve acceleration and deceleration for elevator (EL S-curve)...........................9
2.2 Multi-speed and acceleration/deceleration time ....................................................10
2.3 Multi-Speed Gain adjustment...................................................................................13
2.4 Torque bias................................................................................................................15
2.5 Battery backup function...........................................................................................16
2.6 Control mode changeover in case of emergency..................................................19
2.7 Braking control function...........................................................................................19
2.8 Encoder Errors..........................................................................................................21
2.9 Frequency Conversion Function.............................................................................22
2.10 Encoder Phase Configuration..................................................................................23
2.11 Auto-tuning with Elevator Cable Connected to Motor Shaft.................................23
3. Parameter Setting Tables .......................................................................................25
4. Adjustment...............................................................................................................33
4.1 Frequency Source Setting........................................................................................33
4.2 Setting and Adjustment of Motor Constants ..........................................................34
4.3 Adjustment of Speed Response..............................................................................36
4.4 Adjustment of Inertia ................................................................................................37
4.5 Adjustment of Ride Quality, Brake Timing and Acceleration Time.......................38
Appendix A – Auto-tuning Procedure..............................................................41
Appendix B – Jerk Rate Calculator Program............................................................49
Index.............................................................................................................................51
3

NOTES:
4

Chapter 1 – General Description
1. General Description
1.1 Functionality
Please be sure to take into account all applicable standards and regulations before applying the
SJ300EL inverter to an elevator system.
1.2 Instruction manual
This supplementary manual for the SJ300EL Elevator AC Inverter is to be used in conjunction with the
SJ300 general purpose inverter manual. Information shown in this manual takes precedence over the
manuals of the SJ300 inverter (and the SJ-FB option card manual, if used), where there are differences.
1.3 Functionality
Differences of functions versus the general purpose SJ300 inverter are shown in the following table. The
settings can be viewed or modified by the standard digital operator or the optional copy unit (SRW-0EX).
Multi-language display however is not supported with the SJ300EL and the SRW-0EX.
1.4 Added and modified functions vs. standard SJ300
# Function name Contents Remark
1 Characteristics of
S-curve acceleration &
deceleration for elevators
Characteristics of each curve portion and linear portion
can be adjusted separately.
2 Acceleration/
deceleration time setting
of multi-stage speed
Acceleration/deceleration time can be set for each
multistage speed (0-7) independently.
3 Gain adjustment
(P-gain, I-gain) P-gain and I-gain can be adjusted for each of up to 8 (eight) preset frequencies.
4 Torque bias gain
adjustment Torque bias setting input can be given via voltage input or torque bias input.
5 Battery backup function Emergency drive (low speed) can be done by an
external battery in case of main power failure. Note1
6 Control mode
changeover in case of emergency Changes the control mode to V/Hz (V/f) or SLV in case vector control cannot function due to an encoder failure.
7 Brake control function Brake ON frequency and brake OFF frequency can be
set separately. Brake
ON and OFF wait time can be set
Separately. Additionally, delay time at brake OFF can be
set. Delay time can be set at brake OFF.
8 Encoder Errors If the signal from the encoder doesn’t correspond to the
inverter output for any reason, then the inverter displays
a trip event.
Note 1) Please contact Hitachi with the following information if the battery back-up function is needed.
-Specification of the control power supply
-Specification of the battery power supply
5

Chapter 1 – General Description
1.5 Deleted functions vs. standard SJ300
# Function name Contents Remark
1 2nd and 3rd motor functions A203/A303 Base frequency,2nd and 3rd motor
A204/A304 Maximum frequency, 2nd and 3rd
motor
A220/A320 Multi-speed 0, 2nd and 3rd motor
A242/A342 Manual torque boost, 2nd and 3rd
motor
A243/A343 Manual torque boost point, 2nd and
3
rd motor
A344 3rd control
A292/A392 Acceleration time2, 2nd and 3rd
motor
A293/A393 Deceleration time2, 2nd and 3rd
motor
A294 2nd stage adjustable selection(2nd motor)
A295 2nd acceleration frequency(2nd motor)
A296 2nd deceleration frequency (2nd motor)
b212/b312 Electronic thermal level, 2nd and 3rd
b213/b313 2nd and 3rd electronic thermal
characteristicselection
H202 2nd motor constant selection
H203 2nd allowable motor selection
H204 2nd motor pole selection
H205 2nd speed response setting
H206/H306 2nd and 3rd stabilized factor
H220 2nd motor constant R1
H221 2nd motor constant R2
H222 2nd motor constant L
H223 2nd motor constant I0
H224 2nd motor constant J
H230 2nd motor constant R1(Autotuning data)
H231 2nd motor constant R2(Autotuning data)
H232 2nd motor constant L(Autotuning data)
H233 2nd motor constant I0(Autotuning data)
H234 2nd motor constant J(Autotuning data)
H250 2nd PI-control proportion gain setting
H251 2nd PI-control integration gain setting
H252 2nd P-control proportion gain setting
H260 2nd 0Hz-SLV limiter setting
Intelligent input terminal: 08(SET), 17(SET3)
2 Free setting V/f function b100-b113 Free V/f setting function
3 Auto-torque boost
function
A041/A241 Torque boost selection, 1st and 2nd
4 Multi-speed 8 - 15 A028-A035 Multi-speed 8 - 15
Intelligent input terminal: 05 (CF4)
6

Chapter 1 – General Description
# Function name Contents Remark
5 Jogging operation A038 Jogging frequency
A039 Jogging selection
Intelligent input terminal: 06(JG)
6 energy-saving operation
mode A085 Operation mode selection
A086 Energy-saving response-accuracy
adjustment
7 PID function A071-A076 PID function
C044 PID deviation setting level
Intelligent input terminal: 23(PID), 24(PIDC)
Intelligent output terminal: 04(OD)
8 Up/Down Function,
Up/Down Memory Mode
Selection
C101 UP/DWN selection
Intelligent input terminal: 27(UP), 28(DWN),
29(UDC)
9 Country code for
initialization b085 Country code for initialization
10 Rotational direction
restriction b035 Operation direction restrict
11 Controlled deceleration
and stop at power loss b050 - b054 Stopping of deceleration at power
OFF
12 Restart mode after RESET C103 Restart mode after RESET Only 0Hz start is
available for C103
13 User Selectable Functions,
Function Code Display
Restriction
b037, U001 to U012
7

Chapter 1 – General Description
NOTES:
8

Chapter 2 – Explanation of Functions
2. Explanation of Functions

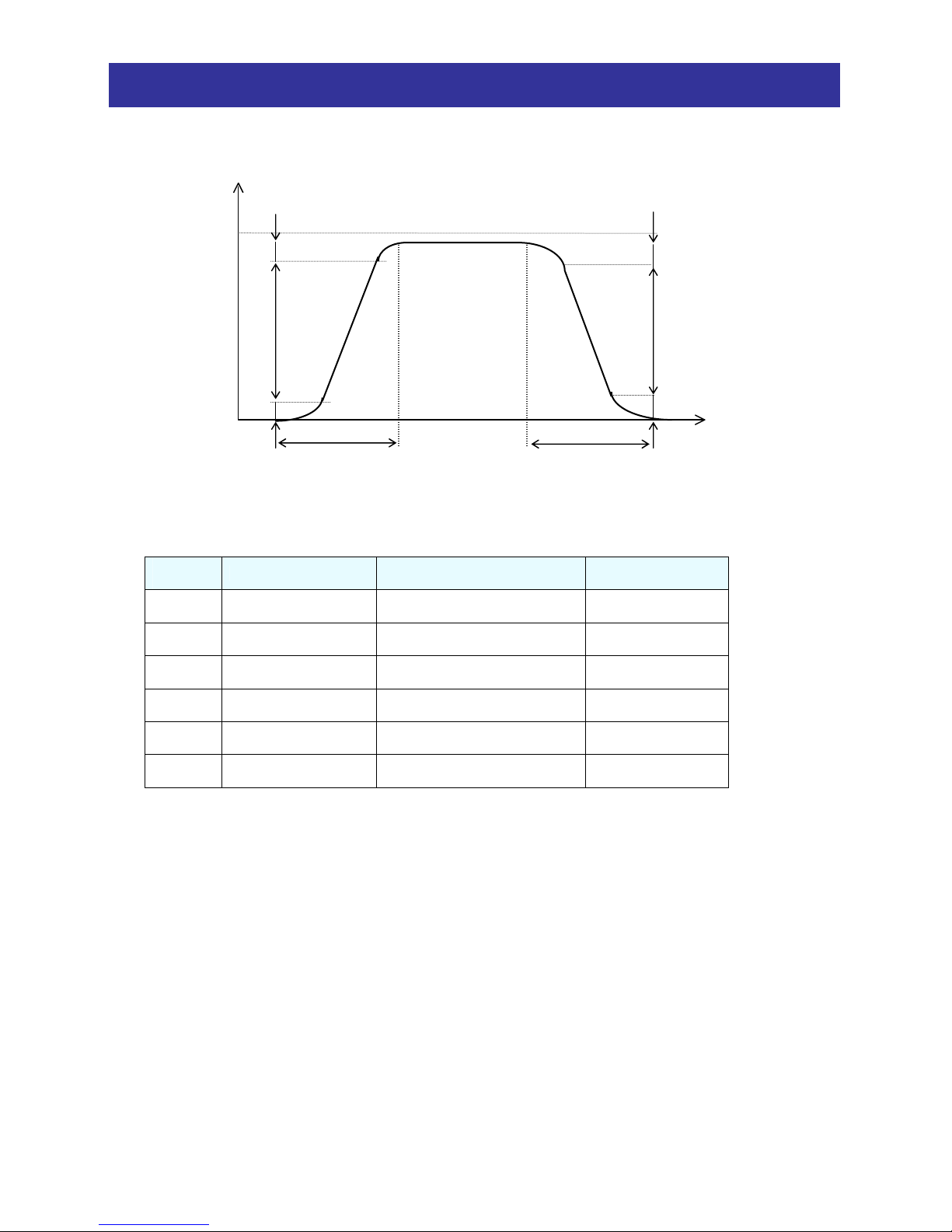

2.1 S-curve acceleration and deceleration for elevator (EL S-curve)
Output
Frequency
(A)
(B)
(C)
(D)
Dec. time
(F003)
Acc.time
(F002) time
f-max
Shape of curve portions (A) to (D) above can be adjusted separately, as shown in the following table.
Setting value is a % of target frequency.
<Setting items>
Function
Code Function Name Setting Range Remarks
A097 Acceleration pattern
selection Select “04”
A098 Deceleration pattern
selection Select “04”
P060 Curve ratio 1 during
acceleration 0. – 50 (%) Portion (B)
P061 Curve ratio 2 during
acceleration 0. – 50 (%) Portion (A)
P062 Curve ratio 1 during
deceleration 0. – 50 (%) Portion (C)
P063 Curve ratio 2 during
deceleration 0. – 50 (%) Portion (D)
(Note 1) A linear characteristic will result (A097 = A098=00) if 0% is set for the curve ratio.
(Note 2) A linear characteristic will result if the change of the target speed is less than or equal
to 10% of the maximum frequency.
(Note 3) All of the curve constants are ignored if “04” is selected in A097 and A098. Refer to the
manual for standard S-curve acceleration & deceleration description.
(Note 4) The S-curve will be recalculated if the target speed is changed while accelerating or
decelerating. Therefore do not use analog signals for the target speed.
(Note 5) Curve ratio for acceleration/deceleration must be in the range of 10% up to 50%.
9

Chapter 2 – Explanation of Functions
2.2 Multi-speed and acceleration/deceleration time
Different acceleration and deceleration times can be set for each multistage speed. The acceleration
time is the one used between the current speed and target speed during acceleration. The deceleration
time is the one used between the current speed and creep speed (speed-7), or between the current
speed and the target speed during deceleration. Therefore use the deceleration time of A027 for creep
speed at stopping. Furthermore, inverter decelerates with the deceleration time that is set on that
multistage speed when the RUN command is removed.
Related parameters are shown in following table.
< Additional setting items>
Function Code Function Name Setting range
A020 Multi-speed 0
0.00, starting frequency-maximum.
frequency(Hz)
F002 Acceleration time for multi-speed 0 0.01-99.99/100.0-999.9/1000.-3600.(s)
F003 Deceleration time for multi-speed 0 0.01-99.99/100.0-999.9/1000.-3600.(s)
A021 Multi-speed 1
0.00, starting frequency-maximum.
frequency(Hz)
A221 Acceleration time for multi-speed 1 0.01-99.99/100.0-999.9/1000.-3600.(s)
A321 Deceleration time for multi-speed 1 0.01-99.99/100.0-999.9/1000.-3600.(s)
A022 Multi-speed 2
0.00, starting frequency-maximum.
frequency(Hz)
A222 Acceleration time for multi-speed 2 0.01-99.99/100.0-999.9/1000.-3600.(s)
A322 Deceleration time for multi-speed 2 0.01-99.99/100.0-999.9/1000.-3600.(s)
A023 Multi-speed 3
0.00, starting frequency-maximum.
frequency(Hz)
A223 Acceleration time for multi-speed 3 0.01-99.99/100.0-999.9/1000.-3600.(s)
A323 Deceleration time for multi-speed 3 0.01-99.99/100.0-999.9/1000.-3600.(s)
A024 Multi-speed 4
0.00, starting frequency-maximum.
frequency(Hz)
A224 Acceleration time for multi-speed 4 0.01-99.99/100.0-999.9/1000.-3600.(s)
A324 Deceleration time for multi-speed 4 0.01-99.99/100.0-999.9/1000.-3600.(s)
A025 Multi-speed 5
0.00, starting frequency-maximum.
frequency(Hz)
A225 Acceleration time for multi-speed 5 0.01-99.99/100.0-999.9/1000.-3600.(s)
A325 Deceleration time for multi-speed 5 0.01-99.99/100.0-999.9/1000.-3600.(s)
A026 Multi-speed 6
0.00, starting frequency-maximum.
frequency(Hz)
A226 Acceleration time for multi-speed 6 0.01-99.99/100.0-999.9/1000.-3600.(s)
A326 Deceleration time for multi-speed 6 0.01-99.99/100.0-999.9/1000.-3600.(s)
A027 Multi-speed7 (creep speed) 0.00, starting frequency-maximum.
frequency(Hz)
A227 Acceleration time for multi-speed 7 0.01-99.99/100.0-999.9/1000.-3600.(s)
A327 Deceleration time for multi-speed 7 0.01-99.99/100.0-999.9/1000.-3600.(s)
10

Chapter 2 – Explanation of Functions
(example 1)
RUN command (FW/RV)
Output
frequency
Multi-speed n
multi-speed n
Deceleration time
for multi-speed n
acceleration time
for multi-s
p
eed n
*2
time
ON
ON
ON
ON
ON
deceleration time
for multi-s
p
eed 0
*1
Multi-speed 7
(
cree
p
s
p
eed
)
Multi-speed 7
(Creep speed)
Multi-speed 0
Figure 1 - Timing chart for creep speed
(Note 1) A linear characteristic will result if the change of the target speed is the same or less than
10% of the maximum frequency.
(Note 2) The time setting is the time it takes to accelerate from zero to the maximum frequency and to
decelerate from the maximum frequency to zero.
11

Chapter 2 – Explanation of Functions
(example 2) Be sure to setA027 for the creep speed at stop. Otherwise the inverter operates like shown in
the following figure.
ON ON
ON
ON ON
deceleration time for
multi-speed m
multi-speed n
*1
deceleration time
for multi-s
p
eed 0
acceleration time
for multi-s
p
eed n
Output
frequency
multi-speed m
(not using
multi-speed 7) time
RUN command (FW/RV)
multi-speed n
multi-speed m
multi-speed 0
Figure 2 - Timing chart when not using creep speed at stop
12

Chapter 2 – Explanation of Functions
2.3 Multi-speed Gain adjustment
Unique ASR (automatic speed regulator) gains (P-gain and I-gain) can be assigned for each output
frequency. The gain of 100% is calculated based on a value of motor inertia (J: H024, H034), speed
response coefficient (H005) and parameters of H070, H071, and H072, adjustable from 0% up to 100%.
Set the frequencies so f1<f2<xxx<fn<xxx<f7<f8. There is no restriction for the setting of the gains.
Set gain of the maximum frequency (G8 in following figure) is maintained when a higher target frequency is
set.
How to Adjust
Increasing line can also
be set
(f8, G8)
G8 is maintained if output frequency exceeds f8
0 Output frequency
(Hz)
f1 f2 f3 f4 f5 f6 f7
Figure 3 – Multispeed Gain Effect
f8
100%
Gain (%)
Base line (initial setting)
(f1, G1)
G1 is maintained if only f1 is set
(ex) Start point is 0Hz, 100%
(1) The purpose of this function is to get high gain at brake OFF and at stopping, and to have low gain
at higher speed. Therefore increase the gain at a speed that is lower than the creep speed as a
rough initial target.
(2) When using a geared motor decrease H005, H050, H051, H070, H071, and/or H072. Set H005 of
around 1.0-2.0 in the range of lower than the creep speed, as a rough target.
13

Chapter 2 – Explanation of Functions
< Additional setting items>
Function
Code Function Name Setting Range Remarks
P069 Gain adjustment permission 00 : OFF / 01 : ON
P070 Frequency 1 for P-gain adjustment 0 ∼max. frequency
P071 Frequency 2 for P-gain adjustment 0 or P070 ∼max. frequency
P072 Frequency 3 for P-gain adjustment 0 or P071 ∼max. frequency
P073 Frequency 4 for P-gain adjustment 0 or P072 ∼max. frequency
P074 Frequency 5 for P-gain adjustment 0 or P073 ∼max. frequency
P075 Frequency 6 for P-gain adjustment 0 or P074 ∼max. frequency
P076 Frequency 7 for P-gain adjustment 0 or P075 ∼max. frequency
P077 Frequency 8 for P-gain adjustment 0 or P076 ∼max. frequency
P080 P-gain 1 0 ∼100%
P081 P-gain 2 0 ∼100%
P082 P-gain 3 0 ∼100%
P083 P-gain 4 0 ∼100%
P084 P-gain 5 0 ∼100%
P085 P-gain 6 0 ∼100%
P086 P-gain 7 0 ∼100%
P087 P-gain 8 0 ∼100%
P090 Frequency 1 for I-gain adjustment 0 ∼max. frequency
P091 Frequency 2 for I-gain adjustment 0 or P090 ∼max. frequency
P092 Frequency 3 for I-gain adjustment 0 or P091 ∼max. frequency
P093 Frequency 4 for I-gain adjustment 0 or P092 ∼max. frequency
P094 Frequency 5 for I-gain adjustment 0 or P093 ∼max. frequency
P095 Frequency 6 for I-gain adjustment 0 or P094 ∼max. frequency
P096 Frequency 7 for I-gain adjustment 0 or P095 ∼max. frequency
P097 Frequency 8 for I-gain adjustment 0 or P096 ∼max. frequency
P100 I-gain 1 0 ∼100%
P101 I-gain 2 0 ∼100%
P102 I-gain 3 0 ∼100%
P103 I-gain 4 0 ∼100%
P104 I-gain 5 0 ∼100%
P105 I-gain 6 0 ∼100%
P106 I-gain 7 0 ∼100%
P107 I-gain 8 0 ∼100%
14

Chapter 2 – Explanation of Functions
2.4 Torque bias
The inverter is able to accept an analog voltage signal from a load cell that represents car weight. This
signal is used to adjust the instantaneous starting torque to achieve smooth motion regardless of load.
Motor
LAD ASR ACR
Counterweight
HOLD
FW side gain
RV side gain
FW side balance
value110
)
RV side balance value
Filter Measure
Target f
Hold signal
O2
SSD
Changeover according to
the direction
Point A
Point B
Fi
g
ure 4
–
Torque bias circuit dia
g
ram
Cabin
Encoder
< Additional setting items>
Function
Code Function Name Setting Range Remarks
A071 Selection of Torque Bias
Input - 00: O Input
01: OI Input (Note 2)
02: O2 Input (Note 3)
P110 FW side balance value 0.0 - 10.0 (V) Total weight output at balanced point
(FW direction side)
P111 RV side balance value 0.0 - 10.0 (V) Total weight output at balanced point
(RV direction side)
P112 FW side gain 0.0 - 200.0 (%) Torque value to be added in case of
max. weight (FW direction side)
P113 RV side gain 0.0 - 200.0 (%) Torque value to be added in case of
max. weight (RV direction side)
P114 Time constant of the filter 5 - 500 (ms)
C001
- C008 Intelligent input terminals 1 - 8 - 50: SSD
Note 1: Do not configure the same analog input for torque bias input (A071), frequency source setting
(A001), and torque limit input (B040).
Note 2: When OI input is used for torque bias, the ranges of P110 and P111 are still 0 – 10 V, so it will be
necessary to translate the 4 – 20 mA signal value to 0 – 10 V for these parameter settings.
Note 3: When O2 is selected for torque bias, the range is 0 to +10 V. Negative values are ignored.
15

Chapter 2 – Explanation of Functions
< Total weight output and items to be set >
Torque to be added (%)
< Additional setting items>
Function
Code Function Name
d107 Point A (FW deviation) monitor
d108 Point B (RV deviation) monitor
Total weight output (V)
Gain (FW/RV side)
0
Regen.
Balanced point
Power
V1: Balance value
10
If 10V ≥total weight output Æconverted value to 10V
200
Figure 5 – Balance Point
< How to adjust >
Bias weight adjustment and gain adjustment of the analog weight signal are required when using the
torque bias function.
cBias weight adjustment (Balance adjustment)
Put weight in the elevator car to balance it with the counterweight. Then adjust the following parameters to
make the deviation values at points A (d107) and B (d108) 0 (zero).
Balance value (P110, P111) = [%]
][ ][ 100 V10 VV
11×
⎟
⎟
⎠
⎞
⎜
⎜
⎝
⎛−
V1 : Voltage when the car and counterweight are balanced (see Figure 5).
dGain adjustment
Gain= ][][ ][
.VVVV V10 821
100 12 −
××
α
α : Torque bias value (%) at maximum load weight
V1: Voltage when the car and counterweight are balanced
V2: output voltage of the sensor at maximum load weight
2.5 Battery backup function
This custom function allows emergency operation at low speed via an external battery or UPS system in
case of main AC power failure. This feature is NOT standard. Please contact Hitachi representatives with
16

Chapter 2 – Explanation of Functions
Details of UPS power supply or battery system.
(example)
R
S
T
R0
T0
U
V
W
P
IM
P24
PD
RB
N
Jum
p
e
r
ba
r
Mains 3
φ
STR
SJ300EL
Intelligent
output terminals
15
11
CM2
A
％
kW
A
LARM
Hz
V
POWE
R
200-240V ±10%
(50/60Hz ±5%)
FUNC
R
T (J51)
UPS power supply
AC100V ±10%
or
AC200V ±10%
UPS power supply
AC100V ±10%
X
2
1
RUN STOP
/
RESET
PRG
RUN
TH
CM1
Thermistor
PLC
FW
1
FM
DC24V
FW drive
Intelligent input terminals
(5 contacts)
FM output
(
PWM
)
Jum
p
e
r
ba
r
Emergency drive signal
X
* Note 8
17
ON

Chapter 2 – Explanation of Functions
X
X
RS
10msor more
Emergency stop mode
APL1
FW
500ms or more
:ON
(Note 1) Do not turn contactor X and XON at the same time. Be sure to allow 10 seconds or more for
the changeover period.
(Note 2) Do not turnAPL1 ON while the inverter is driven by the mains with contactor X ON.
(Note 3) Changeover to battery backup mode and back is valid only when the inverter is stopped. Do
not turn APL1 OFF during the battery backup mode.
(Note 4 Surge current must not exceed 500A in case of connecting the battery at emergency. Select a
contactor for Xwhich can withstand the surge current.
(Note 5) If there has been a fault when going into the emergency driving mode, clear the error first.
(Note 6) Output frequency of the inverter during emergency driving mode (fE) must not exceed the
following value.
3
2
35.1V V
ff m
B
bE ×
×
×≤
fb : Rated (base) frequency of the motor
VB: Voltage of the battery
Vm: Rated voltage of the motor
(Note 7) Under-voltage trip will occur when the UPS voltage comes down to AC100V-15% during
emergency driving operation.
< Additional setting items>
Function
Code Function Name Remarks
C001
- C008 Intelligent input terminals 1∼8 51 : APL1
18

Chapter 2 – Explanation of Functions
2.6 Control mode changeover in case of emergency
If the elevator cannot operate in vector mode with feedback mode (due to encoder failure, for
example), the control mode can be changed to V/f or SLV mode to allow short term emergency
operation. Changeover is initiated by an intelligent input configured to the [ECM] function.
NOTE: Do not use this mode as a normal operation mode.
< Additional setting items>
Function
Code Function Name Setting
A244 Control mode on
emergency changeover
00: V/f constant torque
01: V/f variable torque
02: sensorless vector SLV
03: 0 Hz domain SLV
C001
- C008 Intelligent input terminals 1 - 8 Set to 52: ECM
2.7 Braking control function
The following functions are added to the brake control function vs. the standard SJ300 series.
1. Brake ON and OFF frequency
Brake ON frequency and brake OFF frequency can be set separately.
2. Delay time at brake (BRK) OFF
Delay time can be set at brake OFF.
(example 1) Timing chart below shows result when brake confirmation signal (BOK) is not assigned
b121 Waiting time for
releasing brake confirmation
b127 Brake OFF frequency
b125 releasing
frequency
time
b128 Delay time at
brake signal is
turned OFF
RUN command (FW/RV)
Output
frequency
Brake release
Output (BRK)
b123 Waiting time for
release brake confirmation
b122 Waiting time
for acceleration
19

Chapter 2 – Explanation of Functions
(example 2) Time-chart below shows result when brake confirmation signal (BOK) is assigned
< Additional setting items>
Braking confirmation signal (BOK)
Braking releasing Output (BRK)
b128 Delay time at
brake signal is
turned OFF
time
b121 Waiting time
for releasing braking
confirmation
b127 Brake OFF frequency
RUN command (FW/RV)
b124 Waiting
time for signal
confirmation
b124 Waiting
time for signal
confirmation
b122 Waiting
time for
acceleration
b125 releasing
frequency
Output
frequency
Output
b123 Waiting time for
releasing brake
confirmation
Function
Code Function Name Initial Setting Remarks
b120 Braking control selection 00
b121 Waiting time for releasing
braking conformation 0.00 s
b122 Waiting time for acceleration 0.00 s
b123 Waiting time for stop 0.00 s
b124 Waiting time for signal
conformation 0.00 s
b125 Releasing frequency 0.00 Hz Releasing only.
b126 Releasing current Rated current
of inverter
b127 Brake OFF frequency 0.00 Hz Additional setting items
b128 Delay time at brake signal is
turned OFF 0.50 s Additional setting items
20
