Hitachi X200 Series Instruction manual

1
Hitachi IES Co., Ltd.
Inverter MODBUS
RTU Driver
1 System Configuration.......................................................................................................3
2 External Device Selection................................................................................................6
3 Communication Settings..................................................................................................7
4 Setup Items....................................................................................................................19
5 Cable Diagrams .............................................................................................................23
6 Supported Devices.........................................................................................................41
7 Device Code and Address Code....................................................................................45
8 Error Messages..............................................................................................................47

Inverter MODBUS RTU Driver
GP-Pro EX Device/PLC Connection Manual 2
Introduction
This manual describes how to connect the Display and the External Device (target Inverter).
In this manual, the connection procedure is described in the sections identified below:
1System Configuration
This section lists the types of External
Devices and SIO that you can connect.
)"1 System Configuration" (page 3)
2External Device Selection
Select a model (series) of the External
Device and its connection method.
)"2 External Device Selection" (page 6)
3Communication Settings
This section shows setting examples for
communicating between the Display and
the External Device.
)"3 Communication Settings" (page 7)
4Setup Items
This section describes communication
setup items on the Display.
Set the Display’s communication settings
in GP Pro-EX or in offline mode.
)"4 Setup Items" (page 19)
5Cable Diagrams
This section shows cables and adapters
for connecting the Display and the
External Device.
)"5 Cable Diagrams" (page 23)
Operation

Inverter MODBUS RTU Driver
GP-Pro EX Device/PLC Connection Manual 3
1 System Configuration
The following table lists system configurations for connecting Hitachi IES Co., Ltd. External Devices and the
Display.
Connection Configuration
• 1:1 Connection
• 1:n Connection (when using either COM1 or COM2)
Series Inverter*1
*1 is not added as an option. differs depending on the option.
Link I/F SIO Type Setting Example Cable Diagram
X200 X200-F Serial port connector
on the inverter RS-422/485 (2 wire) "Setting Example 1" (page 7) " Cable Diagram 1" (page 23)
SJ700 SJ700-FFRS485 port on the
inverter RS-422/485 (2 wire) "Setting Example 2" (page 9) " Cable Diagram 2" (page 32)
SJ700-2 SJ700-FF2 RS485 port on the
inverter RS-422/485 (2 wire) "Setting Example 3" (page 11) " Cable Diagram 2" (page 32)
SJ200 SJ200-F Serial port connector
on the inverter RS-422/485 (2 wire) "Setting Example 4" (page 13) " Cable Diagram 1" (page 23)
L200 L200-F Serial port connector
on the inverter RS-422/485 (2 wire) "Setting Example 5" (page 15) " Cable Diagram 1" (page 23)
WJ200 WJ200-FControl terminal
block on the inverter RS-422/485 (2 wire) "Setting Example 6" (page 17) " Cable Diagram 2" (page 32)
Display External Device
Display
External Device External Device External Device
Maximum number of External Devices: 16

Inverter MODBUS RTU Driver
GP-Pro EX Device/PLC Connection Manual 4
IPC COM Port
When connecting IPC with an External Device, the COM port used depends on the series and SIO type. Please
refer to the IPC manual for details.
Usable port
DIP switch setting: RS-232C
Series Usable Port
RS-232C RS-422/485(4 wire) RS-422/485(2 wire)
PS-2000B COM1*1 , COM2,
COM3*1, COM4
*1 The RI/5V can be switched. Use the IPC’s switch to change if necessary.
--
PS-3450A, PS-3451A,
PS3000-BA, PS3001-BD COM1, COM2*1*2 COM2*1*2 COM2*1*2
PS-3650A, PS-3651A COM1*1 --
PS-3700A (Pentium®4-M)
PS-3710A COM1*1, COM2*1,
COM3*2 , COM4
*2 Set up the SIO type with the DIP switch. Please set up as follows according to SIO type to be used.
COM3*2 COM3*2
PS-3711A COM1*1, COM2*2 COM2*2 COM2*2
PL-3000B, PL-3600T,
PL-3600K, PL-3700T,
PL-3700K, PL-3900T
COM1*1*2, COM2*1,
COM3, COM4 COM1*1*2 COM1*1*2
DIP switch Setting Description
1OFF
*1
*1 When using PS-3450A, PS-3451A, PS3000-BA and PS3001-BD, turn ON the set value.
Reserved (always OFF)
2OFF
SIO type: RS-232C
3OFF
4 OFF Output mode of SD (TXD) data: Always output
5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None
6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None
7 OFF Short-circuit of SDA (TXA) and RDA (RXA): Not available
8 OFF Short-circuit of SDB (TXB) and RDB (RXB): Not available
9OFF
RS (RTS) Auto control mode: Disabled
10 OFF

Inverter MODBUS RTU Driver
GP-Pro EX Device/PLC Connection Manual 5
DIP switch setting: RS-422/485 (4 wire)
DIP switch setting: RS-422/485 (2 wire)
DIP switch Setting Description
1 OFF Reserved (always OFF)
2ON
SIO type: RS-422/485
3ON
4 OFF Output mode of SD (TXD) data: Always output
5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None
6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None
7 OFF Short-circuit of SDA (TXA) and RDA (RXA): Not available
8 OFF Short-circuit of SDB (TXB) and RDB (RXB): Not available
9OFF
RS (RTS) Auto control mode: Disabled
10 OFF
DIP switch Setting Description
1 OFF Reserved (always OFF)
2ON
SIO type: RS-422/485
3ON
4 OFF Output mode of SD (TXD) data: Always output
5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None
6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None
7 ON Short-circuit of SDA (TXA) and RDA (RXA): Available
8 ON Short-circuit of SDB (TXB) and RDB (RXB): Available
9ON
RS (RTS) Auto control mode: Enabled
10 ON

Inverter MODBUS RTU Driver
GP-Pro EX Device/PLC Connection Manual 6
2 External Device Selection
Select the External Device to be connected to the Display.

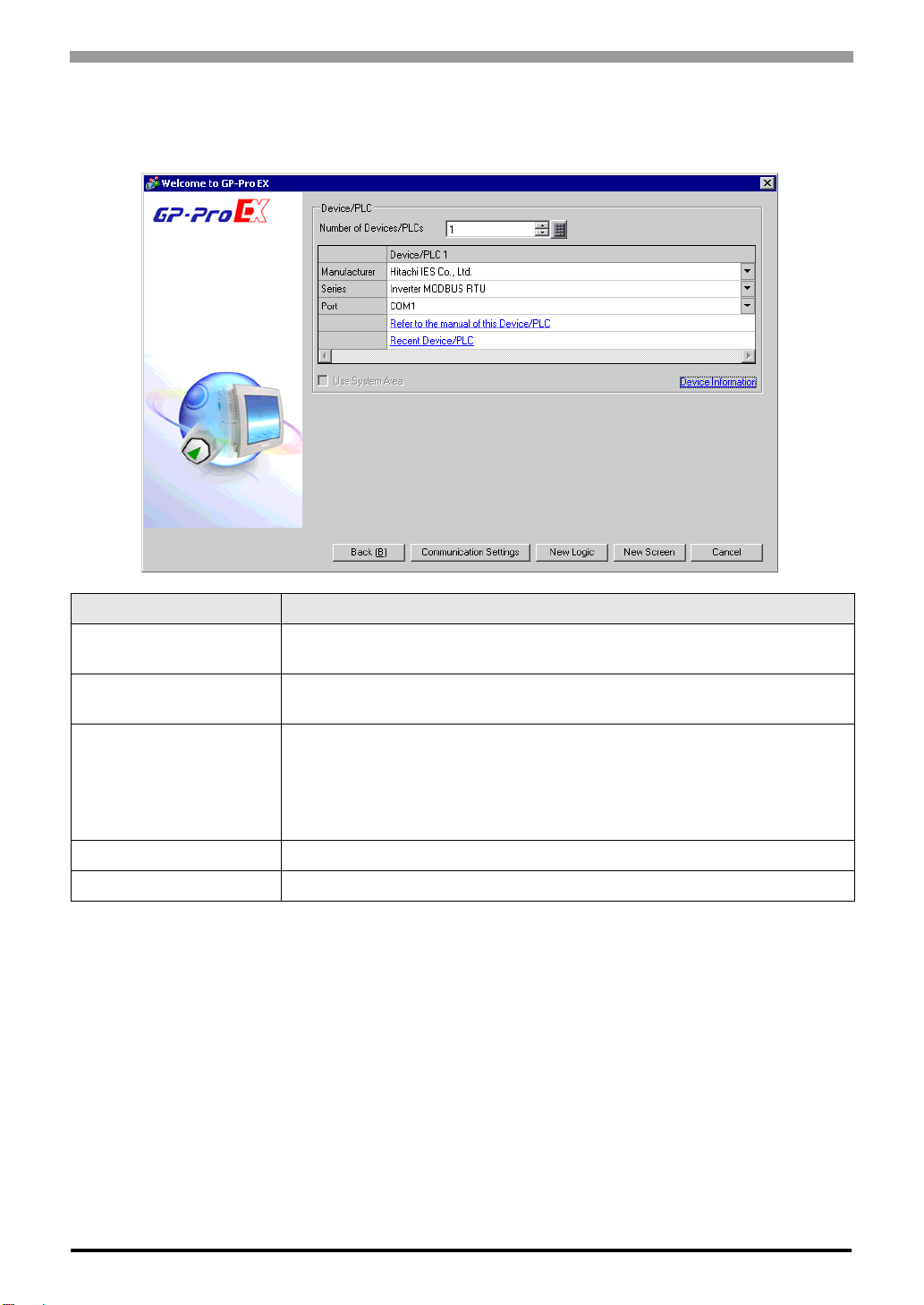

Setup Items Setup Description
Number of Devices/PLCs Use an integer from 1 to 4 to enter the number of Devices/PLCs to connect to the
Display.
Manufacturer Select the manufacturer of the External Device to be connected. Select "Hitachi IES
Co., Ltd.".
Series
Select a model (series) of the External Device to be connected and connection method.
Select "Inverter MODBUS RTU".
In System configuration, check to make sure the external device to which you are
connecting is supported in "Inverter MODBUS RTU".
)"1 System Configuration" (page 3)
Port Select the Display port to be connected to the External Device.
Use System Area Not available in this driver.

Inverter MODBUS RTU Driver
GP-Pro EX Device/PLC Connection Manual 7
3 Communication Settings
This section provides examples of communication settings recommended by Pro-face for the Display and the
External Device.
3.1 Setting Example 1

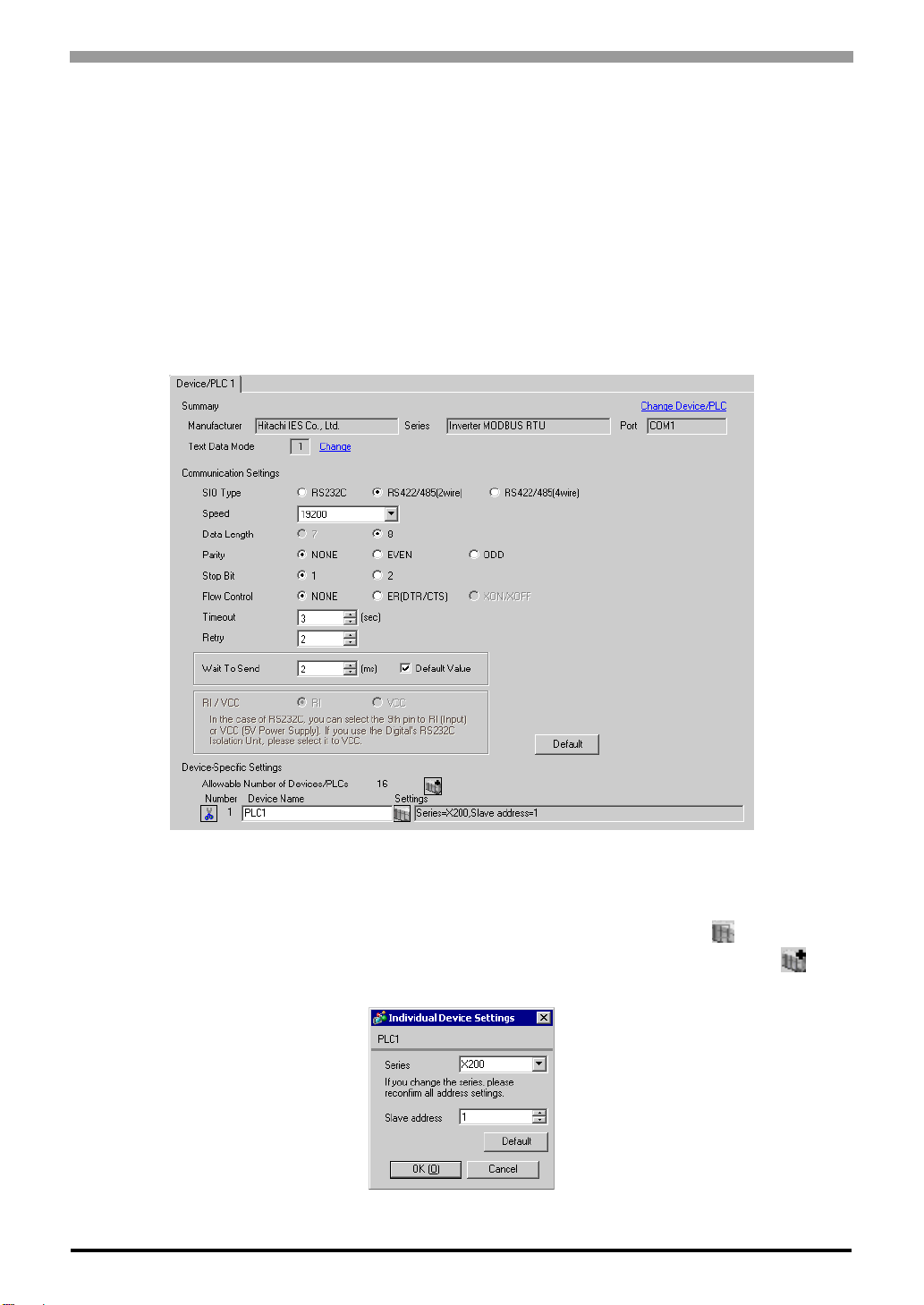

GP Pro-EX Settings
Communication Settings
To display the setup screen, from the [System Settings] workspace, select [Device/PLC].
Device Setting
To display the [Individual Device Settings] dialog box, select the external device and click [Settings] from
[Device-Specific Settings] in the [Device/PLC] window. To connect multiple External Devices, click from
[Device-Specific Settings] in the [Device/PLC] window to add another External Device.

Inverter MODBUS RTU Driver
GP-Pro EX Device/PLC Connection Manual 8
External Device Settings
For External Device communication settings, use the FUNC key, Up key, Down key, and STR key located in the
keypad of the External Device.
Refer to your External Device manual for details.
1Set OPE/485 switch to "485" position.
2Turn ON the External Device.
3Press FUNC key.
4Press and hold Down key to display [C---].
5Press FUNC key.
6Press Up key to display the setting function code.
7Press FUNC key.
8Press Up key or Down key to select the setting value.
9Press STR key.
10 Reboot the External Device.
Setting Value
Function Code Setting Value Setup Description
C070 03 Selection of OPE/ModBus
C071 06 Communication speed selection
C072 1. Node allocation
C074 00 Communication parity selection
C075 1 Communication stop bit selection
C076 02 Communication error select
C077 0.00 Communication error time-out
C078 0. Communication wait time
A001 03 Frequency source setting
A002 03 Run command source setting

Inverter MODBUS RTU Driver
GP-Pro EX Device/PLC Connection Manual 9
3.2 Setting Example 2
GP Pro-EX Settings
Communication Settings
To display the setup screen, from the [System Settings] workspace, select [Device/PLC].
Device Setting
To display the [Individual Device Settings] dialog box, select the external device and click [Settings] from
[Device-Specific Settings] in the [Device/PLC] window. To connect multiple External Devices, click from
[Device-Specific Settings] in the [Device/PLC] window to add another External Device.

Inverter MODBUS RTU Driver
GP-Pro EX Device/PLC Connection Manual 10
External Device Settings
For External Device communication settings, use the FUNC key, Up key, Down key, and STR key located in the
keypad of the External Device.
Refer to your External Device manual for details.
1Turn ON the External Device.
2Press FUNC key for 3 seconds or longer.
3Press FUNC key to display [d001].
4Press and hold Down key to display [C---].
5Press FUNC key.
6Press Up key to display the setting function code.
7Press FUNC key.
8Press Up key or Down key to select the setting value.
9Press STR key.
10 Reboot the External Device.
Setting Value
Function Code Setting Value Setup Description
C071 06 Communication speed selection
C072 1. Node allocation
C073 8 Communication data length selection
C074 00 Communication parity selection
C075 1 Communication stop bit selection
C076 02 Selection of operation after communication error
C077 0.00 Communication trip limit time setting
C078 0. Communication wait time
C079 01 Communication mode selection
A001 03 Frequency source setting
A002 03 Run command source setting

Inverter MODBUS RTU Driver
GP-Pro EX Device/PLC Connection Manual 11
3.3 Setting Example 3
GP Pro-EX Settings
Communication Settings
To display the setup screen, from the [System Settings] workspace, select [Device/PLC].
Device Setting
To display the [Individual Device Settings] dialog box, select the external device and click [Settings] from
[Device-Specific Settings] in the [Device/PLC] window. To connect multiple External Devices, click from
[Device-Specific Settings] in the [Device/PLC] window to add another External Device.

Inverter MODBUS RTU Driver
GP-Pro EX Device/PLC Connection Manual 12
External Device Settings
For External Device communication settings, use the FUNC key, Up key, Down key, and STR key located in the
keypad of the External Device.
Refer to your External Device manual for details.
1Turn ON the External Device.
2Press FUNC key for 3 seconds or longer.
3Press FUNC key to display [d001].
4Press and hold Down key to display [C---].
5Press FUNC key.
6Press Up key to display the setting function code.
7Press FUNC key.
8Press Up key or Down key to select the setting value.
9Press STR key.
10 Reboot the External Device.
Setting Value
Function Code Setting Value Setup Description
C071 06 Communication speed selection
C072 1. Node allocation
C073 8 Communication data length selection
C074 00 Communication parity selection
C075 1 Communication stop bit selection
C076 02 Selection of operation after communication error
C077 0.00 Communication trip limit time setting
C078 0. Communication wait time
C079 01 Communication mode selection
A001 03 Frequency source setting
A002 03 Run command source setting

Inverter MODBUS RTU Driver
GP-Pro EX Device/PLC Connection Manual 13
3.4 Setting Example 4
GP Pro-EX Settings
Communication Settings
To display the setup screen, from the [System Settings] workspace, select [Device/PLC].
Device Setting
To display the [Individual Device Settings] dialog box, select the external device and click [Settings] from
[Device-Specific Settings] in the [Device/PLC] window. To connect multiple External Devices, click from
[Device-Specific Settings] in the [Device/PLC] window to add another External Device.

Inverter MODBUS RTU Driver
GP-Pro EX Device/PLC Connection Manual 14
External Device Settings
For External Device communication settings, use the FUNC key, Up key, Down key, and STR key located in the
keypad of the External Device.
Refer to your External Device manual for details.
1Set OPE/485 switch to "485" position.
2Turn ON the External Device.
3Press FUNC key.
4Press and hold Down key to display [C---].
5Press FUNC key.
6Press Up key to display the setting function code.
7Press FUNC key.
8Press Up key or Down key to select the setting value.
9Press STR key.
10 Reboot the External Device.
Setting Value
Function Code Setting Value Setup Description
C071 06 Communication speed selection
C072 1. Node allocation
C074 00 Communication parity selection
C075 1 Communication stop bit selection
C078 0. Communication wait time
A001 03 Frequency source setting
A002 03 Run command source setting

Inverter MODBUS RTU Driver
GP-Pro EX Device/PLC Connection Manual 15
3.5 Setting Example 5

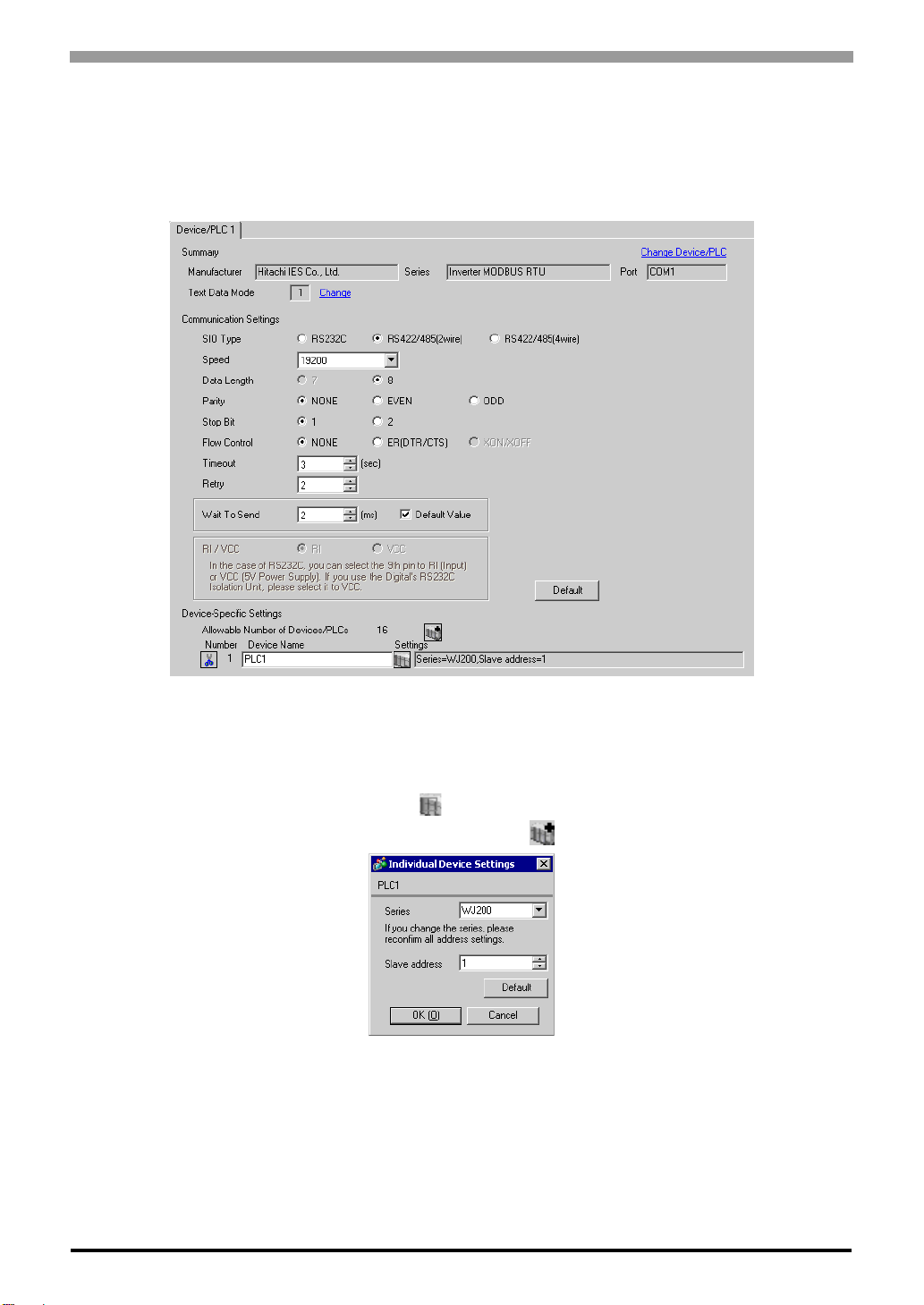

GP Pro-EX Settings
Communication Settings
To display the setup screen, from the [System Settings] workspace, select [Device/PLC].
Device Setting
To display the [Individual Device Settings] dialog box, select the external device and click [Settings] from
[Device-Specific Settings] in the [Device/PLC] window. To connect multiple External Devices, click from
[Device-Specific Settings] in the [Device/PLC] window to add another External Device.

Inverter MODBUS RTU Driver
GP-Pro EX Device/PLC Connection Manual 16
External Device Settings
For External Device communication settings, use the FUNC key, Up key, Down key, and STR key located in the
keypad of the External Device.
Refer to your External Device manual for details.
1Set OPE/485 switch to "485" position.
2Turn ON the External Device.
3Press FUNC key.
4Press and hold Down key to display [C---].
5Press FUNC key.
6Press Up key to display the setting function code.
7Press FUNC key.
8Press Up key or Down key to select the setting value.
9Press STR key.
10 Reboot the External Device.
Setting Value
Function Code Setting Value Setup Description
C071 06 Communication speed selection
C072 1. Node allocation
C074 00 Communication parity selection
C075 1 Communication stop bit selection
C078 0. Communication wait time
A001 03 Frequency source setting
A002 03 Run command source setting

Inverter MODBUS RTU Driver
GP-Pro EX Device/PLC Connection Manual 17
3.6 Setting Example 6

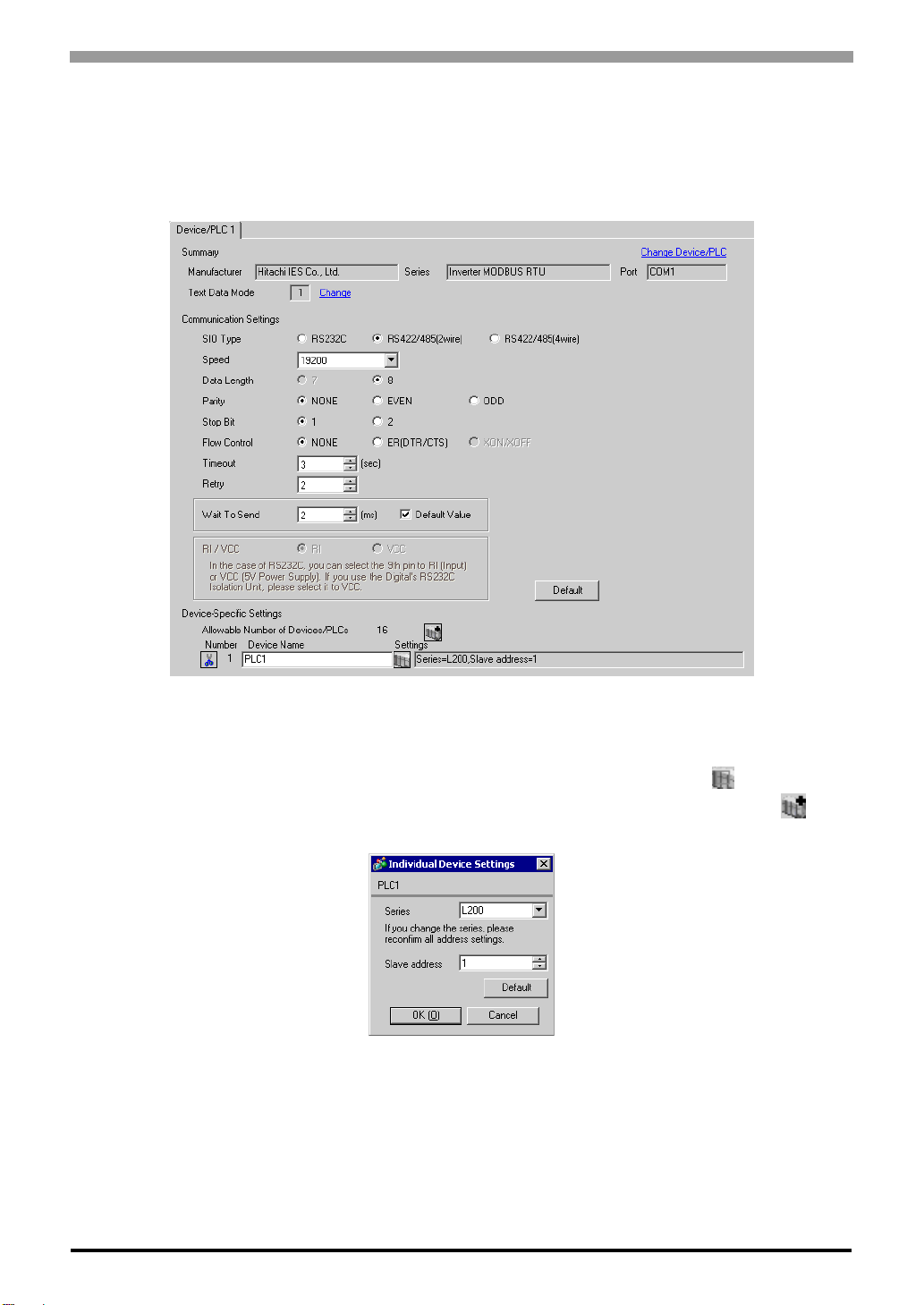

GP Pro-EX Settings
Communication Settings
To display the setup screen, from the [System Settings] workspace, select [Device/PLC].
Device Setting
To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]
window, select the External Device and click [Settings]. To connect multiple External Devices, from
[Device-Specific Settings] in the [Device/PLC] window, click to add another External Device.

Inverter MODBUS RTU Driver
GP-Pro EX Device/PLC Connection Manual 18
External Device Settings
To define the External Device communication settings, use the External Device keypad’s STOP/RESET, ESC,
Up, Down, and SET keys.
Refer to your External Device manual for details.
1Turn ON the External Device.
2Press STOP/RESET to stop operations.
3Press ESC to move to the Function Group.
4Press ESC to select [C001].
5Press Up or Down to select the function code.
6Press SET.
7Press Up or Down to select the value.
8Press SET.
9Restart the External Device.
Setting Value
Function Code Setting Value Setup Description
C071 06 Communication speed (19200bps)
C072 1 Modbus address (Modbus slave address)
C074 00 Communication parity (Non-Parity)
C075 1 Communication stop bit (1 bit)
C096 00 Communication selection (Modbus-RTU)

Inverter MODBUS RTU Driver
GP-Pro EX Device/PLC Connection Manual 19
4 Setup Items
Set up the Display’s communication settings in GP Pro-EX or in the Display’s offline mode.
The setting of each parameter must match that of the External Device.
)"3 Communication Settings" (page 7)
4.1 Setup Items in GP Pro-EX
Communication Settings
To display the setup screen, from the [System Settings] workspace, select [Device/PLC].
Setup Items Setup Description
SIO Type
Select the SIO type to communicate with the External Device.
In the communication settings, set [SIO Type] correctly according to the serial interface
specifications of the Display.
If you select an SIO type that the serial interface does not support, proper operation cannot
be guaranteed.
Refer to your Display manual for details on the serial interface specifications.
Speed Select communication speed between the External Device and the Display.
Data Length Display data length.
Parity Select how to check parity.
Stop Bit Select stop bit length.
Flow Control Select the communication control method to prevent overflow of transmission and
reception data.

Inverter MODBUS RTU Driver
GP-Pro EX Device/PLC Connection Manual 20
Device Setting
To display the [Individual Device Settings] dialog box, select the external device and click [Settings] from
[Device-Specific Settings] in the [Device/PLC] window. To connect multiple External Devices, click from
[Device-Specific Settings] in the [Device/PLC] window to add another External Device.
Timeout Use an integer from 1 to 127 to enter the time (s) for which the Display waits for the
response from the External Device.
Retry In case of no response from the External Device, use an integer from 0 to 255 to enter how
many times the Display retransmits the command.
Wait To Send
Use an integer from 0 to 255 to enter standby time (ms) for the Display from receiving
packets to transmitting next commands.
When the default value check box is selected, the Wait To Send value automatically
changes in the formula below by changing each value for Speed/Data Length/Parity/Stop
Bit.
Value for the parity setting is shown below.
No Parity = 0
Parity Even = 1
Parity Odd = 1
• After changing the Wait To Send value for the project, of which [Default Value] is
checked, in the offline mode, the Wait To Send value will be recalculated when the
project is received and communication settings are displayed.
Setup Items Setup Description
Series Select the series of the External Device.
Slave address Use an integer from 1 to 247 to enter the address of the External Device.
Setup Items Setup Description
Wait To Send (ms) = Speed (bps)
3500 x (1 + Data Length + Stop Bit + Parity)
