HMN M2 Flexi-Tip User manual

IMPORTANT!
WHEN CHARGING, DO NOT TURN ON THE SWITCH
BEFORE THE CHARGER IS CONNECTED TO THE
CHAIR.
THE BATTERY SHOULD BE CHARGED 24 HOURS
THE FIRST TIME.
WHEN THE BATTERY HAS RUN DOWN THERE IS A
BEEP SOUND FROM THE CONTROL BOX WHEN THE
ELECTRICAL PARTS ARE IN USE.
WHEN THE BEEP SOUND COMES, YOU HAVE TO
RECHARGE THE BATTERY AS IT CAN BE DAMAGED
IF YOU LET IT RUN 100 % OUT OF POWER.
(IF THE BATTERY HAS RUN OUT OF POWER, YOU
CANNOT USE THE ENGINE BY PUTTING THE
CHARGER IN THE WALL PLUG AND THE CHAIR.
A FULL RECHARGE TAKES TYPICALLY 8 HOURS.)
IF THE LIGHTBOLT ON THE CHARGER LIGHTS
GREEN WHEN CONNECTED, IT IS DUE TO A
MALFUNCTION OF THE BATTERY, AND THEREFORE
IT NEEDS TO BE CHANGED.
DO NOT CHARGE THE CHAIR WHILE BEING USED IN
AREAS WITH WATER.
DO NOT USE THE ELECTRICALL FUNCTIONS ON
THE CHAIR WHILE SPRAYING WITH WATER.

USERS GUIDE: M2-FLEXI-TIP SHOWER/COMMODE CHAIR. (2/5)
Made for using when bathing/showering and going to the toilet.
TILTING:
TILTING:
The two top buttons are for tilting of the back rest. The lower
buttons are for tilting of the seat. If the user is not able to hold on
to the armrest by himself, the helper must lay the users hands on
his lap before tilting the chair.
LOCKING THE WHEEL
DIRECTIONAL CONTROLLED WHEELS
Before you use the chair for bathing/showering, you
must make sure you apply the brake on all four wheels.
The right front wheel can be locked the direction.
Use of this makes it easier to start and moving the chair.
1) CHARGING THE BATTERY
2) CHARGING THE BATTERY
With the one hand, you grab around the charging plug
(Socket) on the chair and with the other hand you pull out the
connecting cable for the battery.
With the one hand, you grab around the charging plug (Socket) on
the chair and with the other hand, you push the plug from the
transformer in place.
3) CHARGING THE BATTERY
Depending on region plug type 1, 2 or 3 slides into the charger.
Afterwards you put the transformer in the socket and turn on the
power.
A full charge takes approximately 8 Hours.
When the batteri is running out of power you will hear a “bip”
sound.
When the battery is being charged, the light bolt on the charger
lights orange.
When the battery has been fully charged, the light bolt on the
battery will light green.
Note: If the light bolt on the charger lights green, when it is being
connected, it is due to a malfunction, and it needs to be changed.
Continued on page 3
1.
2.
3.

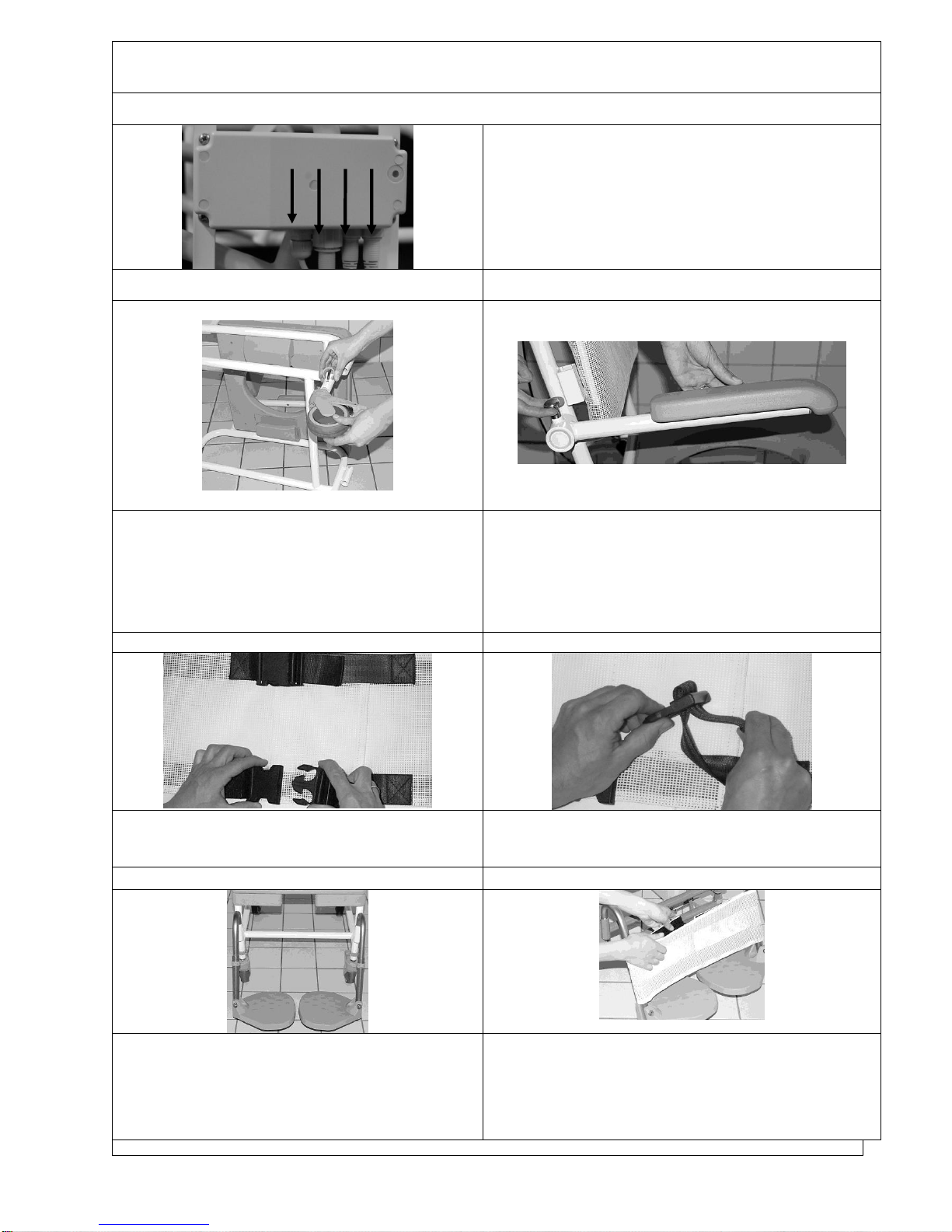

USERS GUIDE: M2- FLEXI -TIP SHOWER/COMMODE CHAIR. (3/5)
Made for using when bathing/showering and going to the toilet.
4) CABLES
1. Cable for battery.
2. Cable for locking mechanism.
3. Cable for back actuator.
4. Cable for seat actuator.
HEIGHT ADJUSTMENT:
RELEASING THE ARMREST:
1. Lock all four wheels (by pressing the grey tap on the wheels)
2. Lay down the chair.
3. Take the clip out from the wheel you are adjusting.
4. Grab the wheel and move it until you have fit it in to the right
height. All 4 wheels should be placed in the same height.
5. The clip is reinserted (nb! Make sure that the clip is properly
pressed down) the procedure is repeated with the other wheels
(the chair is turned around to adjust the two “lower” wheels)
Pull the snap release and then you can tilt the armrest.
BACK ADJUSTMENT:
BACK ADJUSTMENT:
You open the back by pressing the two plastic taps with your
left hand, and then with your right hand you pull the buckle
out.
The depth of the back is adjusted by pulling the webbing and then
tightening it.
Care: Washable at maximum 80 degrees.
USE OF FOOT RESTS
CALF SUPPORT ADJUSTMENT:
MOUNTING OF FOOT RESTS ON THE CHAIIR
The height of the foot rests are adjusted by taking the clips
out and subsequently placing the foot rests in a suitable
height and then reinserting the clip.
Placing the foot rests on one side: You lift the footrests
slightly and swing them to either side you want. If you want
the foot rests to occupy lesser space you are able to tilt them.
The calf support is fastened with velcro tape on the backside.
The depth and the Calf support is adjusted by fastening the velcro
tape further in or further out.
Car: Washable at maximum 80 degrees.
Continued on page 4
1.
2.
3.
4.

USERS GUIDE: M2- FLEXI -TIP SHOWER/COMMODE CHAIR. (4/5)
Made for using when bathing/showering and going to the toilet.
ADJUSTING THE HEADREST.
(ARTICLE NO. 310221):
ADJUSTING HEIGHT- AND DEPTH ADJUSTABLE HEADREST
(ARTICLE NO. 310222):
The height of the headrest is adjusted by loosening the
fingerscrew and tightening it again when the height is right.
The height and depth of the headrest is adjusted by loosening the
two fingerscrews and then tightening them again once they are in
the right position.
SIDE SUPPORT ADJUSTMENT:
USE OF CHAIR IN NEGATIVE
The side supporters are clicked into place in the square pipes
on the side of the chair. The depth is adjusted by loosening
the fingerscrew and then tightening it again once the height is
right. You can also fasten the side supporters so that the
cushions are turned horizontally if there is a need for that.
Use of chair in negative position can cause that the user will fall
forwards.
WHEN SLIDING THE BUCKET OF THE CHAIR, IT IS IMPORTANT TO SLIDE IT STRAIGHT
BACKWARDS, ALONG THE SEAT. OTHERWISE IT CAN BE VERY DIFFICULT TO GET THE
BUCKED OF THE CHAIR.
Additional accessories such as buckets etc. See pamphlets for this
WARNING
DO NOT SIT ON THE OUTER 10 CM
OF THE SEAT THAT THE CHAIR CAN
TIP FORWARD.
DO NOT STAND ON THE
FOODRESTS
Continued on page 5

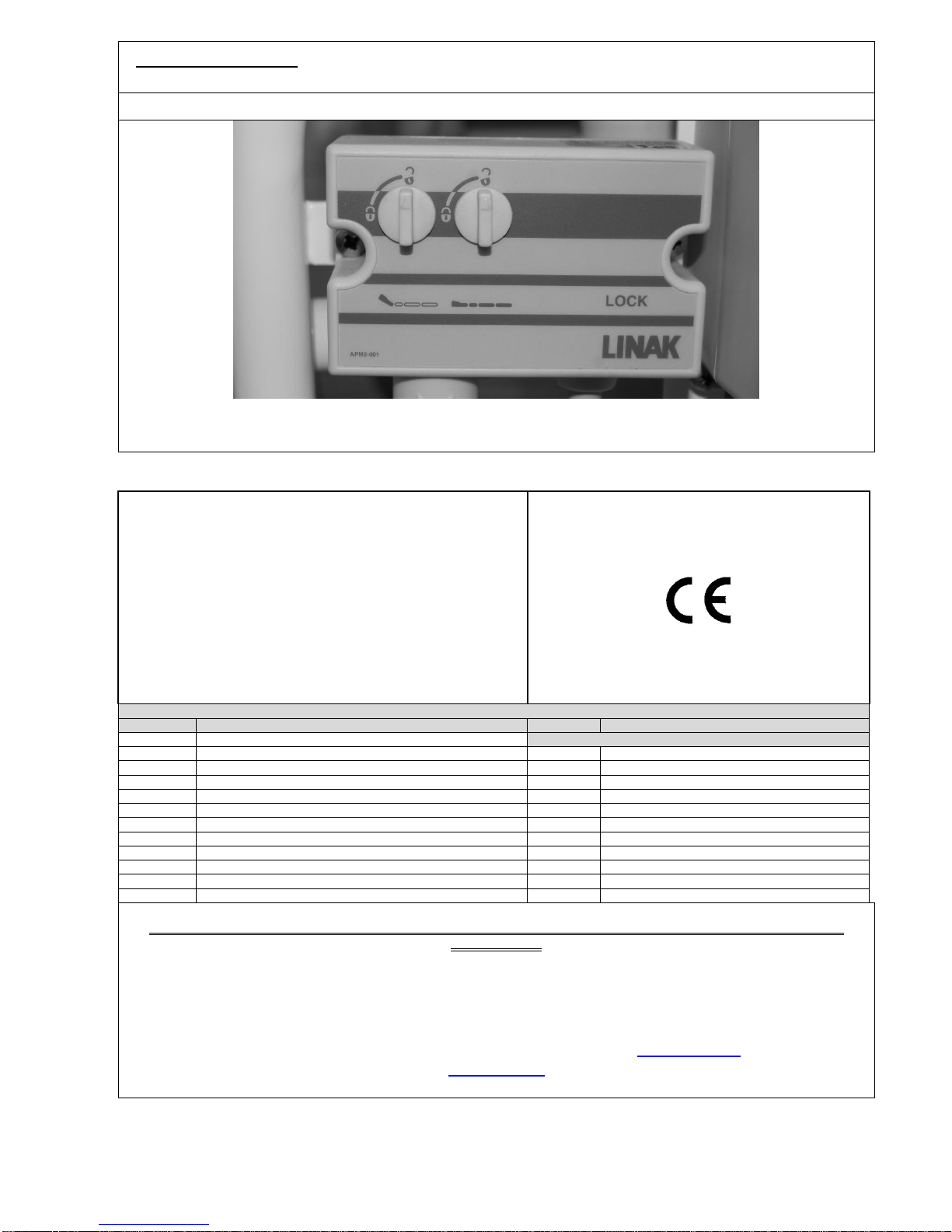

USERS GUIDE: M2- FLEXI -TIP SHOWER/COMMODE CHAIR. (5/5)
Made for using when bathing/showering and going to the toilet.
USE OF LOCK
The locking mechanism gives the possibility of locking either one of the actuators. The left one locks the actuator that moves the
back rest, and the right one locks the actuator that tilts the seat.
If both are locked at the same time none of the actuators will move.
Check with proper intervals the fastening of the wheels to the legs.
Article. No. 310216/310217
Max. User load 125 kg
NB! The clips have to be put all the way through
to the bottom of the holes when height adjusting
2 year’s complaint right against manufacturing errors.
1 year on batteries.
Terms of claim for frame.
HMN grants 5 years claim rights against frame break-down for all M2-
Shower/commode chairs and stainless steel shower stools. The warranty
applies for production and material break downs, and can only be used if the
products have been in normal use. Please note that normal wear is not
included in the warranty.
Cleaning:
The product can be cleaned with regular cleaning without non-
abrasive detergent. Wash and dry the product after the
cleaning. The product can be washed up to 85° degrees in 3
minutes
This product is CE marking which means the product
complies with EU legislations and enables the free
movement of the product in the European market.
09.10.15
Spare parts
Art. No.
Description
Art. No.
Description
310340
Seat, grey
Electric parts
310342
With extra large Seat hole, grey
800310
Remove control (with wire and plug)
310341
Seat lid (std., grey)
800268
Actuator (“engine”) for tilt of seat
310343
Seat lid (Intimate, grey)
800311
Actuator (“engine”) for tilt of back rest
800181
PU foam on armrest. One unit. Grey
800312
Locking box
310065
Clips for height adjustment, grey
800315
Control box (with plug for battery box)
310165
Clips for height adjustment, magenta
800270
Battery box w/battery (with plug for control box)
800314
Back in net weave for Flexi-tip
800271
Bolt for fastening of actuator (below bottom)
310094
125 mm wheel with 1 leg and 1 clips, 1 pcs.
800272
Bolt with nut for fastening of actuator (on top)
800153
125 mm directional wheel with 1 leg and 1 clips, 1 pcs.
800278
Universal transformer
800279
English plug
800280
Euro plug
IN OTHER RESPECTS SHOULD YOU HAVE ANY QUESTIONS THEN YOU ARE MORE THAN WELCOME TO
CONTACT US
BEST REGARDS
HMN a/s
Midtager 22, 2605 Brøndby, Denmark
Tel.: [phone] Fax.: [phone] E-Mail inf[email protected]
www.hmn.dk
PRODUCED IN THE EU
