Hofmann monty 8200 User manual

monty 8200
Operation manual
Mode d’emploi
Manual de Operador
Tire changer
Démonte-pneus
Desmonta Ruedas

ii monty 8200 - EN
SAFETY INFORMATION
For your safety, read this manual thoroughly
before operating the Tire Changer
This tire changer is intended for use by properly trained automotive technicians. The safety mes-
sages presented in this section and throughout the manual are reminders to the operator to exer-
cise extreme caution when servicing tires with these products.
There are many variations in procedures, techniques, tools, and parts for mounting and de-
mounting of tires, as well as the skill of the individual doing the work. Because of the vast number
of wheel and tire applications and potential uses of the product, the manufacturer cannot possibly
anticipate or provide advice or safety messages to cover every situation. It is the automotive tech-
nician’s responsibility to be knowledgeable of the wheels and tires being serviced. It is essential
to use proper service methods in an appropriate and acceptable manner that does not endanger
your safety, the safety of others in the work area or the equipment or vehicle being serviced.
It is assumed that, prior to using that tire changer, the operator has a thorough understanding of
the wheels and tires being serviced. In addition, it is assumed he has a thorough knowledge of
the operation and safety features of the rack, lift, or oor jack being utilized, and has the proper
hand and power tools necessary to service the vehicle in a safe manner.
Before using the present tire changer, always refer to and follow the safety messages and service
procedures provided by the manufacturers of the equipment being used and the vehicle being
serviced.
IMPORTANT !! SAVE THESE INSTRUCTIONS - DO NOT DISCARD !!

iii
monty 8200 EN -
IMPORTANT SAFETY INSTRUCTIONS
When using this equipment, basic safety precautions should always be followed,
including the following:
1. Read all instructions.
2. Do not operate equipment with a damaged power cord or if the equipment has been
damaged - until it has been examined by a qualied authorized service technician.
3. If an extension cord is used, a cord with a current rating equal to or more than that
of the machine should be used. Cords rated for less current than the equipment may
overheat. Care should be taken to arrange the cord so that it will not be tripped over
or pulled.
4. Always unplug equipment from electrical outlet when not in use. Never use the cord
to pull the plug from the outlet. Grasp plug and pull to disconnect.
5. To reduce the risk of re, do not operate equipment in the vicinity of open contai-
ners of ammable liquids (gasoline).
6. Keep hair, loose tting clothing, ngers and all parts of the body away from moving
parts.
7. Adequate ventilation should be provided when working on operating internal com-
bustion engines.
8. To reduce the risk of electric shock, do not use on wet surfaces or expose to rain.
9. Do not hammer any part of the machine, it isn’t designed to be an anvil.
10. Do not allow unauthorized personnel to operate the equipment.
11. Do not disable or bypass the safety systems and follow all the safety procedures.
12. Use only as described in this manual. Use only manufacturer’s recommended attachments.
13. Always securely lock the rim before actuating rotation.
14. ALWAYS WEAR SAFETY GLASSES. Everyday eyeglasses only have impact resi-
stant lenses, they are NOT safety glasses.
15. The equipment is for indoor use only.
SAVE THESE INSTRUCTIONS

4
UPDATING REPORTS
Release:______ ________ January 2023B
Stop button deletion.
6
8
11
11
11
12
13
14
15
16
17
18
20
20
20
21
21
22
22
23
24
25
25
25
26
27
29
30
31
32
32
33
34
35
36
38
38
monty 8200
- EN
IMPORTANT!!
PLEASE READ THIS MANUAL THOROUGHLY BEFORE USING THE MACHINE
Table of Contents
1.0 Safety Instructions
1.1 Safety Label

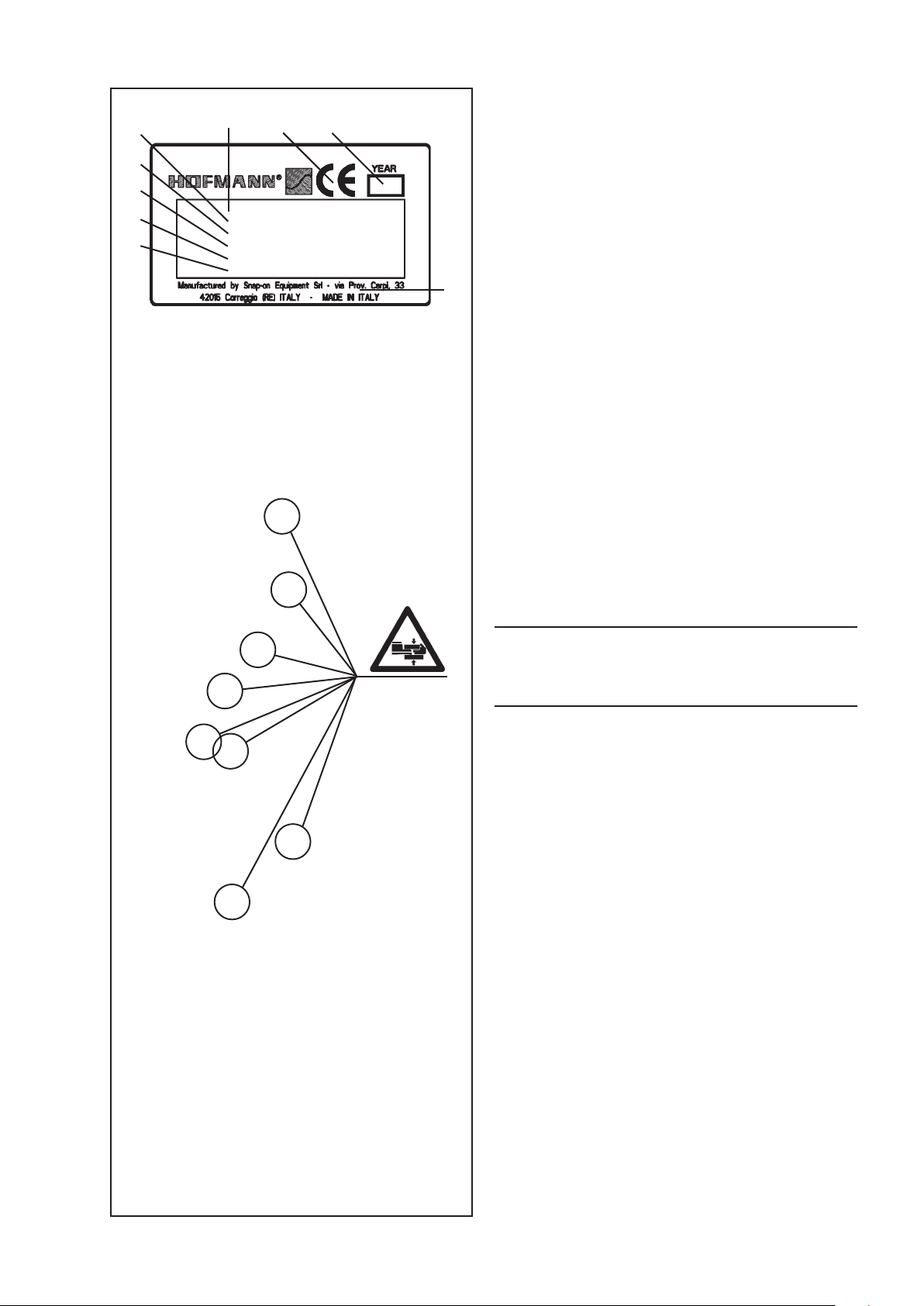

1.1.1 Label of the manufacturer
1.2 Area with danger of crushing
1.2.1 SAFETY DEVICES
1.2.2 Residual risks
1.3 Format of this Manual
2.0 Specications
3.0 Introduction
3.1 Accessories

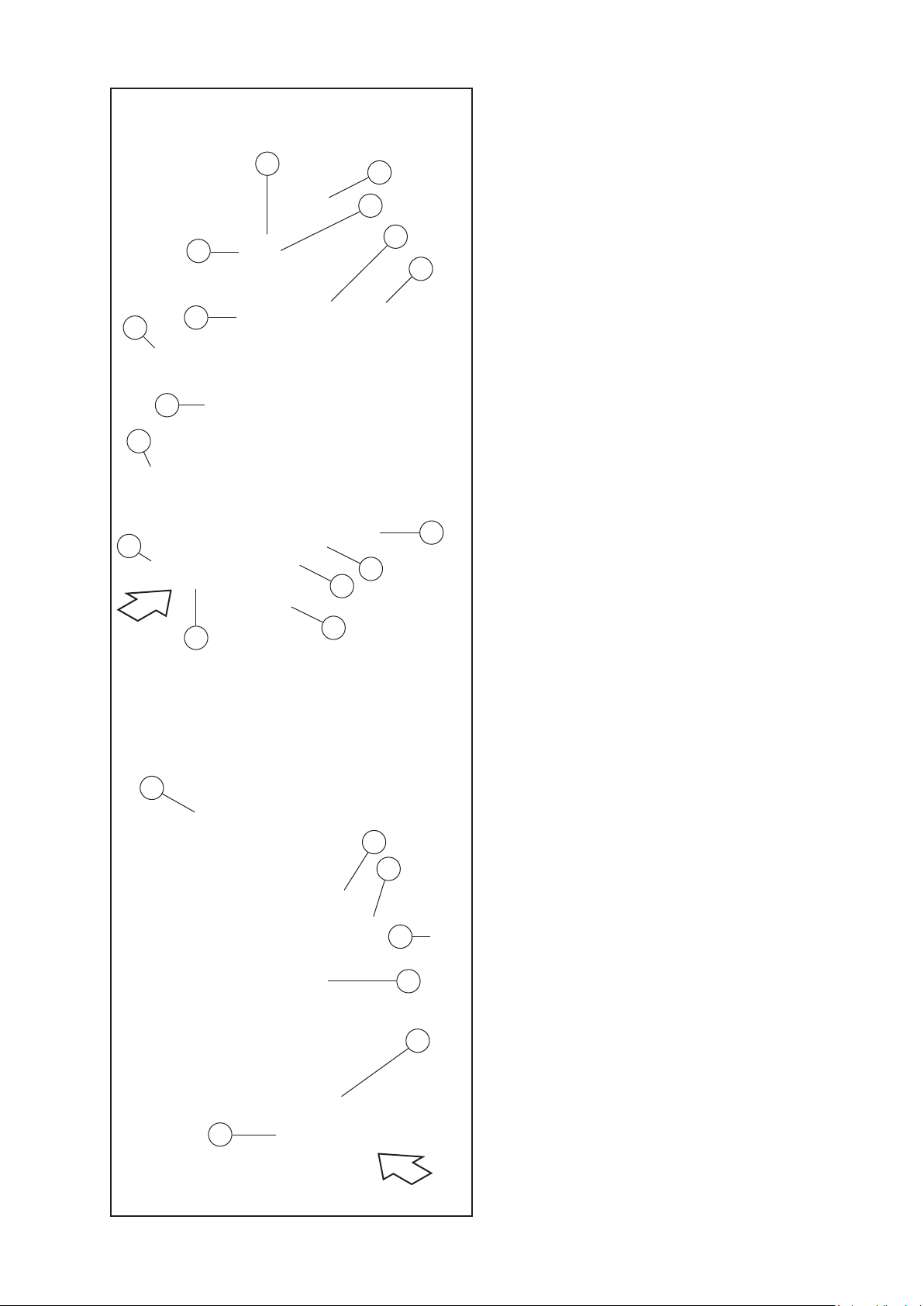

4.0 Main parts Identication
4.1 Controls
4.2 Adjustment / Settings
4.2.1 Bead pusher extension setting
4.2.2 Tool Head Angular adjustment
5.0
Mounting/demounting tires
5.1
General precautions
5.2 Demounting tires
5.2.1 Bead Breaking
5.2.2 Use of the Lifter
5.2.3 Locking the wheel
5.3 Remove the tire
5.3.1 Positioning the tool
5.3.2 Bead presser use on demounting
5.4 Mounting tires
5.5 Beading the tires
6.0 Maintenance
6.1 Storage
7.0 Troubleshooting
8.0 Disposing of the unit
8.1 Instructions for disposal
9.0 Appendices
i. Installation requirements
ii. Carriage – Unpacking – Moving
iii. Installation procedures
iv. Testing procedures
v. Instructing the operator

5
monty 8200 EN -
Tires and Rims that are not the same diameter are mismatched.
• NEVER attempt to mount or inate any tire and rim that are mismatched.
• ALWAYS check to see that tire and rim diameters are the same.
A mismatched tire and rim will explode causing death or serious personal injury
Over-pressurized tires can explode causing ying debris.
• Read and understand Operator’s Manual before operating.
• Keep bystanders away from work area.
• ALWAYS wear Safety Goggles.
• ALWAYS check to see that Tire and Rim diameters are the same.
• NEVER attempt to mount or inate any Tire and Rim with di󰀨erent diameters.
• Inspect tires, NEVER inate tires that are damaged, rotten or worn.
• NEVER inate ‘Split Rim Wheels’ on this tire changer, remove them and use only an approved
safety ination cage designed for this purpose.
• Lock turntable Clamp on inside of rim before attempting to inate tire.
• Use approved tire bead lubricant before removing or installing tire on rim.
• ALWAYS position the “Safety Restraint Arm” over the wheel to hold it to the turntable while
inating if so equipped.
• If a tire explodes on this tire changer, STOP using it until the “Safety Restraint Arm” has been
replaced, which must be done even if no damage is seen.
• NEVER place head or body over a tire during ination process.
• Use short bursts of air to seat tire beads, check tire air pressure frequently.
• NEVER exceed tire manufacturer’s pressure limits.
• NEVER attempt to bypass or alter the built in air pressure limiter. Only inate tire with air hose
supplied with tire changer. NEVER use shop ination hose to inate a tire.
• Tire Changer must be anchored to concrete oor if equipped with a “Safety Restraint Arm”
Exploding Tires can cause serious injury.

6
A
B
- EN
Safety
1.0 Safety Instructions
The safety precautions must be completely understood
and observed by every operator.
THE OPERATOR MUST STAY NEAR THE MACHINE,
IN GOOD POSITION OF WORK, AT THE CONTROL
UNIT SIDE (A) and (B).
ONLY THE OPERATOR IS ALLOWED TO ACCESS
THE WORK AREA.
THE USE OF THIS DEVICE IS ALLOWED ONLY TO
PERSONNEL DULY TRAINED BY AN AUTHORISED
DEALER.
ANY TAMPERING WITH OR MODIFICATION OF
THIS DEVICE OR ITS PARTS OR COMPONENTS
NOT PREVIOUSLY AUTHORISED BY THE
MANUFACTURER WAIVES THE LATTER FROM
ANY DAMAGE RESULTING FROM OR RELATED
TO THE ABOVE-MENTIONED ACTIONS.
REMOVING OR BYPASSING SAFETY DEVICES
OR WARNING LABELS OF THE MACHINE IS A
VIOLATION OF THE SAFETY REGULATIONS.
THE USE OF THIS DEVICE IS ALLOWED ONLY
IN LOCATIONS WITH NO EXPLOSION OR FIRE
HAZARD.
THE INSTALLATION SHALL BE CARRIED OUT
ONLY BY QUALIFIED PERSONNEL AND WITHIN
THE SCOPE OF THE INSTRUCTIONS PROVIDED
IN THIS MANUAL.
THIS DEVICE IS DESIGNED TO ACCEPT ORIGINAL
SPARE PARTS AND ACCESSORIES ONLY.
CHECK FOR POSSIBLE DANGEROUS CONDITIONS
DURING THE OPERATION OF THE MACHINE. IN
SUCH A CASE STOP THE MACHINE IMMEDIATELY.
IN CASE OF DEFECTIVE FUNCTIONING, STOP THE
MACHINE AND CALL THE AUTHORISED DEALER
FOR ASSISTANCE.
DURING USE AND MAINTENANCE OF THE
MACHINE IT IS MANDATORY TO COMPLY WITH
ALL LAWS AND REGULATIONS FOR ACCIDENT
PREVENTION.
THE ELECTRICAL SYSTEM MUST HAVE AN
EARTH CABLE AND THE MACHINE EARTH CABLE
(YELLOW/GREEN) MUST BE CONNECTED TO THE
EARTH CABLE OF THE MAINS SUPPLY.

7EN -
Safety
BEFORE PERFORMING ANY MAINTENANCE OR
REPAIRS THE MACHINE MUST BE DISCONNECTED
FROM THE AIR AND POWER SUPPLY.
NEVER WEAR TIES, CHAINS OR OTHER LOOSE
ARTICLES WHEN USING, MAINTAINING OR
REPAIRING THE MACHINE. LONG HAIR IS ALSO
DANGEROUS AND SHOULD BE KEPT UNDER A
HAT.
THE USER MUST WEAR PERSONAL PROTECTION
EQUIPMENT SUCH AS GLOVES, SAFETY SHOES
AND GOGGLES.
MAINTAIN ALL ELECTRIC CABLES IN GOOD
REPAIR.
KEEP WORKING AREA TIDY. CLUTTERED AREAS
FACILITATE ACCIDENTS.
AVOID DANGEROUS ENVIRONMENT. DO NOT
USE PNEUMATIC OR ELECTRICAL EQUIPMENT
IN DAMP OR WET LOCATIONS, OR EXPOSE THEM
TO RAIN.
KEEP THE WORK AREA WELL LIGHTED.
ALL ELECTRICAL CONNECTIONS MUST BE
PERFORMED BY A SKILLED TECHNICIAN.
ALL SERVICES MUST BE PERFORMED BY
AUTHORISED TECHNICIANS.

8
P/N: EAL0383G35A P/N: EAL0408G44A
P/N: EAL0383G34A P/N: 8-23562A
P/N: EAL0424G33A
- EN
Safety

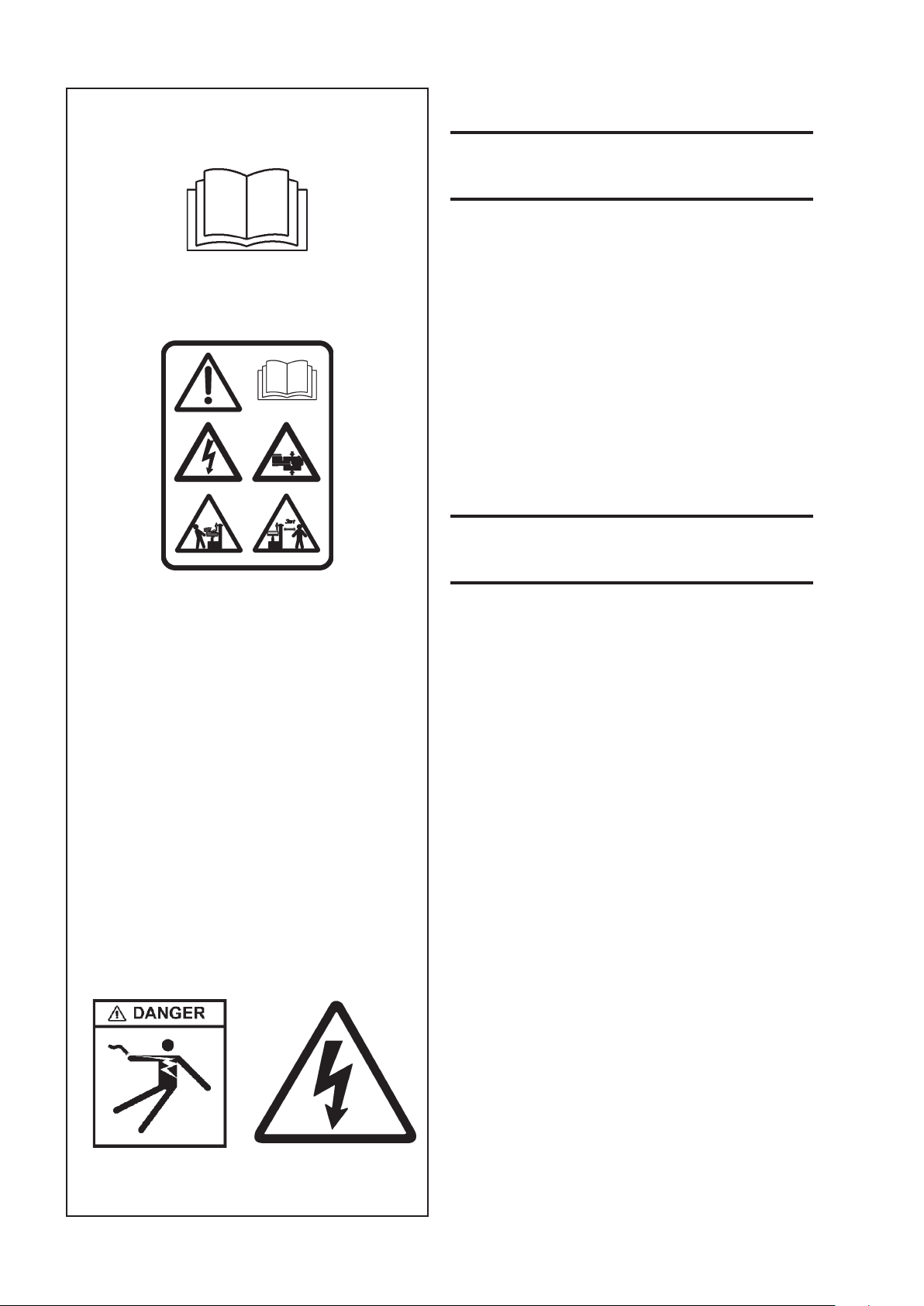

1.1 Safety Label
CAUTION: MAKE SURE THAT THE SAFETY
SIGNS ARE ALWAYS CLEARLY VISIBLE IN THE
POSITIONS INDICATED BY THE MANUFACTURER.
For any reset, use the Part Number (P/N) listed in this
chapter.
EAL0424G33A (Danger Plate)
Indication to refer to the documentation.
• Refer to the Operator’s Manual to understand the symbols
on the plate and the areas of the equipment they refer to.
• The supplied documentation is essential for proper
machine Use and Maintenance.
• In case of doubts or uncertainties, stop the operations
and read the specic manuals.
• The codes of the documents supplied with the machine
are indicated on page 2 of this Manual. Request a copy
of the documents if they should prove unreadable.
READ AND UNDERSTAND THE INDICATIONS
PROVIDED IN THE DOCUMENTATION BEFORE
PERFORMING ANY OPERATION.
EAL0383G35A - EAL0408G44A
Risk of ying fragments during beading.
•The use of the bead seater device could cause the
ejection of objects and a high acoustic pressure. We
therefore recommend the use of protection equipment
for eyes and ears.
• When using compressed air for the beading operation
there is also the risk of the tyre exploding.
• Avoid excessive pressure. Do not exceed the maximum
pressure indicated by the tyre manufacturer.
• The risk of outbreak also depends on the general
conditions of the tyre and the rim. Check the tyre before
inating it.
The bursting of tyres can cause serious injury or death.
EAL0383G34A - 8-23562A
Risk of electric shock from live machine.
• Do not use equipment with a damaged power cord or
other electrical or mechanical damage until it has been
examined by a service technician authorised by the
manufacturer.
• Unplug equipment from electrical outlet when not in use.
Never pull the cord to remove the plug from the outlet.
Grasp plug and pull to disconnect it.
• Do not expose the equipment to rain. Do not use on damp
surfaces.
• Plug unit into the correct power supply outlet.
• Do not remove or bypass the earth connection.
Risk of electrical shock. High voltages are present within
the unit.
• There are no user serviceable items within the unit.
• Servicing on the unit must be performed by qualied
personnel.
• Do not open any part of the unit other than known and

9
P/N: EAL0413G13A
P/N: EAL0408G43A
P/N: EAL0408G78A
P/N: EAL0462G74A P/N: EAL0383G02A
EN -
Safety
allowed areas.
• Turn the power switch o󰀨 and unplug the unit before
servicing.
Contact with high voltages (e.g.: with the terminals of
the switches, wires and relevant connections) can cause
serious injury or death.
EAL0408G43A
Risk of crushing.
• Become familiar with all controls before proceeding with
operation.
• Stand away from the bead breaker arm when in operation.
• If necessary for improved bead breaker control, operate
it in steps.
• Do not allow unauthorised people to approach the
working area.
Contact with moving parts could cause injury.
EAL0462G74A - EAL0383G02A
Risk of pinching or crushing hands and ngers/toes.
• Keep hands and nger/toes clear of rim edge during
operating steps.
• Keep hands and fingers/toes clear of mounting/
demounting tool during operation.
• Keep hands and ngers/toes and other body parts away
from moving surfaces.
• Do not use tools other than those supplied with the tyre
changer.
• Do not use unapproved accessories (see the Accessories
Plan).
• Do not by-pass in any way the safety devices.
• Use special solutions to prevent tyre friction.
Accidental contact with moving parts could cause injury.
EAL0408G78A
Personal protection equipment warning.
• The plate shows the equipment required for use of the
unit.
• Wear the indicated equipment before operating the
machine.
THE USE OF PERSONAL PROTECTIVE
EQUIPMENT IS A LEGAL REQUIREMENT.
EAL0413G13A
Risk of injury. Tools may break or slip if improperly used
or maintained.
• Use the correct tool for the task.
• In accordance with the maintenance plan, inspect and
clean all tools.
• Follow recommended procedures when performing
services.
Tools that break or slip can cause injury.
IN ORDER TO USE THE MACHINE THE
OPERATOR MUST KNOW THE MEANING OF ALL
THE PICTOGRAMS FOUND ON THE MACHINE.

10
P/N: EAL0442G57A
P/N: EAL0413G11A
P/N: EAL0413G12A
P/N: EAL0424G33A
- EN
Safety

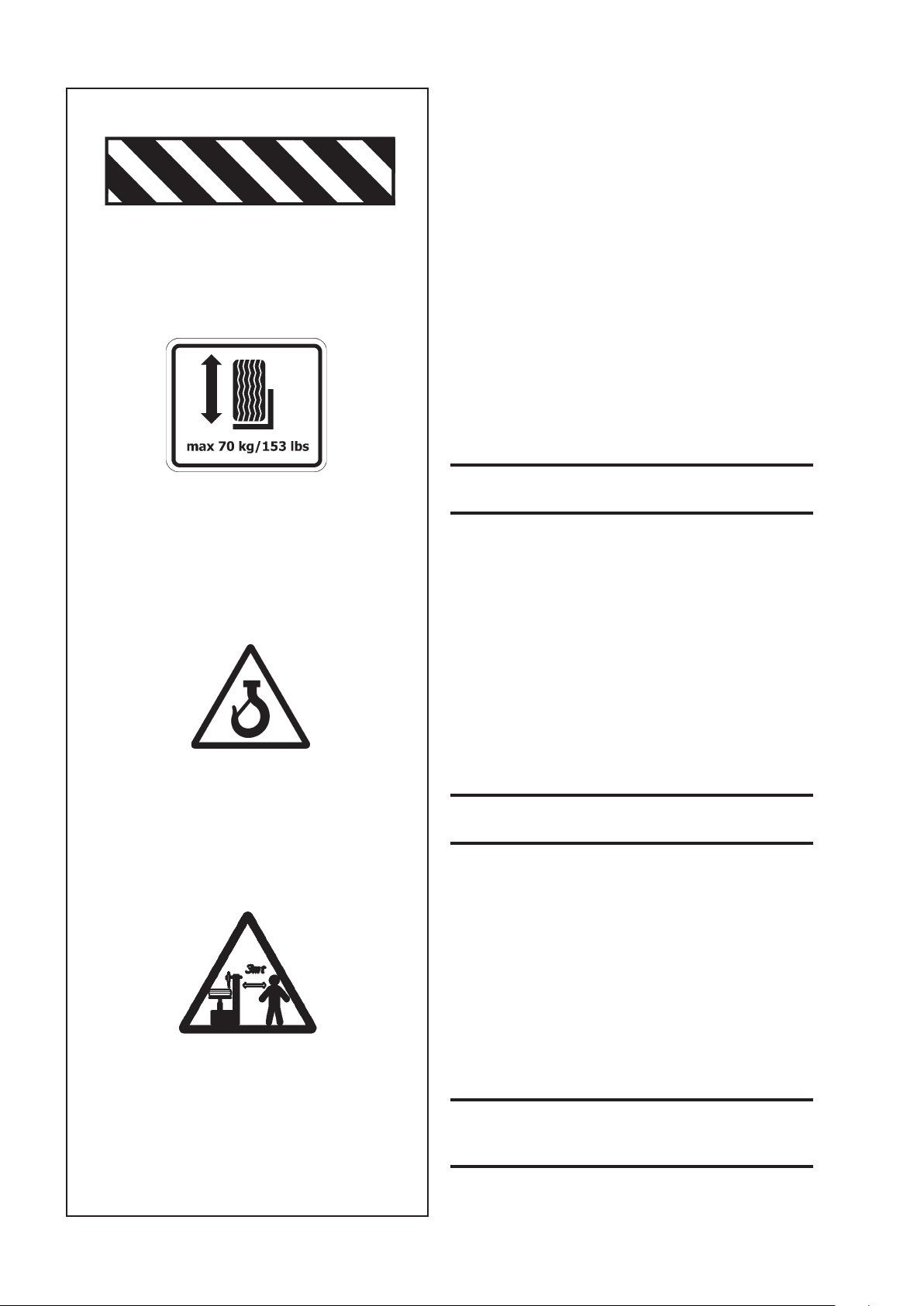

EAL0442G57A
Danger moving parts.
Black and yellow striped tape.
• The tape indicates the presence of protruding parts.
• These parts can be potentially dangerous.
• During operations, pay attention to the parts as identied
by these signals.
• Remain at a safe distance.
EAL0413G11A
Instructions on lifter maximum loading capacity.
The wheel weight must be known.
• The plate indicates the lifter loading capacity.
• The mechanical parts of the lifter can be compromised
by excessive loads.
• For particularly heavy wheels, we recommend identifying
the exact weight, with a suitable instrument, before lifting.
Do not use the wheel lifter if the weight exceeds the
maximum weight allowed.
• Remain at a safe distance when they are moving.
COMPLY WITH THE LOADING CAPACITY OF
THE LIFTER.
EAL0413G12A
Indication of the hooking point for lifting and handling
the equipment.
• The plate indicates the lifting point prepared by the
manufacturer.
• Use lifting straps, with load capacity suitable to the weight
of the device (500 kg min.).
• Use lifting slings in polyester provided with identication
plate.
• Be careful not to place the straps on sharp edges.
• Remain at a safe distance when the equipment is moving.
• Do not remain or pass under suspended loads.
FOLLOW THE INSTRUCTIONS SUPPLIEDABOUT
HOW TO HANDLE THE EQUIPMENT.
EAL0424G33A (symbol on Danger Plate)
• Follow the instructions concerning the areas where to
place the machine in the work place.
• Clearly limit the work area within which only the operator
is allowed to work and move.
• Do not allow anyone not involved in servicing to approach
the unit.
• Pay attention to the lifter movement, to the arm working
radius and, more in general, to the overall dimensions
of each moving part of the machine.
• Remain inside the working area the operator is allowed
to work in.
READ AND UNDERSTAND THE INDICATIONS
PROVIDED IN THE DOCUMENTATION BEFORE
PERFORMING ANY OPERATION.

11
1.2-1
a
b c
d
e
f
g
h
i
EN -
Safety
1.1.1 Label of the manufacturer
A marking label attached to the machine shows the
following data Fig. 1.2-1:
a- Name and address of the manufacturer
b- EC compliance marking
c- Year of manufacture
d- Model
e- Serial number
f- Weight
g- Electric specications (volt, ph, Hz, kW and A)
h- Air pressure required
i- Acoustic pressure
1.2 Areas with danger of crushing
Every Danger and Warning symbol in the Danger Plate
is to be considered as referring to di󰀨erent elements
or areas of the equipment.
The image to the side highlights the specic areas of
the equipment where dangers of crushing are present.
KEEP HANDS AND FEET AT A SAFETY DISTANCE
DURING THE OPERATION OF ALL PARTS INDICATED
ON THE PLATE OF CRUSHING DANGER (SEE
FIGURE ON THE SIDE).
1.2.1 SAFETY DEVICES
This machine has several protectors made of plastic
to prevent compression or crushing hazards.
The rotation speed of the wheel support plate has been
limited to prevent dragging or entrapping hazards.
There is an ination pressure limiting device to prevent
explosion hazard due to tire over-ination.

12 - EN
Safety
1.2.2 Residual risks
The residual risks are risks that were not completely
eliminated by means of integrated protective measures
during design stage (section 4 of UNI EN ISO 12100-
2) or the implementation of complementary protective
measures (section 4 of UNI EN ISO 12100-2) (guards
and safety devices).
Such residual risks can be reduced even further by
following the instructions (section 6 of UNI EN ISO
12100-2) specifying in particular:
• danger indications
• required training
• personal protective equipment that must be used
• safe working procedures.
1.1 Danger of crushing
DANGEROUS AREAS - RESIDUAL RISKS:
Danger of crushing between machine xed and mobile
parts, such as:
• between tool and parts below (wheel or rim / tire
support)
• between bead breaker unit parts and machine xed
parts or wheel being processed
• between bead presser unit parts and parts below
bead breaker unit or rim / tire parts when placed
on wheel support
• between wheel / tire rotating support and bead
presser unit parts used for the operation
• between wheel / tire rotating support and tool
being used
• between tower and machine xed parts (movement
from tilted to vertical).
Danger of crushing between machine external mobile
and xed parts (see point 1.1).
• between tower and surrounding xed parts, e.g.
walls, pillars, other machines.
1.4 Entrapping hazard
DANGEROUS AREAS - RESIDUAL RISKS:
Risk of entrapping of clothes or gloves worn during the
operations caused by:
• surface of rotating tire.
1.5 Dragging and trapping hazard
DANGEROUS AREAS - RESIDUAL RISKS:
Risk of dragging or trapping caused by the rotation of
wheel / tire support:
• between wheel / tire rotating support and bead
presser unit parts used for the operation
• between wheel / tire rotating support and tool
being used.

13
1.1-1
EN -
Safety
1.6 Danger of collision
DANGEROUS AREAS - RESIDUAL RISKS:
Danger of collision caused by:
• tower vertical / horizontal movement.
• bead breaker unit movement
• bead presser unit movement.
1.10 Danger of part projection (parts of the machine
and processed materials/parts)
DANGEROUS AREAS - RESIDUAL RISKS:
Danger of bursting:
• of the tire during the ination.
1.3 Format of this Manual
This manual contains text styles which indicate that
users must pay special attention:
Note: Suggestion or explanation.
CAUTION: STRESSES THAT THE FOLLOWING
ACTION MAY CAUSE DAMAGE TO THE UNIT
OR OBJECTS CONNECTED TO IT.
WARNING: STRESSES THAT THE FOLLOWING
ACTION MAY CAUSE (SEVERE) INJURY TO THE
OPERATOR OR OTHERS.
• Bulleted list:
• Indicates that the action must be executed by the
operator before proceeding with the next step in
the sequence.
A dotted line around the number of the gure indicates
that this is a duplicate from a previous section.

14
monty 8200
12" - 26"
15"
14"
15"
44"
5"-30"
40-392 mm (1,57" - 15,4")
12 kN (2700 lbs)
CW 7 - 18 rpm . CCW 7 rpm
1200 Nm (885 lbf-ft)
230V+/-10% 1ph 50-60Hz 16A (EU)
115Vac +/-10% 1ph 50-60Hz (USA)
0.9 kW
8 bar
12 bar
1 drop every 3 - 4 cycles
1800x1400x2100mm (71"x55"x83")
2250x1640x2100mm (88,5"x64,5"x82,5")
330 kg (728 lbs)
405 kg (983 lbs)
1050x1400x2065mm (41,5"x55"x81")
370 kg (816 lbs) / 445 kg (981 lbs)
0° - 50°
10 - 90
<70 db A
88.7 db A
- EN
Specications
Wheel specs
Clamping range
Max. wheel width (normal rim)
Max. Rim width (normal rim)
Reverse rim clearance (wheel plate / tool)
Max. wheel diameter
Tool working range
Bead breaker
Bead breaker range
Max Breaking force
Rotation speed (rpm)
Max. break out torque (Nm) (lower speed)
Electrical specifications
Standard power supply
Installed motor power
Air specifications
Min air pressure required
Max air pressure allowed
Lubrication
Drops per bead breaking cycle
Dimensions
Maximum dimensions (W x D x H)
Max. dimensions (WxDxH) with PBA
Net weight
Net weight with Pneumatic Bead Assist (PBA)
Packaging dimensions (W x D x H)
Gross weight / Gross weights with PBA
Enviromental
Temperature range °C
Relative humidity range % without condensation
Acoustic Pressure
During standard work
During bead seater actuation
2.0 Specications
monty 8200
12" - 26"
15"
14"
15"
44"
5"-30"
1,57" - 15,4" (40-392 mm)
2700 lbs (12 kN)
CW 7 - 20 rpm - CCW 7 rpm
885 lbf-ft (1200 Nm)
230V+/-10% 1ph 50-60Hz 16A (EU)
115Vac +/-10% 1ph 50-60Hz (USA)
0.9 kW
8 bar
12 bar
1 drop every 3 - 4 cycles
71"x55"x83" (1800x1400x2100 mm)
88,5"x64,5"x82,5" (2250x1640x2100 mm)
728 lbs (330 kg)
983 lbs (405 kg)
41,5"x55"x81" (1050x1400x2065 mm)
816 lbs (370 kg) / 981 lbs (445 kg)
0° - 50°
10 - 90
<70 db A
88.7 db A

15EN -
Introduction
3.0 Introduction
Congratulations on purchasing of this pneumatic-
electric tire changer:
This tire changer is designed skilled operators and is
user-friendly, reliable and fast.
With a minimum of maintenance and care your tire
changer will provide many years of trouble-free
operation.
Instructions on use, maintenance and operational
requirements of the machine are covered in this
manual.
STORE THIS MANUAL IN A SAFE PLACE FOR
ANY FURTHER REFERENCE. READ THIS
MANUAL THOROUGHLY BEFORE USING THE
MACHINE.
Application.
The tire changer is intended to be used as a device
for automatically demounting, mounting and beading
car and motorcycle tires mounted on one-piece rims
with the following specications:
Rim maximum diameter: mm 660 (26”)
Rim maximum width: mm 356 (14”)
This device must be used in the application for which
it is specically designed. Any other use shall be
considered as improper and thus not reasonable.
The manufacturer shall not be considered liable
for possible damage caused by improper, wrong or
unreasonable use.
Manuals supplied with the unit.
• Machine safety and installation. Manual
• Service Manual (Spare Parts)
Manual for use by service personnel only.
Installation instructions.
The installation instructions are in Chapter 9
Appendices and on the Safety and Installation
Manual.
EC DECLARATION
(Original document contained in Spare Parts Booklet)
Manuals available online.
• Operator’s Manual (Chapter 1 – 9)
The operator must be familiar with it.
Accessories available online.
• Available on the following website:
http://service.snapon-equipment.net/login.aspx

16
1
2 3
45
- EN
Accessories
3.1 Accessories
A series of accessories are usually available for the
machine.
All accessories are indicated on the website:
http://service.snapon-equipment.net/
After accessing the website, proceed as follows:
- Select Accessory Plan (1).
Access the specic page for Accessories.
- Select the reference brand in the eld Brands (2).
- Select the Type of product “Tire changers” in the eld
Product lines (3).
- Open the eld Model (4) and select the specic
machine model among the ones in the list.
- Enter “SEARCH” (5) to display the list of available
accessories.

17
4.0-1
1
8
10
11
15
9
16
22
2
4
3
6
20
5
7
13
21
12
14
19
17
18
23
EN -
Layout
4.0 Main parts Identication
Refer to Figure 4.0-1.
Functional description of the unit:
1. Vertical slide
2. Swing arm
3. Adjustment knob
4. Lock lever
5. Tool
6. Tower
7. Wheel support locking ange
8. Driving pin
9. Bead breaker arm
10. Bead breaker blade
11. Bead breaker support
12. Lubricant container
13. Ination / beading pedal
14. Nozzle
15. Lifter
16. Lifter pedal
17. PBA330 Bead Assist
18. Bead presser
19. Wheel locking tool
20. Air pressure gauge
21. Bead breaker control
22. Wheel rotation pedal
23. Roller

18
4.1-1
A
B
E
D
F
C
C
D
- EN
Layout
4.1 Controls
Before operating the machine ensure that you have
well understood the position and function of all the
controls.
SMART SPEED operation:
Maximum speed for a given stall torque.
Fig. 4.1-1
A.
The operator has the rst left pedal in rest position (1).
By pressing down the pedal in position (2), the wheel
support starts rotating clockwise.
By pressing the pedal fully down into position (3) the
SmartSpeed function will be activated and the wheel
support will rotate at the maximum speed (approx. at
20 rpm).
By lifting the pedal in position (4) the wheel support
will start to rotate counterclockwise.
B.
• Insert the foot under the pedal and pull up; the lifter
will move up. Once the desired height is reached,
release the pedal to stop the lifter.
• Press the pedal down to make the lifter move down.
• Release the pedal to stop the lifter. To move the
lifter down completely, keep the pedal pressed until
the lifter reaches the ground. IT is forbidden to use
the lifter for purposes other than loading/unloading
wheels (or rims) from the Turntable. The lifter has
a maximum capacity of 70Kg/154lb.
C.
•Press down the lever to open the bead breaker
arm.
•Release the lever to stop the arm.
•Pull the lever upwards to close the bead breaker
arm: by doing this the arm will move towards the
machine.
DO NOT MOUNTAND DEMOUNT THE TIRE WITH
THE LIFTER UP.
CAUTION: THE OPERATIONS COULD BE
DANGEROUS.FOLLOW THE SAFETYINSTRUCTIONS
INDICATED ON THE APPLIED PLATES.
DANGER OF FEET TRAPPING.

19
2
3
4
E
4.0-1
F
4.1-2 4.1-3
4.1-4
4.1-5
3
D
EN -
Layout

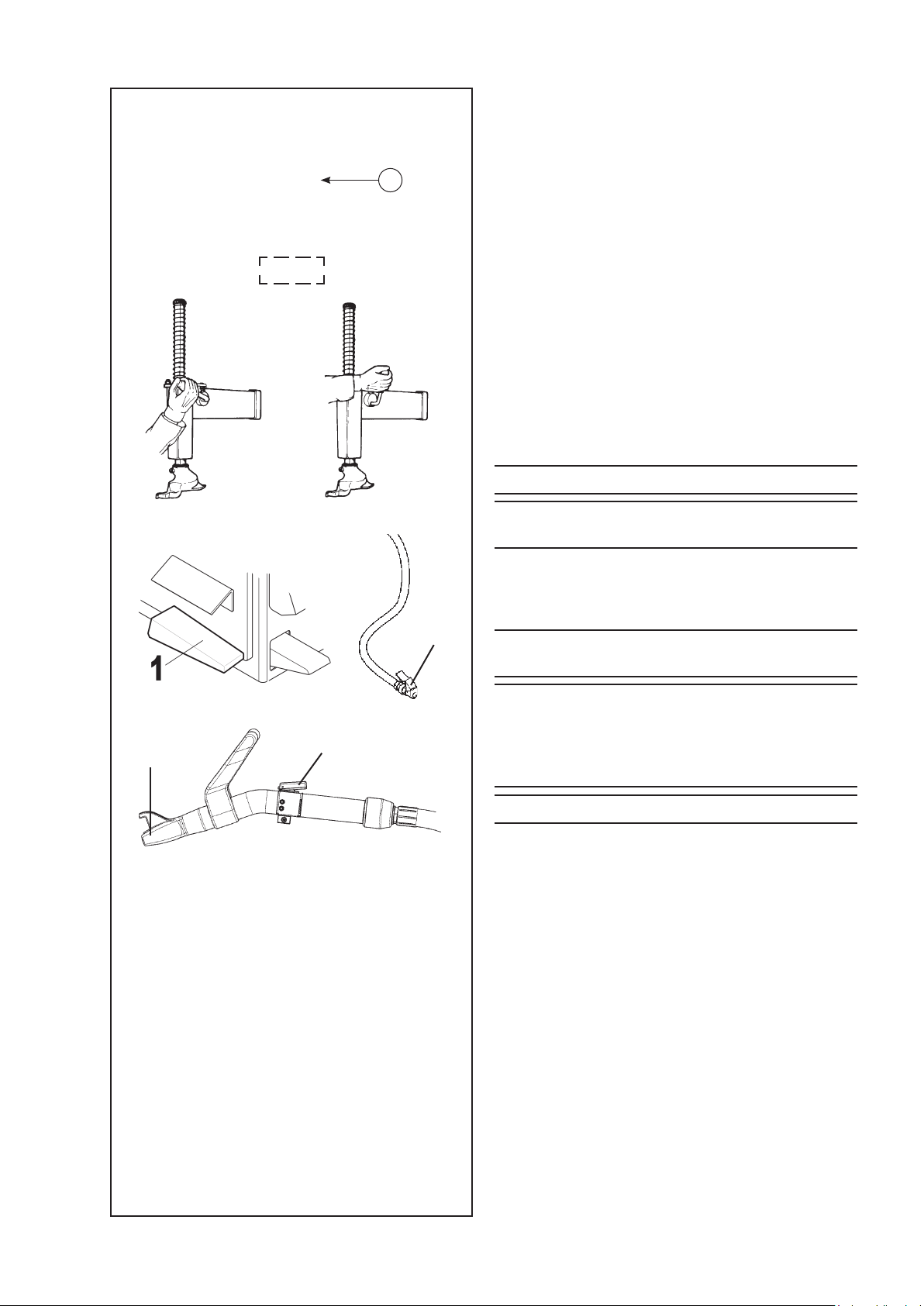

D.
• Use the adjustment knob (3, Fig. 4.0-1) to position
the tool according to the wheel diameter.
E.
• The locking lever allows locking the tool in the work
position. Lower the lever to release (Fig. 4.1-2) and
lift it to lock (Fig. 4.1-3).
F.
Press the inator pedal (1, Fig. 4.1-4) half way down:
air will come out of the ination hose end only (2).
Press the button on the Tubeless Beading Nozzle
(3, Fig. 4.1-5), then press the pedal all the way down
quickly (1, Fig. 4.1-4); a high pressure air jet will exit
the Tubeless Beading device.
DANGER OF HAND CRUSHING
CAUTION: HOLD THE TUBELESS BEADING
NOZZLE FIRMLY.
Note: Air simultaneously continues to exit the hose
connected to the tire.
CAUTION: ONCE BEADING IS COMPLETE,
IMMEDIATELY STOP INTRODUCING AIR.
WHEN OPERATING THE BEADING DEVICE IT
IS MANDATORY TO WEAR EAR PROTECTORS
AND SAFETY GLASSES TO PREVENT
CONTAMINATION FROM NOISE, DUST AND
CHIPS BLOWN BY THE AIR JET.
DANGER OF TIRE EXPLOSION

20
4.1-7
4.2-1
4.2-1
1
AB
- EN
Layout
H.
Bead presser
The bead presser has a pneumatic control (1, Fig.4.1-
7) for vertical movement.
- Lever up;
the bead presser moves up.
- Lever down;
the bead presser moves down.
CAUTION: THEOPERATIONSCOULDBEDANGEROUS.
FOLLOW THE SAFETY INSTRUCTIONS INDICATED
ON THE APPLIED PLATES.
4.2 Adjustment / Settings
4.2.1 Bead pusher extension setting
The bead pusher holder rod slip-o󰀨 position can be set
in two di󰀨erent heights.
Figure 4.2-1
•Remove the rod sliding stops A-B and move the
rod to the extended position.
• Replace and tighten the xing screws in the rod
locking holes.
Note: Restore the normal position when the
extension is no longer needed.
4.2.2 Tool Head Angular adjustment
(Fig. 4.2-2)
The tool is adjusted at the factory with an optimal angle
for most wheels used today. However, the angle can
be optimised for wheels with a diameter that di󰀨ers
considerably from the standard.
To adjust the tool angle, proceed as follows:
1 Mount the rim for which the adjustment is required.
2 Loosen the lower screw (1).
3 Adjust the tool with the screws shown (2a and 2b).
Unscrew the screw (2a) or (2b) to rotate the tool,
respectively clockwise or counterclockwise.
4 Screw in the opposite screw to block the tool in the
desired angular position.
5 Tighten the lower screw (1) with a torque of 35 Nm.
