HOLMS Compact User manual

Original language: Swedish © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 141203. English
Operating instructions
Box 924 SE-591 29 Motala Sweden [phone] ¬[phone]
Applicable from machine no.: 17050
1m/1.5m/2.0m

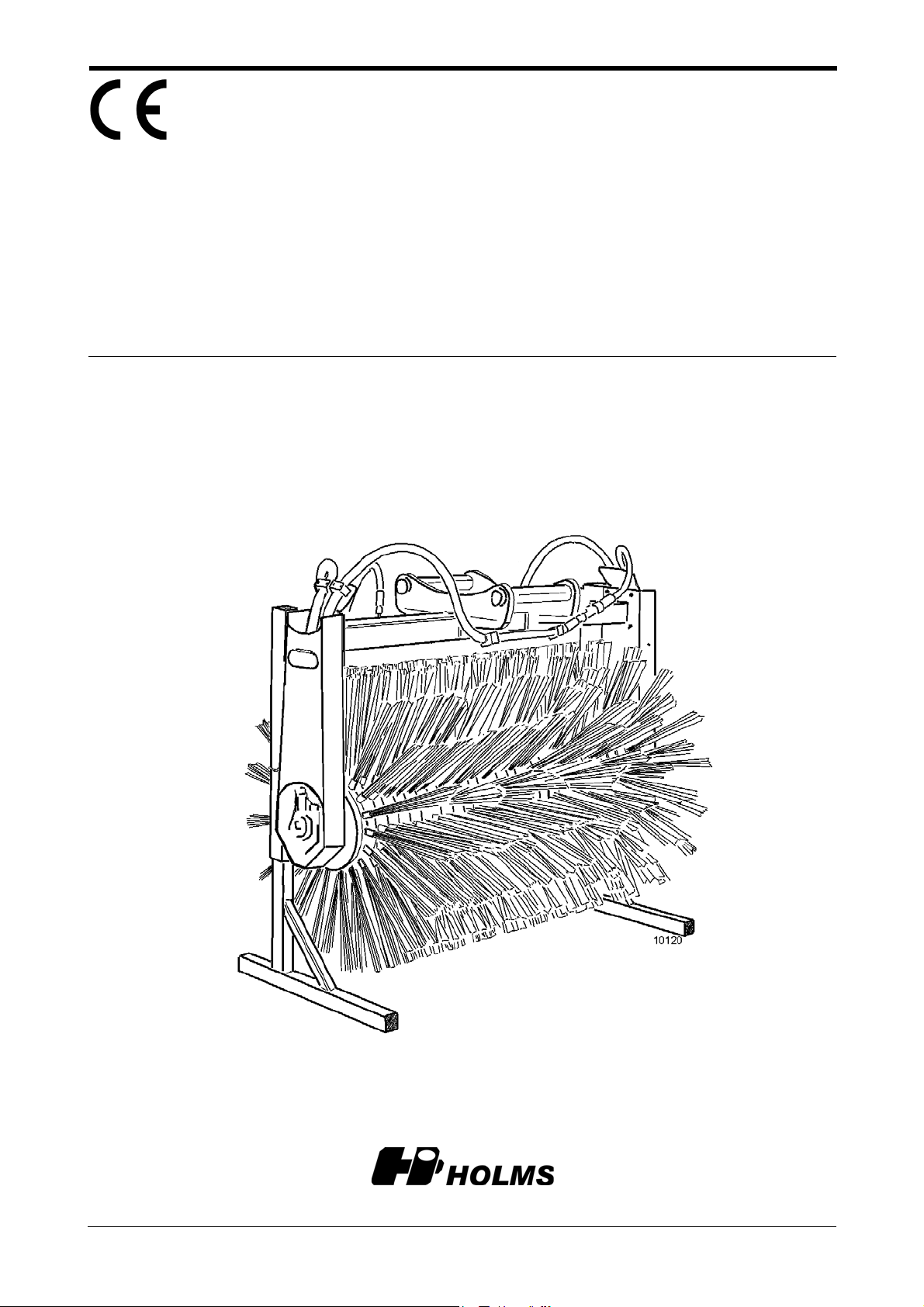

Holms Compact
Hydraulic sweeper roller

Holms Compact
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 141203. 3
Warning labels..............................................................4
Safety...........................................................................7
Product data.................................................................9
Machine identification plate...............................10
Product description.....................................................11
Standard model.................................................11
Optional extras..................................................11
Transport and storage................................................12
Operating instructions ................................................13
Service and maintenance...........................................14
After operation ..................................................14
Replacement of brush................................................14
Removing the roller brush.................................14
Replacement of brush.......................................15
Fitting the roller brush .......................................16
Replacement of the Swish brush................................17
Tip.....................................................................17
Index...........................................................................18
Contents

Holms Compact
4© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 141203.
Warning labels
There are several specific warning labels on this product; see the descriptions below. Make sure that
you understand the implications of these labels before using the product.
Clean/replace warning labels if they are illegible or are missing. Contact you Holms dealer if you
require new labels.
Risk of crushing - mind your hands and do not come too close to the machine (warning label
1530052)
Do not enter this area whilst the machine is in
operation. Mind your hands and keep them away
from this area whilst the tool is in use.
Keep a safe distance away from the machine
whilst it is in operation. Not following this rule
may lead to serious personal injury or, in a worst
case scenario, death.
Risk of crushing - do not come too close to the machine (warning label 1530053)
Keep a safe distance away from the machine
whilst it is in operation. Not following this rule
may lead to serious personal injury or, in a worst
case scenario, death.

Holms Compact
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 141203. 5
Always read instructions and safety regulations before use (warning label 1530054)
Do not use the tool before you have thoroughly
studied all instructions and safety regulations,
and are sure you have understood them. If there
is something you do not understand, contact your
Holms dealer. Misinterpretations may result in
serious personal injury or, in a worst case
scenario, death.
Risk of crushing, beware of flying objects - mind your hands and do not come too close to the
machine (warning label 1530055)
Keep a safe distance from the tool whilst it is
being used and beware of flying objects. Not
following this rule may lead to serious personal
injury or, in a worst case scenario, death.
Use the marked loops when transporting the tool (warning label 1530056)
When transporting the tool, use the marked loops
to secure the tool during transit.

Holms Compact
6© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 141203.
Attach lifting devices at the marked locations when lifing the tool (warning label 1530057)
This label shows where the lifting devices are to
be attached. Make sure that the lifting devices are
attached so that the tool is lifted horizontally (in
horizontal position, no inclination). Use
approved lifting devices only.
Risk of crushing - mind your hands (warning label 1530060)
Mind your hands and keep them away from this
area whilst the tool is in use.

Holms Compact
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 141203. 7
NB
READ THIS DOCUMENT CAREFULLY BEFORE USING THE EQUIPMENT.
Important safety aspects to take into consideration
• Make sure that the tractor/loader can carry the equivalent tool type and weight.
• Make sure that for this sweeper the carrier has a suitable hydraulic oil flow.
• Make sure that no unauthorised persons are loitering in the machine’s working area when working
with the machine or carrying out servicing.
• Always use the dust covers for the quick-couplings when the machine is disconnected, to prevent
dirt getting into the hydraulic system.
Safety
This instruction manual is intended to be used as a guide for the correct use and maintenance of the
machine. Study the manual carefully before starting and operating the machine and before any
preventive maintenance is carried out. A lot of time has been spent on designing and manufacturing
the machine so that it will be as efficient and safe as possible, all of which will be of little use if you
do not read, understand and follow the instructions. Familiarise yourself with the product and all the
instructions, and keep the instruction manual safe so that it is always readily at hand when using the
machine.
NB
THIS MANUAL HAS BEEN PREPARED FOR ALL OUR MARKETS AND MAY THEREFORE INCLUDE DIFFERENT
EQUIPMENT FOR SPECIFIC MARKETS. PLEASE IGNORE THE SECTIONS THAT DO NOT APPLY TO YOUR
MACHINE.
We continuously strive to improve our products and therefore reserve the right to change design
specifications and implement improvements whenever we consider this necessary; however, such
improvements will not be made to products that have already been delivered or put to work. We also
reserve the right to change data and equipment without prior notice, as well as instructions for
maintenance and other service procedures.
The operator is responsible for ensuring that:
Please pay special attention to the warning symbols.
Make sure you tighten the screw joint reinforcement.
The machine is not used or handled incorrectly.
That any warning labels on the machine are legible.
Unauthorised persons do not use the machine or remain within the machine’s
working area during its operation or maintenance.

Holms Compact
8© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 141203.
NB
WESTRONGLY ADVISE AGAINST ANY MODIFICATIONS, CHANGES OR CONVERSIONS THAT HAVE NOT BEEN
APPROVED BY HOLMS.WEALSO WARN AGAINSTUSING SPARE PARTS THAT HAVE NOT BEEN APPROVED BY
HOLMS.DAMAGE OR FAULTS THAT COULD HAVE BEEN CAUSED BY NON-APPROVED SPARE PARTS OR NON-
APPROVED MODIFICATIONS ARE NOT COVERED BY HOLMS’ LIMITED WARRANTY – SEE APPLICABLE
WARRANTY CONDITIONS. HOLMS WILL NOT PROVIDE COMPENSATION FOR ANY PERSONAL INJURY OR
MATERIAL DAMAGE RESULTING FROM THE USE OF NON-APPROVED SPARE PARTS OR MODIFICATIONS.
When ordering spare parts, or otherwise contacting Holms or your local dealer, always specify the
machine type and its serial number. (Specified on the product’s machine plate.)
The carrier is suitable for use with the machine (hydraulic oil flow, stability,
etc.).

Holms Compact
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 141203. 9

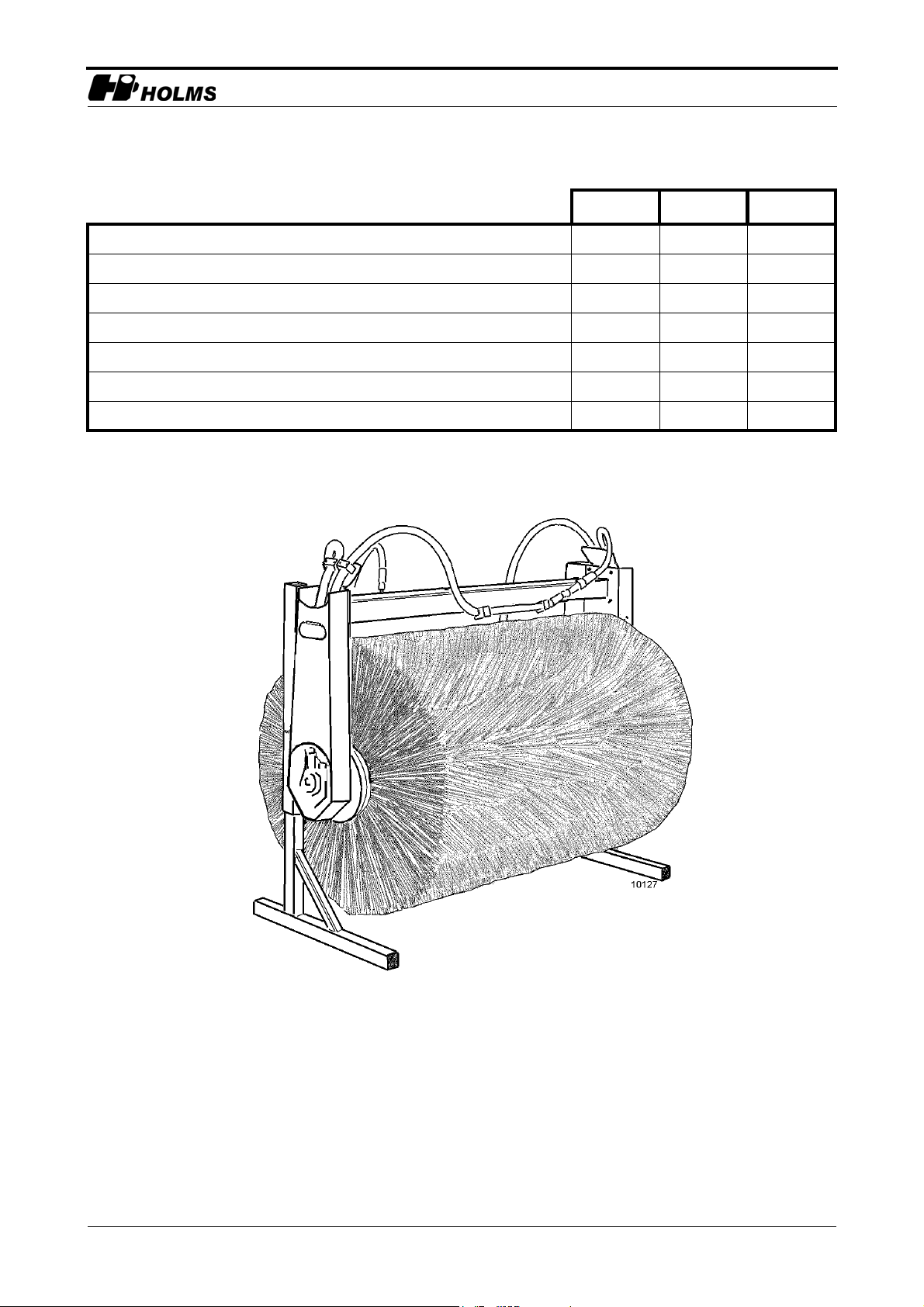

Product data
1.0 1.5 2.0
Max. width (m) 1.20 1.70 2.20
Max. height, excl. attachment (mm) 1,190 1,190 1,190
Weight with standard plastic brush (kg) 175 203 231
Min. oil flow, 2000 motor 40 40 40
Max. oil flow, 2000 motor 130 130 130
Min. oil flow, 4000 motor 70 70 70
Max. oil flow, 4000 motor 210 210 210

Holms Compact
10 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 141203.

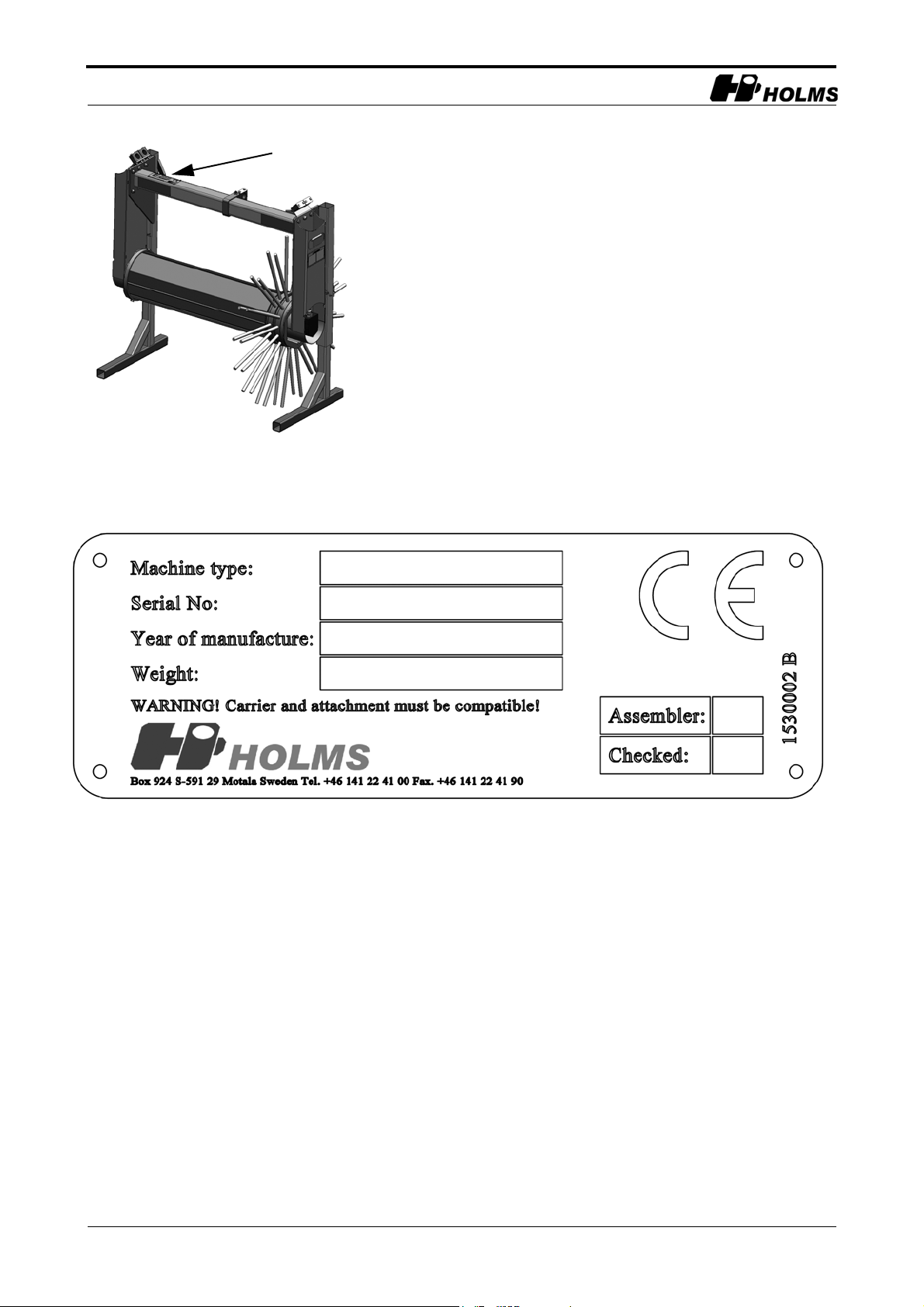

Machine identification plate
Eachtoolhasamachineidentificationplatelocatedasper
figure 1.
The machine identification plate shows the following
information:
• Machine type
• Serial No.
• Year of manufacture
• Weight
• Code of the person who assembled the tool
(Assembler)
• Code of the person who checked the tool on delivery
(Checked).
1.Machine identification plate

Holms Compact
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 141203. 11
Product description
Holms Compact is mounted on the excavator arms of
excavators and tractor excavators. It is intended for
sweeping in connection with excavation and cleaning of,
for example, roofs, containers, railway wagons, loading
platforms and trenches. Holms Compact is also suitable
for rock stripping in connection with blasting work.
Standard model
The standard model of Holms Compact is equipped with
tufted brushes, with a brush diameter of 915 mm, and
short hydraulic hoses without quick couplings. The
sweeper roller is also fitted with parking supports. A
direct-acting hydraulic motor is housed in the brush core.
There are two motor options – model 2000 for an oil flow
of 40-130 litres per minute and model 4000 for an oil
flow of 70-210 litres per minute.
Optional extras
• Attachments: S45, S50, S60 (welded)
• Brush type: Bee-line (PP), steel, mixed brush steel/PP

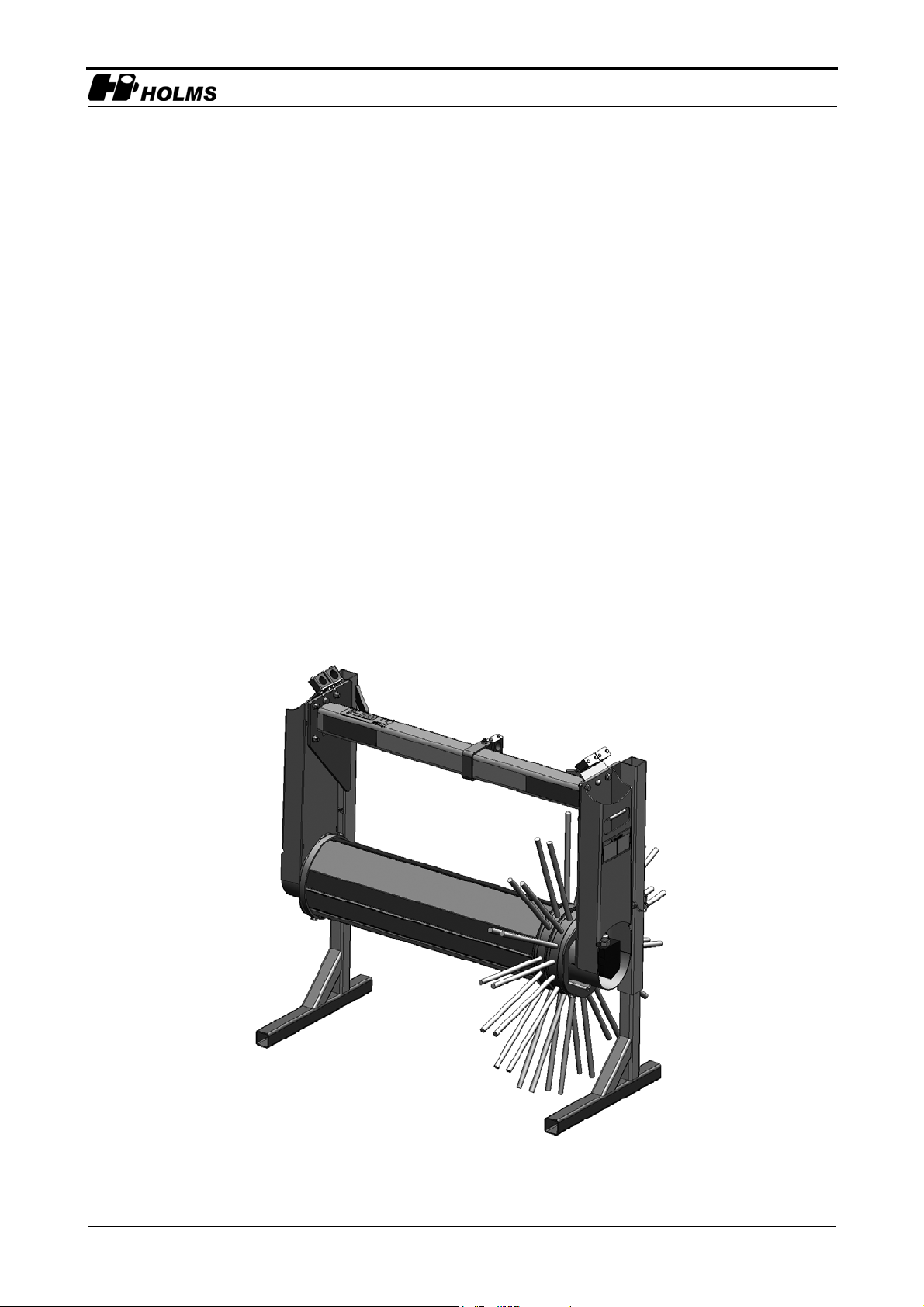

2.Compact

Holms Compact
12 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 141203.
Transport and storage
Storage
Park the sweeper roller on supports to avoid damage to
the brush.
Use approved lifting devices only.

Holms Compact
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 141203. 13
Operating instructions
Connection to carrier
1. Connect the sweeper to the machine’s attachment
bracket. See Instruction Manual for respective carrier.
2. Connect the quick couplings on the drive hoses to the
carrier’s hydraulic outlet.
3. Start the sweeper roller.
4. Check that the sweeper roller is rotating in the right
direction. If the sweeper roller is rotatingin the wrong
direction, change the locked position or the quick
couplings for the hydraulic function.
Check that the machine is secured to the carrier.
Warning! Check that there is no one present within
the risk area (15 m radius around the machine) in
order to prevent injury from objects thrown up by
the roller.

Holms Compact
14 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 141203.
Service and maintenance
After operation
• Wash the sweeper roller. This prolongs its service life
and makes it easier to detect any leakage or other
faults.
• Inspect the machine and make sure that the hoses,
brushes and the machine body are not damaged.
Also check for any oil leakage.
Replacement of brush
Removing the roller brush
1. Remove the four fixing screws from the motor end.
See figure 3.
2. Lift the end off the two guide pins.
3. Unfold the roller brush from the bar tube and slide the
roller off the carrier housingat the other end (figure 4).
Risk of crushing!
3.Removal of fixing screws
4.Removal of end

Holms Compact
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 141203. 15
Replacement of brush
1. Undo the screws and remove the roller brush's
clamping rings. See figure 5.
2. Insert a shackle into the two holes for the fixing
screws in one end of the brush core and feed a lifting
loop through the shackles.
3. Lift the roller brush up on its end using an overhead
crane or similar.
4. Lift the roller off the floor slightly and remove the
brush and spacer rings from the brush core. Lower the
brush core.
5. Check the core for damage.
6. Attach one of the clamping rings to the brush core,
see figure 6.
7. Lift up the brush core with the clamping ring
downwards.
8. Fit abrush with the brush ring ’pins’ in the grooves on
the brush core, (figure 7).
9. Fit a spacer ring. See figure 8.
10.Fit alternating brush rings and spacer rings. Note that
the brush rings must be facing in opposite directions.
See figure 9 on page 16.
11.To ’cover’ the entire core, a thinner spacer ring or
double brushes without spacer rings may be required
at the end to ensure the correct length.
12.Fit the second clamping ring.
5.Clamping ring fixing screws
6.Fitting clamping ring
7.The clamping ring pin in the groove
on the brush core
8.Spacer ring

Holms Compact
16 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 141203.
Fitting the roller brush
1. Push the roller brush into place on the carrier housing
at the fixed end.
2. Lift the end with the hydraulic motor and carrier onto
the two guide pins. See figure 10.
3. Fit the four fixing screws on the end (figure 11).
Risk of crushing!
9.Placement of the brush rings’
pins
10.Fitting the end
11.Fixing screws for end

Holms Compact
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 141203. 17
Replacement of the Swish brush
NOTE: THIS BRUSH CORE DOES NOT NEED TO BE
DISMANTLED PRIOR TO BRUSH REPLACEMENT.
Swish is equipped with a cassette brush, see figure 12.
Brush replacement
1. Loosen the catch, see figure 13.
2. Turn the outer stopto the open position, see figure 14.
3. Pull out the spent cassettes, see figure 15.
4. Rotate the roller so that all cassettes can be extracted.
5. Slide in the new brush cassettes.
6. Rotate the roller so that all cassettes can be inserted.
7. Lock the catch, see figure 13.
8. Turn the outer stop to its locked position, see figure
16.
Tip
Lubricating the tracks with soap or the like will simplify
brush replacement.
12.Cassette brush
13.Catch
14.Open
position
15.Replacing the
brush
16.Locked position

Holms Compact
18 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 141203.
attachment bracket 13
brush diameter 11
carrier housing 16
cassette brush 17
changes 8
clamping rings 15
connection 13
conversions 8
design modifications 7
drive hoses 13
fitting
roller brush 16
fixing screw 16
height 9
hydraulic motor 16
hydraulic oil flow 7
hydraulic outlet 13
lifting device 12
lifting devices 6
locked position 13
machine plate 8, 10
maintenance 14
modifications 8
oil flow 9
oil leakage 14
product data 4, 9
quick coupling 13
removal
roller brush 14
roller brush
fitting 16
removal 14
service 14
service life 14
spare parts 8
standard model 11
storage 12
support 12
Swish 17
technical data 4, 9
transport 12
warning labels 7
clean/replace 4
warning symbols 7
width 9
Index
