HOLMS DUO 1.50 User manual

© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 150603. English
Operating instructions
Box 924 S-591 29 Motala Sweden [phone] ¬[phone]
Applicable from machine no.: 20330
Pick-up sweeper
1.50 m/1.85 m/2.15 m
Holms DUO

Holms DUO
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 150603. 3
Warning labels..............................................................4
Safety...........................................................................7
Product data Basic version...........................................9
Product data with water tank......................................10
Product data with scoop and sprinkler system...........11
Product data with wheel.............................................12
Produktbeskrivning.....................................................13
Transport and storage................................................14
Transporting the tool.........................................14
Storage .............................................................14
Operating instructions ................................................15
Setting the height of the machine and tilting, with
scoop and one support wheel...........................16
Emptying the refuse collector............................17
Disconnection from carrier................................17
Sprinkler system (extra equipment) ..................17
Maintenance...............................................................18
After operation ..................................................18
Brush replacement............................................18
Other service.....................................................20
Index...........................................................................21
Content

Holms DUO
4© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 150603.
Warning labels
There are several specific warning labels on this product; see the descriptions below. Make sure that
you understand the implications of these labels before using the product.
Clean/replace warning labels if they are illegible or are missing. Contact you Holms dealer if you
require new labels.
Risk of crushing - mind your hands and do not come too close to the machine
(warning label 1530052)
Do not enter this area whilst the machine is in
operation. Mind your hands and keep them away
from this area whilst the tool is in use.
Keep a safe distance away from the machine
whilst it is in operation. Not following this rule
may lead to serious personal injury or, in a worst
case scenario, death.
Risk of crushing - do not come too close to the machine (warning label 1530053)
Keep a safe distance away from the machine
whilst it is in operation. Not following this rule
may lead to serious personal injury or, in a worst
case scenario, death.

Holms DUO
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 150603. 5
Always read instructions and safety regulations before use (warning label 1530054)
Do not use the tool before you have thoroughly
studied all instructions and safety regulations,
and are sure you have understood them. If there
is something you do not understand, contact your
Holms dealer. Misinterpretations may result in
serious personal injury or, in a worst case
scenario, death.
Risk of crushing, beware of flying objects – mind your hands and do not come too close to the
machine (warning label 1530055)
Keep a safe distance from the tool whilst it is
being used and beware of flying objects. Not
following this rule may lead to serious personal
injury or, in a worst case scenario, death.
Use the marked loops when transporting the tool (warning label 1530056)
When transporting the tool, use the marked loops
to secure the tool during transit.

Holms DUO
6© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 150603.

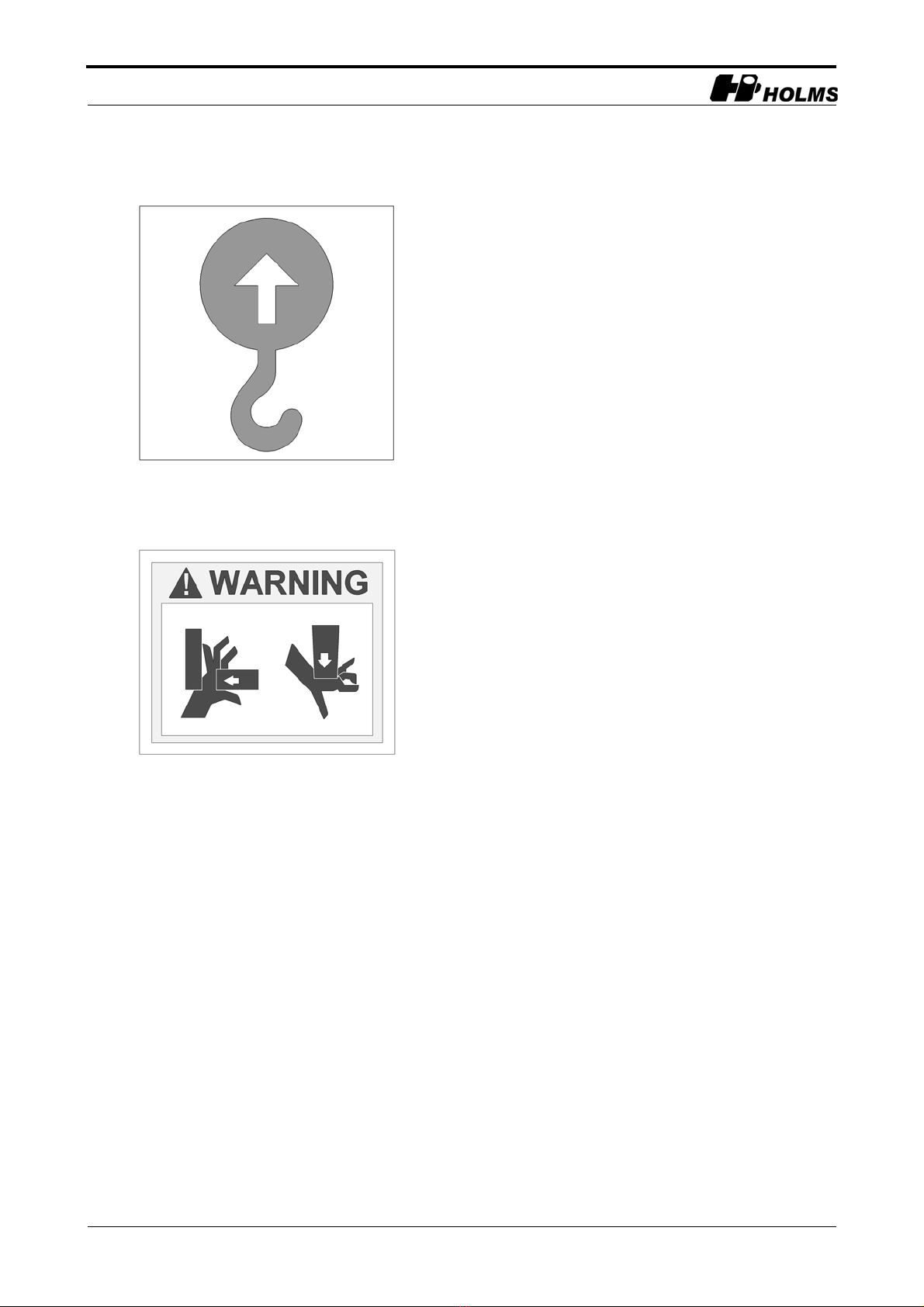

Attach lifting devices at the marked locations when lifing the tool (warning label 1530057)
This label shows where the lifting devices are to
be attached. Make sure that the lifting devices are
attached so that the tool is lifted horizontally
(in horizontal position, no inclination).
Use approved lifting devices only.
Risk of crushing - mind your hands (warning label 1530060)
Mind your hands and keep them away from this
area whilst the tool is in use.

Holms DUO
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 150603. 7
NB
READ THIS DOCUMENT CAREFULLY BEFORE USING THE EQUIPMENT.
Important safety aspects to take into consideration
• Make sure that the tractor/loader can carry the equivalent tool type and weight.
• Make sure that for this sweeper the carrier has a suitable hydraulic oil flow.
• Make sure that no unauthorised persons are loitering in the machine’s working area when working
with the machine or carrying out servicing.
• Always use the dust covers for the quick-couplings when the machine is disconnected, to prevent
dirt getting into the hydraulic system.
Safety
This instruction manual is intended to be used as a guide for the correct use and maintenance of the
machine. Study the manual carefully before starting and operating the machine and before any
preventive maintenance is carried out. A lot of time has been spent on designing and manufacturing
the machine so that it will be as efficient and safe as possible, all of which will be of little use if you
do not read, understand and follow the instructions. Familiarise yourself with the product and all the
instructions, and keep the instruction manual safe so that it is always readily at hand when using the
machine.
NB
THIS MANUAL HAS BEEN PREPARED FOR ALL OUR MARKETS AND MAY THEREFORE INCLUDE DIFFERENT
EQUIPMENT FOR SPECIFIC MARKETS. PLEASE IGNORE THE SECTIONS THAT DO NOT APPLY TO YOUR
MACHINE.
We continuously strive to improve our products and therefore reserve the right to change design
specifications and implement improvements whenever we consider this necessary; however, such
improvements will not be made to products that have already been delivered or put to work. We also
reserve the right to change data and equipment without prior notice, as well as instructions for
maintenance and other service procedures.
The operator is responsible for ensuring that:
Please pay special attention to the warning symbols.
Make sure you tighten the screw joint reinforcement.
The machine is not used or handled incorrectly.
That any warning labels on the machine are legible.
Unauthorised persons do not use the machine or remain within the machine’s
working area during its operation or maintenance.

Holms DUO
8© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 150603.
NB
WESTRONGLY ADVISE AGAINST ANY MODIFICATIONS, CHANGES OR CONVERSIONS THAT HAVE NOT BEEN
APPROVED BY HOLMS. WEALSO WARN AGAINST USING SPARE PARTS THAT HAVE NOT BEEN APPROVED
BY HOLMS. DAMAGE OR FAULTS THAT COULD HAVE BEEN CAUSED BY NON-APPROVED SPARE PARTS OR
NON-APPROVED MODIFICATIONS ARE NOT COVERED BY HOLMS’ LIMITED WARRANTY – SEE APPLICABLE
WARRANTY CONDITIONS. HOLMS WILL NOT PROVIDE COMPENSATION FOR ANY PERSONAL INJURY OR
MATERIAL DAMAGE RESULTING FROM THE USE OF NON-APPROVED SPARE PARTS OR MODIFICATIONS.
When ordering spare parts, or otherwise contacting Holms or your local dealer, always specify the
machine type and its serial number. (Specified on the product’s machine plate.)
The carrier is suitable for use with the machine (hydraulic oil flow, stability,
etc.).
Avoid collecting hazardous substances that can be dispersed in the air.
Inspect the hydraulic hoses. Damaged hoses can cause leaks.

Holms DUO
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 150603. 9

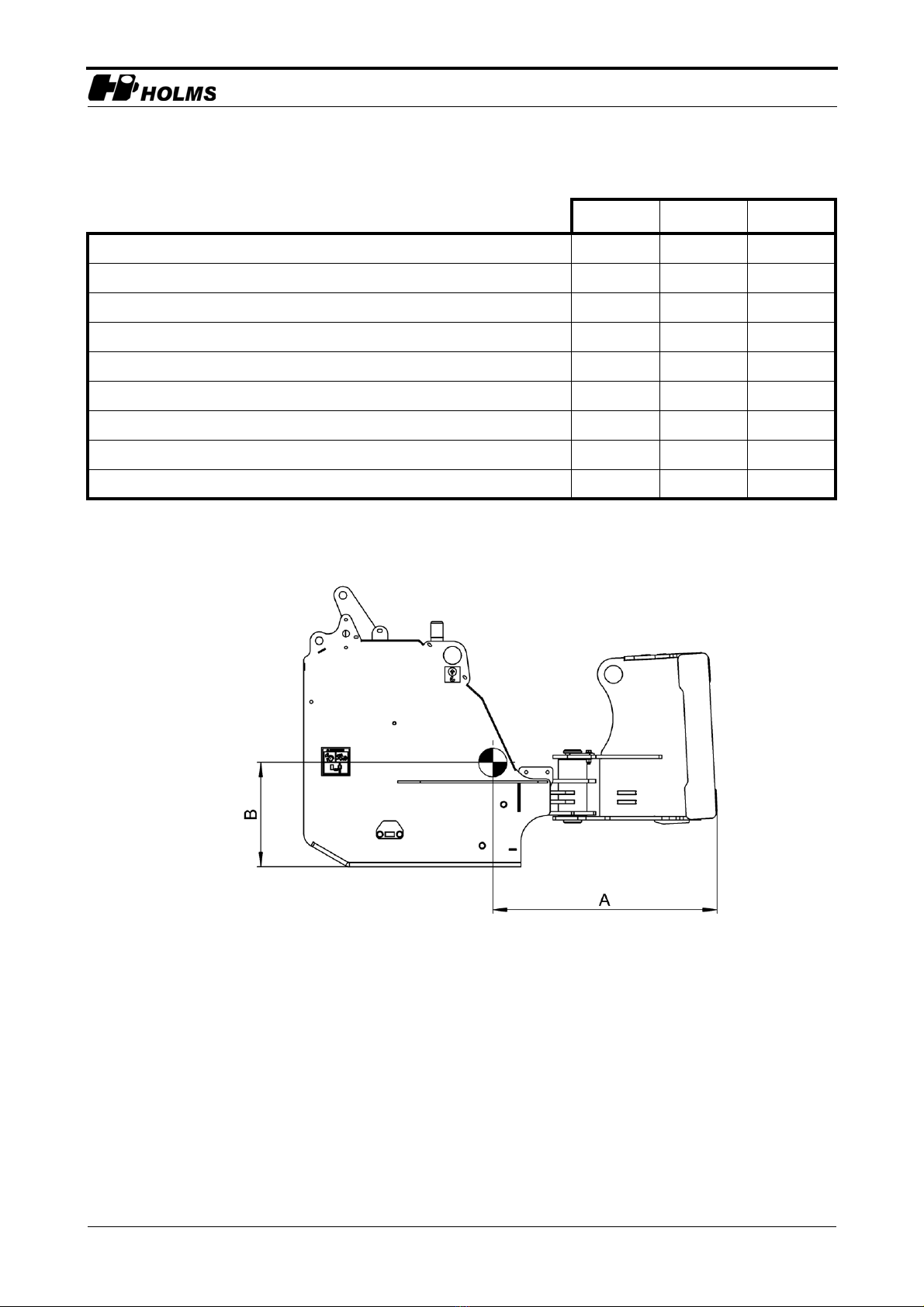

Product data Basic version
1.50 1.85 2.15
Working width (m) 1.50 1.85 2.15
Max. width (m) 1.75 2.10 2.4
Max. height without hook (m) 0.8 0.8 0.8
Length (m) 1.3 1.3 1.3
Weight (kg) 284 289 295
Min. oil flow (litres/min) 30 30 30
Max. oil flow (litres/min) 80 80 80
Centre of gravity, dimension A (mm) 630 630 630
Centre of gravity, dimension B (mm) 290 290 290
1.Centre of gravity, basic model

Holms DUO
10 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 150603.
Product data with water tank
1.50 1.85 2.15
Working width (m) 1.50 1.85 2.15
Max. width (m) 1.75 2.1 2.4
Max height without hook (m) 0.8 0.8 0.8
Length (m) 1.3 1.3 1.3
Water tank volume (litres) 100 100 100
Weight (kg) 318 324 331
Min. oil flow (litres/min) 30 30 30
Max. oil flow (litres/min) 80 80 80
Max. oil flow with flow restrictor(litres/min) 110 110 110
Centre of gravity, dimension A (mm) 633 633 633
Centre of gravity, dimension B (mm) 344 344 344
2.Centre of gravity with water tank

Holms DUO
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 150603. 11

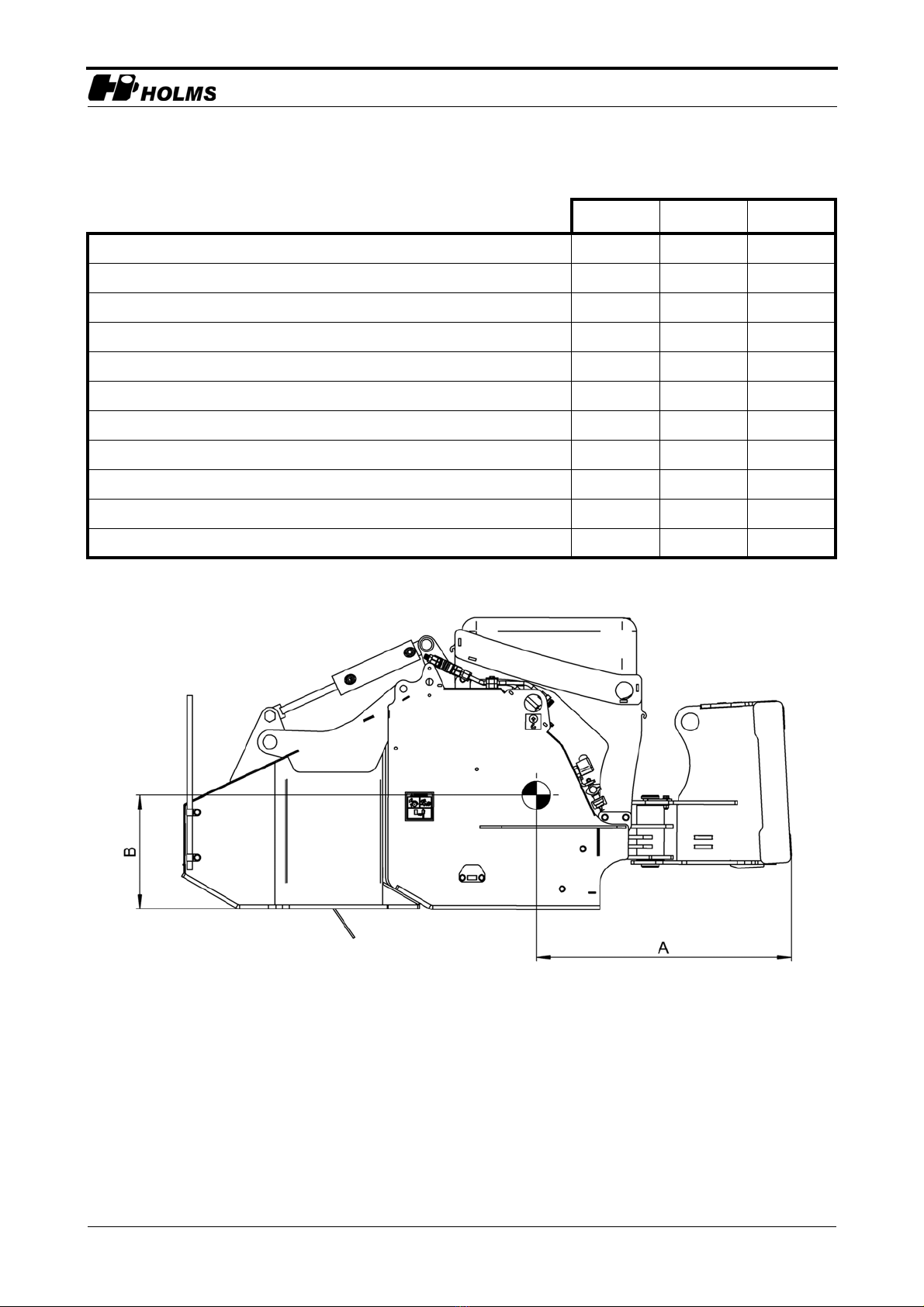

Product data with scoop and sprinkler system
1.50 1.85 2.15
Working width (m) 1.50 1.85 2.15
Max. width (m) 1.75 2.1 2.4
Max height without hook (m) 0.8 0.8 0.8
Length (m) 1.8 1.8 1.8
Effective sweeping volume (approx. litres) 100 120 140
Weight (kg) 418 435 452
Min. oil flow (litres/min) 30 30 30
Max. oil flow (litres/min) 80 80 80
Max. oil flow with flow restrictor (litres/min) 110 110 110
Centre of gravity, dimension A (mm) 730 730 730
Centre of gravity, dimension B (mm) 325 325 325
3.Centre of gravity with scoop ans sprinkler system

Holms DUO
12 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 150603.
Product data with wheel
1.50 1.85 2.15
Working width (m) 1.50 1.85 2.15
Max. width (m) 1.75 2.1 2.4
Max height without hook (m) 1.2 1.2 1.2
Length (m) 2.45 2.45 2.45
Weight (kg) 447 464 481
Min. oil flow (litres/min) 30 30 30
Max. oil flow (litres/min) 80 80 80
Max. oil flow with flow restrictor (litres/min) 110 110 110
Centre of gravity, dimension A (mm) 900 900 900
Centre of gravity, dimension B (mm) 390 390 390
4.Centre of gravity with wheel

Holms DUO
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 150603. 13
Produktbeskrivning
Holms DUO är en frontmonterad sopmaskin för mindre
bärareexempelvis:hjullastareochtraktorer.Holms DUO
kan utrustas med sopbehållare, borstskydd och/eller
vattentank. Valsen drivs av en direktverkande
hydraulmotor. Motorn är avsedd för ett hydrauloljeflöde
mellan 30 och 80 l/min (110 l/min med extra tillbehör).
Sopvalsens upphängning ger ett konstant och jämnt
fördelat anläggningstryck mot underlaget. Detta ger ett
minimalt borstslitage och följsamhet till lutningar och
ojämnheter.
5.Holms DUO

Holms DUO
14 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 150603.
Transport and storage
Transporting the tool
When loading and unloading, lift the tool at all three
marked loops.
Storage
During storage, make sure the sprinkler system is
emptied. Make sure that the machine is lubricated; there
are four lubrication points. See figure 15 and figure 16 on
page 18.
Use approved lifting devices only.
When transporting the machine, use the marked
loops to secure the machine during transit.

Holms DUO
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 150603. 15

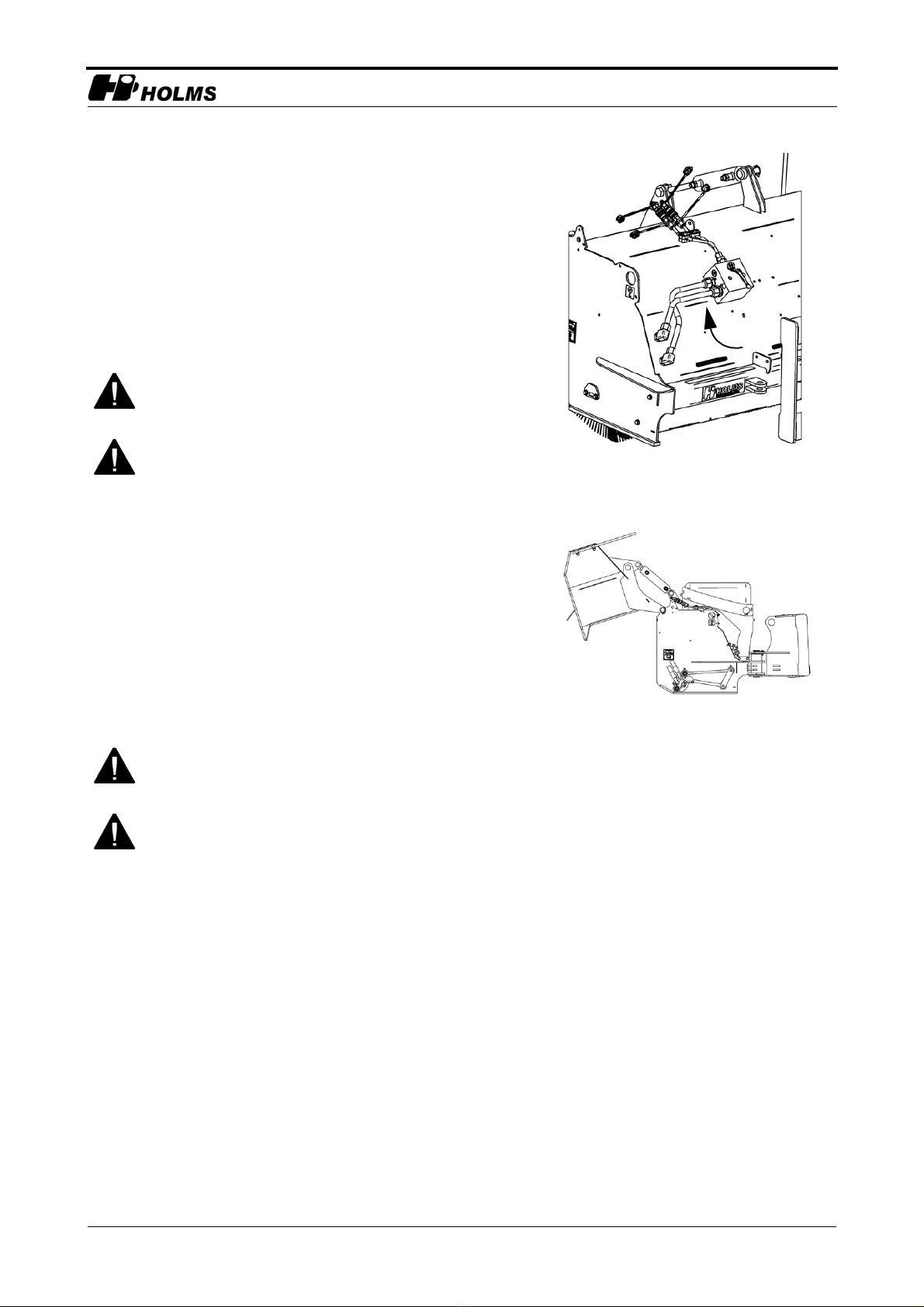

Operating instructions
Connection to carrier
1. Connect the sweeper to the carrier by tilting the ma-
chine attachment forwards, coupling the hook sec-
tion, lifting and tilting back. The machine must then
be locked. See Instruction Manual for the carrier in
question.
2. Connect the power hoses' quick couplings to the third
function's hydraulic terminal or to the hydraulic
motor circuit on the carrier.
3. Start the roller brush by moving the lever for the third
hydraulic function to its locked position, or activate
the hydraulic motor circuit.
4. Check that the sweeper roller is rotating in the right
direction, see figure 6 If the roller brush rotates in the
wrong direction when in the locked position, change
the locked position for the lever or change the quick
coupling for the third hydraulic function.
NB! THE SELECTOR VALVE MUST BE IN THE OFF POSITION
WHEN OPERATING WITHOUT ASCOOP (IF THERE IS ONE).
SEE FIGURE 8 .
Connecting the water pump (extra equipment) to the carrier
1. Connect the electric cable on the water pump to the
carrier. The terminal must be secured for at least
12 Volts.
Connecting the scoop (extra equipment) to the sweeper.
1. Connect the three mounting points on the scoop, see
A in figure 7.
2. Connect the hydraulic hoses to the hydraulic
connections on the chassis, see B1 and B2 in figure 7.
Check that the machine is secured.
Itisextremelyimportantthatthehydrauliccouplings
are clean. Allowing dirt into the hydraulic system
would severely impair sweeper functionality.
Never adjust the selector valve without stopping
the oil flow.
Risk of injury, rotating parts.
6.Direction of rotation
7.Connecting the scoop
8.Selector valve, scoop
ON
OFF
SCOOP
9.Brush guard
AAA

Holms DUO
16 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 150603.
3. Set the selector valve to the “ON” position to activate
the scoop function, see figure 8.
Connecting/Disconnecting the brush guard (extra
equipment)
Connect/disconnect the three mounting points on the
scoop, see A in figure 9 on page 15.
Adjusting the height and tilting the machine, sweeper
without support wheels
1. Lift the sweeper.
2. Tilt the sweeper until the tilt indicator’s yellow
markings are in line, see figure 10.
3. Gently lower the sweeper until the collector is 5-
10 cm above the ground, see figure 11.
4. Readjust the tilt where appropriate as per item 2.
Setting the height of the machine and tilting, with scoop
and one support wheel
1. Tilt the sweeper until the tilt indicator's yellow
markings are in line, see figure 10.
2. Lowerthe sweeper gentlyuntil the support wheelis in
contact with the ground, see figure 12.
3. Readjust the tilt if necessary.
Itisextremelyimportantthatthehydrauliccouplings
are clean. Allowing dirt into the hydraulic system
would severely impair sweeper functionality.
The brush guard should be used when there is
a risk of items being expelled.
When running the machine on uneven surfaces it
may be necessary to temporarily lift it to avoid con-
tact between the ground and the refuse collector.
10.Tilt indicator
11.Height adjustment
12.Sweeper with one support wheel

Holms DUO
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 150603. 17
Emptying the refuse collector
NB! WHEN OPERATING WITH ASCOOP, THE SELECTOR
VALVE MUST BE IN THE ON POSITION, SEE FIGURE 13.
1. Pull the control back to the third function. This will
open the scoop, see figure 14.
2. Empty the refuse collector.
3. Move the control forwards to the third function to
close the scoop.
Disconnection from carrier
1. Release the hydraulic quick couplings and any
electrical cables to the water pump (extra
accessories).
2. Release the machine attachment lock pins, and
carefully lower the machine to the ground. This is
important, otherwise the sweeper may be damaged.
3. When the machine reaches the ground, tilt forward
and then back to release the hooks.
Sprinkler system (extra equipment)
The pump must not be run when dry, i.e. once the water
has been used up the pump must be switched off.
The machine is fitted with a water filter to prevent dirt
from entering the system. The filter is on the pump's
suction side. The filter can be flushed clean and reused.
If there is a risk of freezing, empty the water from the
water tank, water pump and attendant hoses. The easiest
method is first to empty the tank, and then to run the
pump empty for approx. 20-30 seconds. When emptying
the tank, release the hose by the tank using a quick
coupling.
Risk of crushing!
Never adjust the selector valve without stopping
the oil flow.
Never leave the machine in the unfolded position.
Risk of crushing!
13.Selector valve, scoop
ON
OFF
SCOOP
14.Sweeper in emptying position

Holms DUO
18 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 150603.
Maintenance
After operation
• Wash the sweeper. This will increase its service life
and make it easier to detect any leakage or other
faults.
• Inspect the machine and make sure that the hoses,
rubber housings and the machine body are not
damaged. Also check for any oil leakage.
• Top up the lubrication points, see figure 15 and
figure 16.
Brush replacement
Tools
• ring spanner 13 mm
Removing the roller brush sweeper
1. Release the scoop (extra accessory)
2. Remove the lifting stops on both the right and left
side. See A in figure 17.
3. Release the rear mount on the slewing bracket on the
right-hand side. See B in figure 17.
Please note that only the screws are released from the
outside and that the actual slewing arm can remain on
its clamp plate, see figure 18.
4. Carefully lift up the machine to allow the motor to be
pulled out from the side. See figure 18.
5. Turn out the brush.
Make sure that the brush has stopped moving
before maintenance.
If the machine is lifted too high before the roller
brush has been removed from the motor unit, the
roller may become caught in the hydraulic hoses
and there is a risk that they may be damaged.
15.Lubrication point
16.Lubrication points
17.Removing the water tank, lifting
stops and slewing brackets
A
B
A
A
A
18.Removing the motor
Clamp plate for slewing brackets

Holms DUO
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 150603. 19
Replacing the brush
1. Release the three tension springs and remove the
roller brush’s end ring, see figure 19.
2. Pull off the brush and spacer rings. This is most easily
done by hanging up the roller vertically in an
overhead crane or suchlike.
3. Check the core for damage.
4. Lift up the brush core with the bearing shaft facing
downwards on a pair of wooden blocks or suchlike.
This is to prevent damaging the shaft and slewing
brackets.
5. Insert a brush using the brush ring's "pins" in the
space between the three square sections.
6. Fit a spacer ring.
7. Fit alternating brush rings and spacer rings. Please
note that the brush rings' “carrier pins” must be more
or less evenly divided between the three square
sections. This is so that no single section will be
exposed to all the strain from the brushes.
8. To “cover” the entire core it may be necessary to use
double brushes without spacer ring on the end so that
the right length will be obtained.
9. Refit the end ring using the three tension springs.
See figure 19.
Fitting the roller brush
1. Roll in the roller
2. Push the brush in towards the motor package in the
chassis.
3. Lift up the loose slewing bracket, figure 20 and fit it,
see B in figure 17 on page 18.
4. Lower the machine.
5. Re-attach the slewing bracket top, see A in figure 17
on page 18.
Always use Loctite on the screws.
19.Tension springs
Clamp plate for slewing brackets
20.Refitting the motor

Holms DUO
20 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 150603.
Other service
Lubrication points
Lubricate the machine's lubrication points in connection
with replacing the brush, see figure 15 and figure 16 on
page 18. Also lubricate the lubrication points prior to
long-term storage.
Fitting the hydraulic hoses
If the hydraulic hoses have been disconnected, it is
essential that they are refitted correctly.
• Fit the hose at an angle of 15°, see figure 22.
• The hoses must then follow the inside of the chassis.
See figure 21.
Fitting the bearings
The machine’s bearings are made of maintenance-free
material. They must, however, be greased before being
refitted.
21.Refitting of hoses
15°
22.Hose angle
