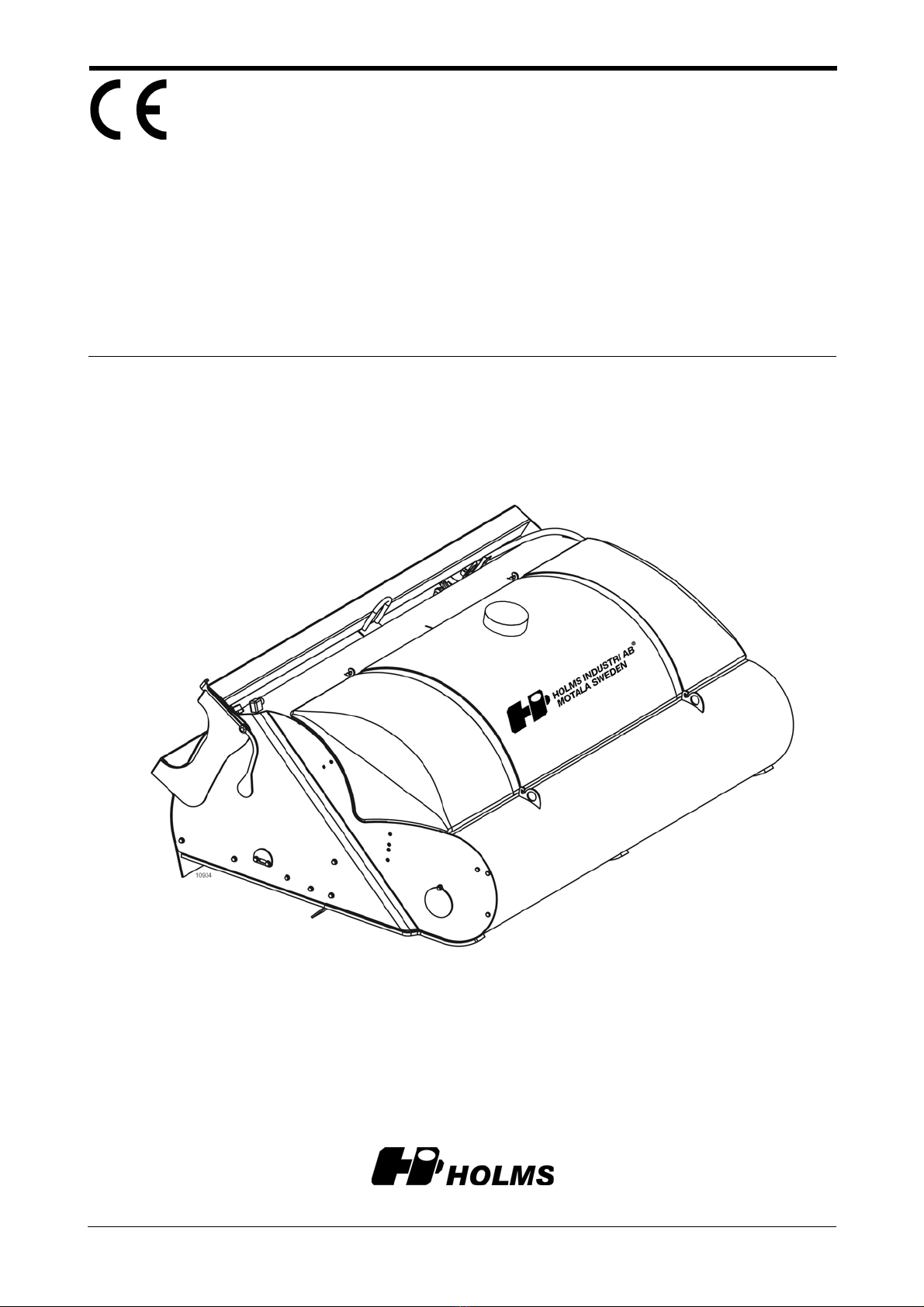

HOLMS SU User manual

Original language: Swedish © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 140311. English
Operating instructions
Box 924 SE-591 29 Motala Sweden [phone] ¬[phone]
Applicable from machine no.: 18813
Pick-up sweeper
1,50 m/1.85 m/2.15 m
SU

SU
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 140311. 3
Warning labels..............................................................4
Safety...........................................................................7
Product data.................................................................9
Transport and storage................................................10
Transporting the tool.........................................10
Storage .............................................................10
Product Description....................................................11
Operating instructions ................................................12
Adjusting the height and tilt of the machine,
sweeper with one support wheel.......................13
Emptying the refuse collector............................13
Disconnection from carrier................................13
Sprinkler............................................................13
Side brush (accessory) .....................................14
Maintenance...............................................................15
After operation ..................................................15
Replacing the brush..........................................15
Other service.....................................................18
Index...........................................................................19
Contents

SU
4© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 140311.

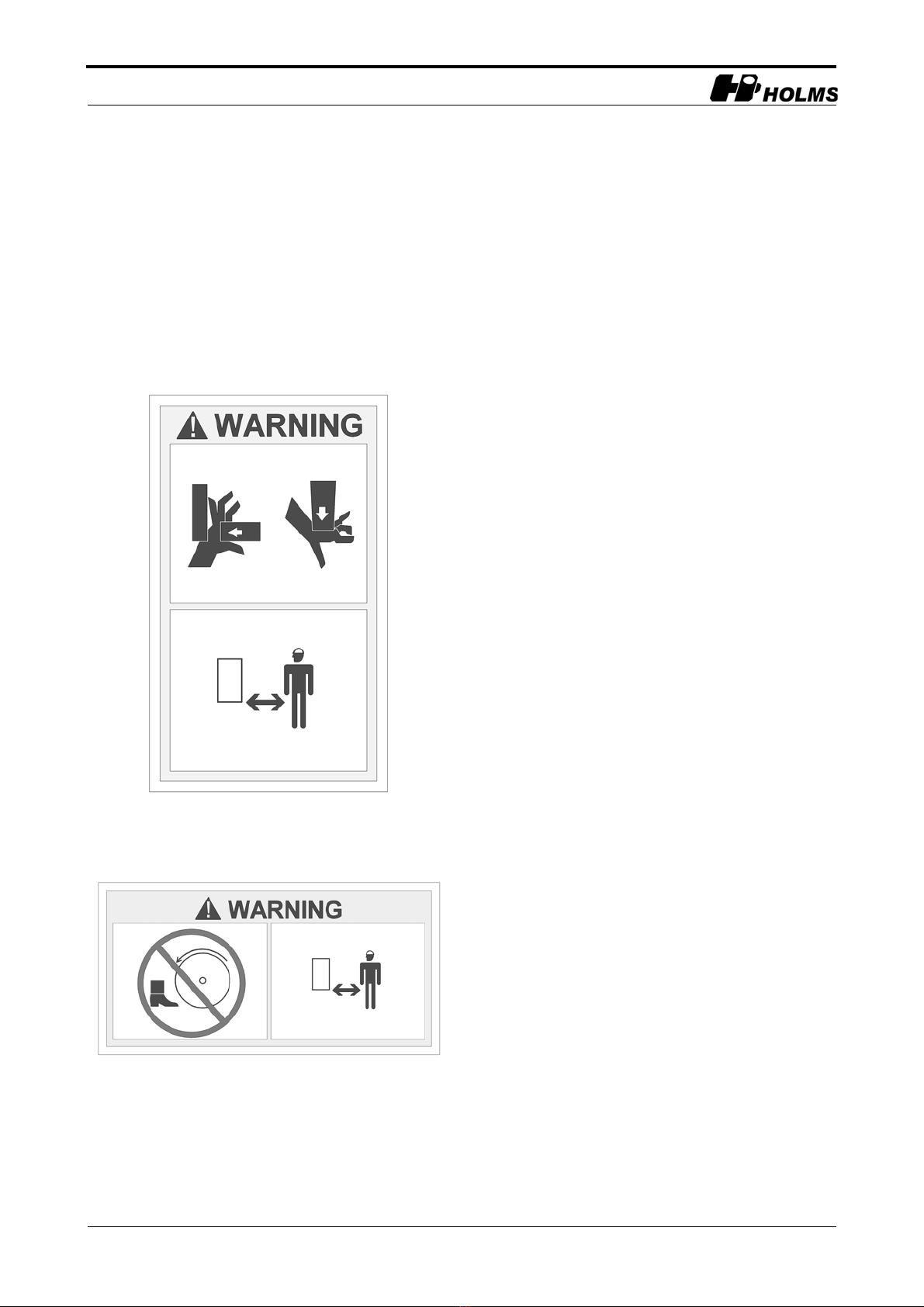

Warning labels
There are several specific warning labels on this product; see the descriptions below. Make sure that
you understand the implications of these labels before using the product.
Clean/replace warning labels if they are illegible or are missing. Contact you Holms dealer if you
require new labels.
Risk of crushing - mind your hands and do not come too close to the machine (warning label
1530052)
Do not enter this area whilst the machine is in
operation. Mind your hands and keep them away
from this area whilst the tool is in use.
Keep a safe distance away from the machine
whilst it is in operation. Not following this rule
may lead to serious personal injury or, in a worst
case scenario, death.
Risk of crushing - do not come too close to the machine (warning label 1530053)
Keep a safe distance away from the machine
whilst it is in operation. Not following this rule
may lead to serious personal injury or, in a worst
case scenario, death.

SU
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 140311. 5
Always read instructions and safety regulations before use (warning label 1530054)
Do not use the tool before you have thoroughly
studied all instructions and safety regulations,
and are sure you have understood them. If there
is something you do not understand, contact your
Holms dealer. Misinterpretations may result in
serious personal injury or, in a worst case
scenario, death.
Risk of crushing, beware of flying objects - mind your hands and do not come too close to the
machine (warning label 1530055)
Keep a safe distance from the tool whilst it is
being used and beware of flying objects. Not
following this rule may lead to serious personal
injury or, in a worst case scenario, death.
Use the marked loops when transporting the tool (warning label 1530056)
When transporting the tool, use the marked loops
to secure the tool during transit.

SU
6© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 140311.
Attach lifting devices at the marked locations when lifing the tool (warning label 1530057)
This label shows where the lifting devices are to
be attached. Make sure that the lifting devices are
attached so that the tool is lifted horizontally (in
horizontal position, no inclination). Use
approved lifting devices only.
Risk of crushing - mind your hands (warning label 1530060)
Mind your hands and keep them away from this
area whilst the tool is in use.

SU
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 140311. 7
NB
READ THIS DOCUMENT CAREFULLY BEFORE USING THE EQUIPMENT.
Important safety aspects to take into consideration
• Make sure that the tractor/loader can carry the equivalent tool type and weight.
• Make sure that for this sweeper the carrier has a suitable hydraulic oil flow.
• Make sure that no unauthorised persons are loitering in the machine’s working area when working
with the machine or carrying out servicing.
• Always use the dust covers for the quick-couplings when the machine is disconnected, to prevent
dirt getting into the hydraulic system.
Safety
This instruction manual is intended to be used as a guide for the correct use and maintenance of the
machine. Study the manual carefully before starting and operating the machine and before any
preventive maintenance is carried out. A lot of time has been spent on designing and manufacturing
the machine so that it will be as efficient and safe as possible, all of which will be of little use if you
do not read, understand and follow the instructions. Familiarise yourself with the product and all the
instructions, and keep the instruction manual safe so that it is always readily at hand when using the
machine.
NB
THIS MANUAL HAS BEEN PREPARED FOR ALL OUR MARKETS AND MAY THEREFORE INCLUDE DIFFERENT
EQUIPMENT FOR SPECIFIC MARKETS. PLEASE IGNORE THE SECTIONS THAT DO NOT APPLY TO YOUR
MACHINE.
We continuously strive to improve our products and therefore reserve the right to change design
specifications and implement improvements whenever we consider this necessary; however, such
improvements will not be made to products that have already been delivered or put to work. We also
reserve the right to change data and equipment without prior notice, as well as instructions for
maintenance and other service procedures.
The operator is responsible for ensuring that:
Please pay special attention to the warning symbols.
Make sure you tighten the screw joint reinforcement.
The machine is not used or handled incorrectly.
That any warning labels on the machine are legible.
Unauthorised persons do not use the machine or remain within the machine’s
working area during its operation or maintenance.

SU
8© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 140311.
NB
WESTRONGLY ADVISE AGAINST ANY MODIFICATIONS, CHANGES OR CONVERSIONS THAT HAVE NOT BEEN
APPROVED BY HOLMS.WEALSO WARN AGAINSTUSING SPARE PARTS THAT HAVE NOT BEENAPPROVEDBY
HOLMS.DAMAGE OR FAULTS THAT COULD HAVE BEEN CAUSED BY NON-APPROVED SPARE PARTS OR NON-
APPROVED MODIFICATIONS ARE NOT COVERED BY HOLMS’ LIMITED WARRANTY – SEE APPLICABLE
WARRANTY CONDITIONS. HOLMS WILL NOT PROVIDE COMPENSATION FOR ANY PERSONAL INJURY OR
MATERIAL DAMAGE RESULTING FROM THE USE OF NON-APPROVED SPARE PARTS OR MODIFICATIONS.
When ordering spare parts, or otherwise contacting Holms or your local dealer, always specify the
machine type and its serial number. (Specified on the product’s machine plate.)
The carrier is suitable for use with the machine (hydraulic oil flow, stability,
etc.).

SU
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 140311. 9

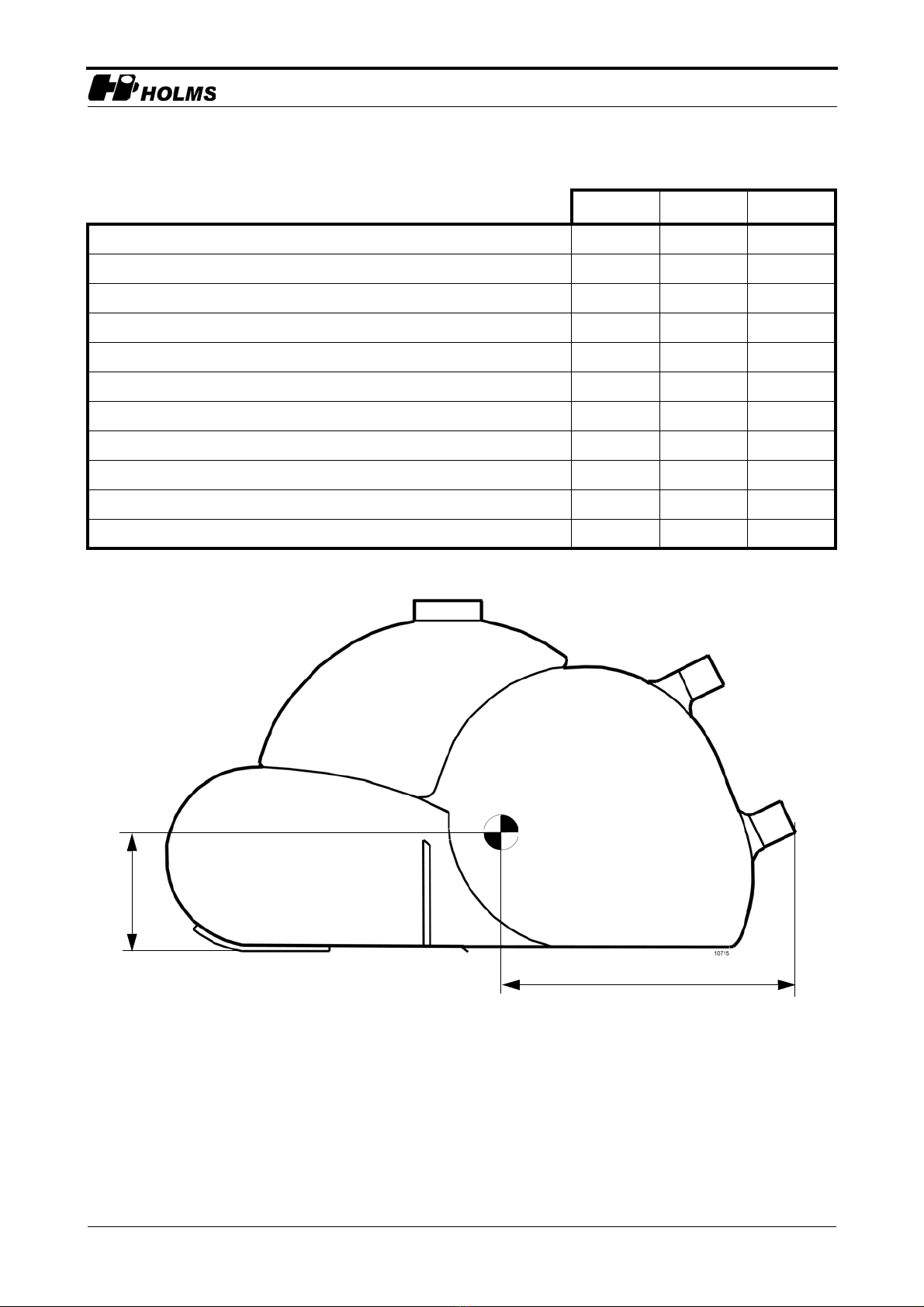

Product data
1,50 1,85 2,15
Operating width (m) 1,50 1,85 2,15
Max width (m) 1,60 1,95 2,25
Max height without hook (m) 0,8 0,8 0,8
Length (m) 1,45 1,45 1,45
Water tank volume (litres) 190 240 240
Effective sweeping volume (approx. litres) 170 220 250
Weight without side brush (kg) 290 305 320
Additional weight with side brush (kg) 35 35 35
Max oil flow (litres/min) 80 80 80
Centre of gravity, dimension A (without side brush) (mm) 640 640 640
Centre of gravity, dimension B (without side brush) (mm) 280 280 280
A
B
1.Centre of gravity

SU
10 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 140311.
Transport and storage
Transporting the tool
When loading and unloading, lift the tool at all three
marked loops.
Storage
When storing, remember to drain the spray system.
Make sure that the machine is lubricated; there are five
lubrication points. See figure 17 and figure 18 on
page 18.
Use approved lifting devices only.
When transporting the tool, use the marked loops
to secure the tool during transit.

SU
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 140311. 11

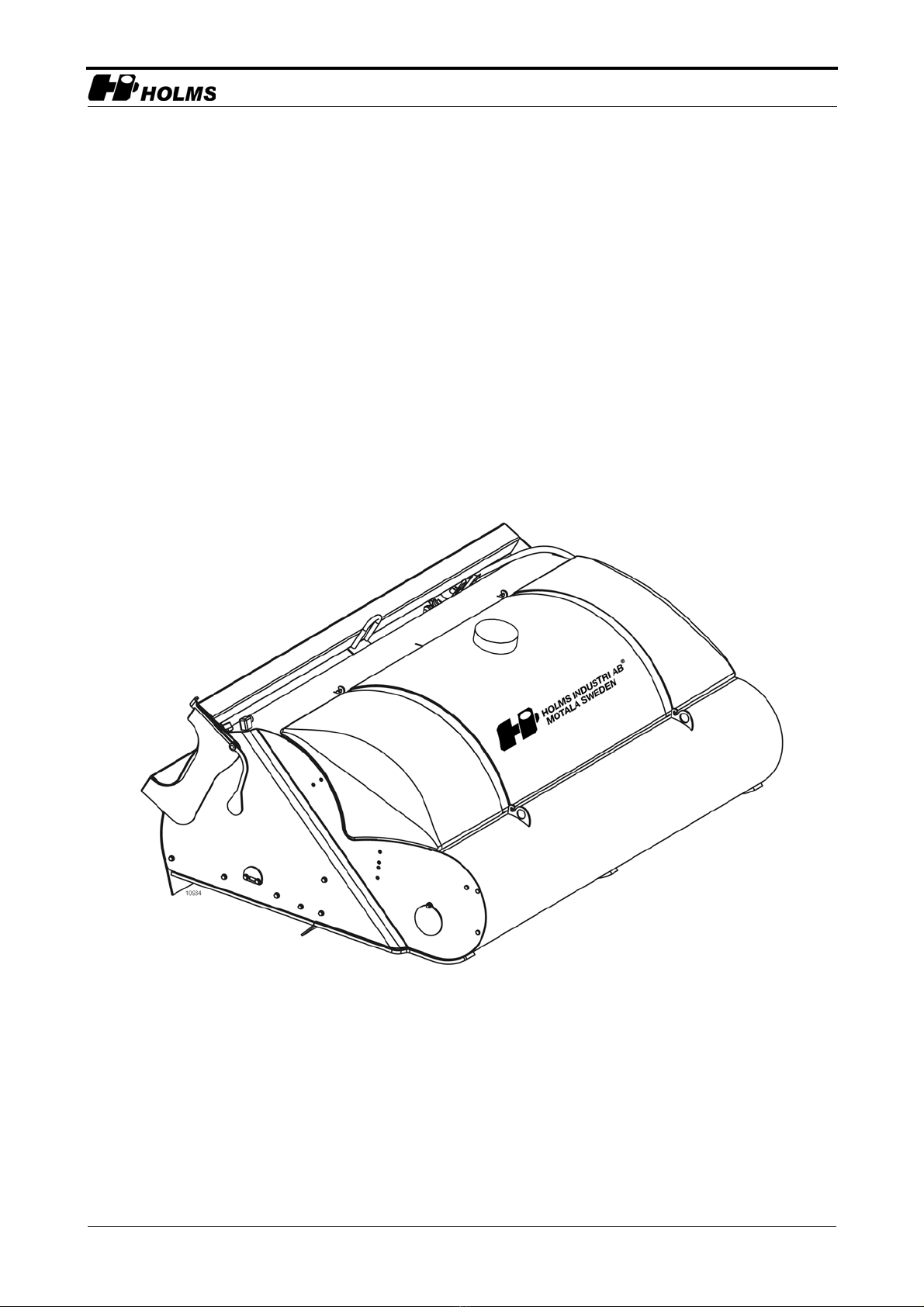

Product Description
Holms SU is a front-mounted, pick-up sweeper for small
carriers, e.g. loaders and tractors. The roller is driven by
a direct-acting hydraulic motor, which is intended for a
flow of hydraulic oil of between 30-80 litres/min.
The suspension of the roller brush ensures a constant and
uniformly distributed contact pressure to the surface.
This minimises brush wear and contact with incline and
uneven surfaces.
In the standard version, Holms SU is fitted with a water
tank and an electric water pump. The machine’s
attachment hooks are secured with screws, whichenables
lateral displacement and also simplifies switching
between different carriers.
2.Holms SU

SU
12 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 140311.

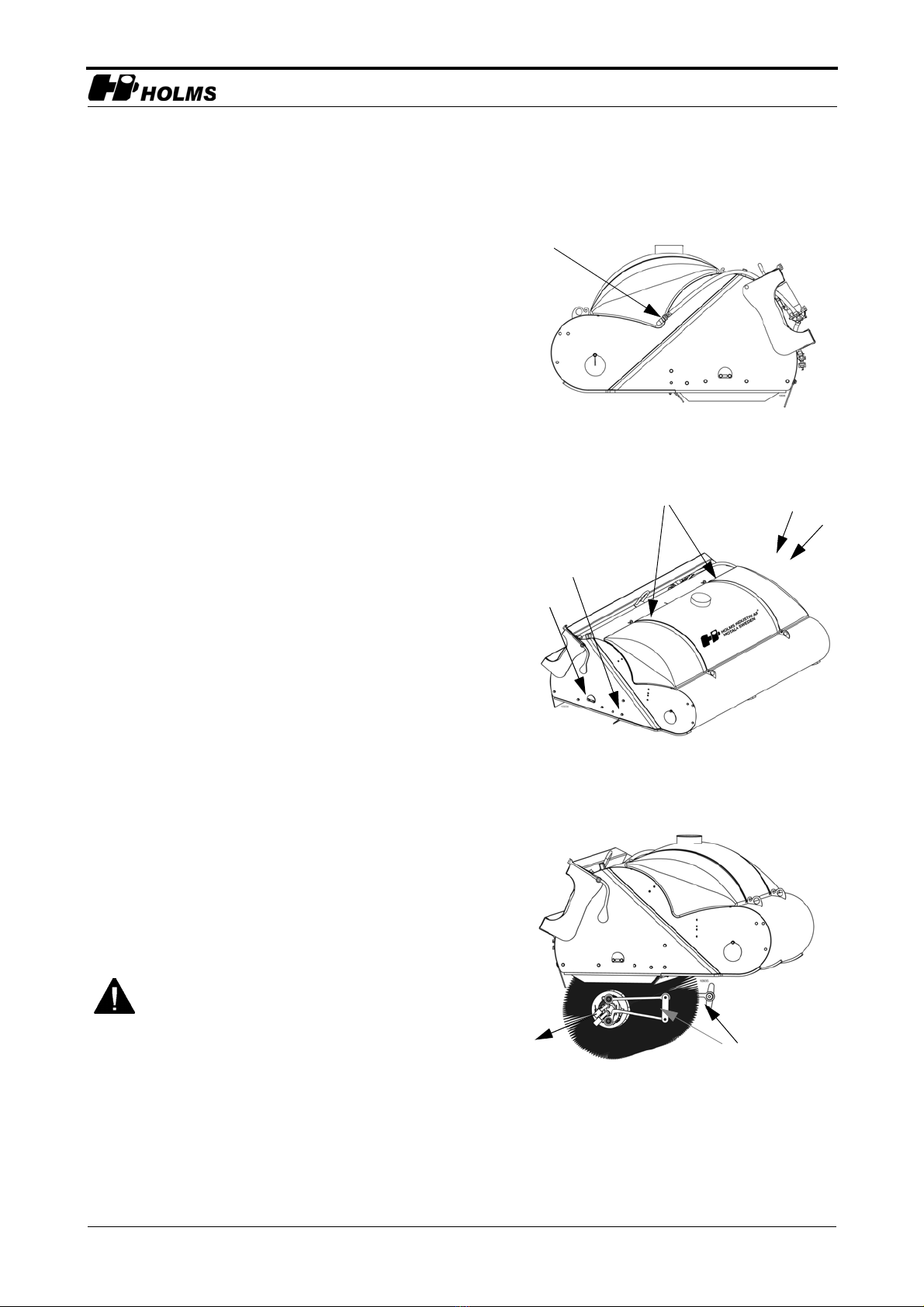

Operating instructions
Connection to carrier
1. Connect the sweeper to the carrier by tilting the ma-
chine attachment forwards, couple in the hook part,
and then lift and tilt back. The machine must then be
locked. See Instruction Manual for respective carrier.
2. Connect the quick-couplings on the drive hoses to the
third function hydraulic outlet, or to the hydraulic
motor circuit on the carrier.
3. Connect the electric cable on the water pump to the
carrier. The socket must be rated for at least
10 Ampere.
4. Start the roller brush by moving the lever for the third
hydraulic function to its locked position, or activate
the hydraulic motor circuit.
5. Check that the sweeper roller is rotating in the right
direction, see figure 3 If the sweeper roller is rotating
in the wrong direction in the locked position, change
the locked position for the lever or change the quick-
couplings for the third hydraulic function.
Adjusting the height and tilting of the machine, sweeper
without support wheels
1. Lift up the sweeper.
2. Tilt the sweeper until the tilt indicator’s yellow
markings line up, see figure 4.
3. Slowly lower the sweeper until the container is 5-
10 cm above the ground, i.e. approximately when the
rubber lips reach the ground, see figure 5.
4. Readjust the tilt where appropriate as per item 2.
It is extremely important that the hydraulic
couplings are clean. Allowing dirt into the
hydraulic system would severely impair sweeper
functionality.
When running the machine on uneven surfaces it
may be necessary to temporarily lift it to avoid
contact between the ground and the refuse container.
When operating in sensitive environments, the
sweeper can temporarily be tilted forward slightly.
This reduces any forward spraying of stones.
3.Direction of rotation
4.Tilt indicator
5.Height adjustment
5-10cm

SU
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 140311. 13

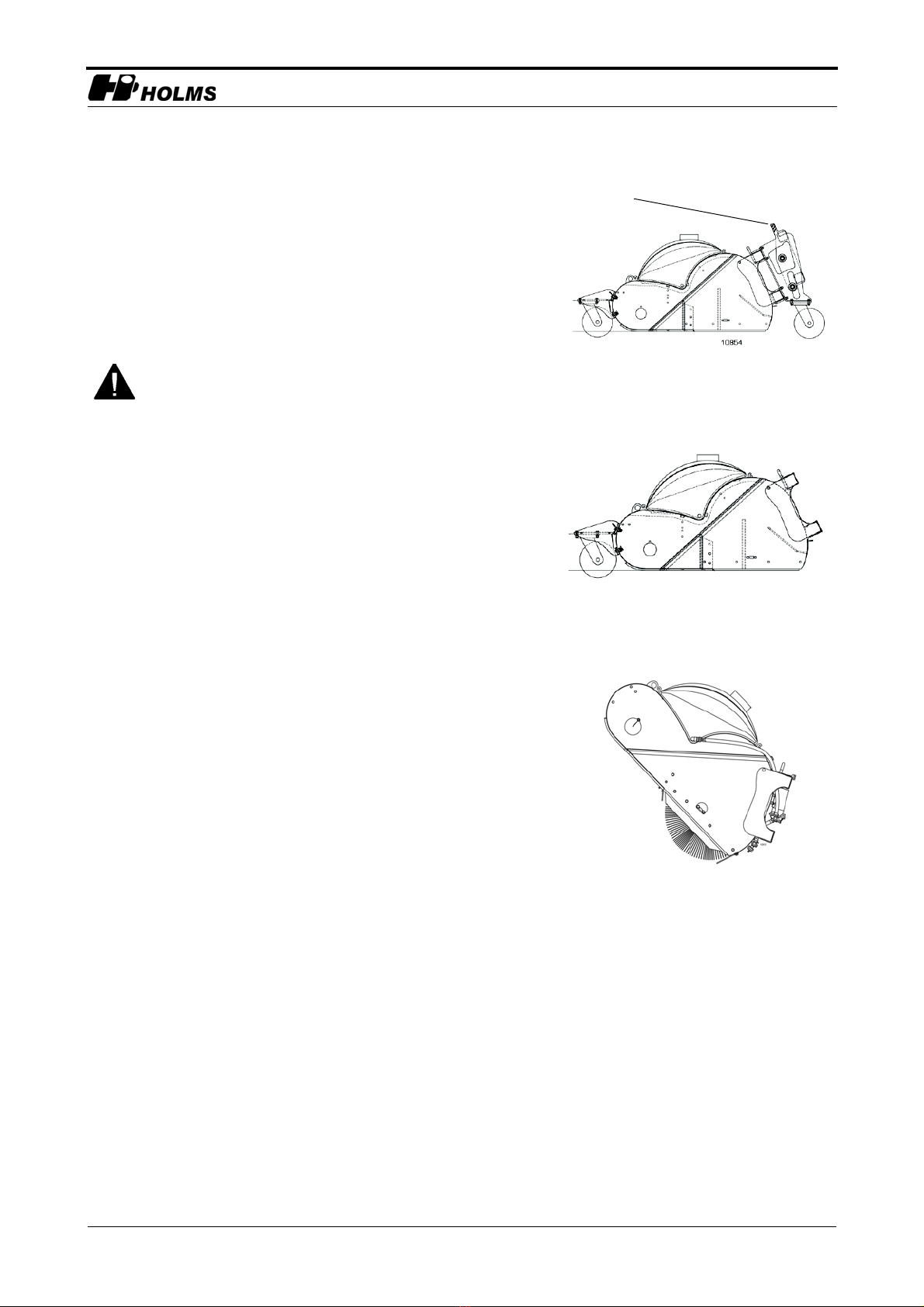

Adjusting the height and tilt of the machine, sweeper with
support wheels
1. Lift the sweeper.
2. Tilt until the sweeper is horizontal.
3. Lower the sweeper slowly until the yellow markings
on the support wheel set, see figure 6, line up.
4. Readjust the tilt where appropriate as per item 2.
Adjusting the height and tilt of the machine,
sweeper with one support wheel
1. Lift the sweeper.
2. Tilt the sweeper until the tilt indicator’s yellow
markings line up, see figure 4 on page 12.
3. Lower the sweeper slowly until the support wheel
comes into contact with the ground, see figure 7.
4. Readjust the tilt if necessary.
Emptying the refuse collector
Liftup themachineand tiltit backwardssothattherefuse
can dropout,seefigure8. Carefullyrotate theroller afew
turns to free it from rubbish. If the sweeper is equipped
with side brushes, see “Operation” on page 14.
Disconnection from carrier
1. Release the hydraulic quick-couplings and electric
cable.
2. Release the machine attachment lock pins, and
carefully lower the machine to the ground. This is
important, otherwise the sweeper may be damaged.
3. When the machine reaches the ground, tilt forward
and then back to release the hooks.
Sprinkler
The pump must not be run when dry, i.e. once the water
has been used up the pump must be switched off.
Themachine isequippedwithtwo waterfiltersto prevent
dirt getting into the system. One filter sits in the tank
Operate carefully in transport position on uneven
surfaces, to avoid exposing the sweeper to undue
strain.
6.Yellow markings on support wheel set
Markings
7.SU with one support wheel
8.Sweeper in emptying
position

SU
14 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 140311.
fillinghole,whilst theother filterislocatedon thesuction
side of the pump. The filters can be flushed clean and
reused. NB The filters must be in position when the tank
is filled, otherwise there is a danger that the pump and
water system will be damaged.
Where there is a risk of freezing, empty the water from
the water tank, water pump and attendant hoses. The
easiest thing is to empty the tank first and then run the
pump dry for 20-30 seconds. When emptying the tank,
the hose on the tank can be disconnected using a quick-
coupling.
Side brush (accessory)
Holms SU can be fitted with a side brush for more
efficient sweeping up against kerbs, etc. It can be fitted
on the right or left side.
Operation
The side brush is lowered by removing pin A and lifting
the brush off its mounting B (figure 9). Refit pin A. It is
very important to refit pin A as it functions as a stop.
The side brush must always be in its upper, locked
position during all transportation and emptying.
This is because the side brush can be damaged if it
is not locked.
9.Side brush
A
B

SU
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 140311. 15
Maintenance
After operation
• Wash the sweeper. This will increase its service life
and make it easier to detect any leakage or other
faults.
• Inspect the machine and make sure that the hoses,
rubber housings and the machine body are not
damaged. Also check for any oil leakage.
• Fill up the 6 lubrication points.
Replacing the brush
Tools
• allen key
• socket wrench
• key ring
• screwdriver
• rubber mallet
Carefully lower down the container to the ground.
Removing the roller brush
1. Drain the water tank by disconnecting the quick
coupling at the tank, see figure 10. Then disconnect
the straps (A figure 11) and lift the water tank out.
2. Remove the lifting stops on both the right and left
side. See C figure 11.
3. Release the front attachments on the slewing brackets
on both sides. See D figure 11.
Note that only the screws are released from the
outside,andthat theslewingbrackets themselvesmay
be left in position in their clamp plates, see figure 12.
4. Carefully lift up the machine to allow the motor to be
pulled out from the side. See figure 12.
5. Lift up the machine and remove the roller.
If the machine is lifted up too high before the
motor unit has been pulled out, the roller can be
left hanging from the hydraulic hoses and there is
a risk of damaging them.
10.Quick couplings
11.Removing the water tank, lifting
stops and slewing brackets
A
C
D
CD
Clamp plate for slewing brackets
12.Removing the motor

SU
16 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 140311.
Replacing the brush
1. Release the three tension springs and remove the
roller brush’s end ring, see figure 13.
2. Pull off the brush and spacer rings. This is most easily
done by hanging up the roller vertically in an
overhead crane or suchlike.
3. Check the core for damage.
4. Lift up the brush core with the bearing shaft facing
downwards on a pair of wooden blocks or suchlike.
This is to prevent damaging the shaft and slewing
brackets.
5. Fit a brush with the brush ring “pins” in the space
between the three square sections.
6. Fit a spacer ring.
7. Fit alternating brush rings and spacer rings. Note that
the brush ring “carrier pins” should be placed at
approximately equal distances between the three
square sections. This is so that no single section will
be exposed to all the strain from the brushes.
8. To “cover” the entire core it may be necessary to use
double brushes without spacer ring on the end so that
the right length will be obtained.
9. Refit the end ring using the three tension springs. See
figure 12.
13.Tension springs

SU
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 140311. 17
Fitting the roller brush
1. Lift the machine and roll in the brush. Lower the
machine. See figure 14.
2. Push in the motor unit and place the motor end
slewing brackets up in the container.
3. Carefully lower down the machine to the ground.
4. Fit the motor end slewing brackets to the chassis.
5. Put the singleslewing bracket in position (in opposite
side to the motor end) and fit it in the chassis.
6. Refit the slewing bracket stops, water tank, straps and
hose to the water tank.
Replacing the side brush
Unscrew the four nuts and lower the brush.Refit in the
reverse order, see figure 15.
Assembly
When removing the bearing pins they must be driven out
in the direction of the arrows, see figure 16.
This is because the holes for the pins are rifled to prevent
them rotating.
Make sure that the slewing brackets are not
jammed when the machine is put on the ground.
Always use locktite on the screws.
Clamp plate for slewing brackets
14.Refitting the motor
15.Replacing the brush
16.Fitting/removal of bearing pins

SU
18 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 140311.
Other service
Lubrication points
Lubricate the machine's five lubrication points when
changing brush, see figure 17 and figure 18. Also
lubricate the lubrication points prior to long-term storage.
Fitting the hydraulic hoses
If the hydraulic hoses have been disconnected, it is
essential that they are refitted correctly.
• The hoses are fitted at an angle of 45° to the ground
• The hoses must then follow the inside of the chassis.
See figure 19.
Fitting the bearings
The machine’s bearings are made of maintenance-free
material. They must, however, be greased before being
refitted.
17.Lubrication points
18.Lubrication point
19.Refitting of hoses

SU
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 140311. 19
after operation
procedures 15
attachment hooks 11
bearing pins 17
bearings
fitting 18
brush
replace 16
brush ring 16
brush wear 11
centre of gravity 9
changes 8
conversions 8
design modifications 7
disconnection 13
effective
sweeping volume 9
emptying
refuse collector 13
fitting
bearings 18
hydraulic hose 18
roller brush 17
height 9
hydraulic couplings 12
hydraulic hose
fitting 18
hydraulic motor circuit 12
hydraulic oil flow 7, 11
length 9
lifting devices 6
lifting stop 15
loading 10
locked position 12
lubrication points 10, 18
machine plate 8
maintenance 15
modifications 8
oil flow 9
oil leakage 15
operating width 9
pin side brush 14
product data 4, 9
product description 11
quick-coupling 12
refuse collector
emptying 13
removal
roller brush 15
replacement
brush 16
risk of freezing 14
roller brush
fitting 17
removal 15
rubber lips 12
sensitive environments 12
service 15
setting
sweeper with support wheels 13
sweeper without support wheels 12
side brush 14
slewing brackets 15
spare parts 8
spraying system 10
sprinkler 13
square sections 16
standard version 11
storage 10
straps 15
support wheels 13
sweeping volume 9
technical data 4, 9
tension springs 16
transport 10
transportation 10, 14
unloading 10
volume
water tank 9
warning labels 7
clean/replace 4
warning symbols 7
water filters 13
water pump 11, 14
water tank 11, 14, 15
volume 9
weight 9
width 9
Index
