HOMCOM A90-200 User manual

ASSEMBLY INSTRUCTION
INada095_UK
A90-200
READ AND SAVE THIS INSTRUCTION FOR FUTURE USE
Exercise Bike

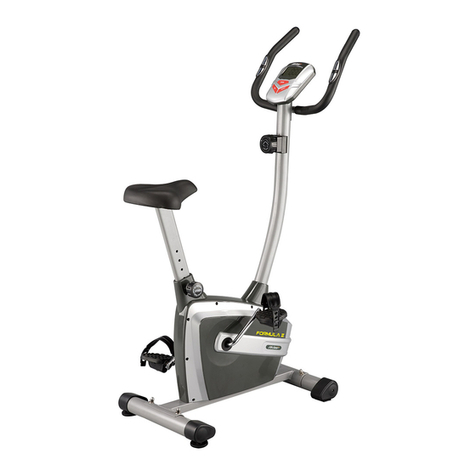

Photo may differ from actual product

2
Please read these instructions properly before assembling or using this bike. Important information is
listed, which will help you get t h e best results and ensure safe and correct assembly, use and
maintenance.
Safety information
* This equipment is intended for home/domestic use, with a maximum holding weight 120kgs/264lbs.
* This equipment is designed for adult use only. Always keep children and pets away from the
equipment.
* Before starting any exercise program, you should consult your doctor to determine if you have any
physical or health conditions that could create a risk to your health or will prevent you from using this
equipment properly.
* Before using the equipment, check the nuts and bolts are securely tightened, as well as some parts
like pedals etc.
* Wear appropriate workout clothing when exercising.
* Before exercising, always stretch your muscles to properly warm up.
* Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. For
safety, the equipment should have at least 0.5 sqm free space all around it.
* Do not place any sharp objects around the equipment. Keep hands away from all moving parts.
* If the user experiences dizziness, nausea, chest pain or other abnormal symptoms stop the workout
and seek immediate medical attention.
* Please check the equipment carefully before first use and every 1-2 months after using the
equipment installed in accordance with the principle of checks.

3
COMPONENTS/PARTS
Please check if you have all parts as listing below.
Note：Small components/parts might be pre-fitted to the larger components as to make it easier
for end users to assembly the spin bike. Please check carefully on all the parts before contacting
us regarding any missing components.

4
PART LIST
NO. ITEM QTY NO. ITEM QTY
1Monitor 111 Front Stabilizer
(
with Trans
p
ortation Wheels
)
1
2Handlebar 112 Saddle 1
3* Lock Nut & Washer Set 413 Saddle Adjustment Frame 1
4Handlebar Support Tube 114 Saddle Adjustment Knob K3 1
5Lock Knob K1 215 Saddle Support Tube 1
6Resistance Knob K2 116 * Lock Bolt, Washer & Nut Set 4
7Water Bottle Holder(not
included) 117 Rear Stabilizer 1
8Plastic Chain Cover 118 Hex Key & Wrench Set 1
9Pedal (L/R) Set 1
10 Crank Arm (L/R) Set 1
Remark:
* NO. 3 Lock Nut & Washer Set is pre-fixed onto the Handlebar.
* NO. 16 Lock Bolt, Washer & Nut Set is pre-fixed onto the Rear Stabilizer & Front Stabilizer.

5
Assembly Instruction

STABILIZER
ASSEMBLY
Divide the Front Stabilizer (with
two transportation wheels) and
the Rear Stabilizer, to fix them
onto the main body with NO. 16
Lock Bolt, Washer & Nut Set.
HANDLEBAR & MONITOR
ASSEMBLY
Loose NO. 5 Lock Knob K1 and
insert the Handlebar Support
Tube into opening tube of
main body, and tighten the
Lock Knob K1 when the
Handlebar Support Tube is at
desired position.
Fix the Handlebar onto the
Handlebar Support Tube with
NO. 3 Lock Nut & Washer Set .
Attach the Monitor to the
Handlebar and fix the monitor,
connect sensor wires into the
monitor.

6

SADDLE ASSEMBLY
Loose the Lock Knob K1 and pull it
out from the rear opening tube,
insert the Saddle Support Tube into
the rear opening tube, then tighten
the Lock Knob when the Saddle
Support Tube is at desired position.
Attach the Saddle Adjustment
Frame to the Saddle Support Tube,
and fix it with NO.14 knob K3.
Place the Saddle onto the Saddle
Adjustment Frame and tighten the
Saddle locking nuts on both sides.
PEDAL(L/R)
ASSEMBLY
Fasten the LEFT pedal by turning
in an ANTI-CLOCKWISE direction.
Fasten the RIGHT pedal by
turning in a CLOCKWISE direction.
Please do not make it in the opposite
direction.
Attach the Water Bottle Holder
onto the frame with two screws.
（this style not need to fix holder）

7
Care and maintenance
* Examine the equipment periodically in order to detect any damage or wear which may have
been produced.
* Lubricate moving parts with light oil periodically or prevent premature wear.
* Inspect and tighten all parts before using the equipment, replace any defective parts
immediately, and do not use the equipment again until it is in perfect working order.
* The equipment can be cleaned using a damp cloth and mild non-abrasive detergent. Do not
use solvents.
* Do not attempt to repair this equipment yourself before contacting the manufacturer or
sales agent.
