HOMCOM 820-195V70 Installation guide

1

2
IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE
REFERENCE.
Important Safety Instructions
When using this electrical appliance, basic precautions should be followed
to reduce the risk of fire, electric shock, and injury to person, including the
following:
· This heater must be used on an AC supply only and the voltage marked
on the heater must correspond to the supply voltage.
· Do not switch the appliance on until it properly installed as described in
this manual.
· The heater must not be located immediately below a socket outlet.
· Keep furniture, curtains and other flammable material at least 1 meter
away from the appliance. Never closed to curtains and other combustible
material, otherwise may cause risk
· Do not leave the appliance unattended during use.
· Do not leave the appliance unattended whilst connected to the mains
supply.
· Keep out of reach of children and do not allow them to operate this
appliance.
· This appliance is intended for household use and should not be used for
industrial purposes.
· From time to time, check the cord for damage. Never use the appliance if

3
the cord or any part of the appliance shows signs of damage.
· If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
· Do not operate this appliance with a damaged plug or cord, after a
malfunction or after being dropped or damaged in any way.
· Repairs to electrical appliances should only be performed by a qualified
electrician.Improper repairs may place the user at serious risk.
· Do not run the mains cable under carpets, rugs etc.
· Do not allow the mains cable to hang over sharp edges or come into
contact with hot surfaces.
· WARNING: In order to avoid overheating, do not cover the
heater.
· Never immerse the product in water or any other liquids.
· Do not use this heater in the immediate surroundings of a bath, a shower
or a swimming pool.
· Dot use this heater with a programmer, timer or any other device that
switches the heater on automatically, since a fire risk exists if the heater is
covered or positioned incorrectly.
· Do not use the appliance outdoors.
· Do not use if you have wet hands.
· Never use the appliance on or near hot surfaces.
· Do not operate with a damaged cord.

4
· Before cleaning the appliance, ensure it is unplugged from the power and
that it is completely cooled.
· Do not clean the appliance with abrasive chemicals.
· Never use accessories that are not recommended or supplied by the
manufacturer. It could cause danger to the user or damage to the
appliance.
· This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance.
· Cleaning and user maintenance shall not be made by children without
supervision.
· Do not lift the appliance by the front panel.
· CAUTION: In order to avoid a hazard due to inadvertent resetting of the
thermal cutout, this appliance must not be supplied through an external
switching device, such as a timer, or connected to a circuit that is regularly
switched on and off by the utility.
· WARNING: This heater is not equipped with a device to control the room
temperature.
Do not use this heater in small rooms when they are occupied by persons
not capable of leaving the room on their own, unless constant supervision
is provided.

5
· Children of less than 3 years should be kept away unless continuously
supervised.
· Children aged from 3 years and less than 8 years shall only switch on/off
the appliance provided that it has been placed or installed in its intended
normal operating position and they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children aged from 3 years and less than 8 years
shall not plug in, regulate and clean the appliance or perform user
maintenance.
· CAUTION－some parts of this product can become very hot and cause
burns. Particular attention has to be given where children and vulnerable
people are present.
· Regarding the instructions for replacing lamp and installation, thanks to
refer to the below paragraphs of the manual.
· Regarding the information for installation, refer to the following parts.
Contents of Carton
· Heater.
· Remote control.
· 1 Instruction Manual.
Instructions for Use
The appliance can be operated either by the switches located at the front right hand side above the
fire or by the supplied remote control.

6
Temperature and serial number display: Normally it displays the room temperature; while setting
the temperature, the setting temperature is displayed; When setting the timer, serial number is
displayed.
Time/ Temperature display: Normally it displays the current time; while setting the timer, the setting
time is displayed. When setting the temperature of the week timer, the setting temperature is
displayed.
Time on and time off: It is displayed while setting the timer, and it is used in combination with serial
number setting.
Flame brightness: It displays the current brightness of the flame, which ranges from one to five
positions.
Manual Operation
This is done by operating the switches located at the front of the fire .The standby rocker switch
must first be switched on, the fire will beep to indicate that it is powered up.
Press the O/I button once to turn the heater and flame effect on. A red indicator light will appear to
indicate that the function is ON. Press the O/I button for 3 seconds this will operate the flame
brightness setting. Hold the button down until the desired flame brightness is obtained and there
will be 5 levels flame brightness available.
Press the POWER button once for the low heat setting 1000W; press twice for the high heat setting
2000W; press three to switch off the heat setting.
Press the BACK LIGHT button to adjust the colors of LED decoration, 7 colors available.
Remote Operation
The standby rocker switch located at the front of the fire must first be switched on; the fire will beep
to indicate that it is powered up.
It takes a little time for the receiver to respond to the transmitter. Do not press the buttons more
than once within two seconds for the fire to operate normally.

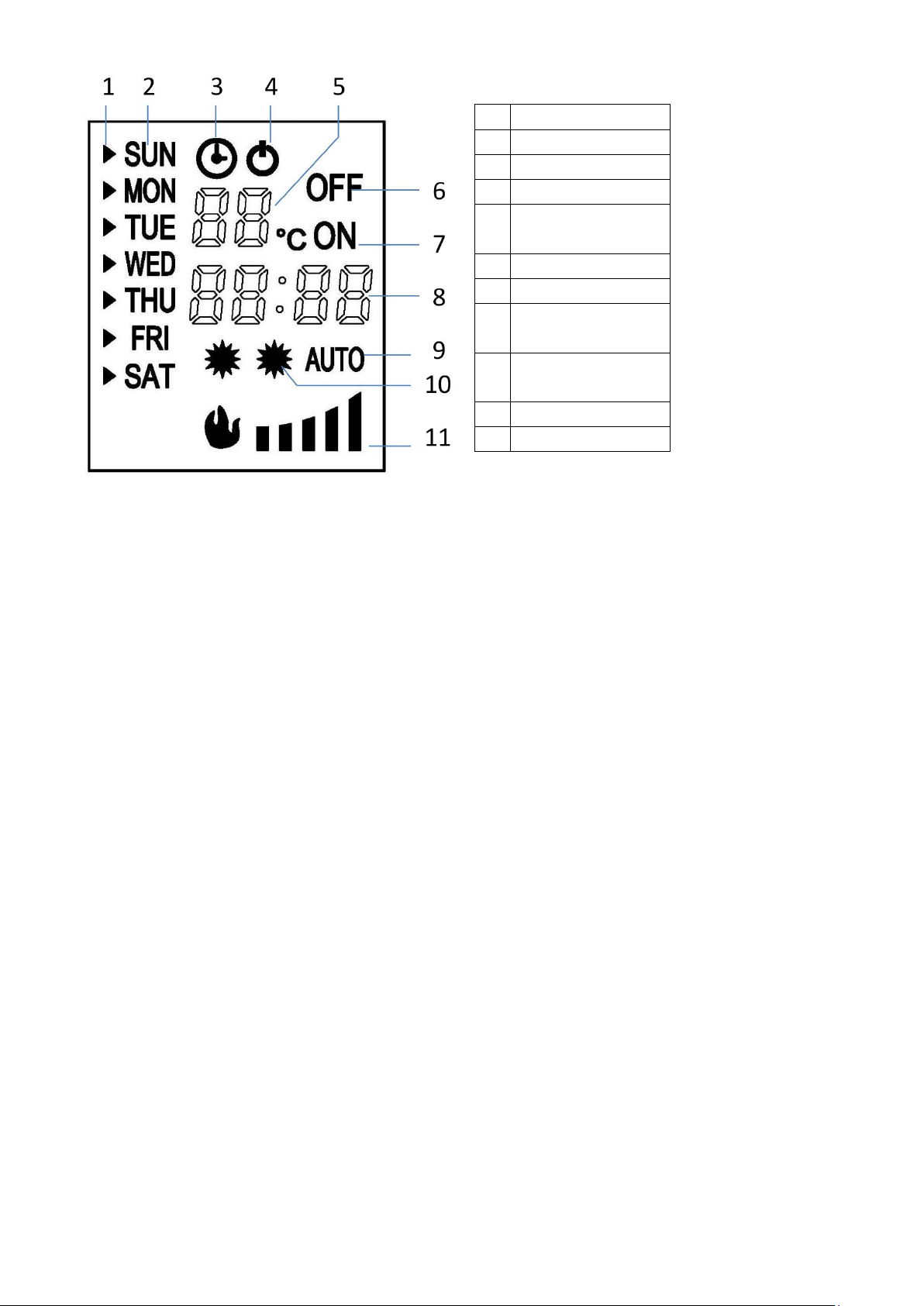

1. Boot steps
1
Cursor
2
Day time
3
Timer
4
Standby
5
Temperature/serial
number display
6
Timer off
7
Timer on
8
Time/Temperature
display
9
Automatic control
of heating
10
Heating position
11
Flame brightness

7
1) Connect the power
2) Turn on the power switch
3) Press the control switch or "ON/OFF" key of the remote controller to start up
4) Press the 1000W/2000W button once for the low heat setting 1000W; press twice for the high heat setting
2000W; press three to switch off the heat setting.
5) Press the DIMMER button to operate the dimmer mode, repeat pressing will raise and lower the brightness.
6) Press the BACK LIGHT button to adjust the colors of LED decoration, 7 colors available.
2. Automatic heating
Press "IC" button on the remote controller to start or exit the automatic heating.
The heater displays AUTO symbol at automatic heating status. The heater will adjust the heat settings between
1000W and 2000W automatically according to the room temperature and temperature setting. During a timed
starting process, it is possible to start heating ahead of schedule.
NOTE: Maybe the heater will turn the heating on automatically prior to the set time maximum20
minutes.
3. Setting the day and time
1) Settings are done on the remote controller
2) Press "DATE TIME" button, then press the "▲" or "▼" key to select the day
3) Press "DATE TIME" button again, then press the "+" or "-" to set the hour
4)Press "DATE TIME" button again, then press the "+" or "-" to set the minute
5) Press "OK" button to complete
4. Temperature setting
The default set temperature is 20 ℃, press "+" or "-" on the remote controller to set the temperature, which
ranges from 15 to 30℃. And this setting is only for the temperature in the normally mode, not for the temperature
in the timer mode.
NOTE: The set temperature must be higher than the room temperature for the heat working.
5. Timer setting
1)Description of timer setting
There are up to 10 items for timer setting
Each setting item has its date, power-on time and shutdown time
The max. duration of each setting item is 23 hours 50 minutes
The setting date for each item can be any day or days of a week
The date in each setting item represents the date of power-on time
If the shutdown time of the setting falls on the second day, it is unnecessary to set the date – you just set the
shutdown time
2)Steps to view the timer setting
Press the "TIMER SET" button
Press the "+" or "-" to check the power-on time of the timer one by one.
For checking the shutdown time, press the "▲" button
Press the "+" or "-" to continue viewing

8
For deleting the current item of setting, press "C" to delete
3) Steps for timer setting
(I) Select the settings of the serial number
Press the "TIMER SET" button, and the serial number starts blinking
Press the "+" or "-" to change the serial number until you get the serial number that you need to set or modify.
(II) Select date
Press " TIMER SET" button once again, and the cursor on the left side of day starts blinking
Press the "▲" or “▼” keys to move the cursor to the corresponding day, press the "+" to add the corresponding
day, or press "-" to delete the day until you have completed the selection of all dates
(III) Set the start time
Continue to press the " TIMER SET" button, the hour starts blinking
Press the "+" or "-" to adjust the hour
Continue to press the " TIMER SET" button, the minute starts blinking
Press the "+" or "-" to adjust minute
(IV) Set the shutdown time
Then press the "TIMER SET" button, the display is off, and the hour starts blinking
Press the "+" or "-" to adjust the hour.
Continue to press the " TIMER SET" button, the minute starts blinking
Press the "+" or "-" to adjust minute
(V) Set temperature
Then press the " TIMER SET" button, and the temperature set starts blinking. At this moment, the temperature
displayed is normally set temperature, which can be adjusted by pressing "+" or "-"
(VI) Press " TIMER SET" button to continue setting, and press "OK" complete the setting
6. Timer switch
"TIMER ON/OFF" is to control the timed opening and closing
Restart the machine after power is cut off, the timer setting is kept, but the current date and time must be reset
NOTE 1: Press the 1000W button or 2000W button, or IC button to active the heating when timer
ON after finish a timing setting. The heater only has flame effect working if you have not selected
the desired heating.
NOTE 2: Repeat the same procedures to set more timing cycles if required after the 01 timing cycle
is finished.
NOTE 3: When the week timer setting is finished, "TIMER ON/OFF" function can be effective.
Safety Cut-Off
This appliance is fitted with a safety cut-off which will operate if the fire overheats (e.g. Due to blocked air vents).
For safety reasons, the fire will NOT automatically reset.
To reset the appliance, disconnect the appliance from the mains supply for at least 15 minutes. Reconnect the
supply to the mains and switch on the appliance.
Troubleshooting
Symptom
Solution
No operation/ no fan.
Check if put the electric plug into the
socket.
Check for safety cut-off operation.
No fire effect light.
Check the LED system by qualified

9
electrician
Cleaning and Maintenance
Warning- Always disconnect from the mains supply before cleaning heater.
For general cleaning use a soft clean duster - never use harsh abrasive or cleaners.
The glass viewing screen should be cleaned carefully with a soft cloth. DO NOT use proprietary
glass cleaners.
This product does not use a standard bulb for its flame effect. The appliance uses an electronically
controlled LED system to create the effect, therefor no parts need to be replaced. There are no
user-serviceable parts on this appliance. Under no circumstances should the appliance be serviced
be anyone other than a qualified electrician.
Disposal
At the end of the product’s serviceable life it should be disposed of thoughtfully and safely in
accordance with local authority regulations. The plug should be Removed from the power supply
cord and the power cord cut from the heater
Technical Specification
Supply: 220-240V~ 50Hz
Rated power: 2000W
Illumination: LED system (no replaceable parts)
Meaning of crossed –out wheeled dustbin:
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
Contact you local government for information regarding the collection systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater
and get into the food chain, damaging your health and well-being.
Model identifier(s): EF461LB-E
Item
Symbol
Value
Unit
Item
Unit
Heat output
Type of heat input, for electric storage local space heaters
only (select one)
Nominal heat output
Pnom
2.0
kW
manual heat charge control, with integrated
thermostat
Not
applicable
Minimum heat output
Pmin
1.0
kW
manual heat charge control with room and/or
Not

10
(indicative)
outdoor temperature feedback
applicable
Maximum continuous
heat output
Pmax,c
2.0
kW
electronic heat charge control with room and/or
outdoor temperature feedback
Not
applicable
Auxiliary electricity
consumption
fan assisted heat output
Not
applicable
At nominal heat output
elmax
0.014(fan
motor)
kW
Type of heat output/room temperature control (select
one)
At minimum heat output
elmin
0.014(fan
motor)
kW
single stage heat output and no room
temperature control
[no]
In standby mode
elSB
0.48
W
Two or more manual stages, no room
temperature control
[no]
with mechanic thermostat room temperature
control
[no]
with electronic room temperature control
[no]
electronic room temperature control plus day
timer
[no]
electronic room temperature control plus week
timer
[yes]
Other control options (multiple selections possible)
room temperature control, with presence
detection
no]
room temperature control, with open window
detection
[no]
with distance control option
[no]
with adaptive start control
[yes]
with working time limitation
[no]
with black bulb sensor
[no]
Contact details
Installation
The Electric heater is supplied with approximately 1.7 meters of flexible mains cable (1mm2).The appliance
and surround should be located close to a suitable mains socket and MUST be easily accessible to allow
proper connection.
This heater MUST be earthed. If in any doubt consult the manufacturer, its service center or a qualified
person.
The installation is as follow:

11
