Home Decorators Collection ALTURA User manual

Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Item # 1002 175 130, 1002 175 072
Model #51746, 51747
UL Model #48-ATR
USE AND CARE GUIDE
ALTURA 48-INCH CEILING FAN

2
Table of Contents ................................................................2
Safety Information...............................................................2
Warranty ............................................................................... 3
Pre-Installation ....................................................................3
Installation............................................................................6
Assembly..............................................................................7
Operation ...........................................................................12
Care and Cleaning.............................................................13
Troubleshooting.................................................................13
1. To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you
begin.
2. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70-1999 and local electrical codes. Electrical
installation should be performed by a qualied licensed
electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35 lbs. (15.9
kg). Use only UL-listed outlet boxes marked “Acceptable for
Fan Support of 35 lbs. (15.9 kg) or less.”
4. The fan must be mounted with a minimum of 7 ft (2.1 m) of
clearance from the trailing edge of the blades to the oor.
5. Do not place objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other items,
use caution when working around or cleaning the fan.
7. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box.
8. All set screws must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury,
do not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do not
insert objects in the path of the blades.
WARNING: Electrical diagrams are for reference
only. If you are using a light kit, refer to the light kit
instructions manual to make the electrical
connections. Optional use of any light kit shall be
UL-listed and marked suitable for use with this fan.
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lbs. (15.9 kg) or
less”, and use screws provided with the outlet box.
READ AND SAVE THESE INSTRUCTIONS.

3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-Installation
Warranty
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime
after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be
free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the
original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product is
returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product
are your responsibility. Damage to any part such as by accident or misuse or improper installation or by afxing any accessories, is not covered by
this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish, including rusting, pitting, corroding,
tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying weather conditions. A certain amount of
“wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is
no other express warranty. Home Decorators Collection hereby disclaims any and all warranties, including but not limited to those of merchantability
and tness for a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the
time period as specied in the express warranty. Some states do not allow a limitation on how long an implied warranty lasts, so the above limitation
may not apply to you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product
use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages,
so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other rights which vary
from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must
be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS.

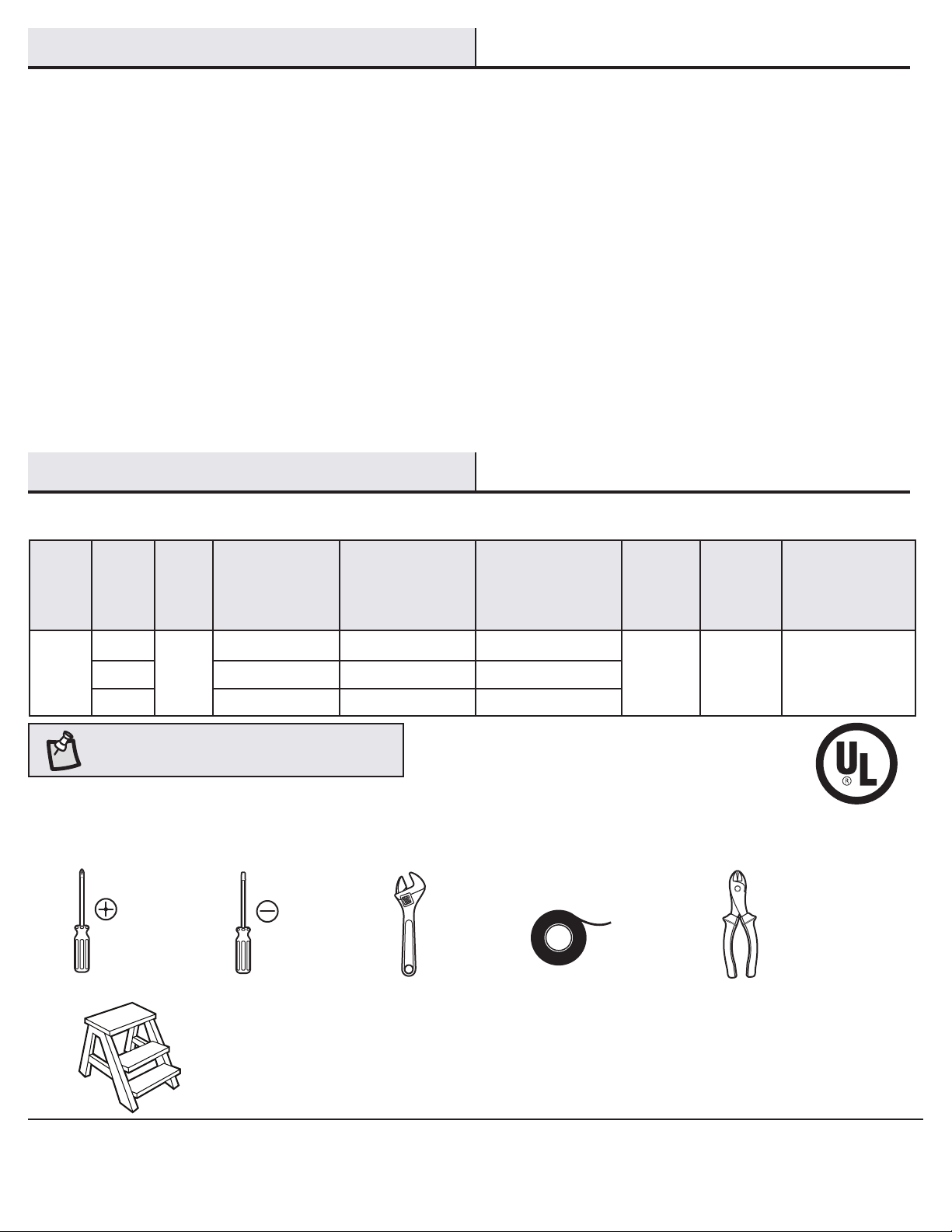

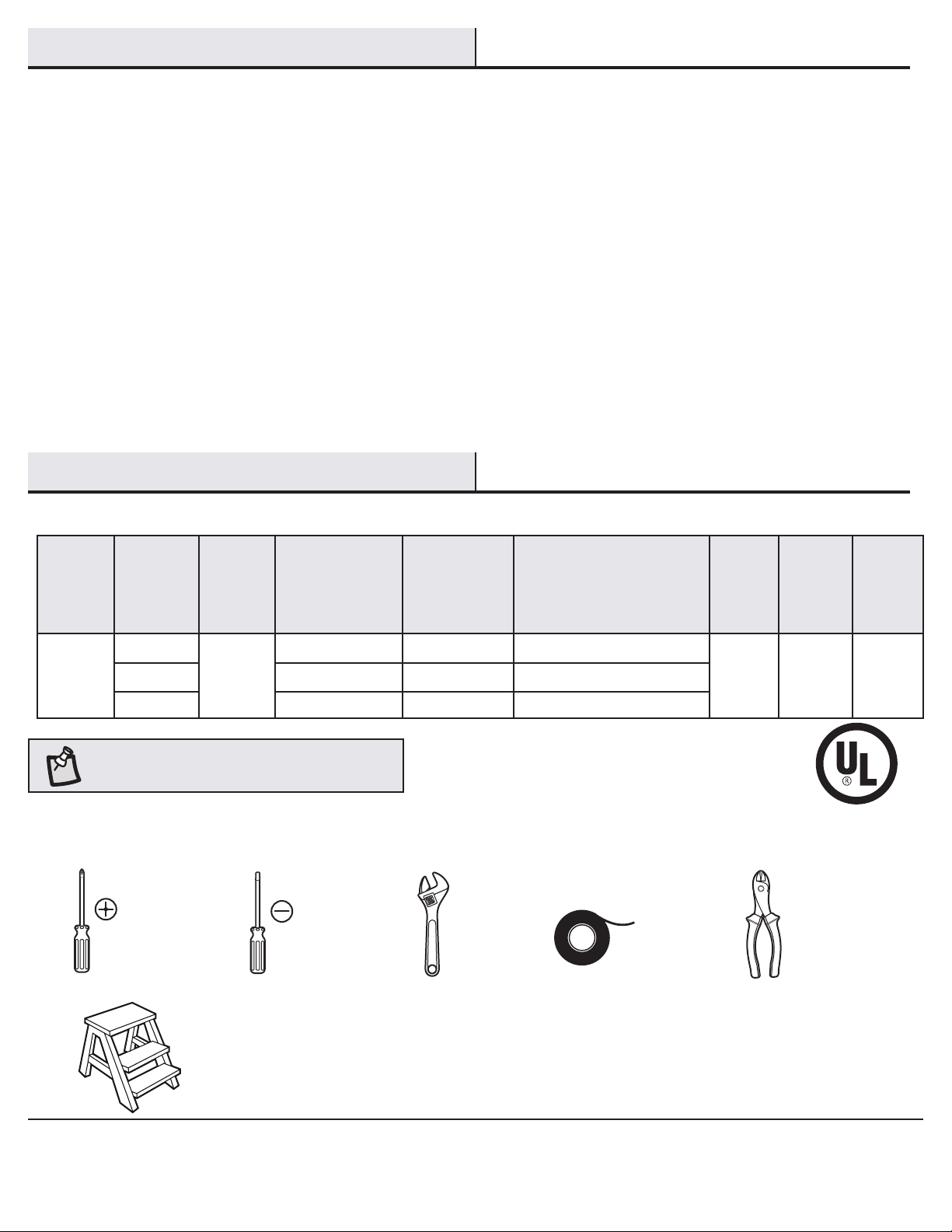

SPECIFICATIONS
TOOLS REQUIRED
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter
Step ladder
Size Speed Volts
Fan Power
Consumption
(without lights)
WATT
Airow
CFM
Airow Efciency
(Higher Is Better)
CFM/WATT
Net
Weight
Gross
Weight Cube Feet
48 in.
Low
120
14 1986 141
15.21 lbs
(6.90 kgs)
18.74 lbs
(8.50 kgs) 1.93’
Medium 31 3092 100
High 63 4486 71

4
Part Description Quantity
AA Blade attachment screws 15
BB Plastic wire connecting nut 3
CC Decorative nut 15
DD Pull chain 1
Pre-Installation (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
This device complies with part 15 of the FCC rules, operation is subject to the following two conditions. (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
AA CC
BB
DD

5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
ASlide-on mounting bracket
(inside canopy) 1
B Ball/downrod assembly 1
C Canopy 1
D Decorative motor collar cover 1
Part Description Quantity
E Fan-motor assembly 1
F Blade 5
G Switch cup adaptor 1
H Switch cup 1
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)

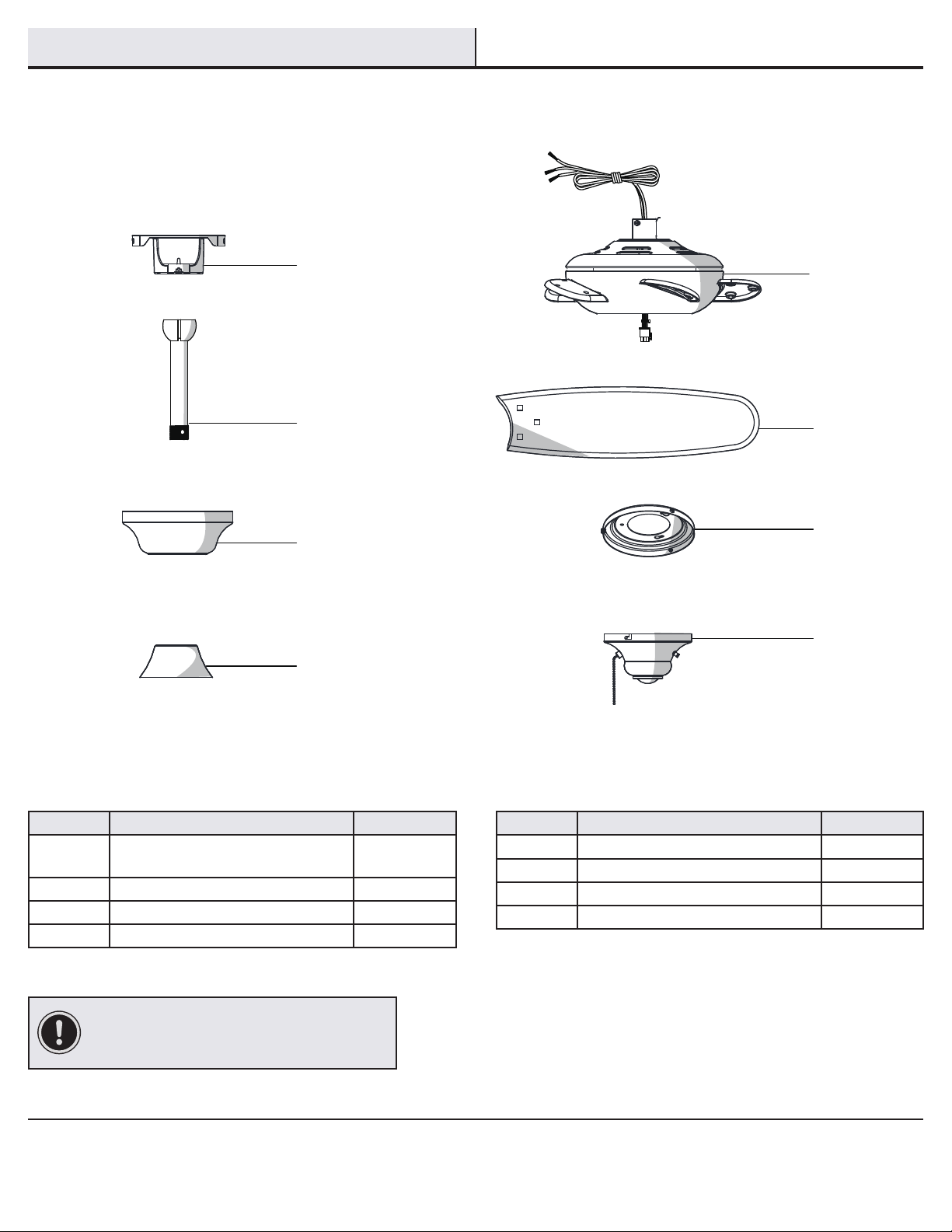

PACKAGE CONTENTS
This device complies with part 15 of the FCC rules, operation is subject to the following two conditions. (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
A
B
C
F
D
H
G
E

6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lbs. (15.9 kg)
or less”, and use screws provided with the outlet
box. An outlet box commonly used for the support
of lighting xtures may not be acceptable for fan
support and may need to be replaced. If in doubt,
consult a qualied electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure. Use
the appropriate fasteners and materials. The outlet box and
its bracing must be able to fully support the weight of the
moving fan (at least 35 lbs. (15.9 kg)). Do not use a plastic
outlet box.
The illustrations below show three different ways to mount the
outlet box.
If the canopy touches the downrod, then remove the decorative canopy
bottom cover, and turn the canopy 180° before attaching the canopy to
the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 30° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Standard Ceiling Mount
Routing the wires
Assembling the fan
Preparing for mounting

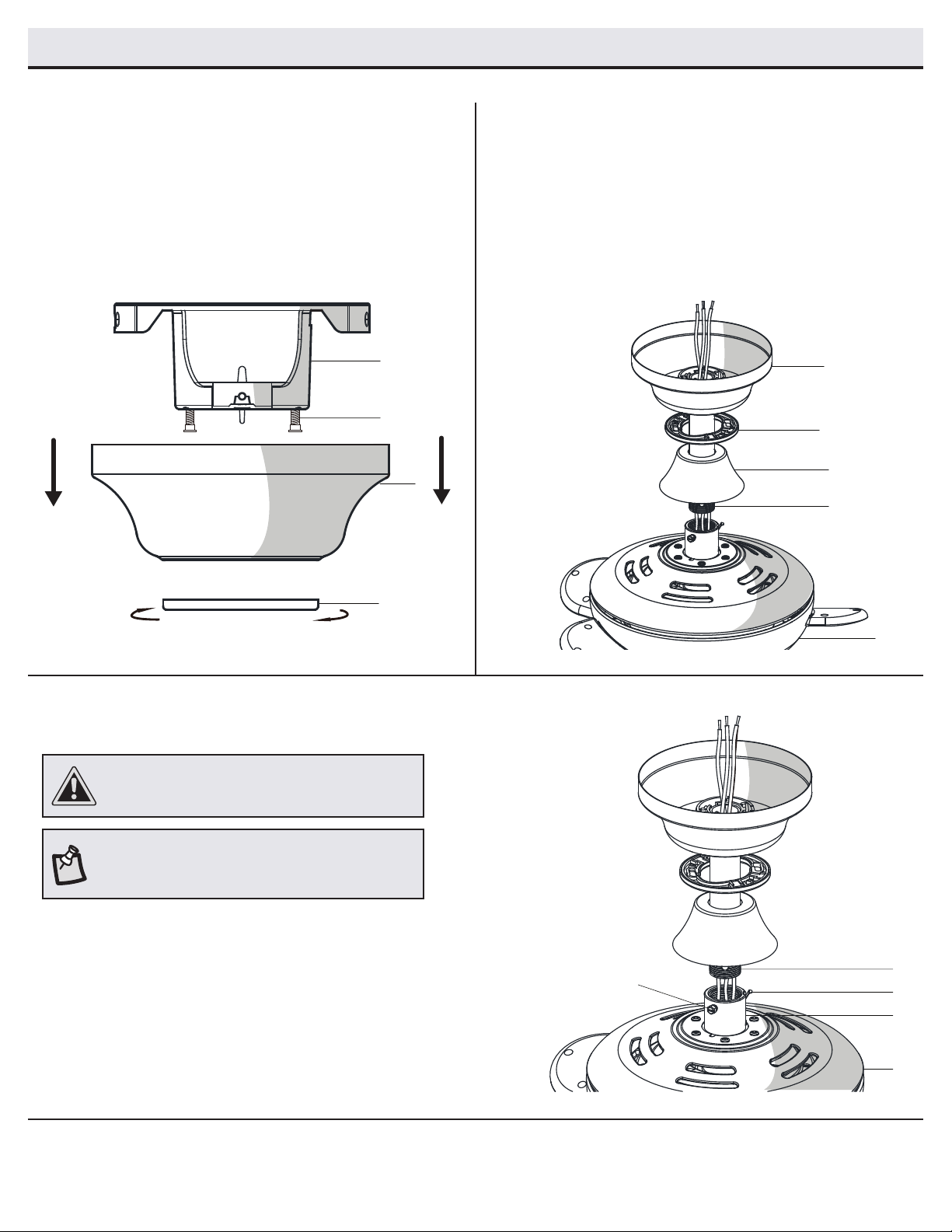

□Remove the canopy cover (HH) from the canopy (C) by turn-
ing the bottom cover counter-clockwise until it unlocks.
□Loosen the two canopy screws (GG) located in the bottom
of the mounting bracket (A), and turn the canopy counter-
clockwise to remove the mounting bracket from the canopy
(C).
□Route the wires exiting the top of the fan motor
assembly (E) through the decorative motor collar cover
and then the center of canopy bottom cover (HH).
□Make sure the opening of canopy (C) is on top and
insert the ball/downrod (B) through the canopy (C).
□Route the wires exiting the top of the fan motor
assembly (E) through the downrod as shown.
2
3
1
□Loosen, but do not remove, the setscrew (KK) on the collar (JJ)
on top of the fan-motor assembly (E).
□Install the downrod (B) by inserting it into the motor collar (JJ),
and turning it clockwise until it is tight.
□Re-tighten the setscrew (KK) on the collar (JJ) on top of the fan
motor assembly (E).
NOTE: This fan is equipped with a safety tab (II). Should
the setscrew (KK) ever become loose while the fan is
running in reverse, the safety tab (II) will engage and stop
the fan from falling.
CAUTION: To ensure wobble-free operation and to avoid
damage to the fan, the downrod (B) and the setscrew
(KK) must be completely tightened
C
A
GG
HH
C
D
E
HH
B
E
B
JJ
II
KK

8

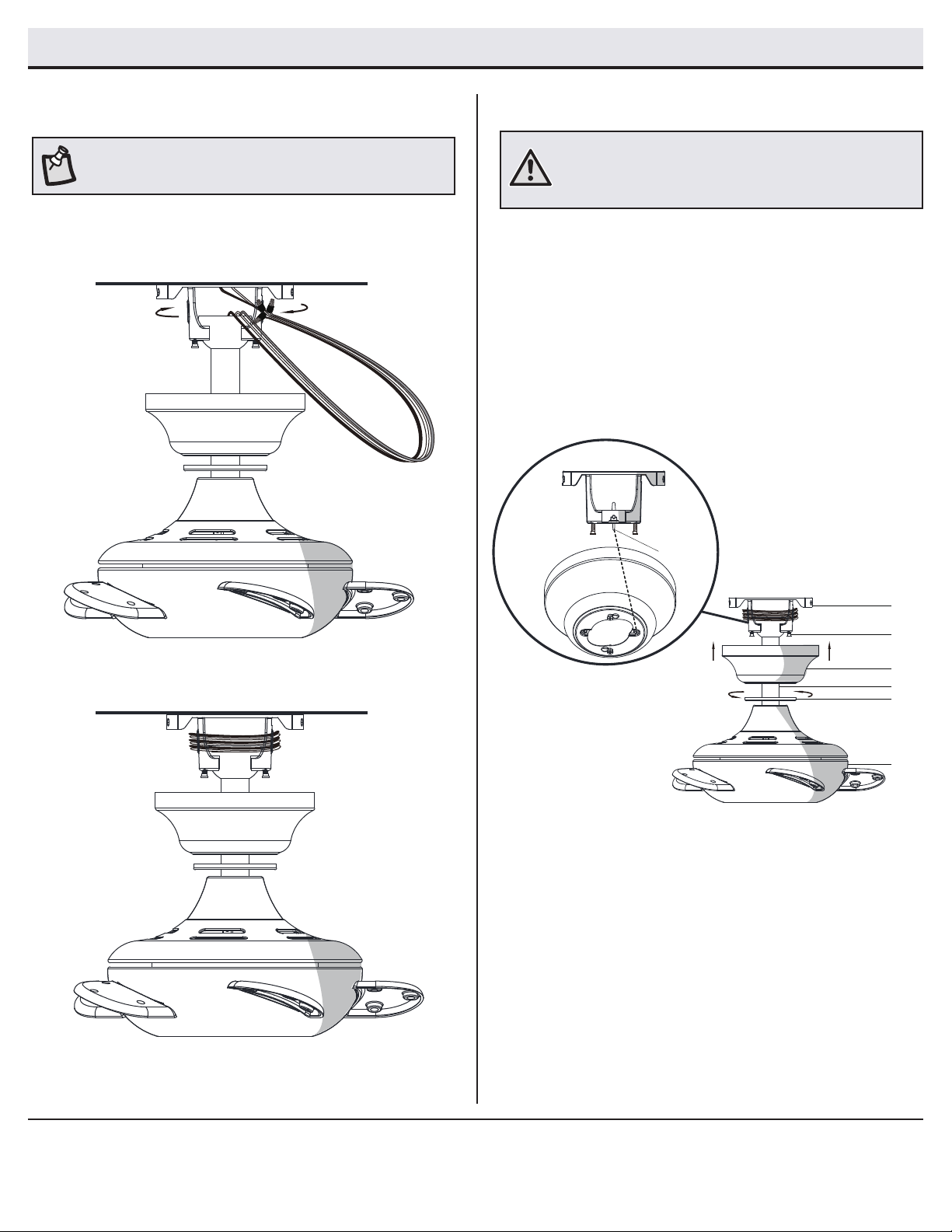

Assembly - Hanging the Fan
Attaching the fan to the electrical
box Hanging the fan
□Pass the 120-Volt supply wires through the center hole in the
mounting bracket (A).
□Install the ceiling mounting bracket (A) on the outlet box (MM) by
sliding the mounting bracket (A) over the two screws (LL) provided
with the outlet box (MM). If necessary, use leveling washers (not
included) between the mounting bracket (A) and the outlet box
(MM). Note that the at side of the mounting bracket (A) is toward
the outlet box (MM).
□Securely tighten the two mounting screws (LL).
□Carefully lift the fan motor assembly (E) up to the mounting
bracket (A).
□Seat the hanger ball portion of the ball/downrod assembly
(B) in the mounting bracket (A) socket. Ensure that the tab
on the mounting bracket (A) socket is properly seated in the
groove in the hanger ball.
1 2
WARNING: To reduce the risk fo re, electric shock or personal
injury, mount to outlet box marked “acceptable for fan support
of 35 lbs (15.9 kg) or less”, and use screws provided with the
outlet box.
A
LL LL
MM
A
B
E
C
D
HH

9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Hanging the Fan (continued)
Making the electrical connection
3
IMPORTANT: Use the plastic wire connectors (BB) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
WARNING: Each wire nut supplied with this fan is designed to
accept up to one 12-gauge house wire and two wires from the
fan. If you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
□The fan comes with 30 in. lead wires for use with an extended
ball/downrod assembly. If using the 6 in. ball/downrod
assembly (B) provided, you can cut the lead wires to your
desired length. This will make extra room in the canopy (C), if
you do not wish to cut the wires, you will need to neatly wrap
them.
□Connect the fan motor green wires to the household green or
bare wire using a wire connecting nut (BB).
□Connect the fan motor white wire to the household white wire
using a wire connecting nut (BB).
□Connect the fan motor black and blue wires to the household
black wire using a wire connecting nut (BB).
□Secure each wire connecting nut using electrical tape.
□Turn the wire connecting nuts (BB) upward and push the
wiring into the outlet box (MM).
NOTE: The fan comes with 30 in. lead wires for use with an
extended ball/downrod assembly. If using the 6 in. ball/downrod
assembly (B) provided, you can cut the lead wires to your desired
length.
IMPORTANT: If after this step, you decide to check that the
electrical connections have been successful, it is critical to attach
the switch cup using the quick connector. The fan will not operate
unless the switch cup is connected to the fan.
Outlet box
in the ceiling (MM)
Green or bare wire
Black White
Green
Blue

10
Assembly - Hanging the Fan (continued)
Mounting the fan-motor assembly
(standard mount)
□Align the locking slots of canopy (C) with the two screws (GG)
and alignment post (NN) in the mounting bracket (A).
□Push up the canopy (C) and turn clockwise until the align-
ment post (NN) engage to the round hole and the screws (GG)
engage to the key slots.
□Firmly tighten the two mounting screws (GG).
□Install the decorative bottom cover (HH) by aligning the covers
slots with screws in the bottom of the canopy (C). Rotate the
bottom cover clockwise to lock in place.
WARNING: When using the standard ball/downrod mounting, the
tab in the ring at the bottom of the mounting bracket must rest in
the groove of the hanger ball. Failure to properly seat the tab in
the groove could cause damage to the wiring.
5
Wrapping the extra wire
□Gently wrap the excess wire around the mounting bracket.
□Secure with electrical tape.
4
NOTE: Follow this step ONLY if you did not cut the extra length off
from the wires coming from the ceiling fan.
C
A
GG
HH
B
E
NN

11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Attaching the accessories

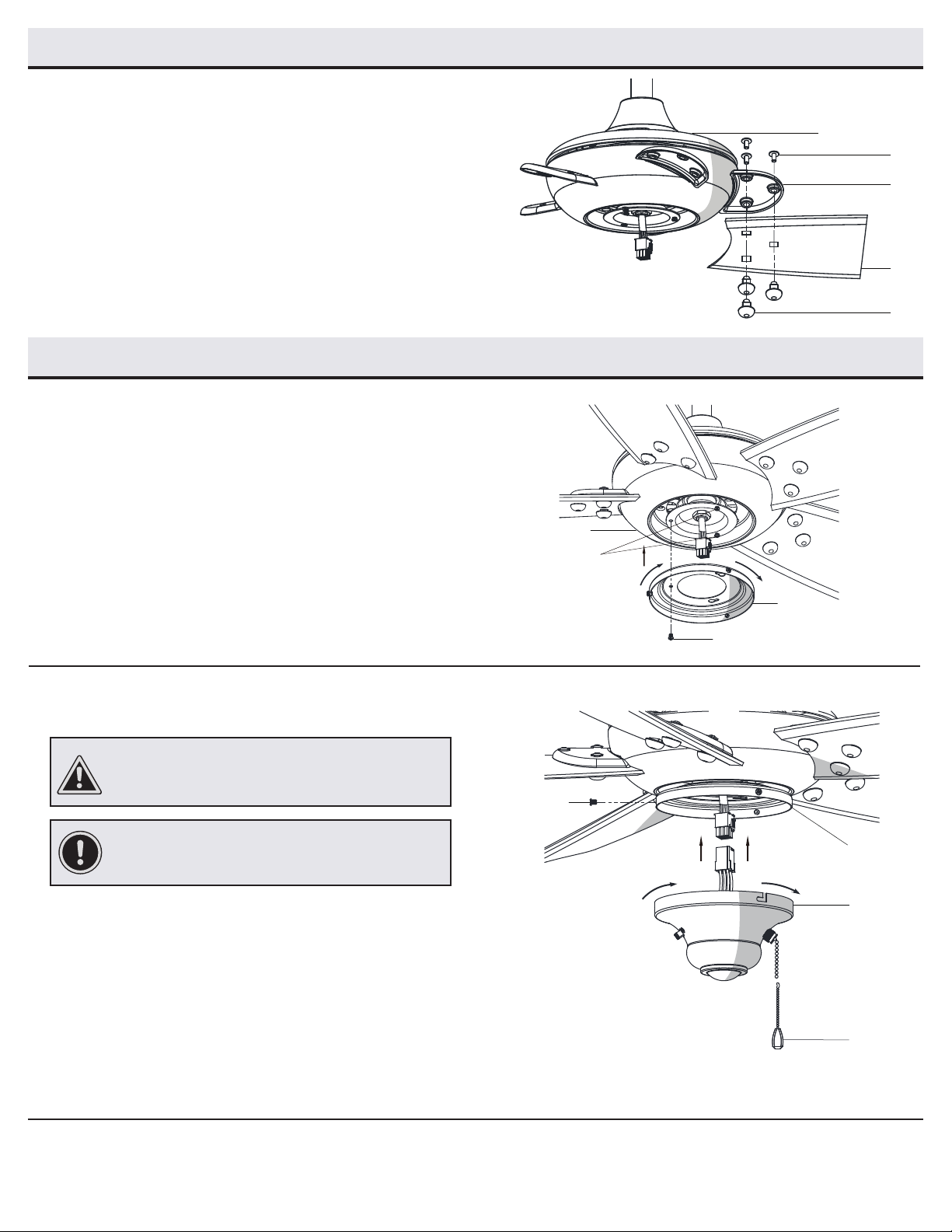

Attaching the fan blades
Attaching the switch cup adaptor
6
1
□Attach blade (F) to blade bracket (J) using the decorative
nuts (CC) and blade attachment screws (AA) provided. Insert
a blade attachment screw (AA) through a hole in the blade
(F) and the blade bracket (J) and into the decorative nut (CC).
Repeat for the two remaining holes in the blade (F).
□Tighten each screw (AA) securely.
□Repeat these steps for the remaining blades.
□Remove one screw (QQ) from the black bracket below the
fan motor assembly (E). Loosen, but do not remove the
other two screws (RR).
□Align the key hole slots in the switch cup adaptor (G) with
the two screws (RR) in the black bracket.
□Turn the switch cup adaptor (G) clockwise until the two
screws (RR) are situated in the narrow end of the keyholes.
□Re-install the one screw (QQ) that was removed in rst
step. Tighten all three screws rmly.
Assembly - Hanging the Fan (continued)
Attaching the switch cup
2
□Remove one screw (UU) from the switch cup adaptor (G).
Loosen but do not remove the other two screws (UU).
□Connect the molded adaptor plug from switch cup (H) with
the molded adaptor of the fan motor assembly (E).
□Aligning the “L” shape holes on the switch cup (H) with the
screws on the switch cup adaptor (G). Turn the switch cup
(H) to hold it in position.
□Install the other screw (UU) that was removed in the rst
step. Tighten all three screws (UU) securely.
□Attach the pull chain extensions (DD) provided to the fan
pull chain.
CAUTION: To reduce the risk of electric shock, disconnect
the electrical supply circuit to the fan before installing the
switch cup.
IMPORTANT: It is critical to attach the switch cup using the
quick connector. The fan will not operate unless the switch
cup is connected to the fan.
J
AA
CC
F
E
QQ
G
E
RR
UU
H
G
DD

12
Operating Your Fan
Turn on the power and check the operation of the fan, the pull chain
controls the fan speeds as follows:
1 pull - high, 2 pulls - Medium, 3 pulls - Low, 4 pulls - off
The appropriate speed settings for warm or cool weather depend on
factors such as the room size, ceiling height, and number of fans.

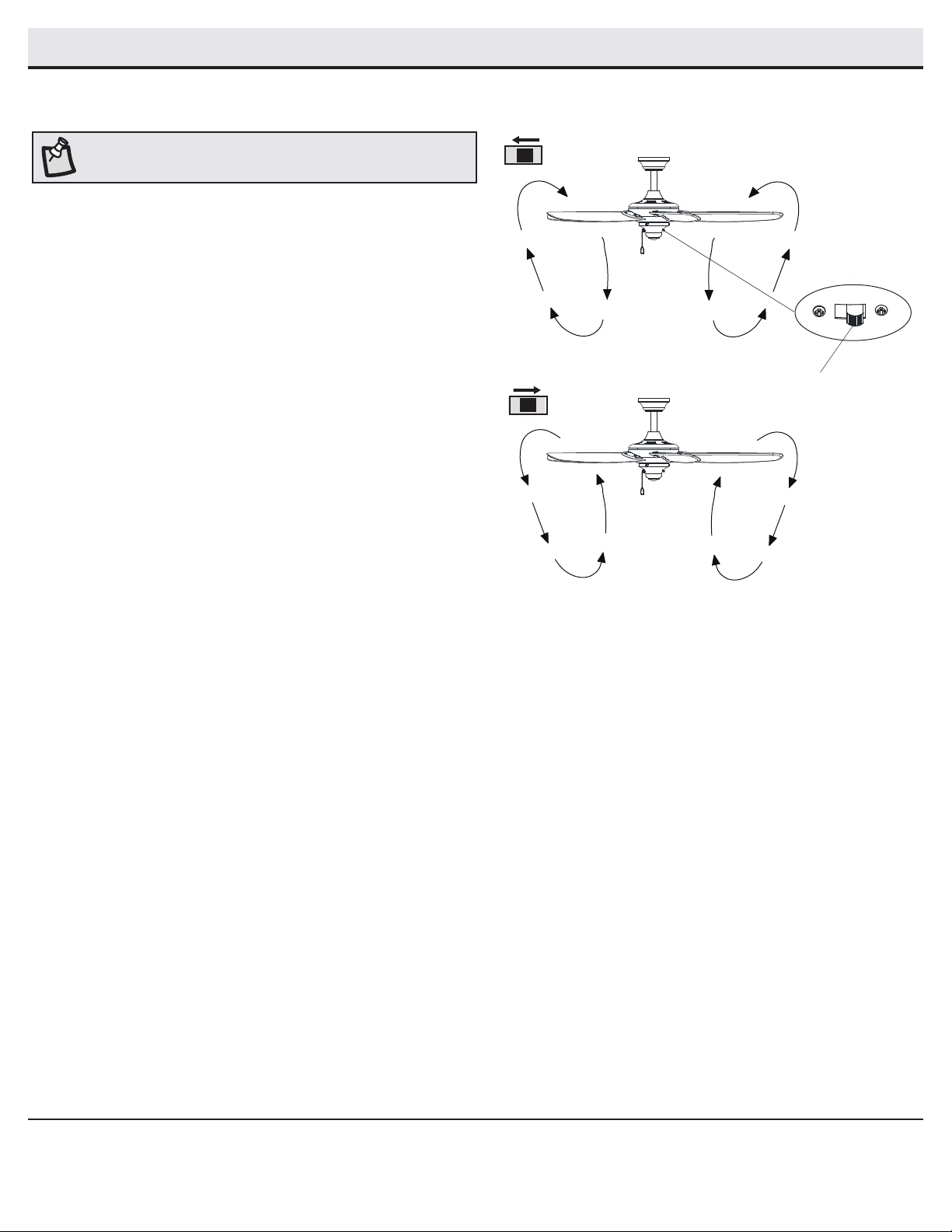

The slide switch (YY) controls the direction of the blades: forward
(switch left) or reverse (switch right).
Warm weather - (Forward) A downward airow creates a cooling effect.
This allows you to set your air conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airow moves warm air off of the
ceiling. This allows you to set your heating unit on a lower setting
without affecting your comfort.
NOTE: Wait for the fan to stop before reversing the direction of
blade rotation.
Operating the fan
YY

13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Troubleshooting
Problem Solution
The fan will not start □Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check the battery in the remote control.
□Ensure you are in the normal range of 10-20 feet.
□Remember to turn off the power supply before checking the dip switch settings.
The fan is noisy □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the Ceiling Fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure from a point on the center of the blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement, and measure from the same point on
each blade to the ceiling. Repeat for each blade. Any measurement deviation should be within 1/8 in. Run the fan
for ten minutes. If the fan continues to wobble please contact Home Decorators Collection Customer Service and
a balacing kit will be sent to you at no charge.
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
□You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning

Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.

¿Preguntas, problemas o piezas faltantes? Antes de devolver a la tienda,
llama al servicio al cliente de Home Decorators Collection, de lunes a viernes,
entre 8:00 a.m. y 6:00 p.m. (Hora Estándar del Este).
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
GRACIAS POR TU COMPRA
Apreciamos la conanza que has depositado en Home Decorators Collection al comprar este ventilador de techo. Nos esforzamos en crear
continuamente productos de calidad diseñados para mejorar tu hogar. Visítanos por Internet para ver nuestra línea completa de productos disponibles
a n de satisfacer tus necesidades de mejoras del hogar. ¡Gracias por elegir Home Decorators Collection!
Artículo núm. 1002 175 130, 1002 175 072
Modelo núm. 51746, 51747
Modelo núm. 48-ATR aprobado por UL
GUÍA DE USO Y MANTENIMIENTO
VENTILADOR DE TECHO ALTURA, DE 122 CM

2
Tabla de contenido .............................................................. 2
Información de seguridad...................................................2
Garantía................................................................................3
Preinstalación ......................................................................3
Instalación............................................................................6
Ensamblaje........................................................................... 7
Funcionamiento.................................................................12
Mantenimiento y limpieza.................................................13
Solución de problemas ..................................................... 13
1. Para disminuir el riesgo de descarga eléctrica, asegúrate de
cortar la electricidad en el cortacircuitos o la caja de fusibles
antes de comenzar.
2. Todo el cableado tiene que cumplir con el Código Nacional
de Electricidad ANSI/NFPA 70-1999 y con los códigos locales
de electricidad. La instalación eléctrica debe hacerse por un
electricista certicado y calicado.
3. La caja eléctrica y la estructura de soporte tienen que
montarse de forma segura para poder sostener de manera
able 15.9 kg como mínimo. Usa solo cajas eléctricas
aprobadas por UL y marcadas como “apropiada para sostener
ventiladores de 15.9 kg o menos”.
4. El ventilador tiene que montarse con mínimo de 2.13 m de
separación entre el borde posterior de las aspas y el piso.
5. No coloques objetos en la trayectoria de las aspas.
6. Para evitar lesiones físicas o daños al ventilador y otros
artículos, ten cuidado al limpiarlo o al trabajar cerca de él.
7. Después de concluir las conexiones eléctricas, debes voltear
los conductores empalmados hacia arriba y meterlos con
cuidado en la caja eléctrica. Los cables deben estar separados
con el cable a tierra y el conductor a tierra del equipo a un lado
de la caja eléctrica.
8. Todos los tornillos colocados tienen que comprobarse y
ajustarse donde sea necesario antes de la instalación.
ADVERTENCIA: Para reducir el riesgo de lesiones
personales, no dobles los soportes de las aspas
(también llamados “bridas”) durante el ensamblaje ni
después de la instalación. No coloques objetos en la
trayectoria de las aspas.
ADVERTENCIA: Los diagramas eléctricos son ya solo
para referencia. Si usas un kit de luces, consulta su
manual de instrucciones para hacer las conexiones
eléctricas. Cualquier juego de luces opcional deberá
estar aprobado por UL y marcado como adecuado para
usar con este ventilador.
ADVERTENCIA: Para evitar una posible descarga
eléctrica, corta la energía en la caja principal de fusibles
antes de instalar el cableado. Si crees que no tienes
suciente experiencia o conocimientos sobre cableado
eléctrico, contrata a un electricista certicado.
Información de seguridad
Tabla de contenido
PRECAUCIÓN: Para reducir el riesgo de lesiones
personales, usa solo los tornillos incluidos con la caja
eléctrica.
ADVERTENCIA: Para reducir el riesgo de incendio,
descarga eléctrica o lesiones personales, instala solo
en una caja eléctrica clasicada como “apropiada para
sostener ventiladores de 15.9 kg o menos” y usa los
tornillos que vienen con ella.
LEE Y GUARDA ESTAS INSTRUCCIONES.

3HOMEDEPOT.COM/HOMEDECORATORS
Para asistencia adicional, llama al 1-800-986-3460.
Preinstalación
Garantía
El proveedor garantiza de por vida, a partir de la fecha de adquisición por el comprador original, que el motor del ventilador no presenta defectos de
fabricación ni de materiales al momento del envío desde la fábrica. El proveedor también garantiza, por dos años a partir de la fecha de adquisición
por el comprador original, que todas las demás piezas del ventilador, sin incluir aspas de vidrio o acrílicas, no presentarán ningún defecto de
fabricación ni de material al momento del envío desde la fábrica. Si el producto es devuelto, aceptamos reparar tales defectos sin cargo alguno o,
a nuestra discreción, reemplazarlo por un modelo similar o superior. Para obtener servicio de garantía tiene que presentarse una copia del recibo
como comprobante de compra. Todos los costos de retiro y reinstalación del producto correrán por tu cuenta. No están cubiertos bajo esta garantía
los daños a ninguna de las piezas como resultado de accidentes, instalación o uso incorrectos ni por instalación de cualquier accesorio. Puesto que
las condiciones climáticas pueden variar, esta garantía no cubre ningún cambio en el acabado en bronce, incluyendo óxido, perforación, corrosión,
manchas o descascaramiento. Este tipo de acabados en latón alargan la vida útil al proteger contra las condiciones climáticas cambiantes. Cierta
“oscilación” es normal y no debe considerase un defecto. Cualquier servicio prestado por personal no autorizado invalidará la garantía. No hay
ninguna otra garantía expresa. Por este medio, Home Decorators Collection queda exento de todas y cada una de las garantías, incluyendo, pero
sin limitarse a, aquellas de comercialización e idoneidad para determinado propósito, en el alcance permitido por la ley. La duración de cualquier
garantía implícita que no pueda eximirse está limitada al período especicado en la garantía explícita. Algunos estados no permiten limitar la
duración de la garantía, así que la limitación anterior pudiera no aplicarse a su caso. El minorista no será responsable por daños directos, indirectos
o especiales que resulten o deriven del uso o funcionamiento del producto, excepto en los casos estipulados por la ley. Algunos estados no permiten
excluir ni limitar daños directos o indirectos, así que la limitación o exclusión anterior pudiera no aplicarse a su caso. Esta garantía otorga derechos
legales especícos y es posible que usted tenga también otros derechos, que varían de un estado a otro. Esta garantía sustituye todas las garantías
anteriores. Los costos de envío por cualquier devolución de productos como parte de una reclamación de garantía corren por cuenta del cliente.
Comunícate con el Equipo de Servicio al Cliente por el teléfono 1-800-986-3460 o visita www.HOMEDEPOT.COM/HOMEDECORATORS.
ESPECIFICACIONES
HERRAMIENTAS NECESARIAS
NOTA: Estas medidas son aproximadas. No incluyen ni
el amperaje ni el vataje consumido por el kit de luces.
Destornillador
Phillips
Destornillador
plano
Llave
ajustable
Cinta de
electricista Cortacables
Escalera de tijera
Tamaño Velocidad Voltios
Consumo de
energía del
ventilador
(sin luces)
VATIO
Flujo de aire
CFM
Eciencia de ujo de
aire (Mientras más alta,
mejor) CFM/VATIOS
Peso
neto
Peso
bruto
Pies
cúbicos
122 cm
Baja
120
14 1986 141
15.21 lb
(6.8 Kg)
18.74 lb
(8.4 Kg) 58.8 cm
Medio 31 3092 100
Alta 63 4486 71

4
Pieza Descripción Cantidad
AA Tornillos para montaje de aspas 15
BB Tuerca de plástico para conectar cables 3
CC Tuerca decorativa 15
DD Interruptor de cadena 1
Preinstalación (continuación)
HERRAJES INCLUIDOS
NOTA: Los herrajes no se muestran en tamaño real.
Este dispositivo cumple con la Parte 15 de las Regulaciones de la FCC. Su operación está sujeta a las siguientes dos condiciones: (1) este dispositivo no debe
causar interferencia dañina y (2) tiene que aceptar cualquier interferencia recibida, incluyendo aquella que pudiera afectar su funcionamiento.
AA CC
BB
DD

5HOMEDEPOT.COM/HOMEDECORATORS
Para asistencia adicional, llama al 1-800-986-3460.
Pieza Descripción Cantidad
ASoporte de montaje deslizante
(dentro de la cubierta) 1
B Conjunto de tubo bajante/bola 1
C Cubierta 1
D Cubierta decorativa del collarín del motor 1
Pieza Descripción Cantidad
E Conjunto del motor y el ventilador 1
F Aspa 5
G Adaptador de la caja del interruptor 1
H Caja del interruptor 1
IMPORTANTE: Este producto y/o sus componentes están
protegidos por una o más de las siguientes patentes en
EE. UU.: 5,947,436; 5,988,580; 6,010,110; 6,046,416,
6,210,117, así como otras patentes pendientes.
Preinstalación (continuación)
CONTENIDO DEL PAQUETE
Este dispositivo cumple con la Parte 15 de las Regulaciones de la FCC. Su operación está sujeta a las siguientes dos condiciones: (1) este dispositivo no debe
causar interferencia dañina y (2) tiene que aceptar cualquier interferencia recibida, incluyendo aquella que pudiera afectar su funcionamiento.
A
B
C
F
D
H
G
E

6
Instalación
OPCIONES DE MONTAJE
ADVERTENCIA: Para reducir el riesgo de incendio,
descarga eléctrica o lesiones personales, instala solo
en una caja eléctrica clasicada como “apropiada
para sostener ventiladores de 15.9 kg o menos” y usa
los tornillos que vienen con ella. Las cajas eléctricas
utilizadas comúnmente para el soporte de lámparas
pudieran no servir como soporte de ventilador y tal vez
deban reemplazarse. En caso de duda, consulta a un
electricista calicado.
Si tu ventilador de techo no tiene una caja de montaje aprobada
por UL, instala una siguiendo las instrucciones a continuación:
□Desconecta la energía retirando los fusibles o apagando los
cortacircuitos.
□Asegura la caja eléctrica directamente a la estructura de
la edicación. Usa sujetadores y materiales apropiados. La
caja eléctrica y su soporte tienen que sostener todo el peso
del ventilador en movimiento (al menos 35 lb = 15.9 kg). No
uses una caja eléctrica de plástico.
Las ilustraciones más abajo muestran tres formas distintas de
montar la caja eléctrica.
Si la cubierta toca el tubo bajante, retira la tapa inferior decorativa
de la cubierta y gira esta última 180º antes de jarla a la placa
de montaje.
Para colgar el ventilador donde haya una lámpara, pero ninguna viga
de techo, tal vez necesites una barra colgante como se muestra más
arriba (disponible en cualquier tienda de The Home Depot).
NOTA: Tal vez necesites un tubo bajante más largo para
mantener la altura mínima adecuada de las aspas al
instalar el ventilador en un techo muy inclinado.
El ángulo máximo permitido es 30º desde la horizontal.
Caja eléctrica
Caja eléctrica
Caja
eléctrica
empotrad
a
Provee un
soporte fuerte
Placa
de montaje
en cielo raso
Caja eléctrica
Barra para colgar
