Home Decorators Collection SARINA CF1004B User manual

USE AND CARE GUIDE
SARINA 23-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Item# 1008873642, 1008962991
Model# CF1004B, CF1004C
THANK YOU
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!

2
1. To reduce the risk of electric shock, ensure the electricity has been
turned off at the circuit breaker or fuse box before you begin.
2. All wiring must be in accordance with the National Electrical Code
ANSI/NFPA 70-1999 and local electrical codes. Electrical installation
should be performed by a qualied licensed electrician.
3. To reduce the risk of re, electric shock, or personal injury, mount to
outlet box marked acceptable for fan support of 35 lbs (15,9 kg ) on
less and use mounting screws provided with the outlet box. Most
outlet boxes commonly used for the support of lighting xtures are
not acceptable for fan support and may need to be replaced. Consult
a qualied electrician if in doubt. The xing means for attachment to
the ceiling such as hooks or other devices shall be xed with a
sufcient strength to withstand 4 times the weight of the ceiling fan.
4. To reduce the risk of injury to persons,install fan so that the blade is
at least 7 ft (2.1m) above the oor.
5. Do not operate the reversing switch while the fan blades are in
motion. You must turn the fan off and stop the blades before you
reverse the blade direction.
6. Do not place objects in the path of the blades.
7. To avoid personal injury or damage to the fan and other items, use
caution when working around or cleaning the fan.
8. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The
wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box.
The ungrounded conductor on the other side of the outlet box.
9. All setscrews must be checked and retightened where necessary
before installation.
To reduce the risk of injury to persons, not intended for use by persons
(including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the fan by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the fan.
WARNING: To reduce the risk ofpersonal injury,
do not bend the blade brackets (also referred toas
anges) during assembly or after installation. Do not
insert objects in the path of the blades.
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fusebox before
wiring. Ifyou feel you donot have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: To reduce the risk of re or electric shock,
do not use this fan with any solid state speed control
device.
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
WARNING:
shock, this fan should only be used with fan speed
control part no. D-SLF-A20-01-A, manufactured by
LEEDARSON LIGHTING CO., LTD.
WARNING: To reduce the risk of re or electric shock,
this fan must be installed with an isolating wall switch.
WARNING: All replacement of parts and the mounting
of the safety suspension system device shall be
performed by qualied licensed electricians.
WARNING: To reduce the risk of personal injury, if
unusual oscillating movement is observed, immediately
stop using the ceiling fan and contact with a qualied
licensed electrician.
Table of Contents ................................................................ 2
Safety Information............................................................... 2
Warranty ............................................................................... 3
Pre-Installation .................................................................... 4
Installation............................................................................ 6
Assembly.............................................................................. 7
Operation ........................................................................... 10
Care and Cleaning............................................................. 12
Troubleshooting................................................................. 13
Table of Contents

3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Warranty
Contact the Customer Service Team at 1-800-986-3460 or visit HOMEDEPOT.COM/HOMEDECORATORS.
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime
after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be
free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the
original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product is
returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product
are your responsibility. Damage to any part, such as by accident, misuse, improper installation, or by afxing any accessories, is not covered by
this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish, including rusting, pitting, corroding,
tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying weather conditions. A certain amount of
"wobble" is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is
no other express warranty. Home Decorators Collection hereby disclaims any and all warranties, including but not limited to those of merchantability
and tness for a particular purpose to the extent permitted by law. The duration of any implied warranty, which cannot be disclaimed, is limited
to the time period as specied in the express warranty. Some states do not allow a limitation on how long an implied warranty lasts, so the above
limitation may not apply to you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with
product use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other rights that
vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty
must be paid by the customer.
Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with a minimum distance of 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunc-
tion with any other antenna or transmitter.
FCC compliance information is listed as below:
Responsible party: Leedarson America, Inc.
Responsible party address: 300 Technology Court SE Suite 100, Smyrna, GA 30082
Telephone number: [phone]
FCC Warning
Safety Information

4
Pre-Installation

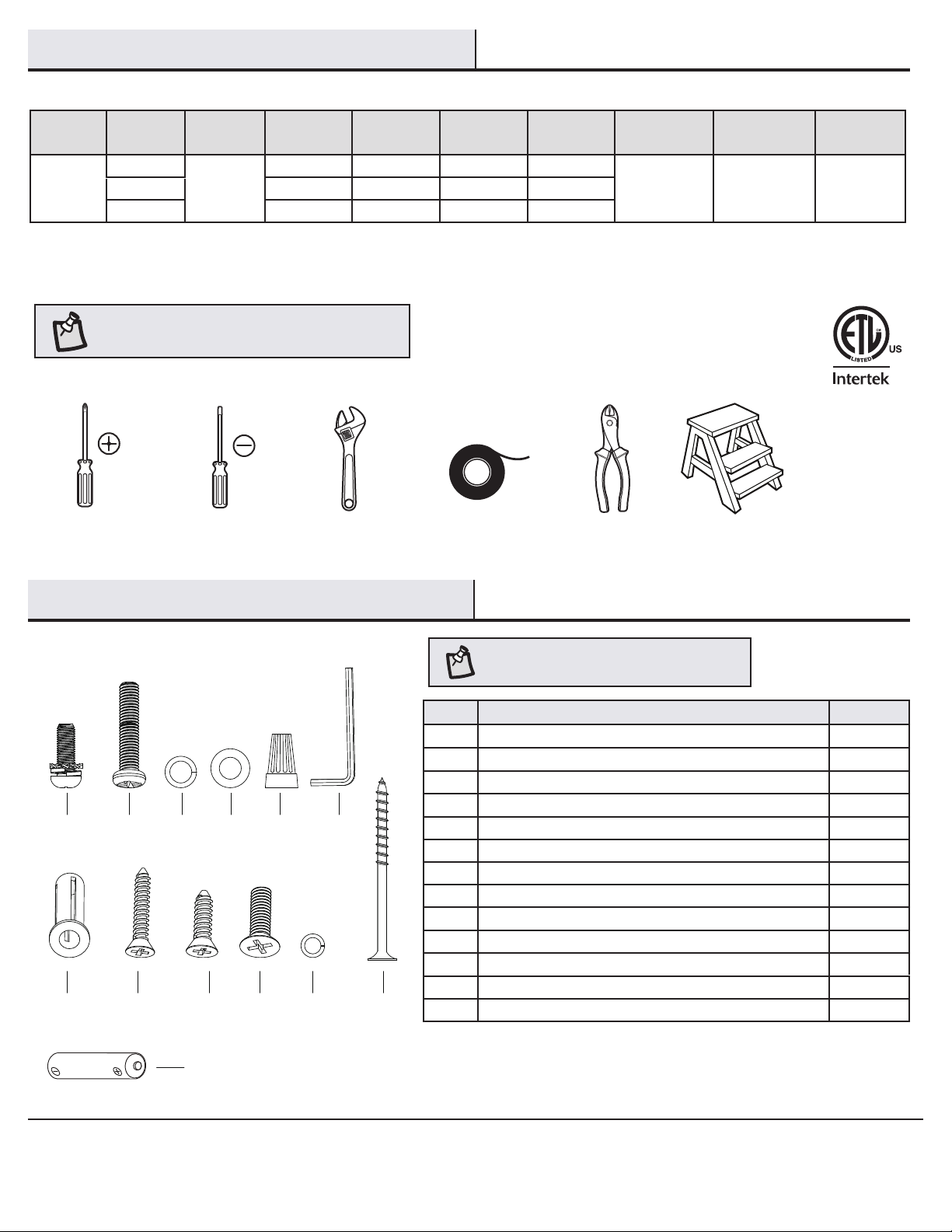

SPECIFICATIONS
TOOLS REQUIRED
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire cutter Step ladder
5003280
Size Speed Volts Amps Watts RPM CFM Net
Weight
Gross
Weight Cu. Ft.
23.6 in. 120
0.09
0.13
0.14
1
2
3
4.5
10
13
440
700
803
800
1300
1800
9.26lbs
(4.2 kg)
18.25lbs
(8.28 kg) 2.237
NOTE: These are approximate measures. They do not
include the amps and wattage used by the light kit.
HARDWARE INCLUDED NOTE: Hardware not shown to actual size.
Pre-Installation (continued)
Part Description Quantity
AA Combination screw
Screw - 1 (M4*25) (not included)
Washer - D5 (φ5) (not included)
Washer - D15 (φ15) (not included)
Wire nut (P4)
Hex key
Drywall anchor - 6*24
Screw - ST3.0*18
Screw - ST3.5*13
Screw - 6#-32*13
Washer - D4 (φ4) (not included)
Screw - 3(ST4.8*77) (not included)
AAA battery
5
HH
2
BB 2
DD
2
EE
2
CC
FF
3
GG
1
JJ
2I I
2
KK
2
LL
2
2
MM 2
AA
GG HH II JJ KK LL
MM
BB CC DD EE FF

Pre-Installation (continued)

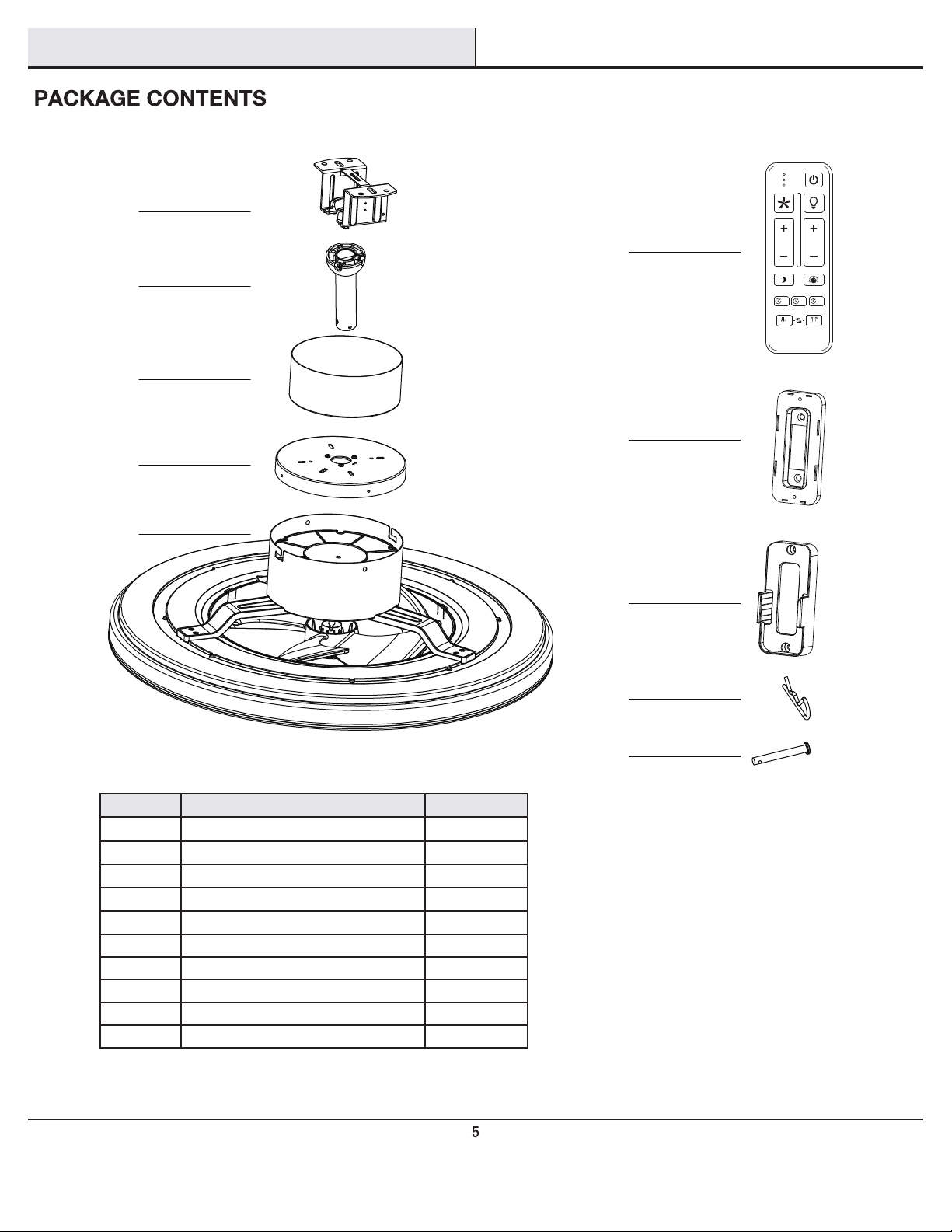

Part Description Quantity
A Mounting bracket
Hanger rod
Canopy
Coupling cover
Fan-motor assembly
IR remote (batteries included)
Remote bracket base
Remote bracket
hitch pin (pre-installed)
lock pin (pre-installed)
1
B 1
C 1
D 1
E
G
1
1
F
H
1
1
I 1
J 1
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
E
D
C
B
A
G
F
H
I
J
NIGHT LIGHT COLOR TEMP.
FAN DIRECTION
HOLD 3 SEC.
SUMMER WINTER
ON / OFF ON / OFF
3 SPEED BRIGHTNESS
ALL
TIMER
HR
2HR
4HR
8

If your ceiling fan does not have an existing UL-listed outlet
box, then install one using the following instructions:
Disconnect the power by removing the fuses or turning off
the circuit breakers.
Secure the outlet box directly to the building structure. Use
the appropriate fasteners and materials. The outlet box and
support structure must be securely mounted and capable of
reliably supporting 35 lbs. (15.9 kg). Use only UL Listed
outlet boxes marked“Acceptable for Fan Support of 35 lbs.
(15.9 kg)or less." Do not use a plastic outlet box.
The illustrations below show two different ways to mount the
outlet box.
□
□
6
Installation
MOUNTING OPTIONS
WARNING:
personal inju ry, mount to outlet box marked “A cceptable
for fan suppor t of 35 lbs. (15.9 kg) or less”, and use
screws provided with the outlet box. An outlet box
not be acceptabl e for fan supp ort and may need to be
you may need an installation hanger bar as shown above
(available at any Home Depot store).
Outlet Box
Outlet Box
Outlet Box
Hanger Bar

Align 2 Screw (BB/LL) through Washer (CC/KK) and Washer-
D15 (DD), then install 2 screw assemblies through 2 centered
holes of mounting bracket (A) onto the outlet box. Figure 1.
Tighten the mounting screw assemblies to secure the
mounting bracket (A) to the ceiling.
Figure 1
Install the mounting bracket to
ceiling
1
WARNING: To reduce the risk of re, electric shock, or other
personal injury, mount the fan only to an outlet box or supporting
system marked acceptable for fan support and use the mounting
screws provided with the outlet box.
7
□
□
Assembly - Hanging the Fan
□Remove the hitch pin (I) and lock pin (J) from the bottom of
hanger rod (B). Figure 1.
Put the canopy (C) and coupling cover (D) over the hanger
rod (B). Figure 2.
Align two holes at the bottom of hanger rod (B) with two holes
on the coupling cover (D) to reinstall the hitch pin (I) and lock
pin (J) back to pre-lock the down-rod assembly. Figure3.
Insert combination screw (AA) into the hole beside hitch pin (I)
and lock pin (J), tighten the screw to secure the coupling cover
(D) to the hanger rod (B).
□
□
□
Prepare the down-rod assembly
2
Outlet Box
A
BB/LL
CC/KK
DD
B
C
C
B
D
AA
Figure 1
Figure 2
Figure 3
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
B B

Attaching fan-motor assembly to
the down-rod assembly
3
Pre-lock two combination screws (AA) into two

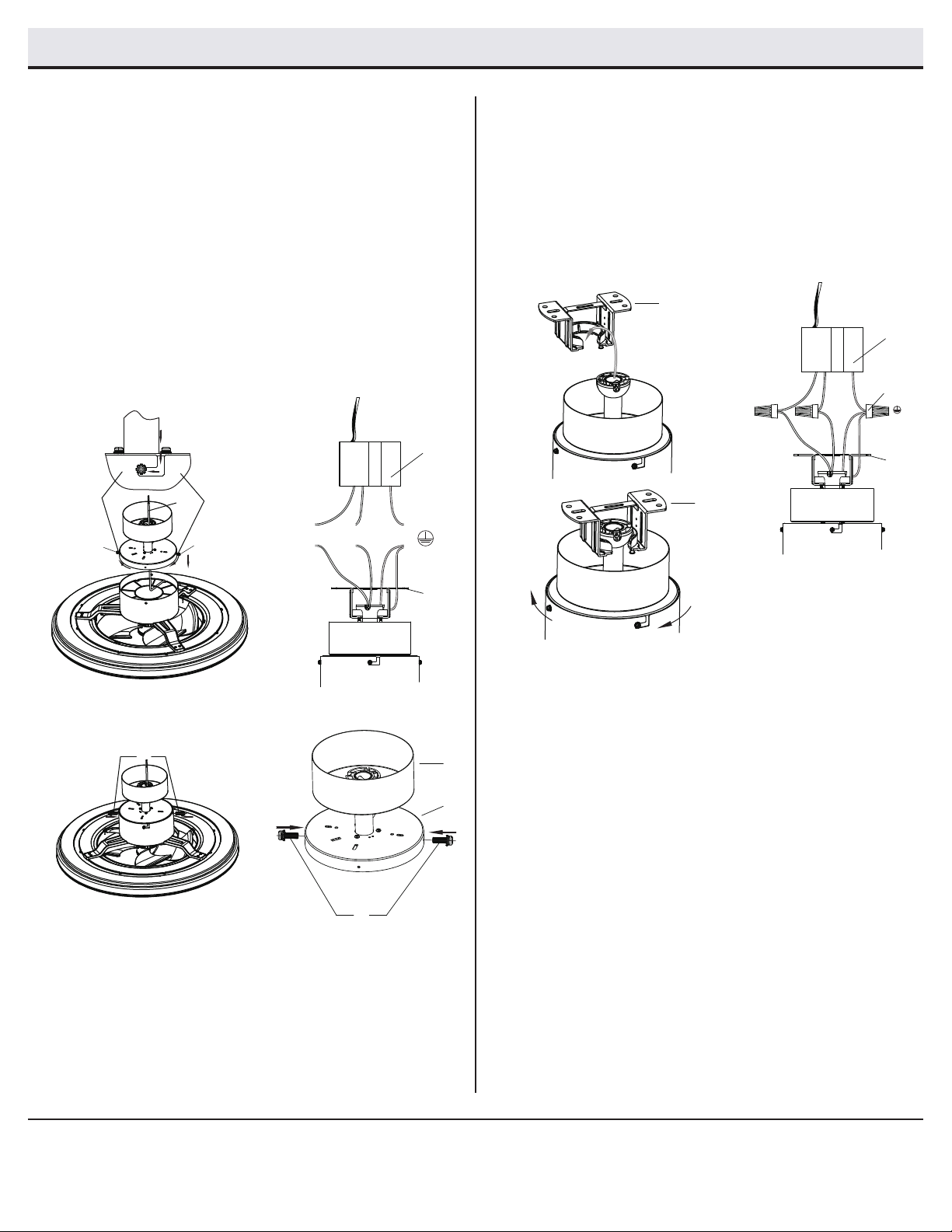

opposite holes on the outer race of the coupling cover (D).
Align two pre-locked combination screws (AA) with two
slots on the housing of fan-motor assembly (E). Rotate the
down-rod assembly in place until it is secure. Figure 1.
Identify the wiring located on the fan-motor assembly (E):
black-line voltage, white-neutral, green-ground. Feed the
wires from the fan-motor assembly (E) through the hanger
rod (B). Figure 2.
Tighten pre-locked combination screws (AA) and another
two combination screws (AA) to secure the down-rod
assembly to the fan-motor assembly (E). Figure 3.
Connecting the wires
4
□
□
Carefully lift the whole xture to hang the ball head of hanger
rod (B) onto the mounting bracket (A) previously installed on
ceiling. Rotate the hanger rod (B) until it snap in place. Figure 1.
Connect the white (N), black (L) and green wires from the
xture to their corresponding wires from the junction box using
wire nuts (EE). Figure 2.
8
Assembly - Hanging the Fan (continued)
□
□
□Outlet Box
EE
White
(N)
A
Black
(L)
Green
AA
L&N
Figure 2
Figure 2
Figure 1
Figure 1
AA
AA
Outlet Box
A
White
（N）
Black
（L）
Green
C
A
A
D
Figure 3
AA

□
□
Align two key holes of canopy (C) with the pre-installed
screws under the mounting bracket (A). Push up the canopy (C)
until the screws heads engage to the key holes
on the canopy (C), and rotate the canopy (C) counterclockwise
until it is attached to the bottom of the mounting bracket (A)
tightly. Figure 1.
Tighten two preinstalled screws to secure the canopy
(C) to the mounting bracket (A) using hex key (FF). Figure 2.
5Install the canopy
9
Assembly - Hanging the Fan (continued)
A
C
Figure 1
Install the remote bracket
6
□
□
□
Using the remote bracket base (G) as a guide, mark the two holes
locations.
Drill the two holes at the marked locations and install two drywall
anchors (GG) in each of the marked locations. Figure 1.
Insert screw (II) into anchor and tighten each screw to secure the
remote bracket base (G). Use screw (HH or JJ) to tighten remote
bracket on the housing. Figure 2.
Figure 1
Figure 2
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
GG
HH / JJ
II
H
G
FF

10
Remote Operation
Warm weather
Cool weather
Remote control
Your fan isequipped with a remote control to operate the speed and
lightsfor your new ceiling fan.
effect. This allows you to set your air conditioner on a warmer setting
without affecting your comfort.
the
ceiling. This allows you to set your heating unit on a cooler setting
without affecting your comfort.

11
NOTE: Press and hold the fan power button above 5 second to reset factory default setting, reset status will be closed
after 2 seconds. Factory default setting: 3000K, 100% brightness, fan foreward ,fan speed is level 3.

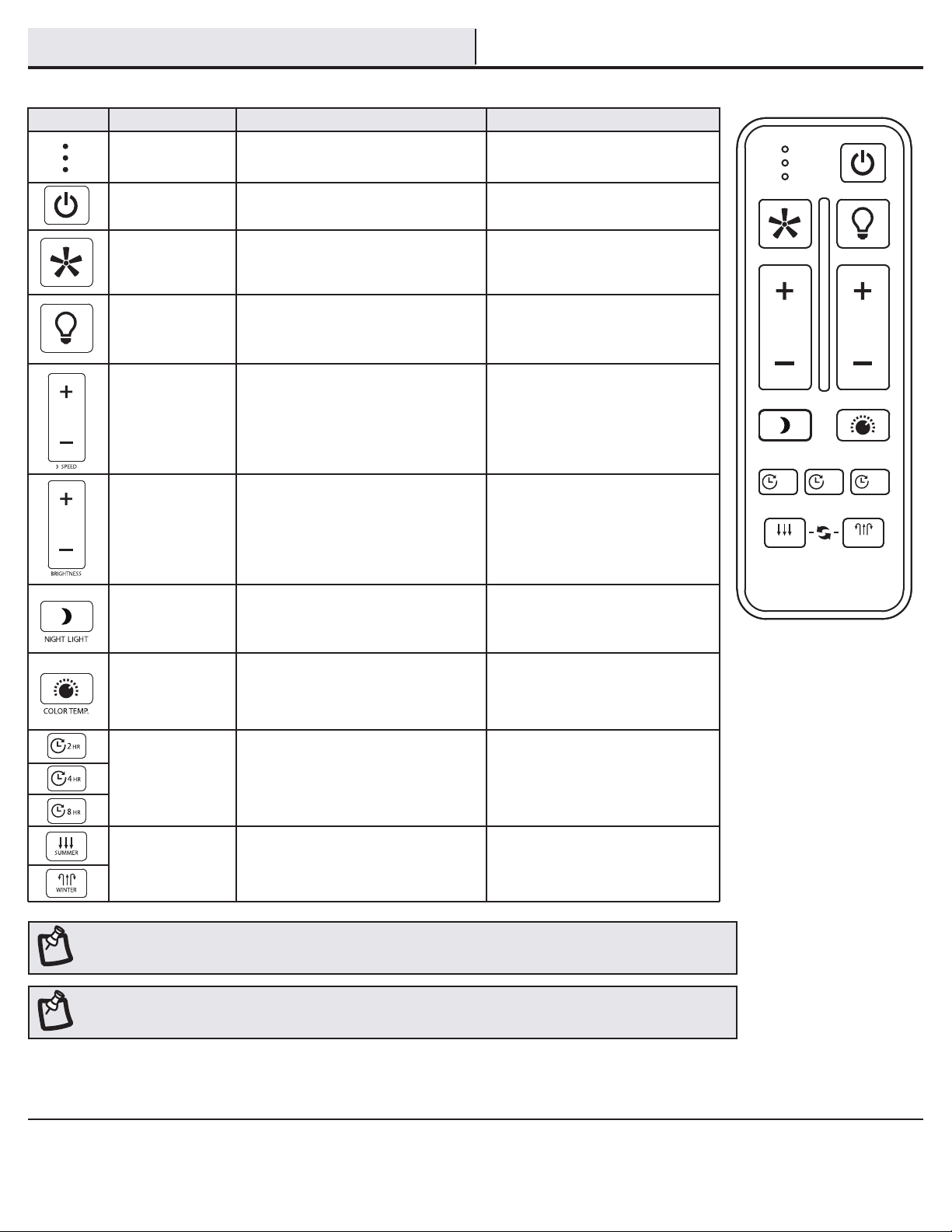

Icon Button Name Action Notes
Light ON/OFF Press once to turn the light on
Press again to turn the light off
The brightness and CCT will be the
same as your last setting when
turned on.
Fan ON/OFF
Press and release while the light is on
to change the CCT by 2700K – 3000K –
3500K – 4000K – 5000K
The default CCT is 3000K.
If pressed while the light is off; the
CCT won’t change.
Press once to turn the fan on
Press again to turn the fan off
Long press for 5 seconds to reset factory
default setting
Brightness Change
Color Temperature
(CCT) Change
Fan Direction
Night Light Press once to turn the night light on
Press again to turn the night light off
Short press to select the desired timer
Long press for 3 seconds to cancel the
timer set.
The timer is set for the fan.
The default fan speed is level 3.
Fan Speed
Timer Buttons
NOTE: On start up your ceiling fan will oscillate back and forth. This is NORMAL OPERATION for DC ceiling fan as it goes
through its calibration cycle. The fan is NOT DEFECTIVE.
3 Speed LED Press different buttons will light up
different quantity of indicators
All ON/OFF press to turn the Fan and light on/off
The fan has 3 speeds.
Press the button “＋”to increase
fan speed＋
Press the button “－”to decrease
fan speed－
Press while the light is on to change the
brightness by 10%-20%-40%-60%-
80%-100%.
Hold the button for increase or Decrease
light level at a smooth curve.
Press and release the button while the
fan is on to reverse the direction.
Remote Operation
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
NIGHT LIGHT COLOR TEMP.
FAN DIRECTION
HOLD 3 SEC.
SUMMER WINTER
ON / OFF ON / OFF
3 SPEED BRIGHTNESS
ALL
TIMER
HR
2HR
4HR
8

12
□Becauseof thefan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. Itisnot necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as thiscould damage
plating is sealed with a lacquer to minimize discoloration or tarnishing.
□You donotneed tooil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning

13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Troubleshooting
Problem Solution
The fan will not start. 1. Check to make sure the wall switch is in the on position if applicable.
2. Check the main and branch circuit fuses or breakers.
3. Make sure your device is connected to a power source.
4. Check the battery in the remote control, the transmitter and receiver are matched.
1. Make sure the fan was not damaged prior to installation.
2. Ensure the screws that attach the fan blade bracket to the motor hub are tight.
3. Ensure the hanging units are xed and tight.
4. Ensure the glass shade is secure.
5. Ensure the motor assembly does not contain any debris.
1. Due to different weight and density of blades, the blades cannot be replaced by other type or it will effect its
balance while working.
2. Ensure the screws that attach the fan blade bracket to the motor hub are tight.
3. Ensure the hanging units are xed and tight.
4. If the above are normal, you can adjust the device according to the guide of balancing kit.
The fan is noisy.
The fan wobbles
1. Check the power connection from the fan to the electrical power supply;
2. Check if the terminal from the LED module is connected properly.
3. Check if the LED Module is damaged.
Lighting source
is not working
Make sure no disturbance from same frequency controller, you may rematch the device according to guidance.
Ceiling fan is
uncontrollable by
remote device
This is normal start-up procedure for DC motor fans. The partial movement during start-up is the result of the DC
motor aligning the internal magnetic poles for proper motor operation. This design saves electricity and allows the
fan to operate much quieter than standard AC motor fans.
Fan moves backwards
and forwards when
turned on.
NOTE: Make sure the power is off before maintenance
NOTE: On start up your ceiling fan will oscillate back and forth.
This is NORMAL OPERATION for DC ceiling fan as it goes
through its calibration cycle. The fan is NOT DEFECTIVE.

Questions, problems,missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m.,EST, Monday-Friday, 9 a.m. - 6 p.m.,EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
