ARLEIGH LED 44 IN. CEILING FAN
#1004 291 852
Item #1004 291 840
Model #AM589H-EB
Model #AM589H-WH
THANK YOU
THANK YOU
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to find
this fan and click the link of visual instruction in the product overview section.

Table of Contents
2
Table of Contents ..........................................................
Safety Information .........................................................
Warranty .........................................................................
Pre-installation ..............................................................
Specifications ..........................................................................
Tools Required .........................................................................
Hardware Included ..................................................................
Package Contents ....................................................................
Installation .....................................................................
Assembly ........................................................................
Hanging the Fan .......................................................................
Attaching the Fan Blades .......................................................
Installing the Light Kit ............................................................
2
3
4
4
4
4
5
6
7
8
8
11
12
READ AND SAVE THESE INSTRUCTIONS
Operation .....................................................................
Pull Chain Operating Instructions ..........................................
Reverse Switch Operating Instructions ..................................
Care and Cleaning .......................................................
Troubleshooting ..........................................................
Service Parts ................................................................
14
14
14
15
15
17

Safety Information
WARNING: To reduce the risk of electrical shock or fire, do
not use this fan with any solid-state fan speed control device.
It will permanently damage the electronic circuitry.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as flanges), when
installing the brackets, balancing the blades or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of fire, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
1. To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualified
licensed electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35
lbs (15.9 kg) or less. Use only UL-listed outlet boxes marked
“FOR FAN SUPPORT.”
4. The fan must be mounted with a minimum of 7 ft (2.1m)
clearance from the trailing edge of the blades to the floor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
7. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
8. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
9. All setscrews must be checked and retightened where
necessary before installation.
10. This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Warning: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void
the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
The following responsible party designated in FCC §2.909 is
responsible for this declaration:
Model Number: AM589H-EB, AM589H-WH
Company Name: TAL INTERNATIONAL CORPORATION
Company Address: 2919 E. Philadelphia St., Ontario, CA 91761, U.S.A.
Full Name: James Lai Title: Manager
Telephone Number: [phone] Fax: [phone]

SPECIFICATIONS
SPECIFICATIONS
TOOLS REQUIRED
TOOLS REQUIRED
Phillips
screwdriver
Electrical
tape
Wire
stripper
Flat blade
screwdriver
Step
ladder
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
Warranty
4
Pre-InstallationPre-Installation
We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period
of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-
tion or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover
any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give their longest useful
life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim
any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in the express warranty.
Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall
not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as
may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above
exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty
must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS
44 in.
Low
Medium
High
120
Fan size
Fan size
Watts
Watts
RPM
RPM
CFM
CFM
Speed
Speed
Volts
Volts
Amps
Amps
2.27 cu. ft.
N.W.
N.W.
G.W.
G.W.
C.F.
C.F.
0.22
0.31
0.42
12.59
25.67
49.85
90
132
180
1866
2725
3757
9.11 kg
(20.04 lbs.)
10.45 kg
(22.99 lbs.)

AA
BB
CC
DD
EE
FF
Plastic wire nut
Motor mounting screw with lock washer (preassembled)
Blade attachment screw with lock washer (not to scale)
Light kit mounting plate screw (preassembled)
Light kit mounting screw (preassembled)
Pull chain and fob (not to scale)
Part
Part
Description
Description
3
4
16
3
4
2
Quantity
Quantity
Pre-Installation (continued)

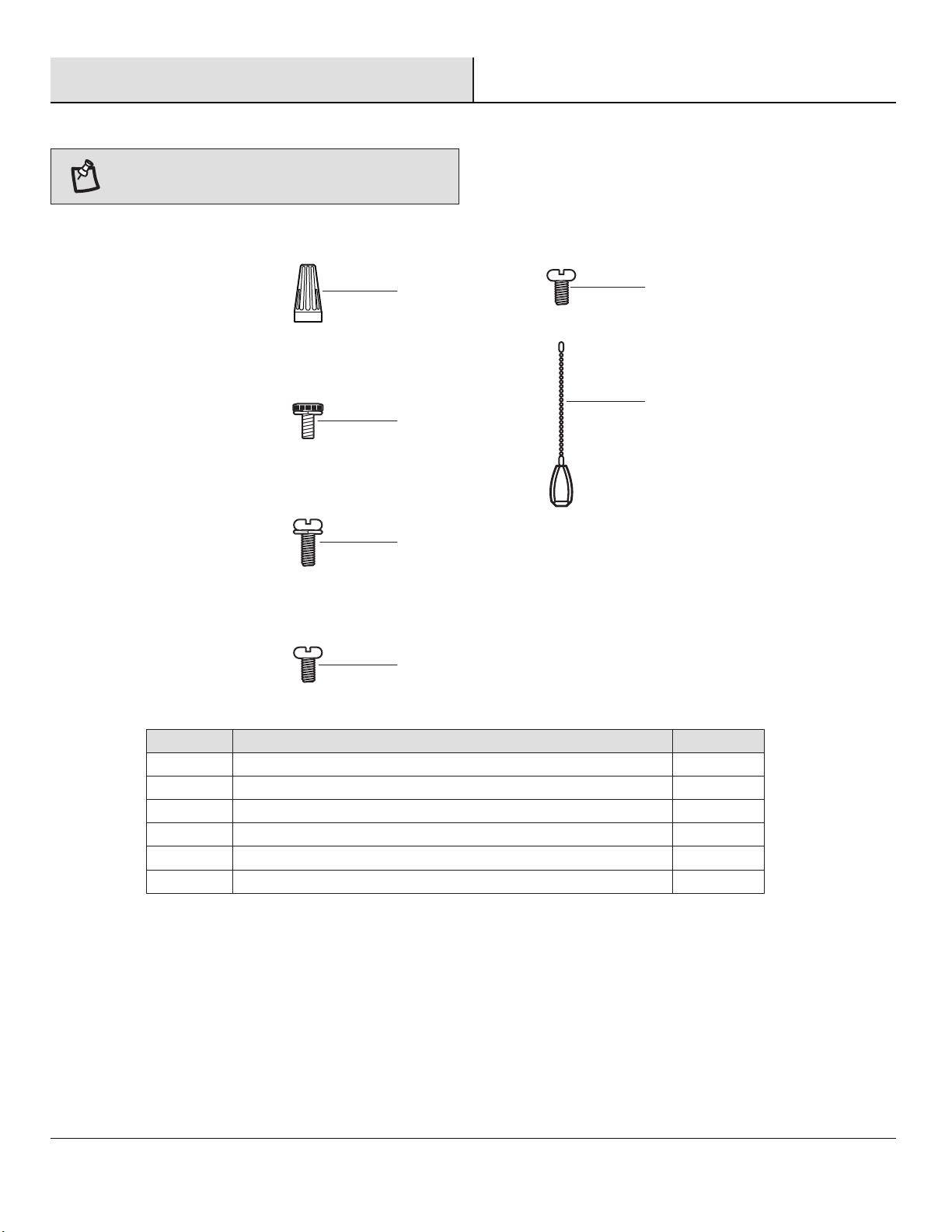

HARDWARE INCLUDED
HARDWARE INCLUDED
NOTE: Hardware shown to actual size unless noted
otherwise in the table below.
5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
AA EE
FF
BB
CC
DD

PACKAGE CONTENTS
PACKAGE CONTENTS
Part
Part
E
F
G
Description
Description
Light kit mounting plate
Light kit assembly
Glass shade
A
B
E
F
G
C
D
Pre-Installation (continued)
6
Part
Part
A
B
C
D
Quantity
Quantity
1
1
5
5
Quantity
Quantity
1
1
1
Description
Description
Mounting bracket
Fan motor assembly
Blade
Blade support plate

To hang your fan where there is an existing fixture but no ceiling
joist, you may need an installation hanger bar (HH) (not included)
as shown above.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box (GG) (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 35
lbs.). Do not use a plastic outlet box.
The illustrations below show two different ways to mount the
outlet box (GG) (not included).
WARNING: To reduce the risk of fire, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting fixtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualified
electrician.
GG
GG
HH
GG
Installation
MOUNTING OPTIONS
MOUNTING OPTIONS
7 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Assembly — Hanging the Fan
1Installing the mounting bracket
to the electrical box
Hanging the fan to the
mounting bracket

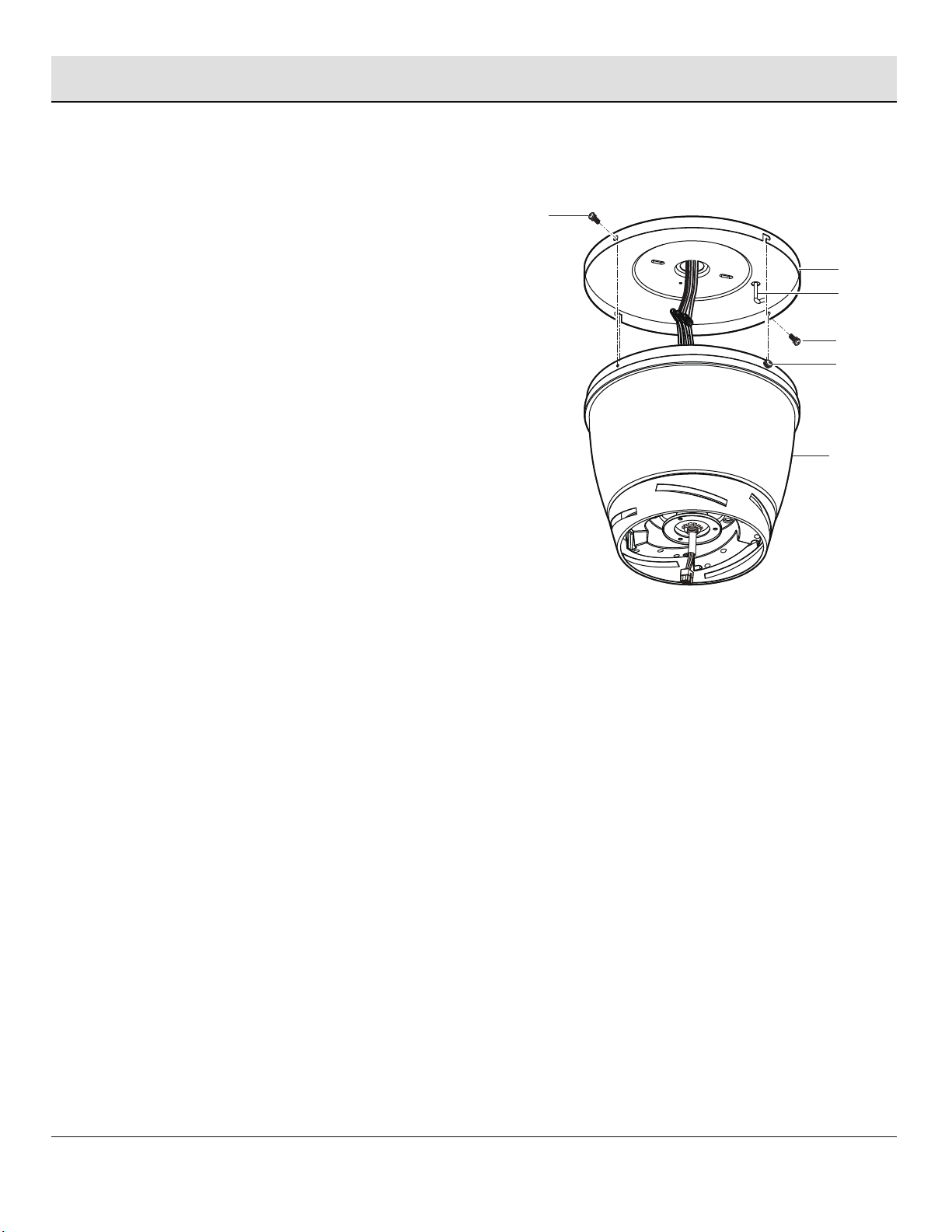

□Attach the mounting bracket (A) to the outlet box (GG)
(not included) with two screws and washers provided
with the outlet box (GG). Ensure the mounting bracket
(A) is tight and secured.
WARNING: To reduce the risk of fire, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
□Remove two of the four motor mounting screws (BB)
from the motor assembly (B) and loosen the other
two screws (BB). (Do not remove)
□Lift the fan into position by hanging the fan motor
assembly (B) onto the hook (II). from the ceiling
mounting bracket (A) allowing it to hang freely.
2
8
A
GG
BB
BB
A
B
II

9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Blue
Black
Green
White
Black
Ground
conductor
White
AA
GG
Making the electrical
connections
If you feel you do not have enough electrical wiring
knowledge or experience, have your fan installed by a
licensed electrician.
Follow the steps below to connect the fan to your
household wiring. Use the plastic wire nuts (AA) with your
fan. Secure the plastic wire nuts (AA) with electrical tape.
Make sure there are no loose strands or connections.
□Connect the ground conductor of the 120V supply
(this may be a bare wire or a wire with green colored
insulation) to the green ground lead(s) of the fan.
□Connect the fan motor white wire to the supply white
(neutral) wire using a plastic wire nut (AA).
□Connect the fan motor black wire and the blue wire to
the supply black (hot) wire using a plastic wire nut
(AA).
□Turn the wire nut connections upward, spreading
them apart so the green (ground) will be on one side
of the outlet box (GG) and the white, black and blue
wire will be on the other side. Carefully tuck the
connections up into the outlet box (GG).
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts (except for the ground wire).
WARNING: To reduce the risk of fire or electric shock, do
not use this fan with any solid-state speed control device.
WARNING: To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box before wiring.
Assembly — Hanging the Fan (continued)
3

10
4Attaching the fan motor assembly
to the mounting bracket
□Remove the fan motor assembly (B) from the
mounting bracket hook (II), and engage the key holes
on the mounting bracket (A) with the two mounting
bracket screws (BB) previously loosened.
□Install the two mounting bracket screws (BB)
previously removed, and tighten all four mounting
bracket screws (BB).
Assembly — Hanging the Fan (continued)
B
A
BB
BB
BB
II

11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
5Attaching the fan blades
Assembly — Attaching the Fan Blades
□The fan motor assembly (B) is shipped with rubber
packing mounts (JJ) to prevent movement during
transportation. Remove the three rubber packing
mounts (JJ) from the fan motor assembly (B) and
discard prior to attaching the blades.
□Insert the blade (C) through the slot on the housing.
Align the holes on the blade (C) and the fan motor
assembly (B) and secure the blade in place with
blade support plate (D) and screws (CC) provided.
□Repeat this process to attach the other blades (C).
WARNING: To reduce the risk of personal injury, do not
insert foreign objects between rotating fan blades (C).
B
CC
D
C
JJ

12
B
E
KK
DD

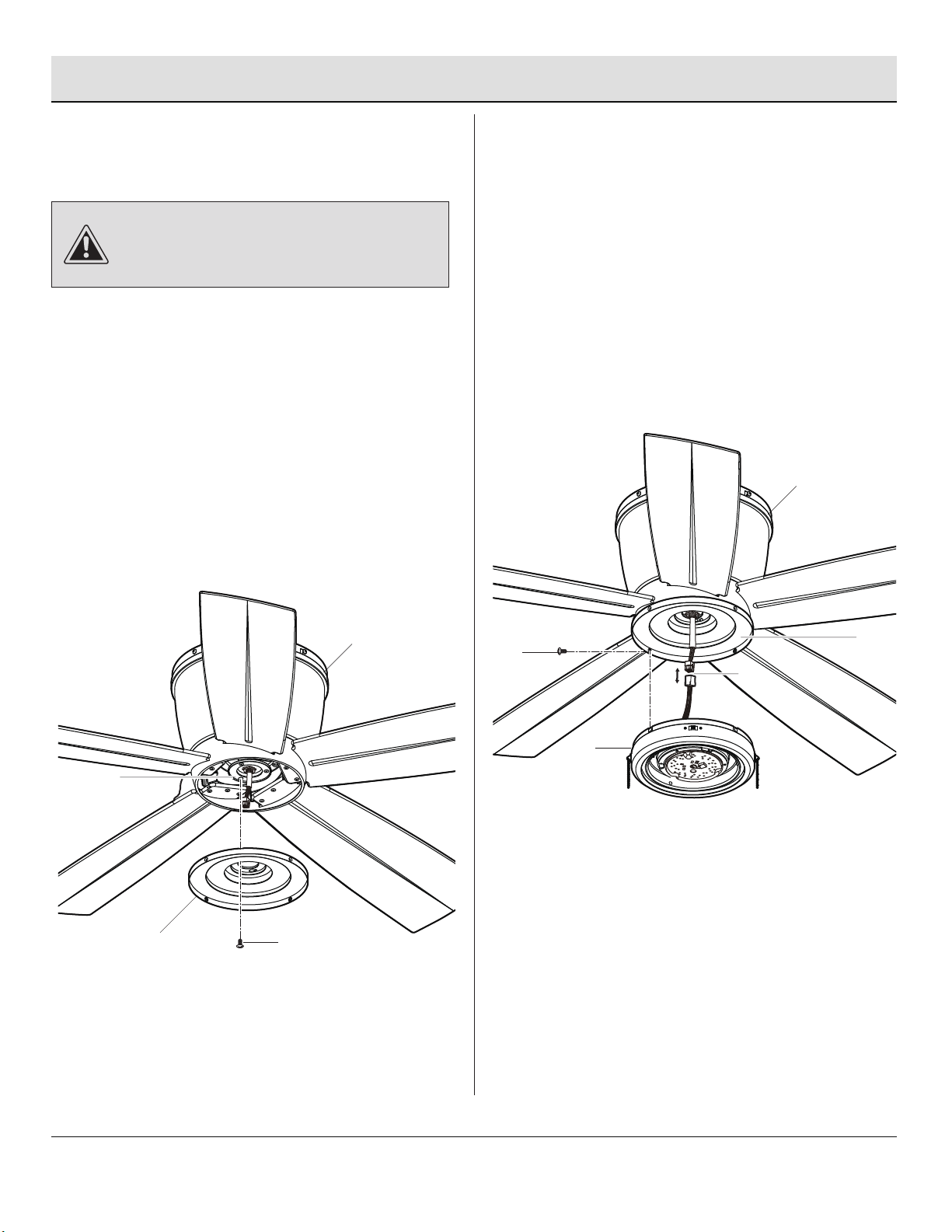

6Attaching the light kit mounting
plate to the mounting ring
□Remove one of the three light kit mounting plate
screws (DD) from the mounting ring (KK) and loosen
the other two screws (DD). (Do not remove)
□Place the key holes on the light kit mounting plate (E)
over the two screws (DD) previously loosened from
the mounting ring (KK), and turn the light kit
mounting plate (E) until the light kit mounting plate
(E) locks in place at the narrow section of the key
holes.
□Securely tighten the two light kit mounting plate
screws (DD) previously loosened and the one
previously removed.
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufficient to prevent electric shock.
Assembly — Installing the Light Kit
7Attaching the light kit to
the light kit mounting plate
□Remove the four light kit mounting screws (EE) from
the light kit assembly (F).
□While holding the light kit assembly (F) under the fan,
snap together the wire connection plugs (LL).
□Carefully push all wires back into the light kit
mounting plate (E). Install the light kit assembly (F)
onto the light kit mounting plate (E) with the four light
kit mounting screws (EE) previously removed. Be
sure to tighten all screws.
B
E
F
EE
LL

13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
8Installing the glass shade
Assembly — Installing the Light Kit (continued)
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufficient to prevent electric shock.
□Position the notches (NN) in the outer rim of the glass
shade (G) so they line up with the tabs (MM) on the
inside of the rim on the light kit assembly (F).
Carefully lift the glass (G) up inside the light kit
assembly (F) and secure it to the fan by turning the
glass shade (G) clockwise until snug. DO NOT
OVERTIGHTEN.
G
NN
B
F
MM

14
FFFF
F
Operation
PULL CHAIN OPERATING INSTRUCTIONS
PULL CHAIN OPERATING INSTRUCTIONS
Install two pull chains and fobs (FF) onto the pull chains located on
the light kit assembly (F). Turn on the power and check the
operation of the fan.
The pull chain controls the fan speed as follows:
1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off.
Speed settings for warm or cool weather depend on factors such
as the room size, ceiling height, and number of fans.
To turn the light kit on or off, pull the chain that is attached to
the light kit assembly (F).
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
REVERSE SWITCH OPERATING INSTRUCTIONS
REVERSE SWITCH OPERATING INSTRUCTIONS
Warm weather - (Counterclockwise Direction) A downward air flow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air flow moves
warm air off the ceiling. This allows you to set your heating unit on
a cooler setting without affecting your comfort.
The reverse switch is located on the surface of the light kit
assembly. Slide the switch to the left for warm weather operation.
Slide the switch to the right for cool weather operation.

15 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Care and Cleaning
Troubleshooting
Do
Do
Problem
Problem
Solution
Solution
□Use water when cleaning. Water could damage the motor,
or the wood, or possibly cause an electrical shock.
□Apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
Do not
□Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the finish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□(Optional) Apply a light coat of furniture polish to the wood
blades.
□(Optional) Cover small scratches with a light application of
shoe polish.
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to step 3
“Making the electrical connections” on page 9.
□Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Make sure all motor housing screws are snug.
□Make sure the screws that attach the fan blade arm to the motor hub are tight.
□Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
□Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this
time.
□If using the ceiling light kit, make sure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The fan will not start.
The fan sounds noisy.

16
Problem
Problem
Solution
Solution
□Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a
point on the ceiling above the tip of one of the blades. Measure from a point on the center of each blade
to the point on the ceiling. Rotate the fan until the next blade is positioned for measurement. Repeat for
each blade. Measurement deviations should be within 1/8 in. Run the fan for ten minutes.
□Use the enclosed blade balancing kit if the blade wobble is still noticeable.
The fan wobbles.
Troubleshooting (continued)

17 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part
Part
A
B
C
D
E
F
G
Description
Description
Mounting bracket
Fan motor assembly
Blade
Blade support plate
Light kit mounting plate
Light kit assembly
Glass shade
Part
Part
AA
BB
CC
DD
EE
FF
Description
Description
Plastic wire nut
Motor mounting screw with lock washer (preassembled)
Blade attachment screw with lock washer
Light kit mounting plate screw (preassembled)
Light kit mounting screw (preassembled)
Pull chain and fob
Service Parts
A
E
D
F
G
AA
BB
CC
DD
B
C
FF
EE

Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
AM589H001-A
