Home Decorators Collection SUDLER RIDGE 60-SUDE User manual

60-INCH CEILING FAN
USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Item # 1001 xxx xxx
Model # 51714
UL Model # 60-SUDE
SUDLER RIDGE

2
Table of Contents ................................................................ 2
Safety Information............................................................... 2
Warranty ............................................................................... 3
Pre-Installation .................................................................... 3
Installation............................................................................ 6
Assembly.............................................................................. 7
Operation ........................................................................... 15
Care and Cleaning............................................................. 16
Troubleshooting................................................................. 16
1. To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you
begin.
2. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70 and local electrical codes. Electrical
installation should be performed by a qualified licensed
electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting 35 lbs. (15.9 kg). Use only
UL Listed outlet boxes marked”Acceptable for Fan Support of
35 lbs. (15.9 kg) or less”.
4. The fan must be mounted with a minimum of 7 ft (2.1 m)
clearance from the trailing edge of the blades to the oor.
5. Do not operate the reversing switch while the fan blades are
in motion. You must turn the fan off and stop the blades before
you reverse the blade direction.
6. Do not place objects in the path of the blades.
7. To avoid personal injury or damage to the fan and other items,
use caution when working around or cleaning the fan.
8. Electrical diagrams are for reference only. Light kits that are
not packed with the fan must be UL-listed and marked suitable
for use with the model fan you are installing. Switches must be
UL General Use Switches. Refer to the instructions packaged
with the light kits and switches for proper assembly.
9. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box.
10. All setscrews must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury,
do not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do not
insert objects in the path of the blades.
WARNING: To reduce the risk of re or electric
shock, do not use this fan with any solid-state speed
control device.
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: Electrical diagrams are for reference
only. Optional use of any light kit shall be UL-listed
and marked suitable for use with this fan.
WARNING: To reduce the risk of re or electric
shock, “this fan should only be used with fan speed
control part no. MR140A manufactured by Satellite
Industrial Co., LTD”
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
READ AND SAVE THESE INSTRUCTIONS.
CAUTION: Changes or modications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
CAUTION: Do NOT use this fan with a dimmer switch
or wall control. Using a dimmer switch or wall control
will damage the fan.
WARNING: To reduce the risk of electric shock, this
fan must be installed with an isolating wall switch.

60 in.
3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-Installation
Warranty
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a
lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date
of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior
model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installation, or by afxing any
accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish,
including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying
weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons
shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties,
including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any
implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a
limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by
law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you.
This warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior
warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.
SPECIFICATIONS
TOOLS REQUIRED
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter
Step ladder
Size Speed Volts Amps Watts RPM CFM Net
Weight
Gross
Weight Cube Feet
Low
Medium
High
120
0.26
0.38
0.55
15.4
32.5
66
77
126
185
2446
3809
5596
xx.x lbs.
(x.x kg)
xx.xx lbs.
(xx.x kg) x.xx cu.ft.

4
Part Description Quantity
AA Blade attachment screws 16
BB Plastic wire connector 3
Pre-Installation (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Part Description Quantity
CC Blade bracket hardware (screw and
lockwasher)
11
AA BB CC

5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
A Slide-on mounting bracket
(inside canopy)
1
B Ball/downrod assembly 1
C Canopy 1
D Decorative motor collar cover 1
E Fan-motor assembly 1
Part Description Quantity
F Blade bracket 5
G Blade 5
H Light kit tter assembly 1
I Glass bowl 1
J Receiver 1
K Remote control (battery included) 1
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)
PACKAGE CONTENTS
G
E
H
F
I
A
B
C
D
J
K
1 2 3 4
ON DIP

6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount the fan to an outlet box
marked “Acceptable for fan support of 35 lbs.
(15.9kg) or less” and use the screws provided with
the outlet box. An outlet box commonly used for the
support of lighting xtures may not be acceptable for
fan support and may need to be replaced. If in doubt,
consult a qualied electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure.
Use the appropriate fasteners and materials. The outlet box
and its bracing must be able to fully support the weight
of the moving fan (at least 35 lbs.). Do not use a plastic
outlet box.
The illustrations below show three different ways to mount the
outlet box.
If the canopy (C) touches the ball/downrod assembly (B), then remove
the decorative canopy bottom cover and turn the canopy (C) 180°
before attaching the canopy (C) to the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 30° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

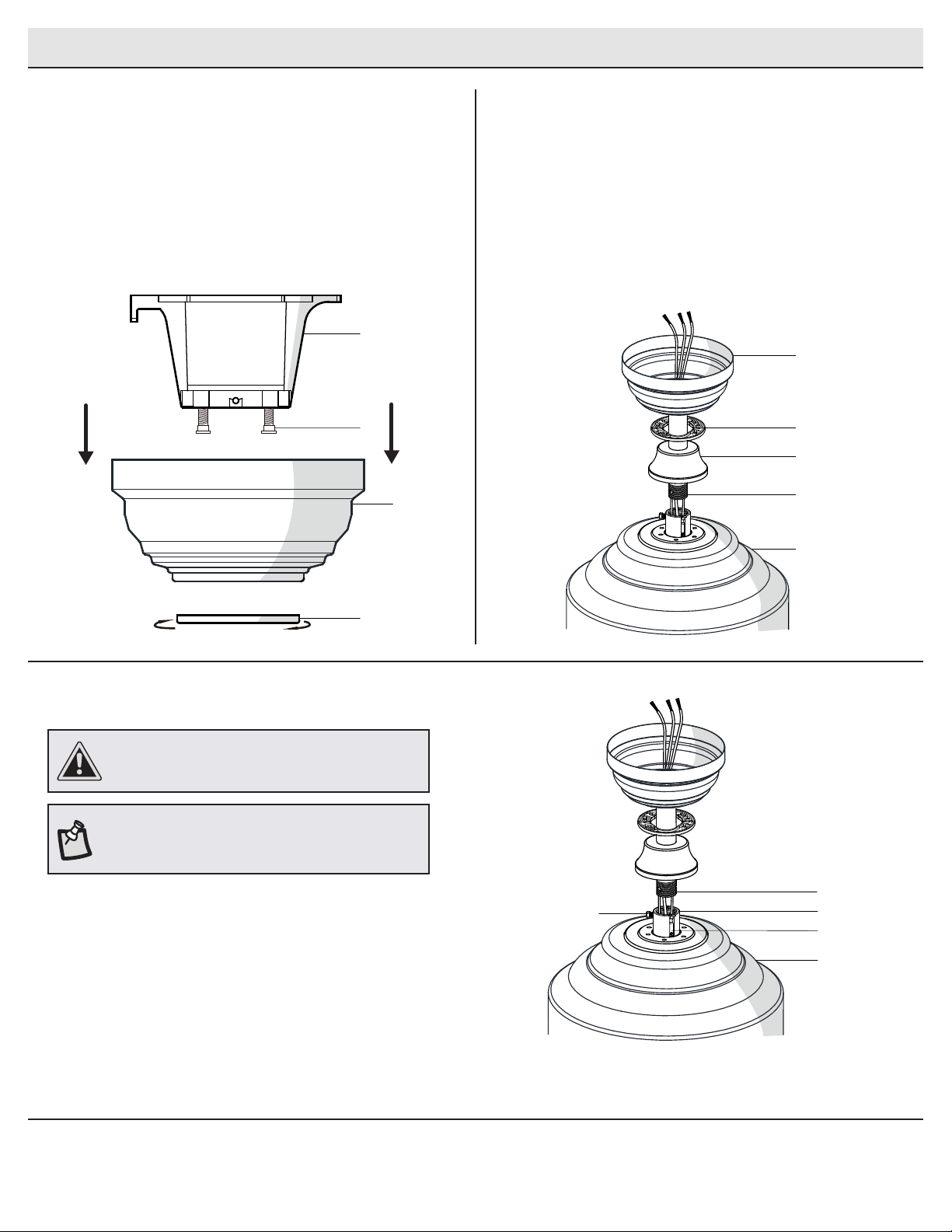

Assembly - Standard Ceiling Mount
Routing the wiresPreparation for standard mounting
□Route the wires exiting the top of the fan motor
assembly (E) through the decorative motor collar cover
and then the center of the canopy bottom cover (FF).
□Make sure the opening of canopy (C) is on top and
insert the ball/downrod (B) through the canopy (C).
□Route the wires exiting the top of the fan motor
assembly (E) through the downrod as shown.
21
□Remove the canopy bottom cover (FF) from the canopy
(C) by turning the bottom cover counter-clockwise until it
unlocks.
□Loosen the two canopy screws (DD) located in the bottom of
the mounting bracket, and turn the canopy counter-clock-
wise to remove the mounting bracket (A) from canopy (C).
Assembling the fan
□Loosen, but do not remove, the setscrew (GG) on the collar
(II) on top of the fan-motor assembly (E).
□Install the downrod (B) by inserting it into the motor collar
(II), and turning it clockwise until it is tight.
□Re-tighten the setscrew (GG) on the collar (II) on top of the
fan motor assembly (E).
3
NOTE: This fan is equipped with a safety tab (HH). Should
the setscrew (GG) ever become loose while the fan is
running in reverse, the safety tab (HH) will engage and
stop the fan from falling.
CAUTION: To ensure wobble-free operation and to avoid
damage to the fan, the downrod (B) and the setscrew
(GG) must be completely tightened.
C
A
DD
FF
C
D
E
FF
B
B
E
II
HH
GG

8

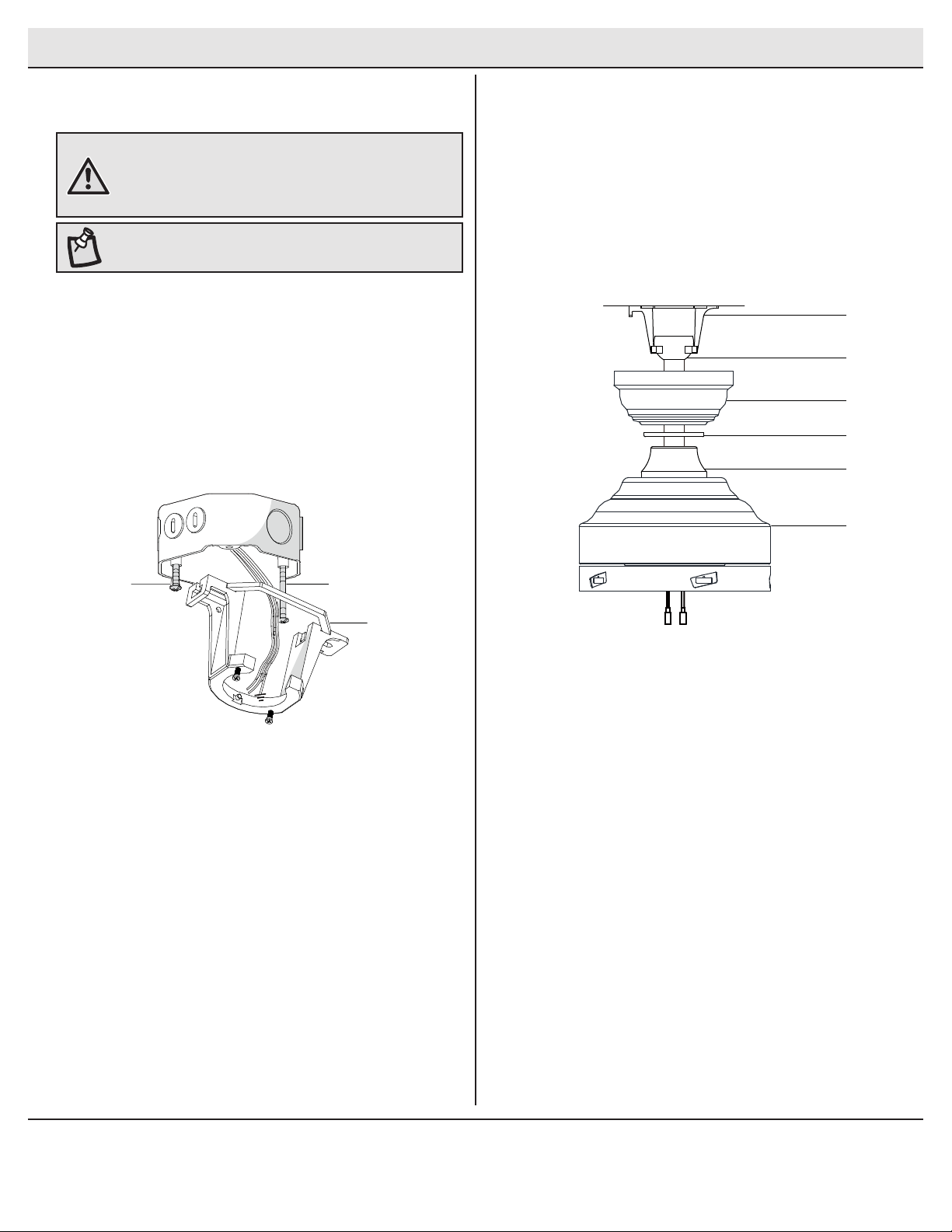

Assembly - Hanging the Fan
Attaching the fan to the electrical
box Hanging the fan
□Pass the 120-Volt supply wires through the center hole in the
slide-on mounting bracket (A).
□Install the ceiling slide-on mounting bracket (A) on the outlet
box by sliding the slide-on mounting bracket (A) over the two
screws (JJ) provided with the outlet box. If necessary, use leveling
washers (not included) between the slide-on mounting bracket
(A) and the outlet box. Note that the at side of the slide-on
mounting bracket (A) is toward the outlet box.
□Securely tighten the two mounting screws (JJ).
□Carefully lift the fan-motor assembly (E) up to the slide-on
mounting bracket (A).
□Seat the hanger ball portion of the ball/downrod assembly (B)
in the mounting bracket socket. Ensure that the tab on the
slide-on mounting bracket (A) socket is properly seated in the
groove in the hanger ball.
1 2
WARNING: To reduce the risk of re, electric shock, or other
personal injury, mount the fan to an outlet box or supporting
system marked “Acceptable for fan support of 35 lbs.
(15.9kg) or less” and use the mounting screws provided
with the outlet box.
NOTE: The mounting bracket (A) is designed to slide into place
on an outlet box with the outlet box screws (JJ).
A
JJ
JJ
A
B
E
C
D
DD

9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Hanging the Fan (continued)
3

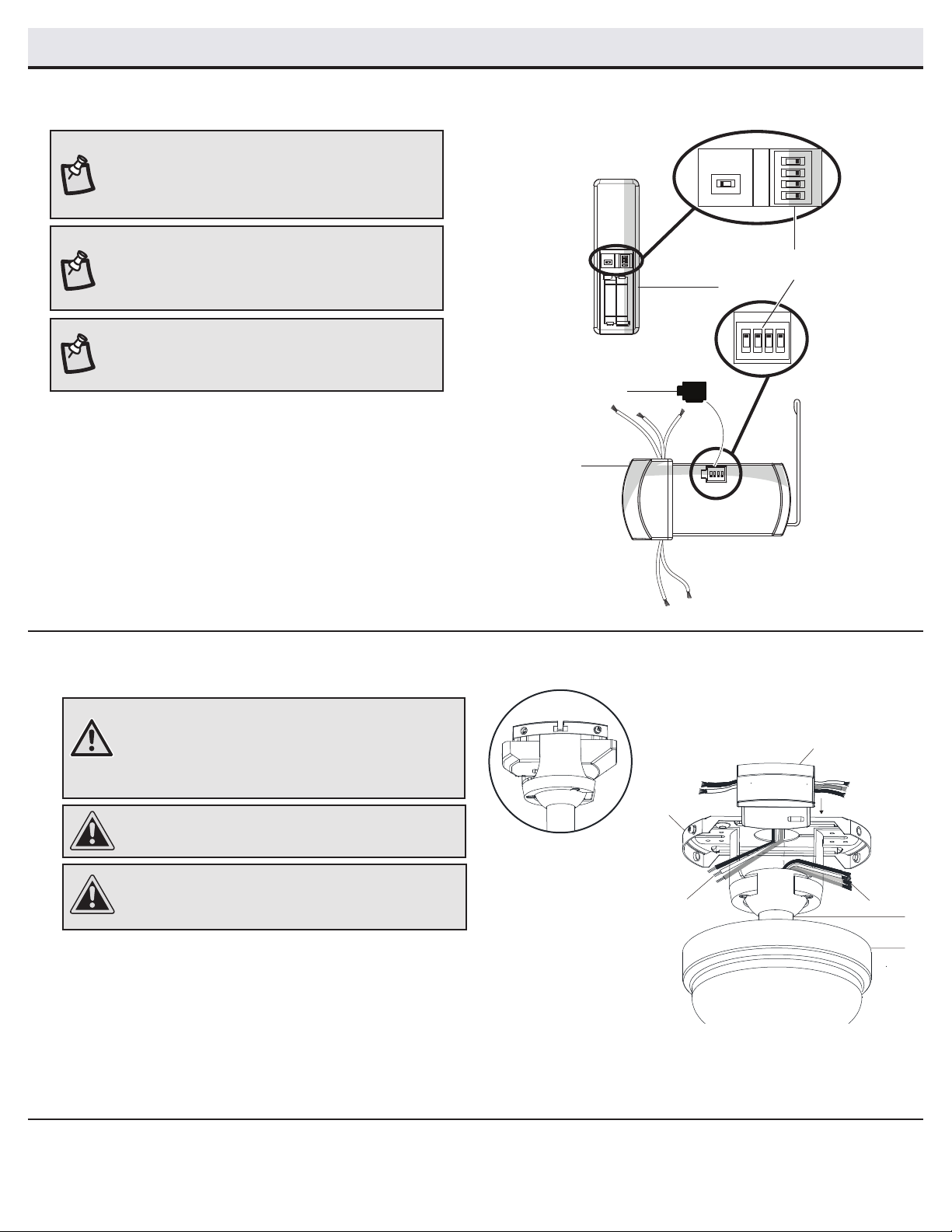

NOTE: The frequencies on your receiver and hand unit have
been preset at the factory. Before installing the receiver,
make sure the dip switches on the receiver and hand unit are
set to the same frequency. The dip switches on the hand unit
are located inside the battery compartment.
NOTE: The switch marked “O/D” controls the dimming
function of the lights. If using non-dimmable bulbs, use a
ballpoint pen or small screwdriver to set the switch to “O” to
disable the dimming function. If using dimmable bulbs, set
the switch to “D” to enable the dimming function.
Setting the code on the remote
control and receiver
□Remove the remote control (K) battery cover by pressing
rmly on the arrow and sliding the cover off.
□Slide the dip switches (ZZ) to your choice of either up or
down. The factory setting is up.
□Slide the dip switches (ZZ) on the receiver (J) to the same
position as set on the remote control (K).
□Install two 1.5V AAA batteries (included).
□Replace the battery cover on the remote control (K).
□Insert the silicone rubber stopper (OO) into the hole on the
receiver (J) to cover the dip switches.
K
J
ZZ
1 2 3 4
ON
D O
1 2 3 4
ON DIP
1 2 3 4
ON
D O
1 2 3 4
ON
OO
NOTE: The battery will weaken with age and should be
replaced before leaking takes place as this will damage the
hand unit. Dispose of used battery properly and keep the
battery out of the reach of children.
4Installing the receiver
□Position the house supply wires (AAA) to one side of the
slide-on mounting bracket (A); position the fan wires (BBB)
to the opposite side.
□Insert the narrow end of the receiver (as shown, at side
towards the ceiling) into the slide-on mounting bracket until
it rests on top of the ball/downrod assembly.
WARNING: To reduce the risk of re or electric shock,
remember to disconnect power. The electrical wiring must
meet all local and national electrical code requirements.
The electrical source and fan must be 110/120 volt, 60Hz.
Do not use this product in conjunction with any variable wall
control. Incorrect wire connection can damage this receiver.
CAUTION: If other fan wires are a different color, have this
unit installed by a licensed electrician.
CAUTION: Do not install the receiver in a damp location or
immerse in water (For indoor use only). Do not pull on or cut
the receiver leads shorter. Do not drop or bump the unit. B
C
AAA BBB
A
J

10
Assembly - Hanging the Fan (continued)

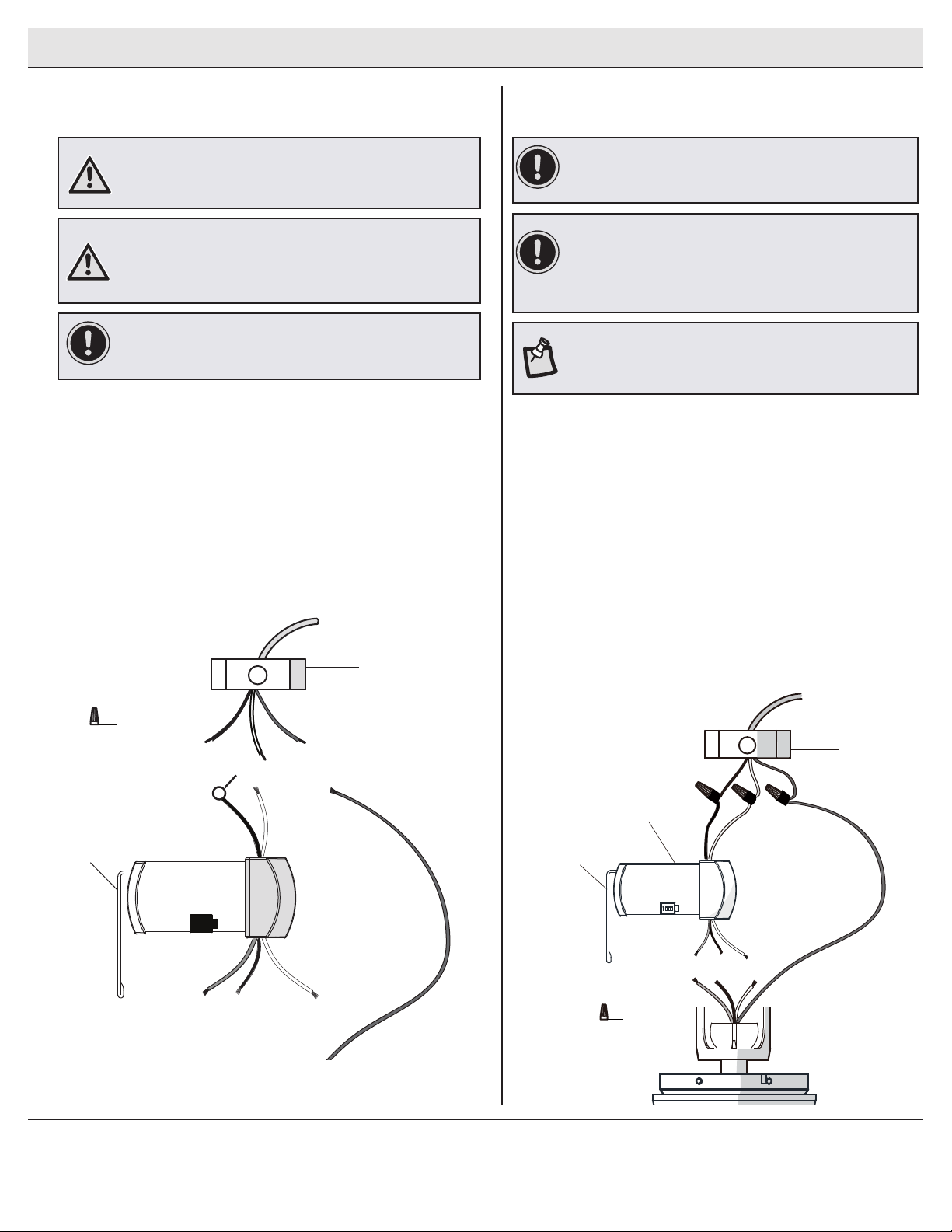

5Wiring the receiver to the household
wiring
IMPORTANT: Use the wire connecting nuts (BB) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
WARNING: Each wire nut supplied with this fan is designed to
accept up to one 12-gauge house wire and two wires from the
fan. If you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
□Spread the wires apart so that the green and white wires
are on one side of the outlet box and the black wire is on the
other side.
□Connect the green fan wires to the household ground wire
(this may be a green or bare wire) using a wire connecting
nut (BB).
□Connect the receiver (J) red wire to the household black
(hot) wire using a wire connecting nut (BB).
□Connect the receiver (J) white wire to the household white
wire (neutral) using a wire connecting nut (BB).
□Secure each wire connecting nut using electrical tape.
Red
Black
Green (or Bare)
Green
Outlet Box
in the ceiling (MM)
Receiver
Antenna
White
Receiver (J)
BB (x3)
1 2 3 4
ON DIP
WARNING: To avoid possible electrical shock, turn the
electricity off at the main fuse box before wiring. If you
feel you do not have enough electrical wiring knowledge or
experience, contact a licensed electrician.
Wiring the fan to the receiver
□The fan comes with 54 in. lead wires for use with an
extended ball/downrod assembly. If using the 6 in. ball/
downrod assembly (B) provided, you can cut the lead wires
to your desired length (no shorter than 13.5 in.) This will
make extra room in the canopy (C), if you do not wish to cut
the wires, you will need to neatly wrap them.
□Connect the fan motor white wire to the receiver white wire
using a wire connecting nut (BB).
□Connect the fan motor black wire to the receiver black wire
using a wire connecting nut (BB).
□Connect the fan motor blue wire to the receiver blue wire
using a wire connecting nut (BB).
□Secure each wire connecting nut using electrical tape.
□Turn the wire connecting nut (BB) upward and push the
wiring into the outlet box (MM).
6
IMPORTANT: Use the wire connecting nuts (BB) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
NOTE: The fan comes with 54 in. lead wires for use with an
extended ball/downrod assembly. If using the 6 in. ball/downrod
assembly (B) provided, you can cut the lead wires to your
desired length (no shorter than 13.5 in.).
IMPORTANT: If after this step, you decide to check that the
electrical connections have been successful, it is critical to
attach the light kit using the quick connector prior to testing.
The fan will not operate unless the light kit is connected to the
fan.
Outlet box
in the ceiling
(MM)
Receiver (J)
Blue
Receiver
Antenna
Black White
Green
BB (x3)
1 2 3 4
ON DIP

11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Hanging the Fan (continued)
Wrapping the extra wire
□Gently wrap the excess wire around the mounting bracket,
under the receiver.
□Secure with electrical tape.
7
NOTE: Follow this step ONLY if you did not cut the extra length off
from the wires coming from the ceiling fan to the receiver.
Mounting the fan-motor assembly
(standard mount)
□Align the locking slots of canopy (C) with the two screws (DD)
and alignment post (KK) in the mounting bracket (A).
□Push up the canopy (C) and turn clockwise until the align-
ment post (KK) engage to the round hole and the screws (DD)
engage to the key slots.
□Firmly tighten the two mounting screws (DD).
□Install the decorative bottom cover (FF) by aligning the covers
slots with screws in the bottom of the canopy (C). Rotate the
bottom cover clockwise to lock in place.
8
WARNING: When using the standard ball/downrod mounting, the
tab in the ring at the bottom of the mounting bracket must rest in
the groove of the hanger ball. Failure to properly seat the tab in
the groove could cause damage to the wiring.
WARNING: The locking slots of ceiling canopy are provided only
as an aid to mounting. Do not leave the fan assembly unattended
until all four canopy screws are engaged and rmly tightened.
C
A
DD
FF
B
E
KK

12
Assembly - Attaching the Blades
Attaching the blades to the blade
brackets
1
□Attach a blade (G) to blade bracket (E) by inserting the screws
(AA) into the holes in the blade and through the blade bracket
(F).
□Tighten each screw securely.
□Repeat this step for each blade and blade bracket.
Fastening the blade assemblies to
the motor
2
□Insert the blade/ blade bracket assembly through the hole in
the side of center ywheel on the fan-motor assembly (E).
Align the two screw holes in the blade bracket with the screw
holes in the center ywheel and secure with screws (CC).
G
F
AA
CC
F

13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Attaching the Light
Attaching the light kit tter assembly
1
□Remove one screw (LL) from the black bracket below fan
motor assembly (E), and loosen, but do not remove the
other two screws.
□Connect the blue wire exiting the bottom of the fan motor
assembly (E) with the black wire from the top of the light
kit tter assembly (H).
□Connect the white wire exiting the bottom of the fan motor
assembly (E) with the white wire from the top of the light
kit tter assembly (H).
□Push the light kit tter assembly (H) up to the black
bracket so that the two loosened screw heads t into
the keyhole slots. Turn the light kit tter assembly (H)
clockwise to secure.
□Re-install the screw (PP) that was removed in step 1.
□Make sure all the screws are rmly tightened.
CAUTION: To reduce the risk of electric shock, disconnect
the electrical supply circuit to the fan before installing the
light xture.
Installing the glass bowl
2
□Remove the nial nut (RR), hex nut (NN) and the rubber
washer (MM) from the threaded nipple of the light kit tter
assembly (H).
□Position the glass bowl (I) over the threaded nipple.
□Re-install the rubber washer (MM) and the hex nut (NN) to
the threaded nipple to secure the glass bowl (I) properly.
□Re-install and tighten the nial nut (RR).
CAUTION: Make sure the power is off before attaching or
removing the glass bowl.
WARNING: Allow the glass bowl to cool completely before
removing.
WARNING: To prevent breaking of the glass and to avoid
personal injury, hand tighten all parts in order. Do not use any
tools to tighten nut or nial.
LL
E
H
E
I
MM
NN
RR

14
YY
Operating Your Fan and Remote Control
Remote Control - Your fan is equipped with a remote control to operate
the speed and lights of your new ceiling fan.
Speed setting for warm or cool weather depends on factors such as
the room size, ceiling height, number of fans and so on.
The fan is shipped from the factory with the reversing switch (YY)
positioned to circulate air downward. If airow is desired in the
opposite direction, turn your fan off and wait for the blades to stop
turning, then slide the reversing switch (located on the top of the
motor housing) to the opposite position, and turn the fan on again. The
fan blades will turn in the opposite direction and reverse airow.
Warm weather - (Forward) A downward airow creates a cooling effect.
This allows you to set your air conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airow moves warm air off of the
ceiling. This allows you to set your heating unit on a lower setting
without affecting your comfort.
A. Warm weather
B. Cool weather
1. Power ON/OFF. - Press and release the button to turn the fan on or off.
□Press and hold the button for 5 seconds to use the “walk away time delay”; this will active the light
for 30 seconds (the light will be activated at 50% brightness).
2. Fan Speed - LEDs on the fan speed button will illuminate to the corresponding speed.
- Press and release 1 time - turns the fan on high speed.
- Press and release 2 times - turns the fan on medium speed.
- Press and release 3 times - turns the fan on low speed.
- Press and release 4 times - turns the fan off.
3. Light ON/OFF
□Press and release the button to turn the light on or off.
□Press and hold the button to activate the dimmer function (as long as you have NOT previously set
O/D dip switch in your remote to the “ON” position).
4. Comfort BreezeTM
□Press and release button to enable Comfort BreezeTM; this will change your fan speed randomly,
simulating a relaxing breeze. To cancel this feature press or .
5. Timer
- While the fan is on press 1 time - turns on a 2 hour run timer.
- While the fan is on press 2 times - turns on a 4 hour run timer.
- While the fan is on press 3 times - turns on an 8 hour run timer.
Operating Your Fan and Remote Control
N

15 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Troubleshooting
Problem Solution
The fan will not start. □Check the main and branch circuit fuses or breakers.
□Check to make sure the wall switch is in the on position if applicable.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check the battery in the transmitter.
□Ensure you are in the normal range of 10-20 feet.
□Ensure the dip switch settings are the same on the transmitter and receiver.
□Remember to turn off the power supply before checking the dip switches settings.
The fan is noisy. □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the ceiling fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on the
ceiling above the tip of one of the blades. Measure from a point on the center of each blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement. Repeat for each blade. Any measure-
ment deviation should be within 1/8”. Run the fan for ten minutes. If the fan continues to wobble please contact
Customer Service and a balancing kit will be sent to you at no charge.
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish. The
plating is sealed with a lacquer to minimize discoloration or tarnishing.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
□You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning

16
Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
